	Session Aims & Highlights
	- Observing Result  - Night Summary Plot  - Session Event Log
	Operational Issues
	- Critical Issues (0),  Major Issues (1),  Minor Issues (7),  Continuous Improvement (22)
	Images from 2019-10-28  >>

Session Aims & Highlights (2019-10-28)

Main aims

1. Targets: Acquire images of a selection of new targets plus monitoring of previous variable stars, nearby stars and comets.
   (Rain and/or cloud was expected to interrupt or possibly end the session at some point)
2. AstroMain:  Test new code that suspends session if 'AllSkyStars' count falls below 20
3. Rain Safety: Check the response of the Observatory/Software to a string of showers passing over/nearby


Equipment & Software

• 12" LX200 and ST-10XME
• 80mm APO and ZWO ASI 178MC
• CCDApp2, TheSky6, CCDSoft5, PHD2,  POTH Hub
• Pegasus UPB & Motor Focus, TCF-S
• SharpCap 3.2

• AstroMain 3.16.3,  Astroguard 1.2.8,   AstroPlan 1.12.8,  AstroShCap 1.2.6, AstroVOE 1.3.4, UPB 1.4.17  (AstroWeather 1.7.9, AstroAllSky 3.5)

Highlights

• Rain Safety . The Observatory/Software responded well to passing rain showers using cloud & rain sensors and rain threat data from DarkSky.net based on rain rader data. This was combined with monitoring using rain radar maps and data from the observatory.
• Continuous Improvement. A lot of continuous improvement ideas were generated during the session, some 22 in total

Lowlights

• Bug in 'Continue with New Plan' routine. A programming bug saw the AstroMain/AstroPlan programs go into a seemingly unending loop creating and loading 9 observing plans before being spotted and terminated.

Summary Plots & Logs

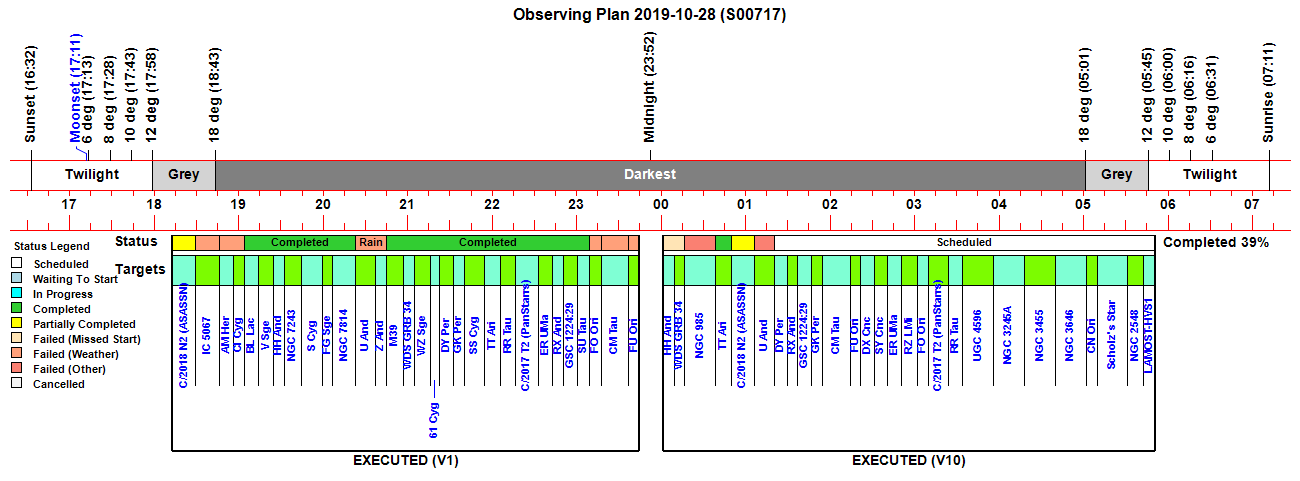

Observing Plan

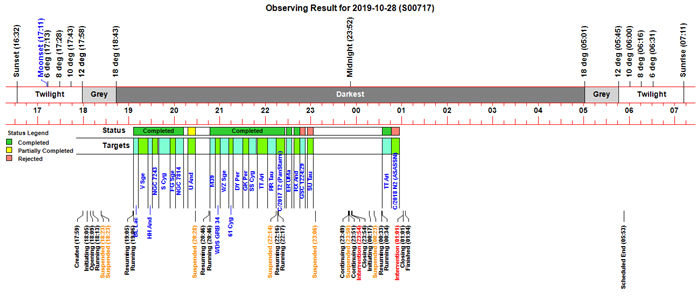

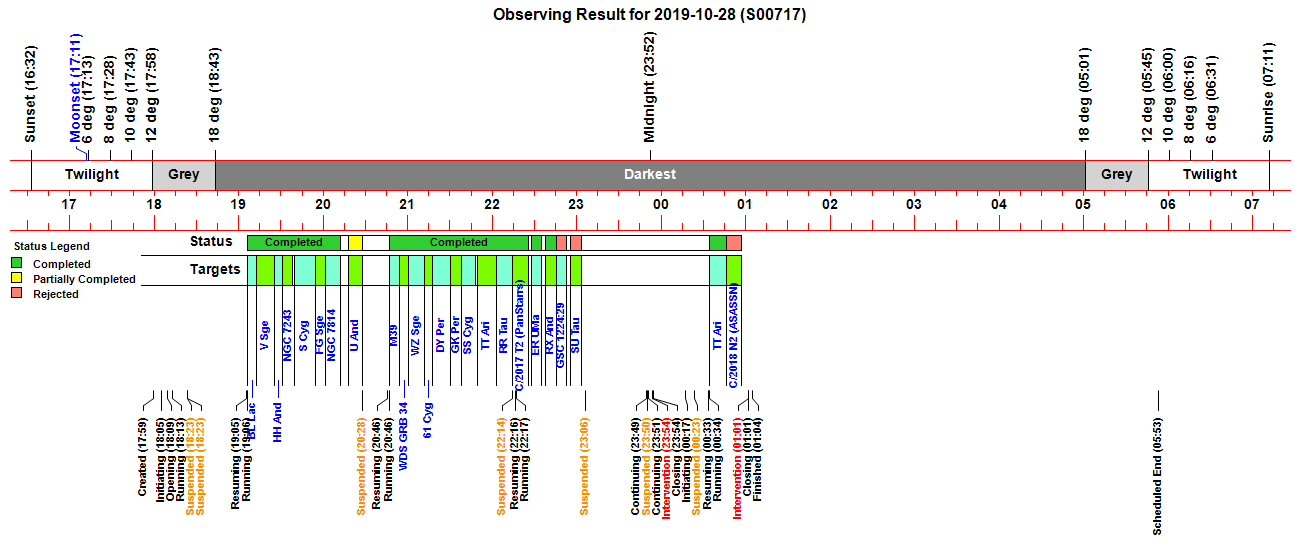

Observing Result

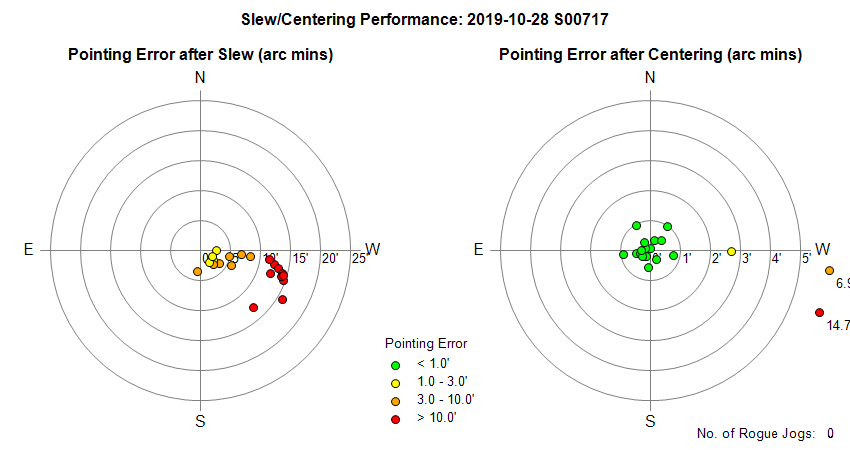

Slew/Centering Performance

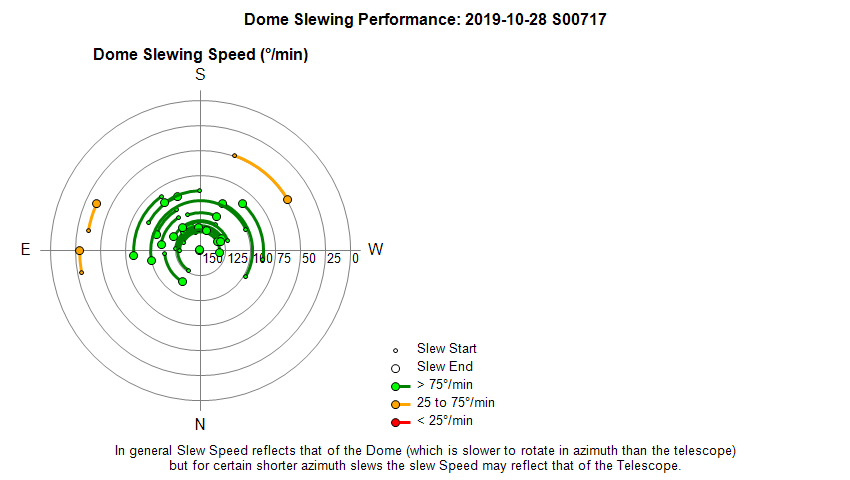

Dome Slewing Performance

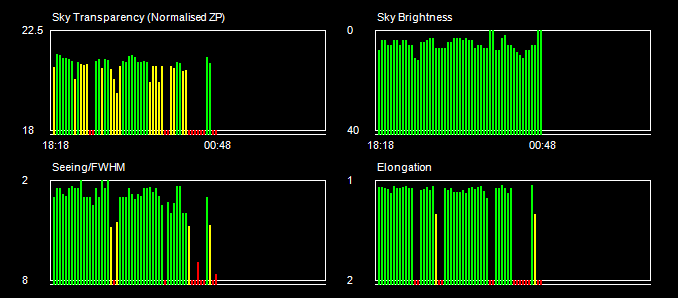

Sky Conditions (Locate Frames)

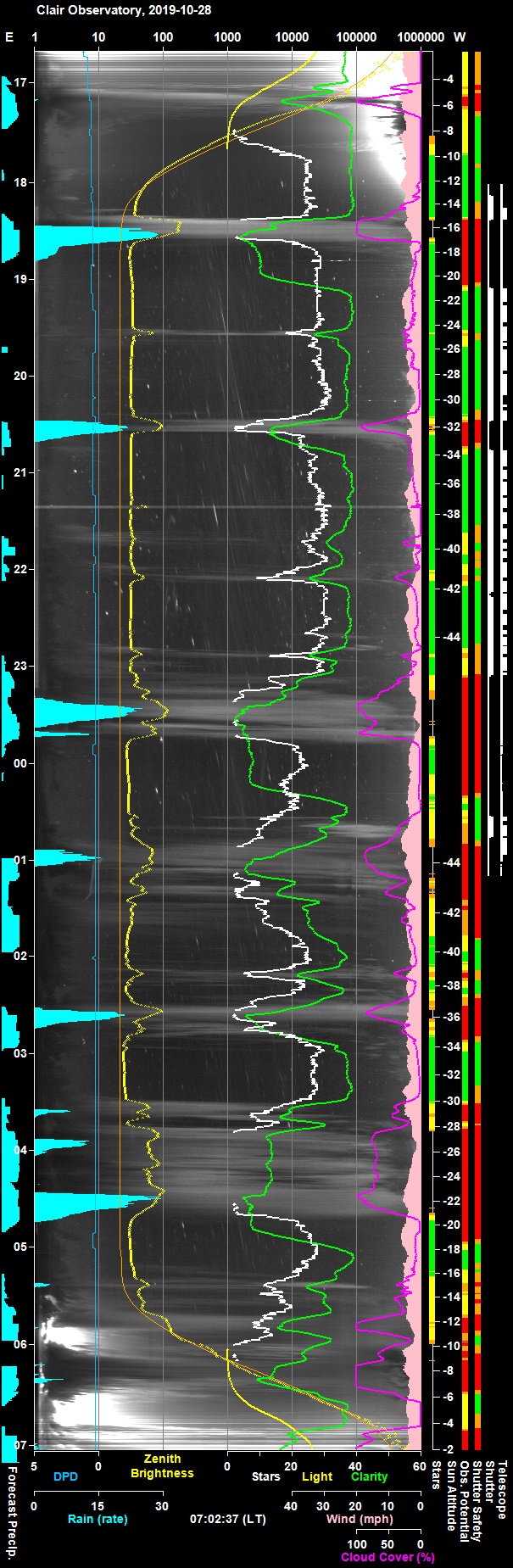

Night Sky Summary Plot Top axis: Sky Brightness at Zenith (in ADU/s) Lefthand axis: Local Time (hh LT). Righthand axis: Sun Altitude (degs)

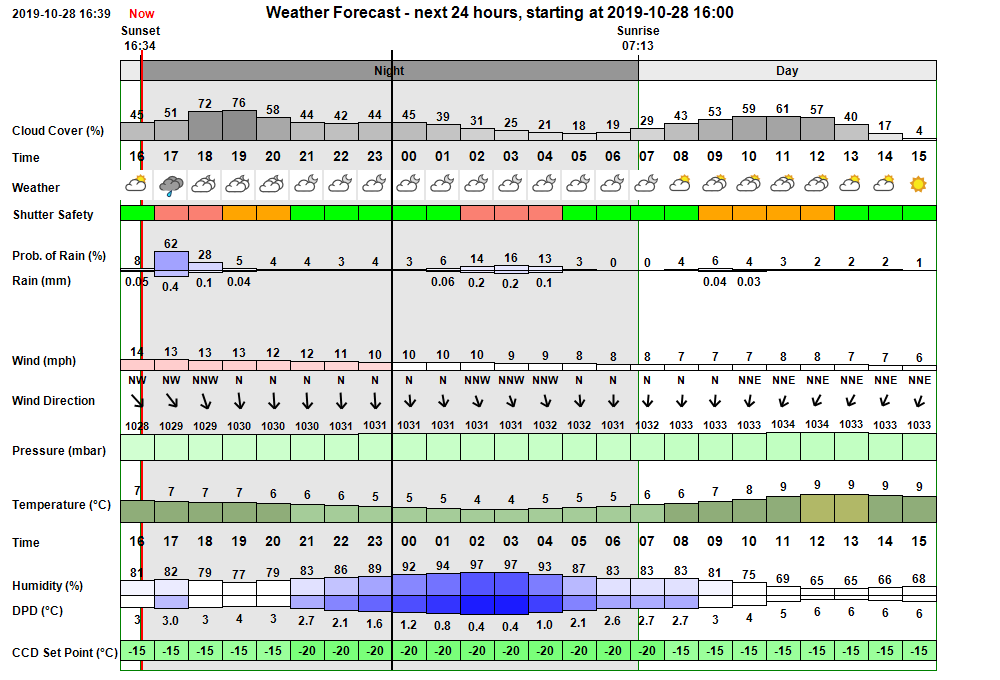

Pre-Session Weather Forecast (AstroWeather 1.7.8) Forecast showed patchy cloud up to 00:00 and then cloud thickeneing until total cloud cover at 04:00 In the event therre was a moderately clear interval between 23:00 and 00:45. Operations suspended at 23:42 and remained that way until the morning

Session Event Log

Time     Event Detail 17:59:28 Session Created Live Session Created (2019-10-28 S00717, ImageSaveNum: 717001) 17:59:46   Scope Switched On Scope Power has been switched on via UPB Powerbox. 18:01:34   Obs.Manager Started Obs.Manager started 18:01:36   Obs.Overseer Started Obs.Overseer started 18:01:41   Services Started Observatory Services started 18:01:58   Services Started Observatory Services started 18:04:55 Observatory (Auto) Observatory placed in Fully-Automated Mode 18:04:58 Session Pending Session pending (2019-10-28) 18:05:00 Session Initiating Session initiating (2019-10-28) 18:05:02   Plan Requested Observing Plan requested from AstroPlan (1.12.8) 18:05:57   Plan Loaded Observing Plan loaded to queue (2019-10-28 V1 BEST PLAN, Plan ID: 405) 18:06:10   Camera1 Connected SBIG Camera Connected (set point -20°C) 18:06:15   Telescope Connected Telescope Connected (TheSky6) 18:06:28 Session Equilibration Session ready for dome & camera equilibration 18:06:30 Wait on Weather Waiting for acceptable weather conditions 18:09:08   Shutter Opened Shutter opened (opening time 45s) 18:09:11   Equilibration Started Dome Equilibration started 18:13:08   Equilibration Ended Dome Equilibration ended (4.0 mins total) 18:13:10 Session Running Session running 18:13:12   Queue Started Observing Queue started (30 targets selected) 18:14:28       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S) 18:16:51       Focusing Completed Foc1 AutoFocus Completed (Profile No 1) 18:16:53     Target Started (1/30) Target started (1/30, C/2018 N2 (ASASSN)). Using SharpCap 18:23:40 Critical Cloud Alert Critical Cloud Alert (Obs.Manager will close the Shutter) 18:23:42   HardSuspend Called Hard Suspend is called due to Critical Conditions (threat of rain) 18:23:49     Target Aborted (1/30) Target aborted (1/30, C/2018 N2 (ASASSN)) due to threat of rain 18:23:51   Queue Paused Queue paused for SoftSuspend 18:23:53   Queue Resumed Queue resumed after SoftSuspend (0s) 18:23:55   Queue Paused Queue pausing for HardSuspend 18:23:57 Session Suspended Session suspended 18:23:59 Session Suspended Session suspended 18:24:39   Shutter Closed Shutter closed (closing time 49s) 18:24:41     Queue Resumed Queue resumed after HardSuspend (50s) 18:41:10     Target Cancelled Target cancelled (2/30, IC 5067) due to rain 18:50:46     Target Cancelled Target cancelled (3/30, GCVS AM Her) due to cloud 18:59:09     Target Cancelled Target cancelled (4/30, GCVS CI Cyg) due to cloud 19:05:45 Session Resuming Session resuming 19:06:30   Shutter Opened Shutter opened (opening time 45s) 19:06:33 Session Running Session running 19:06:35   Queue Resumed Observing Queue resumed 19:06:37     Target Started (5/30) Target started (5/30, GCVS BL Lac) 19:12:50     Target Completed Target completed (5/30, GCVS BL Lac) 19:12:52     Target Started (6/30) Target started (6/30, GCVS V Sge) 19:15:02       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S) 19:17:04       Focusing Completed Foc1 AutoFocus Completed (Profile No 2) 19:25:14     Target Completed Target completed (6/30, GCVS V Sge) 19:25:16     Target Started (7/30) Target started (7/30, GCVS HH And) 19:27:42       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S) 19:29:39       Focusing Completed Foc1 AutoFocus Completed (Profile No 3) 19:31:28     Target Completed Target completed (7/30, GCVS HH And) 19:31:30     Target Started (8/30) Target started (8/30, NGC 7243). Using SharpCap 19:38:58     Target Completed Target completed (8/30, NGC 7243) 19:39:52     Target Started (9/30) Target started (9/30, GCVS S Cyg) 19:42:26       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S) 19:44:15       Focusing Completed Foc1 AutoFocus Completed (Profile No 4) 19:54:35     Target Completed Target completed (9/30, GCVS S Cyg) 19:54:37     Target Started (10/30) Target started (10/30, GCVS FG Sge) 19:57:35       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S) 19:59:26       Focusing Completed Foc1 AutoFocus Completed (Profile No 5) 20:01:58     Target Completed Target completed (10/30, GCVS FG Sge) 20:02:00     Target Started (11/30) Target started (11/30, NGC 7814). Using SharpCap 20:12:37     Target Completed Target completed (11/30, NGC 7814) 20:18:14     Target Started (12/30) Target started (12/30, GCVS U And) 20:20:17       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S) 20:22:03       Focusing Completed Foc1 AutoFocus Completed (Profile No 6) 20:28:10 Critical Rain Alert Critical Rain Alert (Obs.Manager will close the Shutter) 20:28:12   HardSuspend Called Hard Suspend is called due to Critical Conditions (rain) 20:28:14     Target Aborted (12/30) Target aborted (12/30, GCVS U And) due to rain 20:28:16   Queue Paused Queue pausing for HardSuspend 20:28:17 Session Suspended Session suspended 20:28:59   Shutter Closed Shutter closed (closing time 43s) 20:29:01     Queue Resumed Queue resumed after HardSuspend (49s) 20:30:20     Target Cancelled Target cancelled (12/30, GCVS U And) due to rain 20:39:34     Target Cancelled Target cancelled (13/30, GCVS Z And) due to rain 20:46:01 Session Resuming Session resuming 20:46:46   Shutter Opened Shutter opened (opening time 45s) 20:46:49 Session Running Session running 20:46:51   Queue Resumed Observing Queue resumed 20:46:53     Target Started (14/30) Target started (14/30, M39). Using SharpCap 20:54:25     Target Completed Target completed (14/30, M39) 20:54:27     Target Started (15/30) Target started (15/30, WDS GRB 34) 20:56:39       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S) 20:58:30       Focusing Completed Foc1 AutoFocus Completed (Profile No 7) 21:00:15     Target Completed Target completed (15/30, WDS GRB 34) 21:00:17     Target Started (16/30) Target started (16/30, GCVS WZ Sge) 21:04:29       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S) 21:06:17       Focusing Completed Foc1 AutoFocus Completed (Profile No 8) 21:12:03     Target Completed Target completed (16/30, GCVS WZ Sge) 21:12:05     Target Started (17/30) Target started (17/30, 61 Cyg) 21:14:49       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S) 21:16:37       Focusing Completed Foc1 AutoFocus Completed (Profile No 9) 21:17:57     Target Completed Target completed (17/30, 61 Cyg) 21:18:00     Target Started (18/30) Target started (18/30, GCVS DY Per) 21:23:11       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S) 21:25:09       Focusing Completed Foc1 AutoFocus Completed (Profile No 10) 21:30:14     Target Completed Target completed (18/30, GCVS DY Per) 21:30:16     Target Started (19/30) Target started (19/30, GCVS GK Per) 21:33:03       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S) 21:35:03       Focusing Completed Foc1 AutoFocus Completed (Profile No 11) 21:38:04     Target Completed Target completed (19/30, GCVS GK Per) 21:38:06     Target Started (20/30) Target started (20/30, GCVS SS Cyg) 21:42:18       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S) 21:44:07       Focusing Completed Foc1 AutoFocus Completed (Profile No 12) 21:47:53     Target Completed Target completed (20/30, GCVS SS Cyg) 21:49:28     Target Started (21/30) Target started (21/30, GCVS TT Ari) 21:54:01       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S) 21:56:12       Focusing Completed Foc1 AutoFocus Completed (Profile No 13) 22:03:04     Target Completed Target completed (21/30, GCVS TT Ari) 22:03:06     Target Started (22/30) Target started (22/30, GCVS RR Tau) 22:05:59       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S) 22:07:50       Focusing Completed Foc1 AutoFocus Completed (Profile No 14) 22:14:35     Target Completed Target completed (22/30, GCVS RR Tau) 22:14:37   Queue Paused Queue paused for SoftSuspend 22:14:39   Queue Resumed Queue resumed after SoftSuspend (0s) 22:14:41     Target Started (23/30) Target started (23/30, C/2017 T2 (PanStarrs)). Using SharpCap 22:14:43 Session Suspended Session suspended 22:15:29   Shutter Closed Shutter closed (closing time 50s) 22:16:43 Session Resuming Session resuming 22:17:28   Shutter Opened Shutter opened (opening time 45s) 22:17:30 Session Running Session running 22:17:32   Queue Resumed Observing Queue resumed 22:25:35     Target Completed Target completed (23/30, C/2017 T2 (PanStarrs)) 22:28:10     Target Started (24/30) Target started (24/30, GCVS ER UMa) 22:30:45       Focusing Failed Foc1 Focusing Failed - star is too dim (TCF-S) 22:34:48     Target Completed Target completed (24/30, GCVS ER UMa) 22:37:58     Target Started (25/30) Target started (25/30, GCVS RX And) 22:41:00       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S) 22:42:50       Focusing Completed Foc1 AutoFocus Completed (Profile No 15) 22:45:28     Target Completed Target completed (25/30, GCVS RX And) 22:45:30     Target Started (26/30) Target started (26/30, GSC 1224:29) 22:48:19       Focusing Failed Foc1 Focusing Failed - star is too dim (TCF-S) 22:53:09     Target Completed Target completed (26/30, GSC 1224:29) 22:55:20     Target Started (27/30) Target started (27/30, GCVS SU Tau) 22:58:33       Focusing Failed Foc1 Focusing Failed - unable to find a star (TCF-S) 23:03:31     Target Completed Target completed (27/30, GCVS SU Tau) 23:04:26     Target Started (28/30) Target started (28/30, GCVS FO Ori) 23:06:07 Critical RainThreat Alert Critical Rain Threat Alert (Obs.Manager will close the Shutter) 23:06:09   HardSuspend Called Hard Suspend is called due to Critical Conditions (threat of rain) 23:06:11     Target Aborted (28/30) Target aborted (28/30, GCVS FO Ori) due to threat of rain 23:06:13   Queue Paused Queue pausing for HardSuspend 23:06:15 Session Suspended Session suspended 23:07:02   Shutter Closed Shutter closed (closing time 49s) 23:07:04     Queue Resumed Queue resumed after HardSuspend (54s) 23:12:19     Target Cancelled Target cancelled (28/30, GCVS FO Ori) due to cloud 23:31:04     Target Cancelled Target cancelled (29/30, GCVS CM Tau) due to rain 23:49:24     Target Cancelled Target cancelled (30/30, GCVS FU Ori) due to cloud 23:49:29   Queue Completed Job Queue completed 23:49:36 Session Continuing Session continuing 23:49:47   Plan Requested Observing Plan requested from AstroPlan (1.12.8) 23:50:01   Plan Loaded Observing Plan loaded to queue (2019-10-28 V2 BEST PLAN, Plan ID: 406) 23:50:04 Wait on Weather Waiting for acceptable weather conditions 23:50:06 Session Suspended Session suspended 23:50:08 Session Continuing Session continuing 23:50:13   Plan Requested Observing Plan requested from AstroPlan (1.12.8) 23:50:29   Plan Loaded Observing Plan loaded to queue (2019-10-28 V3 BEST PLAN, Plan ID: 407) 23:50:31 Wait on Weather Waiting for acceptable weather conditions 23:50:33 Session Suspended Session suspended 23:50:35 Session Continuing Session continuing 23:50:41   Plan Requested Observing Plan requested from AstroPlan (1.12.8) 23:50:51   Plan Loaded Observing Plan loaded to queue (2019-10-28 V4 BEST PLAN, Plan ID: 408) 23:50:53 Wait on Weather Waiting for acceptable weather conditions 23:50:55 Session Suspended Session suspended 23:50:57 Session Continuing Session continuing 23:51:03   Plan Requested Observing Plan requested from AstroPlan (1.12.8) 23:51:13   Plan Loaded Observing Plan loaded to queue (2019-10-28 V5 BEST PLAN, Plan ID: 409) 23:51:15 Wait on Weather Waiting for acceptable weather conditions 23:51:17 Session Suspended Session suspended 23:51:19 Session Continuing Session continuing 23:51:24   Plan Requested Observing Plan requested from AstroPlan (1.12.8) 23:51:40   Plan Loaded Observing Plan loaded to queue (2019-10-28 V6 BEST PLAN, Plan ID: 410) 23:51:42 Wait on Weather Waiting for acceptable weather conditions 23:51:44 Session Suspended Session suspended 23:51:46 Session Continuing Session continuing 23:51:51   Plan Requested Observing Plan requested from AstroPlan (1.12.8) 23:52:07   Plan Loaded Observing Plan loaded to queue (2019-10-28 V7 BEST PLAN, Plan ID: 411) 23:52:09 Wait on Weather Waiting for acceptable weather conditions 23:52:11 Session Suspended Session suspended 23:52:13 Session ContinuingR Session continuing 23:52:18   Plan Requested Observing Plan requested from AstroPlan (1.12.8) 23:52:54   Plan Loaded Observing Plan loaded to queue (2019-10-28 V8 BEST PLAN, Plan ID: 412) 23:52:57 Wait on Weather Waiting for acceptable weather conditions 23:52:59 Session Suspended Session suspended 23:53:01 Session Continuing Session continuing 23:53:06   Plan Requested Observing Plan requested from AstroPlan (1.12.8) 23:53:37   Plan Loaded Observing Plan loaded to queue (2019-10-28 V9 BEST PLAN, Plan ID: 413) 23:53:40 Wait on Weather Waiting for acceptable weather conditions 23:53:42 Session Suspended Session suspended 23:53:44 Session Continuing Session continuing 23:53:49   Plan Requested Observing Plan requested from AstroPlan (1.12.8) 23:54:14 User Intervention User request to close and finish session 23:54:16 Session Closing Session closing 23:54:18   Shutter Closed Shutter already closed (closed at 23:07, closing time 49s) 23:54:29   Dome Parked Dome parked (parking time 15s) 23:54:41   Telescope Parked Telescope parked (parking time 11s) 23:55:24 Session Housekeeping Housekeeping Started (Cleanup FITS, Create Fits Summary, Transfer Files) 23:55:39 Session Finished Session Finished 00:08:45 Session Resumed Live Session Resumed (2019-10-28 S00717, ImageSaveNum: 717187) 00:12:05   Scope Switched On Scope Power has been switched on via UPB Powerbox. 00:13:13   Obs.Manager Started Obs.Manager started 00:13:15   Obs.Overseer Started Obs.Overseer started 00:13:20   Services Started Observatory Services started 00:16:58 Observatory (Auto) Observatory placed in Fully-Automated Mode 00:17:01 Session Pending Session pending (2019-10-28) 00:17:03 Session Initiating Session initiating (2019-10-28) 00:17:05   Plan Loaded Observing Plan loaded to queue (2019-10-28 V10 BEST PLAN, Plan ID: 414) 00:17:12   Camera1 Connected SBIG Camera Connected (set point -20°C) 00:18:27   Telescope Connected Telescope Connected (TheSky6) 00:18:40 Session Equilibration Session ready for dome & camera equilibration 00:18:42 Wait on Weather Waiting for acceptable weather conditions 00:23:42 Session Suspended Session suspended 00:23:44   Queue Started Observing Queue started (27 targets selected) 00:23:46     Target Missed (1/27) Target's time slot was missed (1/27, GCVS HH And) 00:23:48     Target Missed (2/27) Target's time slot was missed (2/27, WDS GRB 34) 00:30:31     Target Cancelled Target cancelled (3/27, NGC 985) due to other condition 00:33:27 Session Resuming Session resuming 00:34:12   Shutter Opened Shutter opened (opening time 45s) 00:34:16 Session Running Session running 00:34:18   Queue Resumed Observing Queue resumed 00:34:20     Target Started (4/27) Target started (4/27, GCVS TT Ari) 00:36:57       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S) 00:39:11       Focusing Completed Foc1 AutoFocus Completed (Profile No 16) 00:57:19     Target Completed Target completed (5/27, C/2018 N2 (ASASSN)) 01:01:54 User Intervention User request to close and finish session 01:01:57   Queue Aborted Job Queue aborted 01:01:59 Session Closing Session closing 01:02:04   Shutter Closed Shutter already closed (closed at 00:47, closing time 49s) 01:03:20   Dome Parked Dome parked (parking time 76s) 01:03:30   Telescope Parked Telescope parked (parking time 10s) 01:04:14 Session Housekeeping Housekeeping Started (Cleanup FITS, Create Fits Summary, Transfer Files) 01:04:34 Session Finished Session Finished

Back to Top

Operational Issues (2019-10-28, S717)

• Critical Issues (0)
• Major Issues (1)
• Minor Issues (7)

• Continuous Improvement (22)

[ Prev | Next ]

Critical Issues

• None

Major Issues

• After finishing V1 Plan, AstroMain/AstroPlan went into an unending loop 'Continuing Session, Create & Load Observing Plan,   Suspending, Set Plan to Executed,  followed by a further request to make a new plan.  9 or 10 plans were created in this way before the problem was spotted.   This was all done whilst the session was in the Suspended State. Problem most-likely relates to code added a while ago for continuing session with a new plan without going through Initiating/Starting Equipmen/Equilbration etc.  The loop may well have finished if/when the skies eventually cleared or end of session had been reached, but database could have been filled up causing other problems.  Reviewing logs and code shows that the problem occurs because after being in the 'Continuing State (where New Plan is loaded) and after reentering the Suspended State, and Obs.Manager immediately re-tests for a Completed Job Run and because CompletedFrameJobs flag is still True, it spawns another a cycle of going to Continuing State and reloading a further new plan. Fixed by lowering the CompletedFrameJobs flag after it has done its job.
  Fixed 2019-10-29  (AstroMain 3.16.4)

Minor Issues

• Focus Field taken at start of session whilst the session was suspended and the shutter still closed.
  (This was a problem that occurred during an attempted session on 2019-10-27).
  Fixed 2019-10-28  (AstroMain 3.16.3)

• Programs on Observatory Program couldn't be activated (i.e. brough to focus/top) using TaskBar.
  VNC connection was being used at the time .  It was suspected that this was a Windows System glitch that can be fixed by restarting the Obsrevatory Computer
  Fixed 2019-10-29  (Observatory Computer)

• Rain Shower came very fast with little or no prior cloud or rain threat warning. Investigate this in case it counts as an incident /near miss.  Rain first detected at 20:28:06.  Rain Alert came at 20:28:10 and shutter immediately commanded to close (even before moving to Suspended State). Shutter finished closing at 20:28:59.   Software responded ok once rain was detected.  Examine if there was danger to equipment.   Check if Hard Wired Relay is operative.
  Resolved 2019-10-29 (The Observatory/Software responded absolutely correctly)

  Time Line
  20:26:23       AllSkyStars : Star Count falls below 20
  20:27:18       CloudSensor: Clarity 30.2   Rain -1.1 (dry / clear)
  20:28:01       CloudSensor: Clarity 26.9   Rain -1 (dry / starting to cloud)
  20:28:06       CloudSensor: Clarity 26.9   Rain  7.1    (rain started , but cloud still not thick)
  20:28:10       Critical Rain Alert issued (Rain reading 7.1)
  20:28:10       Command sent to begin closing observatory
  20:28:54       CloudSensor: Clarity 24   Rain  12.1    (rain,  but cloud still not thick)
  20:28:59       Shutter finished closing
  20:29:32       CloudSensor: Clarity 22.4   Rain  16.2  (rain strong)
  20:32:41       CloudSensor: Clarity 13.9   Rain  22.3  (rain speak , thickest cloud
  20:41:20       CloudSensor: Clarity 19.3   Rain  -0.2  (rain stopped)

  Video shows this was a small fast moving & relatively thin cloud (but nevertheless rain producing)

• AllSky Camera is showing an artifact / object on the northern horizon view.   Examine AllSky Camera video in morning showed that this was an artificat produced by a large rain drop left from one of the passing showers
  Resolved 2019-10-29

• Composite Plan not plotting both V1 and V10 plan (this was after deleting the V2 to V9 plans which had been created by a bug in AstroMain).  It was  supposed that there is an array limit issue and there may indeed have been a temporary problem on this front however the problem resolved itself and composite chart was successfully drawn.
  Resolved 2019-10-29

• After rechecking the 'Suspend When Stars < 20' option the Obs.Manager/Job Executor failed to perform a soft-suspend. After working 'ok' , and with V10 run suspended due to too few stars the Suspend When Stars <20 option was unchecked, which trigger the session to begin running.  Checking Report Messages and Log Files show that the SoftSuspend was called ok aand seen by Job Executor at 00:46 (but its effect was masked at the the time by a bug in ExecuteQueue routine that saw the next target proceed when it shouldn't have)
  Resolved 2019-10-29

  Note: SessionEvents are missing from the Database for this period ? (this probably corresponded to the time when the SessionEvents table was being edited to workaround the posting of unwanted events left over from Bug that saw the creation and loading of 9 plans in quick succession.

• SoftSuspend came just before starting Target 5/27  (C/2018 N2 (ASASSN) ) but the target wasn't held but proceeded to execute (slew,attempted centering and ShCap imaging) whilst the session proceeded to Suspend and Close the Shutter. Queue didn't correctly suspend under the next target (6/27) was reached.
  Fixed 2019-10-29  (AstroMain 3.16.4)

  Time Line
  00:44:00.00   Too Few Stars condition triggered when 'Suspend when stars<20' option checked on Obs.Manager Tab
  00:46:09.85   Job Executor finishes TT Ari and sees that the bSoftSuspend flag is raised
  00:46:09.86   Job Executor pauses and sets bSoftSuspendOk flag
  00:46:09.86  Job Executor immediately continues (seemingly before giving a chance for Obs. Manger to lower the SoftSuspend Flag
  00:46:09.88   Target 5/27 (C/2018 N2 (ASASSN) ) proceeds
  00:46:11.66   Telescope begins slewing to Target 5/27
  00:46:14.78    Session State changes to Suspended

• SessionEvents are missing from the Database for this period around 00:45 to 01:00.  Recalling the session operation it seems that this corresponded to the time when the SessionEvents table was being manually edited in AstroPlan to workaround the problem that unwanted events were being plotted on the Observing Results chart (these were events produced when a Obs.Manager bug saw the creation and loading of 9 plans in quick succession.
  Resolved 2019-10-29

• Create SharpCap Summary File is not listing imagesets for each target
  >> To be fixed  (AstroMain)

Continuous Improvement

• Record the unexpectedly behaviour when clarity values didn't immediately rise following a shower but remained low for 20 minutes after.  Following a short rain shower at 18:20-18:30 there was a x min delay in cloud sensor clarity readings returning to normal clear sky values.  In contrast the AllSky Stars count rose immediately the clouds passed. It is assumed that rain drops on the cloud sensor kept the clarity values low until they had the rain drained or evaporated away.
  Done 2019-10-29

  Time Line
  18:18:41  Begin ShCap Imaging
  18:18:43  CloudSensor: Clarity 38.2   Rain  -1.2    (Clear, Dry )
  18:18:51   AllSkyStars 24  (Clear)

  18:23:34   AllSkyStars 4 (Cloudy
  18:23:35   CloudSensor: Clarity 23.2   Rain  -1.2    (Cloud developing, Dry )
  18:23:40   Critical Conditions Alert Issue / Hard Suspend Called
  18:23:57   Session Suspended
  18:27:28   CloudSensor: Clarity 14.2   Rain  2.5   (Cloudy, Rain Started )
  18:32:36   CloudSensor: Clarity 9.1   Rain  29.1  (V.Cloudy, Rain Peak )
  18:37:09   AllSkyStars 21   (Clearing, Stars 20+)
  18:37:40   AllSkyImage : Zenith Clearing
  18:45:31   AllSkyImage : Zenith Clear
  18:49:10   AllSkyStars 29   (Clear)
  18:49:25   CloudSensor: Clarity 10.9  Rain  0   (V.Cloudy, Rain Stopped)
  18:53:00   AllSkyImage : Sky Completely clear
  18:54:55   AllSkyStars 28   (Clear)
  18:55:02   CloudSensor: Clarity 9.7  Rain   -1  (Still Cloudy according to cloud sensor)
  19:03:17   AllSkyStars 28   (Clear)
  19:03:32   CloudSensor: Clarity 24.4  Rain  -1  (Clearing Dry)
  19:05:45   Session Resuming
  19:10:05   AllSkyStars 29  (Clear)
  19:10:11   CloudSensor: Clarity 38.1  Rain  -1  (Clear Dry)

• Examine Session resumption following rain shower at 20:28 . Was the appropriate delay added when star count was 20-24.  Examine logs and other records .
  This rain shower was short and fast moving, sky already clearing whilst rain sensor was still recording rain.    It seems that Observatory/Software responded correctly to the situation.
  Done 2019-10-29

  TimeLine
  20:28:06       CloudSensor: Clarity 26.9   Rain  7.1    (rain started )
  20:28:17       Session Suspended
  20:36:19       AllSkyStars : Star Count rises to 20+   (delay 30s+ to get to AstroMain)
  20:41:20       CloudSensor: Clarity 19.3   Rain  -0.2  (rain stopped)
  20:44:19       AllSkyStars : 8 mins since Star Count rose above 20+  (delay 30s+ to get to AstroMain)
  20:46:01       Session Resuming
  20:46:01       CloudSensor: Clarity 30.5   Rain  -0.9  (sky clear and dry)

• SoftSuspend flag should be lowered by Obs.Manger if conditions improve
  Done 2019-10-29  (AstroMain 3.16.4)

• C/2018 N2 (ASASSN) target scheduled for SharpCap imaging aborted due to cloud/shower. How did it go. ?
  After starting in clear, dry conditions (clarity 38.7), there was an Rain Threat Alert  (clarity 23.2) with call for Hard Suspend , (plus a call for Soft Suspend). Imaging aborted at
  Done 2019-10-29.

  Time Line
  18:18:41  Begin ShCap Imaging
  18:18:42  ShCap recieves message to begin ImageSet
  18:23:40  Critical Conditions Alert Issue / Hard Suspend Called
  18:23:40  ShCap recieves message to abort ImageSet
  18:23:49  Job Executor reports that target has been aborted
  18:23:51  TargetFrameJPG saved.

• Add Session Number to Observatory field on ObsViewer  Chart (eg. Clair Observatory, S717) when session is live.
  Also Add Session State as an additional field in top left part of ObsViewer Chart.
  Done 2019-10-29  (AstroMain 3.16.4)

• Add Target cross-hairs to Live Locate Frame Pictures. Colour code it Green, Yellow, Orange, Red according to Pointing Error.
  Done 2019-11-04  (AstroMain 3.17)

• Report Message 'Checking PHD2 Connections' should be indented by one Tab2.   Investigating showed that the problem was not due to absence of Tab2 indentation but due to the AddComment message being too long.
  Fixed 2019-10-29  (AstroMain 3.16.4)

• Master RichWeb Links page on Observatory Computer (Laptop9) should be updated to latest version
  Done 2019-10-29 (Observatory Computer)

• Focus Profile Graph to be widened by c. 20 pixels. FocusProfile Chart widened by extra 100 pixels to allow longer Field/Target Names to be shown without clipping
  Done, 2019-10-31 (AstroMain 1.16.5)

• Modify WebPage to show a gap between pictures of the Manager Tab and the Services Panel
  (need to introduce a table columns to achieve this
  Done 2019-10-29  (Website)

• On Session Web Page the fields Report File, Log File, Session Images, Session Notes should only be shown if Session State is Finished or Session Status is non-active
  Done 2019-10-29  (Website)

• Create a 'Current Target Information Chart' to show status of the current / last target on the Current Session Web Page.  This has been 'requested' before but the the definition of the requirement has been tightened.   Uses 'Session.TargetInfo1.png' &  'Session.TargetInfo2.png'
  Done 2019-10-31   (AstroMain 3.16.5, AstroPlan 1.2.9 & Website)

• Get rid of the session event 'Queue Resumed after Hard Suspend'. Record as a Logfile entry instead.
  Done 2019-10-29  (AstroMain 3.16.4)

• Add new session event for 'Soft Suspend' called.  Include reason for soft suspend (stars <20 or clarirty <24)
  Done 2019-10-29  (AstroMain 3.16.4)

• Distinguish between Shutter Closure events associated with Suspending the Session from those associated with Closing the Session. Suggest flag_yellow for Shutter Closures for Suspension, retaining flag_green for Shutter Closures for Shutdown.
  Done 2019-10-29  (AstroMain 3.16.4)

• Guiding Stats Results file lacked white space line between U And and WZ Sge.  The normal Overall Guiding Stats + following whitespace line were missing from U And as the session was suspended by a hard suspend.
  Fixed 2019-10-29  (AstroMain 3.16.4)

• Add Rain % Probability to Obs.Viewer when rain is threatening and Rain flag has turned yellow.
  Fixed 2020-05-12 (AstroMain 3.22)

• Focus Profile for TT Ari (Target 1/1 , V10) showing the FWHM value 99.00 whilst making profile.
  Done, 2019-10-31 (AstroMain 1.16.5)

• If Shutter is already closed or is closing when Session enters 'Suspended' State , an appropriate confirmatory Report messages should be issued.   Such as
  "Checking Shutter... Ok     Shutter is already closed (closed at 2307, closing time 49s) ", like the message  that is issued during Observatory Closing
  Done 2019-10-29  (AstroMain 3.16.4)

• WZ Sge Focus Profile 8 FWHM Curve looks good and it is unclear why it was overridden & the min FWHM values used. Examine logs associated with Focus Run.  Focus Profile 8 was replayed against AstroMain 3.36 (2021-02-09) and it was confirmed that the original issue has been successfully resolved by the various earlier fixes and improvements made in 2020.n.
  Fixed 2021-02-09 (AstroMain)

• WZ Sge Locate 3 had trailed stars. Why were they trailed ? Unclear why they were trailed.   This seems to have been just a random glitch affecting this one particular target.  Decision made in Feb 2021 to close out this long standing query.
  Fixed 2021-02-09 (Session)

• NightSummary6 Plot should be sent to Live Folder for update to Website at same time that AllSky Image is sent for update.
  >> Add feature/handling  (AstroAllSky).  How this been implemented ? (Nov 2020)
