	Session Aims & Highlights
	- Observing Result  - Night Summary Plot  - Session Event Log
	Operational Issues
	- Critical Issues (0),  Major Issues (2),  Minor Issues (2),  Continuous Improvement (1)
	Guiding Performance
	Images from 2020-01-06  >>

Session Aims & Highlights (2020-01-06)

Main aims

1. Targets: Acquire images of a selection of targets including deep sky objects, variable stars, nearby stars and comets.
2. Stability:  Ensure that new version of AstroMain is stable following adjustments to autoguiding/PHD2 and recent bug fixes
3. Guiding:  Continue checking guiding performance after recent changes

Equipment & Software

• 12" LX200 and ST-10XME
• 80mm APO and ZWO ASI 178MC
• CCDApp2, TheSky6, CCDSoft5, PHD2,  POTH Hub
• Pegasus UPB & Motor Focus, TCF-S
• SharpCap 3.2, PHD2  2.6.6dev3

• AstroMain 3.19 ,  Astroguard 1.2.9,   AstroPlan 1.13.8,  AstroShCap 1.2.10, AstroVOE 1.3.4, UPB 1.4.17  (AstroWeather 1.8.2, AstroAllSky 3.5.1)

Highlights

• Targets. x targets successfully acquired.

Lowlights

•   Guiding Performance.  Several targets suffered from poor guiding in Declination. due to variable backlash experienced at different points in the sky.

Summary Plots & Logs

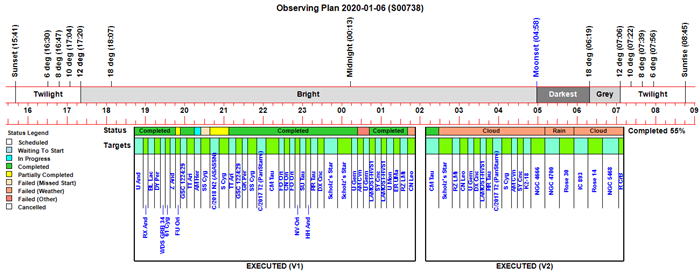

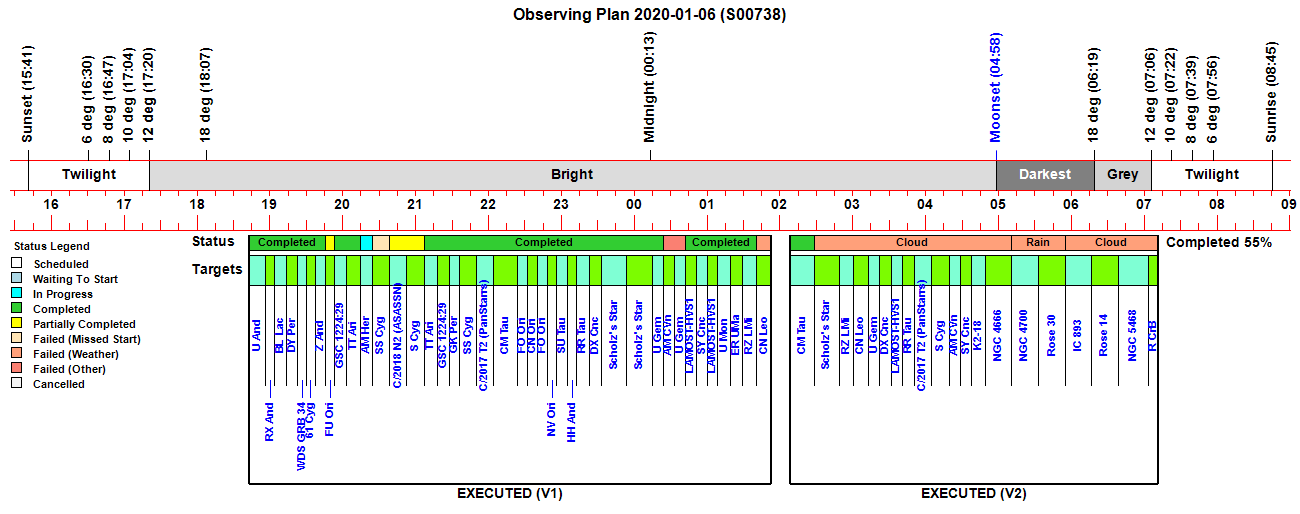

Observing Plan

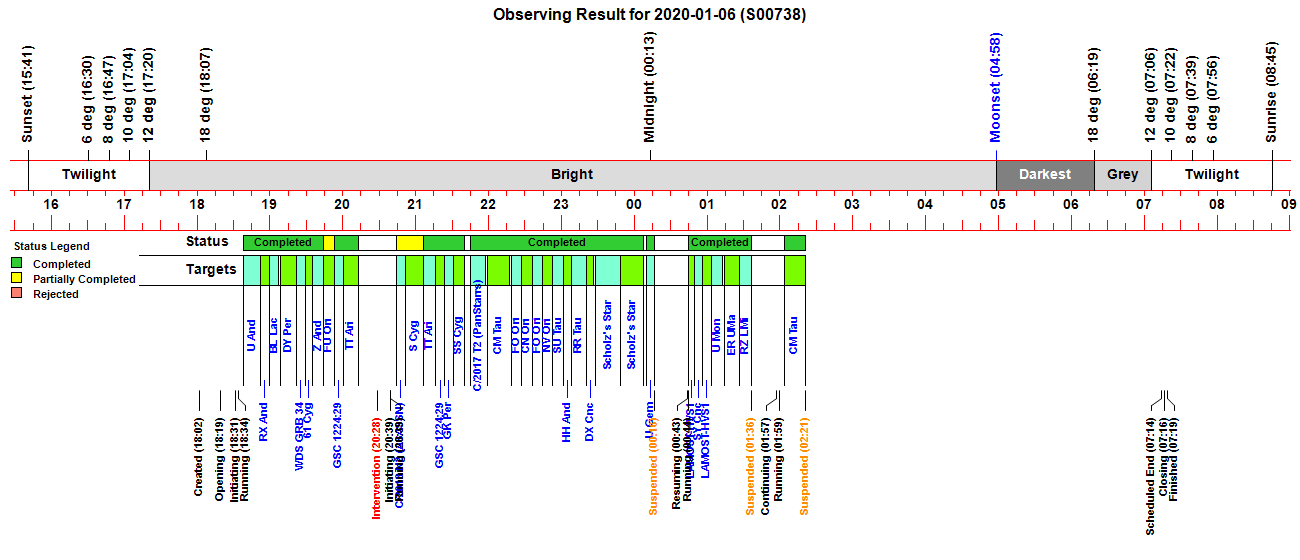

Observing Result

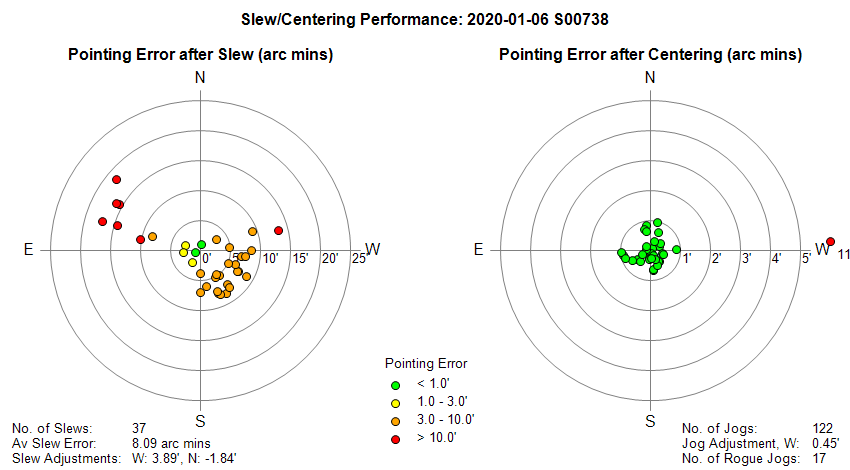

Slew/Centering Performance

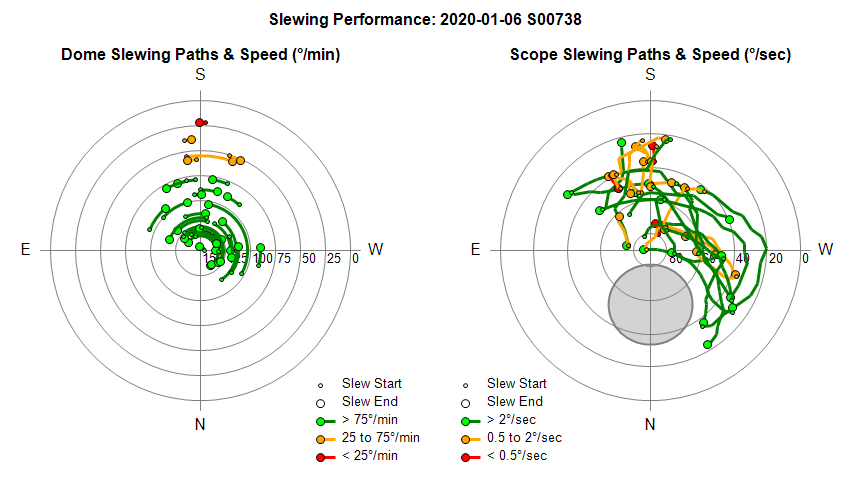

Dome Slewing Performance

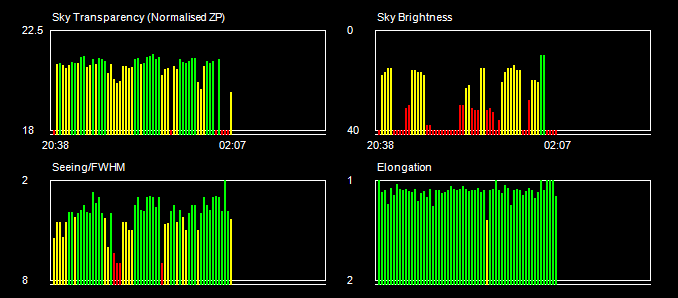

Sky Conditions (Locate Frames)

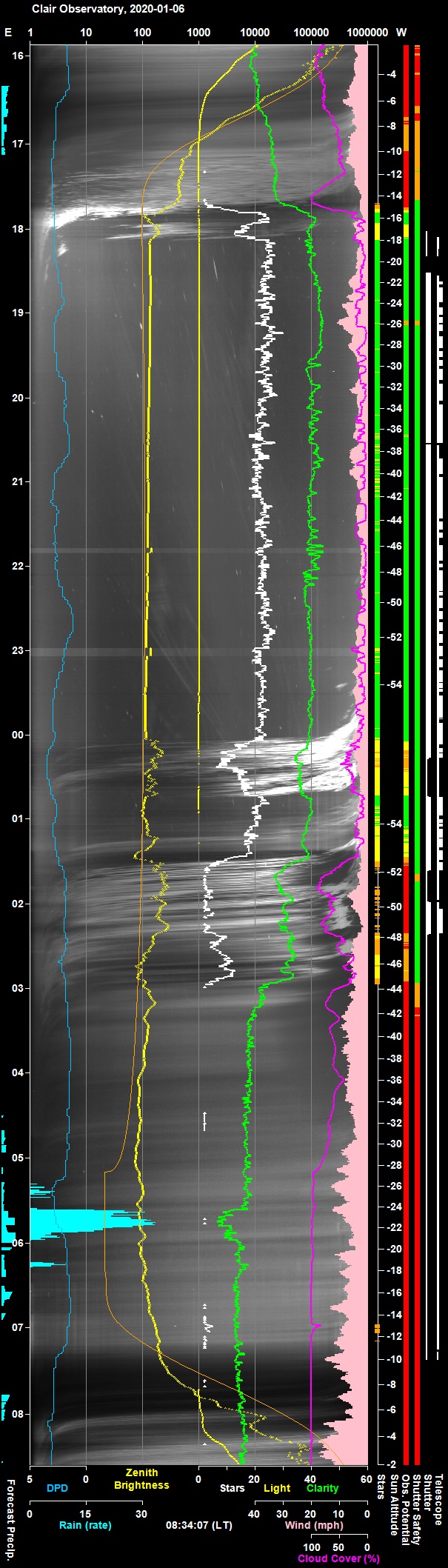

Night Sky Summary Plot Top axis: Sky Brightness at Zenith (in ADU/s) Lefthand axis: Local Time (hh LT). Righthand axis: Sun Altitude (degs)

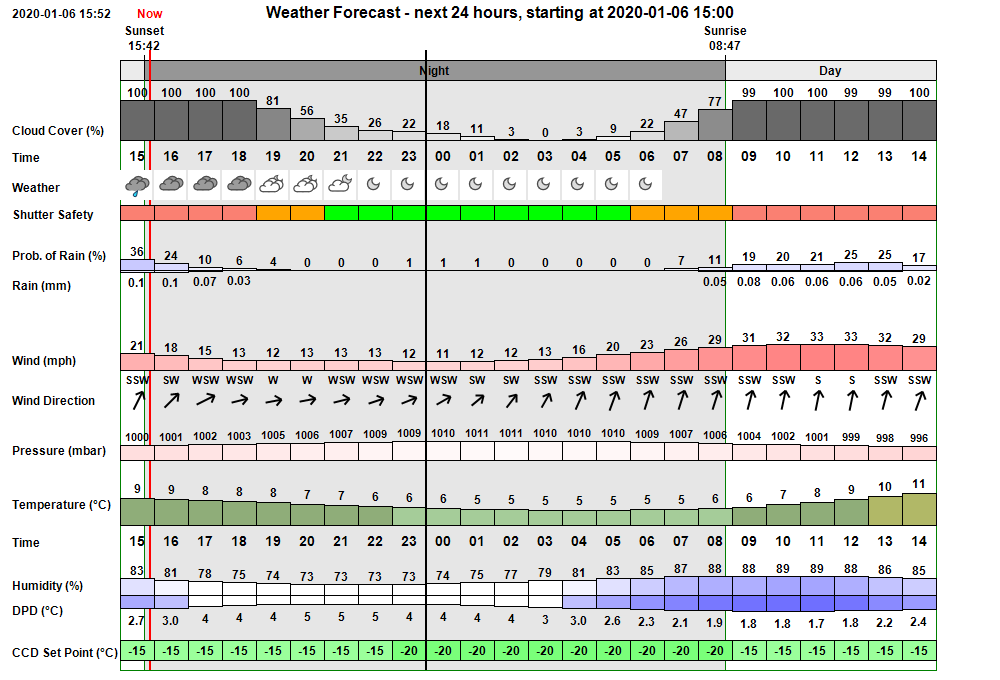

Pre-Session Weather Forecast (API data from darksky.net) Forecast showed  In the event skies

Session Event Log

Time     Event Detail 18:02:14 Session Created Live Session Created (2020-01-06 S00738, ImageSaveNum: 738001) 18:02:54   Services Started Observatory Services started 18:03:37   Services Stopped Observatory Services stopped 18:04:46   Scope Switched On Telescope Power has been switched on via UPB Powerbox. 18:06:23   Obs.Manager Started Obs.Manager started 18:06:25   Obs.Overseer Started Obs.Overseer started 18:06:30   Services Started Observatory Services started 18:09:14   Telescope Connected Telescope Connected (TheSky6) 18:15:21   Services Stopped Night Services stopped 18:16:27   Scope Switched Off Telescope Power has been switched off via UPB Powerbox. 18:17:09   Scope Switched On Telescope power has been switched on via UPB Powerbox. 18:18:32   Services Started Observatory Services started 18:19:25   Shutter Opened Shutter opened (opening time 46s) 18:21:35   Telescope Connected Telescope Connected (TheSky6) 18:26:11   Camera1 Connected SBIG Camera Connected (set point -15°C) 18:31:37   Services Started Observatory Services started 18:31:52 Observatory (Auto) Observatory placed in Fully-Automated Mode 18:31:53 Session Pending Session pending (2020-01-06) 18:31:55 Session Initiating Session initiating (2020-01-06) 18:31:57   Plan Requested Observing Plan requested from AstroPlan (1.13.8) 18:33:33   Plan Loaded Observing Plan loaded to queue (2020-01-06 V1 BEST PLAN, Plan ID: 445) 18:33:36   Camera1 Connected SBIG Camera Connected (set point -15°C) 18:33:40   Telescope Connected Telescope Connected (TheSky6) 18:33:53 Session Equilibration Session ready for dome & camera equilibration 18:33:56   Equilibration Started Dome Equilibration started 18:33:58   Equilibration Skipped Dome Equilibration skipped by user 18:34:00 Session Running Session running 18:34:02   Queue Started Observing Queue started (40 targets selected) 18:34:38       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S) 18:36:16       Focusing Completed Foc1 AutoFocus Completed (Profile No 1) 18:36:18       Focusing Started Foc2 Focusing Started (Secondary Scope, using ShCap) 18:37:34       Focusing Failed Foc2 Focusing Failed - star lost 18:37:53     Target Started (1/40) Target started (1/40, GCVS U And) 18:40:08       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S) 18:41:55       Focusing Completed Foc1 AutoFocus Completed (Profile No 3) 18:52:14     Target Completed Target completed (1/40, GCVS U And) 18:52:16     Target Started (2/40) Target started (2/40, GCVS RX And) 18:53:25       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S) 18:55:15       Focusing Completed Foc1 AutoFocus Completed (Profile No 4) 18:55:45       Focusing Started Foc2 Focusing Started (Secondary Scope) 18:56:43       Focusing Failed Foc2 Focusing Failed - star lost 18:59:23     Target Completed Target completed (2/40, GCVS RX And) 18:59:25     Target Started (3/40) Target started (3/40, GCVS BL Lac) 19:02:37       Focusing Started Foc2 Focusing Started (Secondary Scope) 19:03:35       Focusing Failed Foc2 Focusing Failed - star lost 19:08:00     Target Completed Target completed (3/40, GCVS BL Lac) 19:08:47     Target Started (4/40) Target started (4/40, GCVS DY Per) 19:13:25       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S) 19:15:24       Focusing Completed Foc1 AutoFocus Completed (Profile No 7) 19:15:26       Focusing Started Foc2 Focusing Started (Secondary Scope, using ShCap) 19:17:02       Focusing Completed Foc2 AutoFocus Completed (Profile No 8) 19:22:05     Target Completed Target completed (4/40, GCVS DY Per) 19:22:07     Target Started (5/40) Target started (5/40, WDS GRB 34) 19:25:44       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S) 19:27:35       Focusing Completed Foc1 AutoFocus Completed (Profile No 9) 19:29:19     Target Completed Target completed (5/40, WDS GRB 34) 19:29:21     Target Started (6/40) Target started (6/40, 61 Cyg) 19:32:16       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S) 19:34:03       Focusing Completed Foc1 AutoFocus Completed (Profile No 10) 19:35:29     Target Completed Target completed (6/40, 61 Cyg) 19:35:31     Target Started (7/40) Target started (7/40, GCVS Z And) 19:38:10       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S) 19:40:07       Focusing Completed Foc1 AutoFocus Completed (Profile No 11) 19:43:55     Target Completed Target completed (7/40, GCVS Z And) 19:43:57     Target Started (8/40) Target started (8/40, GCVS FU Ori) 19:48:24       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S) 19:50:38       Focusing Completed Foc1 AutoFocus Completed (Profile No 12) 19:52:51     Target Completed Target partially completed (8/40, GCVS FU Ori) 19:52:54     Target Started (9/40) Target started (9/40, GSC 1224:29) 20:00:53     Target Completed Target completed (9/40, GSC 1224:29) 20:00:55     Target Started (10/40) Target started (10/40, GCVS TT Ari) 20:03:16       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S) 20:05:26       Focusing Completed Foc1 AutoFocus Completed (Profile No 13) 20:12:39     Target Completed Target completed (10/40, GCVS TT Ari) 20:12:41     Target Started (11/40) Target started (11/40, GCVS AM Her) 20:28:15 User Intervention User intervention to park and restart telescope 20:32:18 Session Resumed Live Session Resumed (2020-01-06 S00738, ImageSaveNum: 738108) 20:32:33   Scope Switched Off Telescope Power has been switched off via UPB Powerbox. 20:32:58   Scope Switched On Telescope Power has been switched on via UPB Powerbox. 20:34:25   Obs.Manager Started Obs.Manager started 20:34:27   Obs.Overseer Started Obs.Overseer started 20:34:31   Services Started Observatory Services started 20:34:45   Telescope Connected Telescope Connected (TheSky6) 20:35:12   Camera1 Connected SBIG Camera Connected (set point -20°C) 20:39:09 Observatory (Auto) Observatory placed in Fully-Automated Mode 20:39:12 Session Pending Session pending (2020-01-06) 20:39:14 Session Initiating Session initiating (2020-01-06) 20:39:16   Plan Loaded Observing Plan loaded to queue (2020-01-06 V1 ACTIVE PLAN S738, Plan ID: 445) 20:39:18   Camera1 Connected SBIG Camera Connected (set point -20°C) 20:39:19   Telescope Connected Telescope Connected (TheSky6) 20:39:32 Session Equilibration Session ready for dome & camera equilibration 20:39:35   Equilibration Started Dome Equilibration started 20:39:37   Equilibration Skipped Dome Equilibration skipped by user 20:39:39 Session Running Session running 20:39:41   Queue Started Observing Queue started (29 targets selected) 20:40:15       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S) 20:42:03       Focusing Completed Foc1 AutoFocus Completed (Profile No 14) 20:42:05       Focusing Started Foc2 Focusing Started (Secondary Scope, using ShCap) 20:44:01       Focusing Completed Foc2 AutoFocus Completed (Profile No 15) 20:44:03     Target Missed (12/40) Target's time slot was missed (12/40, GCVS SS Cyg) 20:44:05     Target Started (13/40) Target started (13/40, C/2018 N2 (ASASSN)) 20:51:53     Target Completed Target partially completed (13/40, C/2018 N2 (ASASSN)) 20:51:55     Target Started (14/40) Target started (14/40, GCVS S Cyg) 20:55:22       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S) 20:57:15       Focusing Completed Foc1 AutoFocus Completed (Profile No 16) 21:06:54     Target Completed Target partially completed (14/40, GCVS S Cyg) 21:06:56     Target Started (15/40) Target started (15/40, GCVS TT Ari) 21:09:29       Focusing Failed Foc1 Focusing Failed - star is too dim (TCF-S) 21:16:38     Target Completed Target completed (15/40, GCVS TT Ari) 21:16:41     Target Started (16/40) Target started (16/40, GSC 1224:29) 21:19:21       Focusing Failed Foc1 Focusing Failed - star is too dim (TCF-S) 21:23:47     Target Completed Target completed (16/40, GSC 1224:29) 21:23:49     Target Started (17/40) Target started (17/40, GCVS GK Per) 21:26:37       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S) 21:28:38       Focusing Completed Foc1 AutoFocus Completed (Profile No 17) 21:31:36     Target Completed Target completed (17/40, GCVS GK Per) 21:31:38     Target Started (18/40) Target started (18/40, GCVS SS Cyg) 21:34:29       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S) 21:36:22       Focusing Completed Foc1 AutoFocus Completed (Profile No 18) 21:40:04     Target Completed Target completed (18/40, GCVS SS Cyg) 21:45:28     Target Started (19/40) Target started (19/40, C/2017 T2 (PanStarrs)) 21:48:29       Focusing Failed Foc1 Focusing Failed - star is too dim (TCF-S) 21:57:11     Target Completed Target completed (19/40, C/2017 T2 (PanStarrs)) 21:59:13     Target Started (20/40) Target started (20/40, GCVS CM Tau) 22:01:44       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S) 22:03:47       Focusing Completed Foc1 AutoFocus Completed (Profile No 19) 22:18:23     Target Completed Target completed (20/40, GCVS CM Tau) 22:18:43     Target Started (21/40) Target started (21/40, GCVS FO Ori) 22:21:28       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S) 22:23:17       Focusing Completed Foc1 AutoFocus Completed (Profile No 20) 22:27:09     Target Completed Target completed (21/40, GCVS FO Ori) 22:27:11     Target Started (22/40) Target started (22/40, GCVS CN Ori) 22:30:28       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S) 22:32:30       Focusing Completed Foc1 AutoFocus Completed (Profile No 21) 22:36:00     Target Completed Target completed (22/40, GCVS CN Ori) 22:36:02     Target Started (23/40) Target started (23/40, GCVS FO Ori) 22:38:34       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S) 22:40:34       Focusing Completed Foc1 AutoFocus Completed (Profile No 22) 22:44:25     Target Completed Target completed (23/40, GCVS FO Ori) 22:44:27     Target Started (24/40) Target started (24/40, GCVS NV Ori) 22:47:03       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S) 22:48:55       Focusing Completed Foc1 AutoFocus Completed (Profile No 23) 22:52:29     Target Completed Target completed (24/40, GCVS NV Ori) 22:52:31     Target Started (25/40) Target started (25/40, GCVS SU Tau) 22:55:12       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S) 22:57:08       Focusing Completed Foc1 AutoFocus Completed (Profile No 24) 23:01:57     Target Completed Target completed (25/40, GCVS SU Tau) 23:01:59     Target Started (26/40) Target started (26/40, GCVS HH And) 23:04:49       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S) 23:06:50       Focusing Completed Foc1 AutoFocus Completed (Profile No 25) 23:08:43     Target Completed Target completed (26/40, GCVS HH And) 23:08:46     Target Started (27/40) Target started (27/40, GCVS RR Tau) 23:12:36       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S) 23:14:25       Focusing Completed Foc1 AutoFocus Completed (Profile No 26) 23:20:59     Target Completed Target completed (27/40, GCVS RR Tau) 23:21:02     Target Started (28/40) Target started (28/40, GCVS DX Cnc) 23:23:07       Focusing Failed Foc1 Focusing Failed - star is too dim (TCF-S) 23:27:38     Target Completed Target completed (28/40, GCVS DX Cnc) 23:28:01     Target Started (29/40) Target started (29/40, Scholz's Star) 23:30:38       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S) 23:32:50       Focusing Completed Foc1 AutoFocus Completed (Profile No 27) 23:48:21     Target Completed Target completed (29/40, Scholz's Star) 23:48:57     Target Started (30/40) Target started (30/40, Scholz's Star) 23:49:54       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S) 23:52:04       Focusing Completed Foc1 AutoFocus Completed (Profile No 28) 00:07:23     Target Completed Target completed (30/40, Scholz's Star) 00:09:53     Target Started (31/40) Target started (31/40, GCVS U Gem) 00:11:18   SoftSuspend Called Soft Suspend is called due to Deteriorating Conditions (too few stars) 00:13:21       Focusing Failed Foc1 Focusing Failed - star is too dim (TCF-S) 00:16:44     Target Completed Target completed (31/40, GCVS U Gem) 00:16:47   Queue Paused Queue paused for SoftSuspend 00:16:49 Session Suspended Session suspended 00:17:39   Shutter Closed Shutter closed (closing time 49s) 00:27:14     Target Cancelled Target cancelled (32/40, GCVS AM CVn) due to other condition 00:36:17     Target Cancelled Target cancelled (33/40, GCVS U Gem) due to other condition 00:43:51 Session Resuming Session resuming 00:44:36   Shutter Opened Shutter opened (opening time 45s) 00:44:39 Session Running Session running 00:44:41   Queue Resumed Observing Queue resumed 00:44:43     Target Started (34/40) Target started (34/40, LAMOST-HVS1) 00:49:50     Target Completed Target completed (34/40, LAMOST-HVS1) 00:49:53     Target Started (35/40) Target started (35/40, GCVS SY Cnc) 00:52:32       Focusing Failed Foc1 Focusing Failed - star is too dim (TCF-S) 00:55:57     Target Completed Target completed (35/40, GCVS SY Cnc) 00:55:59     Target Started (36/40) Target started (36/40, LAMOST-HVS1) 00:58:26       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S) 01:00:32       Focusing Completed Foc1 AutoFocus Completed (Profile No 29) 01:03:34     Target Completed Target completed (36/40, LAMOST-HVS1) 01:04:04     Target Started (37/40) Target started (37/40, GCVS U Mon) 01:06:02       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S) 01:07:45       Focusing Completed Foc1 AutoFocus Completed (Profile No 30) 01:13:55     Target Completed Target completed (37/40, GCVS U Mon) 01:14:16     Target Started (38/40) Target started (38/40, GCVS ER UMa) 01:20:43       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S) 01:22:57       Focusing Completed Foc1 AutoFocus Completed (Profile No 31) 01:27:00     Target Completed Target completed (38/40, GCVS ER UMa) 01:27:02     Target Started (39/40) Target started (39/40, GCVS RZ LMi) 01:29:24       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S) 01:29:25   SoftSuspend Called Soft Suspend is called due to Deteriorating Conditions (too few stars) 01:31:12       Focusing Completed Foc1 AutoFocus Completed (Profile No 32) 01:36:40     Target Completed Target completed (39/40, GCVS RZ LMi) 01:36:42   Queue Paused Queue paused for SoftSuspend 01:36:44 Session Suspended Session suspended 01:37:31   Shutter Closed Shutter closed (closing time 49s) 01:57:24     Target Cancelled Target cancelled (40/40, GCVS CN Leo) due to cloud 01:57:29   Queue Completed Job Queue completed 01:57:33 Session Continuing Session continuing 01:57:43   Plan Requested Observing Plan requested from AstroPlan (1.13.8) 01:57:59   Plan Loaded Observing Plan loaded to queue (2020-01-06 V2 BEST PLAN, Plan ID: 446) 01:59:29   Shutter Opened Shutter opened (opening time 45s) 01:59:31 Session Running Session running 01:59:33   Queue Started Observing Queue started (20 targets selected) 01:59:34   SoftSuspend Called Soft Suspend is called due to Deteriorating Conditions (too few stars) 02:03:43     Target Started (1/20) Target started (1/20, GCVS CM Tau) 02:21:23     Target Completed Target completed (1/20, GCVS CM Tau) 02:21:25   Queue Paused Queue paused for SoftSuspend 02:21:27 Session Suspended Session suspended 02:22:16   Shutter Closed Shutter closed (closing time 49s) 02:42:09     Target Cancelled Target cancelled (2/20, Scholz's Star) due to cloud 02:53:57     Target Cancelled Target cancelled (3/20, GCVS RZ LMi) due to cloud 03:07:30     Target Cancelled Target cancelled (4/20, GCVS CN Leo) due to cloud 03:16:07     Target Cancelled Target cancelled (5/20, GCVS U Gem) due to cloud 03:26:34     Target Cancelled Target cancelled (6/20, GCVS DX Cnc) due to cloud 03:35:20     Target Cancelled Target cancelled (7/20, LAMOST-HVS1) due to cloud 03:41:33   Camera1 SetPoint SBIG Camera Set Point Temperature Updated (new set point -15°C) 03:45:29     Target Cancelled Target cancelled (8/20, GCVS RR Tau) due to cloud 03:59:14     Target Cancelled Target cancelled (9/20, C/2017 T2 (PanStarrs)) due to cloud 04:12:18     Target Cancelled Target cancelled (10/20, GCVS S Cyg) due to cloud 04:22:36     Target Cancelled Target cancelled (11/20, GCVS AM CVn) due to cloud 04:31:45     Target Cancelled Target cancelled (12/20, GCVS SY Cnc) due to cloud 04:43:44     Target Cancelled Target cancelled (13/20, K2-18) due to cloud 05:03:06     Target Cancelled Target cancelled (14/20, NGC 4666) due to cloud 05:24:58     Target Cancelled Target cancelled (15/20, NGC 4700) due to rain 05:47:00     Target Cancelled Target cancelled (16/20, Rose 30) due to rain 06:08:52     Target Cancelled Target cancelled (17/20, IC 893) due to cloud 06:30:44     Target Cancelled Target cancelled (18/20, Rose 14) due to cloud 06:55:38     Target Cancelled Target cancelled (19/20, NGC 5468) due to cloud 07:16:14     Target Cancelled Target cancelled (20/20, GCVS R CrB) due to cloud 07:16:19   Queue Completed Job Queue completed 07:16:23 Session Closing Session closing 07:16:28   Shutter Closed Shutter already closed (closed at 02:22, closing time 49s) 07:17:43   Dome Parked Dome parked (parking time 75s) 07:17:55   Telescope Parked Telescope parked (parking time 10s) 07:17:58   Scope Switched Off Telescope Power has been switched off via UPB Powerbox. 07:18:39   Services Stopped Night Services stopped 07:18:41 Session Housekeeping Housekeeping Started (Cleanup FITS, Create Fits Summary, Transfer Files) 07:19:05 Session Finished Session Finished

Back to Top

Operational Issues (2020-01-06, S738)

• Critical Issues (0)
• Major Issues (2)
• Minor Issues (2)
• Continuous Improvement (1)

[ Prev | Next ]

Critical Issues

• None

Major Issues

• Issue with scope position at start-up.   Scope had to be rebooted and sync'ed on a star (Hamal).  It is presumed this was probably related to the scope not being corrrectly parked at the end of the last session.  Probably was ultimately caused by the Telescope Power being autoswitched off too soon after parking scope.  A 30s delay is now applied before autos-witching off the scope and this and similar problems appears to have been resolved.
  Resolved 2020-01-16 (AstroMain)

• Scope was not correctly parked at end of session. Checking the observatory the following day showed that the scope was at its normal park position,  but was pointing some 20-30 deg off. Upon powering up the scope it proceeded to move some 10 deg to the west after initialisation -  trying to locate its encoder) point), showing the scope hadn't been correctly parked .   Scope was moved to near its Park Position and its position Sync'ed.  The scope was then successfully parked using Scope.ParkScope facility.   This has an 8sec delay built in between parking the scope, and it seemed that this
  To check things were correct the scope was powered up, reconnected , slewed to a point in the West Sky and a further check made that scope would correctly park itself. Problem was most-likely due to the the automated observatory shutdown procedure having just a 1s delay between parking the scope and turning off its power. Delay is partially fixed in AstroMain 3.19.2 by use of 8s delay.   However the routine may need to perform an additional check to see that scope is 'AtPark' and wait a full 30s before powering down the scope using Pegasus Astro UPB powerbox.
  Fixed (AstroMain 3.19.2)

Minor Issues

• Problems with telescope jogs whilst centering (total of 17 rogue jogs in the session). Initial problems were consistent with those seen when there has been a problem with scope start-up  e.g.  DY Per had pointing errors of 9.19', 8.4' 9.07', 0.34' and WDS GRB 34 had errors 2.64', 2.91', 3.10',  0.34'.  Although problems reduced after reparking the scope and restarting again.  some problems still persisted, eg.  SY Cnc   5.11', 4.45' , 0.19'  and ER UMa  13.38', 12.52', 11.47', 11.0' Unclear if problem relates to telescope parking / start-up issues of the scope now being too finely balanced, following recent tweaking of the mount/scope. Closed 2020-01-04 as review shows that issue has been resolved (combination of latest DeviceHub, better synchronisation procedures).
   Closed 2021-01-04  (Observatory)

• First target (CM Tau) of V2 observing plan was acquired when there were clearly too few stars to warrent execution. V1 Plan finished with the session in a suspended state and the observatory shut.  Whilst conditions weren't bad enough to force continued closure of the observatory they were bad enough with the suspend when stars < 20 option active (<18 with trim in place) to not start a new target. Yet the shutter was opened and the CM Tau target started. Immediately soft supend was called (too few stars :  Clarity 31.4, Stars 3 ) and the session became suspended  after CM Tau target was completed.
  Fixed (AstroMain 3.19.3)

Continuous Improvement

• Create a 'Slew to Terrestrial Point' button and routine to aid daytime focusing and alignment procedures.  Scope would slew to a TerrestrialAz, TerrestrialAlt point (with Dome Slaved so that shutter is aligned with the scope), and then set Tracking to Off so that scope view is ixed on the static object
  Done (AstroMain 3.19.3)

[ Prev | Next ]

Back to Top

Guiding Performance

Examples of guiding results from the session are shown below:

Example of Guiding Performance from Session S738

Comparison with previous results

• Forward Plan

  - Consider starting the Dec Drift monitoring during an extended setting period. This would be instead of during the first 180s frame or first few 45s frames.
     To do

  - Consider recording the direction in which the scope comes onto the target (ie from north or from south) and use that to help predict the backlash that may need to be taken up before the guiding is able to move the scope
      To do
