 Notes - Session 841 (2020-12-21)

 Previous Notes
Notes
(S840)		   Notes
Notes
Main		   Home
Home
Page		   Next Notes
Notes
(S842)

Bullet Session Aims & Highlights
 - Observing Result
 - Night Summary Plot
 - Session Event Log

Bullet Operational Issues
  - Critical Issues (0),  Major Issues (0),  Minor Issues (1),  Continuous Improvement (0)
Bullet Images from 2020-12-21 >>


Session Aims & Highlights (2020-12-21)

Main aims

  1. Targets. Acquire images of a selection of variable stars, nearby stars, comets and deep sky targets as allowed by conditions.
  2. Shutter. Ensure observcatoryu shutter is operating correctly following recent repair and design improvment.

Equipment & Software

Highlights

Lowlights

Summary Plots & Logs

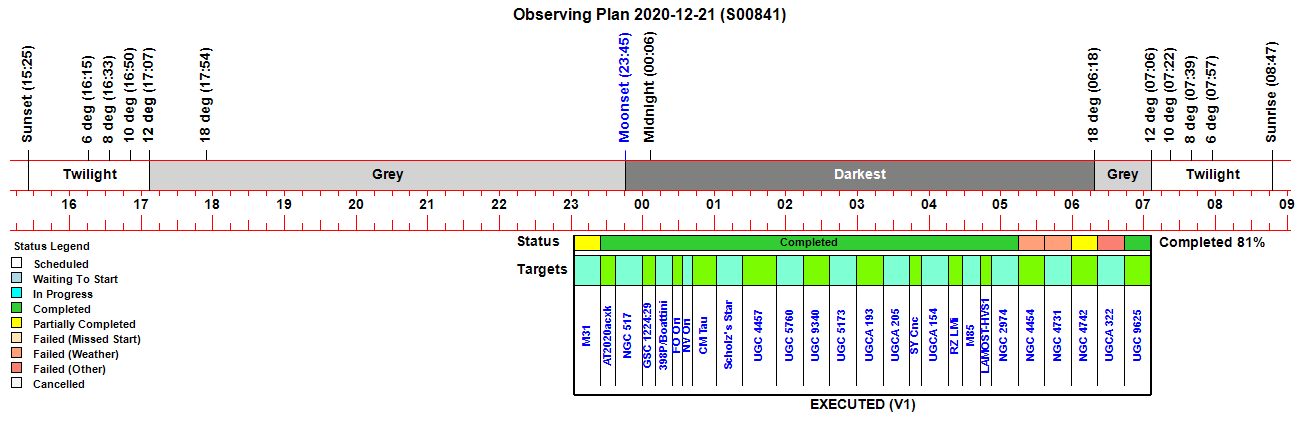

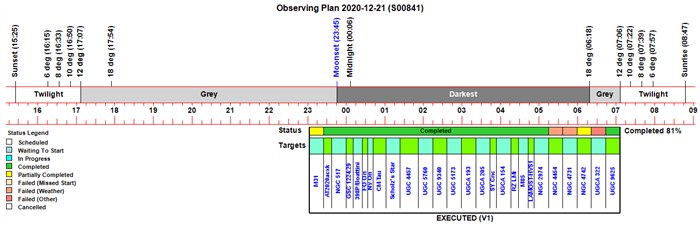

Observing Plan

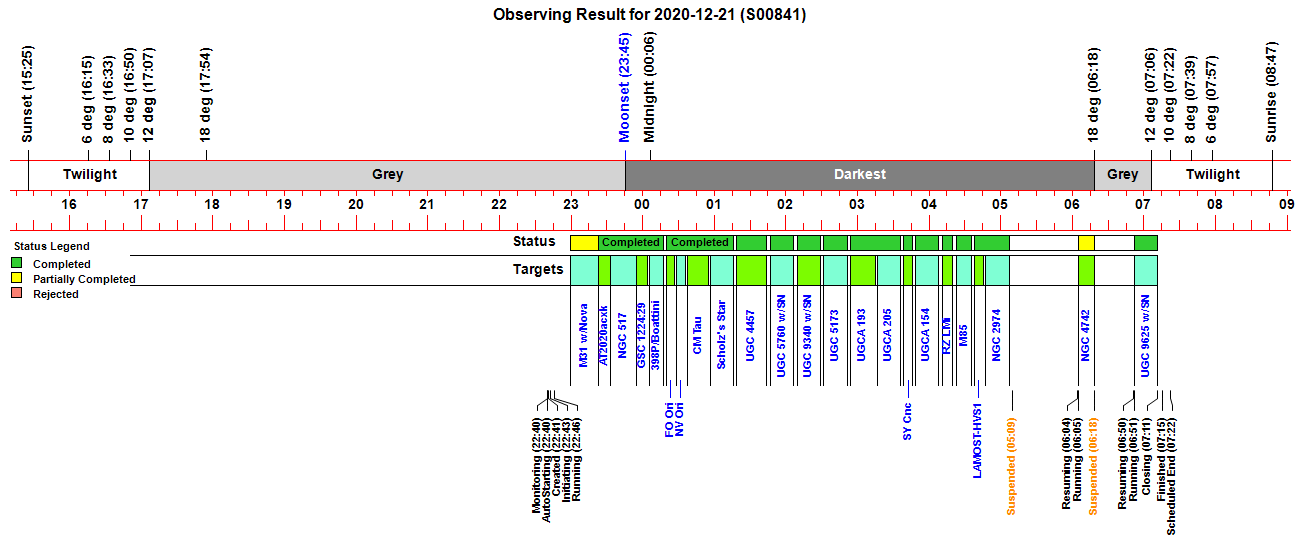

Observing Result

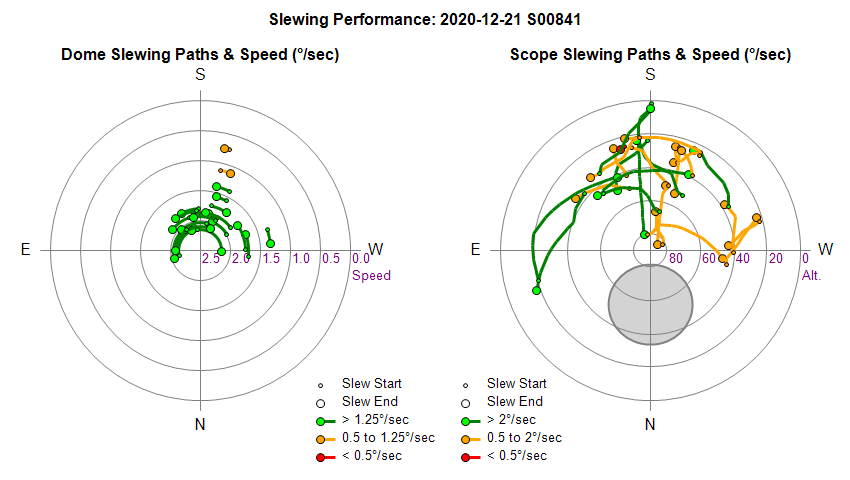

Dome & Scope Slewing Performance

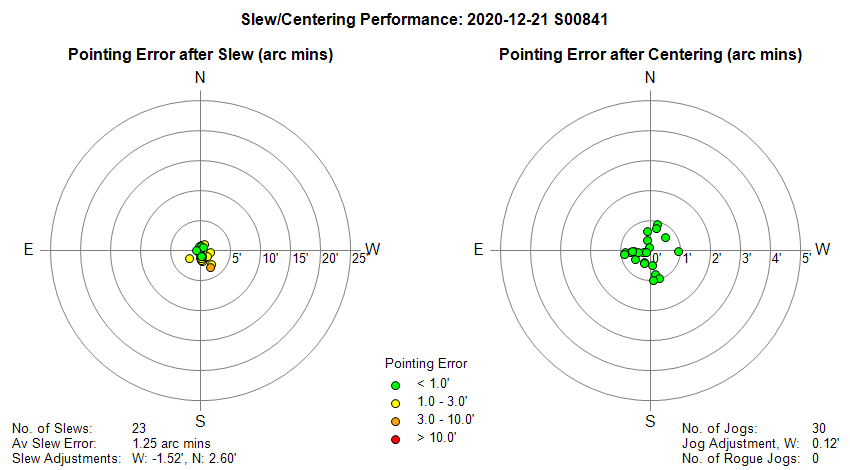

Slew/Centering Performance

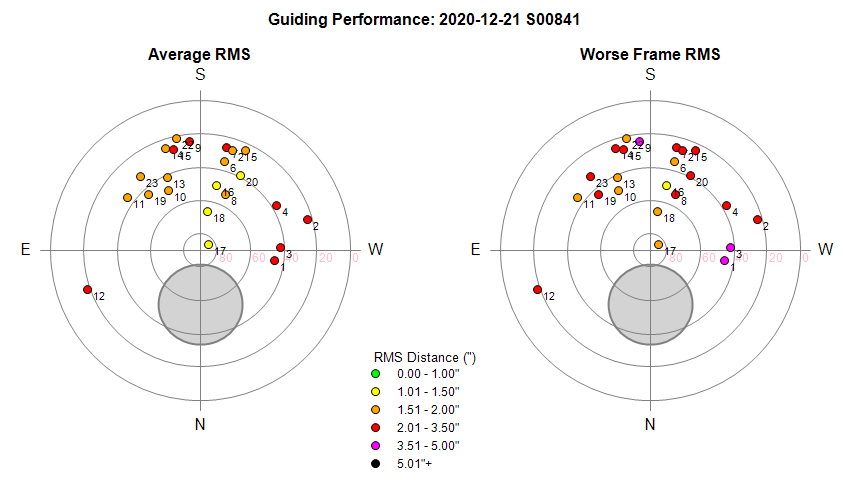

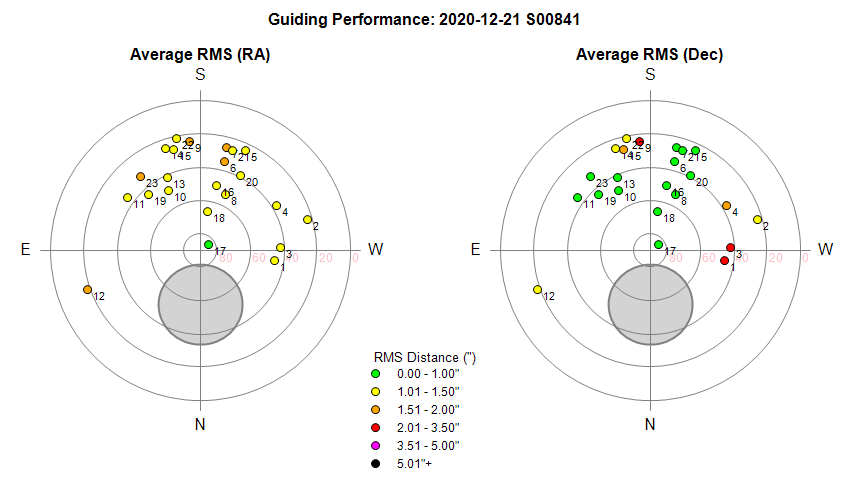

Guiding Performance

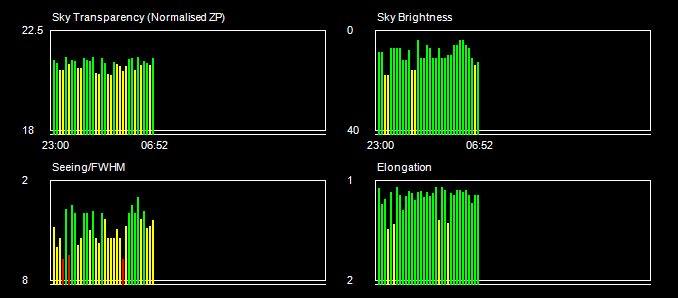

Sky Conditions (Locate Frames)
Chart unavailable for this session

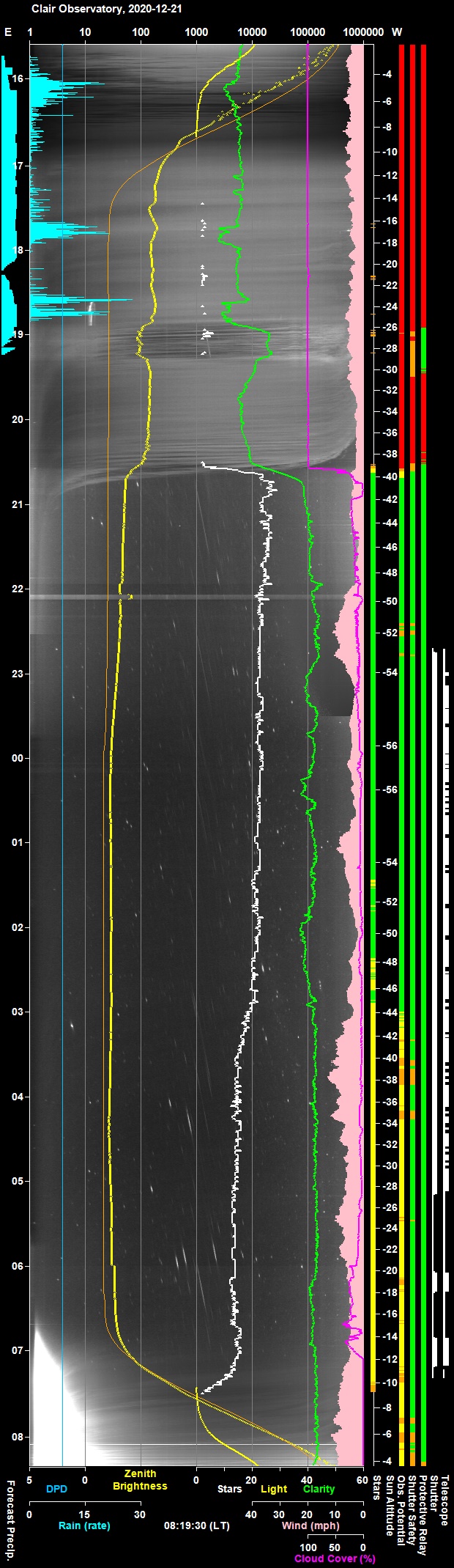

Night Sky Summary Plot
Top axis: Sky Brightness at Zenith (in ADU/s)
Lefthand axis: Local Time (hh LT). Righthand axis: Sun Altitude (degs)

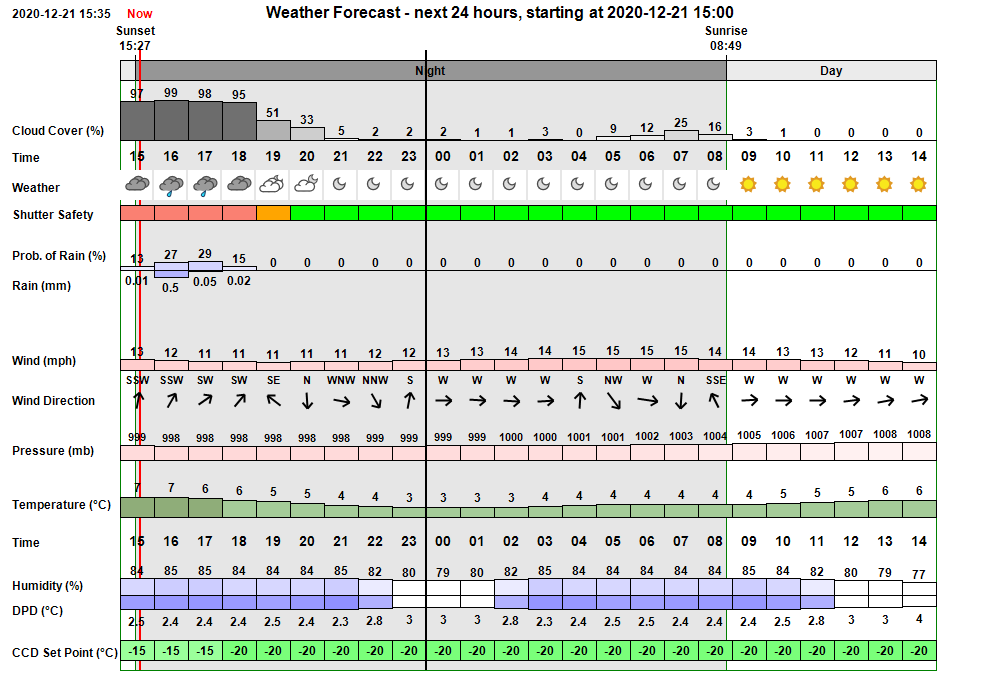

Pre-Session Weather Forecast (API data from darksky.net)
Pre-Session Weather forecast showed clear interval in middle of evening (14-29% cloud cover) and later in night (10-39% cloud cover) patchy cloud conditions in first part of night (27-73% cloud cover) with minium tempertaure of 5 degC and wind up to 22 mph .

In the event skies there were clear for much of the night, with cloudy intervals at 22:30 and 23:30 to 00:15
and thin cloud & poorer transparency gradually developing from 03:40 onwards

Session Event Log
Time     Event Detail
22:40:18 Session Monitoring AutoStart monitoring for Live Session opportunity starting between 22:40 & 06:36
22:40:20 Session AutoStarting Session autostarting (22:40)
22:41:01 Session Created Live Session Created (2020-12-21 S00841, ImageSaveNum: 841001)
22:41:03   Scope Switched On Telescope Power has been switched on via UPB Powerbox.
22:42:53   Services Started Observatory Services started
22:43:02 Observatory (Auto) Observatory placed in Fully-Automated Mode
22:43:05 Session Pending Session pending (2020-12-21)
22:43:07 Session Initiating Session initiating (2020-12-21)
22:43:09   Plan Requested Observing Plan requested from AstroPlan (1.18)
22:43:51   Plan Loaded Observing Plan loaded to queue (2020-12-21 V1 BEST PLAN, Plan ID: 576)
22:44:03   Camera1 Connected SBIG Camera Connected (set point -20°C)
22:44:09   Telescope Connected Telescope Connected (TheSky6)
22:44:22 Session Equilibration Session ready for dome & camera equilibration
22:45:52   Dome Opened Dome opened (opening time 45s)
22:46:07 Session Running Session running
22:46:10   Queue Started Observing Queue started (26 targets selected)
22:47:15       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S)
22:50:17       Focusing Failed Foc1 focusing failed - star lost
22:50:20       Focusing Started-Foc2 Foc2 Focusing Started (Secondary Scope, using ShCap)
22:52:37       Focusing Completed Foc2 AutoFocus Completed (Profile No 1, wide)
22:54:25       Focusing Completed Foc2 AutoFocus Completed (Profile No 1)
22:54:41       Focusing Checked Foc2 Focusing Check Succeeded
22:59:47     Target Started (1/26) Target started (1/26, M31 w/Nova2020aapw)
23:00:05   UPB.Switch Restart UPB.Switch has been restarted.
23:03:10       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S)
23:07:16       Focusing Completed Foc1 AutoFocus Completed (Profile No 2)
23:09:36       Focusing Completed Foc1 AutoFocus Completed (Profile No 2)
23:22:37     Target Completed Target partially completed (1/26, M31 w/Nova2020aapw)
23:22:39     Target Started (2/26) Target started (2/26, AT2020acxk)
23:25:49       Focusing Skipped Foc1 focusing skipped - star is too dim (TCF-S)
23:33:05     Target Completed Target completed (2/26, AT2020acxk)
23:33:07     Target Started (3/26) Target started (3/26, NGC 517)
23:36:28       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S)
23:38:41       Focusing Completed Foc1 AutoFocus Completed (Profile No 3)
23:54:53     Target Completed Target completed (3/26, NGC 517)
23:54:55     Target Started (4/26) Target started (4/26, GSC 1224:29)
23:57:48       Focusing Skipped Foc1 focusing skipped - star is too dim (TCF-S)
00:04:32     Target Completed Target completed (4/26, GSC 1224:29)
00:05:23     Target Started (5/26) Target started (5/26, 398P/Boattini)
00:08:05       Focusing Skipped Foc1 focusing skipped - star is too dim (TCF-S)
00:17:34     Target Completed Target completed (5/26, 398P/Boattini)
00:19:38     Target Started (6/26) Target started (6/26, GCVS FO Ori)
00:21:48       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S)
00:23:34       Focusing Completed Foc1 AutoFocus Completed (Profile No 4)
00:27:27     Target Completed Target completed (6/26, GCVS FO Ori)
00:28:36     Target Started (7/26) Target started (7/26, GCVS NV Ori)
00:31:05       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S)
00:32:43       Focusing Completed Foc1 AutoFocus Completed (Profile No 5)
00:36:19     Target Completed Target completed (7/26, GCVS NV Ori)
00:37:10     Target Started (8/26) Target started (8/26, GCVS CM Tau)
00:39:16       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S)
00:41:18       Focusing Completed Foc1 AutoFocus Completed (Profile No 6)
00:54:49     Target Completed Target completed (8/26, GCVS CM Tau)
00:57:10     Target Started (9/26) Target started (9/26, Scholz's Star)
00:59:58       Focusing Skipped Foc1 focusing skipped - star is too dim (TCF-S)
01:16:31     Target Completed Target completed (9/26, Scholz's Star)
01:18:36     Target Started (10/26) Target started (10/26, UGC 4457)
01:20:24       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S)
01:22:13       Focusing Completed Foc1 AutoFocus Completed (Profile No 7)
01:44:04     Target Completed Target completed (10/26, UGC 4457)
01:47:02     Target Started (11/26) Target started (11/26, UGC 5760 w/SN2020zoq)
01:49:08       Focusing Skipped Foc1 focusing skipped - star is too dim (TCF-S)
02:06:29     Target Completed Target completed (11/26, UGC 5760 w/SN2020zoq)
02:09:24     Target Started (12/26) Target started (12/26, UGC 9340 w/SN2020acac)
02:11:57       Focusing Skipped Foc1 focusing skipped - unable to find a star (TCF-S)
02:28:54     Target Completed Target completed (12/26, UGC 9340 w/SN2020acac)
02:31:46     Target Started (13/26) Target started (13/26, UGC 5173)
02:33:52       Focusing Skipped Foc1 focusing skipped - star is too dim (TCF-S)
02:51:37     Target Completed Target completed (13/26, UGC 5173)
02:54:08     Target Started (14/26) Target started (14/26, UGCA 193)
02:56:55       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S)
02:58:56       Focusing Completed Foc1 AutoFocus Completed (Profile No 8)
03:14:54     Target Completed Target completed (14/26, UGCA 193)
03:16:30     Target Started (15/26) Target started (15/26, UGCA 205)
03:18:52       Focusing Skipped Foc1 focusing skipped - star is too dim (TCF-S)
03:36:13     Target Completed Target completed (15/26, UGCA 205)
03:38:52     Target Started (16/26) Target started (16/26, GCVS SY Cnc)
03:41:26       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S)
03:43:32       Focusing Completed Foc1 AutoFocus Completed (Profile No 9)
03:46:23     Target Completed Target completed (16/26, GCVS SY Cnc)
03:48:31     Target Started (17/26) Target started (17/26, UGCA 154)
03:50:39       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S)
03:52:30       Focusing Completed Foc1 AutoFocus Completed (Profile No 10)
04:08:02     Target Completed Target completed (17/26, UGCA 154)
04:10:53     Target Started (18/26) Target started (18/26, GCVS RZ LMi)
04:12:46       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S)
04:14:36       Focusing Completed Foc1 AutoFocus Completed (Profile No 11)
04:16:42   SoftSuspend Called Soft Suspend is called due to Deteriorating Conditions (too few stars)
04:16:52   SoftSuspend Cancelled Soft Suspend is cancelled due to Improved Conditions
04:19:27     Target Completed Target completed (18/26, GCVS RZ LMi)
04:22:41     Target Started (19/26) Target started (19/26, M85)
04:24:31       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S)
04:26:33       Focusing Completed Foc1 AutoFocus Completed (Profile No 12)
04:35:55     Target Completed Target completed (19/26, M85)
04:37:43     Target Started (20/26) Target started (20/26, LAMOST-HVS1)
04:39:53       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S)
04:41:54       Focusing Completed Foc1 AutoFocus Completed (Profile No 13)
04:45:41     Target Completed Target completed (20/26, LAMOST-HVS1)
04:47:29     Target Started (21/26) Target started (21/26, NGC 2974)
04:49:33       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S)
04:51:34       Focusing Completed Foc1 AutoFocus Completed (Profile No 14)
05:07:37     Target Completed Target completed (21/26, NGC 2974)
05:09:47   SoftSuspend Called Soft Suspend is called due to Deteriorating Conditions (too few stars)
05:09:50   Queue Paused Queue pausing for Session Suspension
05:09:52 Session Suspended Session suspended
05:10:42   Dome Closed Dome closed (closing time 50s)
05:19:53   Camera1 SetPoint -20°C SBIG Camera Set Point Temperature Updated (new set point -20°C)
05:28:43     Target Cancelled Target cancelled (22/26, NGC 4454 w/SN2020abgq) due to wind
05:47:07   UPB.Switch Restart UPB.Switch has been restarted.
05:51:05     Target Cancelled Target cancelled (23/26, NGC 4731) due to cloud
06:04:27 Session Resuming Session resuming
06:05:12   Dome Opened Dome opened (opening time 45s)
06:05:14 Session Running Session running
06:05:16     Target Started (24/26) Target started (24/26, NGC 4742)
06:05:18   Queue Resumed Observing Queue resumed
06:11:28   SoftSuspend Called Soft Suspend is called due to Deteriorating Conditions (too few stars)
06:18:49     Target Completed Target partially completed (24/26, NGC 4742)
06:18:51   Queue Paused Queue paused for Session Suspension
06:18:54 Session Suspended Session suspended
06:19:44   Dome Closed Dome closed (closing time 50s)
06:35:49     Target Cancelled Target cancelled (25/26, UGCA 322) due to other condition
06:50:57 Session Resuming Session resuming
06:51:42   Dome Opened Dome opened (opening time 45s)
06:51:44 Session Running Session running
06:51:46     Target Started (26/26) Target started (26/26, UGC 9625 w/SN2020acai)
06:51:48   Queue Resumed Observing Queue resumed
07:11:32     Target Completed Target completed (26/26, UGC 9625 w/SN2020acai)
07:11:35   Queue Completed Job Queue completed
07:11:38 Session Closing Session closing
07:12:29   Dome Closed Dome closed (closing time 45s)
07:13:04   Dome Parked Dome parked (parking time 28s), Az: 90.1 deg
07:13:41   Telescope Parked Telescope parked (parking time 30s)
07:14:11   Telescope Switched Off Telescope Power has been switched off via UPB Switch.
07:15:00   Services Stopped Night Services stopped
07:15:02 Session Housekeeping Housekeeping Started (Cleanup FITS, Create Fits Summary, Transfer Files)
07:15:19 Session Finished Session Finished


Session Alerts
Time     Alert Detail
23:00:05 UPB.Switch disconnected UPB.Switch has unexpectedly disconnected. Restart will be attempted
23:00:07 UPB.Switch UPB.Switch has been successfully restarted.
03:49:39 Dome Discrepency Difference between Telescope Az and Dome Az is > 8 deg (UGCA 154)
05:47:07 UPB.Switch disconnected UPB.Switch has unexpectedly disconnected. Restart will be attempted
05:47:09 UPB.Switch UPB.Switch has been successfully restarted.


Back to Top

Operational Issues (2020-12-21 S841)

[ Prev | Next ]

Critical Issues

Major Issues

Minor Issues

Continuous Improvement

[ Prev | Next ]
