 Notes - Session 879 (2021-04-01)

 Previous Notes
Notes
(S878)		   Notes
Notes
Main		   Home
Home
Page		   Next Notes
Notes
(S880)

Bullet Session Aims & Highlights
 - Observing Result
 - Night Summary Plot
 - Session Event Log

Bullet Operational Issues
  - Critical Issues (0),  Major Issues (0),  Minor Issues (0),  Continuous Improvement (0)
Bullet Images from 2021-04-01 >>     [ Local Files >> ]

Session Aims & Highlights (2021-04-01)

Main aims

  1. AstroMain  Test out v 3.38.12. Check that version is able to successfully retrieve targets associated with the nights Observing Plan or hangs like the earlier 3.38.11 version.
  2. Targets. Acquire images of a selection of variable stars, nearby stars, comets & deep sky targets as allowed by conditions

Equipment & Software

Highlights

Lowlights

Summary Plots & Logs

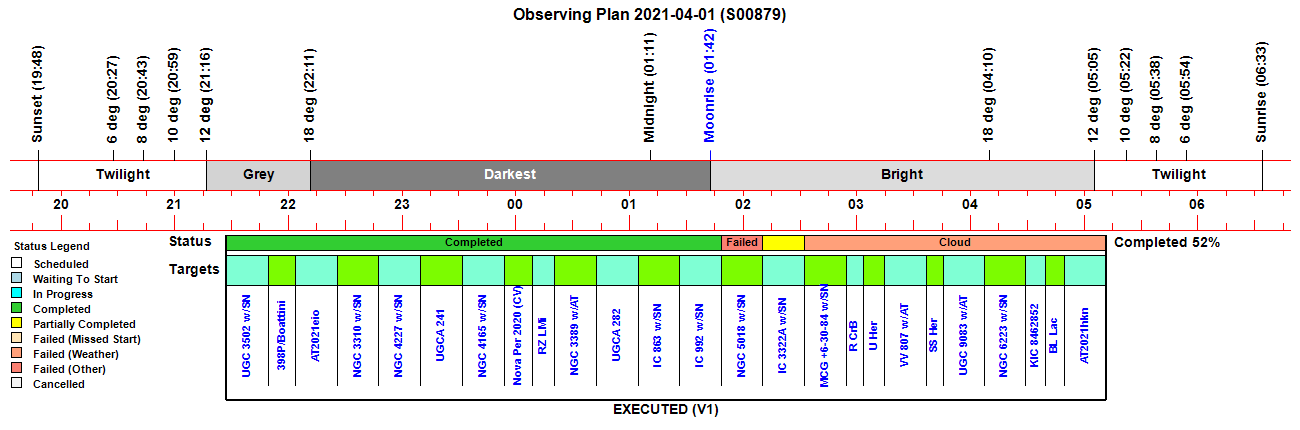

Observing Plan

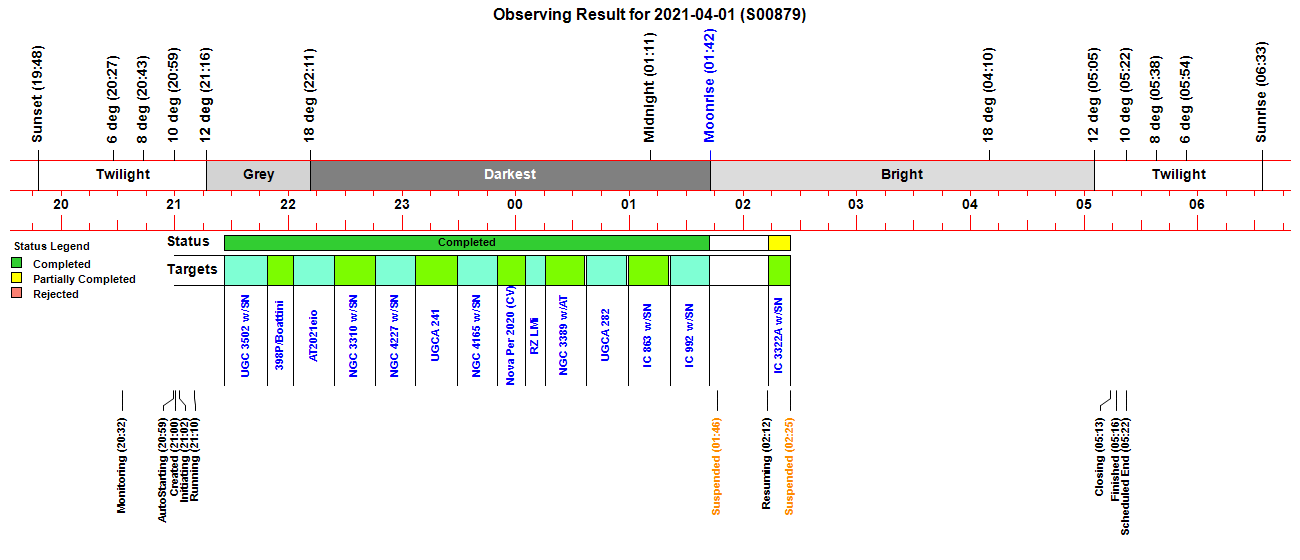

Observing Result

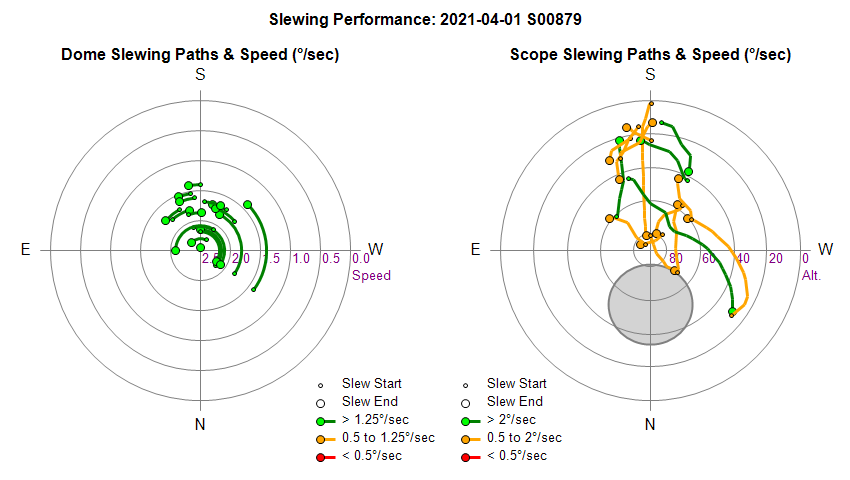

Dome & Scope Slewing Performance

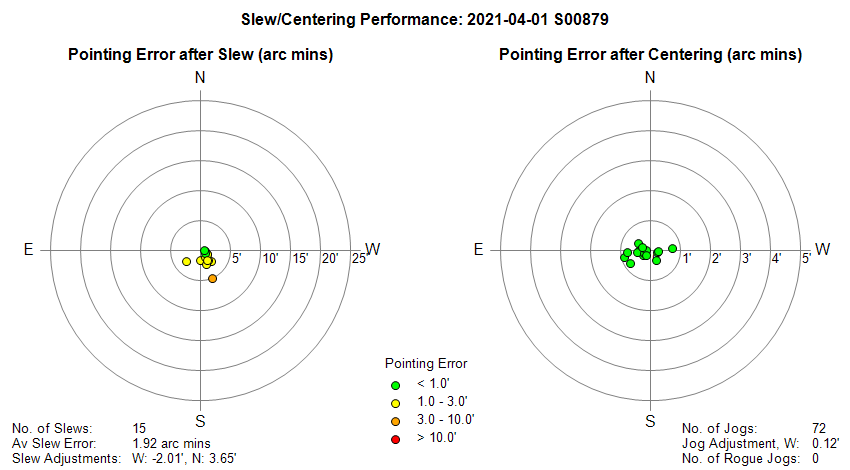

Slew/Centering Performance

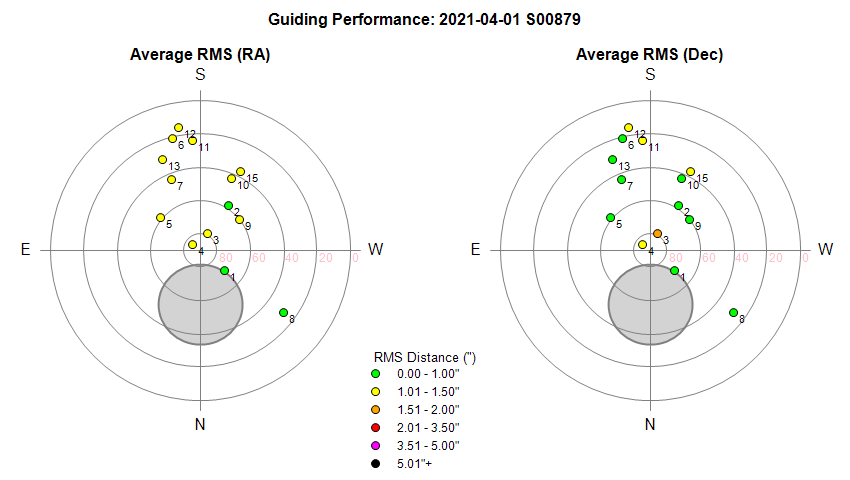

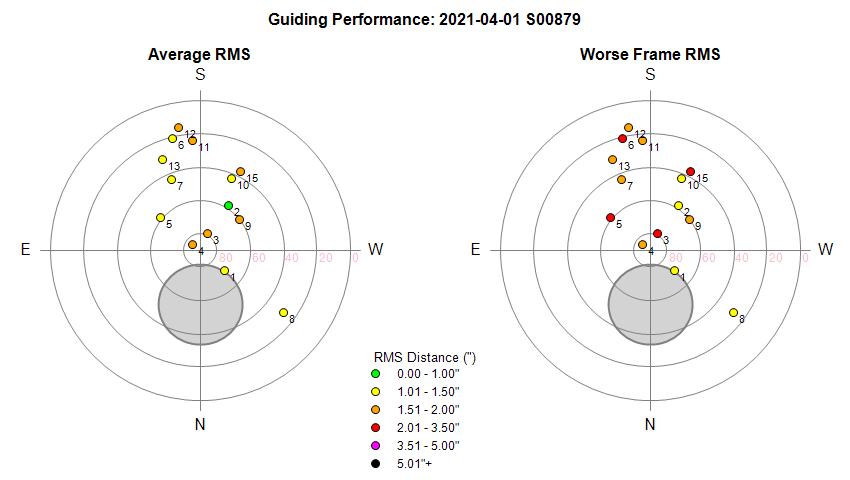

Guiding Performance
Dec Notes : Run 3 (orange) impacted by periods of ineffective Dec guiding & Dec jumps

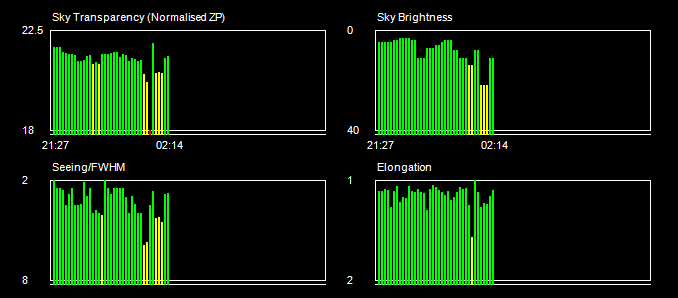

Sky Conditions (Locate Frames)

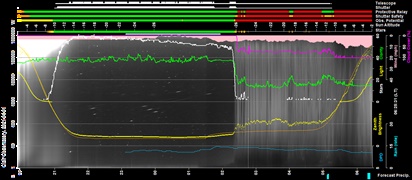

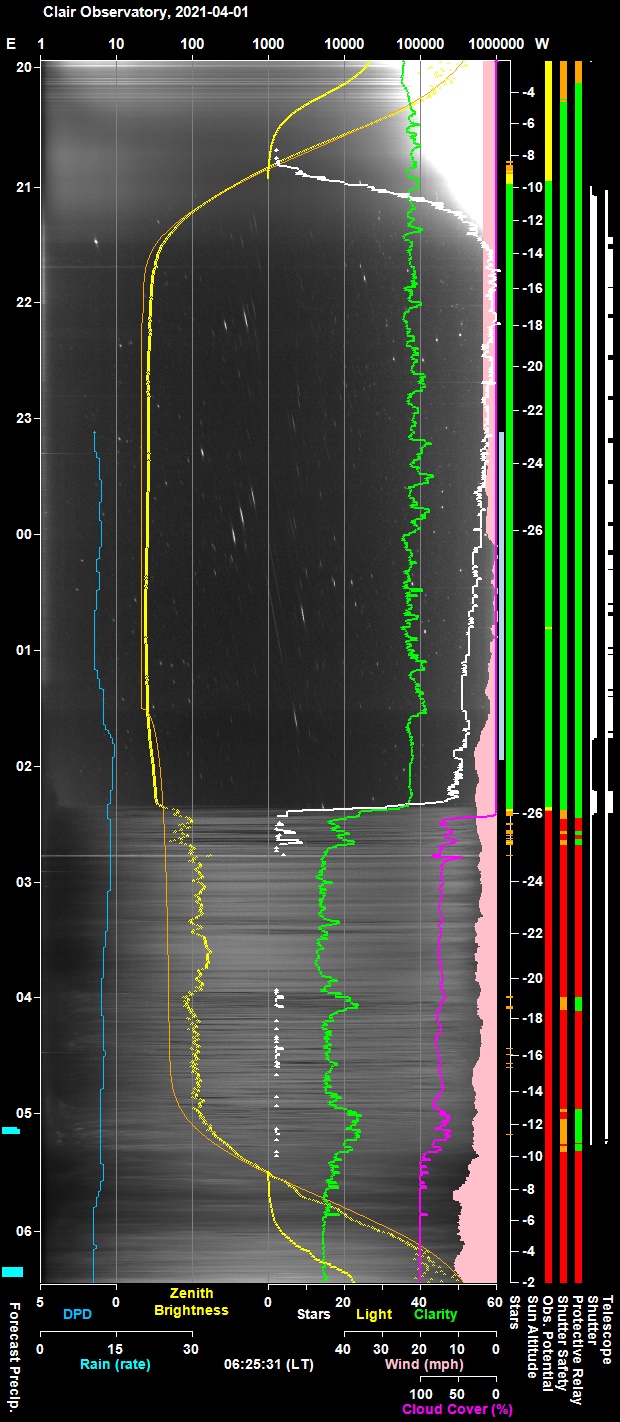

Night Sky Summary Plot
Top axis: Sky Brightness at Zenith (in ADU/s)
Lefthand axis: Local Time (hh LT). Righthand axis: Sun Altitude (degs)

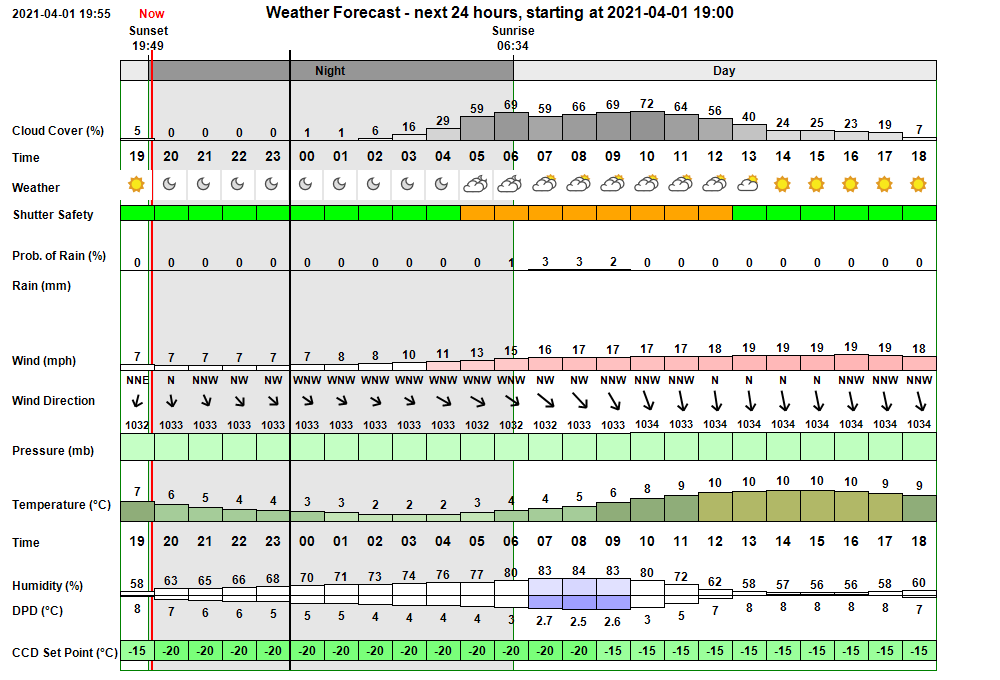

Actual Weather vs Pre-Session Weather Forecast

Session Event Log
Time     Event Detail
20:32:21 Session Monitoring AutoStart monitoring for Live Session opportunity starting between 20:46 & 04:35
20:46:42   AutoStart Waiting AutoStart waiting till earliest start time at 20:46
20:46:43   AutoStart Delayed Session delayed due to cloud
20:59:28 Session AutoStarting Session autostarting (20:59)
21:00:11   Camera1 Connected SBIG Camera Connected (set point -25°C)
21:00:13 Session Created Live Session Created (2021-04-01 S00879, ImageSaveNum: 879001)
21:00:15   Scope Switched On Telescope Power has been switched on via UPB Powerbox.
21:02:13   Services Started Observatory Services started
21:02:21 Observatory (Auto) Observatory placed in Fully-Automated Mode
21:02:23 Session Pending Session pending (2021-04-01)
21:02:25 Session Initiating Session initiating (2021-04-01)
21:02:27   Plan Requested Observing Plan requested from AstroPlan (1.21.6)
21:03:14   Plan Loaded Observing Plan loaded to queue (, Plan ID: 617)
21:03:22   Camera1 Connected SBIG Camera Connected (set point -20°C)
21:03:27   Telescope Connected Telescope Connected (TheSky6)
21:03:37 Session Equilibration Session ready for dome & camera equilibration
21:05:09   Dome Opened Dome opened (opening time 45s)
21:05:25   Equilibration Started Dome Equilibration started
21:10:24   Equilibration Skipped Dome Equilibration skipped by user
21:10:26 Session Running Session running
21:10:28   Queue Started Observing Queue started (25 targets selected)
21:11:53       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S)
21:15:02       Focusing Completed Foc1 AutoFocus Completed (Profile No 1, wide)
21:17:02       Focusing Completed Foc1 AutoFocus Completed (Profile No 1)
21:17:05       Focusing Started-Foc2 Foc2 Focusing Started (Secondary Scope, using ShCap)
21:19:29       Focusing Completed Foc2 AutoFocus Completed (Profile No 2, wide)
21:21:21       Focusing Completed Foc2 AutoFocus Completed (Profile No 2)
21:21:38       Focusing Checked Foc2 Focusing Check Succeeded
21:26:32     Target Started (1/25) Target started (1/25, UGC 3502 w/SN2021cwc)
21:30:45       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S)
21:32:47       Focusing Completed Foc1 AutoFocus Completed (Profile No 3)
21:48:51     Target Completed Target completed (1/25, UGC 3502 w/SN2021cwc)
21:48:53     Target Started (2/25) Target started (2/25, 398P/Boattini)
21:52:45       Focusing Skipped Foc1 focusing skipped - star is too dim (TCF-S)
22:02:50     Target Completed Target completed (2/25, 398P/Boattini)
22:02:53     Target Started (3/26) Target started (3/26, AT2021hkn, ToO)
22:02:55     Target Failed Target failed due To az limit (3/26, AT2021hkn, ToO)
22:02:57     Target Started (4/26) Target started (4/26, AT2021eio)
22:06:30       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S)
22:08:32       Focusing Completed Foc1 AutoFocus Completed (Profile No 4)
22:23:17   UPB.Switch Restart UPB.Switch has been restarted.
22:24:12     Target Completed Target completed (4/26, AT2021eio)
22:24:14     Target Started (5/26) Target started (5/26, NGC 3310 w/SN2021gmj)
22:27:59       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S)
22:30:12       Focusing Completed Foc1 AutoFocus Completed (Profile No 5)
22:46:07     Target Completed Target completed (5/26, NGC 3310 w/SN2021gmj)
22:46:09     Target Started (6/26) Target started (6/26, NGC 4227 w/SN2021biz)
22:48:53       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S)
22:50:53       Focusing Completed Foc1 AutoFocus Completed (Profile No 6)
23:06:59     Target Completed Target completed (6/26, NGC 4227 w/SN2021biz)
23:07:01     Target Started (7/26) Target started (7/26, UGCA 241)
23:10:52       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S)
23:13:07       Focusing Completed Foc1 AutoFocus Completed (Profile No 7)
23:29:14     Target Completed Target completed (7/26, UGCA 241)
23:29:16     Target Started (8/26) Target started (8/26, NGC 4165 w/SN2021gno)
23:32:46       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S)
23:34:36       Focusing Completed Foc1 AutoFocus Completed (Profile No 8)
23:50:11     Target Completed Target completed (8/26, NGC 4165 w/SN2021gno)
23:50:14     Target Started (9/26) Target started (9/26, Nova Per 2020 (CV))
23:54:32       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S)
23:56:22       Focusing Completed Foc1 AutoFocus Completed (Profile No 9)
00:04:59     Target Completed Target completed (9/26, Nova Per 2020 (CV))
00:05:01     Target Started (10/26) Target started (10/26, GCVS RZ LMi)
00:09:04       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S)
00:10:53       Focusing Completed Foc1 AutoFocus Completed (Profile No 10)
00:15:45     Target Completed Target completed (10/26, GCVS RZ LMi)
00:15:47     Target Started (11/26) Target started (11/26, NGC 3389 w/AT2021hkw)
00:18:38       Focusing Skipped Foc1 focusing skipped - star is too dim (TCF-S)
00:36:17     Target Completed Target completed (11/26, NGC 3389 w/AT2021hkw)
00:37:22     Target Started (12/26) Target started (12/26, UGCA 282)
00:40:57       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S)
00:43:02       Focusing Completed Foc1 AutoFocus Completed (Profile No 11)
00:59:07     Target Completed Target completed (12/26, UGCA 282)
00:59:44     Target Started (13/26) Target started (13/26, IC 863 w/SN2021foa)
01:03:04       Focusing Skipped Foc1 focusing skipped - star is too dim (TCF-S)
01:20:41     Target Completed Target completed (13/26, IC 863 w/SN2021foa)
01:21:36     Target Started (14/26) Target started (14/26, IC 992 w/SN2021dwg)
01:24:44       Focusing Skipped Foc1 focusing skipped - star is too dim (TCF-S)
01:42:04     Target Completed Target completed (14/26, IC 992 w/SN2021dwg)
01:43:28     Target Started (15/26) Target started (15/26, NGC 5018 w/SN2021fxy)
01:45:55 Critical Humidity Alert Critical Humidity Alert (Obs.Manager will close the Shutter)
01:45:57   HardSuspend Called Hard Suspend is called due to Critical Conditions (high humidity)
01:46:07     Target Aborted (15/26) Target aborted (15/26, NGC 5018 w/SN2021fxy) due to high humidity
01:46:09   Queue Paused Queue paused For Session Suspension
01:46:12 Session Suspended Session suspended
01:47:00   Dome Closed Dome closed (closing time 50s)
02:02:20     Target Cancelled Target cancelled (15/26, NGC 5018 w/SN2021fxy) due to high humidity
02:12:52 Session Resuming Session resuming
02:13:37   Dome Opened Dome opened (opening time 45s)
02:13:39 Session Running Session running
02:13:41     Target Started (16/26) Target started (16/26, IC 3322A w/SN2021hiz)
02:13:43   Queue Resumed Observing Queue resumed
02:24:33   SoftSuspend Called Soft Suspend is called due to Deteriorating Conditions (reducing clarity)
02:24:53 Critical Cloud Alert Critical Cloud Alert (Obs.Manager will close the Shutter)
02:24:55   HardSuspend Called Hard Suspend is called due to Critical Conditions (cloud)
02:24:57     Target Aborted (16/26) Target aborted (16/26, IC 3322A w/SN2021hiz) due to cloud
02:24:59   Queue Paused Queue paused For Session Suspension
02:25:01 Session Suspended Session suspended
02:25:48   Dome Closed Dome closed (closing time 50s)
02:46:34     Target Cancelled Target cancelled (17/26, MCG +6-30-84 w/SN2021K) due to cloud
02:58:00     Target Cancelled Target cancelled (18/26, GCVS R CrB) due to cloud
03:08:56     Target Cancelled Target cancelled (19/26, GCVS U Her) due to cloud
03:28:33     Target Cancelled Target cancelled (20/26, VV 807 w/AT2021fbu) due to cloud
03:40:09     Target Cancelled Target cancelled (21/26, GCVS SS Her) due to cloud
03:59:21     Target Cancelled Target cancelled (22/26, UGC 9083 w/AT2021buk) due to cloud
04:21:13     Target Cancelled Target cancelled (23/26, NGC 6223 w/SN2021bls) due to cloud
04:33:31     Target Cancelled Target cancelled (24/26, KIC 8462852) due to cloud
04:43:49     Target Cancelled Target cancelled (25/26, GCVS BL Lac) due to cloud
05:13:41     Target Cancelled Target cancelled (26/26, AT2021hkn) due to cloud
05:13:46   Queue Completed Job Queue completed
05:13:49 Session Closing Session closing
05:13:54   Dome Closed Dome already closed (closed at 02:25, closing time 50s)
05:15:01   Dome Parked Dome parked (parking time 59s), Az: 90.0 deg
05:15:22   Telescope Parked Telescope parked (parking time 15s)
05:15:52   Telescope Switched Off Telescope Power has been switched off via UPB Switch.
05:16:41   Services Stopped Night Services stopped
05:16:43 Session Housekeeping Housekeeping Started (Cleanup FITS, Create Fits Summary, Transfer Files)
05:16:54 Session Finished Session Finished


Session Alerts
Time     Alert Detail
21:37:36 Dome Dome has been stationary for more than 10 mins
21:48:57 Dome Dome Movements have begun again (outage 21.4 mins)
22:23:17 UPB.Switch disconnected UPB.Switch has unexpectedly disconnected. Restart will be attempted
22:23:19 UPB.Switch UPB.Switch has been successfully restarted.
22:25:26 Dome Discrepency Difference between Telescope Az and Dome Az is > 8 deg (NGC 3310)
