Session Aims & Highlights (2021-09-21)

Main aims

1. Comet 69/P. Acquire images of 67P/Churyumov-Gerasimenko (passing through Taurus)
2. Targets. Acquire images of a selection of variable stars, nearby stars, comets & deep sky targets as allowed by time & conditions.
3. AstroMain. Test fixes, improvements and new features in AstroMain 3.42.5.

Equipment & Software

• 12" LX200 and ST-10XME
• 80mm APO and ZWO ASI 178MC
• CCDApp2, TheSky6, CCDSoft5, PHD2 2.6.10,  DeviceHub 6.5.1.4,  MeadeGeneric 1.3.1.361, UPB 1.5, ASCOM 6.5 SP1
• Pegasus UPB & Motor Focus, TCF-S
• SharpCap 3.2, PHD2  2.6.10

• AstroMain 3.42.5 ,  AstroPlan 1.23.12,  AstroShCap 1.3.2, AstroGuard 1.6.2,  AstroVOE 1.8,  AstroSN 1.6,  AstroProtect 1.6
  (AstroWeather 1.12.4, AstroAllSky 3.10.4, AstroObsCam 1.5.7)

Highlights

• Comet 69/P.  Images of  67P Churyumov-Gerasimenkoseparate successfully acquired
• Targets.  Images from a total of x targets were acquired through the session.   Sky clear, but moon light and only moderate seeing
• Target with Calibration Stars.  Scheduling of RR Lyr with before and after calibration using Vega worked as per design and spectra images of both the target star and Vega were successfully acquired.
• AstroMain.  SAstroMain observatory control worked well and their were software or hardware glitches at all. 100% operational success.

Lowlights

•  Seeing  Seeing wasonly moderate and sometimes rather poor

Notes:

Summary Plots & Logs

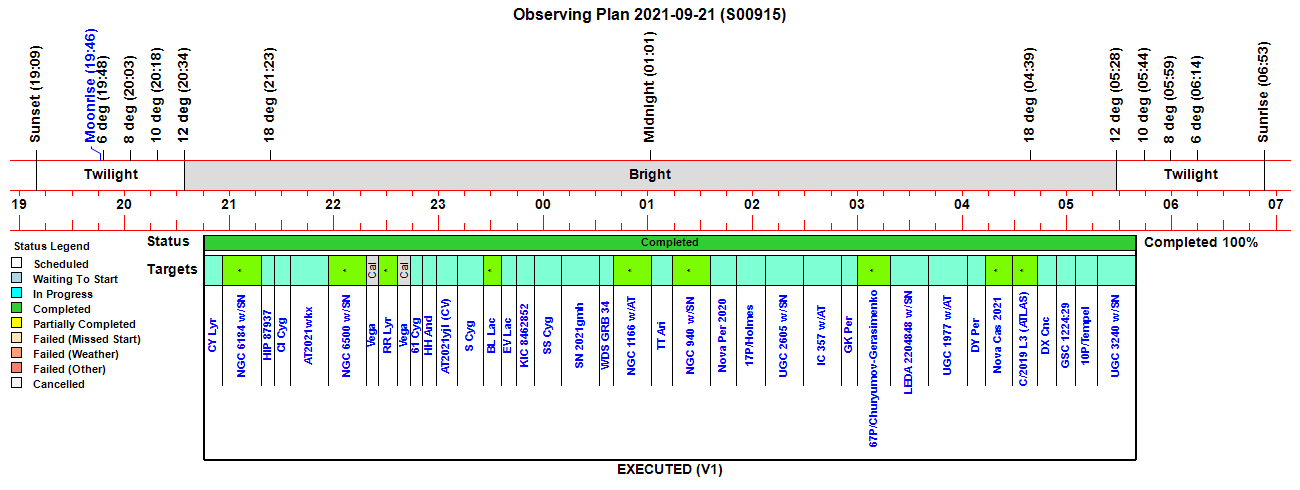

Observing Plan

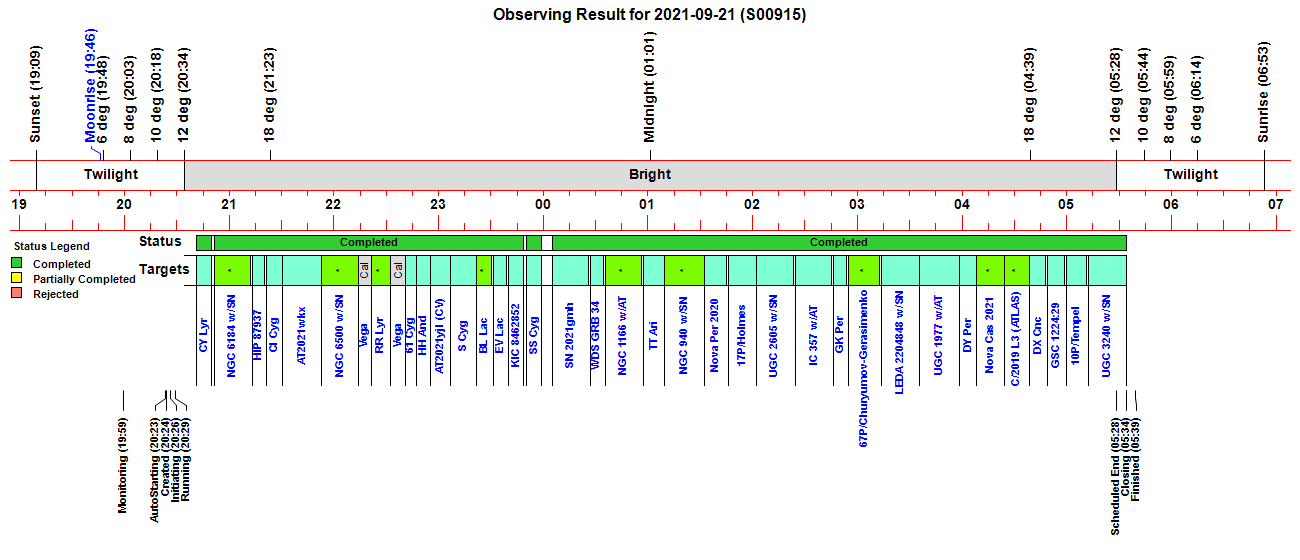

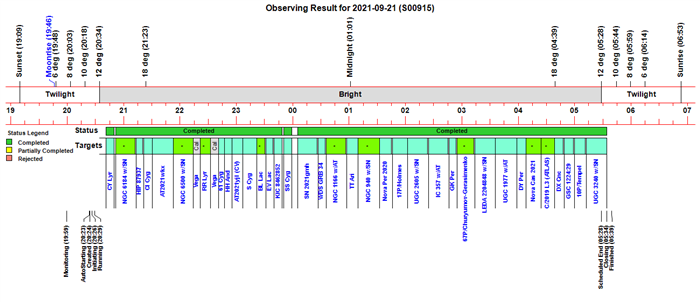

Observing Result

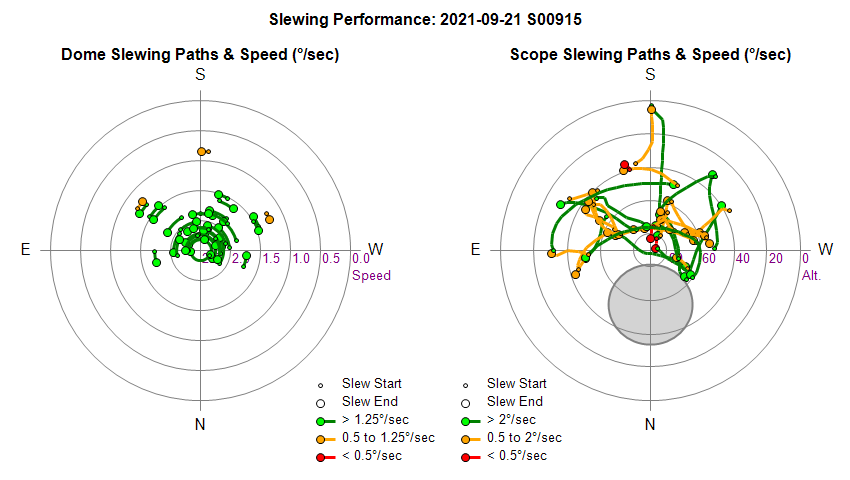

Dome & Scope Slewing Performance

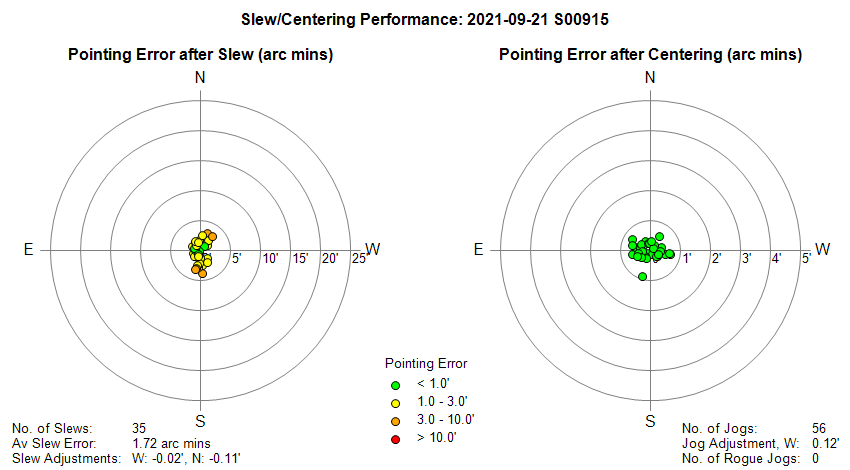

Slew/Centering Performance

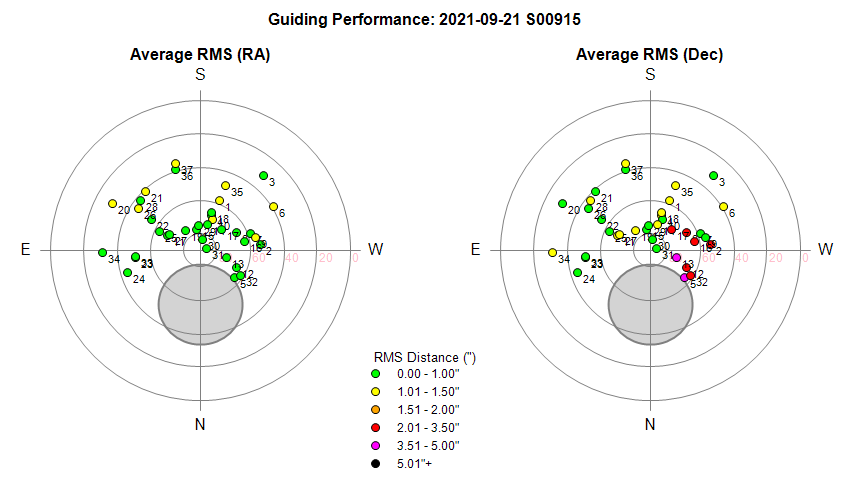

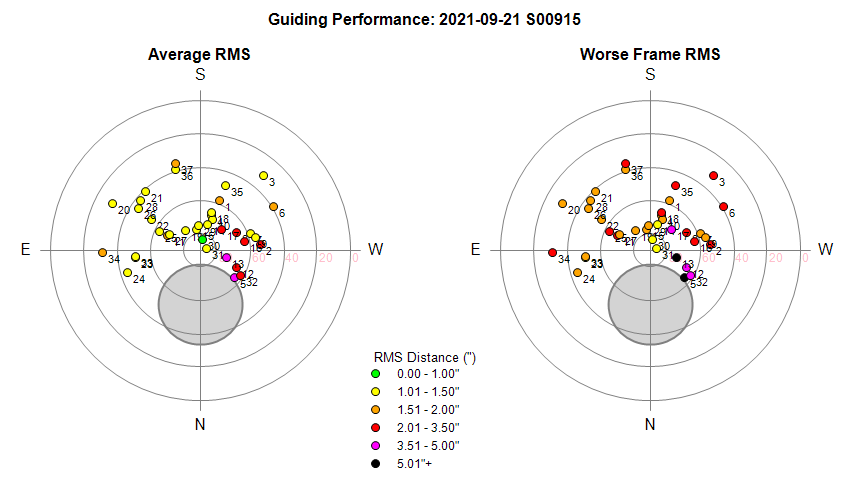

Guiding Performance

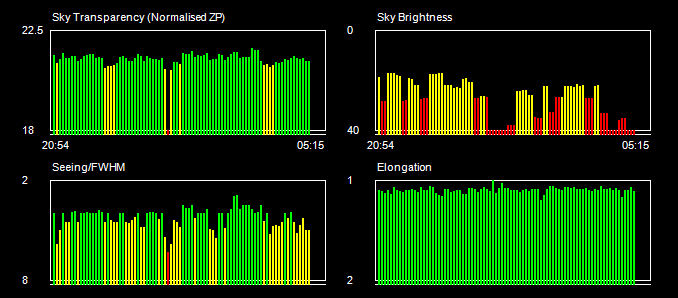

Sky Conditions (Locate Frames)

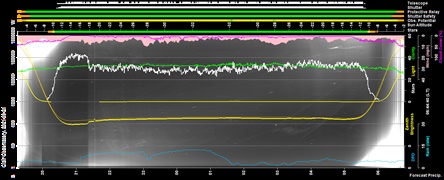

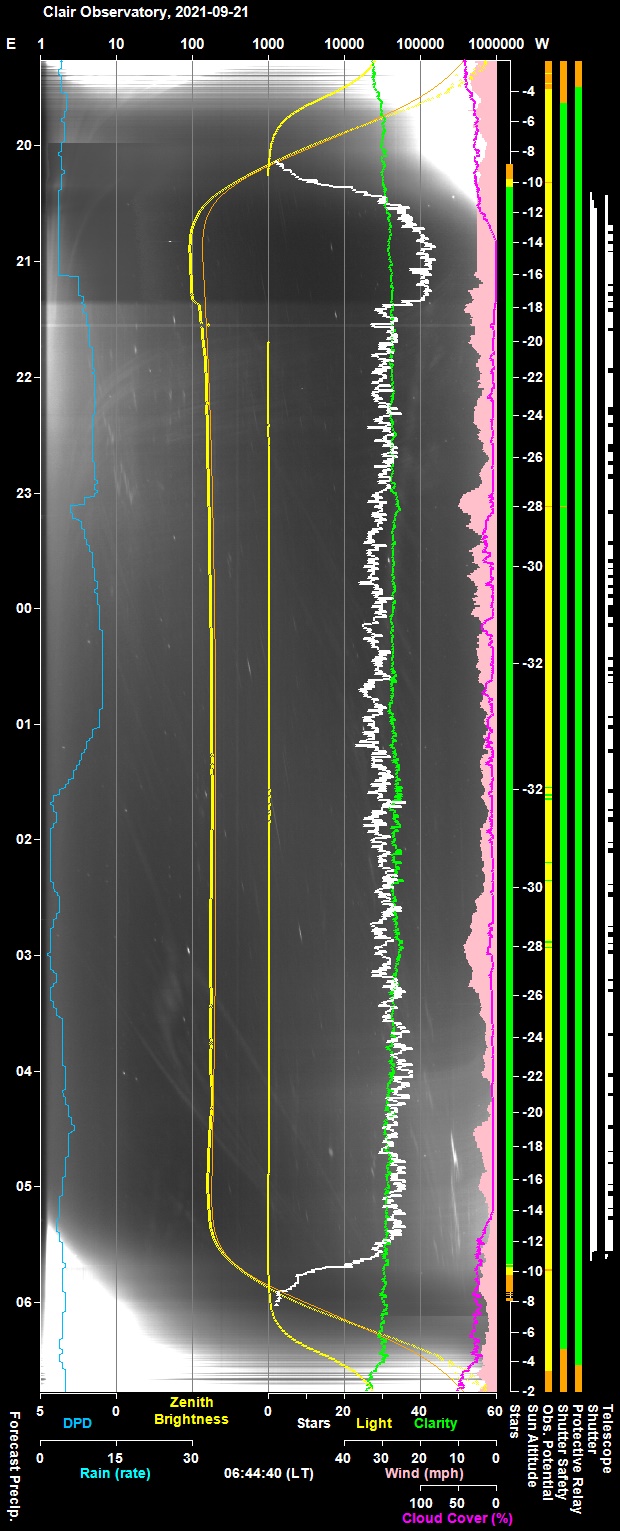

Night Sky Summary Plot Top axis: Sky Brightness at Zenith (in ADU/s) Lefthand axis: Local Time (hh LT). Righthand axis: Sun Altitude (degs)

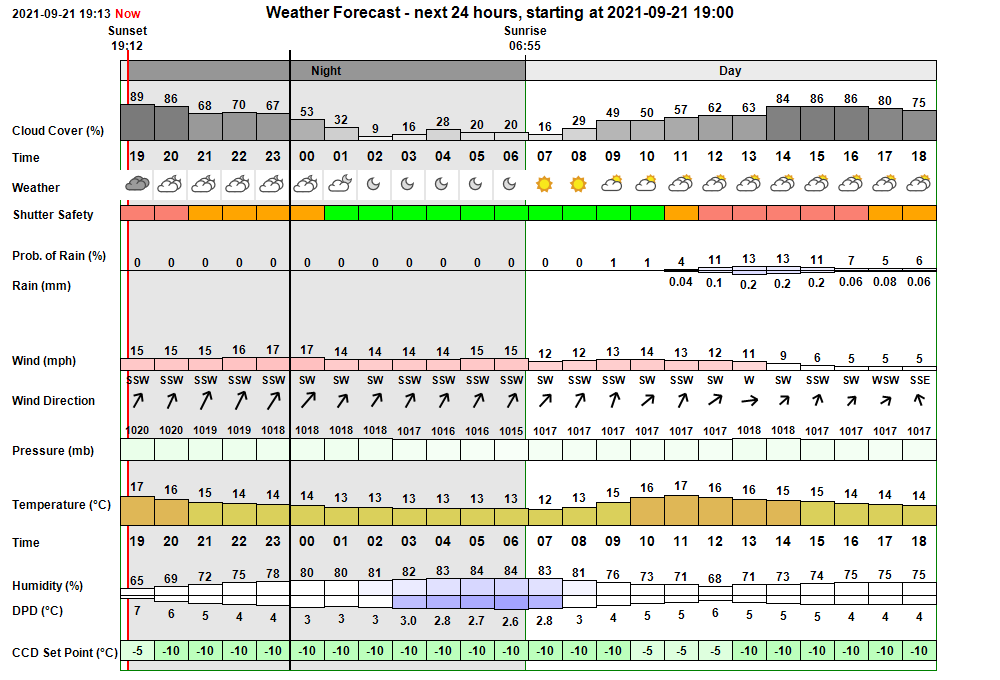

Actual Weather vs Pre-Session Weather Forecast

Session Event Log

Time     Event Detail 19:59:30 Session Monitoring AutoStart monitoring for Live Session opportunity between 20:04 & 04:48 19:59:30   AutoStart Waiting AutoStart waiting till earliest start time at 20:04 20:04:21   AutoStart Delayed Session delayed due to too few stars 20:23:42 Session AutoStarting Session autostarting (20:23) 20:24:13 Session Created Live Session Created (2021-09-21 S00915, ImageSaveNum: 915001) 20:24:15   Scope Switched On Telescope Power has been switched on via UPB Powerbox. 20:25:55   Services Started Observatory Services started 20:26:02 Observatory (Auto) Observatory placed in Fully-Automated Mode 20:26:05 Session Pending Session pending (2021-09-21) 20:26:07 Session Initiating Session initiating (2021-09-21) 20:26:09   Plan Requested Observing Plan requested from AstroPlan (1.23.2) 20:26:54   Plan Loaded Observing Plan loaded to queue (, Plan ID: 661) 20:27:16   Camera1 Connected SBIG Camera Connected (set point -10°C) 20:27:23   Telescope Connected Telescope Connected (TheSky6) 20:27:47 Session Equilibration Session ready for dome & camera equilibration 20:28:32   Dome Opened Dome opened (opening time 45s) 20:29:07 Session Running Session running 20:29:09   Queue Started Observing Queue started (37 targets selected) 20:29:13     Target Started (NrZen) Target started (Focus Field 19, HIP 93376) 20:31:02       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S) 20:34:05       Focusing Completed Foc1 AutoFocus Completed (Profile No 1, wide) 20:36:04       Focusing Completed Foc1 AutoFocus Completed (Profile No 1) 20:36:30       Focusing Started-Foc2 Foc2 Focusing Started (Secondary Scope, using ShCap) 20:38:53       Focusing Completed Foc2 AutoFocus Completed (Profile No 2, wide) 20:40:46       Focusing Completed Foc2 AutoFocus Completed (Profile No 2) 20:41:06     Target Completed Target completed (Focus Field 19, HIP 93376) 20:41:08     Target Started (1/37) Target started (1/37, GCVS CY Lyr) 20:44:32       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S) 20:46:19       Focusing Completed Foc1 AutoFocus Completed (Profile No 3) 20:49:51     Target Completed Target completed (1/37, GCVS CY Lyr) 20:51:27     Target Started (2/37) Target started (2/37, NGC 6184 w/SN2021wkv) 20:55:31       Focusing Skipped Foc1 focusing skipped - star is too dim (TCF-S) 21:12:12     Target Completed Target completed (2/37, NGC 6184 w/SN2021wkv) 21:13:19     Target Started (3/37) Target started (3/37, HIP 87937) 21:16:31       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S) 21:18:34       Focusing Completed Foc1 AutoFocus Completed (Profile No 4) 21:20:56     Target Completed Target completed (3/37, HIP 87937) 21:21:11     Target Started (4/37) Target started (4/37, GCVS CI Cyg) 21:24:27       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S) 21:26:29       Focusing Completed Foc1 AutoFocus Completed (Profile No 5) 21:30:17     Target Completed Target completed (4/37, GCVS CI Cyg) 21:30:19     Target Started (5/37) Target started (5/37, AT2021wkx) 21:34:41       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S) 21:36:42       Focusing Completed Foc1 AutoFocus Completed (Profile No 6) 21:52:38     Target Completed Target completed (5/37, AT2021wkx) 21:52:40     Target Started (6/37) Target started (6/37, NGC 6500 w/SN2021wuf) 21:56:14       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S) 21:58:02       Focusing Completed Foc1 AutoFocus Completed (Profile No 7) 22:13:57     Target Completed Target completed (6/37, NGC 6500 w/SN2021wuf) 22:13:59     Target Started (7/37) Target started (7/37, Vega) 22:16:36       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S) 22:20:11       Focusing Failed Foc1 focusing failed (failed QC check - Range) 22:21:43     Target Completed Target completed (7/37, Vega) 22:21:45     Target Started (8/37) Target started (8/37, GCVS RR Lyr) 22:24:39       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S) 22:26:32       Focusing Completed Foc1 AutoFocus Completed (Profile No 9) 22:32:36     Target Completed Target completed (8/37, GCVS RR Lyr) 22:32:38     Target Started (9/37) Target started (9/37, Vega) 22:35:43       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S) 22:39:19       Focusing Failed Foc1 focusing failed (failed QC check - Range) 22:40:58     Target Completed Target completed (9/37, Vega) 22:41:00     Target Started (10/37) Target started (10/37, 61 Cyg) 22:44:30       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S) 22:46:12       Focusing Completed Foc1 AutoFocus Completed (Profile No 11) 22:47:33     Target Completed Target completed (10/37, 61 Cyg) 22:47:35     Target Started (11/37) Target started (11/37, GCVS HH And) 22:51:21       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S) 22:53:23       Focusing Completed Foc1 AutoFocus Completed (Profile No 12) 22:55:09     Target Completed Target completed (11/37, GCVS HH And) 22:55:11     Target Started (12/37) Target started (12/37, AT2021yjl (CV)) 22:59:50       Focusing Skipped Foc1 focusing skipped - star is too dim (TCF-S) 23:06:55     Target Completed Target completed (12/37, AT2021yjl (CV)) 23:06:58     Target Started (13/37) Target started (13/37, GCVS S Cyg) 23:09:48       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S) 23:11:36       Focusing Completed Foc1 AutoFocus Completed (Profile No 13) 23:21:29     Target Completed Target completed (13/37, GCVS S Cyg) 23:21:31     Target Started (14/37) Target started (14/37, GCVS BL Lac) 23:25:35       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S) 23:27:28       Focusing Completed Foc1 AutoFocus Completed (Profile No 14) 23:31:09     Target Completed Target completed (14/37, GCVS BL Lac) 23:31:12     Target Started (15/37) Target started (15/37, GCVS EV Lac) 23:35:03       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S) 23:37:04       Focusing Completed Foc1 AutoFocus Completed (Profile No 15) 23:39:23     Target Completed Target completed (15/37, GCVS EV Lac) 23:39:51     Target Started (16/37) Target started (16/37, KIC 8462852) 23:43:17       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S) 23:45:16       Focusing Completed Foc1 AutoFocus Completed (Profile No 16) 23:48:50     Target Completed Target completed (16/37, KIC 8462852) 23:50:09     Target Started (17/37) Target started (17/37, GCVS SS Cyg) 23:53:24       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S) 23:55:12       Focusing Completed Foc1 AutoFocus Completed (Profile No 17) 23:58:55     Target Completed Target completed (17/37, GCVS SS Cyg) 00:05:20     Target Started (18/37) Target started (18/37, SN 2021gmh) 00:08:22       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S) 00:10:23       Focusing Completed Foc1 AutoFocus Completed (Profile No 18) 00:26:05     Target Completed Target completed (18/37, SN 2021gmh) 00:27:12     Target Started (19/37) Target started (19/37, WDS GRB 34) 00:31:14       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S) 00:33:03       Focusing Completed Foc1 AutoFocus Completed (Profile No 19) 00:34:47     Target Completed Target completed (19/37, WDS GRB 34) 00:35:27     Target Started (20/37) Target started (20/37, NGC 1166 w/AT2021zby) 00:39:14       Focusing Skipped Foc1 focusing skipped - star is lost (TCF-S) 00:56:35     Target Completed Target completed (20/37, NGC 1166 w/AT2021zby) 00:57:19     Target Started (21/37) Target started (21/37, GCVS TT Ari) 01:01:15       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S) 01:03:24       Focusing Completed Foc1 AutoFocus Completed (Profile No 20) 01:09:40     Target Completed Target completed (21/37, GCVS TT Ari) 01:09:42     Target Started (22/37) Target started (22/37, NGC 940 w/SN2021vtl) 01:13:54       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S) 01:16:03       Focusing Completed Foc1 AutoFocus Completed (Profile No 21) 01:32:12     Target Completed Target completed (22/37, NGC 940 w/SN2021vtl) 01:32:15     Target Started (23/37) Target started (23/37, Nova Per 2020) 01:34:39       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S) 01:36:31       Focusing Completed Foc1 AutoFocus Completed (Profile No 22) 01:45:03     Target Completed Target completed (23/37, Nova Per 2020) 01:45:59     Target Started (24/37) Target started (24/37, 17P/Holmes) 01:49:28       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S) 01:51:28       Focusing Completed Foc1 AutoFocus Completed (Profile No 23) 02:02:00     Target Completed Target completed (24/37, 17P/Holmes) 02:02:29     Target Started (25/37) Target started (25/37, UGC 2605 w/SN2021wvw) 02:05:31       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S) 02:07:35       Focusing Completed Foc1 AutoFocus Completed (Profile No 24) 02:23:30     Target Completed Target completed (25/37, UGC 2605 w/SN2021wvw) 02:24:21     Target Started (26/37) Target started (26/37, IC 357 w/AT2021fyd) 02:27:57       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S) 02:30:08       Focusing Completed Foc1 AutoFocus Completed (Profile No 25) 02:45:52     Target Completed Target completed (26/37, IC 357 w/AT2021fyd) 02:46:13     Target Started (27/37) Target started (27/37, GCVS GK Per) 02:49:19       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S) 02:51:18       Focusing Completed Foc1 AutoFocus Completed (Profile No 26) 02:54:20     Target Completed Target completed (27/37, GCVS GK Per) 02:54:54     Target Started (28/37) Target started (28/37, 67P/Churyumov-Gerasimenko) 02:58:16       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S) 03:00:12       Focusing Completed Foc1 AutoFocus Completed (Profile No 27) 03:13:12     Target Completed Target completed (28/37, 67P/Churyumov-Gerasimenko) 03:13:51     Target Started (29/37) Target started (29/37, LEDA 2204848 w/SN2021umh) 03:17:55       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S) 03:19:54       Focusing Completed Foc1 AutoFocus Completed (Profile No 28) 03:35:35     Target Completed Target completed (29/37, LEDA 2204848 w/SN2021umh) 03:35:37     Target Started (30/37) Target started (30/37, UGC 1977 w/AT2021irz) 03:40:40       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S) 03:42:39       Focusing Completed Foc1 AutoFocus Completed (Profile No 29) 03:58:20     Target Completed Target completed (30/37, UGC 1977 w/AT2021irz) 03:58:22     Target Started (31/37) Target started (31/37, GCVS DY Per) 04:01:53       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S) 04:03:43       Focusing Completed Foc1 AutoFocus Completed (Profile No 30) 04:08:07     Target Completed Target completed (31/37, GCVS DY Per) 04:08:09     Target Started (32/37) Target started (32/37, Nova Cas 2021) 04:12:11       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S) 04:13:47       Focusing Completed Foc1 AutoFocus Completed (Profile No 31) 04:24:25     Target Completed Target completed (32/37, Nova Cas 2021) 04:24:27     Target Started (33/37) Target started (33/37, C/2019 L3 (ATLAS)) 04:28:48       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S) 04:30:51       Focusing Completed Foc1 AutoFocus Completed (Profile No 32) 04:38:43     Target Completed Target completed (33/37, C/2019 L3 (ATLAS)) 04:38:45     Target Started (34/37) Target started (34/37, GCVS DX Cnc) 04:42:44       Focusing Skipped Foc1 focusing skipped - star is too dim (TCF-S) 04:48:12     Target Completed Target completed (34/37, GCVS DX Cnc) 04:49:11     Target Started (35/37) Target started (35/37, GSC 1224:29) 04:53:26       Focusing Skipped Foc1 focusing skipped - star is too dim (TCF-S) 04:59:35     Target Completed Target completed (35/37, GSC 1224:29) 04:59:53     Target Started (36/37) Target started (36/37, 10P/Tempel) 05:03:42       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S) 05:05:42       Focusing Completed Foc1 AutoFocus Completed (Profile No 33) 05:11:51     Target Completed Target completed (36/37, 10P/Tempel) 05:12:34     Target Started (37/37) Target started (37/37, UGC 3240 w/SN2021vau) 05:16:23       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S) 05:18:11       Focusing Completed Foc1 AutoFocus Completed (Profile No 34) 05:33:59     Target Completed Target completed (37/37, UGC 3240 w/SN2021vau) 05:34:03   Queue Completed Job Queue completed 05:34:07 Session Closing Session closing 05:34:57   Dome Closed Dome closed (closing time 45s) 05:35:40   Dome Parked Dome parked (parking time 36s), Az: 90.0 deg 05:36:54   Telescope Parked Telescope parked (parking time 70s) 05:37:09   Telescope State Scope parked Turn scope off. (Handbox) 05:37:29   Telescope Switched Off Telescope Power has been switched off via UPB Switch. 05:38:19   Services Stopped Night Services stopped 05:38:21 Session Housekeeping Housekeeping Started (Cleanup FITS, Create Fits Summary, Transfer Files) 05:39:12 Session Finished Session Finished

Session Alerts

Time     Alert Detail 21:48:04 Dome Dome has been stationary for more than 15 mins 21:49:09 Dome Dome Movements have begun again (outage 17.9 mins) 23:08:07 Dome Discrepency Difference between Telescope Az and Dome Az is > 8 deg (GCVS S Cyg) 03:59:29 Dome Discrepency Difference between Telescope Az and Dome Az is > 8 deg (GCVS DY Per)

Back to Top

Operational Issues (2021-09-21, S915)

• Critical Issues (0)
• Major Issues (0)
• Minor Issues (3)
• Small Defects (0)
• Continuous Improvement (19)

[ Prev | Next ]

Critical Issues

• None

Major Issues

• None

Minor Issues

• Running Focus Profile on Vega failed to produce a valid profile / focus measurement.  Profile taken with 0.2s focus frame exposures. Bloomed star causes very high FWHM values (35-40") which don't respond significantly with changing focuser position.   Focus Locate frame uses the standard 3s exposure for Vega. This is much too long and the image shows severe blooming and causes a slight error in the position of the brightest star object.    The 0.2s focus frame exposures are also too long. RunAutoPickFocusStar() hard coded to use the minimum SBIG ST-10 exposure of 0.11s focus.  Because of Vega's extreme brightness it might simply not be possible to take non-saturated focus frames.   Prehaps Vega should be 'black-listed from focusing attempts ?   Even a 0.3s S (spectra) filter is saturated across the first order spectra.   AstroMain 3.42.6 code modified so that Vega is hard coded to limit exposures to 0.11s exposure when using S Filter.  Vega 'calibration target' changed to using 0.11s exposure.
  Fix attempted 2021-09-22 (AstroMain 3.42.6)

• 3s Focus Locate Frame exposures for Vega show severe blooming.  Focus Locate frame uses the standard 3s exposure for Vega. This is much too long and the image shows severe blooming and causes a slight error in the position of the brightest star object.  Resolved by changing the RunAutoPickFocusStar()  routine to call a new routine (GetBrightStarExposureTime() ) to look up the magnitude of the target star in TheSky6 and use that magnitude to select and return a shorter exposure if the target star is particularly bright, but otherwise return the provided default exposure).    CentreTarget  routine with BrightStar Locate has been changed to use the same routine.
  Fixed 2021-09-22 (AstroMain 3.42.6)

• Problem runnning 'Process All' reduction operation when there raw sets include one or more sets without Dark Frames .  Process All routine (ReduceAllFolders()) is meant to skip images sets which don't have a Master Dark or Master Flat frame. This sort of happens (message "Master Dark is missing" appears) , but there is a recently introduced bug which either causes key strokes to nevertheless still be sent across of CCDSoft and moves files unexpectedly which causes it to open folders that it shouldn't and otherwise corrrupts/ destabilises the Reduction process , requiring user to abort process.  Fixed 2021-09-22.
  Fixed 2021-09-22 (AstroMain 3.42.6)

Small Defects

• None

Continuous Improvement

• Modify position of Focus Star label on JPG picture to avoid overposting bottom caption.    See 0018.000000.NGC_6184_w_SN2021wkv.100x100.jpg where focus star' label is overposted the bottom text.  Check also that it does also overpost top label (cf 0457.000000.10P_Tempel.100x100.jpg)
  Done 2021-09-22 (AstroMain 3.42.6)

• Change name of JPG picture of focus frames from ..100x100.jpg to ..focus.dat.   Name of JPG picture for Camera 2 reference should also be changed from like  ...Guide36_Ref.jpg to Cam2Ref.jpg
  Done 2021-09-22 (AstroMain 3.42.6)

• Group Guide Stats data for Targets having very short exposure times.  For example HIP 87937 (15 x 2s C), should have data grouped into a single 30s 'group' .  With grouping the guide history plot suffers overposting issues and has Guide plots with only 2 points each.  Implemented by need to monitor to see that results are as expected or if there are any undesirable sideeffects
  Done 2021-09-22 (AstroMain 3.42.6)

• Hide FIT Images from view when running VMA until they are found to be within scope (ie of the right vma type and are of a known star field / object). This is to avoid 'images' flashing when running the respective vma routine (vma2, vma3 etc)
  Done 2021-09-22 (AstroMain 3.42.6  / VMA)

• Modify behaviour of AstroMove's list 'Latest' session.  Button is nornally (only used) to get the name of the latest session on Observatory Computer in order to download session's files from observatory.   'R' button has to be used first to refresh list and then' Latest ' is used. Propose to combine into one button / on
  Done 2021-09-22 (AstroMove 1.7.8)

• Correct specification of 61 Cyg target so that blue target circle in JPG pictures appears over the current position of the double star rather than the 61 Cyg catalog position (which doesn't have Proper motion applied).  Fixed by using TheSky6Name HIP 104214 (which has proper motion data). EV Lac (GJ 873) also fixed in similar way by using TheSky6Name  HIP 112460.
  Done 2021-09-22 (Target Database)

• Provide a new 'process' button for  Excel Fits Summary files, that allows user to step through the typical post-session admin.  Button name to change dependant on next relevant action. Spreadsheet to keep a record of where admin has reached, in case the .xls file is reopened after being closed.
  Done 2021-09-22 (Excel/Fits Summary)

• Modify the name of Focus Locate frame generated by RunAutoPickFocusStar() routine to include profile no. For example .'Snap.0049.15.autopick_star.FIT' to become 'Snap.0049.15.profile02.locate_focus_star.FIT'
  Done 2021-09-22 (AstroMain 3.42.6)

• Ra/Dec positions of Non-Sidereal Targets (Comets, Asteroids) aren't always re-calculated for the most relevant time.  As part of AstroPlan's Schedule Building process. the GetActiveTargetSet() routine recalculates the RA/Dec position of non-sidereal targets. This is done for just a single time point with the assumption that the position is sufficiently accurate for the purposes of creating the night's observing plan. ( Note: Ra/Dec positions are however recalculated more accurately for actual observing time and checked against telescope constraints by AstroMain's Job Executor prior to slewing the scope.  There is too much computing overhead to recalculate the position for each and every GA potential plan, as it requires calling TheSky6 each time).  The current timepoint used is the time when the plan is built. This is normally done just before the plan is used.  This could lead to a invalid positions if plan is being built for some future night, and arguably isn't the best time point to use for the night (even when being built directly before observing).    It is proposed to move the call to GetActiveTargetSet() into the code section where the TheSky6 is set to the middle of the night. This section is used to get the angular separation between target and the moon.
  Done 2021-09-23 (AstroPlan 1.23.3)

• Update the display of intermediate (Gen) Plan Charts in AstroPlan in order to show correct element types.  Element Type (MI, CalA, CalB, ToF etc) is a new parameter that has been added to the plan_observation and observation tables.   Plotting of Gen Plan Charts  needs to be update in order to display element typses corresctly.  Fixed by modifying the InsertObservationIntoPlan() routine to set Observation ElementType
  Fixed 2021-09-22 (AstroMain 3.42.6)

• Add Altitude Plan Chart to Current/Latest Session Web Page.  Session.AltitudePlan.png is a new chart created by AstroPlan 1.23.3/1.24 to show the altitude tracks of targets over the course of a night's observing plan and the expected target altitudes during observing. Web page to be updated to accomodate new chary. AstroPlan's web uploader to be For example .'Snap.0049.15.autopick_star.FIT' to become 'Snap.0049.15.profile02.locate_focus_star.FIT'
  Done 2021-09-23 (AstroPlan 1.23.3/1.24)

• Modify AzAltPlan Chart to show calibration targets.  Before/After Calibration Fields are a new feature in 1.23.2,  whereby a Target can be selected to 'CollectCalibration' data and the relevant calibration 'targets' are then inserted into the Plan before and/or after the primary target. At present these calibration targets don't appear on the Az/Alt Chart.   SaveFinalPlan() routine to be updated to include these calibration 'targets'.
  Done 2021-09-23 (AstroPlan 1.24)

• Tweak graph of Shutter Status on CCD Temperature Chart so that it switches directly from Closed to Open and vice versa) without a slanted line
  Done 2021-09-23 (AstroMain 3.42.6)

• Change alignment of image and image set exposure times on GuideSumm table to be right-aligned.
  Done 2021-09-23 (AstroMain 3.42.6)

• Fix position of focus box displayed on JPG Pictures so that box lies entirely within camera view
  Done 2021-09-23 (AstroMain 3.42.6)

• Auto-copy AltitudePlan chart from Live Sessions to the Session Logs folder, and include in Local Files session.htm page
  Done 2021-09-23 (AstroMain 3.42.6)

• Auto-copy AltitudePlan chart from Live Sessions to the Session Logs folder. Implemented with new routine CopyAltitudePlanChart()  called from LoadPlanFromDBShell().
  Done 2021-09-23 (AstroMain 3.42.6)

• Auto-copy Convergence Plot from Live Sessions to the Session Logs folder.  Implemented with new routine CopyConvergenceChart()  called from LoadPlanFromDBShell().
  Done 2021-09-23 (AstroMain 3.42.6)

• Add airmass axis to right hand side of Altitude Plan Chart and Altitude Axis Title, and add back the Status bar, add Solar Depression
  Done 2021-09-25 (AstroPlan 1.24)

• Include Altitude Plan Chart & Convergence Chart to  Session JPGS Page (local file).
  Done 2021-09-25 (AstroMain 3.42.7)

• 'Take image set' logging to be raised above Take image logging and listed just once for the set, and give a useful summary. For example :
    Image set 1 (2x2 , 7 x 5s C)
    Image set 2 (3x3,  30s B, 20s V, 15s R).
  In first case the log message concerning Image Set that is below the level of the Image has been removed  to avoid confusion & duplication
  Existing Image Group already serves the purpose of the second case, but doesn't give the summary.
  Part Done 2021-09-25 (AstroMain 3.42.7)

• Save Fix' button facility should check AstroImageTool is already running before opening a second instance.
  Done 2021-09-25 (AstroMain 3.42.7)

• Add Dew Point Temperature as a supplementary curve on Focus Temperature Chart.
  Done 2021-09-25 (AstroMain 3.42.7)

• Add Dew Heater Power (%) as a supplementary curve on Focus Temperature Chart.
   Done 2021-10-04 (AstroMain 3.43.3)

• Modify reporting of vcNull and other 'null' values when reporting focus profile results.  Focus profile for Vega was unusual in completing the profile, but no valid points where achieved.  Profile was trying to focus blooming streak and couldn't get elongation values below 3 or FWHM to reduce below 35" . Profile result littered with vcNull values etc or blank data (eg airmass).  Reporting to be improved.   Vega has been hard-coded to skip focusing in AstroMain 3.42.7 because the star is simply too bright to give a reliable automated best focus position due to blooming.
   Done 2021-10-04 (AstroMain 3.43.3)
