David's Astronomy Pages Notes - Session 959 (2022-01-25)

Notes (S958)

Notes Main

Home Page

Notes (S960)

	Session Aims & Highlights
	- Observing Result  - Night Summary Plot  - Session Event Log
	Operational Issues
	- Critical Issues (0),  Major Issues (0),  Minor Issues (1),  Small Defects (5),  Continuous Improvement (6)
	Images from 2022-01-25 >>         [ Local Files >> ]

Session Aims & Highlights (2022-01-25)

Main aims

1. Targets.  Acquire images of a selection of variable stars, nearby stars, comets & deep sky targets as allowed by time & conditions.
2. AstroMain.  Test bug fixes and enhancements associated with AstroMain 3.48.23, 3.48.24 (& 3.48.25)
    (in particular test out the addition of individual frame start/ends on guiding chart / history graphs including annotation of filter names)

Equipment & Software

• 12" LX200 and ST-10XME
• 80mm APO and ZWO ASI 178MC
• CCDApp2, TheSky6, CCDSoft5, DeviceHub 6.5.1.9,  MeadeGeneric 1.3.3.373, UPB 1.5, ASCOM 6.5 SP1
• Pegasus UPB & Motor Focus, TCF-S
• SharpCap 3.2, PHD2  2.6.10

• AstroMain 3.48.24 / 3.48.25,  AstroPlan 1.29.4,   AstroShCap 1.3.12, AstroGuard 1.6.3
  AstroVOE 1.9.2  AstroSN 1.7.3,  AstroProtect 1.6
  (AstroWeather 1.15.3, AstroAllSky 3.14.4,  AstroObsCam 1.8, AstroLaunch 1.8.2)

Highlights

•  AstroMain.  No significant issues with AstroMain 3.48.24 program, some teething issues with new code added to guiding charts, but fixed in session (3.48.25)
•  Dome/Shutter. Dome handled 12 open/close cycles without any issue during course of session (interrupted by frequent cloud), and there were no dome rotation issues.
•  Cloud. Session interrupted by frequent cloud. Several targets affected by cloud & bad guiding.

Notes:

• .Significant interruptions from cloud. Dome opened and closed 12 times.



  Summary Plots & Logs

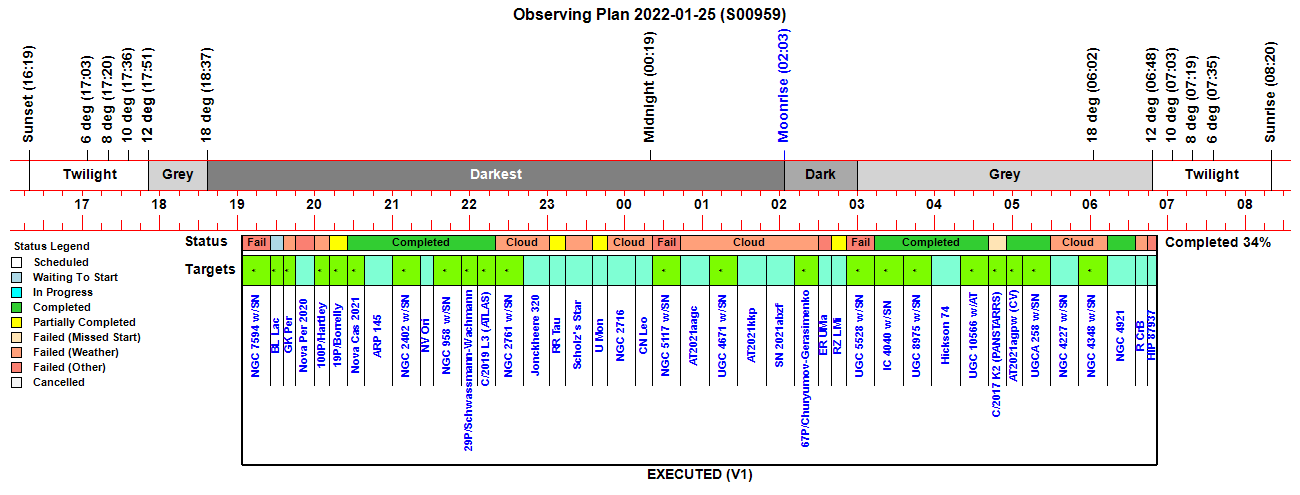

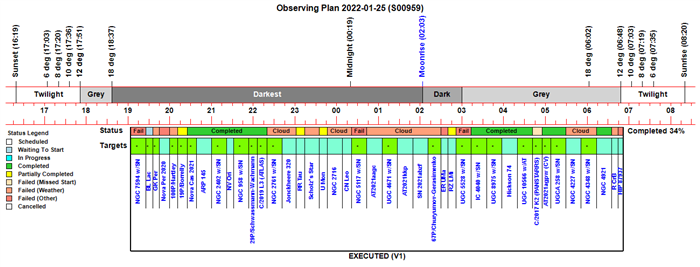

Observing Plan

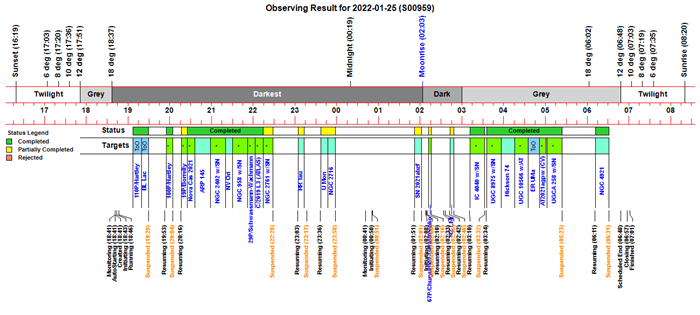

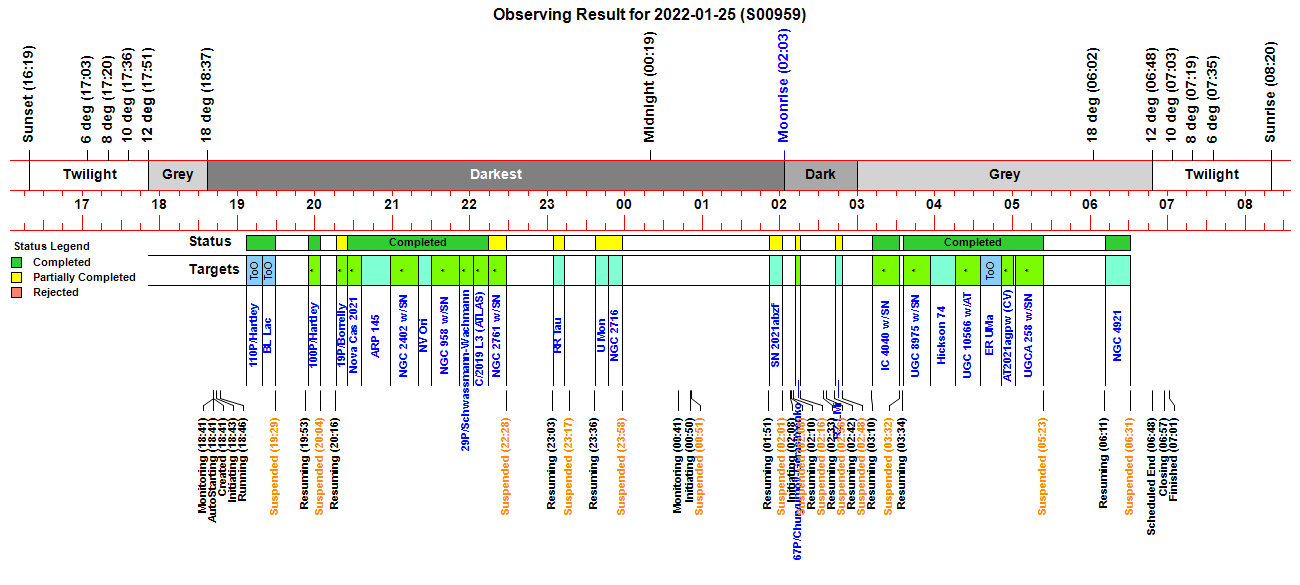

Observing Result

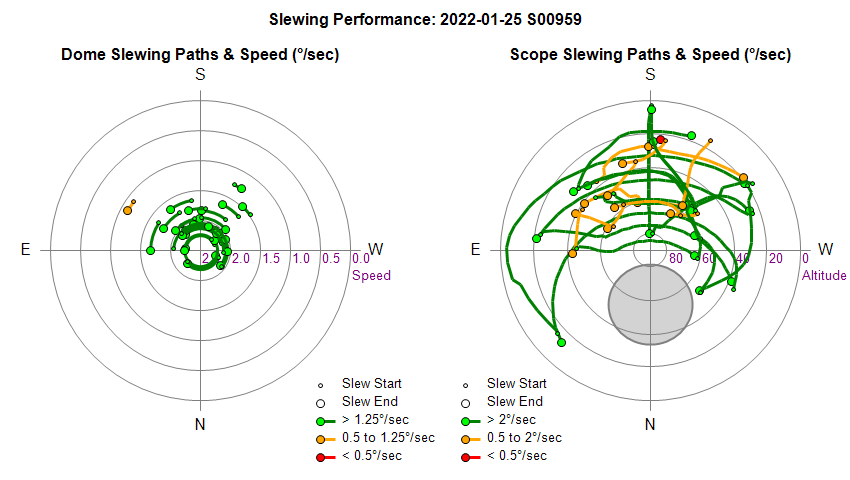

Dome & Scope Slewing Performance

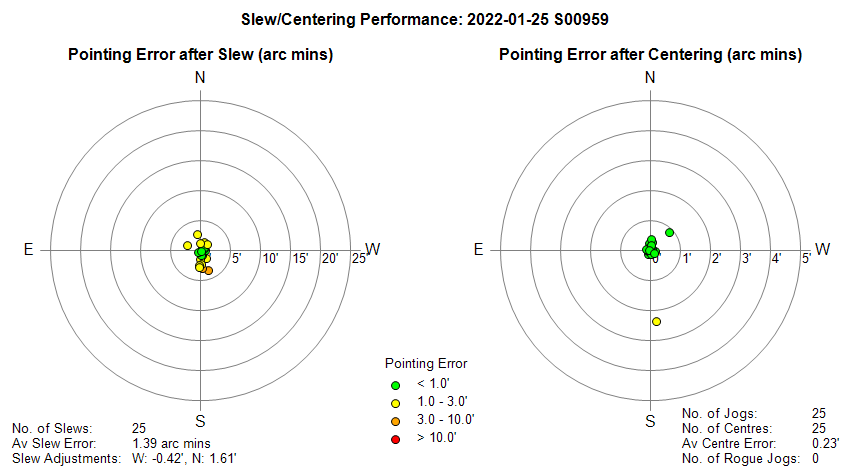

Slew/Centering Performance

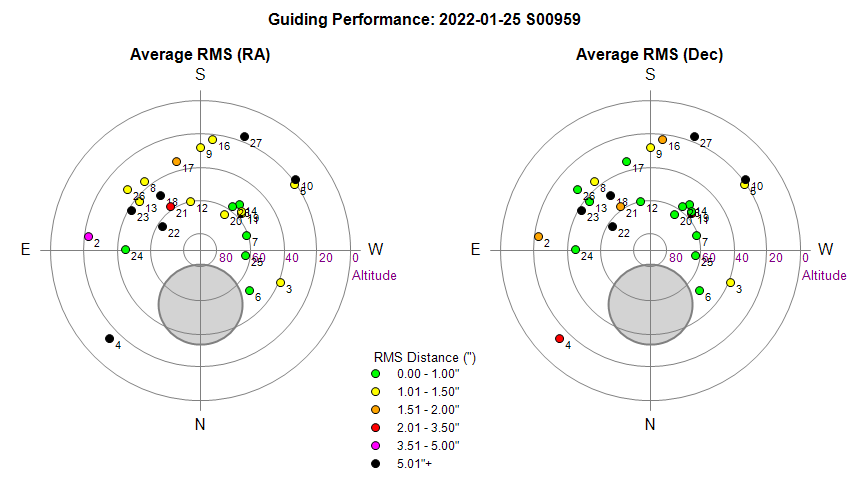

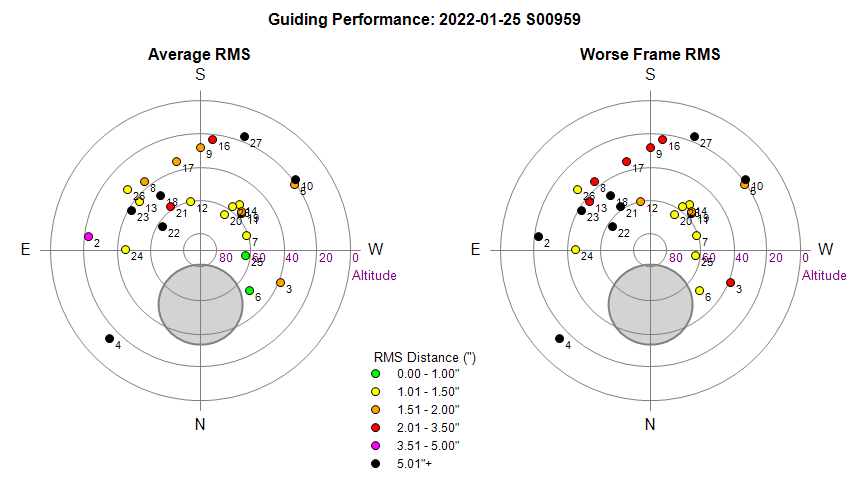

Guiding Performance Reasons for poor Dec guiding : Failed Runs (1, 15 ) - Targets aborted by ObsManager (cloud) Black points (10, 18, 22, 23, 27 )   - Cloud Red Point (4)   - Cloud developing during 4th frame Red Point (11)   - Star jumped to wrong side of zero line Orange Point (2)   - Cloud developing during 4th frame Orange Point (16)   - Wrong side of zero line (close to meridian) Orange Point (21)   - Non effective Dec Guiding (South) & passing cloud

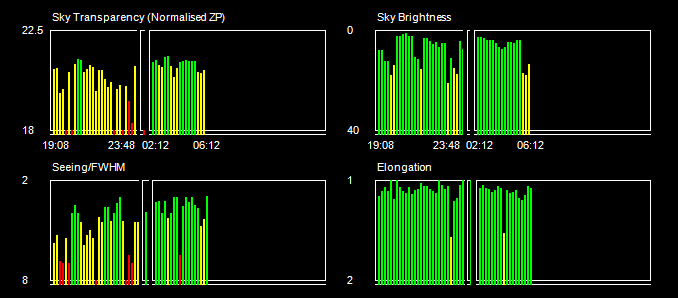

Sky Conditions (Locate Frames)

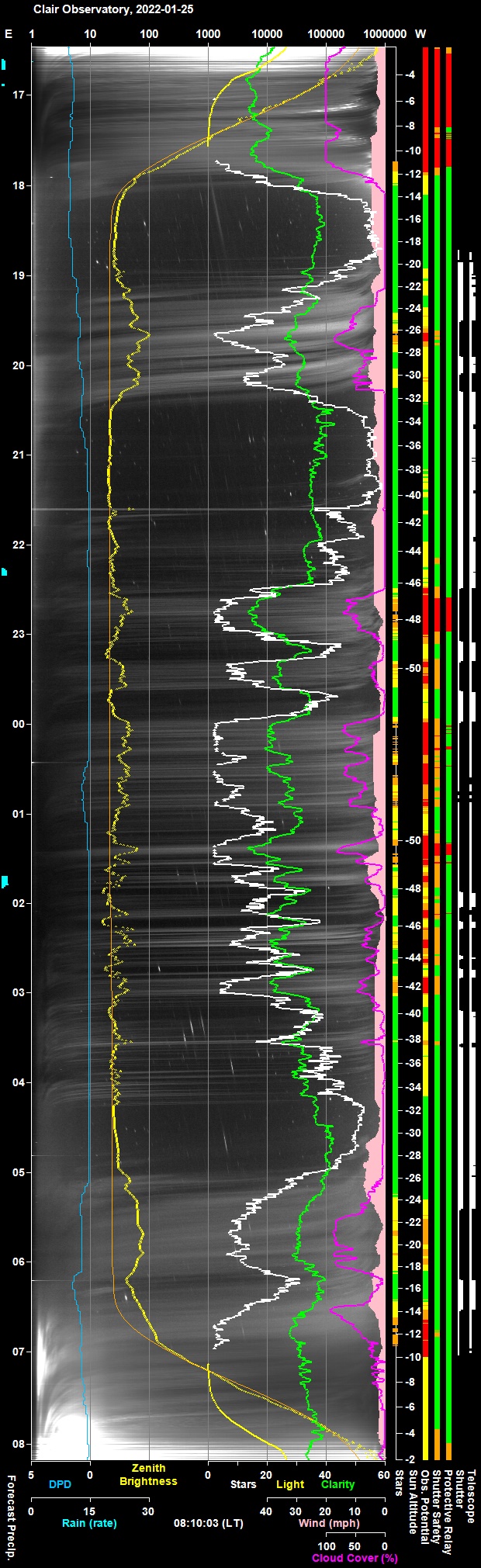

Night Sky Summary Plot Top axis: Sky Brightness at Zenith (in ADU/s) Lefthand axis: Local Time (hh LT). Righthand axis: Sun Altitude (degs)

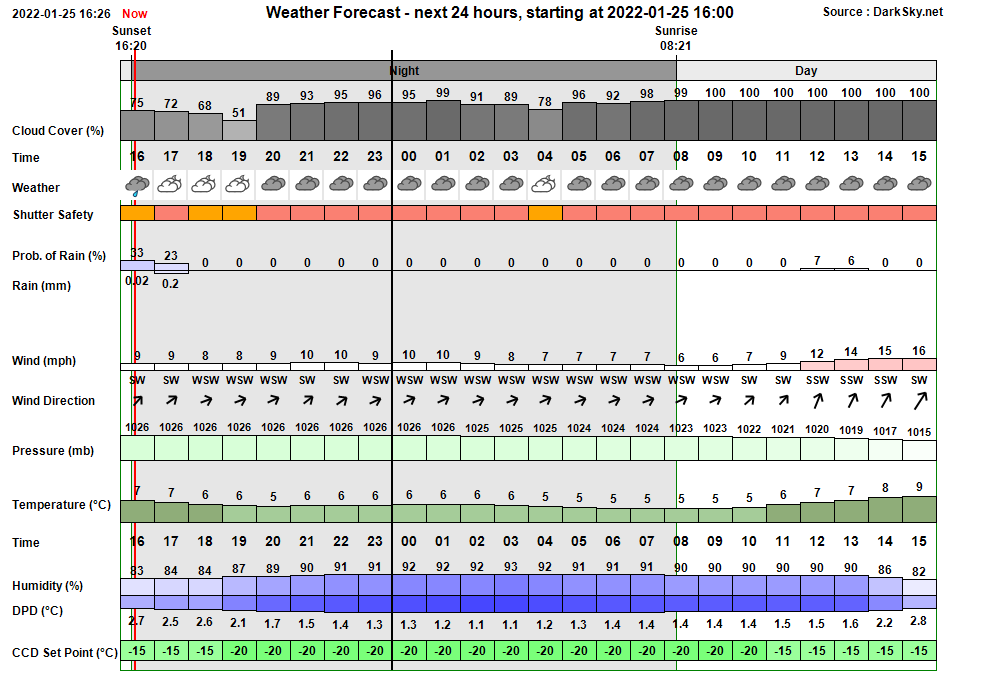

Actual Weather vs Pre-Session Weather Forecast

Session Event Log

Time     Event Detail 18:41:23 Session Monitoring AutoStart monitoring for Live Session opportunity between 18:41 & 06:08 18:41:24 Session AutoStarting Session autostarting (18:41) 18:41:52 Session Created Live Session Created (2022-01-25 S00959, ImageSaveNum: 959001) 18:41:54   Scope Switched On Telescope Power has been switched on via UPB Powerbox. 18:43:36   Services Started Observatory Services started 18:43:43 Observatory (Auto) Observatory placed in Fully-Automated Mode 18:43:44 Session Pending Session pending (2022-01-25) 18:43:46 Session Initiating Session initiating (2022-01-25) 18:43:48   Plan Requested Observing Plan requested from AstroPlan (1.29.4) 18:44:22   Plan Loaded Observing Plan loaded to queue (, Plan ID: 715) 18:44:44   Camera1 Connected SBIG Camera Connected (set point -20°C) 18:44:51   Telescope Connected Telescope Connected (TheSky6) 18:45:15 Session Equilibration Session ready for dome & camera equilibration 18:46:00   Dome Opened Dome opened (opening time 45s) 18:46:50 Session Running Session running 18:46:53   Queue Started Observing Queue started (41 targets selected) 18:46:55     Target Started (NrZen) Target started (Focus Field 3, HIP 14181) 18:48:37       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S) 18:51:50       Focusing Completed Foc1 AutoFocus Completed (Profile No 1, wide) 18:53:50       Focusing Completed Foc1 AutoFocus Completed (Profile No 1) 18:53:53       Focusing Started-Foc2 Foc2 Focusing Started (Secondary Scope, using ShCap) 18:56:03       Focusing Completed Foc2 AutoFocus Completed (Profile No 2, wide) 18:57:50       Focusing Completed Foc2 AutoFocus Completed (Profile No 2) 18:58:08     Target Completed Target completed (Focus Field 3, HIP 14181) 18:58:52     Target Started (1/41) Target started (1/41, NGC 7594 w/SN2022de) 19:05:12     Target Aborted (1/41) Target aborted (1/41, NGC 7594 w/SN2022de) due to Priority 1 ToO Target 19:05:16     Target Started (2/42) Target started (2/42, 100P/Hartley, ToO) 19:05:25     Target Failed Target failed due to slew error (2/42, 100P/Hartley, ToO) 19:06:53     Target Aborted (3/42) Target aborted (3/42, GCVS BL Lac) due to Priority 1 ToO Target 19:06:57     Target Started (4/43) Target started (4/43, 110P/Hartley, ToO) 19:10:47       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S) 19:12:57       Focusing Completed Foc1 AutoFocus Completed (Profile No 3) 19:19:10     Target Completed Target completed (4/43, 110P/Hartley, ToO) 19:19:14     Target Started (5/44) Target started (5/44, GCVS BL Lac, ToO) 19:26:14   SoftSuspend Called Soft Suspend is called due to Deteriorating Conditions (too few stars) 19:29:33     Target Completed Target completed (5/44, GCVS BL Lac, ToO) 19:29:35   Queue Paused Queue paused for Session Suspension 19:29:37 Session Suspended Session suspended 19:30:25   Dome Closed Dome closed (closing time 50s) 19:39:56     Target Cancelled Target cancelled (6/44, GCVS GK Per) due to cloud 19:53:07 Session Resuming Session resuming 19:53:11     Target Cancelled Target cancelled (7/44, Nova Per 2020) due to other condition 19:53:52   Dome Opened Dome opened (opening time 45s) 19:53:54 Session Running Session running 19:53:56   Queue Resumed Observing Queue resumed 19:54:45     Target Started (8/44) Target started (8/44, 100P/Hartley) 19:58:44       Focusing Skipped Foc1 focusing skipped - star is too dim (TCF-S) 20:03:13   SoftSuspend Called Soft Suspend is called due to Deteriorating Conditions (too few stars) 20:04:34     Target Completed Target completed (8/44, 100P/Hartley) 20:04:37   Queue Paused Queue paused for Session Suspension 20:04:38 Session Suspended Session suspended 20:05:23   Dome Closed Dome closed (closing time 45s) 20:05:41     Target Cancelled Target cancelled (8/44, 100P/Hartley) due to cloud 20:16:15 Session Resuming Session resuming 20:17:00   Dome Opened Dome opened (opening time 45s) 20:17:02 Session Running Session running 20:17:04   Queue Resumed Observing Queue resumed 20:17:07     Target Started (9/44) Target started (9/44, 19P/Borrelly) 20:25:03     Target Completed Target partially completed (9/44, 19P/Borrelly) 20:25:07     Target Started (10/44) Target started (10/44, Nova Cas 2021) 20:35:49     Target Completed Target completed (10/44, Nova Cas 2021) 20:35:53     Target Started (11/44) Target started (11/44, ARP 145) 20:38:51       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S) 20:41:23       Focusing Completed Foc1 AutoFocus Completed (Profile No 4) 20:58:37     Target Completed Target completed (11/44, ARP 145) 20:58:41     Target Started (12/44) Target started (12/44, NGC 2402 w/SN2022ds) 21:20:13     Target Completed Target completed (12/44, NGC 2402 w/SN2022ds) 21:20:17     Target Started (13/44) Target started (13/44, GCVS NV Ori) 21:23:18       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S) 21:25:02       Focusing Failed Foc1 focusing failed (failed QC check - Ambiguous) 21:30:34     Target Completed Target completed (13/44, GCVS NV Ori) 21:30:39     Target Started (14/44) Target started (14/44, NGC 958 w/SN2022ao) 21:51:42     Target Completed Target completed (14/44, NGC 958 w/SN2022ao) 21:51:46     Target Started (15/44) Target started (15/44, 29P/Schwassmann-Wachmann) 21:54:21       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S) 21:56:46       Focusing Completed Foc1 AutoFocus Completed (Profile No 6) 22:02:39     Target Completed Target completed (15/44, 29P/Schwassmann-Wachmann) 22:02:43     Target Started (16/44) Target started (16/44, C/2019 L3 (ATLAS)) 22:05:24       Focusing Skipped Foc1 focusing skipped - star is too dim (TCF-S) 22:14:36     Target Completed Target completed (16/44, C/2019 L3 (ATLAS)) 22:14:40     Target Started (17/44) Target started (17/44, NGC 2761 w/SN2021aggu) 22:17:40       Focusing Skipped Foc1 focusing skipped - star is lost (TCF-S) 22:28:23 Critical Cloud Alert Critical Cloud Alert (Obs.Manager will close the Dome) 22:28:25   HardSuspend Called Hard Suspend is called due to Critical Conditions (cloud) 22:28:27     Target Aborted (17/44) Target aborted (17/44, NGC 2761 w/SN2021aggu) due to cloud 22:28:29   Queue Paused Queue paused for Session Suspension 22:28:31 Session Suspended Session suspended 22:29:18   Dome Closed Dome closed (closing time 50s) 22:33:35     Target Cancelled Target cancelled (17/44, NGC 2761 w/SN2021aggu) due to cloud 22:55:05     Target Cancelled Target cancelled (18/44, Jonckheere 320) due to cloud 23:03:37 Session Resuming Session resuming 23:04:22   Dome Opened Dome opened (opening time 45s) 23:04:25 Session Running Session running 23:04:27   Queue Resumed Observing Queue resumed 23:04:29     Target Started (19/44) Target started (19/44, GCVS RR Tau) 23:13:33     Target Completed Target partially completed (19/44, GCVS RR Tau) 23:13:37     Target Started (20/44) Target started (20/44, Scholz's Star) 23:17:09 Critical Cloud Alert Critical Cloud Alert (Obs.Manager will close the Dome) 23:17:11   HardSuspend Called Hard Suspend is called due to Critical Conditions (cloud) 23:17:13     Target Aborted (20/44) Target aborted (20/44, Scholz's Star) due to cloud 23:17:15   Queue Paused Queue paused for Session Suspension 23:17:17 Session Suspended Session suspended 23:18:04   Dome Closed Dome closed (closing time 49s) 23:27:47     Target Cancelled Target cancelled (20/44, Scholz's Star) due to cloud 23:36:41 Session Resuming Session resuming 23:37:26   Dome Opened Dome opened (opening time 45s) 23:37:28 Session Running Session running 23:37:30   Queue Resumed Observing Queue resumed 23:37:32     Target Started (21/44) Target started (21/44, GCVS U Mon) 23:47:15     Target Completed Target partially completed (21/44, GCVS U Mon) 23:47:19     Target Started (22/44) Target started (22/44, NGC 2716) 23:56:43   SoftSuspend Called Soft Suspend is called due to Deteriorating Conditions (too few stars) 23:57:53 Critical Cloud Alert Critical Cloud Alert (Obs.Manager will close the Dome) 23:57:55   HardSuspend Called Hard Suspend is called due to Critical Conditions (cloud) 23:57:57     Target Aborted (22/44) Target aborted (22/44, NGC 2716) due to cloud 23:57:59   Queue Paused Queue paused for Session Suspension 23:58:01 Session Suspended Session suspended 23:58:48   Dome Closed Dome closed (closing time 50s) 00:00:34     Target Cancelled Target cancelled (22/44, NGC 2716) due to cloud 00:16:04     Target Cancelled Target cancelled (23/44, GCVS CN Leo) due to cloud 00:35:08   Queue Aborted Job Queue aborted 00:35:25   Services Stopped Observatory Services stopped 00:35:30 Program Closed Program closed by User 00:37:51 Session Resumed Live Session Resumed (2022-01-25 S00959, ImageSaveNum: 959127) 00:38:10   Obs.Manager Started Obs.Manager started 00:38:12   Obs.Overseer Started Obs.Overseer started 00:38:16   Services Started Observatory Services started 00:39:38   Services Started Observatory Services started 00:40:29   Telescope Connected Telescope Connected (TheSky6) 00:41:25 Session Monitoring AutoStart monitoring for Live Session opportunity between 00:41 & 06:08 00:41:27 Observatory (AutoStart) Observatory placed in Auto-Start Mode 00:41:29   AutoStart Delayed Session delayed due to too few stars 00:50:19 Observatory (Manual) Observatory placed in Manual Mode 00:50:26 Observatory (Auto) Observatory placed in Fully-Automated Mode 00:50:29 Session Pending Session pending (2022-01-25) 00:50:31 Session Initiating Session initiating (2022-01-25) 00:50:37   Plan Loaded Observing Plan loaded to queue (, Plan ID: 715) 00:50:53   Camera1 Connected SBIG Camera Connected (set point -20°C) 00:50:58   Telescope Connected Telescope Connected (TheSky6) 00:51:17 Session Equilibration Session ready for dome & camera equilibration 00:51:19 Wait On Weather Waiting for acceptable conditions 00:51:21 Session Suspended Session suspended 00:51:23   Dome Closed Dome already closed (closure time is unknown) 00:51:25   Queue Started Observing Queue started (20 targets selected) 00:57:25     Target Cancelled Target cancelled (22/41, AT2021aagc) due to cloud 01:19:24     Target Cancelled Target cancelled (23/41, UGC 4671 w/SN2021afsj) due to cloud 01:41:24     Target Cancelled Target cancelled (24/41, AT2021kkp) due to cloud 01:51:18 Session Resuming Session resuming 01:52:04   Dome Opened Dome opened (opening time 45s) 01:52:06 Session Running Session running 01:52:08   Queue Resumed Observing Queue resumed 01:52:10     Target Started (25/41) Target started (25/41, SN 2021abzf) 01:55:59   SoftSuspend Called Soft Suspend is called due to Deteriorating Conditions (too few stars) 02:01:35 Critical Cloud Alert Critical Cloud Alert (Obs.Manager will close the Dome) 02:01:37   HardSuspend Called Hard Suspend is called due to Critical Conditions (cloud) 02:01:39     Target Aborted (25/41) Target aborted (25/41, SN 2021abzf) due to cloud 02:01:41   Queue Paused Queue paused for Session Suspension 02:01:43 Session Suspended Session suspended 02:02:30   Dome Closed Dome closed (closing time 50s) 02:03:24     Target Cancelled Target cancelled (25/41, SN 2021abzf) due to cloud 02:04:00   Queue Aborted Job Queue aborted 02:04:12   Services Stopped Observatory Services stopped 02:04:20 Program Closed Program closed by User 02:05:26 Session Resumed Live Session Resumed (2022-01-25 S00959, ImageSaveNum: 959133) 02:05:31   Obs.Manager Started Obs.Manager started 02:05:33   Obs.Overseer Started Obs.Overseer started 02:05:36   Services Started Observatory Services started 02:07:03   Services Started Observatory Services started 02:07:17   Telescope Connected Telescope Connected (TheSky6) 02:07:39   Camera1 Connected SBIG Camera Connected (set point -20°C) 02:07:55 Observatory (Auto) Observatory placed in Fully-Automated Mode 02:07:58 Session Pending Session pending (2022-01-25) 02:08:00 Session Initiating Session initiating (2022-01-25) 02:08:06   Plan Loaded Observing Plan loaded to queue (, Plan ID: 715) 02:08:22   Camera1 Connected SBIG Camera Connected (set point -20°C) 02:08:28   Telescope Connected Telescope Connected (TheSky6) 02:08:47 Session Equilibration Session ready for dome & camera equilibration 02:08:49 Wait On Weather Waiting for acceptable conditions 02:08:51 Session Suspended Session suspended 02:08:53   Dome Closed Dome already closed (closure time is unknown) 02:08:55   Queue Started Observing Queue started (16 targets selected) 02:10:51 Session Resuming Session resuming 02:11:36   Dome Opened Dome opened (opening time 45s) 02:11:39 Session Running Session running 02:11:41   Queue Resumed Observing Queue resumed 02:11:43     Target Started (26/41) Target started (26/41, 67P/Churyumov-Gerasimenko) 02:15:57 Critical Cloud Alert Critical Cloud Alert (Obs.Manager will close the Dome) 02:15:59   HardSuspend Called Hard Suspend is called due to Critical Conditions (cloud) 02:16:01     Target Aborted (26/41) Target aborted (26/41, 67P/Churyumov-Gerasimenko) due to cloud 02:16:03   Queue Paused Queue paused for Session Suspension 02:16:05 Session Suspended Session suspended 02:16:52   Dome Closed Dome closed (closing time 50s) 02:24:14     Target Cancelled Target cancelled (26/41, 67P/Churyumov-Gerasimenko) due to cloud 02:33:39 Session Resuming Session resuming 02:34:05     Target Cancelled Target cancelled (27/41, GCVS ER UMa) due to other condition 02:34:24   Dome Opened Dome opened (opening time 45s) 02:34:26 Session Running Session running 02:34:28   Queue Resumed Observing Queue resumed 02:35:10     Target Started (28/41) Target started (28/41, GCVS RZ LMi) 02:35:54   SoftSuspend Called Soft Suspend is called due to Deteriorating Conditions (reducing clarity) 02:36:04 Critical Cloud Alert Critical Cloud Alert (Obs.Manager will close the Dome) 02:36:06   HardSuspend Called Hard Suspend is called due to Critical Conditions (cloud) 02:36:08     Target Aborted (28/41) Target aborted (28/41, GCVS RZ LMi) due to cloud 02:36:10   Queue Paused Queue paused for Session Suspension 02:36:12 Session Suspended Session suspended 02:36:59   Dome Closed Dome closed (closing time 50s) 02:42:30 Session Resuming Session resuming 02:43:15   Dome Opened Dome opened (opening time 45s) 02:43:17 Session Running Session running 02:43:19   Queue Resumed Observing Queue resumed 02:43:22     Target Started (28/42) Target started (28/42, GCVS RZ LMi) 02:48:35 Critical Cloud Alert Critical Cloud Alert (Obs.Manager will close the Dome) 02:48:37   HardSuspend Called Hard Suspend is called due to Critical Conditions (cloud) 02:48:39     Target Aborted (28/42) Target aborted (28/42, GCVS RZ LMi) due to cloud 02:48:41   Queue Paused Queue paused for Session Suspension 02:48:43 Session Suspended Session suspended 02:49:35   Dome Closed Dome closed (closing time 55s) 02:54:37     Target Cancelled Target cancelled (29/42, GCVS AM Her, ToO) due to cloud 03:05:31     Target Cancelled Target cancelled (30/42, UGC 5528 w/SN2022B) due to other condition 03:10:53 Session Resuming Session resuming 03:11:38   Dome Opened Dome opened (opening time 45s) 03:11:40 Session Running Session running 03:11:42   Queue Resumed Observing Queue resumed 03:11:45     Target Started (31/42) Target started (31/42, IC 4040 w/SN2022jo) 03:15:17       Focusing Skipped Foc1 focusing skipped - star is too dim (TCF-S) 03:31:55   SoftSuspend Called Soft Suspend is called due to Deteriorating Conditions (too few stars) 03:32:49     Target Completed Target completed (31/42, IC 4040 w/SN2022jo) 03:32:51   Queue Paused Queue paused for Session Suspension 03:32:53 Session Suspended Session suspended 03:33:40   Dome Closed Dome closed (closing time 50s) 03:34:51 Session Resuming Session resuming 03:35:36   Dome Opened Dome opened (opening time 45s) 03:35:38 Session Running Session running 03:35:40   Queue Resumed Observing Queue resumed 03:35:42     Target Started (32/42) Target started (32/42, UGC 8975 w/SN2021adpe) 03:56:21     Target Completed Target completed (32/42, UGC 8975 w/SN2021adpe) 03:56:25     Target Started (33/42) Target started (33/42, Hickson 74) 04:16:04     Target Completed Target completed (33/42, Hickson 74) 04:16:08     Target Started (34/42) Target started (34/42, UGC 10566 w/AT2022aab) 04:19:19       Focusing Skipped Foc1 focusing skipped - star is too dim (TCF-S) 04:35:16     Target Completed Target completed (34/42, UGC 10566 w/AT2022aab) 04:35:20     Target Started (35/43) Target started (35/43, GCVS ER UMa, ToO) 04:51:21     Target Completed Target completed (35/43, GCVS ER UMa, ToO) 04:51:23     Target Missed (36/43) Target's time slot was missed (36/43, C/2017 K2 (PANSTARRS)) 04:51:25     Target Started (37/43) Target started (37/43, AT2021agpw (CV)) 04:55:09       Focusing Skipped Foc1 focusing skipped - star is too dim (TCF-S) 05:01:21     Target Completed Target completed (37/43, AT2021agpw (CV)) 05:02:28     Target Started (38/43) Target started (38/43, UGCA 258 w/SN2022mm) 05:07:43       Focusing Skipped Foc1 focusing skipped - unable to find a star (TCF-S) 05:12:41   SoftSuspend Called Soft Suspend is called due to Deteriorating Conditions (too few stars) 05:23:49     Target Completed Target completed (38/43, UGCA 258 w/SN2022mm) 05:23:51   Queue Paused Queue paused for Session Suspension 05:23:53 Session Suspended Session suspended 05:24:42   Dome Closed Dome closed (closing time 50s) 05:43:25     Target Cancelled Target cancelled (39/43, NGC 4227 w/SN2021biz) due to cloud 06:05:24     Target Cancelled Target cancelled (40/43, NGC 4348 w/SN2022fw) due to cloud 06:11:03 Session Resuming Session resuming 06:11:48   Dome Opened Dome opened (opening time 45s) 06:11:50 Session Running Session running 06:11:52   Queue Resumed Observing Queue resumed 06:11:55     Target Started (41/43) Target started (41/43, NGC 4921) 06:14:23       Focusing Skipped Foc1 focusing skipped - star is too dim (TCF-S) 06:21:54   SoftSuspend Called Soft Suspend is called due to Deteriorating Conditions (too few stars) 06:31:18     Target Completed Target completed (41/43, NGC 4921) 06:31:20   Queue Paused Queue paused for Session Suspension 06:31:23 Session Suspended Session suspended 06:32:11   Dome Closed Dome closed (closing time 50s) 06:39:26     Target Cancelled Target cancelled (42/43, GCVS R CrB) due to cloud 06:57:09     Target Cancelled Target cancelled (43/43, HIP 87937) due to other condition 06:57:14   Queue Completed Job Queue completed 06:57:19 Session Closing Session closing 06:57:24   Dome Closed Dome already closed (closed at 06:32, closing time 50s) 06:58:32   Dome Parked Dome parked (parking time 61s), Az: 90.0 deg 06:59:48   Telescope Parked Telescope parked (parking time 72s) 07:00:03   Telescope State Scope parked Turn scope off. (Handbox) 07:00:25   Telescope Switched Off Telescope Power has been switched off via UPB Switch. 07:01:21   Services Stopped Night Services stopped 07:01:23 Session Housekeeping Housekeeping Started (Cleanup FITS, Create Fits Summary, Transfer Files) 07:01:44 Session Finished Session Finished

Session Alerts

Time     Alert Detail 23:38:00 Dome Dome position has been static for more than 10 mins

Back to Top

Operational Issues (2022-01-25, S959)

• Critical Issues (0)
• Major Issues (0)
• Minor Issues (1)
• Small Defects (5)
• Continuous Improvement (6)

[ Prev | Next ]

Critical Issues

• None

Major Issues

• None

Minor Issues

• Unable to fully analyse images from folder 'Comet_110P_Hartley 3x3 60s C' (post session analysis). Whilst combined image would link ok on a starfield with 110/P Hartley, crosshair cordinates didn't seem to match the position of assumed comet in image, and Building Heading/Build Title routines reported details for 100P/Hartley instead of 110P/Hartley.  Problem relates back to an original issue inputting the two targets.  Investigating the Fits files show a TARGETID of 2101. This corresponds to target 100P/Hartley in the targets database and explains why build target/build title were producing the wrong information.   Fits file headers modified to show TARGETID of 2102 which is the id that corresponds with 110P/Hartley in the Targets Database.
  Resolved  2022-05-25 (Session / Fits Headers)

Small Defects

• New Code to record positions of individual image frames on Guiding Chart / History Graph has several teething issues . Issues are 1) Av. RMS scores are being written for VRVR images  when they shouldn't  2) Cross-hatching between frames is being drawn at the incorrect Y position, 3) Cross-hatching between image sets is being drawn at incorrect Y position. 4) Filters names are not being written for VVRR sets (filter names are only being drawn of VRVR sets). Examples : Guide Run 9 (NV Ori), Guide Run 14 (RR Tau).  Partly fixed in-session with AstroMain 3.48.25 and installed on observatory computer at 00:40.   Some issues/teething issues may remain. Fully fixed in AstroMain 3.48.26.
  Fixed 2022-01-27 (AstroMain 3.48.26)

• Final 'CloseOut Image' call for a 2 x VR set draws the filter name above 'Set 2' . Probably happened because UseGraphSets  get changed by following image. Probably don't need close if. Fixed with a workaround. Need a wider review/better code.
  Fixed  2022-01-27 (AstroMain 3.48.26)

• Extend ImageCloseOut to grBot+28 is drawn in incorrect position when switching between first and second history graph and far right hatching is a short hatch region rather than long hatch region. When Closing SubImage need logic recognise if it is a final subimage or not.
  To fix  2022-01-28 (AstroMain 3.48.27)

• A four (4.0) second delay is being added between Main Frames on Development Computer (is this simply the prior CCDSoft setting) or is it being assigned by the AstroMain program.
  To review  2022-01-28 (AstroMain 3.48.27)

• A Cross-Hatch isn't being drawn on Guiding Chart / History Graph during the time interval between ending 3 x 2 VR set (vrvr)  and starting a 5 x C set (vvrr).
  To review and fix if appropriate (AstroMain 3.48.27)

Continuous Improvement

• Make further tweaks to the presentation of data on Guiding Chart History Graphs.  Tweaks 1) shorten the orange Lost Star Line 2). Length the vertical line between FrameSets Av. 3) modified position and thickness of cross-hatched, 'non recording' intervals, 4) RMS scores are being written for VRVR images  when they shouldn't  2) Cross-hatching between frames is being drawn at the incorrect Y position, 3) Cross-hatching between image sets is being drawn at incorrect Y position. 4) Filters names are not being written for VVRR sets (filter names are only being drawn of VRVR sets). Examples : Guide Run 9 (NV Ori), Guide Run 14 (RR Tau).  Partly fixed in-session with installation of AstroMain 3.48.25 on Observatory Computer at 00:40.   Some issues/teething issues may remain.
  Part fixed in-session  2022-01-27 (AstroMain 3.48.26)

• Make further tweaks to the presentation of data on Guiding Chart History Graphs.  Tweaks: 1) Remove superfluous vertical image starting lines on history chart (show just actual start image and actual end image) , 2) add cross-hatching at far right hand and at far left hand of graph when changing to a new graph whilst resettling.
  Part fixed in-session  2022-01-27 (AstroMain 3.48.26)

• Unnecessary (bound to fail) Cam2 link attempts should be skipped.  When Linking Cam2 Reference image (LinkCam2GuideFrame()  / LinkImageCam2() routine ) and there are too few stars (SmartStarCount 0) a link attempt is made of each catalog mode (UCA/USNO*), (GSC*), (UCA/USNO), (GSC) ). Attempts should skipped over if nStars <= 4. Just need to figure out best approach to achieve this without breaking the PlateSolving routine.   Implemented in PlateSolveImage() so works across both Cam1 and Cam2.
  Done 2022-01-28 (AstroMain 3.48.26)

• Reduce/Optimise delay after AdjustLockPosition to 15s. Reduce waiting period after chaning AdjustLock Position from xs to 15s.
  Done 2022-01-28 (AstroMain 3.48.27)

• Reduce/Optimise delay after large focus change to 5s. Reduce wait period after large focuser change to 5s from 10s.
  Done 2022-01-28 (AstroMain 3.48.27)

• Investigate potential benefits of using facilities at http://skyserver.sdss.org.  Appears that it might be quite useful for finding very faint light sources (image on the skyserver appear better than the basic DSS2 Color image on Aladin server) and for cross-referencing objects.
  To investigate and explore  2022-01-30 (AstroMain / SkyServer.sdss )
