David's Astronomy Pages Notes - Session 980 (2022-03-01)

Notes (S979)

Notes Main

Home Page

Notes (S981)

	Session Aims & Highlights
	- Observing Result  - Night Summary Plot  - Session Event Log
	Operational Issues
	- Critical Issues (0),  Major Issues (0),  Minor Issues (2),  Small Defects (0),  Continuous Improvement (1)
	Images from 2022-03-01 >>         [ Local Files >> ]

Session Aims & Highlights (2022-03-01)

Main aims

1. Targets.  Acquire images of a selection of variable stars, nearby stars, comets & deep sky targets as allowed by time & conditions.
2. AstroMain.  Check bug fixes and new improvements in AstroMain 3.50.7.

Equipment & Software

• 12" LX200 and ST-10XME
• 80mm APO and ZWO ASI 178MC
• CCDApp2, TheSky6, CCDSoft5, DeviceHub 6.5.1.9,  MeadeGeneric 1.3.3.373, UPB 1.5, ASCOM 6.5 SP1
• Pegasus UPB & Motor Focus, TCF-S
• SharpCap 3.2, PHD2  2.6.10

• AstroMain 3.50.7,  AstroPlan 1.29.12,   AstroShCap 1.3.12, AstroGuard 1.7
  AstroVOE 1.9.2  AstroSN 1.7.3,  AstroProtect 1.6,  AstroMove 1.8.6
  (AstroWeather 1.16.5, AstroAllSky 3.15.3,  AstroObsCam 1.8, AstroLaunch 1.8.3)

Highlights

•  Targets.  Images acquired from 29 targets over the course of the night
•  AstroMain.  No issues associated with introduction of new AstroMain 3.50.7 version.

Notes:

• First part of the session run as a live observing session over Zoom with Chris Bowden.


  Summary Plots & Logs

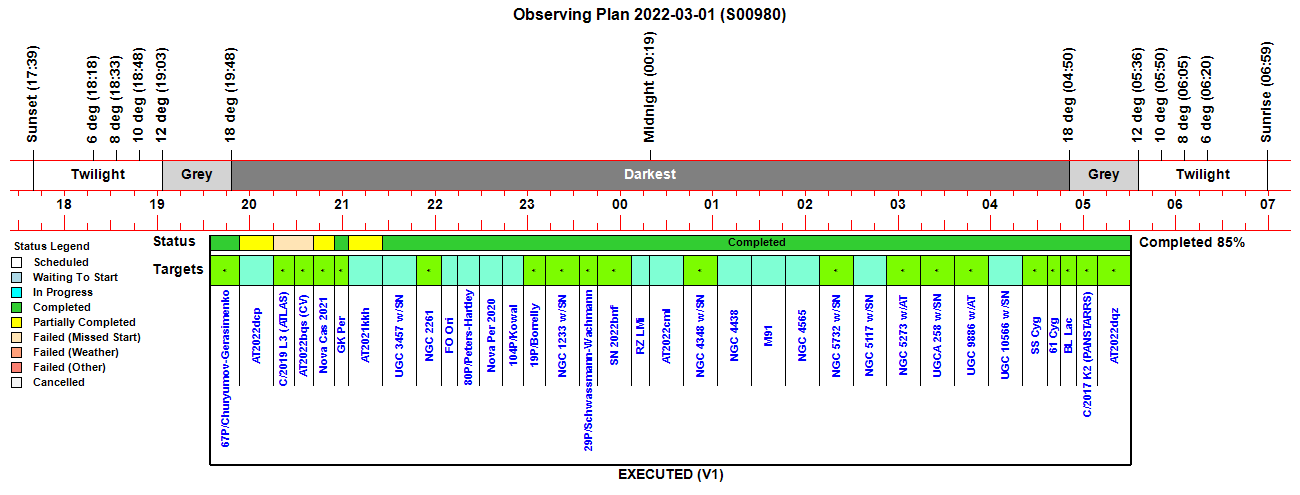

Observing Plan

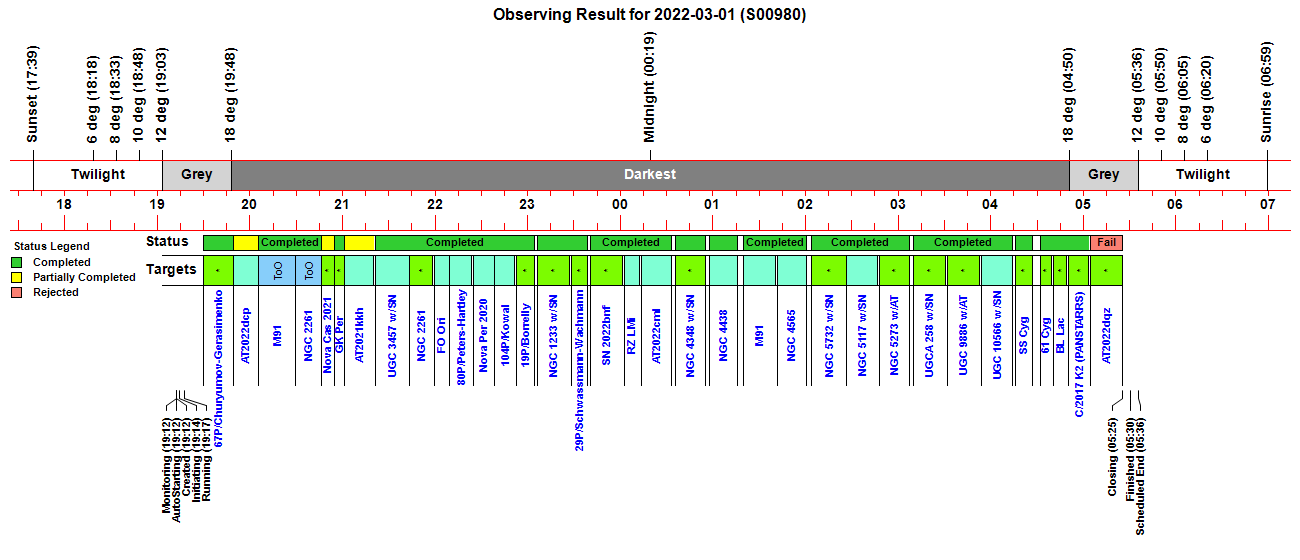

Observing Result

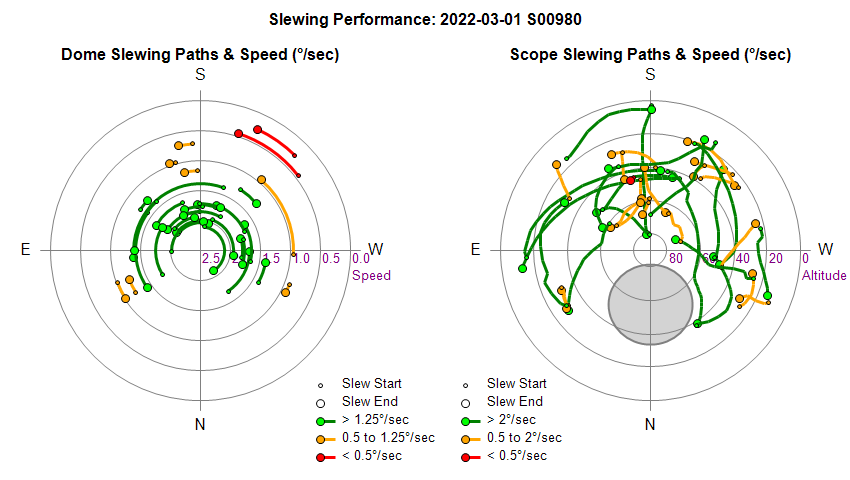

Dome & Scope Slewing Performance

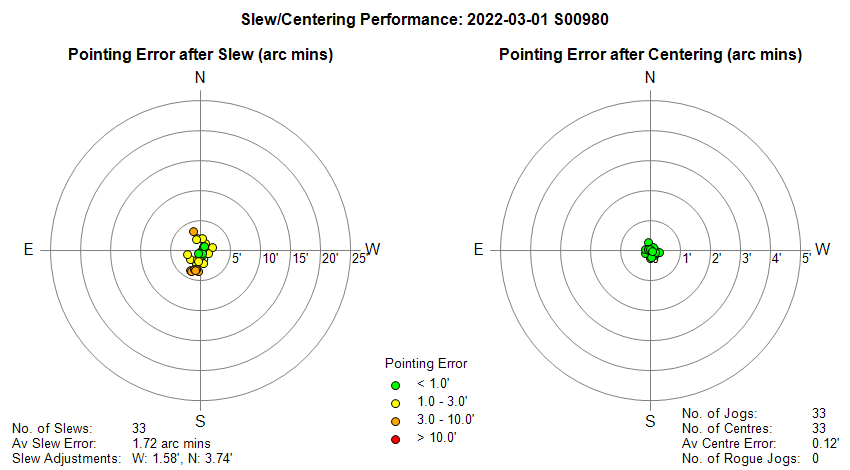

Slew/Centering Performance

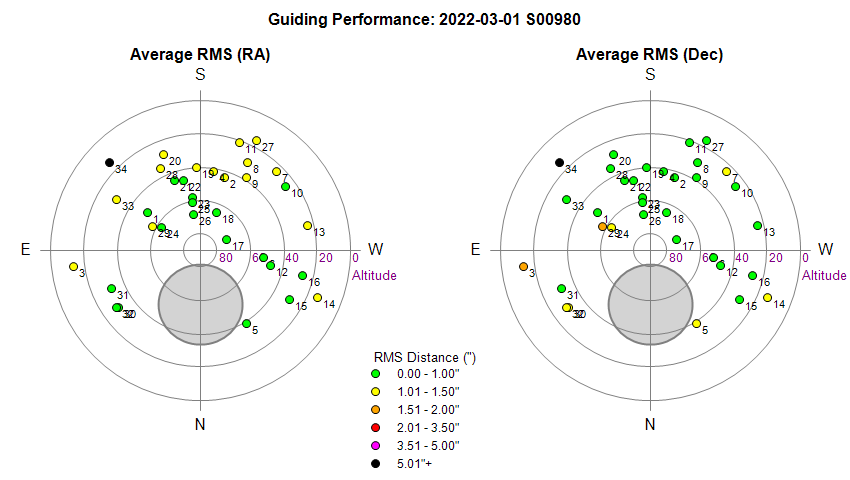

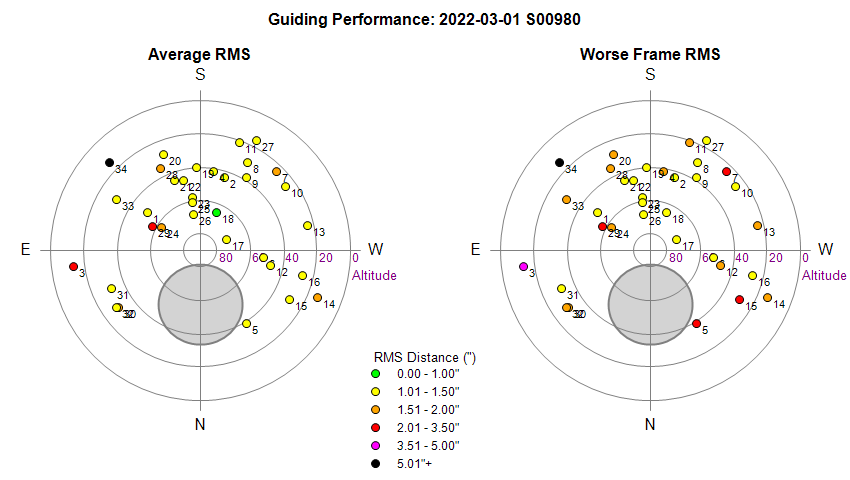

Guiding Performance Reasons for poor Dec guiding : Black/Purple points (None) - Red points (None) - Orange targets (16,18) -

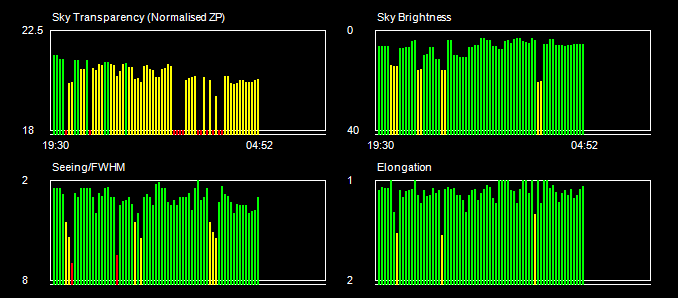

Sky Conditions (Locate Frames)

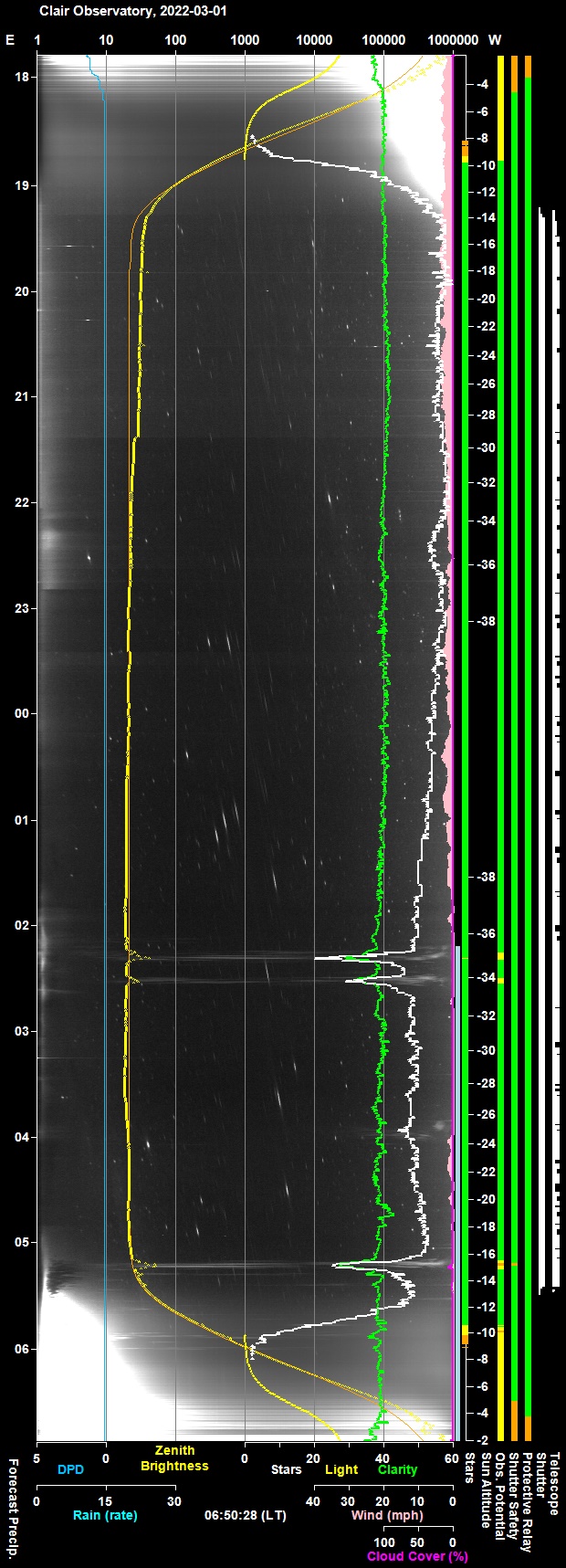

Night Sky Summary Plot Top axis: Sky Brightness at Zenith (in ADU/s) Lefthand axis: Local Time (hh LT). Righthand axis: Sun Altitude (degs)

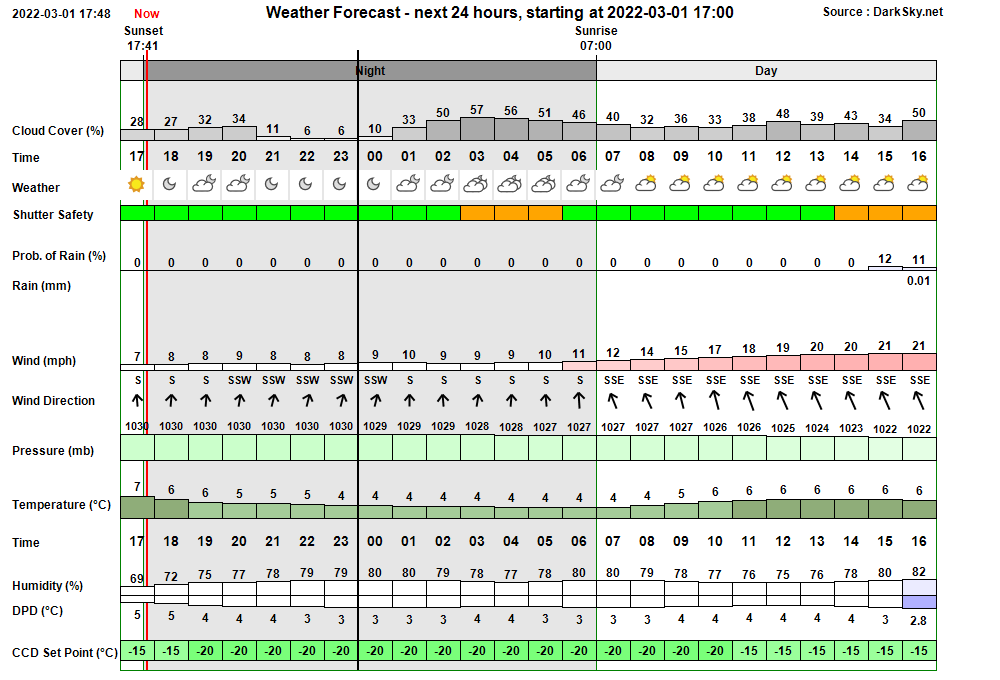

Actual Weather vs Pre-Session Weather Forecast

Session Event Log

Time     Event Detail 19:12:18 Session Monitoring AutoStart monitoring for Live Session opportunity between 19:12 & 04:56 19:12:19 Session AutoStarting Session autostarting (19:12) 19:12:48 Session Created Live Session Created (2022-03-01 S00980, ImageSaveNum: 980001) 19:12:50   Scope Switched On Telescope Power has been switched on via UPB Powerbox. 19:14:33   Services Started Observatory Services started 19:14:39 Observatory (Auto) Observatory placed in Fully-Automated Mode 19:14:41 Session Pending Session pending (2022-03-01) 19:14:43 Session Initiating Session initiating (2022-03-01) 19:14:45   Plan Requested Observing Plan requested from AstroPlan (1.29.13) 19:15:17   Plan Loaded Observing Plan loaded to queue (Plan ID: 738) 19:15:39   Camera1 Connected SBIG Camera Connected (set point -20°C) 19:15:46   Telescope Connected Telescope Connected (TheSky6) 19:16:10 Session Equilibration Session ready for dome & camera equilibration 19:16:56   Dome Opened Dome opened (opening time 45s) 19:17:46 Session Running Session running 19:17:48   Queue Started Observing Queue started (34 targets selected) 19:17:50     Target Started (NrZen) Target started (Focus Field 6, HIP 28634) 19:19:32       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S) 19:22:54       Focusing Completed Foc1 AutoFocus Completed (Profile No 1, wide) 19:24:52       Focusing Completed Foc1 AutoFocus Completed (Profile No 1) 19:24:54       Focusing Started-Foc2 Foc2 Focusing Started (Secondary Scope, using ShCap) 19:27:06       Focusing Completed Foc2 AutoFocus Completed (Profile No 2, wide) 19:28:54       Focusing Completed Foc2 AutoFocus Completed (Profile No 2) 19:29:13     Target Completed Target completed (Focus Field 6, HIP 28634) 19:29:48     Target Started (1/34) Target started (1/34, 67P/Churyumov-Gerasimenko) 19:33:10       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S) 19:35:22       Focusing Completed Foc1 AutoFocus Completed (Profile No 3) 19:49:23     Target Completed Target completed (1/34, 67P/Churyumov-Gerasimenko) 19:49:27     Target Started (2/34) Target started (2/34, AT2022dcp) 19:52:36       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S) 19:54:34       Focusing Completed Foc1 AutoFocus Completed (Profile No 4) 20:05:42     Target Aborted (2/34) Target aborted (2/34, AT2022dcp) due to Priority 1 ToO Target 20:05:46     Target Started (3/36) Target started (3/36, M91, ToO) 20:11:01       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S) 20:13:26       Focusing Completed Foc1 AutoFocus Completed (Profile No 5) 20:29:36     Target Completed Target completed (3/36, M91, ToO) 20:29:40     Target Started (4/36) Target started (4/36, NGC 2261, ToO) 20:32:58       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S) 20:35:30       Focusing Completed Foc1 AutoFocus Completed (Profile No 6) 20:46:20     Target Completed Target completed (4/36, NGC 2261, ToO) 20:46:22     Target Missed (5/36) Target's time slot was missed (5/36, C/2019 L3 (ATLAS)) 20:46:24     Target Missed (6/36) Target's time slot was missed (6/36, AT2022bqs (CV)) 20:46:26     Target Started (7/36) Target started (7/36, Nova Cas 2021) 20:54:40     Target Completed Target partially completed (7/36, Nova Cas 2021) 20:54:45     Target Started (8/36) Target started (8/36, GCVS GK Per) 21:01:24     Target Completed Target completed (8/36, GCVS GK Per) 21:01:28     Target Started (9/36) Target started (9/36, AT2021kkh) 21:05:11       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S) 21:07:44       Focusing Completed Foc1 AutoFocus Completed (Profile No 7) 21:20:41     Target Aborted (9/36) Target aborted (9/36, AT2021kkh) due to User Intervention 21:21:18     Target Started (10/36) Target started (10/36, UGC 3457 w/SN2022blm) 21:25:28       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S) 21:27:25       Focusing Completed Foc1 AutoFocus Completed (Profile No 8) 21:43:23     Target Completed Target completed (10/36, UGC 3457 w/SN2022blm) 21:43:27     Target Started (11/36) Target started (11/36, NGC 2261) 21:46:10       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S) 21:48:35       Focusing Completed Foc1 AutoFocus Completed (Profile No 9) 21:58:45     Target Completed Target completed (11/36, NGC 2261) 21:59:26     Target Started (12/36) Target started (12/36, GCVS FO Ori) 22:02:23       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S) 22:04:35       Focusing Completed Foc1 AutoFocus Completed (Profile No 10) 22:09:19     Target Completed Target completed (12/36, GCVS FO Ori) 22:09:23     Target Started (13/36) Target started (13/36, 80P/Peters-Hartley) 22:13:32       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S) 22:15:57       Focusing Completed Foc1 AutoFocus Completed (Profile No 11) 22:24:31     Target Completed Target completed (13/36, 80P/Peters-Hartley) 22:24:36     Target Started (14/36) Target started (14/36, Nova Per 2020) 22:27:39       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S) 22:29:52       Focusing Completed Foc1 AutoFocus Completed (Profile No 12) 22:38:30     Target Completed Target completed (14/36, Nova Per 2020) 22:38:35     Target Started (15/36) Target started (15/36, 104P/Kowal) 22:41:33       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S) 22:43:58       Focusing Completed Foc1 AutoFocus Completed (Profile No 13) 22:52:08     Target Completed Target completed (15/36, 104P/Kowal) 22:52:32     Target Started (16/36) Target started (16/36, 19P/Borrelly) 22:56:04       Focusing Skipped Foc1 focusing skipped - star is too dim (TCF-S) 23:04:10     Target Completed Target completed (16/36, 19P/Borrelly) 23:06:25     Target Started (17/36) Target started (17/36, NGC 1233 w/SN2022bqi) 23:09:20       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S) 23:11:51       Focusing Completed Foc1 AutoFocus Completed (Profile No 14) 23:27:39     Target Completed Target completed (17/36, NGC 1233 w/SN2022bqi) 23:28:25     Target Started (18/36) Target started (18/36, 29P/Schwassmann-Wachmann) 23:31:00       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S) 23:33:11       Focusing Completed Foc1 AutoFocus Completed (Profile No 15) 23:38:57     Target Completed Target completed (18/36, 29P/Schwassmann-Wachmann) 23:40:25     Target Started (19/36) Target started (19/36, SN 2022bnf) 23:43:19       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S) 23:45:55       Focusing Completed Foc1 AutoFocus Completed (Profile No 16) 00:01:44     Target Completed Target completed (19/36, SN 2022bnf) 00:02:25     Target Started (20/36) Target started (20/36, GCVS RZ LMi) 00:05:19       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S) 00:07:23       Focusing Completed Foc1 AutoFocus Completed (Profile No 17) 00:12:39     Target Completed Target completed (20/36, GCVS RZ LMi) 00:13:51     Target Started (21/36) Target started (21/36, AT2022cml) 00:16:56       Focusing Skipped Foc1 focusing skipped - star is too dim (TCF-S) 00:32:59     Target Completed Target completed (21/36, AT2022cml) 00:35:51     Target Started (22/36) Target started (22/36, NGC 4348 w/SN2022fw) 00:38:47       Focusing Skipped Foc1 focusing skipped - star is too dim (TCF-S) 00:54:55     Target Completed Target completed (22/36, NGC 4348 w/SN2022fw) 00:57:51     Target Started (23/36) Target started (23/36, NGC 4438) 01:00:14       Focusing Skipped Foc1 focusing skipped - star is lost (TCF-S) 01:16:05     Target Completed Target completed (23/36, NGC 4438) 01:19:51     Target Started (24/36) Target started (24/36, M91) 01:22:51       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S) 01:25:17       Focusing Completed Foc1 AutoFocus Completed (Profile No 18) 01:41:15     Target Completed Target completed (24/36, M91) 01:41:51     Target Started (25/36) Target started (25/36, NGC 4565) 01:44:18       Focusing Skipped Foc1 focusing skipped - star is lost (TCF-S) 02:00:31     Target Completed Target completed (25/36, NGC 4565) 02:03:51     Target Started (26/36) Target started (26/36, NGC 5732 w/SN2021agpf) 02:07:03       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S) 02:09:22       Focusing Completed Foc1 AutoFocus Completed (Profile No 19) 02:26:29     Target Completed Target completed (26/36, NGC 5732 w/SN2021agpf) 02:26:33     Target Started (27/36) Target started (27/36, NGC 5117 w/SN2022abq) 02:31:07       Focusing Skipped Foc1 focusing skipped - star is lost (TCF-S) 02:47:22     Target Completed Target completed (27/36, NGC 5117 w/SN2022abq) 02:47:51     Target Started (28/36) Target started (28/36, NGC 5273 w/AT2022csj) 02:51:09       Focusing Skipped Foc1 focusing skipped - star is lost (TCF-S) 03:07:11     Target Completed Target completed (28/36, NGC 5273 w/AT2022csj) 03:09:51     Target Started (29/36) Target started (29/36, UGCA 258 w/SN2022mm) 03:14:03       Focusing Skipped Foc1 focusing skipped - star is lost (TCF-S) 03:30:28     Target Completed Target completed (29/36, UGCA 258 w/SN2022mm) 03:31:51     Target Started (30/36) Target started (30/36, UGC 9886 w/AT2022dmj) 03:37:18       Focusing Skipped Foc1 focusing skipped - star is lost (TCF-S) 03:53:21     Target Completed Target completed (30/36, UGC 9886 w/AT2022dmj) 03:53:51     Target Started (31/36) Target started (31/36, UGC 10566 w/SN2022aab) 03:56:48       Focusing Skipped Foc1 focusing skipped - star is lost (TCF-S) 04:13:58     Target Completed Target completed (31/36, UGC 10566 w/SN2022aab) 04:15:52     Target Started (32/36) Target started (32/36, GCVS SS Cyg) 04:19:34       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S) 04:21:43       Focusing Completed Foc1 AutoFocus Completed (Profile No 20) 04:27:18     Target Completed Target completed (32/36, GCVS SS Cyg) 04:32:06     Target Started (33/36) Target started (33/36, 61 Cyg) 04:34:53       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S) 04:36:57       Focusing Completed Foc1 AutoFocus Completed (Profile No 21) 04:39:39     Target Completed Target completed (33/36, 61 Cyg) 04:40:33     Target Started (34/36) Target started (34/36, GCVS BL Lac) 04:43:40       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S) 04:46:02       Focusing Completed Foc1 AutoFocus Completed (Profile No 22) 04:49:52     Target Completed Target completed (34/36, GCVS BL Lac) 04:50:40     Target Started (35/36) Target started (35/36, C/2017 K2 (PANSTARRS)) 04:53:38       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S) 04:56:04       Focusing Completed Foc1 AutoFocus Completed (Profile No 23) 05:04:03     Target Completed Target completed (35/36, C/2017 K2 (PANSTARRS)) 05:04:32     Target Started (36/36) Target started (36/36, AT2022dqz) 05:09:25       Focusing Skipped Foc1 focusing skipped - unable to find a star (TCF-S) 05:25:30     Target Completed Target completed (36/36, AT2022dqz) 05:25:33   Queue Completed Job Queue completed 05:25:34 Session Closing Session closing 05:26:29   Dome Closed Dome closed (closing time 50s) 05:27:11   Dome Parked Dome parked (parking time 35s), Az: 90.0 deg 05:28:18   Telescope Parked Telescope parked (parking time 62s) 05:28:33   Telescope State Scope parked Turn scope off. (Handbox) 05:28:55   Telescope Switched Off Telescope Power has been switched off via UPB Switch. 05:29:51   Services Stopped Night Services stopped 05:29:53 Session Housekeeping Housekeeping Started (Cleanup FITS, Create Fits Summary, Transfer Files) 05:30:20 Session Finished Session Finished

Session Alerts

Time     Alert Detail -- No Alerts                --

Back to Top

Operational Issues (2022-03-01, S980)

• Critical Issues (0)
• Major Issues (0)
• Minor Issues (2)
• Small Defects (0)
• Continuous Improvement (1)

[ Prev | Next ]

Critical Issues

• None

Major Issues

• None

Minor Issues

• PHD2 suddenly closed (or silently crashed) whilst taking images of Target 10/36 (UGC 3457) . At around 21:32 (during Frame 3/5) PHD2 was noticed to have closed some where between start of guiding (21:23) and start of first frame (21:27) . Issue was quickly resolved in-session by restarting PHD2 application and restarting PHD2 client services.  Last response from PHD2 server was at 21:23:59.  And it is presumed that PHD2 application stopped at this time.  There is specific indication that PHD2 crashed (this is rarey or never seen).  It is assumed that the application was un-intentionally and unknowingly closed by the user clicking the program's X button whilst conducting a live demonstration using Zoom and remote server connection.
  Resolved In-Session 2022-03-02    (Session / PHD2)

• Align Frames operation held up by CCDSoft dialog indicating that file couldn't be aligning and requesting user confirmation to continue. (Post Session). Problem seems to be caused by presence of .wcs and .ini file pair (produced from a ASTAP Plate solution attempt). Prehaps these files types should be searched for and deleted before initiating an image alignment operation.  Resolved by continuing alignment and deleting the two non-FITS files concerned.  Issue understood. Since this issue doesn't commonly occur it is proposed to close this as a minor issue ticket and handle it via a separate continuous improvement ticket.
  Resolved manually (Session/CCDSoft)

Small Defects

• None

• Delete .wcs & .ini files in an Object's ImageSet / Reduced folder prior to performing a Align Frames operation.  Align Frames operation for 29P/Schwassmann-Wachmann was seemingly held up the presence of .wcs and .ini file pair (produced from a ASTAP Plate solution attempt). Presence of files seemed to caused CCDSoft to put up a dialog indicating that file couldn't be aligning and requesting user confirmation to continue.
  Done 2022-03-29 (AstroMain 3.50.9)

[ Prev | Next ]
