Session Aims & Highlights (2022-04-19)

Main aims

1. Targets.  Acquire images of a selection of variable stars, nearby stars, comets & deep sky targets as allowed by time & conditions.

Equipment & Software

• 12" LX200 and ST-10XME
• 80mm APO and ZWO ASI 178MC
• CCDApp2, TheSky6, CCDSoft5, DeviceHub 6.5.1.9,  MeadeGeneric 1.3.3.373, UPB 1.5, ASCOM 6.5 SP1
• Pegasus UPB & Motor Focus, TCF-S
• SharpCap 3.2, PHD2  2.6.10

• AstroMain 3.50.10,  AstroPlan 1.29.14,   AstroShCap 1.3.12, AstroGuard 1.7
  AstroVOE 1.9.2  AstroSN 1.7.3,  AstroProtect 1.6,  AstroMove 1.8.6
  (AstroWeather 1.16.5, AstroAllSky 3.15.3,  AstroObsCam 1.8, AstroLaunch 1.8.3)

Highlights

•  Targets.  16 targets successfully acquired (images from a further 4 targets were rejected due to poor sky transparency/cloud)
•  TheSky6.  TheSky6 program unexpectedly closed/crashed which prevented the acquisition of further targets

Notes:

  Summary Plots & Logs

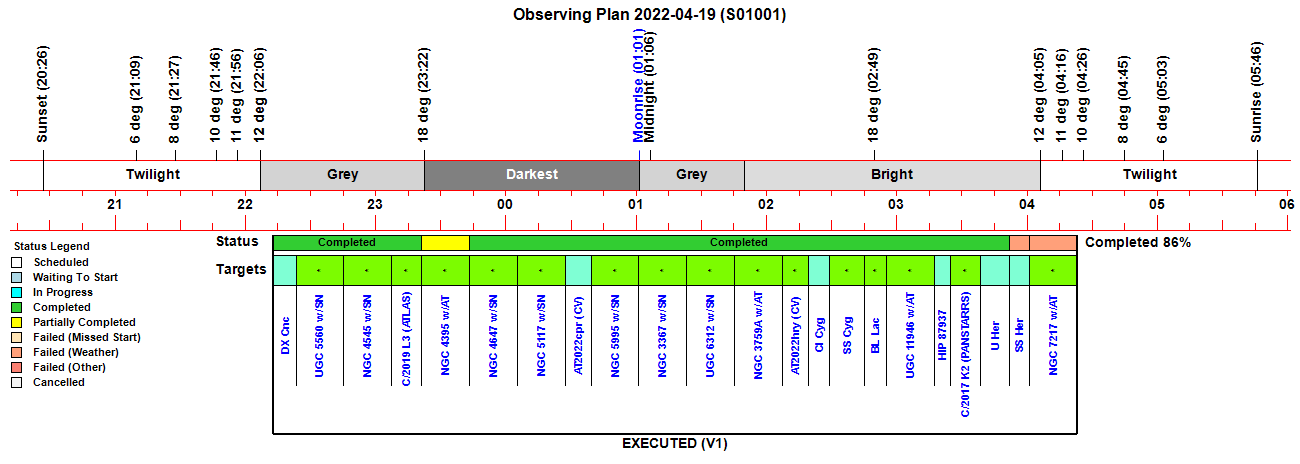

Observing Plan

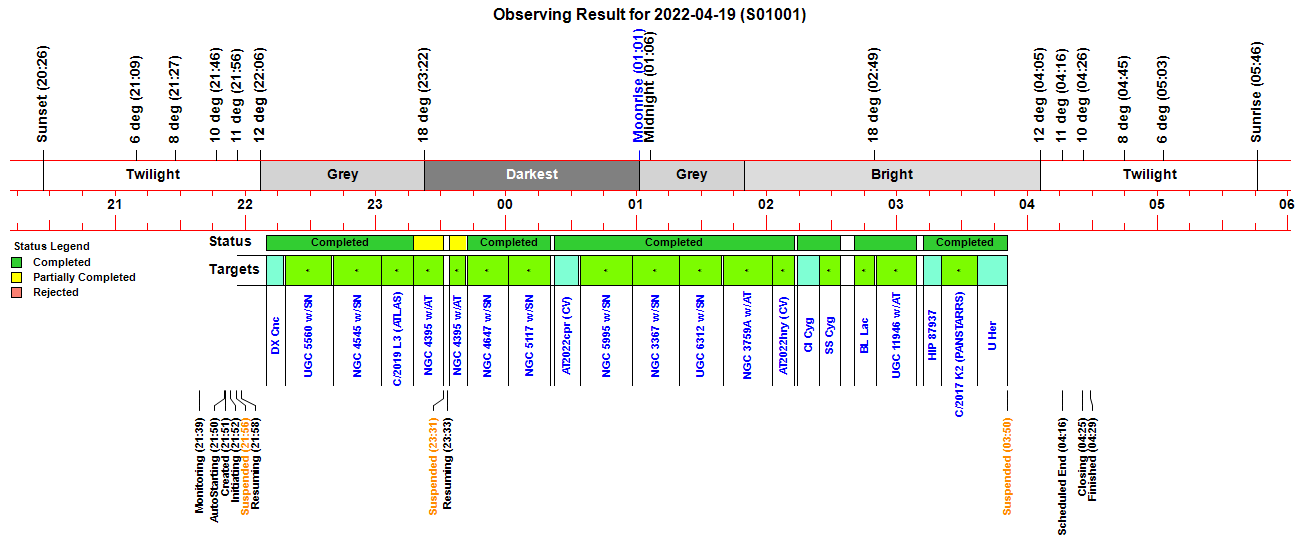

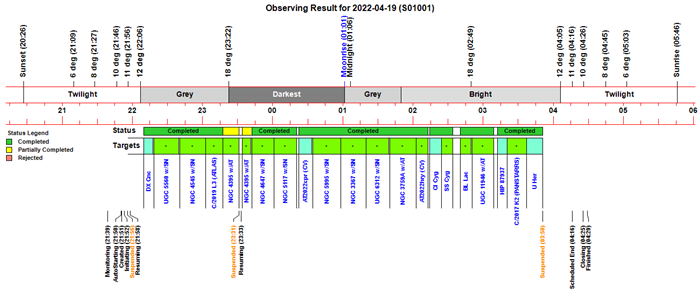

Observing Result

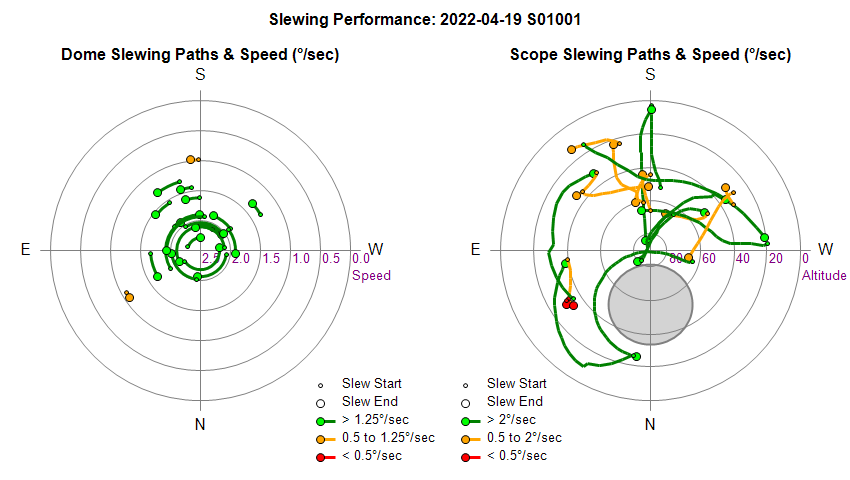

Dome & Scope Slewing Performance

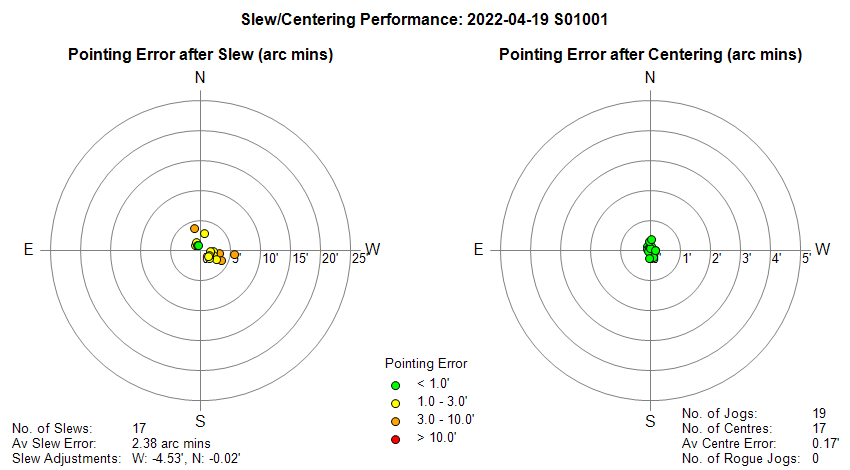

Slew/Centering Performance

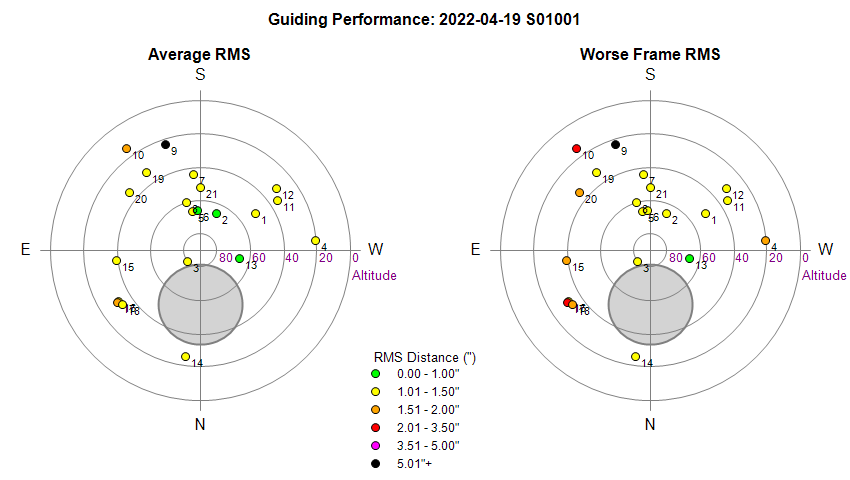

Guiding Performance

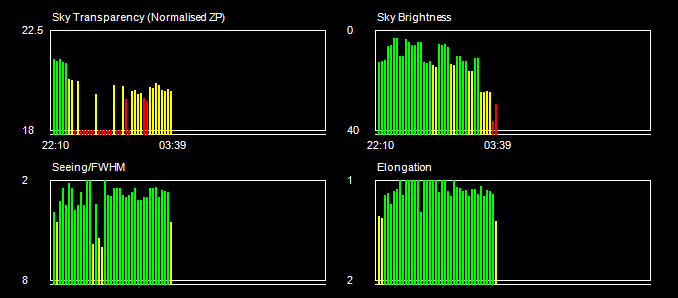

Sky Conditions (Locate Frames)

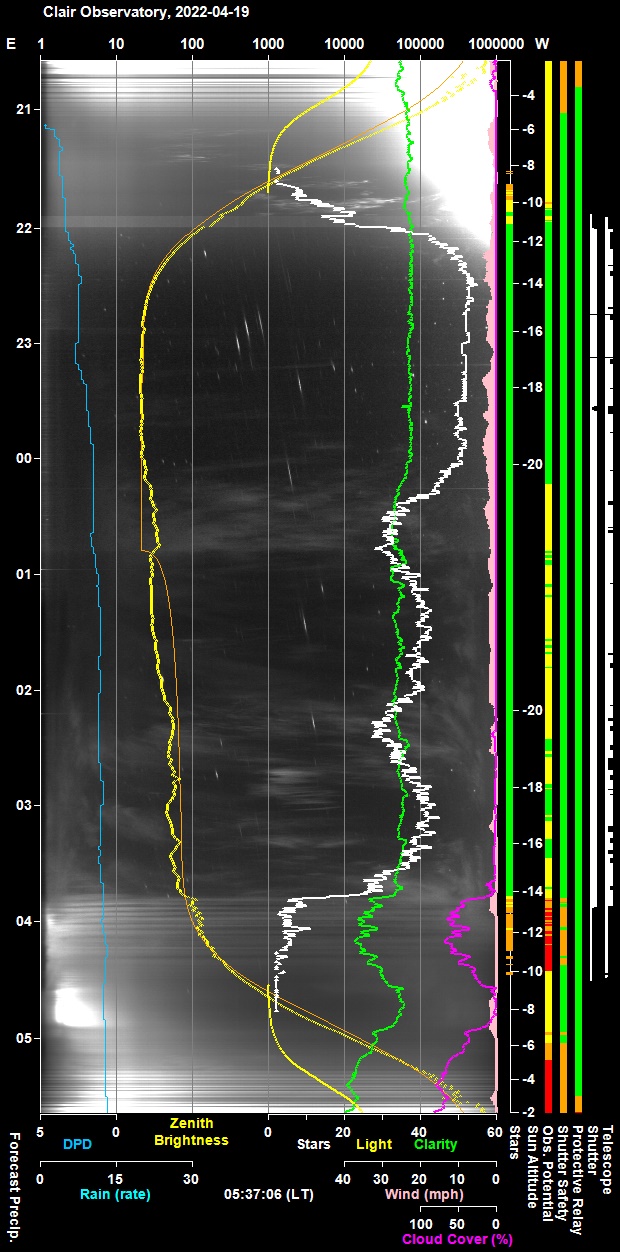

Night Sky Summary Plot Top axis: Sky Brightness at Zenith (in ADU/s) Lefthand axis: Local Time (hh LT). Righthand axis: Sun Altitude (degs)

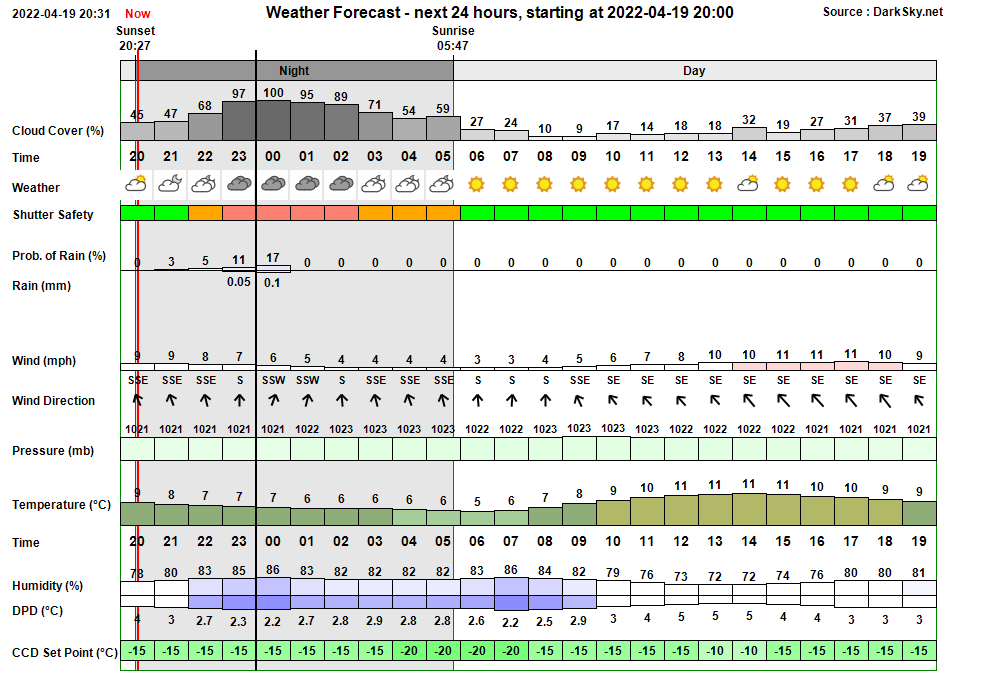

Actual Weather vs Pre-Session Weather Forecast

Session Event Log

Time     Event Detail 21:39:00 Session Monitoring AutoStart monitoring for Live Session opportunity between 21:38 & 03:25 21:39:05   AutoStart Delayed Session delayed due to too few stars 21:50:36 Session AutoStarting Session autostarting (21:50) 21:51:04 Session Created Live Session Created (2022-04-19 S01001, ImageSaveNum: 1001001) 21:51:06   Scope Switched On Telescope Power has been switched on via UPB Powerbox. 21:52:48   Services Started Observatory Services started 21:52:55 Observatory (Auto) Observatory placed in Fully-Automated Mode 21:52:56 Session Pending Session pending (2022-04-19) 21:52:58 Session Initiating Session initiating (2022-04-19) 21:53:01   Plan Requested Observing Plan requested from AstroPlan (1.29.14) 21:53:26   Plan Loaded Observing Plan loaded to queue (Plan ID: 759) 21:53:46   Camera1 Connected SBIG Camera Connected (set point -20°C) 21:53:53   Telescope Connected Telescope Connected (TheSky6) 21:54:17 Session Equilibration Session ready for dome & camera equilibration 21:56:02 Wait On Weather Waiting for acceptable conditions 21:56:05 Session Suspended Session suspended 21:56:07   Dome Closed Dome already closed (closure time is unknown) 21:56:09   Queue Started Observing Queue started (22 targets selected) 21:58:08 Session Resuming Session resuming 21:58:53   Dome Opened Dome opened (opening time 45s) 21:58:55 Session Running Session running 21:58:57   Queue Resumed Observing Queue resumed 21:58:59     Target Started (NrZen) Target started (Focus Field 11, HIP 53798) 22:00:08       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S) 22:03:27       Focusing Completed Foc1 AutoFocus Completed (Profile No 1, wide) 22:05:23       Focusing Completed Foc1 AutoFocus Completed (Profile No 1) 22:05:25       Focusing Started-Foc2 Foc2 Focusing Started (Secondary Scope, using ShCap) 22:07:35       Focusing Completed Foc2 AutoFocus Completed (Profile No 2, wide) 22:09:22       Focusing Completed Foc2 AutoFocus Completed (Profile No 2) 22:09:39     Target Completed Target completed (Focus Field 11, HIP 53798) 22:09:45     Target Started (1/22) Target started (1/22, GCVS DX Cnc) 22:13:21       Focusing Skipped Foc1 focusing skipped - star is too dim (TCF-S) 22:18:03     Target Completed Target completed (1/22, GCVS DX Cnc) 22:18:25     Target Started (2/22) Target started (2/22, UGC 5560 w/SN2022ewv) 22:21:21       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S) 22:23:39       Focusing Completed Foc1 AutoFocus Completed (Profile No 3) 22:39:28     Target Completed Target completed (2/22, UGC 5560 w/SN2022ewv) 22:40:26     Target Started (3/22) Target started (3/22, NGC 4545 w/SN2022fuc) 22:44:11       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S) 22:46:12       Focusing Completed Foc1 AutoFocus Completed (Profile No 4) 23:02:39     Target Completed Target completed (3/22, NGC 4545 w/SN2022fuc) 23:02:43     Target Started (4/22) Target started (4/22, C/2019 L3 (ATLAS)) 23:06:35       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S) 23:08:56       Focusing Completed Foc1 AutoFocus Completed (Profile No 5) 23:17:28     Target Completed Target completed (4/22, C/2019 L3 (ATLAS)) 23:17:32     Target Started (5/22) Target started (5/22, NGC 4395 w/AT2022fmn) 23:21:43       Focusing Skipped Foc1 focusing skipped - unable to find a star (TCF-S) 23:30:59 Critical Cloud Alert Critical Cloud Alert (Obs.Manager will close the Dome) 23:31:01   HardSuspend Called Hard Suspend is called due to Critical Conditions (cloud) 23:31:04     Target Aborted (5/22) Target aborted (5/22, NGC 4395 w/AT2022fmn) due to cloud 23:31:06   Queue Paused Queue paused for Session Suspension 23:31:08 Session Suspended Session suspended 23:31:54   Dome Closed Dome closed (closing time 50s) 23:33:04 Session Resuming Session resuming 23:33:50   Dome Opened Dome opened (opening time 45s) 23:33:52 Session Running Session running 23:33:54   Queue Resumed Observing Queue resumed 23:33:56     Target Started (5/22) Target started (5/22, NGC 4395 w/AT2022fmn) 23:42:00     Target Completed Target partially completed (5/22, NGC 4395 w/AT2022fmn) 23:42:04     Target Started (6/22) Target started (6/22, NGC 4647 w/SN2022hrs) 23:45:04       Focusing Skipped Foc1 focusing skipped - star is lost (TCF-S) 00:01:02     Target Completed Target completed (6/22, NGC 4647 w/SN2022hrs) 00:01:06     Target Started (7/22) Target started (7/22, NGC 5117 w/SN2022abq) 00:04:35       Focusing Skipped Foc1 focusing skipped - star is lost (TCF-S) 00:20:31     Target Completed Target completed (7/22, NGC 5117 w/SN2022abq) 00:22:18     Target Started (8/22) Target started (8/22, AT2022cpr (CV)) 00:27:40       Focusing Skipped Foc1 focusing skipped - star is lost (TCF-S) 00:33:31     Target Completed Target completed (8/22, AT2022cpr (CV)) 00:34:18     Target Started (9/22) Target started (9/22, NGC 5995 w/SN2022fqe) 00:41:42       Focusing Skipped Foc1 focusing skipped - star is lost (TCF-S) 00:58:17     Target Completed Target completed (9/22, NGC 5995 w/SN2022fqe) 00:58:21     Target Started (10/22) Target started (10/22, NGC 3367 w/SN2022ewj) 01:03:23       Focusing Skipped Foc1 focusing skipped - star is lost (TCF-S) 01:19:49     Target Completed Target completed (10/22, NGC 3367 w/SN2022ewj) 01:19:54     Target Started (11/22) Target started (11/22, UGC 6312 w/SN2022eyj) 01:23:25       Focusing Skipped Foc1 focusing skipped - star is lost (TCF-S) 01:39:28     Target Completed Target completed (11/22, UGC 6312 w/SN2022eyj) 01:40:18     Target Started (12/22) Target started (12/22, NGC 3759A w/AT2022hnt) 01:44:38       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S) 01:47:04       Focusing Completed Foc1 AutoFocus Completed (Profile No 6) 02:02:52     Target Completed Target completed (12/22, NGC 3759A w/AT2022hnt) 02:02:57     Target Started (13/22) Target started (13/22, AT2022hry (CV)) 02:06:34       Focusing Skipped Foc1 focusing skipped - star is too dim (TCF-S) 02:12:59     Target Completed Target completed (13/22, AT2022hry (CV)) 02:14:18     Target Started (14/22) Target started (14/22, GCVS CI Cyg) 02:17:24       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S) 02:19:35       Focusing Completed Foc1 AutoFocus Completed (Profile No 7) 02:24:34     Target Completed Target completed (14/22, GCVS CI Cyg) 02:24:38     Target Started (15/22) Target started (15/22, GCVS SS Cyg) 02:27:25       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S) 02:29:45       Focusing Completed Foc1 AutoFocus Completed (Profile No 8) 02:34:11     Target Completed Target completed (15/22, GCVS SS Cyg) 02:40:20     Target Started (16/22) Target started (16/22, GCVS BL Lac) 02:43:04       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S) 02:45:21       Focusing Completed Foc1 AutoFocus Completed (Profile No 9) 02:49:58     Target Completed Target completed (16/22, GCVS BL Lac) 02:50:27     Target Started (17/22) Target started (17/22, UGC 11946 w/AT2022hsu) 02:53:09       Focusing Skipped Foc1 focusing skipped - star is too dim (TCF-S) 03:09:16     Target Completed Target completed (17/22, UGC 11946 w/AT2022hsu) 03:12:26     Target Started (18/22) Target started (18/22, HIP 87937) 03:15:29       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S) 03:18:03       Focusing Completed Foc1 AutoFocus Completed (Profile No 10) 03:20:31     Target Completed Target completed (18/22, HIP 87937) 03:20:35     Target Started (19/22) Target started (19/22, C/2017 K2 (PANSTARRS)) 03:25:50       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S) 03:28:11       Focusing Completed Foc1 AutoFocus Completed (Profile No 11) 03:37:09     Target Completed Target completed (19/22, C/2017 K2 (PANSTARRS)) 03:37:13     Target Started (20/22) Target started (20/22, GCVS U Her) 03:40:24       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S) 03:42:26       Focusing Completed Foc1 AutoFocus Completed (Profile No 12) 03:47:47   SoftSuspend Called Soft Suspend is called due to Deteriorating Conditions (reducing clarity) 03:47:52   SoftSuspend Cancelled Soft Suspend is cancelled due to improved conditions 03:48:07   SoftSuspend Called Soft Suspend is called due to Deteriorating Conditions (reducing clarity) 03:48:12   SoftSuspend Cancelled Soft Suspend is cancelled due to improved conditions 03:48:22   SoftSuspend Called Soft Suspend is called due to Deteriorating Conditions (too few stars) 03:50:46     Target Completed Target completed (20/22, GCVS U Her) 03:50:48   Queue Paused Queue paused for Session Suspension 03:50:50 Session Suspended Session suspended 03:51:38   Dome Closed Dome closed (closing time 50s) 03:55:55     Target Cancelled Target cancelled (21/22, GCVS SS Her) due to cloud 04:25:15     Target Cancelled Target cancelled (22/22, NGC 7217 w/AT2022gyc) due to too few stars 04:25:21   Queue Completed Job Queue completed 04:25:22 Session Closing Session closing 04:25:27   Dome Closed Dome already closed (closed at 03:51, closing time 50s) 04:26:26   Dome Parked Dome parked (parking time 51s), Az: 90.0 deg 04:27:33   Telescope Parked Telescope parked (parking time 64s) 04:27:48   Telescope State Scope parked Turn scope off. (Handbox) 04:28:10   Telescope Switched Off Telescope Power has been switched off via UPB Switch. 04:29:04   Services Stopped Night Services stopped 04:29:06 Session Housekeeping Housekeeping Started (Cleanup FITS, Create Fits Summary, Transfer Files) 04:29:22 Session Finished Session Finished

Session Alerts

Time     Alert Detail 00:27:56 Dome Alert Shutter Data is being refreshed 00:27:59 Dome Shutter Pulsar Shutter is deemed to be asleep (last fresh data was at 00:07:54) 00:30:39 Dome Shutter Pulsar Shutter has woken up (fresh data started at 00:30:38, outage 0.0 mins) 00:30:42 Dome Alert Shutter Data has resumed updating

Back to Top

Operational Issues (2022-04-19, S1001)

• Critical Issues (0)
• Major Issues (0)
• Minor Issues (2)
• Small Defects (1)
• Continuous Improvement (1)

[ Prev | Next ]

Critical Issues

• None

Major Issues

• None

Minor Issues

• 001001_Fits Summary not created after 20s.  Message '001001_Fits Summary.xls doesn't seem to have been created after 20s'  shown when trying to create Ssession's Fits Summary file.  Not sure what caused the delay (slow user response ?).  Threshold for message increased from 20s to 30s in AstroMain 3.50.11.
  Closed 2022-04-20 (AstroMain 3.50.11)

• Fits Summary macro 'CopyFilesForAnalysis2' created a photometry folder with the name 'Fits_S001_3x3' instead of 'Fits_S1001_3x3'.   This is a teething issue related to moving from S999 to S1000+.    Fixed in Fits Summary (CCD_Session_Summary.xls)
  Closed 2022-04-20  (Fits Summary)

Small Defects

• AltitudePlan chart not showing Moonrise and highest Moon plus phase.   Max Moon Altitude during S1001 session is < 10 deg. Does this have anything to do with the issue ?   Moon details not shown on live AltitudePlan or the AltitudePlan initially produced on Development Computer, however AltitudePlan created on Development Computer 2 days later showed Moon details ok (AstroPlan 1.29.14).   Proposal is to close issue for now but monitor future session for any repeat of the problem.
  Closed 2022-04-21 (AstroPlan)

• When copying a target in AstroPlan its new status should be set to 'To Observe' if the original target status was 'Completed'.
  Done 2022-04-24 (AstroPlan 1.29.15)
