Session Aims & Highlights (2022-06-04)

Main aims

1. Targets.  Acquire images of a selection of variable stars, nearby stars, comets & deep sky targets as allowed by time & conditions.

 Equipment & Software

• 12" LX200 and ST-10XME
• 80mm APO and ZWO ASI 178MC
• CCDApp2, TheSky6, CCDSoft5, DeviceHub 6.6.0.10,  MeadeGeneric 1.3.5.414, UPB 1.5, ASCOM 6.6
• Pegasus UPB & Motor Focus, TCF-S
• SharpCap 3.2, PHD2  2.6.10

• AstroMain 3.51.14,  AstroPlan 1.30.7,   AstroShCap 1.3.12, AstroGuard 1.8.1
  AstroVOE 1.10  AstroSN 1.8.2,  AstroProtect 1.7,  AstroMove 1.9.1
  (AstroWeather 1.17, AstroAllSky 3.16,  AstroObsCam 1.9, AstroLaunch 1.9.1)

Highlights

•  Targets. 10 targets were successfully acquired.

Notes:

• Summer Twilight . Twilight conditions for session. (Sun Alt -10.15° at local midnight)

  Summary Plots & Logs

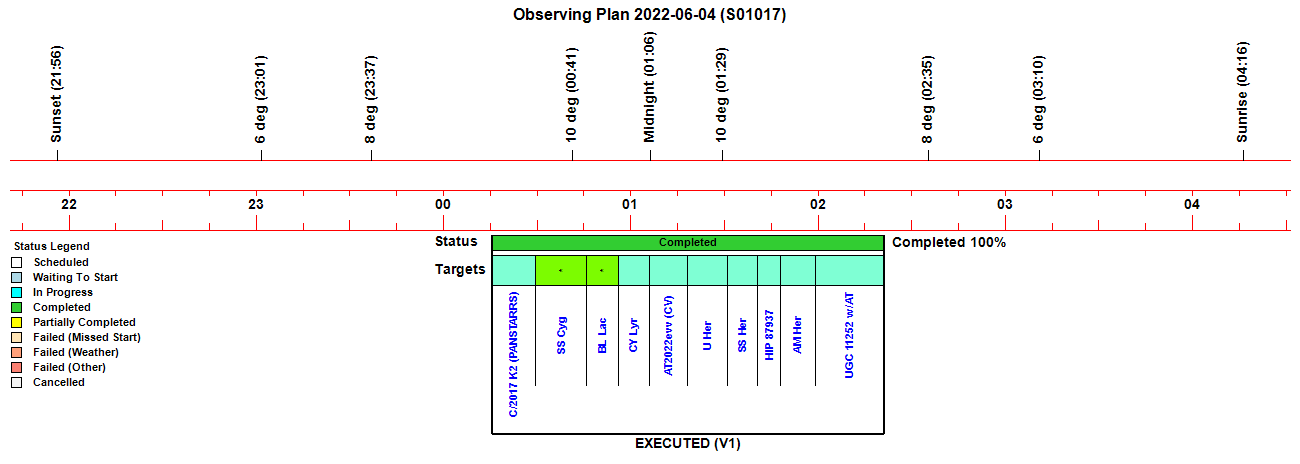

Observing Plan

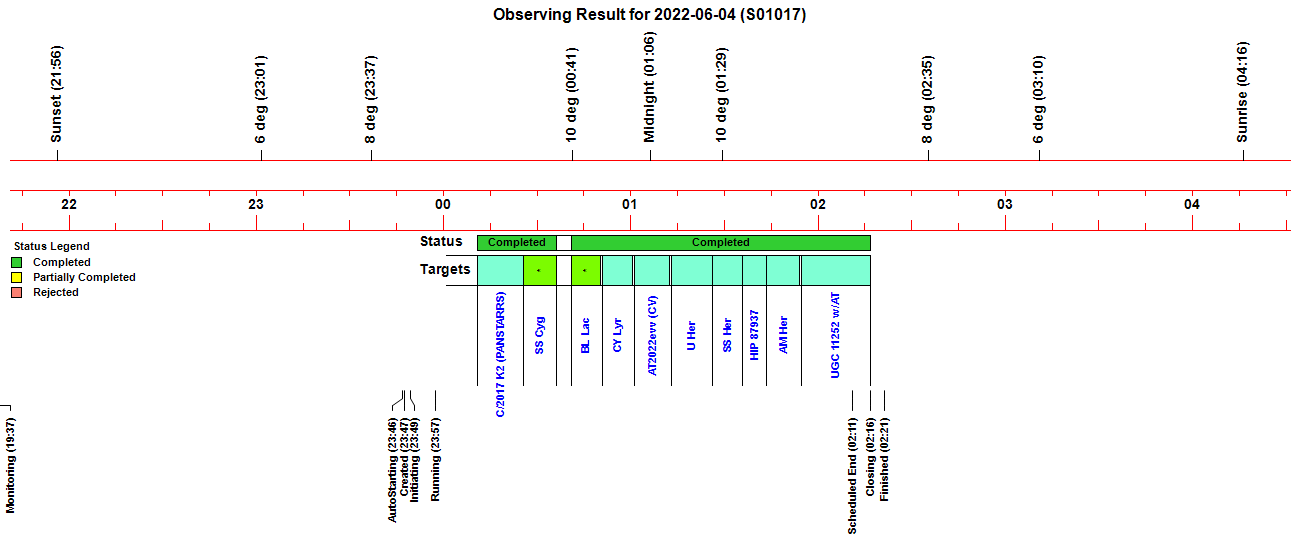

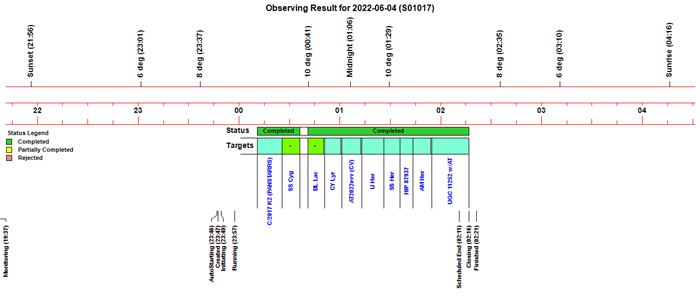

Observing Result

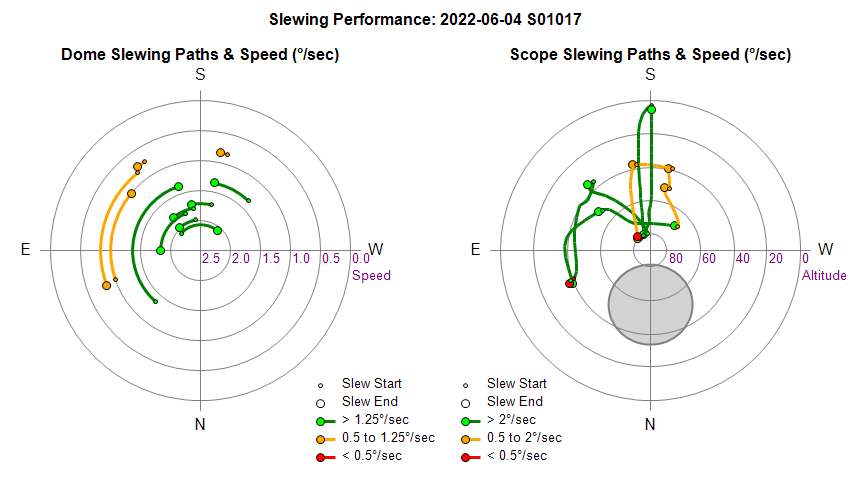

Dome & Scope Slewing Performance

Slew/Centering Performance

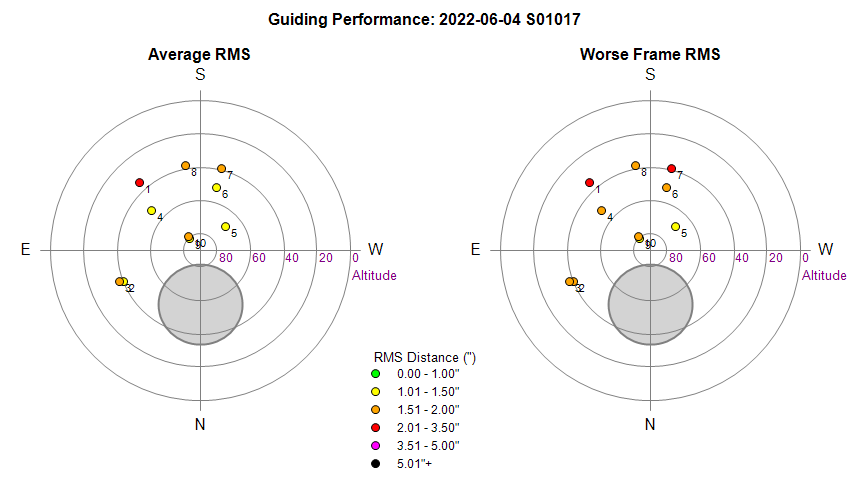

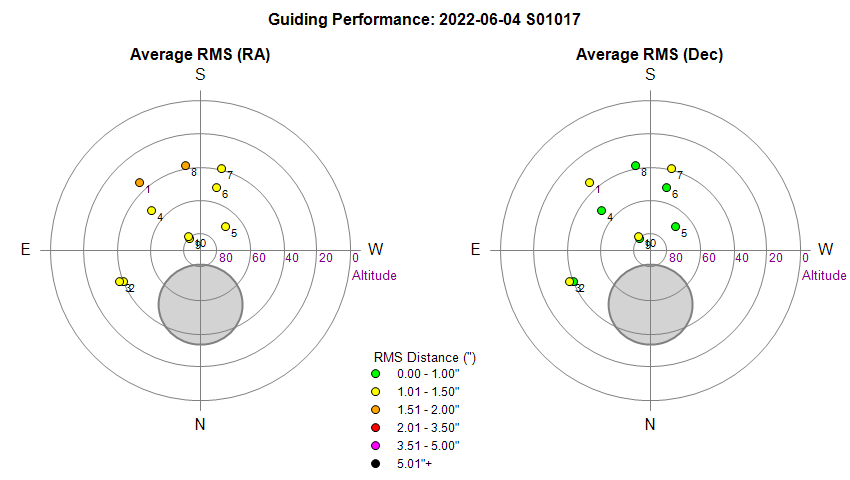

Guiding Performance

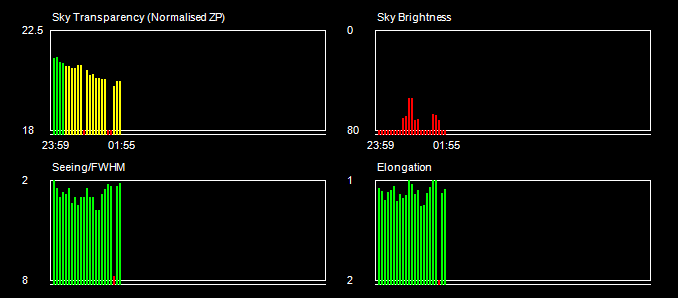

Sky Conditions (Locate Frames)

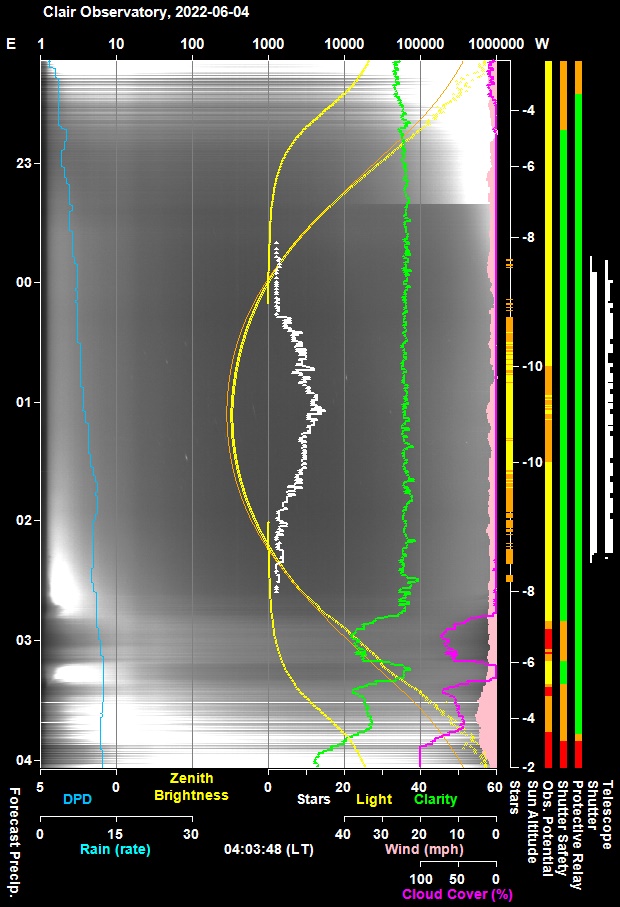

Night Sky Summary Plot Top axis: Sky Brightness at Zenith (in ADU/s) Lefthand axis: Local Time (hh LT). Righthand axis: Sun Altitude (degs)

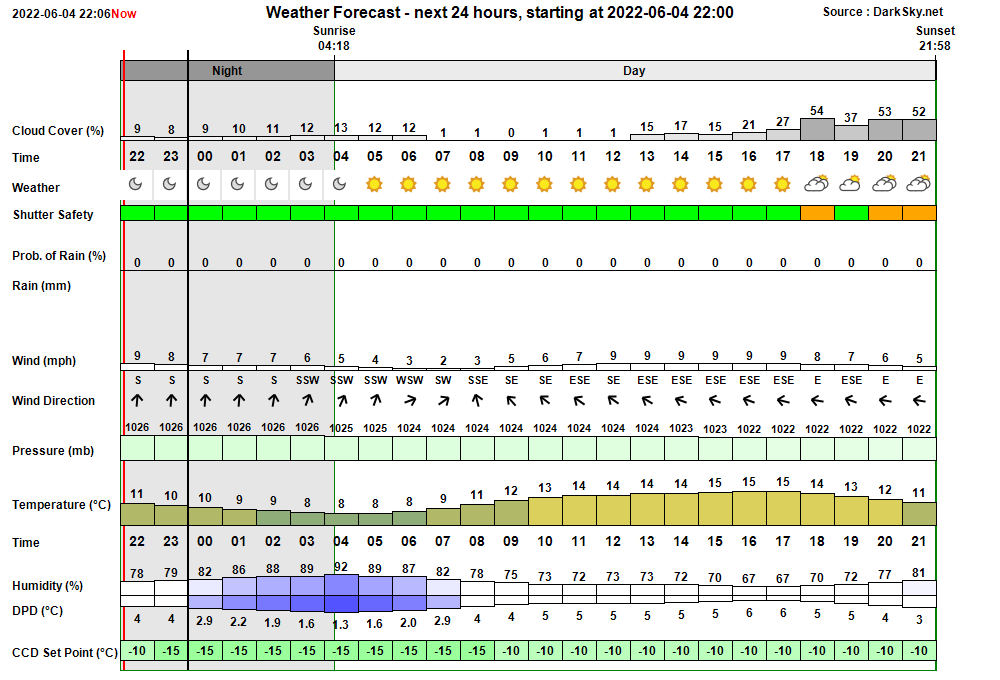

Actual Weather vs Pre-Session Weather Forecast

Session Event Log

Time     Event Detail 19:37:13 Session Monitoring AutoStart monitoring for Live Session opportunity between 23:46 & 00:49 19:37:17   AutoStart Waiting AutoStart waiting till earliest start time at 23:46 23:46:52 Session AutoStarting Session autostarting (23:46) 23:47:20 Session Created Live Session Created (2022-06-04 S01017, ImageSaveNum: 1017001) 23:47:22   Scope Switched On Telescope Power has been switched on via UPB Powerbox. 23:49:05   Services Started Observatory Services started 23:49:11 Observatory (Auto) Observatory placed in Fully-Automated Mode 23:49:14 Session Pending Session pending (2022-06-04) 23:49:16 Session Initiating Session initiating (2022-06-04) 23:49:18   Plan Requested Observing Plan requested from AstroPlan (1.30.7) 23:49:49   Plan Loaded Observing Plan loaded to queue (Plan ID: 777) 23:50:12   Camera1 Connected SBIG Camera Connected (set point -15°C) 23:50:19   Telescope Connected Telescope Connected (TheSky6) 23:50:43 Session Equilibration Session ready for dome & camera equilibration 23:52:03   Dome Opened Dome opened (opening time 45s) 23:52:19   Equilibration Started Dome Equilibration started 23:57:19   Equilibration Skipped Dome Equilibration skipped by user 23:57:21 Session Running Session running 23:57:23   Queue Started Observing Queue started (10 targets selected) 23:57:24     Target Started (NrZen) Target started (Focus Field 16, HIP 78946) 00:00:17       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S) 00:03:20       Focusing Completed Foc1 AutoFocus Completed (Profile No 1, wide) 00:05:16       Focusing Completed Foc1 AutoFocus Completed (Profile No 1) 00:05:41       Focusing Started-Foc2 Foc2 Focusing Started (Secondary Scope, using ShCap) 00:07:53       Focusing Completed Foc2 AutoFocus Completed (Profile No 2, wide) 00:09:39       Focusing Completed Foc2 AutoFocus Completed (Profile No 2) 00:09:59     Target Completed Target completed (Focus Field 16, HIP 78946) 00:10:44     Target Started (1/10) Target started (1/10, C/2017 K2 (PANSTARRS)) 00:13:33       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S) 00:15:52       Focusing Completed Foc1 AutoFocus Completed (Profile No 3) 00:25:34     Target Completed Target completed (1/10, C/2017 K2 (PANSTARRS)) 00:25:38     Target Started (2/10) Target started (2/10, GCVS SS Cyg) 00:27:10       Dome Slew Dome slew held at Az. 89.1 (Total delay 45s) 00:29:16       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S) 00:31:38       Focusing Completed Foc1 AutoFocus Completed (Profile No 4) 00:36:10     Target Completed Target completed (2/10, GCVS SS Cyg) 00:40:53     Target Started (3/10) Target started (3/10, GCVS BL Lac) 00:43:36       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S) 00:45:48       Focusing Completed Foc1 AutoFocus Completed (Profile No 5) 00:50:25     Target Completed Target completed (3/10, GCVS BL Lac) 00:50:59     Target Started (4/10) Target started (4/10, GCVS CY Lyr) 00:54:28       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S) 00:56:40       Focusing Completed Foc1 AutoFocus Completed (Profile No 6) 01:00:30     Target Completed Target completed (4/10, GCVS CY Lyr) 01:01:05     Target Started (5/10) Target started (5/10, AT2022evv (CV)) 01:04:53       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S) 01:06:52       Focusing Completed Foc1 AutoFocus Completed (Profile No 7) 01:12:39     Target Completed Target completed (5/10, AT2022evv (CV)) 01:13:06     Target Started (6/10) Target started (6/10, GCVS U Her) 01:15:53       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S) 01:17:52       Focusing Completed Foc1 AutoFocus Completed (Profile No 8) 01:26:14     Target Completed Target completed (6/10, GCVS U Her) 01:26:18     Target Started (7/10) Target started (7/10, GCVS SS Her) 01:29:15       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S) 01:31:34       Focusing Completed Foc1 AutoFocus Completed (Profile No 9) 01:35:37     Target Completed Target completed (7/10, GCVS SS Her) 01:35:41     Target Started (8/10) Target started (8/10, HIP 87937) 01:38:39       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S) 01:40:56       Focusing Completed Foc1 AutoFocus Completed (Profile No 10) 01:43:25     Target Completed Target completed (8/10, HIP 87937) 01:43:29     Target Started (9/10) Target started (9/10, GCVS AM Her) 01:46:45       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S) 01:49:10       Focusing Completed Foc1 AutoFocus Completed (Profile No 11) 01:54:30     Target Completed Target completed (9/10, GCVS AM Her) 01:54:34     Target Started (10/10) Target started (10/10, UGC 11252 w/AT2021ugn) 01:57:12       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S) 01:59:33       Focusing Completed Foc1 AutoFocus Completed (Profile No 12) 02:16:40     Target Completed Target completed (10/10, UGC 11252 w/AT2021ugn) 02:16:43   Queue Completed Job Queue completed 02:16:47 Session Closing Session closing 02:17:42   Dome Closed Dome closed (closing time 50s) 02:18:27   Dome Parked Dome parked (parking time 38s), Az: 90.0 deg 02:19:48   Telescope Parked Telescope parked (parking time 74s) 02:19:58   Telescope State Scope parked Turn scope off. (Handbox) 02:20:20   Telescope Switched Off Telescope Power has been switched off via UPB Switch. 02:21:14   Services Stopped Night Services stopped 02:21:16 Session Housekeeping Housekeeping Started (Cleanup FITS, Create Fits Summary, Transfer Files) 02:21:27 Session Finished Session Finished

Session Alerts

Time     Alert Detail 23:57:34 Anomalous Dome Slew Dome slew resumed at Az 44.6°

Back to Top

Operational Issues (2022-06-04, S1017)

• Critical Issues (0)
• Major Issues (0)
• Minor Issues (1)
• Small Defects (2)
• Continuous Improvement (2)

[ Prev | Next ]

Critical Issues

• None

Major Issues

• None

Minor Issues

• Anomalous dome slew to Near Zenith Focus Field (23:57). A Session Alert was generated at 23:57:34 for 'Anomalous Dome Slew - Dome slew resumed at Az 44.6°'  and logfile shows the message 'Resetting bDomeSlewStopped as dome slew resumed at Az 44.6° . DomePath shows dome slewing from Az 41.7° to Az 42.9°, then stopping before resuming again and moving to final Az  161.1°.   Activity log wasn't running but the time line is clear
  23:57:19.620  AstroMain turns on Dome Slaving (dome will begin moving to Az 180.2°)
23:57:21.049  - Dome recieves request SlewToAzimith (180.2)  - to scope sitting close to its startup position
23:57:31.230  AstroMain commands slew to stop using Dome.AbortSlew
23:57:31.242  - Dome recieves AbortSlew request
23:57:31.450  AstroMain callsTheSky6.Telescope.SlewToRaDec
23:57:32.186  - Dome slew stopped (in response to earlier AbortSlew request)
23:57:33.162  - Dome  recieves SlewToAzimuth (161.06)    (Destination Az request, sent from DH.Slaving)
                            [1st of 13 messages sent between 23:57:33.162 & 23:57:34.138 (1s) ]
  The recently added code in AstroMain 3.51.13 that calls 'AbortSlew'  prior to the call to slew scope (AstroMain in 3.51.13) , should be modified to include a hold that waits for the dome to actually stop slewing (ie waits to see Slewing=False) before proceeding.  This is to ensure that Dome is receptive to
  Fixed 2022-06-05 (AstroMain 3.51.15)

Small Defects

• Total delay associated with DomeSlew Holdups is written incorrectly in logfile.  An issue with the reporting of Total delay value was corrected in AstroMain 3.51.14 but was only applied to the Report File. Bug relating to writing of Total Delay to logfile is fixed in AstroMain 3.51.15..
  Fixed 2022-06-05 (AstroMain 3.51.15)

• Routine called RunRotateScopeIntoWind() is misleading as it related to rotating dome into wind not the scope. Routine renamed as RunRotateDomeIntoWind() in AstroMain 3.51.15..
  Fixed 2022-06-05 (AstroMain 3.51.15)

• Review use of RotateDomeInto Wind during a Session's Equilibration stage, understand source of the wind direction used.  Due to current issue with weather station's Wind Direction sensor (not all directions are measured correctly) the wind direction from the sensor is likely to be wrong,  if wind direction is taken from forecast that may or may not be suitable for local conditions  Check what source is used. Consider changing 'Slew to into Wind' into a session option. (default - not used).   ObsManager uses Env.AvWindDirection for RotateDomeIntoWind() routine.   This is determined from WeatherData.WindDirection which comes WeatherData.StationWindDirection  from (unless wind data is frozen where it comes from  Synopsis.CurrentWindDirection instead.  In view of this RotateDomeIntoWind() routine and routines that consider using it are changed to use VM.UseCurrentlyWindDirection to control whether Env(Synopsis).CurrentWindDirection or Env.AvWindDirection is used. It's been decided to disable RotateDomeIntoWind feature in AstroMain 3.51.5+ for time being, this is controlled by a local variable bUseRotateDomeIntoWind in PerformDomeMonitoring() routine which is hard coded as false.
  Done 2022-06-05 (AstroMain 3.51.15)

• Stop logging of 'TP2 Record In' messages to session's logfile.  Logging of TP2 Record In interfers with general flow of log messages (for example in the middle of a ScopePath or a DomePath table) and isn't necessary at present (previous issues resolved).  Relevant code line has been commanted out in AstroMain 3.51.5  Line can be included again in future release or made available via a future checkbox option.
  Done 2022-06-05 (AstroMain 3.51.15)
