Session Aims & Highlights (2022-09-22)

Main aims

1. Targets.  Acquire images of a selection of variable stars, nearby stars, comets & deep sky targets as allowed by time & twilight conditions.
2. Guide Star Selection.  Carry out tests & experiements to help resolve issue with guide star selection when using a guiding in PHD2 with a specified ROI.

 Equipment & Software

• 12" LX200 and ST-10XME
• 80mm APO and ZWO ASI 178MC
• CCDApp2, TheSky6, CCDSoft5, DeviceHub 6.6.0.16,  MeadeGeneric 1.3.5.414, UPB 1.5, ASCOM 6.6
• Pegasus UPB & Motor Focus, TCF-S
• SharpCap 3.2, PHD2  2.6.11dev2

• AstroMain 3.54.9,  AstroPlan 1.32.5,   AstroShCap 1.3.12, AstroGuard 1.8.2
  AstroVOE 1.11  AstroSN 1.8.5,  AstroProtect 1.7,  AstroMove 1.9.1
  (AstroWeather 1.17.8, AstroAllSky 3.16.2,  AstroObsCam 1.9, AstroLaunch 1.9.4)

Highlights

• Targets.  Data was acquired from 20 out of 20 planned targets
• Guiding.  Guiding was generally good but some targets were affected by poor guiding on certain frames. Guiding poorer in RA than Dec.

Notes:

• Start of session was delayed by cloud and rain.
• Ambient temperate fell from 13°C down to 6°C over the course of the session.


Summary Plots & Logs

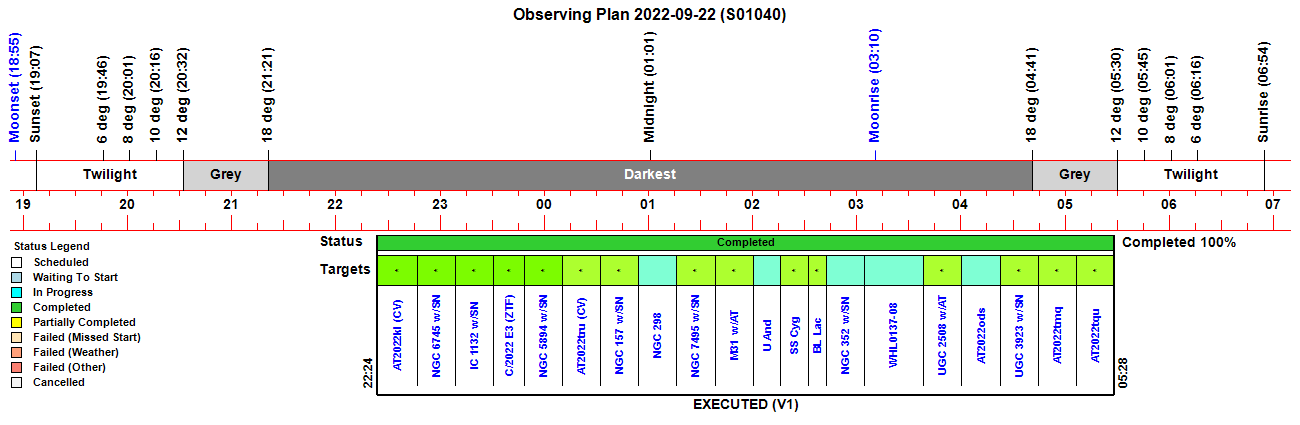

Observing Plan

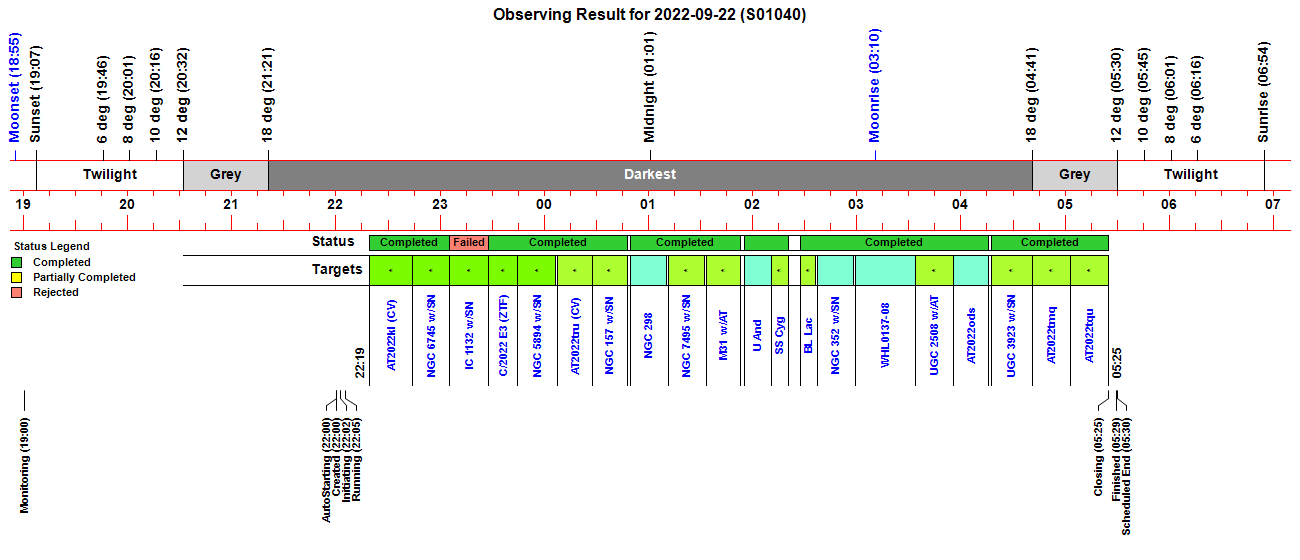

Observing Result

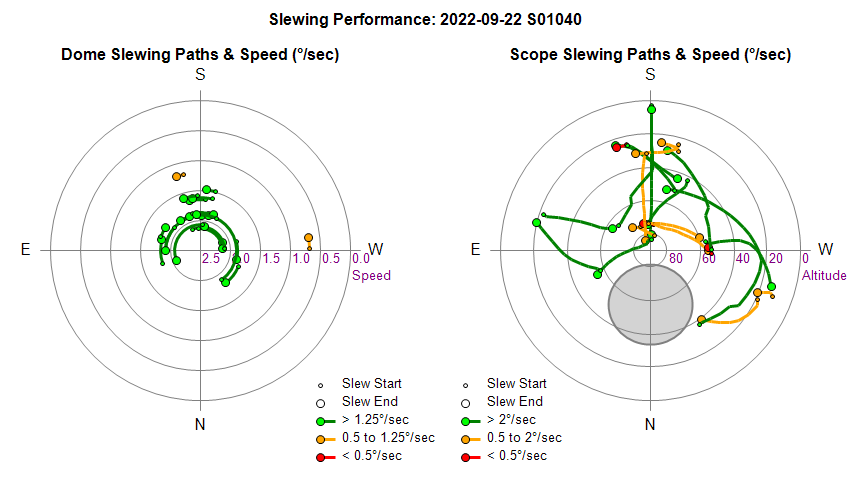

Dome & Scope Slewing Performance

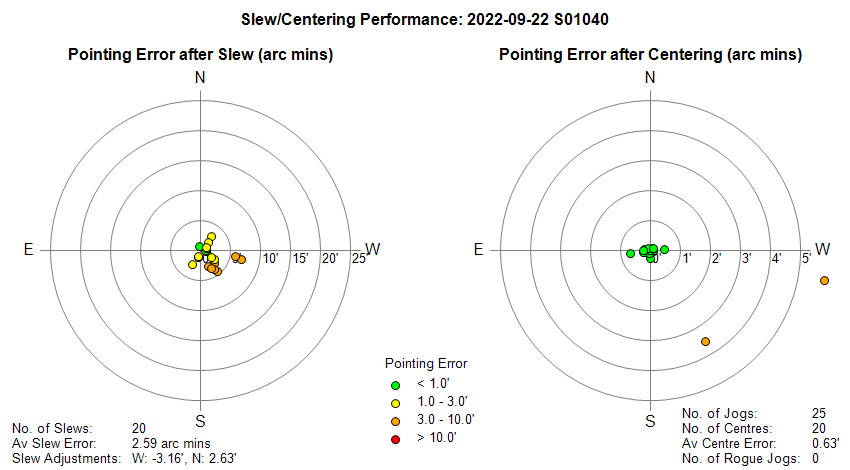

Slew/Centering Performance

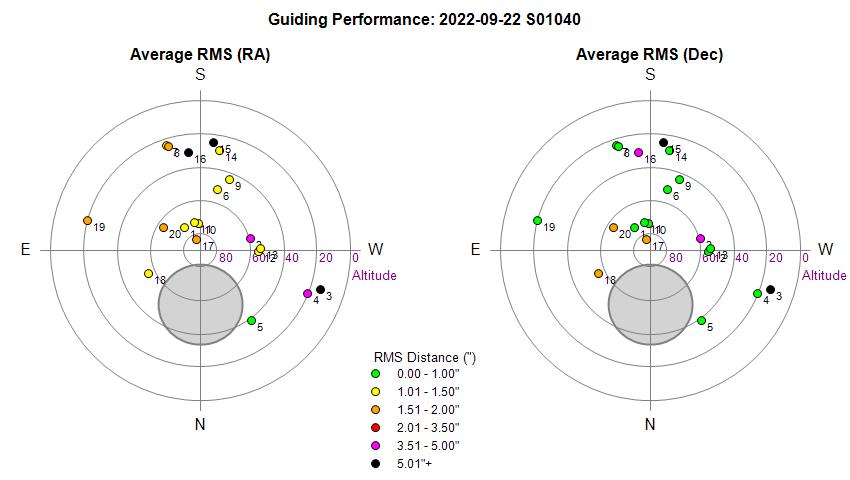

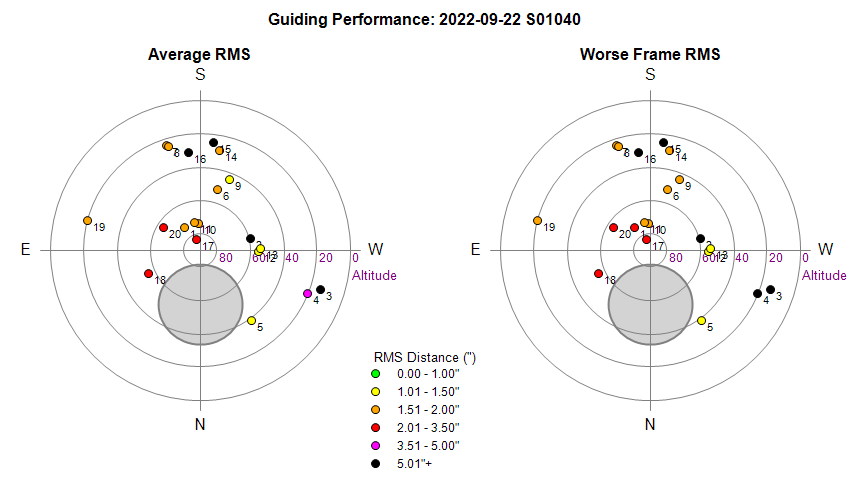

Guiding Performance

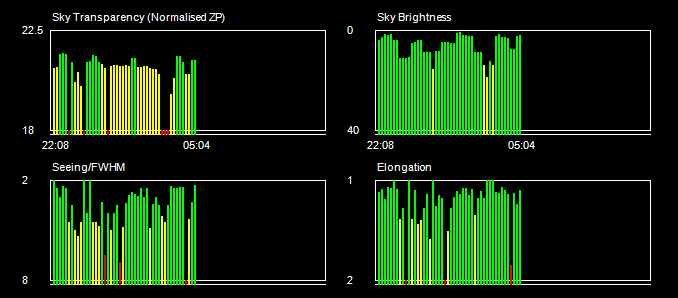

Sky Conditions (Locate Frames)

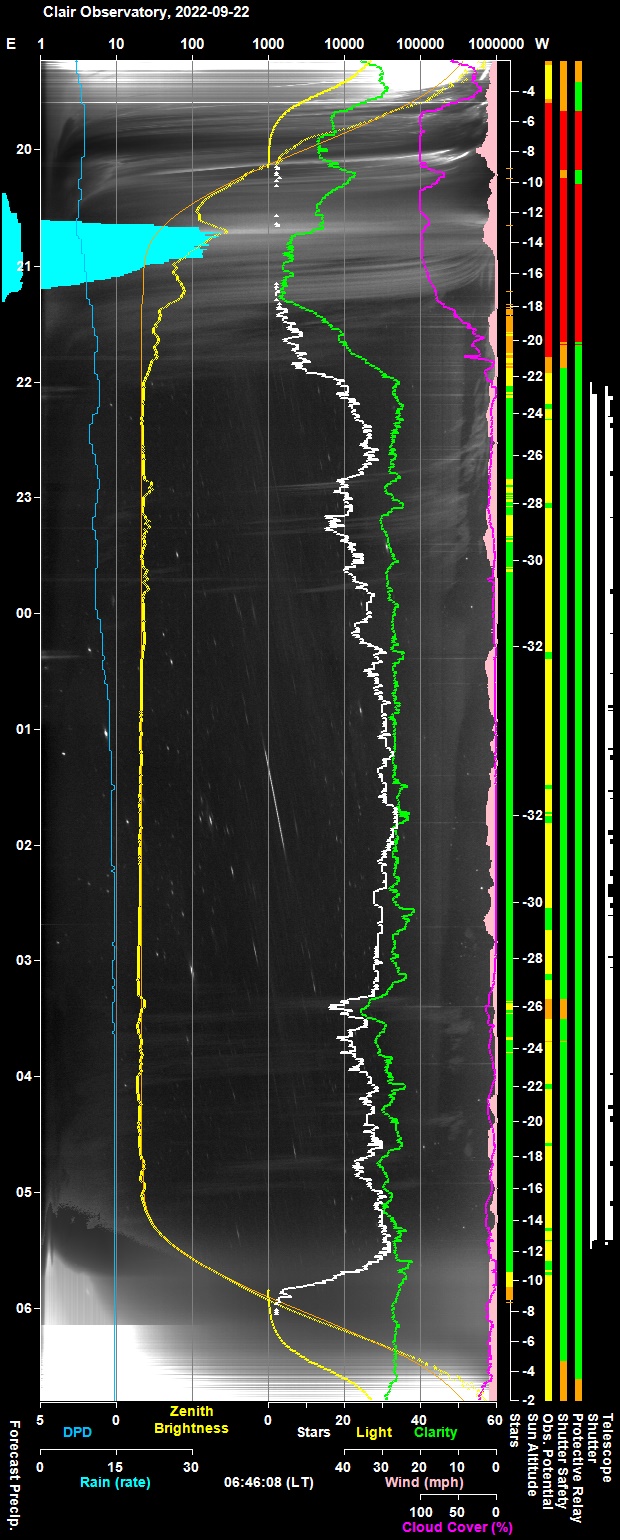

Night Sky Summary Plot Top axis: Sky Brightness at Zenith (in ADU/s) Lefthand axis: Local Time (hh LT). Righthand axis: Sun Altitude (degs)

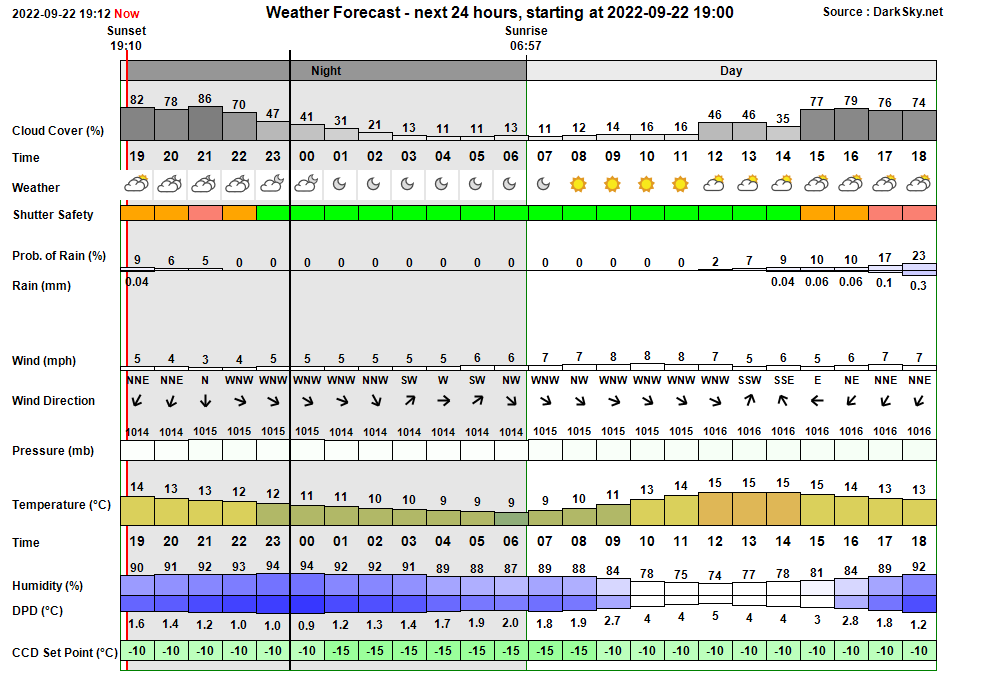

Actual Weather vs Pre-Session Weather Forecast

Session Event Log

Time     Event Detail 19:00:51 Session Monitoring AutoStart monitoring for Live Session opportunity between 19:58 & 04:54 19:00:56   AutoStart Waiting AutoStart waiting till earliest start time at 19:58 19:58:08   AutoStart Delayed Session delayed due to cloud 22:00:03 Session AutoStarting Session autostarting (22:00) 22:00:36 Session Created Session Created (Live, 2022-09-22 S01040, ImageSaveNum: 1040001) 22:00:38   Scope Switched On Telescope Power has been switched on via UPB Powerbox. 22:02:24   Services Started Observatory Services started 22:02:31 Observatory (Auto) Observatory placed in Fully-Automated Mode 22:02:33 Session Pending Session pending (2022-09-22) 22:02:35 Session Initiating Session initiating (2022-09-22) 22:02:38   Plan Requested Observing Plan requested from AstroPlan (1.32.5) 22:03:08   Plan Loaded Observing Plan loaded to queue (Plan ID: 802) 22:03:29   Camera1 Connected SBIG Camera connected (set point -10°C) 22:03:35   Telescope Connected Telescope connected (TheSky6) 22:03:59 Session Equilibration Session ready to Open Dome 22:04:45   Dome Opened Dome opened (opening time 45s) 22:05:40 Session Running Session running 22:05:42   Queue Started Observing Queue started (20 targets selected) 22:05:45     Target Started (NrZen) Target started (Focus Field 21, HIP 103850) 22:05:59   Dome Unparked Dome unparked 22:10:02       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S) 22:12:31       Focusing Completed Foc1 AutoFocus Completed (Profile No 1, wide) 22:14:29       Focusing Completed Foc1 AutoFocus Completed (Profile No 1) 22:14:32       Focusing Started-Foc2 Foc2 Focusing Started (Secondary Scope, using ShCap) 22:16:39       Focusing Completed Foc2 AutoFocus Completed (Profile No 2, wide) 22:18:22       Focusing Completed Foc2 AutoFocus Completed (Profile No 2) 22:18:39     Target Completed (NrZen) Target completed (Focus Field 21, HIP 103850) 22:19:06     Target Started (1/20) Target started (1/20, AT2022kl (CV)) 22:22:35       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S) 22:24:47       Focusing Completed Foc1 AutoFocus Completed (Profile No 3) 22:44:06     Target Completed Target completed (1/20, AT2022kl (CV)) 22:44:10     Target Started (2/20) Target started (2/20, NGC 6745 w/SN2022prr) 22:47:27       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S) 22:49:27       Focusing Completed Foc1 AutoFocus Completed (Profile No 4) 23:05:30     Target Completed Target completed (2/20, NGC 6745 w/SN2022prr) 23:05:34     Target Started (3/20) Target started (3/20, IC 1132 w/SN2022prv) 23:10:59       Focusing Skipped Foc1 focusing skipped - star is too dim (TCF-S) 23:27:36     Target Completed Target completed (3/20, IC 1132 w/SN2022prv) 23:27:40     Target Started (4/20) Target started (4/20, C/2022 E3 (ZTF)) 23:32:33       Focusing Skipped Foc1 focusing skipped - star is too dim (TCF-S) 23:44:21     Target Completed Target completed (4/20, C/2022 E3 (ZTF)) 23:44:25     Target Started (5/20) Target started (5/20, NGC 5894 w/SN2022pgf) 23:48:35       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S) 23:50:51       Focusing Completed Foc1 AutoFocus Completed (Profile No 5) 00:07:18     Target Completed Target completed (5/20, NGC 5894 w/SN2022pgf) 00:07:22     Target Started (6/20) Target started (6/20, AT2022tru (CV)) 00:11:23       Focusing Skipped Foc1 focusing skipped - star is too dim (TCF-S) 00:27:55     Target Completed Target completed (6/20, AT2022tru (CV)) 00:28:00     Target Started (7/20) Target started (7/20, NGC 157 w/SN2022jli) 00:32:08       Focusing Skipped Foc1 focusing skipped - star is lost (TCF-S) 00:48:10     Target Completed Target completed (7/20, NGC 157 w/SN2022jli) 00:49:31     Target Started (8/20) Target started (8/20, NGC 298) 00:54:14       Focusing Skipped Foc1 focusing skipped - unable to find a star (TCF-S) 01:10:17     Target Completed Target completed (8/20, NGC 298) 01:11:30     Target Started (9/20) Target started (9/20, NGC 7495 w/SN2022ubb) 01:14:43       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S) 01:16:40       Focusing Completed Foc1 AutoFocus Completed (Profile No 6) 01:32:26     Target Completed Target completed (9/20, NGC 7495 w/SN2022ubb) 01:33:30     Target Started (10/20) Target started (10/20, M31 w/ATNova M31 2022-09a?) 01:36:59       Focusing Skipped Foc1 focusing skipped - star is too dim (TCF-S) 01:52:51     Target Completed Target completed (10/20, M31 w/ATNova M31 2022-09a?) 01:55:30     Target Started (11/20) Target started (11/20, GCVS U And) 01:58:11       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S) 02:00:15       Focusing Completed Foc1 AutoFocus Completed (Profile No 7) 02:10:51     Target Completed Target completed (11/20, GCVS U And) 02:11:08     Target Started (12/20) Target started (12/20, GCVS SS Cyg) 02:14:12       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S) 02:16:22       Focusing Completed Foc1 AutoFocus Completed (Profile No 8) 02:20:46     Target Completed Target completed (12/20, GCVS SS Cyg) 02:27:23     Target Started (13/20) Target started (13/20, GCVS BL Lac) 02:30:46       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S) 02:32:57       Focusing Completed Foc1 AutoFocus Completed (Profile No 9) 02:36:50     Target Completed Target completed (13/20, GCVS BL Lac) 02:37:29     Target Started (14/20) Target started (14/20, NGC 352 w/SN2022jzx) 02:41:29       Focusing Skipped Foc1 focusing skipped - star is too dim (TCF-S) 02:58:11     Target Completed Target completed (14/20, NGC 352 w/SN2022jzx) 02:59:29     Target Started (15/20) Target started (15/20, WHL0137-08) 03:04:27       Focusing Skipped Foc1 focusing skipped - star is too dim (TCF-S) 03:33:59     Target Completed Target completed (15/20, WHL0137-08) 03:34:03     Target Started (16/20) Target started (16/20, UGC 2508 w/AT2022trp) 03:39:18       Focusing Skipped Foc1 focusing skipped - unable to find a star (TCF-S) 03:55:42     Target Completed Target completed (16/20, UGC 2508 w/AT2022trp) 03:55:46     Target Started (17/20) Target started (17/20, AT2022ods) 03:58:56       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S) 03:59:48       Focusing Failed Foc1 focusing failed - star lost 04:15:47     Target Completed Target completed (17/20, AT2022ods) 04:17:37     Target Started (18/20) Target started (18/20, UGC 3923 w/SN2022rqc) 04:21:33       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S) 04:24:07       Focusing Completed Foc1 AutoFocus Completed (Profile No 11) 04:41:04     Target Completed Target completed (18/20, UGC 3923 w/SN2022rqc) 04:41:08     Target Started (19/20) Target started (19/20, AT2022tmq) 04:44:41       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S) 04:46:53       Focusing Completed Foc1 AutoFocus Completed (Profile No 12) 05:02:52     Target Completed Target completed (19/20, AT2022tmq) 05:02:57     Target Started (20/20) Target started (20/20, AT2022tqu) 05:05:37       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S) 05:07:50       Focusing Completed Foc1 AutoFocus Completed (Profile No 13) 05:25:08     Target Completed Target completed (20/20, AT2022tqu) 05:25:11   Queue Completed Job Queue completed 05:25:13 Session Closing Session closing 05:26:06   Dome Closed Dome closed (closing time 50s) 05:26:35   Dome Parked Dome parked (parking time 22s), Az: 90.0 deg 05:27:53   Telescope Parked Telescope parked (parking time 75s) 05:28:08   Telescope State Scope parked Turn scope off. (Handbox) 05:28:30   Telescope Switched Off Telescope Power has been switched off via UPB Switch. 05:29:23   Services Stopped Night Services stopped 05:29:25 Session Housekeeping Session Housekeeping started (Create Fits Summary, Transfer Files) 05:29:46 Session Finished Session Finished

Session Alerts

Time     Alert Detail -- No Alerts                --

Back to Top

Operational Issues (2022-09-22, S1040)

• Critical Issues (0)
• Major Issues (0)
• Minor Issues (0)
• Small Defects (0)
• Continuous Improvement (0)


[ Prev | Next ]

Critical Issues

• None

Major Issues

• Notes

Minor Issues

• None

Small Defects

• None

• None
