 Notes - Session 1049 (2022-10-26)

 Previous Notes
Notes
(S1048)		   Notes
Notes
Main		   Home
Home
Page		   Next Notes
Notes
(S1050)

Bullet Session Aims & Highlights
 - Observing Result
 - Night Summary Plot
 - Session Event Log
Bullet Operational Issues
  - Critical Issues (0),  Major Issues (6),  Minor Issues (1),  Small Defects (6),  Continuous Improvement (20)

Bullet Images from 2022-10-26 >>        [ Local Files >> ]
Bullet Software Bisque Error Codes

Session Aims & Highlights (2022-10-26)

Main aims

  1. AstroMain.  Check new AstroMain version (3.56.4) for any issues introduced by recent changes and additions.
  2. Targets.  Acquire images of a selection of variable stars, nearby stars, comets & deep sky targets as allowed by sky conditions.
  3. Zigbee Network: Conduct second live session test using newly introduced Zigbee Network. Check for any issues. Identify any improvements.
  4. Observatory Alarms.  Check out use of Chrome/Chromecast to send audio messages and alarms through to Google Home speaker. .

 Equipment & Software

Highlights

Notes:

Summary Plots & Logs

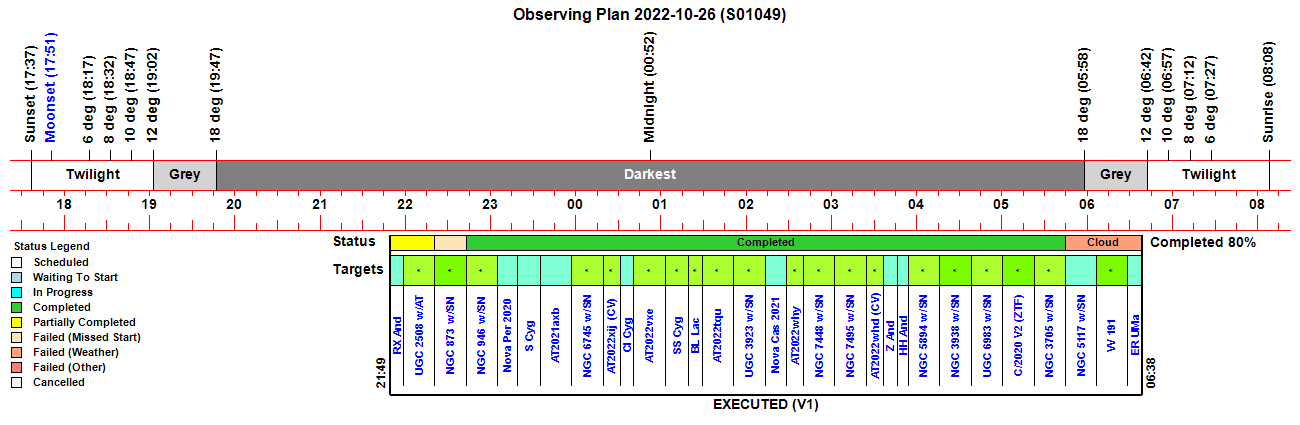

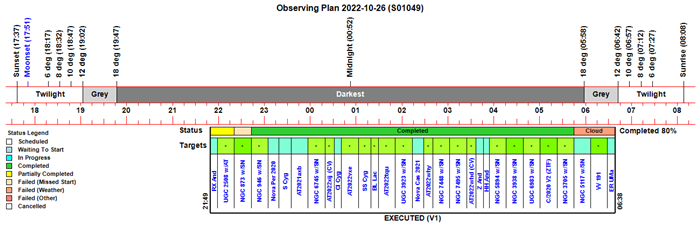

Observing Plan

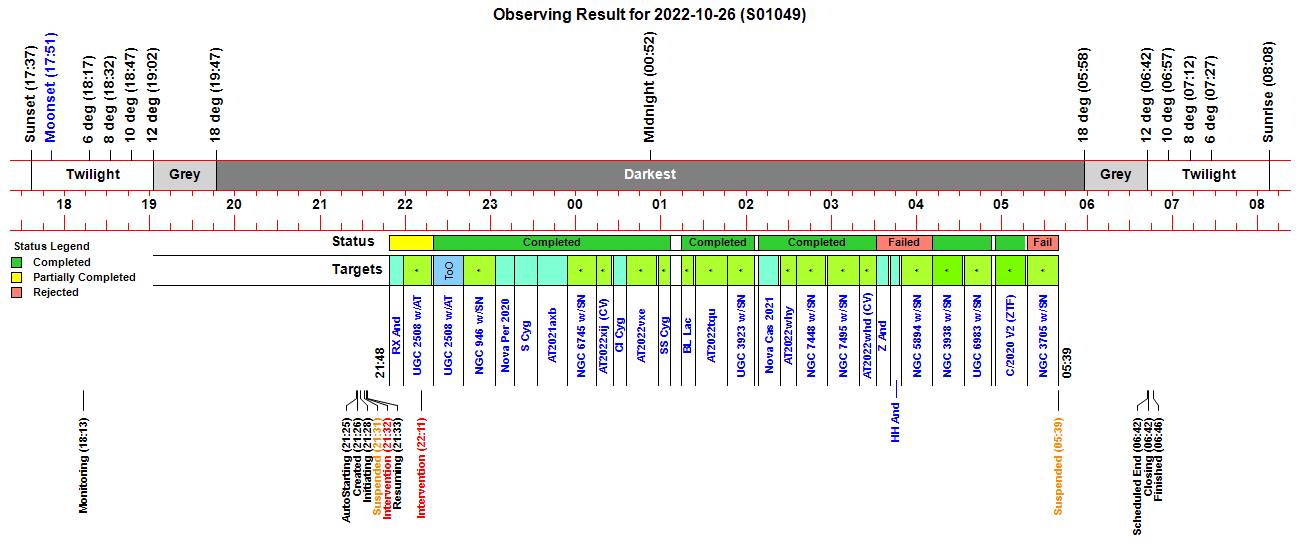

Observing Result

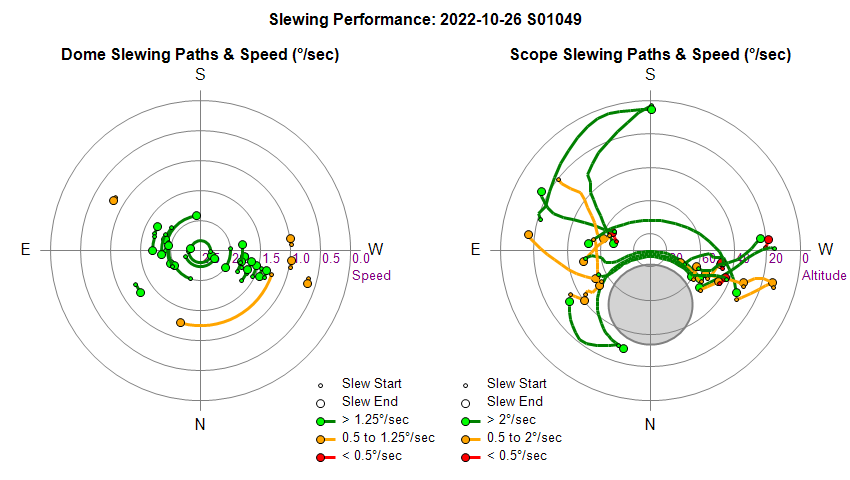

Dome & Scope Slewing Performance

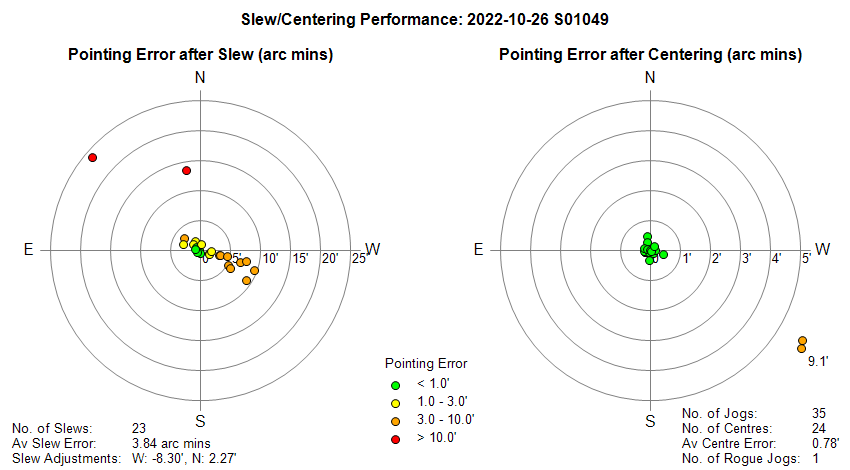

Slew/Centering Performance

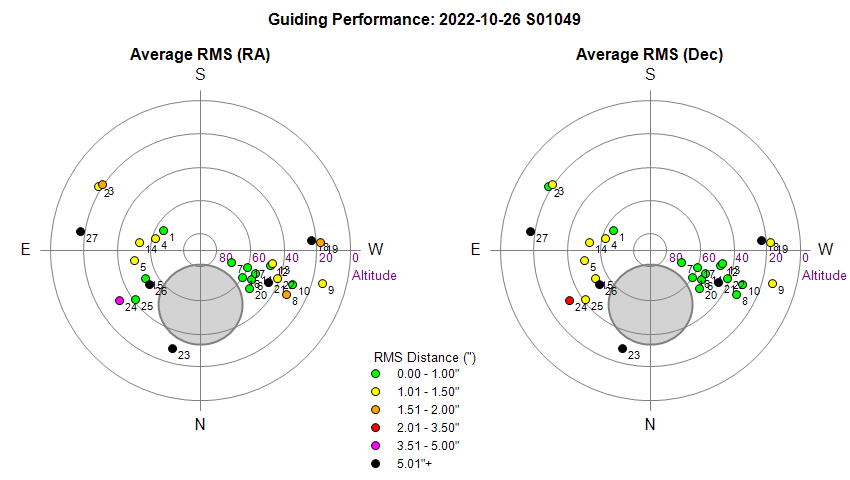

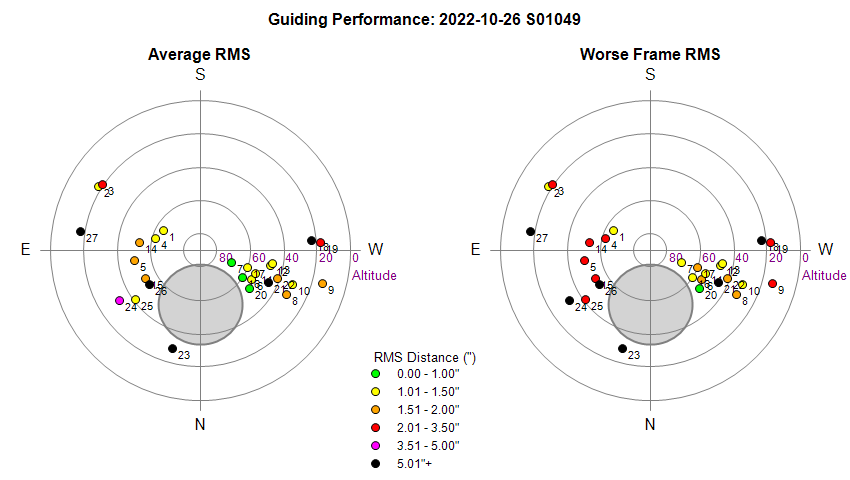

Guiding Performance

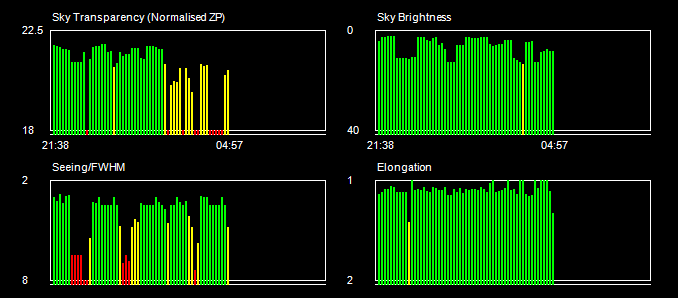

Sky Conditions (Locate Frames)

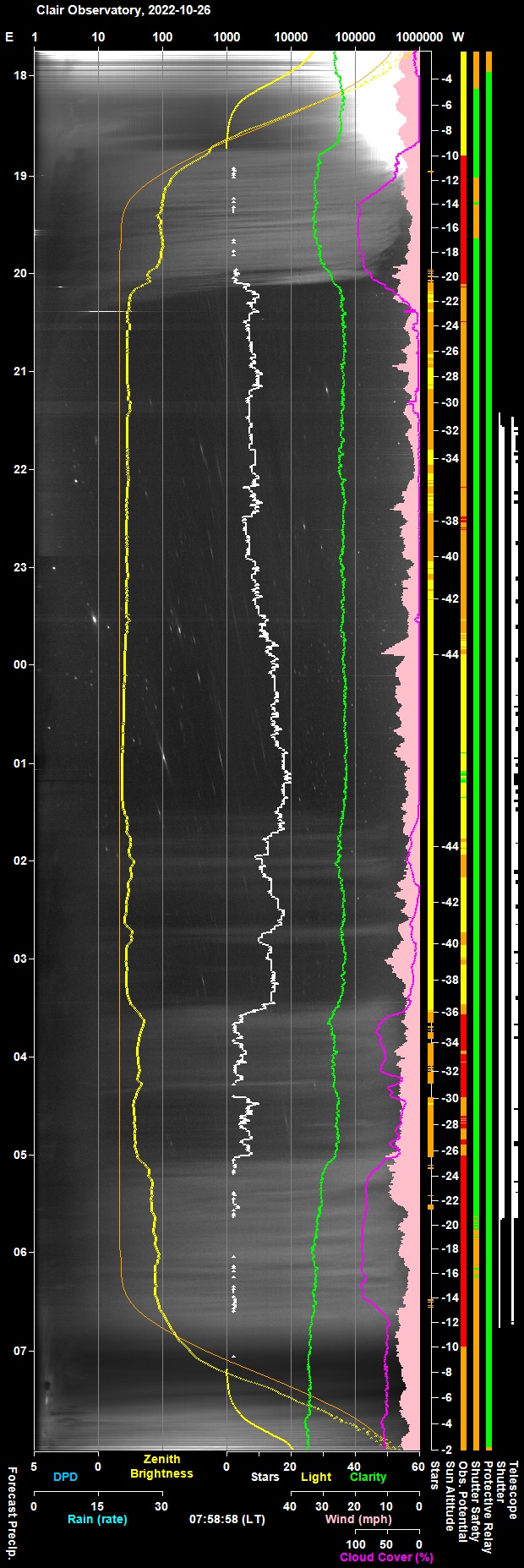

Night Sky Summary Plot
Top axis: Sky Brightness at Zenith (in ADU/s)
Lefthand axis: Local Time (hh LT). Righthand axis: Sun Altitude (degs)

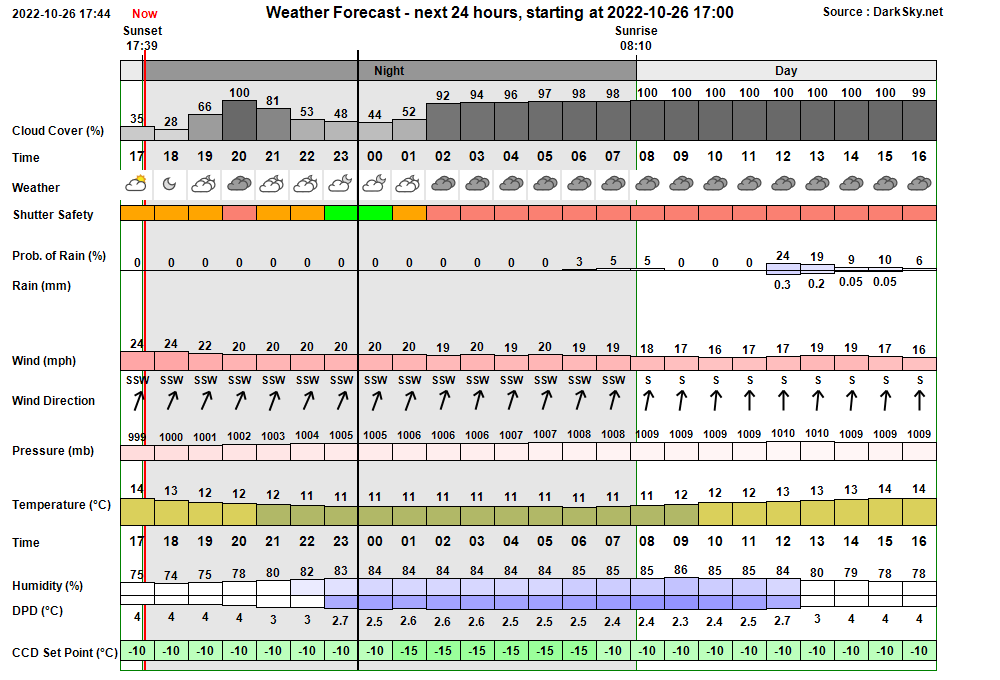

Actual Weather vs Pre-Session Weather Forecast

Session Event Log
Time     Event Detail
18:13:30 Session Monitoring AutoStart monitoring for Live Session opportunity between 18:28 & 06:06
18:13:32   AutoStart Waiting AutoStart waiting till earliest start time at 18:28
18:28:53   AutoStart Delayed Session delayed due to too few stars
21:25:30 Session AutoStarting Session autostarting (21:25)
21:25:56   SBIG Camera Reset SBIG Camera being power-cycled to fix locked threads issue
21:26:35   Camera1 Connected SBIG Camera connected (set point -15°C)
21:26:37 Session Created Session Created (Live, 2022-10-26 S01049, ImageSaveNum: 1049001)
21:26:39   Scope Switched On Telescope Power has been switched on via UPB Powerbox.
21:28:18   Services Started Observatory Services started
21:28:25 Observatory (Auto) Observatory placed in Fully-Automated Mode
21:28:27 Session Pending Session pending (2022-10-26)
21:28:29 Session Initiating Session initiating (2022-10-26)
21:28:31   Plan Requested Observing Plan requested from AstroPlan (1.32.6)
21:29:22   Plan Loaded Observing Plan loaded to queue (Plan ID: 811)
21:29:37   Camera1 Connected SBIG Camera connected (set point -10°C)
21:29:42   Telescope Connected Telescope connected (TheSky6)
21:29:44 Obs.Monitor Frozen Obs.Monitor appears to be frozen at around 21:29 in section Update Foc1 Fields
21:30:06 Session Equilibration Session ready to Open Dome
21:31:31   Wait On Weather Waiting for acceptable conditions
21:31:34 Session Suspended Session suspended
21:31:36   Dome Closed Dome already closed
21:31:38   Queue Started Observing Queue started (30 targets selected)
21:32:26   CCDSoft Restarting CCDSoft being killed and restarted in attempt to fix locked threads
21:32:32   SBIG Camera Reset SBIG Camera being power-cycled to fix locked threads issue
21:33:10   Camera1 Connected SBIG Camera connected (set point -10°C)
21:33:36 Session Resuming Session resuming
21:34:22   Dome Opened Dome opened (opening time 45s)
21:34:24 Session Running Session running
21:34:26   Queue Resumed Observing Queue resumed
21:34:28     Target Started (NrZen) Target started (Focus Field 1, HIP 4911)
21:34:41   Dome Unparked Dome unparked
21:39:59       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S)
21:42:50       Focusing Completed Foc1 AutoFocus Completed (Profile No 1, wide)
21:44:45       Focusing Completed Foc1 AutoFocus Completed (Profile No 1)
21:44:48       Focusing Started-Foc2 Foc2 Focusing Started (Secondary Scope, using ShCap)
21:46:50       Focusing Completed Foc2 AutoFocus Completed (Profile No 2, wide)
21:48:34       Focusing Completed Foc2 AutoFocus Completed (Profile No 2)
21:48:51     Target Completed (NrZen) Target completed (Focus Field 1, HIP 4911)
21:48:56     Target Started (1/30) Target started (1/30, GCVS RX And)
21:55:06       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S)
21:56:43       Focusing Completed Foc1 AutoFocus Completed (Profile No 3)
21:58:51     Target Completed Target partially completed (1/30, GCVS RX And)
21:58:55     Target Started (2/30) Target started (2/30, UGC 2508 w/AT2022trp)
22:05:30   SBIG Camera Take Image failed, Error Code 219 (Command in progress)
22:11:26   CCDSoft Restarting CCDSoft being killed and restarted in attempt to fix locked threads
22:11:41   SBIG Camera Reset SBIG Camera being power-cycled to fix locked threads issue
22:12:19   Camera1 Connected SBIG Camera connected (set point -10°C)
22:16:30   SBIG Camera Take Image command accepted (the bSbigDriverException flag is reset)
22:18:41   CCDSoft Issue CCDSoft has encountered an image save issue [0000]
22:18:43   CCDSoft Restarting CCDSoft restarting in attempt to fix image save issue [0000]
22:18:48   SBIG Camera Reset SBIG Camera being power-cycled to fix locked threads issue
22:19:26   Camera1 Connected SBIG Camera connected (set point -10°C)
22:19:30     Target Aborted (2/30) Target aborted (2/30, UGC 2508 w/AT2022trp) due to Priority 1 ToO Target
22:19:34     Target Started (3/31) Target started (3/31, UGC 2508 w/AT2022trp, ToO)
22:41:06     Target Completed Target completed (3/31, UGC 2508 w/AT2022trp, ToO)
22:41:08     Target Missed (4/31) Target's time slot was missed (4/31, NGC 873 w/SN2022xjk)
22:41:10     Target Started (5/31) Target started (5/31, NGC 946 w/SN2022yid)
22:44:43       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S)
22:46:58       Focusing Completed Foc1 AutoFocus Completed (Profile No 4)
23:03:32     Target Completed Target completed (5/31, NGC 946 w/SN2022yid)
23:03:37     Target Started (6/31) Target started (6/31, Nova Per 2020)
23:06:34       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S)
23:08:33       Focusing Completed Foc1 AutoFocus Completed (Profile No 5)
23:17:06     Target Completed Target completed (6/31, Nova Per 2020)
23:17:10     Target Started (7/31) Target started (7/31, GCVS S Cyg)
23:20:42       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S)
23:22:40       Focusing Completed Foc1 AutoFocus Completed (Profile No 6)
23:33:03     Target Completed Target completed (7/31, GCVS S Cyg)
23:33:08     Target Started (8/31) Target started (8/31, AT2021axb)
23:35:56       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S)
23:38:08       Focusing Completed Foc1 AutoFocus Completed (Profile No 7)
23:53:57     Target Completed Target completed (8/31, AT2021axb)
23:54:01     Target Started (9/31) Target started (9/31, NGC 6745 w/SN2022prr)
23:56:20       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S)
23:58:32       Focusing Completed Foc1 AutoFocus Completed (Profile No 8)
00:14:45     Target Completed Target completed (9/31, NGC 6745 w/SN2022prr)
00:14:49     Target Started (10/31) Target started (10/31, AT2022xij (CV))
00:19:20       Focusing Skipped Foc1 focusing skipped - star is too dim (TCF-S)
00:25:27     Target Completed Target completed (10/31, AT2022xij (CV))
00:26:16     Target Started (11/31) Target started (11/31, GCVS CI Cyg)
00:29:39       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S)
00:31:42       Focusing Completed Foc1 AutoFocus Completed (Profile No 9)
00:35:53     Target Completed Target completed (11/31, GCVS CI Cyg)
00:35:57     Target Started (12/31) Target started (12/31, AT2022vxe)
00:38:48       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S)
00:41:02       Focusing Completed Foc1 AutoFocus Completed (Profile No 10)
00:56:52     Target Completed Target completed (12/31, AT2022vxe)
00:58:03     Target Started (13/31) Target started (13/31, GCVS SS Cyg)
01:00:46       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S)
01:02:45       Focusing Completed Foc1 AutoFocus Completed (Profile No 11)
01:06:55     Target Completed Target completed (13/31, GCVS SS Cyg)
01:14:19     Target Started (14/31) Target started (14/31, GCVS BL Lac)
01:17:04       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S)
01:19:16       Focusing Completed Foc1 AutoFocus Completed (Profile No 12)
01:23:08     Target Completed Target completed (14/31, GCVS BL Lac)
01:24:25     Target Started (15/31) Target started (15/31, AT2022tqu)
01:28:11       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S)
01:30:24       Focusing Completed Foc1 AutoFocus Completed (Profile No 13)
01:47:02     Target Completed Target completed (15/31, AT2022tqu)
01:47:06     Target Started (16/31) Target started (16/31, UGC 3923 w/SN2022rqc)
01:50:01       Focusing Skipped Foc1 focusing skipped - star is too dim (TCF-S)
02:06:08     Target Completed Target completed (16/31, UGC 3923 w/SN2022rqc)
02:08:25     Target Started (17/31) Target started (17/31, Nova Cas 2021)
02:12:24       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S)
02:14:36       Focusing Completed Foc1 AutoFocus Completed (Profile No 14)
02:23:42     Target Completed Target completed (17/31, Nova Cas 2021)
02:23:46     Target Started (18/31) Target started (18/31, AT2022why)
02:27:24       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S)
02:29:36       Focusing Completed Foc1 AutoFocus Completed (Profile No 15)
02:35:23     Target Completed Target completed (18/31, AT2022why)
02:35:27     Target Started (19/31) Target started (19/31, NGC 7448 w/SN2022wsp)
02:39:11       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S)
02:39:40       Focusing Failed Foc1 focusing failed - star lost
02:56:05     Target Completed Target completed (19/31, NGC 7448 w/SN2022wsp)
02:57:25     Target Started (20/31) Target started (20/31, NGC 7495 w/SN2022ubb)
03:03:32       Focusing Skipped Foc1 focusing skipped - star is too dim (TCF-S)
03:19:58     Target Completed Target completed (20/31, NGC 7495 w/SN2022ubb)
03:20:02     Target Started (21/31) Target started (21/31, AT2022whd (CV))
03:23:25       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S)
03:25:35       Focusing Completed Foc1 AutoFocus Completed (Profile No 17)
03:31:23     Target Completed Target completed (21/31, AT2022whd (CV))
03:31:27     Target Started (22/31) Target started (22/31, GCVS Z And)
03:35:11       Focusing Skipped Foc1 focusing skipped - unable to find a star (TCF-S)
03:40:05     Target Completed Target completed (22/31, GCVS Z And)
03:41:18     Target Started (23/31) Target started (23/31, GCVS HH And)
03:45:37       Focusing Skipped Foc1 focusing skipped - unable to find a star (TCF-S)
03:47:58     Target Completed Target completed (23/31, GCVS HH And)
03:49:21     Target Started (24/31) Target started (24/31, NGC 5894 w/SN2022pgf)
03:55:12       Focusing Skipped Foc1 focusing skipped - unable to find a star (TCF-S)
04:11:16     Target Completed Target completed (24/31, NGC 5894 w/SN2022pgf)
04:11:20     Target Started (25/31) Target started (25/31, NGC 3938 w/SN2022xlp)
04:15:50       Focusing Skipped Foc1 focusing skipped - star is lost (TCF-S)
04:32:29     Target Completed Target completed (25/31, NGC 3938 w/SN2022xlp)
04:33:21     Target Started (26/31) Target started (26/31, UGC 6983 w/SN2022pru)
04:36:05       Focusing Skipped Foc1 focusing skipped - star is lost (TCF-S)
04:52:34     Target Completed Target completed (26/31, UGC 6983 w/SN2022pru)
04:55:21     Target Started (27/31) Target started (27/31, C/2020 V2 (ZTF))
04:59:07       Focusing Skipped Foc1 focusing skipped - star is too dim (TCF-S)
05:16:31     Target Completed Target completed (27/31, C/2020 V2 (ZTF))
05:17:41     Target Started (28/31) Target started (28/31, NGC 3705 w/SN2022xxf)
05:23:41       Focusing Skipped Foc1 focusing skipped - unable to find a star (TCF-S)
05:29:13       SoftSuspend Called Soft Suspend is called due to Deteriorating Conditions (reducing clarity)
05:29:23       SoftSuspend Cancelled Soft Suspend is cancelled due to improved conditions
05:33:18       SoftSuspend Called Soft Suspend is called due to Deteriorating Conditions (reducing clarity)
05:33:23       SoftSuspend Cancelled Soft Suspend is cancelled due to improved conditions
05:36:24       SoftSuspend Called Soft Suspend is called due to Deteriorating Conditions (reducing clarity)
05:36:29       SoftSuspend Cancelled Soft Suspend is cancelled due to improved conditions
05:37:19       SoftSuspend Called Soft Suspend is called due to Deteriorating Conditions (reducing clarity)
05:37:24       SoftSuspend Cancelled Soft Suspend is cancelled due to improved conditions
05:37:54       SoftSuspend Called Soft Suspend is called due to Deteriorating Conditions (reducing clarity)
05:37:59       SoftSuspend Cancelled Soft Suspend is cancelled due to improved conditions
05:38:09       SoftSuspend Called Soft Suspend is called due to Deteriorating Conditions (reducing clarity)
05:38:19       SoftSuspend Cancelled Soft Suspend is cancelled due to improved conditions
05:38:29       SoftSuspend Called Soft Suspend is called due to Deteriorating Conditions (reducing clarity)
05:38:54       SoftSuspend Cancelled Soft Suspend is cancelled due to improved conditions
05:39:14       SoftSuspend Called Soft Suspend is called due to Deteriorating Conditions (reducing clarity)
05:39:19       SoftSuspend Cancelled Soft Suspend is cancelled due to improved conditions
05:39:44       SoftSuspend Called Soft Suspend is called due to Deteriorating Conditions (reducing clarity)
05:39:47     Target Completed Target completed (28/31, NGC 3705 w/SN2022xxf)
05:39:49   Queue Paused Queue paused for Session Suspension
05:39:51 Session Suspended Session suspended
05:40:34   Dome Closed Dome closed (closing time 45s)
05:58:37     Target Cancelled Target cancelled (29/31, NGC 5117 w/SN2022abq) due to cloud
06:20:37     Target Cancelled Target cancelled (30/31, VV 191) due to cloud
06:42:43     Target Cancelled Target cancelled (31/31, GCVS ER UMa) due to cloud
06:42:48   Queue Completed Job Queue completed
06:42:50 Session Closing Session closing
06:42:55   Dome Closed Dome already closed (closed at 05:40, closing time 45s)
06:43:14   Dome Parked Dome parked (parking time 11s), Az: 90.0 deg
06:44:32   Telescope Parked Telescope parked (parking time 75s)
06:44:47   Telescope State Scope parked Turn scope off. (Handbox)
06:45:09   Telescope Switched Off Telescope Power has been switched off via UPB Switch.
06:46:03   Services Stopped Night Services stopped
06:46:05 Session Housekeeping Session Housekeeping started (Create Fits Summary, Transfer Files)
06:46:31 Session Finished Session Finished

Session Alerts
Time     Alert Detail
21:30:15 Obs.Monitor Obs.Monitor appears to be frozen in section Update Foc1 Fields (last cycle at 21:29:44)
21:32:31 Obs.Monitor Obs.Monitor has resumed again after 2.7 mins
22:05:30 SBIG Camera Alert Take Image failed, Error Code 219 (Command in progress)
22:16:30 SBIG Camera Take Image command accepted (the bSbigDriverException flag is reset)
22:18:41 CCDSoft Image file [0000] hasn't been saved to disk, possible CCDSoft issue
22:22:12 CCDSoft Image file has been saved to disk following CCDSoft Restart
03:50:07 Anomalous Dome Slew Dome slew resumed at Az 16.6° (T+41.0s)
03:50:22 Anomalous Dome Slew Dome slew resumed at Az 45.0° (T+55.9s)


Back to Top

Operational Issues (2022-10-26, S1049)

[ Prev | Next ]

Critical Issues

Major Issues

Minor Issues

Small Defects

Continuous Improvement

[ Prev | Next ]

Back to Top

Software Bisque Error Codes

Software Bisque Error codes from https://www.bisque.com/wp-content/cs-content/help/scripting/thesky6/software_bisque_error_codes.htm

Since this page might be not available / not accessible at some future point the list of codes have been captured and reformatted into a table




Error
Code		Error Code (text)Error Description
0ERR_NOERROR 0No error.

TheSky6 Telescope errors
200ERR_COMMNOCONNECTION 200No connection.
201ERR_COMMOPENING 201Could not open communications port. The port is either in use by another application or not recognized by the system.
202ERR_COMMSETTINGS 202The communications port could not support the specified settings.
203ERR_NORESPONSE 203No response from the device.
205ERR_MEMORY Error: memory error.
206ERR_CMDFAILED Error: command failed.
207ERR_DATAOUT Transmit time-out.
208ERR_TXTIMEOUT Transmit time-out.
209ERR_RXTIMEOUT Receive time-out.
210ERR_POSTMESSAGE Post message failed.
211ERR_POINTER Pointer error.
212ERR_ABORTEDPROCESS Process aborted.
213ERR_AUTOTERMINATE Error, poor communication, link automatically terminated.
214ERR_INTERNETSETTINGS Error, cannot connect to host.
215ERR_NOLINK No response from the device.
216ERR_PARKLOST The mount was not able to unpark.
217ERR_DRIVERNOTFOUND A necessary driver was not found.
218ERR_LIMITSEXCEEDED Limits exceeded.
219ERR_COMMANDINPROGRESS Command in progress.
220ERR_DEVICENOTSUPPORTED Device not supported.
221ERR_NOTPOINT TPoint model not available.
222ERR_NOTSYNCED Unable to slew, mount not yet synced.
223ERR_USERASCLIENT You must use the RASClient application to connect to a remote observatory.
224ERR_THESKYNOTRUNNING The attempted operation requires the TheSky Level IV and it must be running.
225ERR_NODEVICESELECTED No device has been selected.
226ERR_IDS_CANTLAUNCHTHESKY Unable to launch TheSky.
227ERR_NOTINITIALIZED Telescope not initialized. The telescope must be initialized in order to perform this operation.
228ERR_COMMANDNOTSUPPORTED This command is not supported by the selected device.
3015ERR_FLASH_REPROGRAMMEDTurn off power, move dip switches to off posn, then turn power on and reconnect.


TheSky6 other errors
250ERR_OBJECTNOTFOUND Object not found.
251ERR_OBJECTTOOLOW Object too low.
252ERR_MISSING_NIGHTVISIONMODE_THEME Setting Night Vision Mode failed. The required file: 'TheSky6 Night Vision Mode.Theme' cannot be loaded. Options: 1. Copy this file from TheSky6's folder to the My Documents folder. 2. Click Start, Control Panel, Display and load the 'Windows Classic' theme. 3. Reinstall TheSky. 4. Search TheSky6's Help for details about Night Vision Mode and Themes.
253ERR_DISPLAY_PROPS_ALREADY_RUNNING The Windows Display Properties dialog is open. Please close it and try again.
254ERR_THEME_NOT_SAVED Night Vision cannot be invoked because the current theme has been modified without being saved. Please save the current theme by clicking Start, Control Panel, Display, and from the Themes tab, click Save As.

Packet Errors
300ERR_BADPACKET Bad packet.
301ERR_BADCHECKSUM Bad checksum.
302ERR_UNKNOWNRESPONSE Unknown response.
303ERR_UNKNOWNCMD Unknown command.
304ERR_BADSEQUENCENUM Bad sequence number.
305ERR_ENCRYPTION Packet encryption failed.

Track and Accumulate Errors
400ERR_TASHIFT Track and Accumulate Shift Error.
401ERR_TAACCUM Track and Accumulate Accumulation Error.
402ERR_TACENTROID Track and Accumulate Centroid Error.
403ERR_TAREMOVEPEDESTAL Track and Accumulate Pedestal Error.
404ERR_TASUBOFFSET Track and Accumulate Subtract Offset.
405ERR_TARESIZEIMAGE Track and Accumulate Resize Error.
406ERR_TACLEARBUF Track and Accumulate Clear Buffer.
407ERR_TAFINDMINMAX Track and Accumulate find min/max error.
408ERR_TASTARBRTDOWN50 Track and Accumulate star brightness down 50%.
409ERR_TAUSERRECTNOTFOUND Track and Accumulate rectangle not found.

Combine Errors
500ERR_COMBINE_BPP Combine not available for the image bits-per-pixel.
501ERR_COMBINE_FILETYPE Incorrect file type for this combine function.
502ERR_COMBINE_READTRKLST Error reading track list.
503ERR_OUTOFDISKSPACE Out of disk space.
504ERR_SATURATEDPIXELS Cannot proceed, saturated pixels found. If possible lower your exposure time.
505ERR_FILEAREREADONLY Unable to complete operation because file(s) are read only.
506ERR_PATHNOTFOUND Unable to create or access the folder.
507ERR_FILEMUSTBESAVED Please save the image before using this command.

Autoguide/Calibration Errors
550ERR_STARTOODIM1 Star too dim. Lost during +X move.
551ERR_STARTOODIM2 Star too dim. Lost during -X move.
552ERR_STARTOODIM3 Star too dim. Lost during +Y move.
553ERR_STARTOODIM4 Star too dim. Lost during +Y move.
554ERR_MOVEMENTTOOSMALL1 Motion too small during +X move. Increase calibration time.
555ERR_MOVEMENTTOOSMALL2 Motion too small during -X move. Increase calibration time.
556ERR_MOVEMENTTOOSMALL3 Motion too small during +Y move. Increase calibration time.
557ERR_MOVEMENTTOOSMALL4 Motion too small during -Y move. Increase calibration time.
558ERR_STARTOOCLOSETOEDGE1 Star too close to edge after +X move.
559ERR_STARTOOCLOSETOEDGE2 Star too close to edge after -X move.
560ERR_STARTOOCLOSETOEDGE3 Star too close to edge after +Y move.
561ERR_STARTOOCLOSETOEDGE4 Star too close to edge after -Y move.
562ERR_AXISNOTPERPENDICULAR1 Invalid motion in X axis.
563ERR_AXISNOTPERPENDICULAR2 Invalid motion in Y axis.
564ERR_BOTHAXISDISABLED Unable to calibrate, both axis are disabed. At least one axis must be enabled to calibrate.
565ERR_RECALIBRATE Re-calibrate required. Declination at calibration is unknown.
566ERR_NOBRIGHTOBJECTFOUND No bright object found on image.

DSSDLL Errors
600ERR_DSSNAMETOLONG The file name and/or path is too long.
601ERR_DSSNOTINITED The DSS is not properly initialized, please check DSS Setup parameters.
602ERR_DSSSYSERROR System error. Please verify DSS Setup parameters and make sure you have the correct disk in the CD-ROM drive.
603ERR_DSSWRONGDISK Wrong Disk.
604ERR_DSSNOIMAGE No image found to extract.

SB DSS UI Errors
605ERR_DSSINVALIDCOORDINATE Invalid coordinate(s).
606ERR_DSSINVALIDSIZE Invalid size.
607ERR_DSSDLLOLD The file DSS_DLL.DLL is old and not compatible with this program. Please obtain the latest DSS_DLL.DLL.
608ERR_DSSCDROM Unable to access the CD-ROM drive specified in DSS Setup. Make sure the drive is valid and/or there is a CD-ROM in the drive.
609ERR_DSSHEADERSPATH Unable to access the headers path specified in DSS Setup. Please correct the path.
610ERR_DSSNODSSDISK A DSS CD-ROM disk is not present in the CD-ROM drive. Please insert one before continuing.
611ERR_DSSNOTINSURVEY Not in survey.

Image Link/AutoMap
650ERR_ILINK_NOSCALE Image link has no image scale.
651ERR_ILINK_TOOFEWBMP Image link failed because there are not enough stars in the image. Try adjusting the image's background and range.
652ERR_ILINK_TOOFEWSKY Image Link failed because there are an insufficient number of matching cataloged stars. There must be at least six cataloged stars in each image to perform an Image Link. Use the USNO stellar database for more stars.
653ERR_ILINK_NOMATCHFOUND Image Link failed, no pattern matching found. Check image coordinates and image scale.
654ERR_ILINK_NOIMAGE Image Link failed because there is no image to match.

General Errors
206ERR_COMMANDUNSUCCESSFUL Error: command failed.
211ERR_LPARAMNULL Pointer error.
700ERR_SKIPIMAGE Skip image error.
701ERR_BADFORMAT Unrecognized or bad file format.
702ERR_OPENINGFILE Unable to open file.
703ERR_FEATURENAINLEVEL This Level does not support this feature.
704ERR_SOCKETEXCEPTION An error occurred during a network call.
705ERR_CANTCREATETHREAD Unable to create a new thread.
706ERR_F_ACCESS_READ Access denied. You do not have read access to the file or folder.
707ERR_F_ACCESS_WRITE Access denied. You do not have write access to the file or folder.
708ERR_F_ACCESS_RW Access denied. You do not have read/write access to the file or folder.
709ERR_F_DOESNOTEXIST The file or folder does not exist.
710ERR_CHANGE_PASSWORD You are required to change your password before you can access this site.

 For creating and decoding wire safe SCODES

1000SBSCODEBASE

Self Guide Errors
800ERR_SGSTARBRTDOWN50 Self-guide star brightness down 50%.
801ERR_SGNEXT Self-guide next error.
802ERR_SGNEXT2 Self-guide next two error.
900ERR_MNCPFIRSTERROR MNCP first error.
999ERR_MNCPLASTERROR MNCP last error.

SBIG Camera Errors

1000ERR_SBIGST7FIRST
1001CE_CAMERA_NOT_FOUND SBIG driver: Camera not found.
1002CE_EXPOSURE_IN_PROGRESS SBIG driver: Exposure already in progress.
1003CE_NO_EXPOSURE_IN_PROGRESS SBIG driver: Exposure not in progress.
1004CE_UNKNOWN_COMMAND SBIG driver: Bad PC Command.
1005CE_BAD_CAMERA_COMMAND SBIG driver: Bad camera command.
1006CE_BAD_PARAMETER SBIG driver: Bad parameter.
1007CE_TX_TIMEOUT SBIG driver: Transmission timeout.
1008CE_RX_TIMEOUT SBIG driver: Receive timeout.
1009CE_NAK_RECEIVED SBIG driver: NAK received.
1010CE_CAN_RECEIVED SBIG driver: CAN received.
1011CE_UNKNOWN_RESPONSE SBIG driver: Unknown response.
1012CE_BAD_LENGTH SBIG driver: Bad length.
1013CE_AD_TIMEOUT SBIG driver: A/D timeout.
1014CE_KBD_ESC SBIG driver: Keyboard Escape.
1015CE_CHECKSUM_ERROR SBIG driver: Checksum error.
1016CE_EEPROM_ERROR SBIG driver: EEPROM error.
1017CE_SHUTTER_ERROR SBIG driver: Shutter error.
1018CE_UNKNOWN_CAMERA SBIG driver: Unknown camera.
1019CE_DRIVER_NOT_FOUND SBIG driver: Driver not found.
1020CE_DRIVER_NOT_OPEN SBIG driver: Driver not open.
1021CE_DRIVER_NOT_CLOSED SBIG driver: Driver not closed.
1022CE_SHARE_ERROR SBIG driver: Driver share error.
1023CE_TCE_NOT_FOUND SBIG driver: TCE not found.
1024CE_AO_ERROR SBIG driver: AO error.
1025CE_ECP_ERROR SBIG driver: ECP error.
1026CE_MEMORY_ERROR SBIG driver: Memory error.
1027CE_DEVICE_NOT_FOUND SBIG driver: Device not found.
1028CE_DEVICE_NOT_OPEN SBIG driver: Device not open.
1029CE_DEVICE_NOT_CLOSED SBIG driver: Device not closed.
1030CE_DEVICE_NOT_IMPLEMENTED SBIG driver: Device not implemented.
1031CE_DEVICE_DISABLED SBIG driver: Device disabled.
1032CE_OS_ERROR SBIG driver: Operating system error.
1033CE_SOCK_ERROR SBIG driver: Socket error.
1034CE_SERVER_NOT_FOUND SBIG driver: Server not found.
1035CE_CFW_ERROR SBIG driver: General CFW error.
1040ERR_SBIGCCCFWFIRST

SBIG CFW Errors
1040CE_CFWE_NONE SBIG driver: CFW error none.
1041CE_CFWE_BUSY SBIG driver: CFW error busy.
1042CE_CFWE_BAD_COMMAND SBIG driver: CFW error bad command.
 CE_CFWE_CAL_ERROR 1043SBIG driver: CFW error calibration error.
 CE_CFWE_MOTOR_TIMEOUT 1043SBIG driver: CFW error motor timeout.
 CE_CFWE_BAD_MODEL 1045SBIG driver: CFW error bad model.
 ERR_SBIGST7LAST 1049
 ERR_SBIGTCEEXTFIRST 1050

 TCEEE_LIMIT_HIT 1051Limit hit.
 TCEEE_USER_ABORT 1052User abort.
 TCEEE_RA_TIMEOUT 1053RA time-out.
 TCEEE_DEC_TIMEOUT 1054Dec time-out.
 TCEEE_COM_MOTION_TIMEOUT 1055Communications motion time-out.
 TCEEE_RA_COM_ERROR 1056RA communication error.
 TCEE_DEC_COM_ERROR 1057Dec communication error.

 ERR_SBIGTCEEXTLAST 1099

SBIG Serial Errors
1100ERR_SBIGSERIALFIRST
1125ERR_SBIGSERIALLAST
1130ERR_AUTOSAVE Auto-save error.

SBIG CCDOPS ERRORS
1150ERR_UPLOADNOTST6FILE
1151ERR_NOHEADADJNEEDED
1152ERR_NOTCFW6A
1153ERR_NOINTERFACE
1154ERR_CAMERANOTFOUND
1155ERR_BAUDSWITCHFAILED
1156ERR_CANNOTUPLOADDARK
1157ERR_SKIPPINGDARK
1158ERR_SKIPPINGLIGHT
1159ERR_SELFGUIDENA
1160ERR_TRACKLOGNA
1161ERR_AOREQUIREST78
1162ERR_CALIBRATEAONOTON
1163ERR_WRONGCAMERAFOUND A camera was detected, but it does not match the one selected.
1164ERR_PIXEL_MATH_OPERAND Can not multiply or divide the image pixels by an operand less than 0.001.
1165ERR_IMAGE_SIZE Enlarged image would exceed maximum image size. Try cropping it first.
1166ERR_CANNOT_COLORGRAB There is not a color filter wheel attached.
1167ERR_WRONGCFWFOUND A filter was detected, but it does not match the one selected.

APOGEE Camera Errors
 ERR_APOGEEFIRST 1200
 ERR_APOGEECFGNAME 1200A required initialization file was not found. Go to Camera, Setup, and press the Settings button to choose the correct file.
 ERR_APOGEECFGDATA 1201Error in Apogee INI file.
 ERR_APOGEELOAD 1202Error transferring APCCD.INI data to camera.
 ERR_APOGEEOPENOFFSET 1220Invalid base I/O address passed to func.
 ERR_APOGEEOPENOFFSET1 1221Register access operation error.
 ERR_APOGEEOPENOFFSET2 1222Invalid CCD geometry.
 ERR_APOGEEOPENOFFSET3 1223Invalid horizontal binning factor.
 ERR_APOGEEOPENOFFSET4 1224Invalid vertical binning factor.
 ERR_APOGEEOPENOFFSET5 1225Invalid AIC value.
 ERR_APOGEEOPENOFFSET6 1226Invalid BIC value.
 ERR_APOGEEOPENOFFSET7 1227Invalid line offset value.
 ERR_APOGEEOPENOFFSET8 1228CCD controller sub-system not initialized.
 ERR_APOGEEOPENOFFSET9 1229CCD cooler failure.
 ERR_APOGEEOPENOFFSET10 1230Failure reading image data.
 ERR_APOGEEOPENOFFSET11 1231Invalid buffer pointer specfied.
 ERR_APOGEEOPENOFFSET12 1232File not found or not valid.
 ERR_APOGEEOPENOFFSET13 1233Config. data invalid.
 ERR_APOGEEOPENOFFSET14 1234Invalid CCD handle passed to function.
 ERR_APOGEEOPENOFFSET15 1235Invalid parameter passed to function.
 ERR_APOGEELAST 1299

define Shutter Timing
 ERR_GPSTFPNOTRUNNING 1300Shutter timing is enabled, but the GPSTFP application is not running.

 Custom error codes for third
 parties supporting SB's APIs
 should reside between

 ERR_CUSTOMAPIFIRST 1400
 ERR_CUSTOMAPILAST 1499
 ERR_IPLSUITEERR 1500
 ERR_APOGEEOPENOFFSET15 1235Invalid parameter passed to function.
 ERR_GDI
 ERR_BASE 1600

Image calibration
 ERR_IMAGECALWRONGBPP 5000Unable to reduce. The image being reduced doesn't have the same bits per pixel as the reduction frames.
 ERR_IMAGECALWRONGSIZE 5001Unable to reduce. The image being reduced is larger than the reduction frames.
 ERR_IMAGECALWRONGBIN 5002Unable to reduce. The image being reduced doesn't have the same bin mode as the reduction frames.
 ERR_IMAGECALWRONGSUBFRAME 5003Unable to reduce. The image being reduced doesn't entirely overlap the reduction frames. Make sure the subframes overlap.
 ERR_IMAGECALGROUPINUSE 5004Unable to proceed. The reduction group is currently in use.
 ERR_IMAGECALNOSUCHGROUP 5005Unable to proceed. The selected reduction group no longer exists.
 ERR_IMAGECALNOFRAMES 5006Unable to proceed. The selected reduction group does not contain any reduction frames.

Combine
 ERR_WRONGBPP 5020Unable to proceed. The images don't have the same bits per pixel.
 ERR_WRONGSIZE 5021Unable to proceed. The images don't have the same dimensions.
 ERR_WRONGTYPE 5022Unable to proceed. The images don't have the same format.

Align folder
 ERR_NOIMAGESINFOLDER 5050Unable to proceed. The folder doesn't contain any readable images.
 ERR_NOPATTERNMATCH 5051The files could not be aligned. No pattern match was found.

FITS related errors
 ERR_NOTFITS 5070This operation requires a FITS file.

Curve Funcs Return Values
 ERR_KVW_NOMINIMA 6000KVW_NOMINIMA.
 ERR_KVW_DETERMINANTZERO 6001KVW_DETERMINANTZERO.
 ERR_KVW_DIVISIONBYZERO 6002KVW_DIVISIONBYZERO.
 ERR_KVW_NOTENOUGHPOINTS 6003KVW_NOTENOUGHPOINTS.
 ERR_AF_ERRORFIRST 7000@Focus error.
 ERR_AF_DIVERGED 7001@Focus diverged.
 ERR_AF_UNDERSAMPLED 7003Insufficient data to measure focus, increase exposure time.
 ERR_FLICCD_E_FIRST 8000ERR_FLICCD_E_FIRST
 ERR_FLICCD_E_NOTSUPP 8001ERR_FLICCD_E_NOTSUPP
 ERR_FLICCD_E_INVALID_PARAMETER 8002ERR_FLICCD_E_INVALID_PARAMETER
 ERR_FLICCD_E_INVALID_COMPORT 8003ERR_FLICCD_E_INVALID_COMPORT
 ERR_FLICCD_E_COMPORT_ERROR 8004ERR_FLICCD_E_COMPORT_ERROR
 ERR_FLICCD_E_FAILED_RESET 8005ERR_FLICCD_E_FAILED_RESET
 ERR_FLICCD_E_COMMTIMEOUT 8006ERR_FLICCD_E_COMMTIMEOUT
 ERR_FLICCD_E_BADDATA 8007ERR_FLICCD_E_BADDATA
 ERR_FLICCD_E_NOCALIBRATE 8008ERR_FLICCD_E_NOCALIBRATE
 ERR_FLICCD_E_DEVICE_NOT_CONFIGURED 8009ERR_FLICCD_E_DEVICE_NOT_CONFIGUR
 ERR_FLICCD_E_COMMWRITE 8010ERR_FLICCD_E_COMMWRITE
 ERR_FLICCD_E_INVALID_DEVICE 8011ERR_FLICCD_E_INVALID_DEVICE
 ERR_FLICCD_E_FUNCTION_NOT_SUPPORTED 8012ERR_FLICCD_E_FUNCTION_NOT_SUPPORTED
 ERR_FLICCD_E_BAD_BOUNDS 8013ERR_FLICCD_E_BAD_BOUNDS
 ERR_FLICCD_E_GRABTIMEOUT 8014ERR_FLICCD_E_GRABTIMEOUT
 ERR_FLICCD_E_TODATAHB 8015ERR_FLICCD_E_TODATAHB
 ERR_FLICCD_E_TODATALB 8016ERR_FLICCD_E_TODATALB
 ERR_FLICCD_E_ECPNOTREADY 8017ERR_FLICCD_E_ECPNOTREADY
 ERR_FLICCD_E_ECPREADTIMEOUTHB 8018ERR_FLICCD_E_ECPREADTIMEOUTHB
 ERR_FLICCD_E_ECPREADTIMEOUTLB 8019ERR_FLICCD_E_ECPREADTIMEOUTLB
 ERR_FLICCD_E_ECPREADTIMEOUT 8020ERR_FLICCD_E_ECPREADTIMEOUT
 ERR_FLICCD_E_ECPREVERSETIMEOUT 8021ERR_FLICCD_E_ECPREVERSETIMEOUT
 ERR_FLICCD_E_ECPWRITETIMEOUTHB 8022ERR_FLICCD_E_ECPWRITETIMEOUTHB
 ERR_FLICCD_E_ECPWRITETIMEOUTLB 8023ERR_FLICCD_E_ECPWRITETIMEOUTLB
 ERR_FLICCD_E_ECPWRITETIMEOUT 8024ERR_FLICCD_E_ECPWRITETIMEOUT
 ERR_FLICCD_E_FORWARDTIMEOUT 8025ERR_FLICCD_E_FORWARDTIMEOUT
 ERR_FLICCD_E_NOTECP 8026ERR_FLICCD_E_NOTECP
 ERR_FLICCD_E_FUNCTIONNOTSUPP 8027ERR_FLICCD_E_FUNCTIONNOTSUPP
 ERR_FLICCD_E_NODEVICES 8028ERR_FLICCD_E_NODEVICES
 ERR_FLICCD_E_WRONGOS 8029ERR_FLICCD_E_WRONGOS
 ERR_TEMMA_RAERROR 8030Slew error: right ascension incorrect
 ERR_TEMMA_DECERROR 8031Slew error: declination incorrect
 ERR_TEMMA_TOOMANYDIGITS 8032Slew error: object below the horizon

ACL Errors-Values defined by ACL
 ERR_ACLUNDEFINEDERR 1ACL undefined error.
 ERR_ACLSYNTAX 2ACL syntax error.
 ERR_ACLTYPEMISMATCH 10ACL type mismatch error.
 ERR_ACLRANGE 11ACL range error.
 ERR_ACLVALREADONLY 12ACL value is read only.
 ERR_ACLCMDUNSUPPORTED 13ACL command is unsupported.
 ERR_ACLUNSUPPORTID 14ACL unsupported id.
 ERR_ACLCMDINACTIVE 15ACL command inactive.





Back to Top

This Web Page: Notes - Session 1049 (2022-10-26)
Last Updated : 2024-03-27
Site Owner : David Richards
Home Page : David's Astronomy Web Site
