Session Aims & Highlights (2022-11-28)

Main aims

1. 29P/Schwassmann-Wachmann. Acquire further images of 29P/Schwassmann-Wachmann, as followup to images taken in last three sessions (S1061 - S1063) . Continue to look out for expanding coma following recent 4 mag outburst
2. Targets.  Acquire images of a selection of variable stars, nearby stars, comets & deep sky targets as allowed by sky conditions.
3. AstroMain.  Check new AstroMain version (3.58.6) for any issues introduced by several recent changes, bug fixes and additions.

 Equipment & Software

• 12" LX200 and ST-10XME
• 80mm APO and ZWO ASI 178MC
• CCDApp2, TheSky6, CCDSoft5, DeviceHub 6.6.1.1,  MeadeGeneric 1.3.5.414, UPB 1.5, ASCOM 6.6
• Pegasus UPB & Motor Focus, TCF-S
• SharpCap 3.2, PHD2  2.6.11dev2, deCONZ 1.18.2, ASCOM 6.6 SP1

• AstroMain 3.58.6, AstroPlan 1.34.2,   AstroShCap 1.3.12, AstroGuard 1.10.1
  AstroVOE 1.12.0  AstroSN 1.8.6,  AstroProtect 1.7,  AstroMove 1.9.7
  (AstroWeather 1.19.6, AstroAllSky 3.17.2,  AstroObsCam 1.11.1, AstroLaunch 1.10.5

Highlights

• 29P/Schwassmann-Wachmann.  Images acquired
• Targets. 37 out of 41 planned targets were fully completed, 1 was partially completed. 2 others targets were replaced by 4 ToO targets that were added during the session (29P/Schwassmann-Wachmann, C/2021 Y1 (ATLAS), 61P/Shajn-Schaldach & Mars) which were each fully acquired.
• Guiding. Very good guiding performance, sky conditions ideal.

Notes:

• Aurora recorded from the Observatory  (see Aurora Images/Video from 2022-11-28  )

Summary Plots & Logs

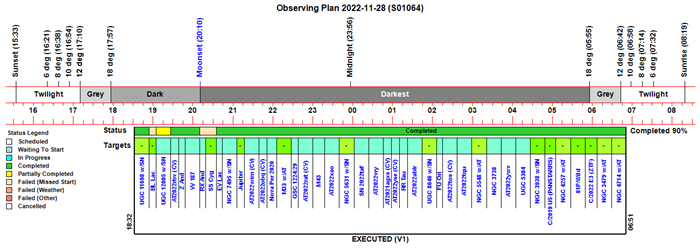

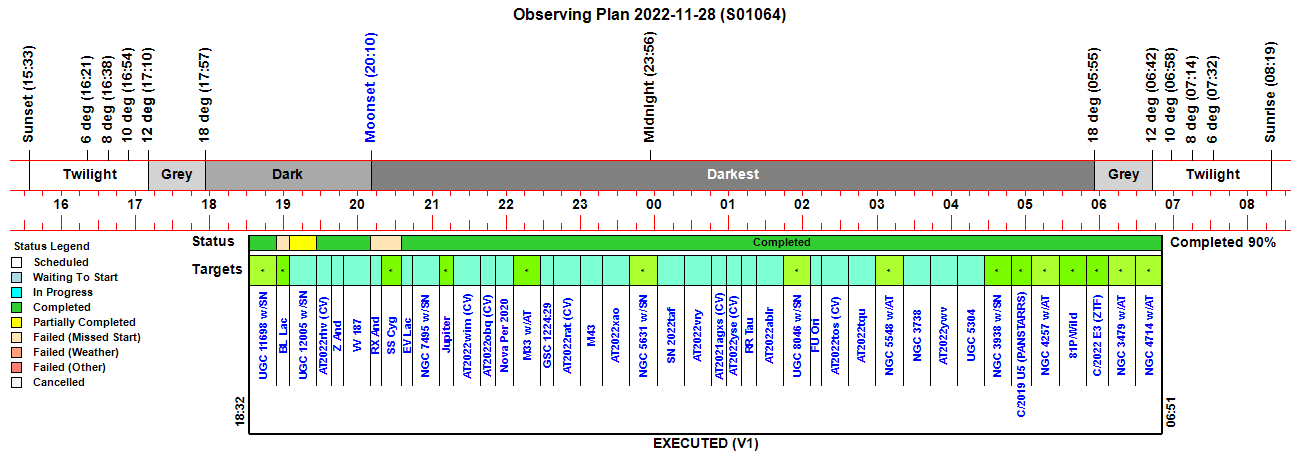

Observing Plan

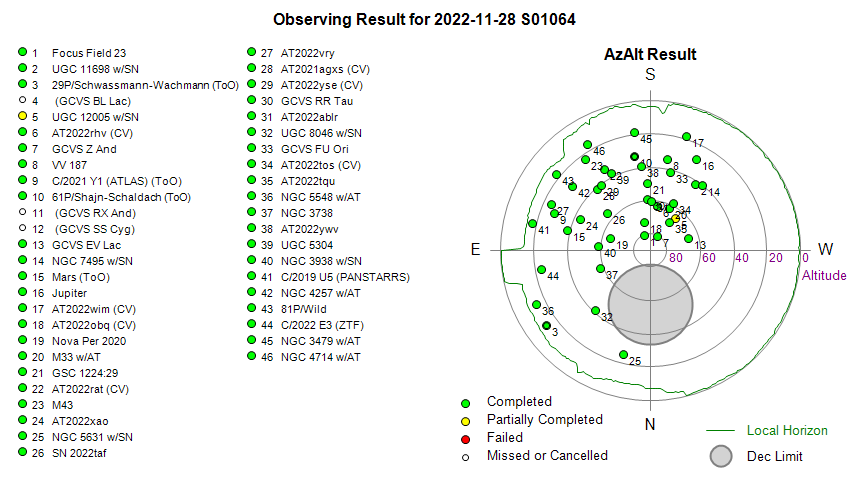

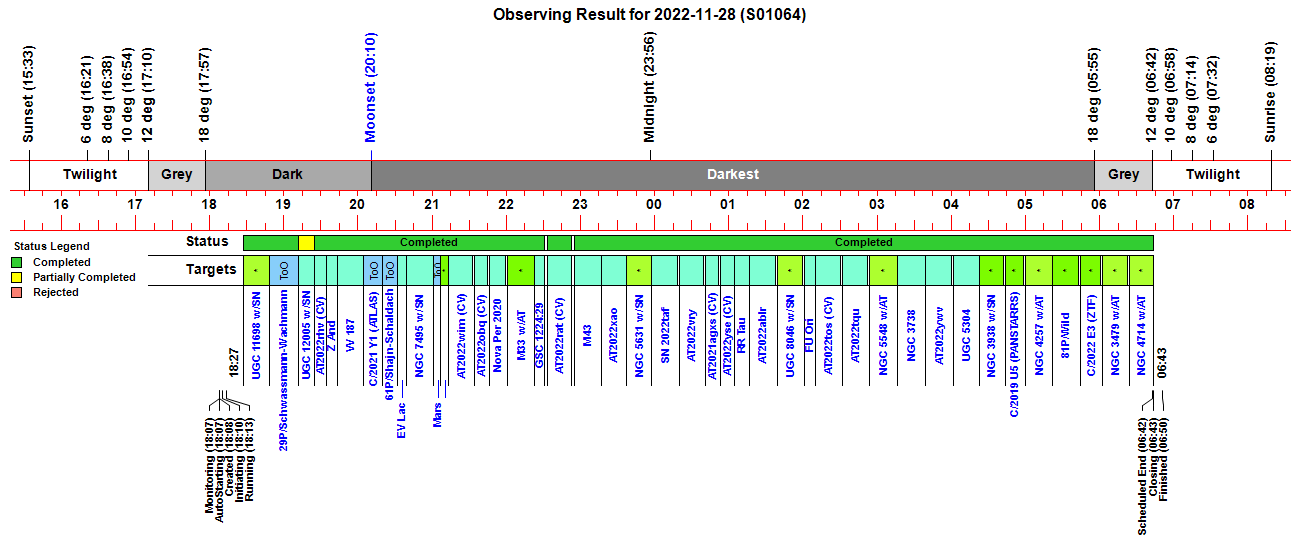

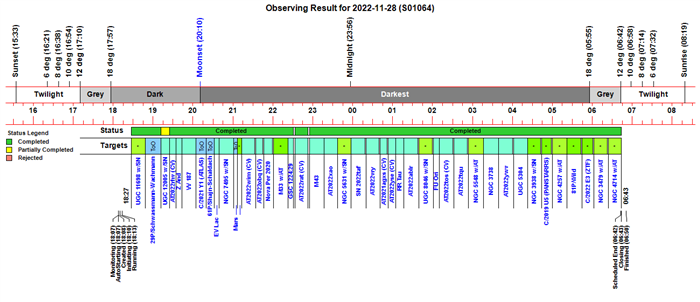

Observing Result

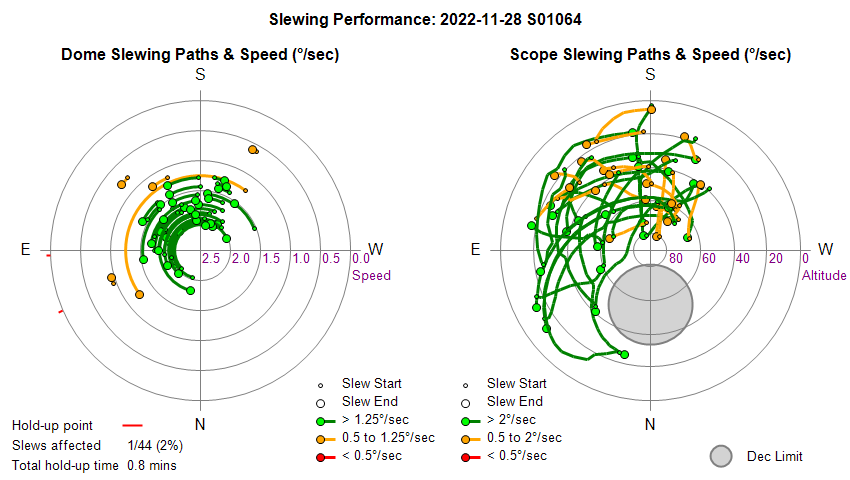

Dome & Scope Slewing Performance

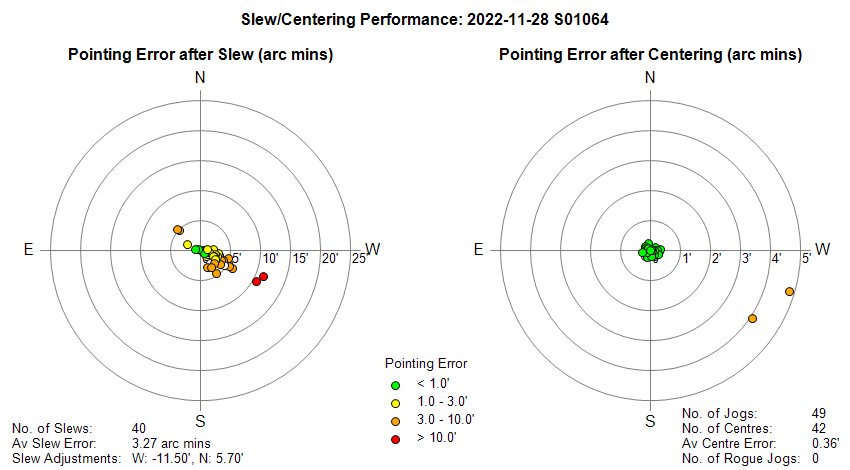

Slew/Centering Performance

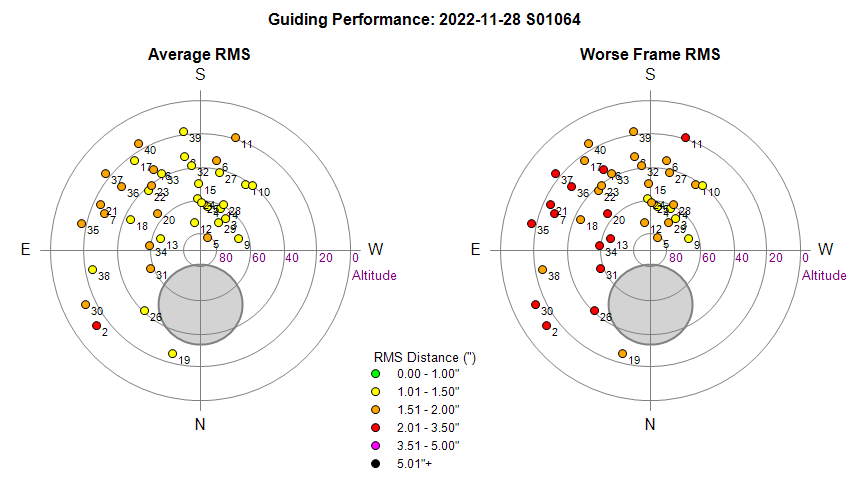

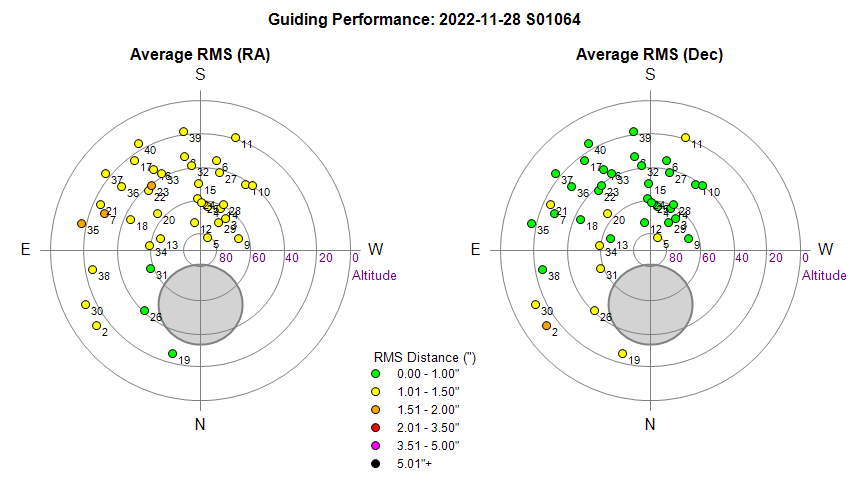

Guiding Performance

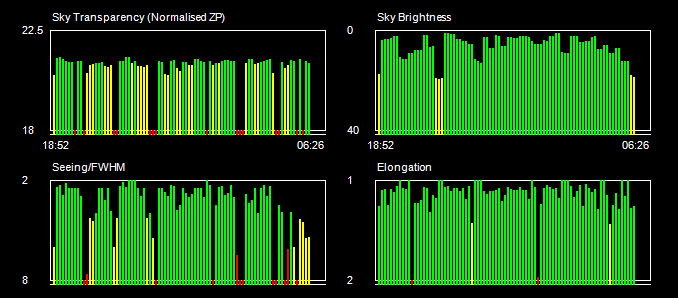

Sky Conditions (Locate Frames)

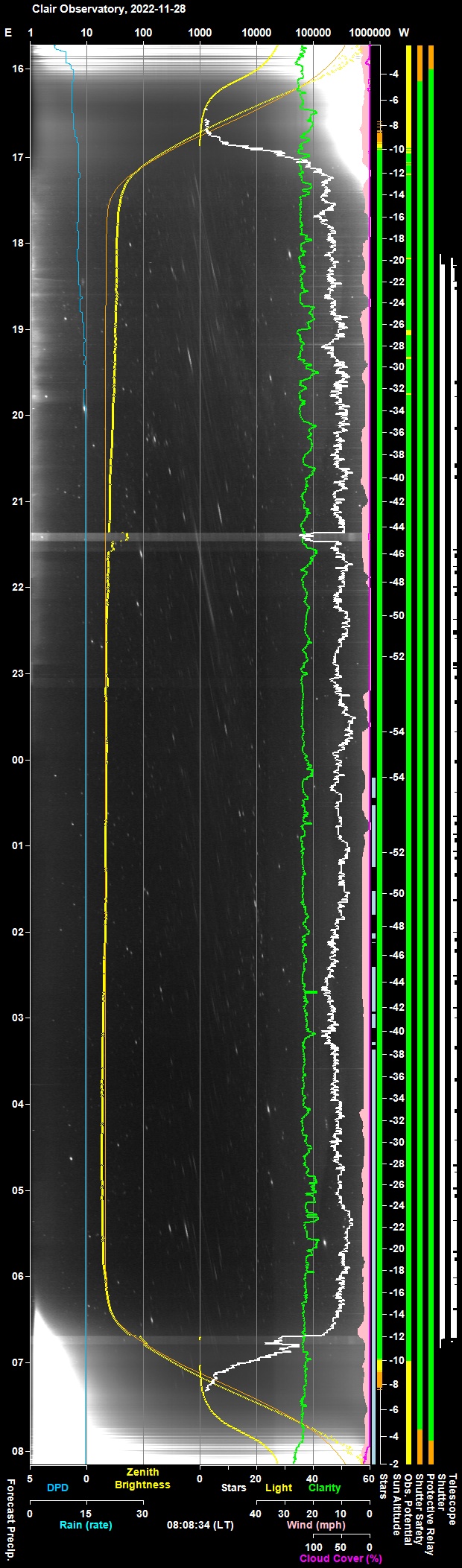

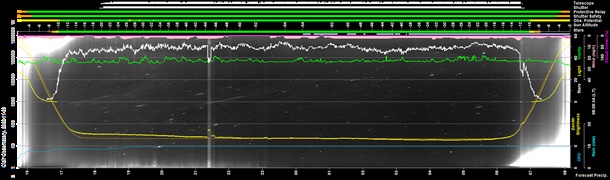

Night Sky Summary Plot Top axis: Sky Brightness at Zenith (in ADU/s) Lefthand axis: Local Time (hh LT). Righthand axis: Sun Altitude (degs)

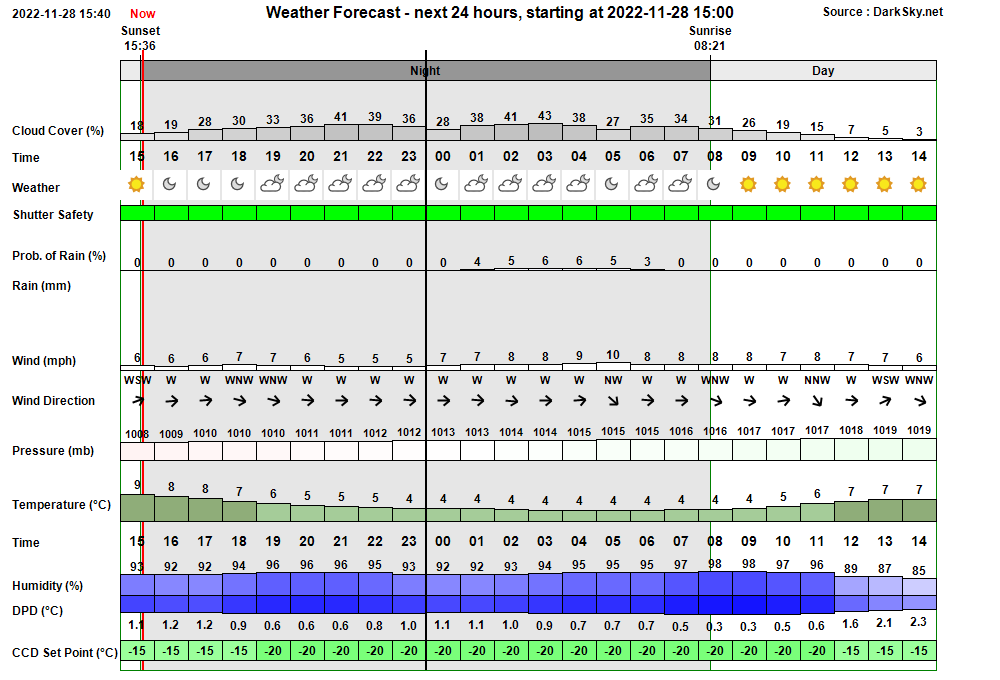

Actual Weather vs Pre-Session Weather Forecast

Session Event Log

Time     Event Detail 18:07:41 Session Monitoring AutoStart monitoring for Live Session opportunity between 18:07 & 06:06 18:07:46 Session AutoStarting Session autostarting (18:07) 18:08:06   CCDSoft Restarting CCDSoft being restarted (to set AutoSave No.) 18:08:21 Session Created Session Created (Live, 2022-11-28 S01064, ImageSaveNum: 1064001) 18:08:47   Scope Switched On Telescope Power has been switched on via UPB Powerbox. 18:10:30   Services Started Observatory Services started 18:10:37 Observatory (Auto) Observatory placed in Fully-Automated Mode 18:10:41 Session Pending Session pending (2022-11-28) 18:10:43 Session Initiating Session initiating (2022-11-28) 18:10:45   Plan Requested Observing Plan requested from AstroPlan (1.34.2) 18:11:19   Plan Loaded Observing Plan loaded to queue (Plan ID: 826) 18:11:41   Camera1 Connected SBIG Camera connected (set point -20°C) 18:12:08   Telescope Connected Telescope connected (TheSky6) 18:12:32 Session Equilibration Session ready to Open Dome 18:13:17   Dome Opened Dome opened (opening time 45s) 18:13:47 Session Running Session running 18:13:49   Queue Started Observing Queue started (41 targets selected) 18:13:53     Target Started (NrZen) Target started (Focus Field 23, HIP 113729) 18:14:06       Dome Unparked Dome unparked 18:18:31       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S) 18:21:05       Focusing Completed Foc1 AutoFocus Completed (Profile No 1, wide) 18:22:53       Focusing Completed Foc1 AutoFocus Completed (Profile No 1) 18:22:55       Focusing Started-Foc2 Foc2 Focusing Started (Secondary Scope, using ShCap) 18:25:02       Focusing Completed Foc2 AutoFocus Completed (Profile No 2, wide) 18:26:45       Focusing Completed Foc2 AutoFocus Completed (Profile No 2) 18:27:02     Target Completed (NrZen) Target completed (Focus Field 23, HIP 113729) 18:27:13     Target Started (1/41) Target started (1/41, UGC 11698 w/SN2022abik) 18:31:07       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S) 18:32:49       Focusing Completed Foc1 AutoFocus Completed (Profile No 3) 18:48:36     Target Completed Target completed (1/41, UGC 11698 w/SN2022abik) 18:48:40     Target Started (2/42) Target started (2/42, 29P/Schwassmann-Wachmann, ToO) 18:50:58     Dome Slew Dome slew held up at Az. 88.3, 66.5° (Total delay 45s) 19:11:44     Target Completed Target completed (2/42, 29P/Schwassmann-Wachmann, ToO) 19:11:47     Target Missed (3/42) Target's time slot was missed (3/42, GCVS BL Lac) 19:11:49     Target Started (4/42) Target started (4/42, UGC 12005 w/SN2022ovb) 19:25:07     Target Completed Target partially completed (4/42, UGC 12005 w/SN2022ovb) 19:25:11     Target Started (5/42) Target started (5/42, AT2022rhv (CV)) 19:28:12       Focusing Skipped Foc1 focusing skipped - star is too dim (TCF-S) 19:34:10     Target Completed Target completed (5/42, AT2022rhv (CV)) 19:34:15     Target Started (6/42) Target started (6/42, GCVS Z And) 19:36:54       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S) 19:39:05       Focusing Completed Foc1 AutoFocus Completed (Profile No 4) 19:43:27     Target Completed Target completed (6/42, GCVS Z And) 19:43:31     Target Started (7/42) Target started (7/42, VV 187) 19:47:42       Focusing Skipped Foc1 focusing skipped - star is lost (TCF-S) 20:04:25     Target Completed Target completed (7/42, VV 187) 20:04:29     Target Started (8/43) Target started (8/43, C/2021 Y1 (ATLAS), ToO) 20:08:47       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S) 20:11:02       Focusing Completed Foc1 AutoFocus Completed (Profile No 5) 20:19:34     Target Completed Target completed (8/43, C/2021 Y1 (ATLAS), ToO) 20:19:38     Target Started (9/44) Target started (9/44, 61P/Shajn-Schaldach, ToO) 20:23:31       Focusing Skipped Foc1 focusing skipped - star is too dim (TCF-S) 20:31:51     Target Completed Target completed (9/44, 61P/Shajn-Schaldach, ToO) 20:31:53     Target Missed (10/44) Target's time slot was missed (10/44, GCVS RX And) 20:31:55     Target Missed (11/44) Target's time slot was missed (11/44, GCVS SS Cyg) 20:31:57     Target Started (12/44) Target started (12/44, GCVS EV Lac) 20:34:38       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S) 20:36:58       Focusing Completed Foc1 AutoFocus Completed (Profile No 6) 20:39:35     Target Completed Target completed (12/44, GCVS EV Lac) 20:39:39     Target Started (13/44) Target started (13/44, NGC 7495 w/SN2022ubb) 20:42:46       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S) 20:45:00       Focusing Completed Foc1 AutoFocus Completed (Profile No 7) 21:00:59     Target Completed Target completed (13/44, NGC 7495 w/SN2022ubb) 21:01:04     Target Started (14/45) Target started (14/45, Mars, ToO) 21:07:05     Target Completed Target completed (14/45, Mars, ToO) 21:07:09     Target Started (15/45) Target started (15/45, Jupiter) 21:13:15     Target Completed Target completed (15/45, Jupiter) 21:13:19     Target Started (16/45) Target started (16/45, AT2022wim (CV)) 21:17:18       Focusing Skipped Foc1 focusing skipped - star is lost (TCF-S) 21:33:25     Target Completed Target completed (16/45, AT2022wim (CV)) 21:34:27     Target Started (17/45) Target started (17/45, AT2022obq (CV)) 21:37:16       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S) 21:39:49       Focusing Completed Foc1 AutoFocus Completed (Profile No 8) 21:45:37     Target Completed Target completed (17/45, AT2022obq (CV)) 21:46:27     Target Started (18/45) Target started (18/45, Nova Per 2020) 21:49:10       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S) 21:51:20       Focusing Completed Foc1 AutoFocus Completed (Profile No 9) 21:59:38     Target Completed Target completed (18/45, Nova Per 2020) 22:00:57     Target Started (19/45) Target started (19/45, M33 w/ATNova M33 2022-11a?) 22:04:07       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S) 22:06:44       Focusing Completed Foc1 AutoFocus Completed (Profile No 10) 22:22:30     Target Completed Target completed (19/45, M33 w/ATNova M33 2022-11a?) 22:22:57     Target Started (20/45) Target started (20/45, GSC 1224:29) 22:25:47       Focusing Skipped Foc1 focusing skipped - star is too dim (TCF-S) 22:30:33     Target Completed Target completed (20/45, GSC 1224:29) 22:33:17     Target Started (21/45) Target started (21/45, AT2022rat (CV)) 22:36:24       Focusing Skipped Foc1 focusing skipped - star is too dim (TCF-S) 22:52:41     Target Completed Target completed (21/45, AT2022rat (CV)) 22:55:17     Target Started (22/45) Target started (22/45, M43) 23:02:21       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S) 23:04:22       Focusing Completed Foc1 AutoFocus Completed (Profile No 11) 23:16:41     Target Completed Target completed (22/45, M43) 23:16:45     Target Started (23/45) Target started (23/45, AT2022xao) 23:19:32       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S) 23:21:43       Focusing Completed Foc1 AutoFocus Completed (Profile No 12) 23:37:30     Target Completed Target completed (23/45, AT2022xao) 23:37:34     Target Started (24/45) Target started (24/45, NGC 5631 w/SN2022aaiq) 23:41:36       Focusing Skipped Foc1 focusing skipped - star is too dim (TCF-S) 23:57:43     Target Completed Target completed (24/45, NGC 5631 w/SN2022aaiq) 23:57:47     Target Started (25/45) Target started (25/45, SN 2022taf) 00:01:00       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S) 00:03:11       Focusing Completed Foc1 AutoFocus Completed (Profile No 13) 00:19:41     Target Completed Target completed (25/45, SN 2022taf) 00:19:45     Target Started (26/45) Target started (26/45, AT2022vry) 00:23:29       Focusing Skipped Foc1 focusing skipped - star is too dim (TCF-S) 00:39:30     Target Completed Target completed (26/45, AT2022vry) 00:41:01     Target Started (27/45) Target started (27/45, AT2021agxs (CV)) 00:44:22       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S) 00:46:18       Focusing Completed Foc1 AutoFocus Completed (Profile No 14) 00:52:06     Target Completed Target completed (27/45, AT2021agxs (CV)) 00:53:01     Target Started (28/45) Target started (28/45, AT2022yse (CV)) 00:55:44       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S) 00:58:31       Focusing Completed Foc1 AutoFocus Completed (Profile No 15) 01:04:18     Target Completed Target completed (28/45, AT2022yse (CV)) 01:05:01     Target Started (29/45) Target started (29/45, GCVS RR Tau) 01:08:23       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S) 01:10:20       Focusing Completed Foc1 AutoFocus Completed (Profile No 16) 01:16:56     Target Completed Target completed (29/45, GCVS RR Tau) 01:17:09     Target Started (30/45) Target started (30/45, AT2022ablr) 01:19:53       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S) 01:21:55       Focusing Completed Foc1 AutoFocus Completed (Profile No 17) 01:37:43     Target Completed Target completed (30/45, AT2022ablr) 01:39:09     Target Started (31/45) Target started (31/45, UGC 8046 w/SN2022zxr) 01:44:37       Focusing Skipped Foc1 focusing skipped - star is lost (TCF-S) 02:00:45     Target Completed Target completed (31/45, UGC 8046 w/SN2022zxr) 02:01:10     Target Started (32/45) Target started (32/45, GCVS FU Ori) 02:04:35       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S) 02:07:00       Focusing Completed Foc1 AutoFocus Completed (Profile No 18) 02:10:03     Target Completed Target completed (32/45, GCVS FU Ori) 02:10:07     Target Started (33/45) Target started (33/45, AT2022tos (CV)) 02:12:52       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S) 02:15:10       Focusing Completed Foc1 AutoFocus Completed (Profile No 19) 02:30:58     Target Completed Target completed (33/45, AT2022tos (CV)) 02:32:05     Target Started (34/45) Target started (34/45, AT2022tqu) 02:34:58       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S) 02:37:15       Focusing Completed Foc1 AutoFocus Completed (Profile No 20) 02:53:14     Target Completed Target completed (34/45, AT2022tqu) 02:54:05     Target Started (35/45) Target started (35/45, NGC 5548 w/AT2022abcs) 03:00:37       Focusing Skipped Foc1 focusing skipped - unable to find a star (TCF-S) 03:16:41     Target Completed Target completed (35/45, NGC 5548 w/AT2022abcs) 03:16:45     Target Started (36/45) Target started (36/45, NGC 3738) 03:20:15       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S) 03:22:28       Focusing Completed Foc1 AutoFocus Completed (Profile No 21) 03:39:25     Target Completed Target completed (36/45, NGC 3738) 03:39:29     Target Started (37/45) Target started (37/45, AT2022ywv) 03:43:07       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S) 03:45:12       Focusing Completed Foc1 AutoFocus Completed (Profile No 22) 04:01:23     Target Completed Target completed (37/45, AT2022ywv) 04:01:27     Target Started (38/45) Target started (38/45, UGC 5304) 04:04:21       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S) 04:06:46       Focusing Completed Foc1 AutoFocus Completed (Profile No 23) 04:22:52     Target Completed Target completed (38/45, UGC 5304) 04:22:56     Target Started (39/45) Target started (39/45, NGC 3938 w/SN2022xlp) 04:25:59       Focusing Skipped Foc1 focusing skipped - star is too dim (TCF-S) 04:42:24     Target Completed Target completed (39/45, NGC 3938 w/SN2022xlp) 04:44:05     Target Started (40/45) Target started (40/45, C/2019 U5 (PANSTARRS)) 04:47:59       Focusing Skipped Foc1 focusing skipped - star is too dim (TCF-S) 04:58:21     Target Completed Target completed (40/45, C/2019 U5 (PANSTARRS)) 05:00:13     Target Started (41/45) Target started (41/45, NGC 4257 w/AT2022zzk) 05:03:31       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S) 05:05:45       Focusing Completed Foc1 AutoFocus Completed (Profile No 24) 05:21:32     Target Completed Target completed (41/45, NGC 4257 w/AT2022zzk) 05:22:13     Target Started (42/45) Target started (42/45, 81P/Wild) 05:25:58       Focusing Skipped Foc1 focusing skipped - star is too dim (TCF-S) 05:42:50     Target Completed Target completed (42/45, 81P/Wild) 05:44:33     Target Started (43/45) Target started (43/45, C/2022 E3 (ZTF)) 05:47:47       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S) 05:50:00       Focusing Completed Foc1 AutoFocus Completed (Profile No 25) 06:01:38     Target Completed Target completed (43/45, C/2022 E3 (ZTF)) 06:02:07     Target Started (44/45) Target started (44/45, NGC 3479 w/AT2022abgf) 06:06:35       Focusing Skipped Foc1 focusing skipped - star is too dim (TCF-S) 06:22:38     Target Completed Target completed (44/45, NGC 3479 w/AT2022abgf) 06:24:07     Target Started (45/45) Target started (45/45, NGC 4714 w/AT2022rrp) 06:27:57       Focusing Skipped Foc1 focusing skipped - star is lost (TCF-S) 06:43:54     Target Completed Target completed (45/45, NGC 4714 w/AT2022rrp) 06:43:57   Queue Completed Job Queue completed 06:43:59 Session Closing Session closing 06:44:47   Dome Closed Dome closed (closing time 45s) 06:45:31   Dome Parked Dome parked (parking time 37s), Az: 90.0 deg 06:46:42   Telescope Parked Telescope parked (parking time 68s) 06:46:57   Telescope State Handbox reads 'Scope parked Turn scope off.' 06:47:19   Telescope Switched Off Telescope Power has been switched off via UPB Switch. 06:50:03   Services Stopped Night Services stopped 06:50:05 Session Housekeeping Session Housekeeping started (Create Fits Summary, Transfer Files) 06:50:53 Session Finished Session Finished

Session Alerts & Alarms

Time     Type       Name Detail 18:50:58 Yellow Alert Dome Slew Dome slew held up at Az. 88.3, 66.5° (Total delay 45s)

Back to Top

Operational Issues (2022-11-28, S1064)

• Critical Issues (0)
• Major Issues (0)
• Minor Issues (0)
• Small Defects (4)
• Continuous Improvement (2)


[ Prev | Next ]

Critical Issues

• None

Major Issues

• None

Minor Issues

• None

Small Defects

• A Report Line appears in Session Report file above the new ReportSubTitleLite() title "Reference Frame".  The Reference Frame sub title was added to report in AstroMain 3.58.6, but was added with a preceeding ReportLine which immediately was noted as an unwanted feature.   ReportLine above the "Reference Frame" subtitle removed in AstroMain 3.58.7.  Also post-session the ReportLine above each "Reference Frame" subtitle was removed from S1064 report file in a text editor (TextPad 4).
  Fixed 2022-11-29 (AstroMain 3.58.7)

• Target Image Form not being closed when changing Program mode from Analysis to Reduction.
  Fixed 2022-11-29 (AstroMain 3.58.7)

• ObsOverseer reported that the ObsManager was frozen in 'Closing Stage 11 (Close Night Services)' for 92s (06:48). At the same time ObsOverseer reported that the TheSky6ScopeMonitor was also frozen. Both released at around the same time. ObsManager should 'never' freeze, as it prevents ObsManager from carrying out any other important actions. If there is a potential for CloseNightServices to lock up in this way it should be spawned to a thread and its status monitored.   Unclear why StopNightObsrevatoryServices() froze.  It could be with one of the following subroutines :  Scope.Disconnect(), StopPHD2(),  ShCap.StopService(), UpdateSynopsisFields().
  ObsManager now calls StopNightObsrevatoryServicesByThread() and proceeds to a new Closing Stage 12 and checks in during each loop whether bStoppingNightServices has turned to False ( NightServices have Stopped) or MinutesSince(StopNightServicesTime) > 4 (timeout has occured).
  Fixed 2022-11-29 (AstroMain 3.58.7)

• Post-Session Analysis of S1064 suggests AT2022vry lies at image coords -219.6, -91.7, ie outside of FOV whilst Realtime JPG Pictures show it clearly inside FOV. This is show-stopper issue for final analysis picture creation for session web page.  Later Analysis/Image Link using AstroMain 3.67.1 worked ok.  Unsure what caused the original issue, but it works now and the ticket is therefore closed.
  Resolved/Closed 2024-03-29 (AstroMain 3.67.1)

• Increase the number of GA generations for building the night's Observing Plan from 40 to 50. Convergence plot from the S1064 session shows Overall score increasing between 35 and 40 generations, rather than being flat. This suggest that for the cost of a small amount of time, there would seem to be a benefit in allowing the GA Schedular to continue to find a slightly better, more optimised Plan.  If future sessions don't show this benefit it can always be rolled back to the previous 40 generations value.
  Done  2022-11-29 (AstroPlan 1.34.3)

• Log file to record when TheSky6 Scope is disconnected.   Log file to record  a 'Stop   TheSkyScope   Ok | Service stopped' message when TheSky6 scope is disconnected.  There are 10 locations in the AstroMain were TheSky.DisconnectTelescope is used.
  Done 2022-11-29 (AstroMain 3.58.7)
