Session Aims & Highlights (2022-12-29)

Main aims

1. Targets.  Acquire images of a selection of variable stars, nearby stars, comets & deep sky targets as allowed by sky conditions.
2. AstroMain.  Check new AstroMain version (3.60.1) for any issues associated with small fixes and additions

 Equipment & Software

• 12" LX200 and ST-10XME
• 80mm APO and ZWO ASI 178MC
• CCDApp2, TheSky6, CCDSoft5, DeviceHub 6.6.1.1,  MeadeGeneric 1.3.5.414, UPB 1.5, ASCOM 6.6
• Pegasus UPB & Motor Focus, TCF-S
• SharpCap 3.2, PHD2  2.6.11dev2, deCONZ 1.18.2, ASCOM 6.6 SP1

• AstroMain 3.60.1, AstroPlan 1.35.5,   AstroShCap 1.3.12, AstroGuard 1.10.2
  AstroVOE 1.12.2  AstroSN 1.8.6,  AstroProtect 1.7,  AstroMove 1.9.8
  (AstroWeather 1.19.6, AstroAllSky 3.17.2,  AstroObsCam 1.11.2, AstroLaunch 1.10.5

Highlights

• AstroMain.  No significant issues with new AstroMain 3.60.1 version.
• Dome Slews.  No dome slew was affected by a holdup. (0/7 slews affected, 0%, 00 minutes total hold-up time).
• Targets. 5 out of 30 planned targets were completed. Other planned targets failed due to cloud.   Session was aborted early due to expected rain.

Notes:

Summary Plots & Logs

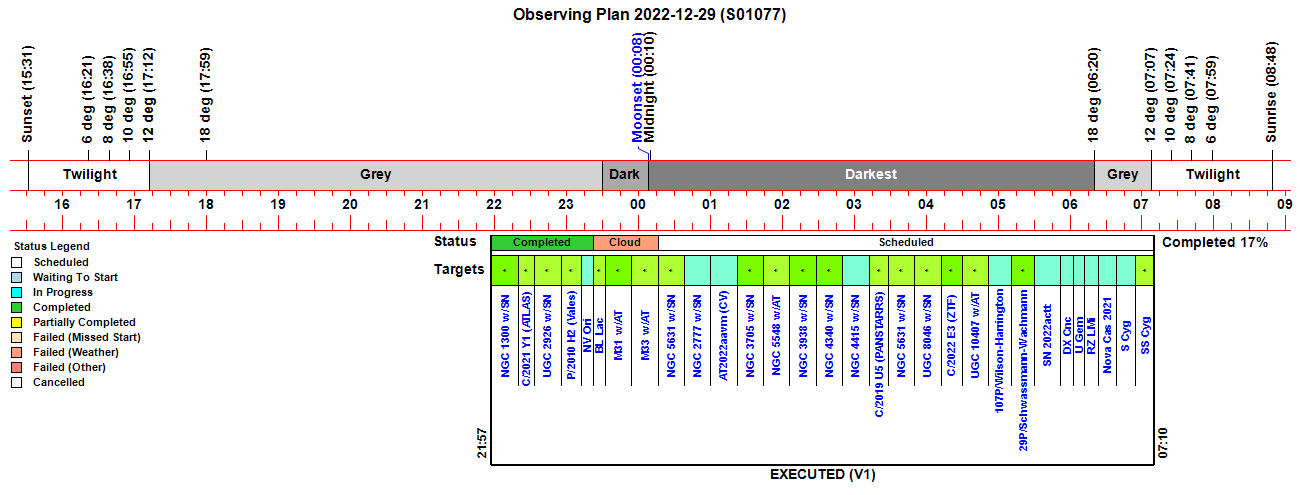

Observing Plan

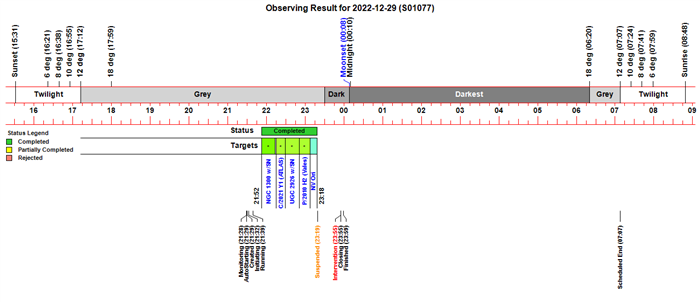

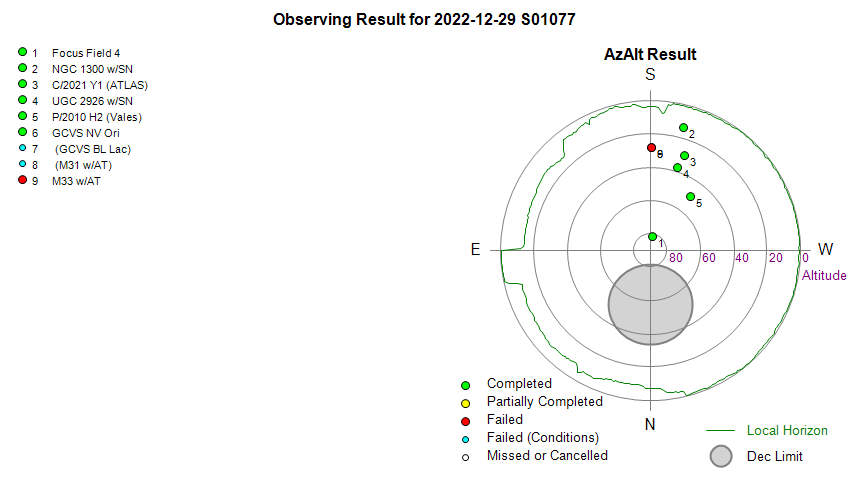

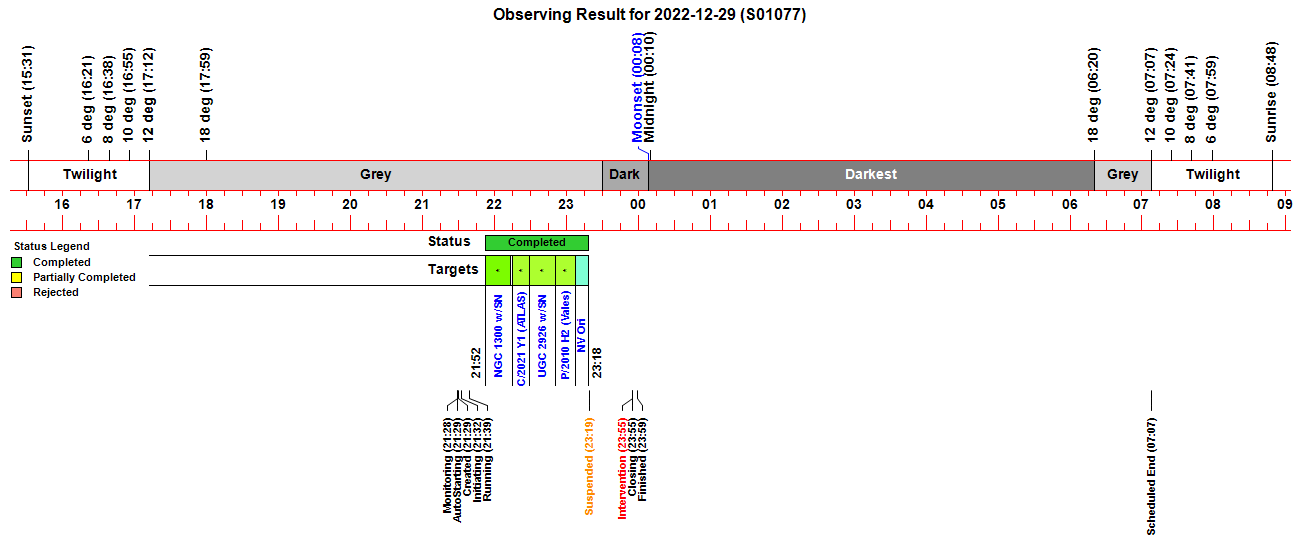

Observing Result

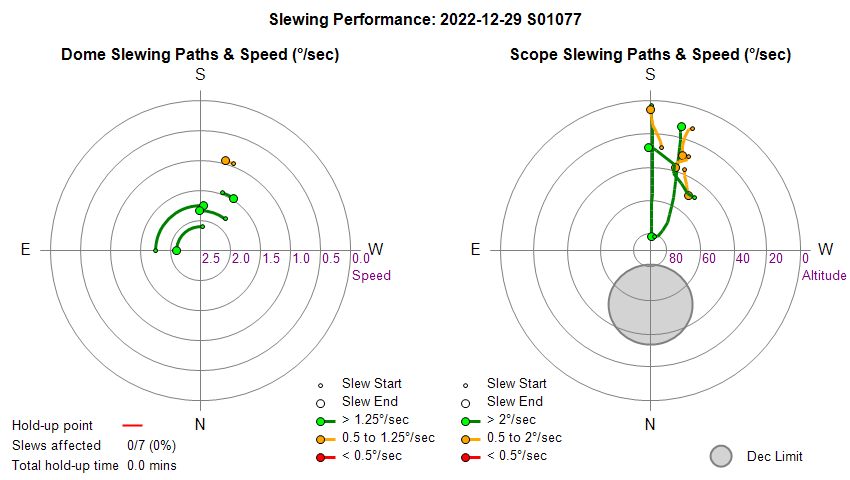

Dome & Scope Slewing Performance

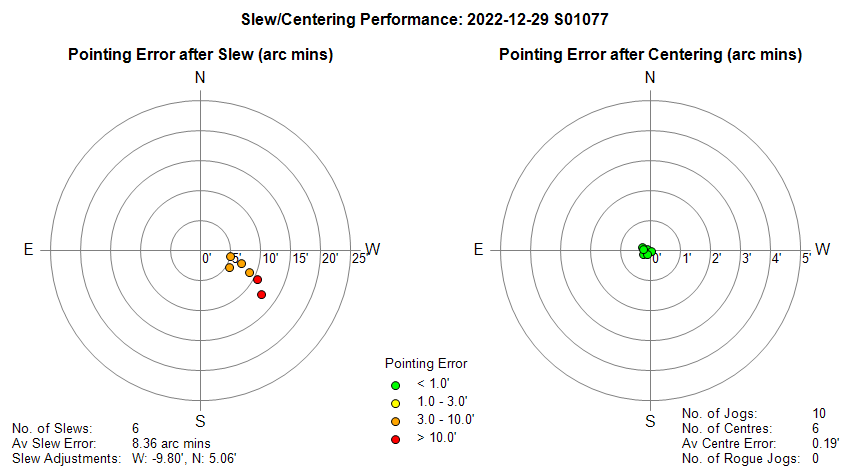

Slew/Centering Performance

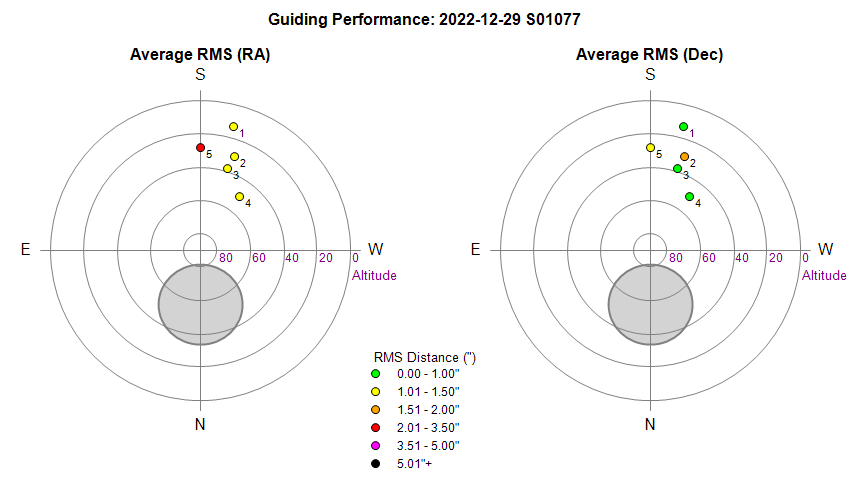

Guiding Performance

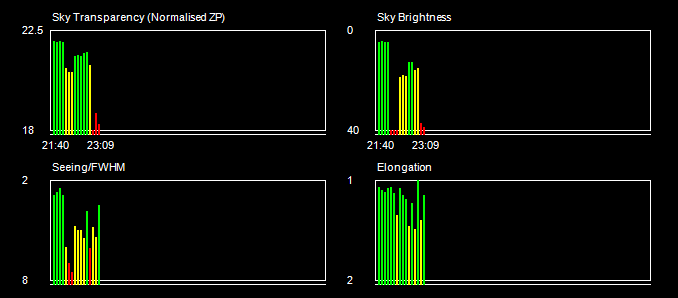

Sky Conditions (Locate Frames)

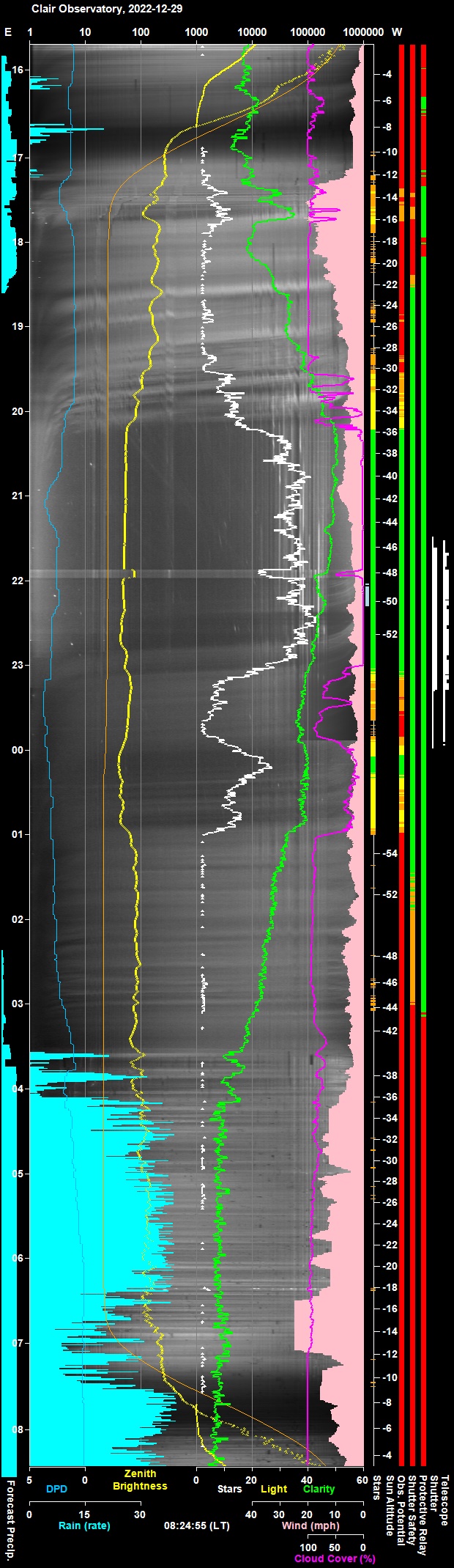

Night Sky Summary Plot Top axis: Sky Brightness at Zenith (in ADU/s) Lefthand axis: Local Time (hh LT). Righthand axis: Sun Altitude (degs)

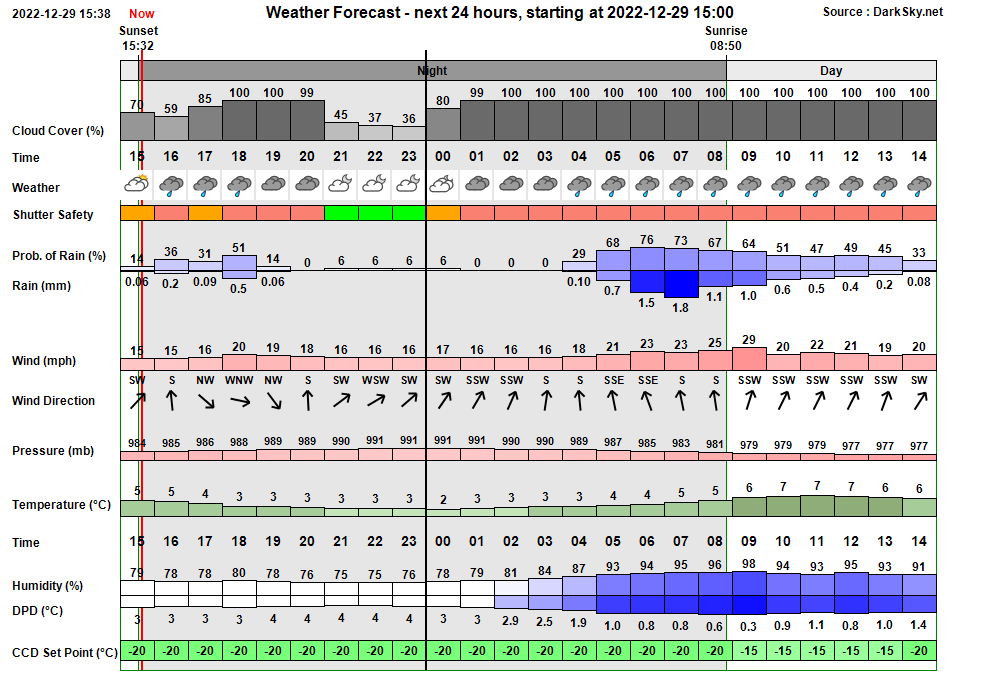

Actual Weather vs Pre-Session Weather Forecast

Session Event Log

Time     Event Detail 21:28:58 Session Monitoring AutoStart monitoring for Live Session opportunity between 21:28 & 06:31 21:29:00 Session AutoStarting Session autostarting (21:29) 21:29:21   CCDSoft Restarting CCDSoft being restarted (to set AutoSave No.) 21:29:46   Camera1 Connected SBIG Camera connected (set point -25°C) 21:29:48 Session Created Session Created (Live, 2022-12-29 S01077, ImageSaveNum: 1077001) 21:30:12   Scope Switched On Telescope Power has been switched on via UPB Powerbox. 21:31:55   Services Started Observatory Services started 21:32:02 Observatory (Auto) Observatory placed in Fully-Automated Mode 21:32:06 Session Pending Session pending (2022-12-29) 21:32:08 Session Initiating Session initiating (2022-12-29) 21:32:10   Plan Requested Observing Plan requested from AstroPlan (1.35.5) 21:33:10   Plan Loaded Observing Plan loaded to queue (Plan ID: 848) 21:33:22   Camera1 Connected SBIG Camera connected (set point -25°C) 21:33:58   Telescope Connected Telescope connected (TheSky6) 21:34:22 Session Equilibration Session ready to Open Dome 21:35:07   Dome Opened Dome opened (opening time 45s) 21:35:08   Equilibration Started Dome Equilibration started 21:39:12   Equilibration Ended Dome Equilibration ended (4.1 mins total) 21:39:14 Session Running Session running 21:39:17   Queue Started Observing Queue started (30 targets selected) 21:39:18     Target Started (NrZen) Target started (Focus Field 4, HIP 18637) 21:39:32       Dome Unparked Dome unparked 21:42:51       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S) 21:45:14       Focusing Completed Foc1 AutoFocus Completed (Profile No 1, wide) 21:47:09       Focusing Completed Foc1 AutoFocus Completed (Profile No 1) 21:47:11       Focusing Started-Foc2 Foc2 Focusing Started (Secondary Scope, using ShCap) 21:49:07       Focusing Completed Foc2 AutoFocus Completed (Profile No 2, wide) 21:50:51       Focusing Completed Foc2 AutoFocus Completed (Profile No 2) 21:51:08     Target Completed (NrZen) Target completed (Focus Field 4, HIP 18637) 21:52:38     Target Started (1/30) Target started (1/30, NGC 1300 w/SN2022acko) 21:57:42       Focusing Skipped Foc1 focusing skipped - star is too dim (TCF-S) 22:14:09     Target Completed Target completed (1/30, NGC 1300 w/SN2022acko) 22:14:38     Target Started (2/30) Target started (2/30, C/2021 Y1 (ATLAS)) 22:18:50       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S) 22:21:00       Focusing Completed Foc1 AutoFocus Completed (Profile No 3) 22:29:14     Target Completed Target completed (2/30, C/2021 Y1 (ATLAS)) 22:29:18     Target Started (3/30) Target started (3/30, UGC 2926 w/SN2022acyd) 22:32:30       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S) 22:34:56       Focusing Completed Foc1 AutoFocus Completed (Profile No 4) 22:50:43     Target Completed Target completed (3/30, UGC 2926 w/SN2022acyd) 22:50:47     Target Started (4/30) Target started (4/30, P/2010 H2 (Vales)) 22:53:54       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S) 22:56:18       Focusing Completed Foc1 AutoFocus Completed (Profile No 5) 23:07:08     Target Completed Target completed (4/30, P/2010 H2 (Vales)) 23:07:42     Target Started (5/30) Target started (5/30, GCVS NV Ori) 23:11:18       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S) 23:11:21       SoftSuspend Called Soft Suspend is called due to Deteriorating Conditions (too few stars) 23:13:28       Focusing Completed Foc1 AutoFocus Completed (Profile No 6) 23:18:07     Target Completed Target completed (5/30, GCVS NV Ori) 23:18:09   Queue Paused Queue paused for Session Suspension 23:18:12 Session Suspending Session suspending 23:19:02   Dome Closed Dome closed (closing time 50s) 23:19:04 Session Suspended Session suspended 23:26:22     Target Cancelled Target cancelled (6/30, GCVS BL Lac) due to cloud 23:46:22     Target Cancelled Target cancelled (7/30, M31 w/Nova M31 2022-12a?) due to cloud 23:55:05 User Intervention User request to close and finish session 23:55:08   Queue Aborted Job Queue aborted 23:55:10 Session Closing Session closing 23:55:15   Dome Closed Dome already closed (closed at 23:19, closing time 50s) 23:56:10   Dome Parked Dome parked (parking time 47s), Az: 90.0 deg 23:57:16   Telescope Parked Telescope parked (parking time 59s) 23:57:31   Telescope State Handbox reads 'Scope parked Turn scope off.' 23:57:53   Telescope Switched Off Telescope Power has been switched off via UPB Switch. 23:59:18   Services Stopped Night Services stopped 23:59:21 Session Housekeeping Session Housekeeping started (Create Fits Summary, Transfer Files) 23:59:31 Session Finished Session Finished

Session Alerts & Alarms

Time     Type       Name Detail --             No Alerts                --

Back to Top

Operational Issues (2022-12-29, S1077)

• Critical Issues (0)
• Major Issues (0)
• Minor Issues (1)
• Small Defects (0)
• Continuous Improvement (0)


[ Prev | Next ]

Critical Issues

• None

Major Issues

• None

Minor Issues

• Accessing 'Title 2' details for an image set for Supernova does give appropriate T+Days info for the frame set being analysed. In session S1076 the target NGC 5631 w/SN was observed twice (at 23:42 and again at 06:43).  Although not specifically acquired as a time lapse observation (the second observation is an accidental acqusition due to a ongoing minor bug in AstroPlan's schedule builder)  the two observation were given time lapse frame numbers 001 and 002 during post-session reduction & analysis to allow images to be separately created for the two observations using recently added 'Frame Set' handling. Combined images were created for each frame set ok, but when Title 2 (T+Days) information was accessed for the second set the data for second , the T+Days information (Days since Discovery) was unchanged from that given for the first image set.   'Title 2' data needs to be generated specifically for the Frame Set being analysed. New routine, GetImageSetTargetTime(),  created to get ImageSet's Date Time from the first Fits image in a specified folder.   BuildImageTitle2() routine modified to get current work folder and if it has been created to call GetImageSetTargetTime() and use the result for generating T+Days.
  Fixed 2022-11-29 (AstroMain 3.60.2)

Small Defects

• None

• None
