Session Aims & Highlights (2023-04-10)

Main aims

1. Targets.  Acquire images of a selection of variable stars, nearby stars, comets & deep sky targets as allowed by sky conditions

 Equipment & Software

• 12" LX200 and ST-10XME
• 80mm APO and ZWO ASI 178MC
• CCDApp2, TheSky6, CCDSoft5, DeviceHub 6.6.1.1,  MeadeGeneric 1.3.5.414, UPB 1.5, ASCOM 6.6
• Pegasus UPB & Motor Focus, TCF-S
• SharpCap 3.2, PHD2  2.6.11dev4, Siril 1.0.6, deCONZ 1.18.2, ASCOM 6.6 SP1

• AstroMain 3.62.2, AstroPlan 1.38.1,   AstroShCap 1.3.15, AstroGuard 1.10.2
  AstroVOE 1.13  AstroSN 1.10,  AstroProtect 1.7,  AstroMove 1.12
  (AstroWeather 1.20, AstroAllSky 3.19,  AstroObsCam 1.11.4, AstroLaunch 1.10.9 / 1.11

Highlights

• Targets. 7 out of 20 planned targets were completed, with 3 other targets partially completed. Of these 4 targets were rejected later due to wind/bad guiding and/or cloud.
• 29P/Schwassmann-Wachmann.  Good image of comet 29P/Schwassmann-Wachmann acquired.
• Dome Slews.  One dome slew   (Hold Up Stats: 1/13 slews affected, 8%, 2.1 minutes total hold-up time).

Notes:

Summary Plots & Logs

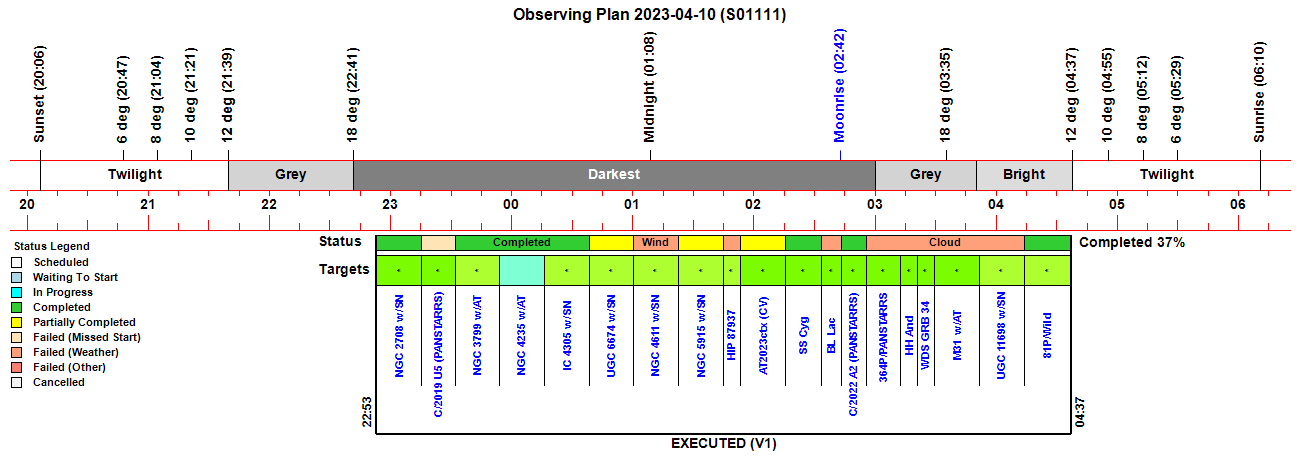

Observing Plan

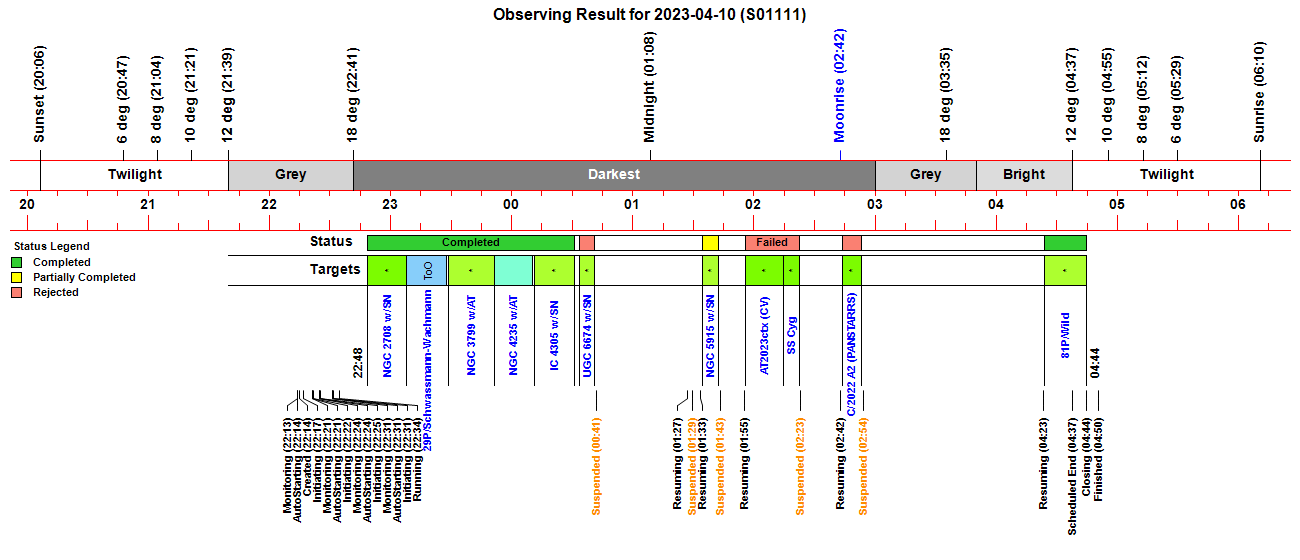

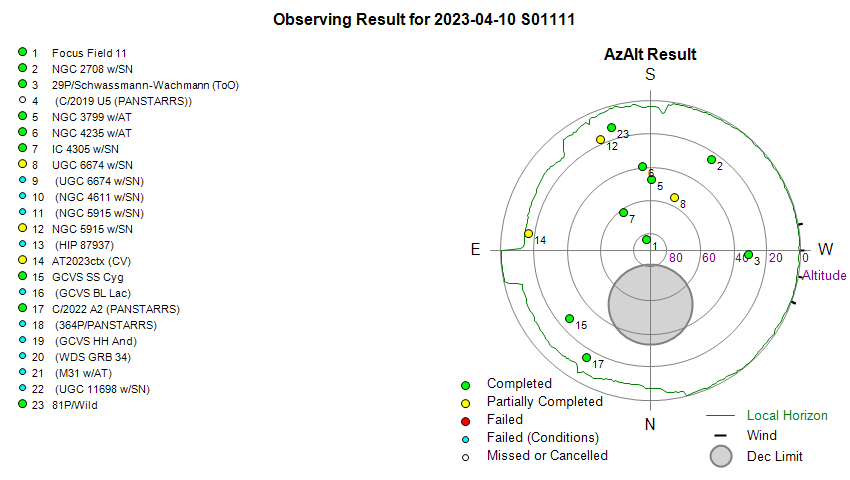

Observing Result

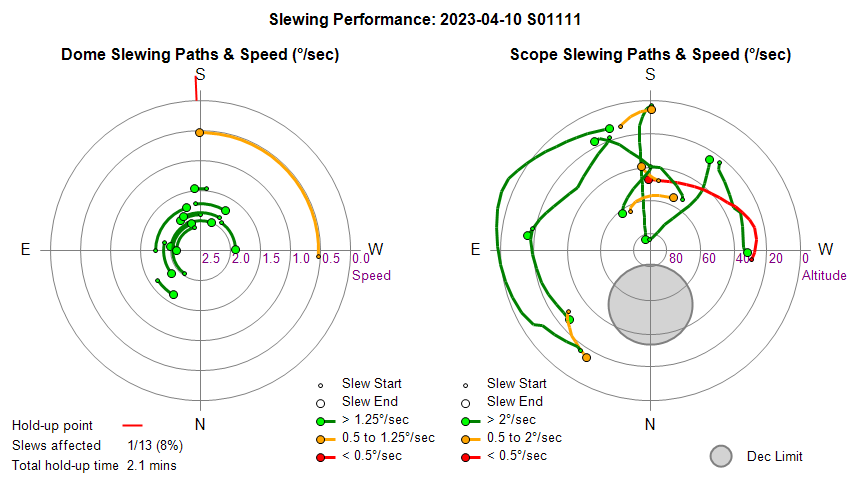

Dome & Scope Slewing Performance

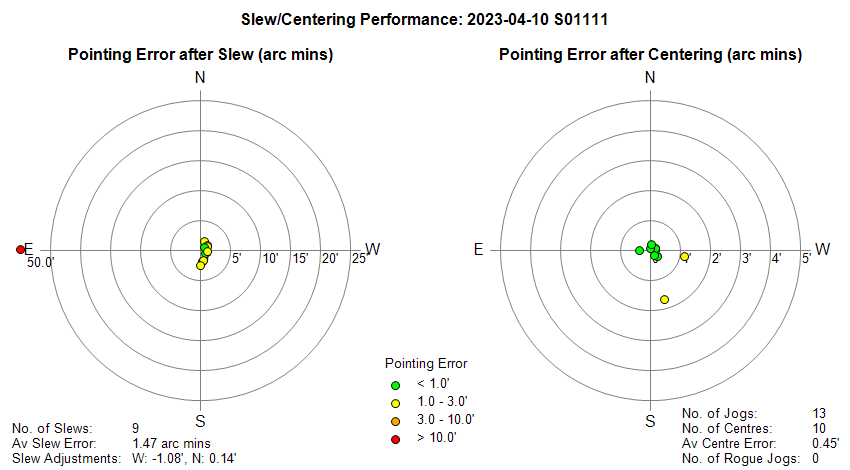

Slew/Centering Performance

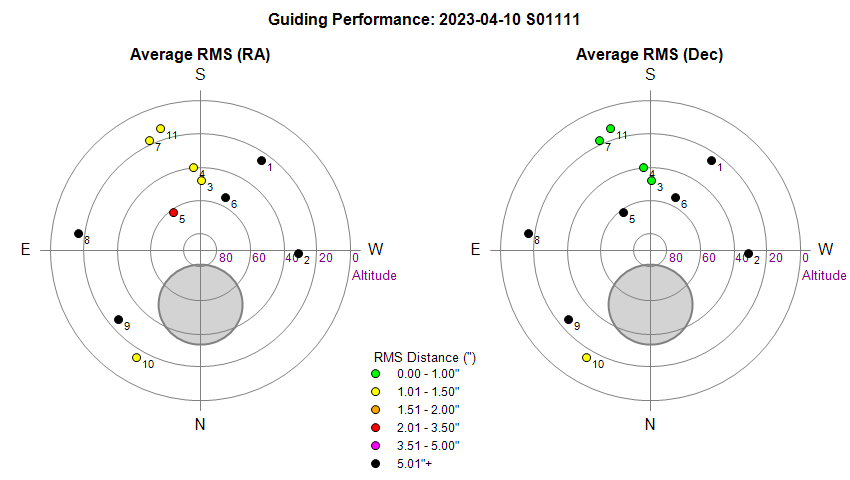

Guiding Performance

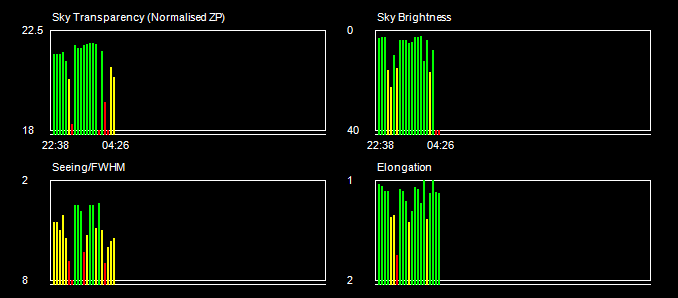

Sky Conditions (Locate Frames)

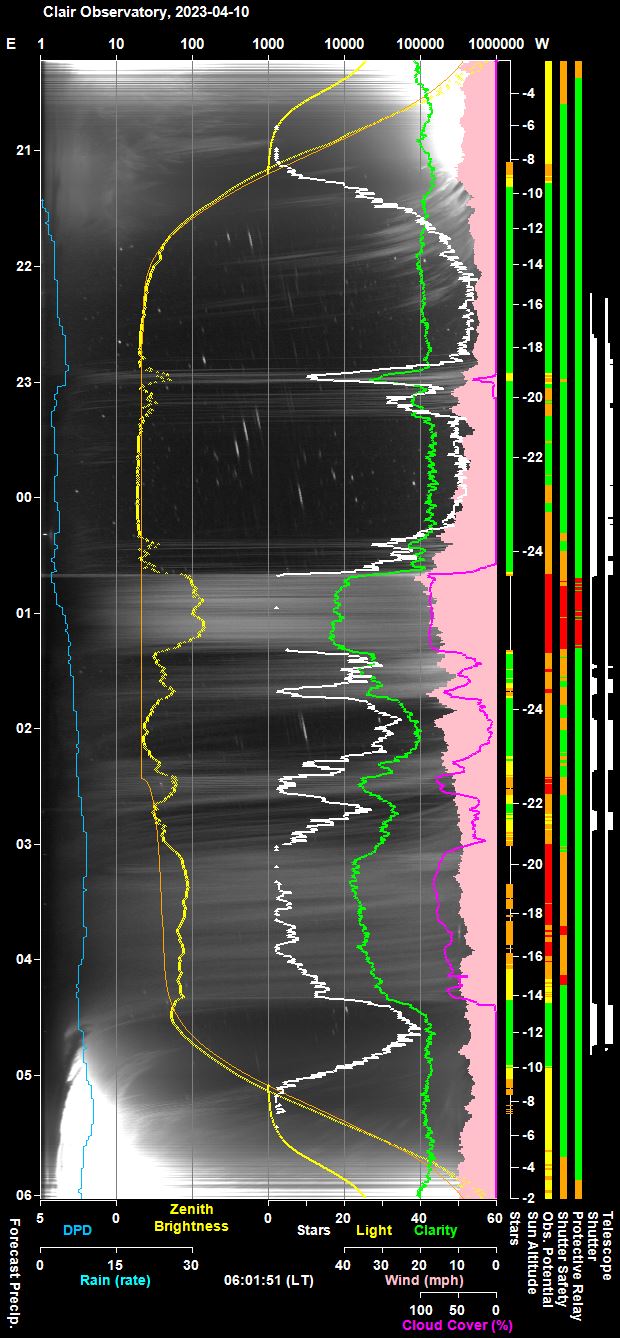

Night Sky Summary Plot Top axis: Sky Brightness at Zenith (in ADU/s) Lefthand axis: Local Time (hh LT). Righthand axis: Sun Altitude (degs)

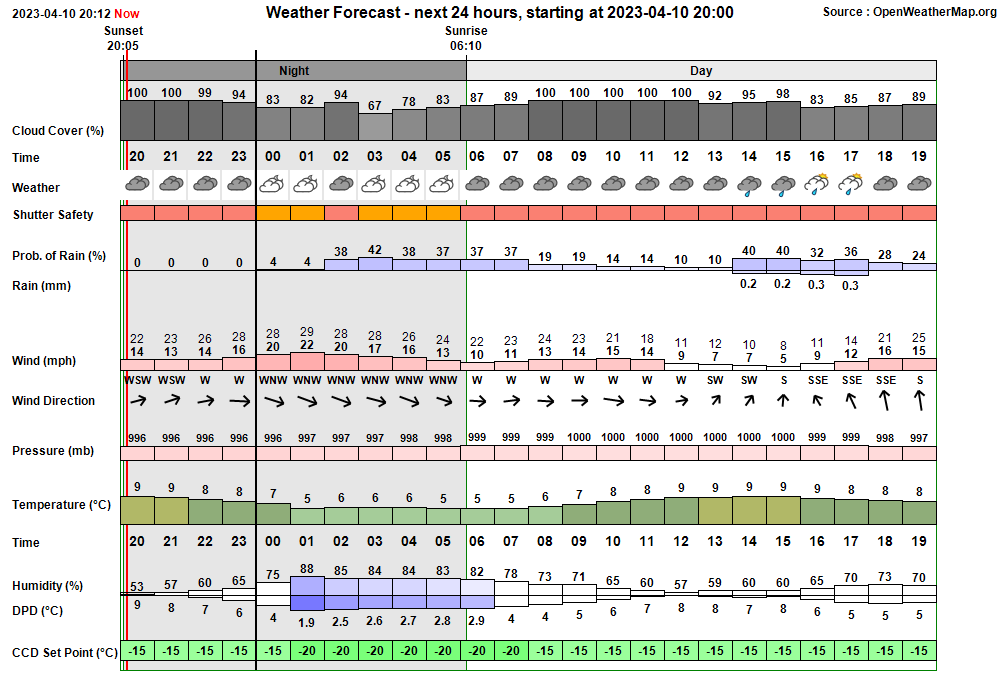

Actual Weather vs Pre-Session Weather Forecast

Session Event Log

Time     Event Detail 22:13:40 Session Monitoring AutoStart monitoring for Live Session opportunity between 22:13 & 04:02 22:14:01 Session AutoStarting Session autostarting (22:14) 22:14:30   CCDSoft Restarting CCDSoft being restarted (to set AutoSave No.) 22:14:43 Session Created Session Created (Live, 2023-04-10 S01111, ImageSaveNum: 1111001) 22:15:10   Scope Switched On Telescope Power has been switched on via UPB Powerbox. 22:16:52   Services Started Observatory Services started 22:16:59 Observatory (Auto) Observatory placed in Fully-Automated Mode 22:17:02 Session Pending Session pending (2023-04-10) 22:17:04 Session Initiating Session initiating (2023-04-10) 22:17:06   Plan Requested Observing Plan requested from AstroPlan (1.38.1) 22:17:27   Plan Failed Unable to find new Plan 22:17:29 Observatory (Manual) Observatory placed in Manual Mode 22:21:18 Session Monitoring AutoStart monitoring for Live Session opportunity between 22:21 & 04:02 22:21:20 Observatory (AutoStart) Observatory placed in Auto-Start Mode 22:21:22 Session AutoStarting Session autostarting (22:21) 22:21:52   Services Started Observatory Services started 22:21:56 Observatory (Auto) Observatory placed in Fully-Automated Mode 22:21:59 Session Pending Session pending (2023-04-10) 22:22:01 Session Initiating Session initiating (2023-04-10) 22:22:03   Plan Requested Observing Plan requested from AstroPlan (1.38.1) 22:22:22   Plan Failed Unable to find new Plan 22:22:24 Observatory (Manual) Observatory placed in Manual Mode 22:24:40 Session Monitoring AutoStart monitoring for Live Session opportunity between 22:24 & 04:02 22:24:42 Observatory (AutoStart) Observatory placed in Auto-Start Mode 22:24:44 Session AutoStarting Session autostarting (22:24) 22:25:04   Services Started Observatory Services started 22:25:08 Observatory (Auto) Observatory placed in Fully-Automated Mode 22:25:12 Session Pending Session pending (2023-04-10) 22:25:14 Session Initiating Session initiating (2023-04-10) 22:25:16   Plan Requested Observing Plan requested from AstroPlan (1.38.1) 22:25:37   Plan Failed Unable to find new Plan 22:25:39 Observatory (Manual) Observatory placed in Manual Mode 22:31:01 Session Monitoring AutoStart monitoring for Live Session opportunity between 22:30 & 04:02 22:31:03 Observatory (AutoStart) Observatory placed in Auto-Start Mode 22:31:05 Session AutoStarting Session autostarting (22:31) 22:31:24   Services Started Observatory Services started 22:31:29 Observatory (Auto) Observatory placed in Fully-Automated Mode 22:31:33 Session Pending Session pending (2023-04-10) 22:31:35 Session Initiating Session initiating (2023-04-10) 22:31:37   Plan Requested Observing Plan requested from AstroPlan (1.38.1) 22:32:43   Plan Loaded Observing Plan loaded to queue (Plan ID: 883) 22:32:54   Camera1 Connected SBIG Camera connected (set point -20°C) 22:33:30   Telescope Connected Telescope connected (TheSky6) 22:33:54 Session Equilibration Session ready to Open Dome 22:34:39   Dome Opened Dome opened (opening time 45s) 22:34:42 Session Running Session running 22:34:44   Queue Started Observing Queue started (19 targets selected) 22:34:47     Target Started (NrZen) Target started (Focus Field 11, HIP 53798) 22:35:00       Dome Unparked Dome unparked 22:40:22       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S) 22:42:30       Focusing Completed Foc1 AutoFocus Completed (Profile No 1, wide) 22:44:26       Focusing Completed Foc1 AutoFocus Completed (Profile No 1) 22:44:29       Focusing Started-Foc2 Foc2 Focusing Started (Secondary Scope, using ShCap) 22:46:25       Focusing Completed Foc2 AutoFocus Completed (Profile No 2, wide) 22:48:07       Focusing Completed Foc2 AutoFocus Completed (Profile No 2) 22:48:24     Target Completed (NrZen) Target completed (Focus Field 11, HIP 53798) 22:48:28     Target Started (1/19) Target started (1/19, NGC 2708 w/SN2023bee) 22:51:28       Focusing Skipped Foc1 focusing skipped - star is too dim (TCF-S) 22:58:39       SoftSuspend Called Soft Suspend is called due to Deteriorating Conditions (too few stars) 23:00:24       SoftSuspend Cancelled Soft Suspend is cancelled due to improved conditions 23:07:44     Target Completed Target completed (1/19, NGC 2708 w/SN2023bee) 23:07:48     Target Started (2/20) Target started (2/20, 29P/Schwassmann-Wachmann, ToO) 23:11:38       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S) 23:14:14       Focusing Failed Foc1 focusing failed - star lost 23:28:25     Target Completed Target completed (2/20, 29P/Schwassmann-Wachmann, ToO) 23:28:27     Target Missed (3/20) Target's time slot was missed (3/20, C/2019 U5 (PANSTARRS)) 23:28:29     Target Started (4/20) Target started (4/20, NGC 3799 w/AT2023clx) 23:32:37     Dome Slew Dome slew held up at Az. 178.3° (Delay 128s) 23:51:22     Target Completed Target completed (4/20, NGC 3799 w/AT2023clx) 23:51:26     Target Started (5/20) Target started (5/20, NGC 4235 w/AT2022aanc) 23:54:21       Focusing Skipped Foc1 focusing skipped - star is too dim (TCF-S) 00:10:40     Target Completed Target completed (5/20, NGC 4235 w/AT2022aanc) 00:11:29     Target Started (6/20) Target started (6/20, IC 4305 w/SN2023edc) 00:14:32       Focusing Skipped Foc1 focusing skipped - star is too dim (TCF-S) 00:31:05     Target Completed Target completed (6/20, IC 4305 w/SN2023edc) 00:33:29     Target Started (7/20) Target started (7/20, UGC 6674 w/SN2023bvi) 00:36:43       Focusing Skipped Foc1 focusing skipped - star is lost (TCF-S) 00:39:09       SoftSuspend Called Soft Suspend is called due to Deteriorating Conditions (wind) 00:40:09       SoftSuspend Cancelled Soft Suspend is cancelled due to improved conditions 00:40:34       SoftSuspend Called Soft Suspend is called due to Deteriorating Conditions (reducing clarity) 00:40:54   Critical Cloud Alert Critical Cloud Alert (Obs.Manager will close the Dome) 00:40:56   HardSuspend Called Hard Suspend is called due to Critical Conditions (cloud) 00:40:59     Target Aborted (7/20) Target aborted (7/20, UGC 6674 w/SN2023bvi) due to cloud 00:41:01   Queue Paused Queue paused for Session Suspension 00:41:03 Session Suspending Session suspending 00:41:49   Dome Closed Dome closed (closing time 50s) 00:41:52 Session Suspended Session suspended 00:52:25     Target Cancelled Target cancelled (7/20, UGC 6674 w/SN2023bvi) due to wind 01:14:45     Target Cancelled Target cancelled (8/20, NGC 4611 w/SN2023dtz) due to wind 01:27:04 Session Resuming Session resuming 01:27:49   Dome Opened Dome opened (opening time 45s) 01:27:52 Session Running Session running 01:27:54   Queue Resumed Observing Queue resumed 01:27:57     Target Started (9/20) Target started (9/20, NGC 5915 w/SN2023cpt) 01:28:34       SoftSuspend Called Soft Suspend is called due to Deteriorating Conditions (reducing clarity) 01:28:39   Critical Cloud Alert Critical Cloud Alert (Obs.Manager will close the Dome) 01:28:41   HardSuspend Called Hard Suspend is called due to Critical Conditions (cloud) 01:28:43     Target Aborted (9/20) Target aborted (9/20, NGC 5915 w/SN2023cpt) due to cloud 01:28:45   Queue Paused Queue paused for Session Suspension 01:28:47 Session Suspending Session suspending 01:29:34   Dome Closed Dome closed (closing time 50s) 01:29:36 Session Suspended Session suspended 01:33:39 Session Resuming Session resuming 01:34:24   Dome Opened Dome opened (opening time 45s) 01:34:28 Session Running Session running 01:34:30   Queue Resumed Observing Queue resumed 01:34:33     Target Started (9/20) Target started (9/20, NGC 5915 w/SN2023cpt) 01:38:55       SoftSuspend Called Soft Suspend is called due to Deteriorating Conditions (too few stars) 01:42:18     Target Completed Target partially completed (9/20, NGC 5915 w/SN2023cpt) 01:42:20   Queue Paused Queue paused for Session Suspension 01:42:22 Session Suspending Session suspending 01:43:10   Dome Closed Dome closed (closing time 50s) 01:43:13 Session Suspended Session suspended 01:48:06     Target Cancelled Target cancelled (10/20, HIP 87937) due to wind 01:55:06 Session Resuming Session resuming 01:55:51   Dome Opened Dome opened (opening time 45s) 01:55:54 Session Running Session running 01:55:56   Queue Resumed Observing Queue resumed 01:55:59     Target Started (11/20) Target started (11/20, AT2023ctx (CV)) 02:14:24     Target Completed Target partially completed (11/20, AT2023ctx (CV)) 02:14:28     Target Started (12/20) Target started (12/20, GCVS SS Cyg) 02:16:59       SoftSuspend Called Soft Suspend is called due to Deteriorating Conditions (too few stars) 02:22:24     Target Completed Target completed (12/20, GCVS SS Cyg) 02:22:26   Queue Paused Queue paused for Session Suspension 02:22:28 Session Suspending Session suspending 02:23:14   Dome Closed Dome closed (closing time 50s) 02:23:17 Session Suspended Session suspended 02:37:31     Target Cancelled Target cancelled (13/20, GCVS BL Lac) due to cloud 02:42:56 Session Resuming Session resuming 02:43:41   Dome Opened Dome opened (opening time 45s) 02:43:44 Session Running Session running 02:43:46   Queue Resumed Observing Queue resumed 02:43:49     Target Started (14/20) Target started (14/20, C/2022 A2 (PANSTARRS)) 02:46:57       SoftSuspend Called Soft Suspend is called due to Deteriorating Conditions (too few stars) 02:53:07     Target Completed Target completed (14/20, C/2022 A2 (PANSTARRS)) 02:53:09   Queue Paused Queue paused for Session Suspension 02:53:12 Session Suspending Session suspending 02:53:57   Dome Closed Dome closed (closing time 45s) 02:54:00 Session Suspended Session suspended 03:06:35     Target Cancelled Target cancelled (15/20, 364P/PANSTARRS) due to cloud 03:15:58     Target Cancelled Target cancelled (16/20, GCVS HH And) due to cloud 03:24:25     Target Cancelled Target cancelled (17/20, WDS GRB 34) due to cloud 03:43:50     Target Cancelled Target cancelled (18/20, M31 w/Nova M31 2023-03a?) due to cloud 04:06:10     Target Cancelled Target cancelled (19/20, UGC 11698 w/SN2022abik) due to cloud 04:23:11 Session Resuming Session resuming 04:23:56   Dome Opened Dome opened (opening time 45s) 04:23:59 Session Running Session running 04:24:02   Queue Resumed Observing Queue resumed 04:24:04     Target Started (20/20) Target started (20/20, 81P/Wild) 04:24:40       Dome Unparked Dome unparked 04:44:46     Target Completed Target completed (20/20, 81P/Wild) 04:44:49   Queue Completed Job Queue completed 04:44:53 Session Closing Session closing 04:45:43   Dome Closed Dome closed (closing time 45s) 04:46:31   Dome Parked Dome parked (parking time 38s), Az: 90.0 deg 04:47:46   Telescope Parked Telescope parked (parking time 66s) 04:48:01   Telescope State Handbox reads 'Scope parked Turn scope off.' 04:48:42   Telescope Switched Off Telescope Power has been switched off via UPB Switch. 04:50:06   Services Stopped Night Services stopped 04:50:09 Session Housekeeping Session Housekeeping started (Create Fits Summary, Transfer Files) 04:50:24 Session Finished Session Finished

Session Alerts & Alarms

Time     Type       Name Detail 22:17:27 Red Alert Plan Failed Unable to find new Plan 22:17:29 Red Alert Observatory Mode Obs.Manager has put Observatory back to manual mode (can't find new plan 22:22:22 Red Alert Plan Failed Unable to find new Plan 22:22:24 Red Alert Observatory Mode Obs.Manager has put Observatory back to manual mode (can't find new plan 22:25:37 Red Alert Plan Failed Unable to find new Plan 22:25:40 Red Alert Observatory Mode Obs.Manager has put Observatory back to manual mode (can't find new plan 23:31:27 Yellow Alert Anomalous Dome Slew Dome slew resumed at Az 178.4° (T+174.0s) 23:32:37 Red Alert Dome Slew Dome slew held up at Az. 178.3° (Delay 128s)

Back to Top

Operational Issues (2023-04-10, S1111)

• Critical Issues (0)
• Major Issues (1)
• Minor Issues (1)
• Small Defects (0)
• Continuous Improvement (0)


[ Prev | Next ]

Critical Issues

• None

Major Issues

• Initiating Session failed with message 'AstroPlan cannot be loaded or something.  Tried again but it again failed. AstroPlan Schedule builder noted to have failed with an exception somewhere around Gen 3 /50. Examining AstroPlan's log confirms that 'AstroPlan Schedule Builder is failing with the exception "The added or subtracted value results in an un-representable DateTime" . Issue is most-likely associated with an issue with inclusion of a Booked Item for 29P/Schwassmann-Wachmann  (which is described under a separate issue ticket, see below.  The major issue that was preventing session from starting was resolved in session by deactivating the booked item, and restarting AutoStart.  This time an observing plan was successfully created and was successfully loaded ok to AstroMain.  Comet was added to the night's set of observations as a ToO (Target of Opportunity)
  Resolved in session 2023-04-10 (AstroPlan 1.38.1, Session)

Minor Issues

• 'AstroPlan Schedule builder noted to have failed with an exception somewhere around Gen 3 /50. Examing AstroPlan's log confirms that 'AstroPlan Schedule Builder is failing with the exception "The added or subtracted value results in an un-representable DateTime"  with detail:
  Parameter name: value  at System.DateTime.AddTicks(Int64 value)
  at AstroPlan.Schedular.CSchedular.GetObservationFitness2(Int32 id, DateTime TStart, Double& Alt, Double& Az, Double& AltScore) in C:\Users\david\Documents\Visual Studio 2022\Projects\AstroPlan\AstroPlan\Schedular.vb:line 4655
  at AstroPlan.Schedular.CSchedular.GetObservationFitness(Int32 id, DateTime TStart, Double& Alt, Double& Az, Double& AltScore) in C:\Users\david\Documents\Visual Studio 2022\Projects\AstroPlan\AstroPlan\Schedular.vb:line 4604
  at AstroPlan.Schedular.CSchedular.UpdateFitnessScores(TPlan& P) in C:\Users\david\Documents\Visual Studio 2022\Projects\AstroPlan\AstroPlan\Schedular.vb:line 6552
  at AstroPlan.Schedular.CSchedular.RunGA() in C:\Users\david\Documents\Visual Studio 2022\Projects\AstroPlan\AstroPlan\Schedular.vb:line 2902
  at AstroPlan.Schedular.CSchedular.RunSchedular() in C:\Users\david\Documents\Visual Studio 2022\Projects\AstroPlan\AstroPlan\Schedular.vb:line 1002
  Issue apppears to be an issue with inclusion of a Booked Item (for 29P/Schwassmann-Wachmann).  This is most-likely the first time a booked observation has been attempted where the booked observation (UT start time)  is operating in a DST (Summer Time) situation, and this might be exposing the bug.
  To investigate and fix 2023-04-11 (AstroPlan 1.38.2)

Small Defects

• None

Continuous Improvement

• None
