Session Aims & Highlights (2023-09-01)

Main aims

1. Targets.  Acquire images of a selection of variable stars, nearby stars, comets & deep sky targets as allowed by sky conditions
2. AstroMain.  Continue to check new AstroMain version (3.62.10) for recent fixes & improvements

 Equipment & Software

• 12" LX200 and ST-10XME
• 80mm APO and ZWO ASI 178MC
• CCDApp2, TheSky6, CCDSoft5, DeviceHub 6.6.1.1,  MeadeGeneric 1.3.5.414, UPB 1.5, ASCOM 6.6
• Pegasus UPB & Motor Focus, TCF-S
• SharpCap 3.2, PHD2  2.6.11dev4, Siril 1.0.6, deCONZ 1.18.2, ASCOM 6.6 SP1

• AstroMain 3.62.10, AstroPlan 1.38.2,   AstroShCap 1.3.15, AstroGuard 1.10.2
  AstroVOE 1.13  AstroSN 1.10,  AstroProtect 1.7,  AstroMove 1.12.4
  (AstroWeather 1.21.2, AstroAllSky 3.19.1,  AstroObsCam 1.11.4, AstroLaunch 1.10.9 (1.11.1 on Dev Computer)

Highlights

• Targets. x/x planned target were completed, with 4 other targets partially completed. Other targets failed due to cloud/session suspension.
• Dome Slews. Two dome slews were affected by significant hold-up (Hold Up Stats: 013slews affected, 0%, 0.0 minutes total hold-up time).

Notes:

Summary Plots & Logs

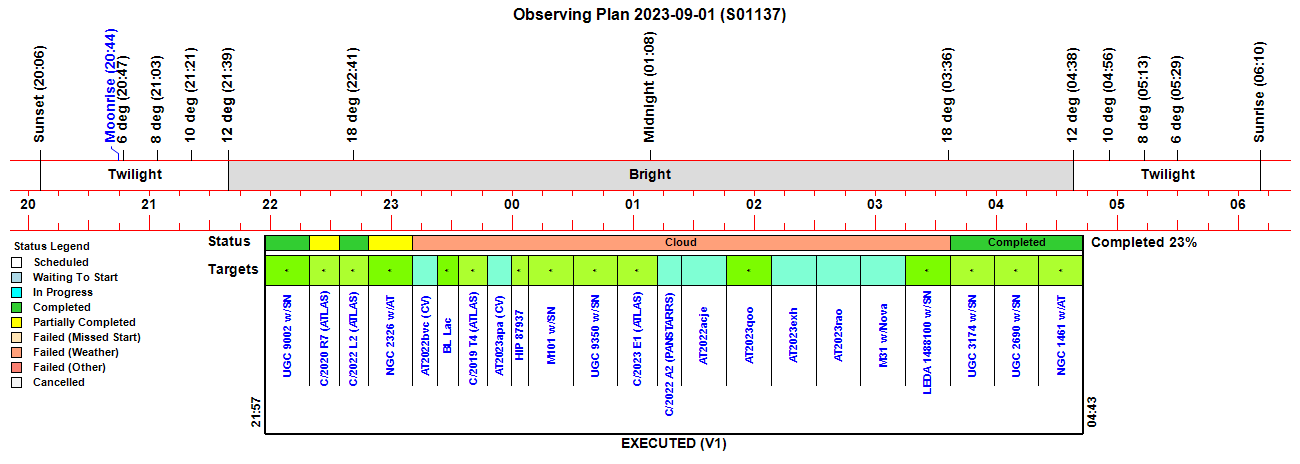

Observing Plan

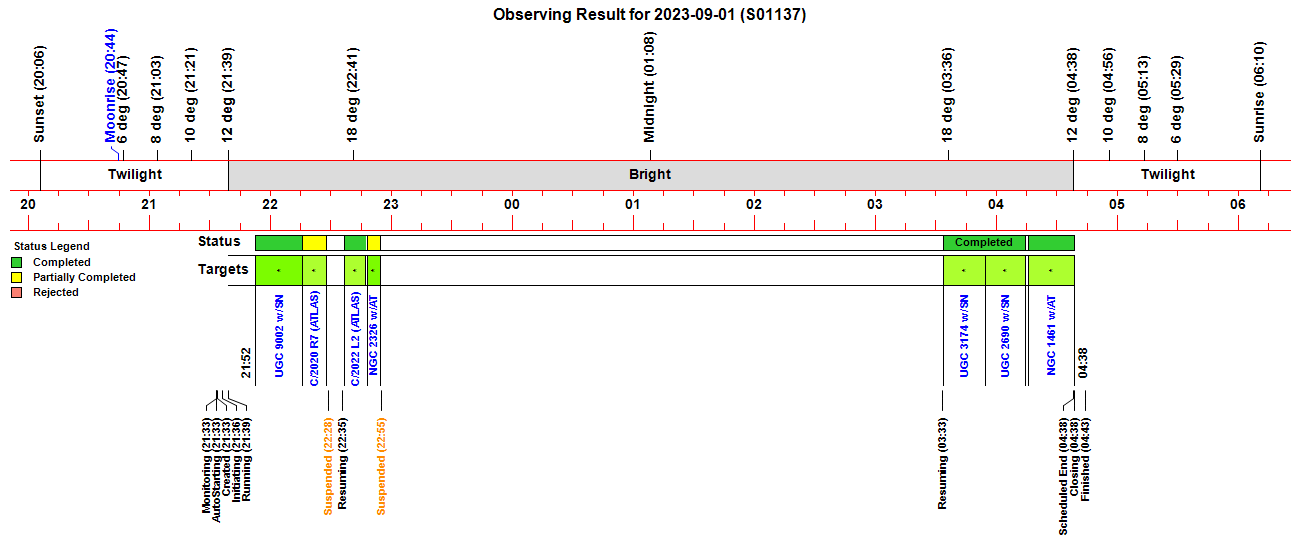

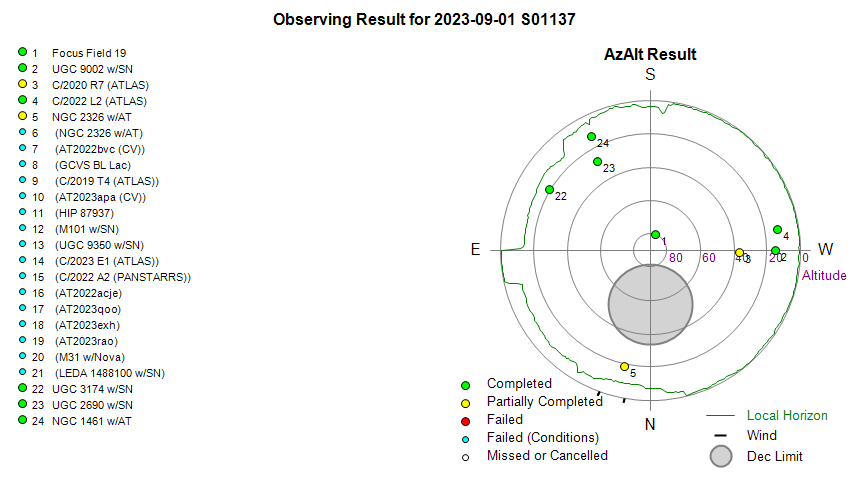

Observing Result

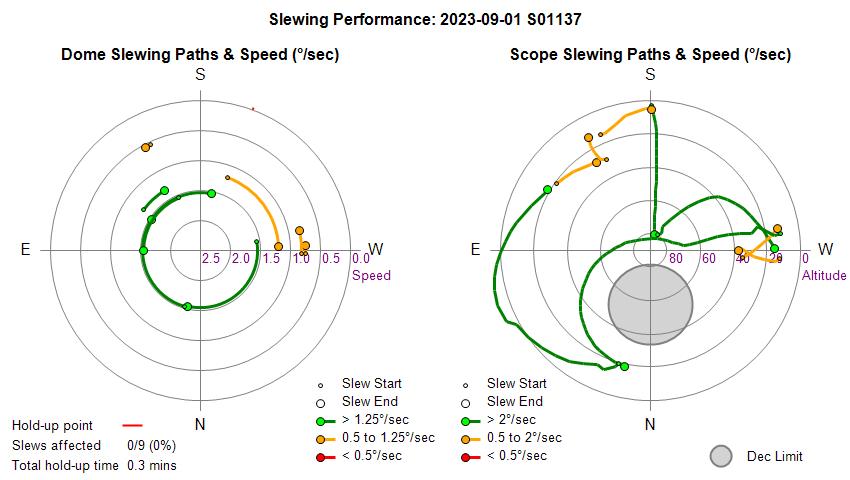

Dome & Scope Slewing Performance

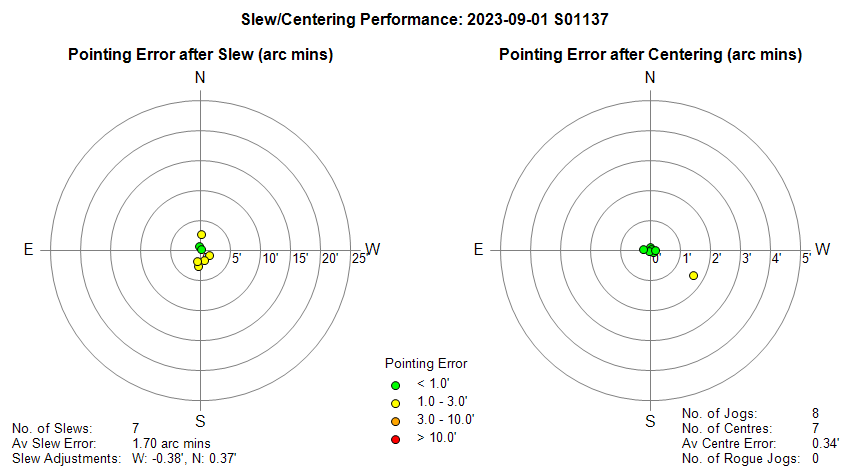

Slew/Centering Performance

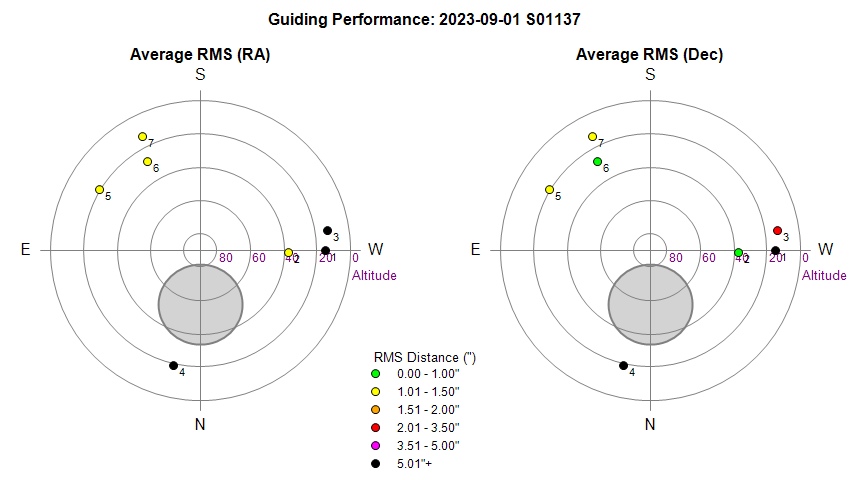

Guiding Performance

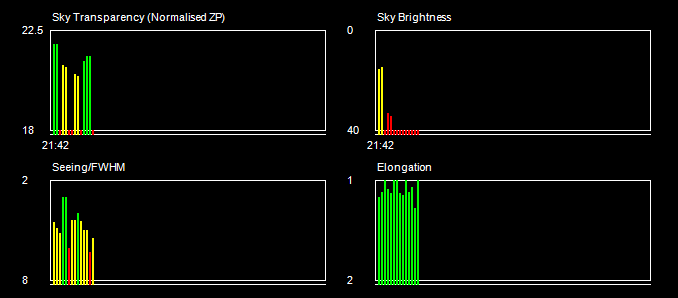

Sky Conditions (Locate Frames)

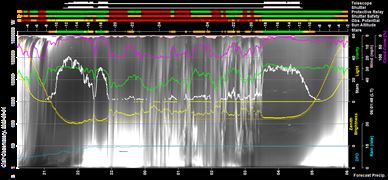

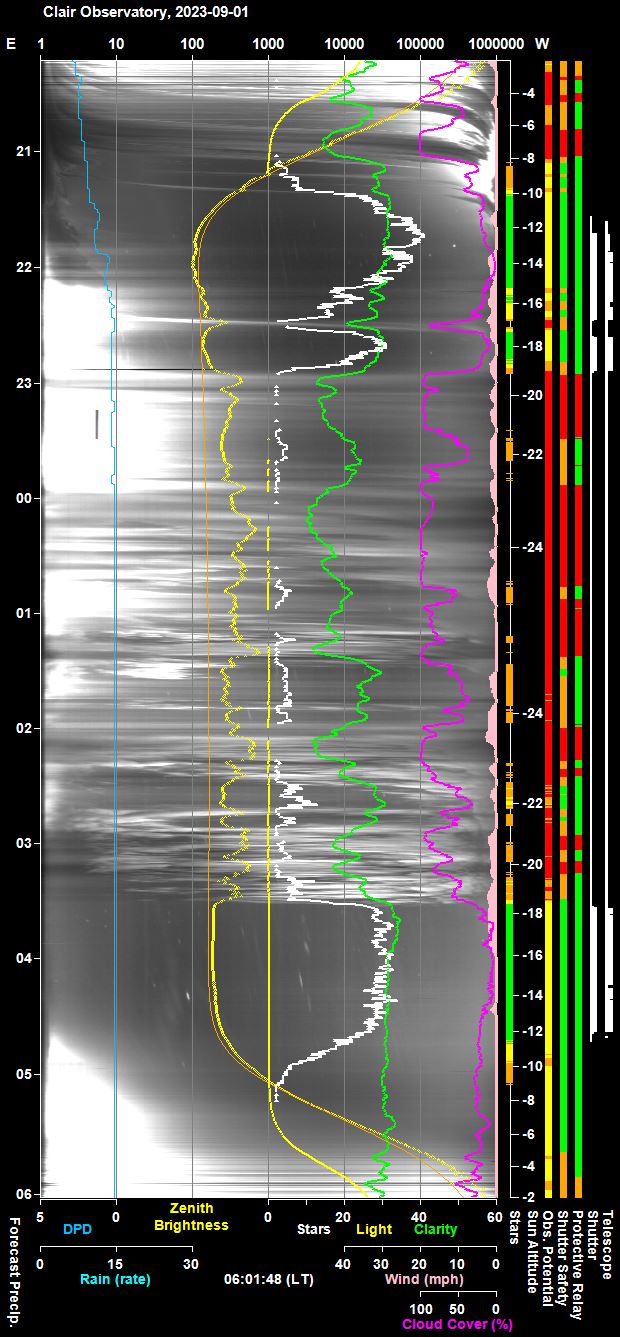

Night Sky Summary Plot Top axis: Sky Brightness at Zenith (in ADU/s) Lefthand axis: Local Time (hh LT). Righthand axis: Sun Altitude (degs)

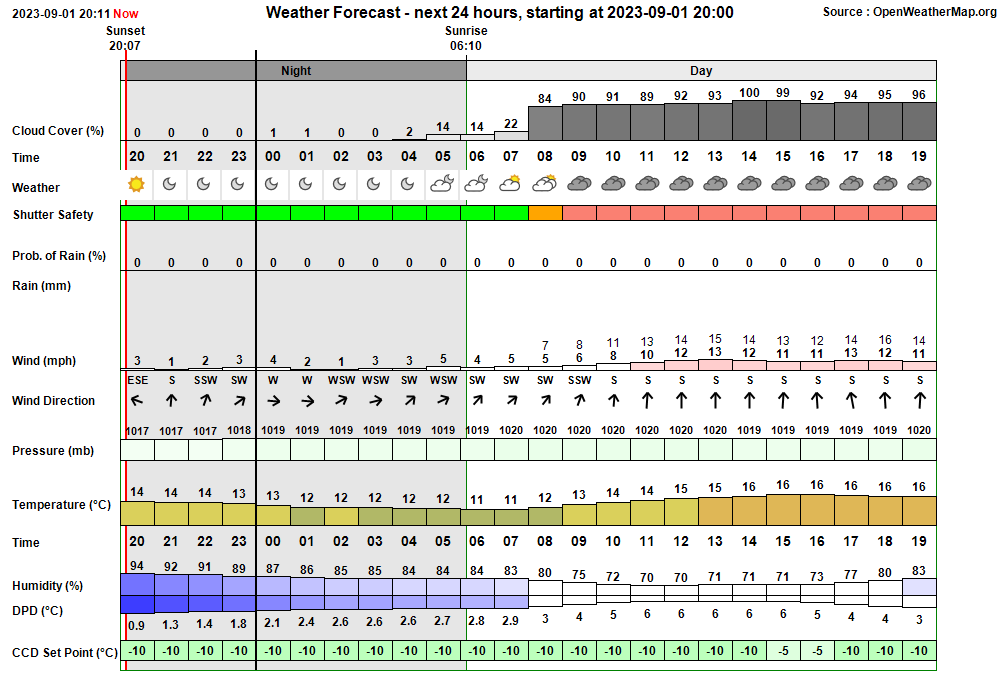

Actual Weather vs Pre-Session Weather Forecast

Session Event Log

Time     Event Detail 21:33:05 Session Monitoring AutoStart monitoring for Live Session opportunity between 21:33 & 03:58 21:33:08 Session AutoStarting Session autostarting (21:33) 21:33:29   CCDSoft Restarting CCDSoft being restarted (to set AutoSave No.) 21:33:42 Session Created Session Created (Live, 2023-09-01 S01137, ImageSaveNum: 1137001) 21:34:09   Scope Switched On Telescope Power has been switched on via UPB Powerbox. 21:35:54   Services Started Observatory Services started 21:36:01 Observatory (Auto) Observatory placed in Fully-Automated Mode 21:36:04 Session Pending Session pending (2023-09-01) 21:36:06 Session Initiating Session initiating (2023-09-01) 21:36:08   Plan Requested Observing Plan requested from AstroPlan (1.38.2) 21:36:54   Plan Loaded Observing Plan loaded to queue (Plan ID: 911) 21:37:14   Camera1 Connected SBIG Camera connected (set point -10°C) 21:37:51   Telescope Connected Telescope connected (TheSky6) 21:38:15 Session Equilibration Session ready to Open Dome 21:39:00   Dome Opened Dome opened (opening time 45s) 21:39:10 Session Running Session running 21:39:12   Queue Started Observing Queue started (22 targets selected) 21:39:15     Target Started (NrZen) Target started (Focus Field 19, HIP 93376) 21:39:28       Dome Unparked Dome unparked 21:43:31       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S) 21:46:30       Focusing Completed Foc1 AutoFocus Completed (Profile No 1, wide) 21:48:27       Focusing Completed Foc1 AutoFocus Completed (Profile No 1) 21:48:30       Focusing Started-Foc2 Foc2 Focusing Started (Secondary Scope, using ShCap) 21:50:17       Focusing Completed Foc2 AutoFocus Completed (Profile No 2, wide) 21:51:59       Focusing Completed Foc2 AutoFocus Completed (Profile No 2) 21:52:16     Target Completed (NrZen) Target completed (Focus Field 19, HIP 93376) 21:52:36     Target Started (1/22) Target started (1/22, UGC 9002 w/SN2023pls) 21:58:18       Focusing Skipped Foc1 focusing skipped - star is too dim (TCF-S) 22:14:34       SoftSuspend Called Soft Suspend is called due to Deteriorating Conditions (too few stars) 22:14:44       SoftSuspend Cancelled Soft Suspend is cancelled due to improved conditions 22:15:48     Target Completed Target completed (1/22, UGC 9002 w/SN2023pls) 22:15:52     Target Started (2/22) Target started (2/22, C/2020 R7 (ATLAS)) 22:18:51       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S) 22:20:59       Focusing Failed Foc1 focusing failed (failed QC check - Ambiguous) 22:21:30       SoftSuspend Called Soft Suspend is called due to Deteriorating Conditions (too few stars) 22:27:41   Critical Cloud Alert Critical Cloud Alert (Obs.Manager will close the Dome) 22:27:43   HardSuspend Called Hard Suspend is called due to Critical Conditions (cloud) 22:27:45     Target Aborted (2/22) Target aborted (2/22, C/2020 R7 (ATLAS)) due to cloud 22:27:47   Queue Paused Queue paused for Session Suspension 22:27:49 Session Suspending Session suspending 22:28:36   Dome Closed Dome closed (closing time 50s) 22:28:38 Session Suspended Session suspended 22:35:57 Session Resuming Session resuming 22:36:42   Dome Opened Dome opened (opening time 45s) 22:36:44 Session Running Session running 22:36:46   Queue Resumed Observing Queue resumed 22:36:47     Target Started (3/22) Target started (3/22, C/2022 L2 (ATLAS)) 22:47:53     Target Completed Target completed (3/22, C/2022 L2 (ATLAS)) 22:47:57     Target Started (4/22) Target started (4/22, NGC 2326 w/AT2023pgb) 22:52:59       SoftSuspend Called Soft Suspend is called due to Deteriorating Conditions (too few stars) 22:54:19   Critical Cloud Alert Critical Cloud Alert (Obs.Manager will close the Dome) 22:54:21   HardSuspend Called Hard Suspend is called due to Critical Conditions (cloud) 22:54:24     Target Aborted (4/22) Target aborted (4/22, NGC 2326 w/AT2023pgb) due to cloud 22:54:26   Queue Paused Queue paused for Session Suspension 22:54:28 Session Suspending Session suspending 22:55:14   Dome Closed Dome closed (closing time 50s) 22:55:17 Session Suspended Session suspended 23:02:36     Target Cancelled Target cancelled (4/22, NGC 2326 w/AT2023pgb) due to cloud 23:16:56     Target Cancelled Target cancelled (5/22, AT2022bvc (CV)) due to cloud 23:27:14     Target Cancelled Target cancelled (6/22, GCVS BL Lac) due to cloud 23:41:46     Target Cancelled Target cancelled (7/22, C/2019 T4 (ATLAS)) due to cloud 23:53:46     Target Cancelled Target cancelled (8/22, AT2023apa (CV)) due to cloud 00:03:07     Target Cancelled Target cancelled (9/22, HIP 87937) due to cloud 00:22:08     Target Cancelled Target cancelled (10/22, M101 w/SN2023ixf) due to cloud 00:44:08     Target Cancelled Target cancelled (11/22, UGC 9350 w/SN2023nny) due to cloud 01:05:58     Target Cancelled Target cancelled (12/22, C/2023 E1 (ATLAS)) due to cloud 01:18:03     Target Cancelled Target cancelled (13/22, C/2022 A2 (PANSTARRS)) due to cloud 01:38:23     Target Cancelled Target cancelled (14/22, AT2022acje) due to cloud 02:00:43     Target Cancelled Target cancelled (15/22, AT2023qoo) due to cloud 02:22:43     Target Cancelled Target cancelled (16/22, AT2023exh) due to cloud 02:44:43     Target Cancelled Target cancelled (17/22, AT2023rao) due to cloud 03:06:43     Target Cancelled Target cancelled (18/22, M31 w/Nova M31 AT2023mxi) due to cloud 03:29:03     Target Cancelled Target cancelled (19/22, LEDA 1488100 w/SN2023olz) due to cloud 03:33:08 Session Resuming Session resuming 03:33:53   Dome Opened Dome opened (opening time 45s) 03:33:55 Session Running Session running 03:33:57   Queue Resumed Observing Queue resumed 03:33:59     Target Started (20/22) Target started (20/22, UGC 3174 w/SN2023mut) 03:37:42       Focusing Skipped Foc1 focusing skipped - star is lost (TCF-S) 03:54:26     Target Completed Target completed (20/22, UGC 3174 w/SN2023mut) 03:54:30     Target Started (21/22) Target started (21/22, UGC 2690 w/SN2023nfg) 03:58:00       Focusing Skipped Foc1 focusing skipped - star is lost (TCF-S) 04:14:37     Target Completed Target completed (21/22, UGC 2690 w/SN2023nfg) 04:16:07     Target Started (22/22) Target started (22/22, NGC 1461 w/AT2023och) 04:22:01       Focusing Skipped Foc1 focusing skipped - star is lost (TCF-S) 04:38:39     Target Completed Target completed (22/22, NGC 1461 w/AT2023och) 04:38:42   Queue Completed Job Queue completed 04:38:46 Session Closing Session closing 04:39:41   Dome Closed Dome closed (closing time 50s) 04:40:33   Dome Parked Dome parked (parking time 45s), Az: 90.0 deg 04:41:44   Telescope Parked Telescope parked (parking time 67s) 04:41:59   Telescope State Handbox reads 'Scope parked Turn scope off.' 04:42:21   Telescope Switched Off Telescope Power has been switched off via UPB Switch. 04:43:49   Services Stopped Night Services stopped 04:43:51 Session Housekeeping Session Housekeeping started (Create Fits Summary, Transfer Files) 04:43:56 Session Finished Session Finished

Session Alerts & Alarms

Time     Type       Name Detail 21:53:10 Yellow Alert Anomalous Dome Slew Dome slew resumed at Az 225.9° (T+29.4s)

Back to Top

Operational Issues (2023-09-01, S1137)

• Critical Issues (0)
• Major Issues (0)
• Minor Issues (0)
• Small Defects (1)
• Continuous Improvement (0)


[ Prev | Next ]

Critical Issues

• None

Major Issues

• None

Minor Issues

• None

Small Defects

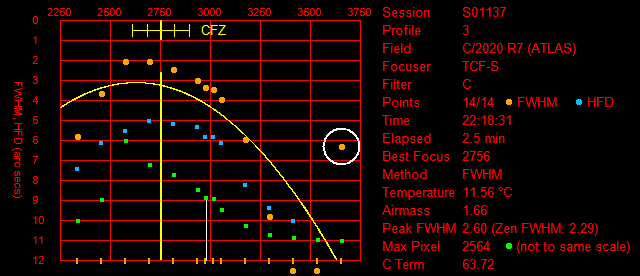

• Focus Profile 3 should have had a determinable best focus position but was rejected during QC checks  (22:18).  Focus Profile 3 (C/2020 R7 (ATLASS) ) was completed using 14 points. Best focus was initially taken as 2756 based on Modified Best Focus.  (vs FP (Curve Fit) of 2628 ), however the best focus position was then rejected during final Profile review due to "Ambiguous result".  Problem seems to have arisen because of the effects of a single rogue point (Point 1/14 at 3658,  FWHM 6.33,  Max 413), see Fig 1.  Fixed in AstroMain 3.66.6, points are invalidated when doing Narrow Search and MaxPixel(J) < PeakMaxPixel / 2 And YHFD(J) - YFWHM(J) > 5.   The profile was replayed and it was confirmed  that point 1/14 is recognised as being rogue and is excluded from the best curve fit.and that the profile passes all QC checks including the latest one (RmsE (0.53)  < 1.25) see Fig 2.
  Closed 2024-03-20 (AstroMain 3.66.6).

Continuous Improvement

• None
