Session Aims & Highlights (2023-10-01)

Main aims

1. Targets.  Acquire images of a selection of variable stars, nearby stars, comets & deep sky targets as allowed by sky conditions
2. AstroMain. Check new AstroMain version (3.62.14) for recent fixes and improvements.

 Equipment & Software

• 12" LX200 and ST-10XME
• 80mm APO and ZWO ASI 178MC
• CCDApp2, TheSky6, CCDSoft5, DeviceHub 6.6.1.1,  MeadeGeneric 1.3.5.414, UPB 1.5, ASCOM 6.6
• Pegasus UPB & Motor Focus, TCF-S
• SharpCap 3.2, PHD2  2.6.11dev4, Siril 1.0.6, deCONZ 1.18.2, ASCOM 6.6 SP1

• AstroMain 3.62.14, AstroPlan 1.38.4,   AstroShCap 1.3.15, AstroGuard 1.10.2
  AstroVOE 1.13  AstroSN 1.10,  AstroProtect 1.7,  AstroMove 1.12.4
  (AstroWeather 1.21.2, AstroAllSky 3.19.2,  AstroObsCam 1.11.4, AstroLaunch 1.10.9 (1.11.1 on Dev Computer)

Highlights

• Targets. 8/27 planned targets were completed, with 1 other target partially completed.  Images from 2 targets were later rejected.
• AstroMain. No issues with new AstroMain version (3.62.14)
   Dome Slews. No dome slews were affected by any significant hold-up  (Hold Up Stats: 0/11 slews affected, 0%, 0.4 minutes total hold-up time).

Notes:

Summary Plots & Logs

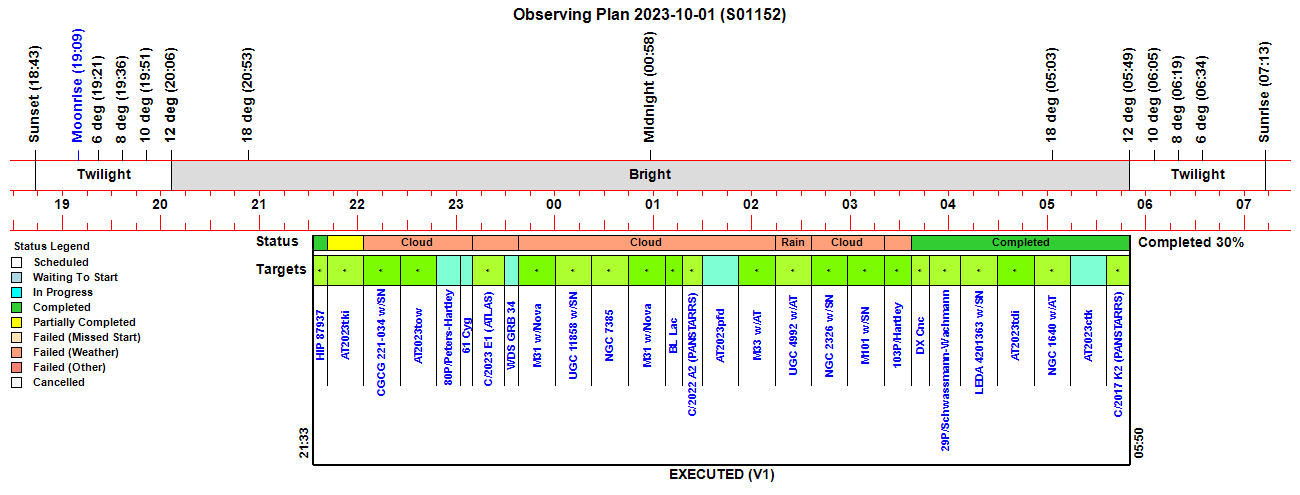

Observing Plan

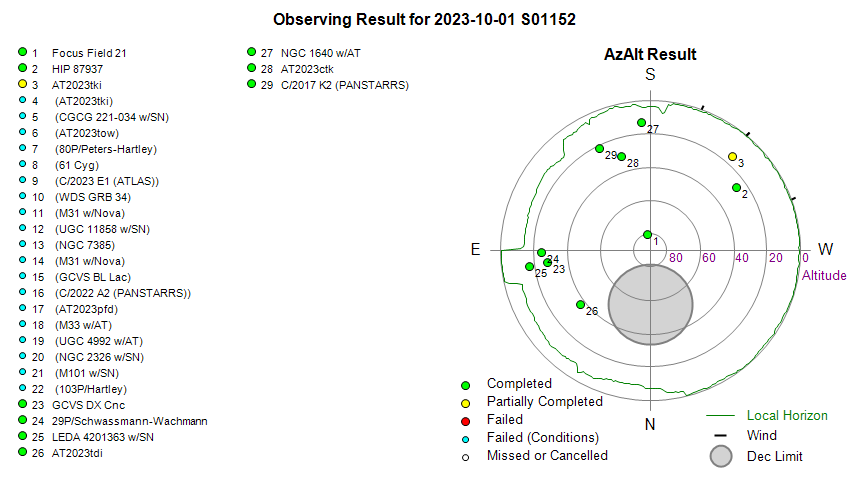

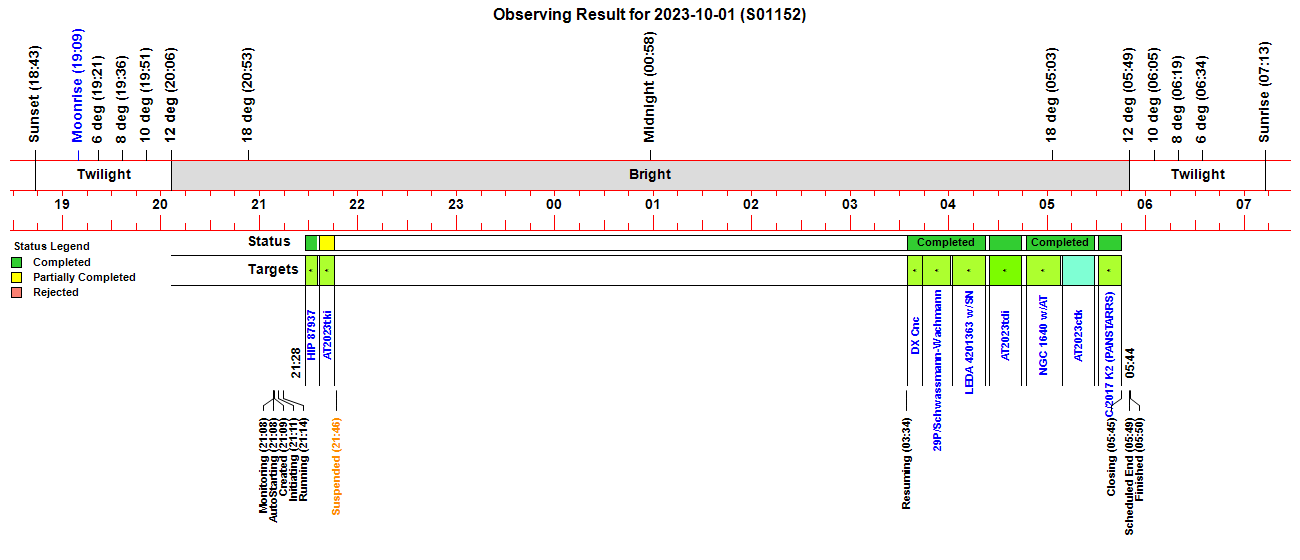

Observing Result

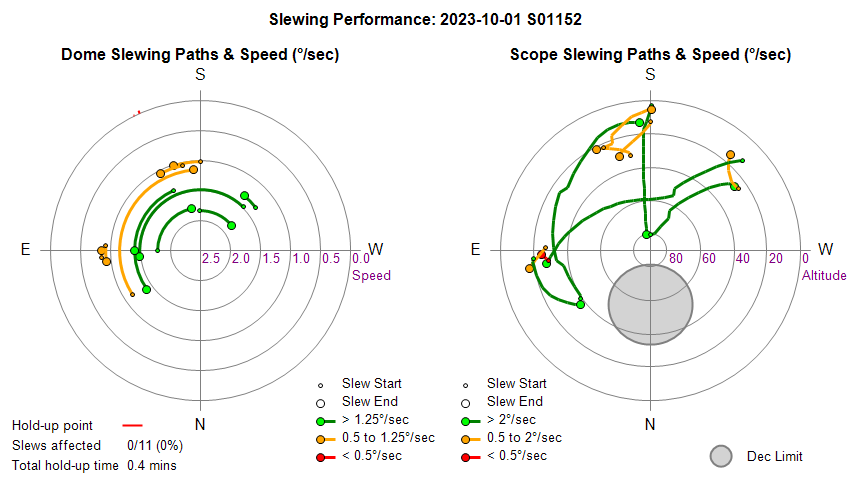

Dome & Scope Slewing Performance

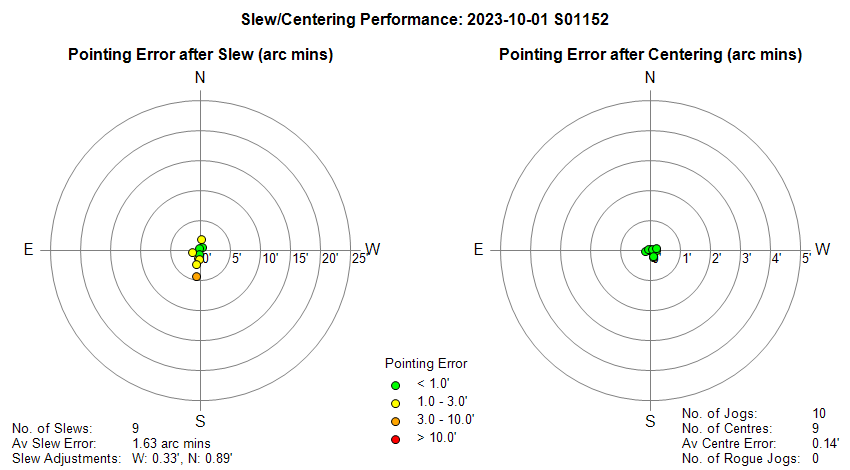

Slew/Centering Performance

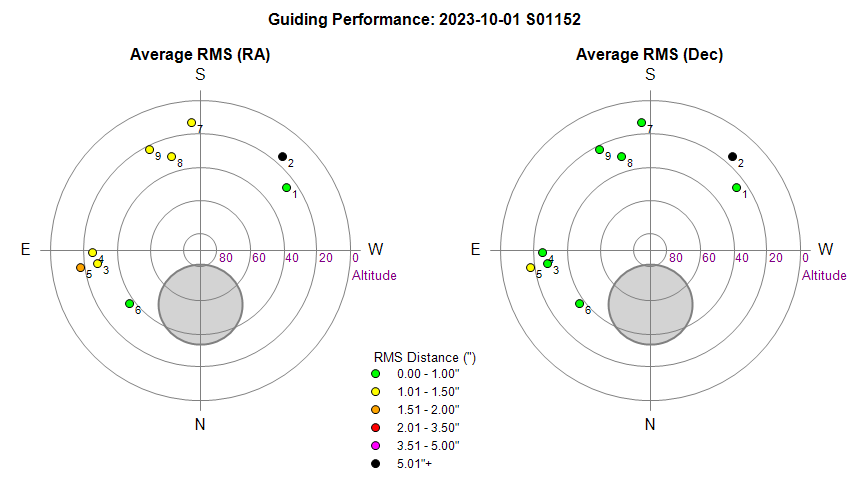

Guiding Performance

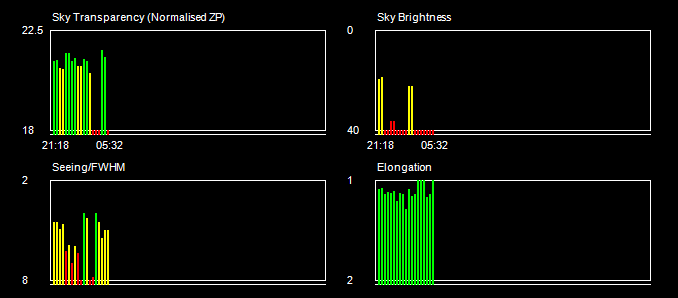

Sky Conditions (Locate Frames)

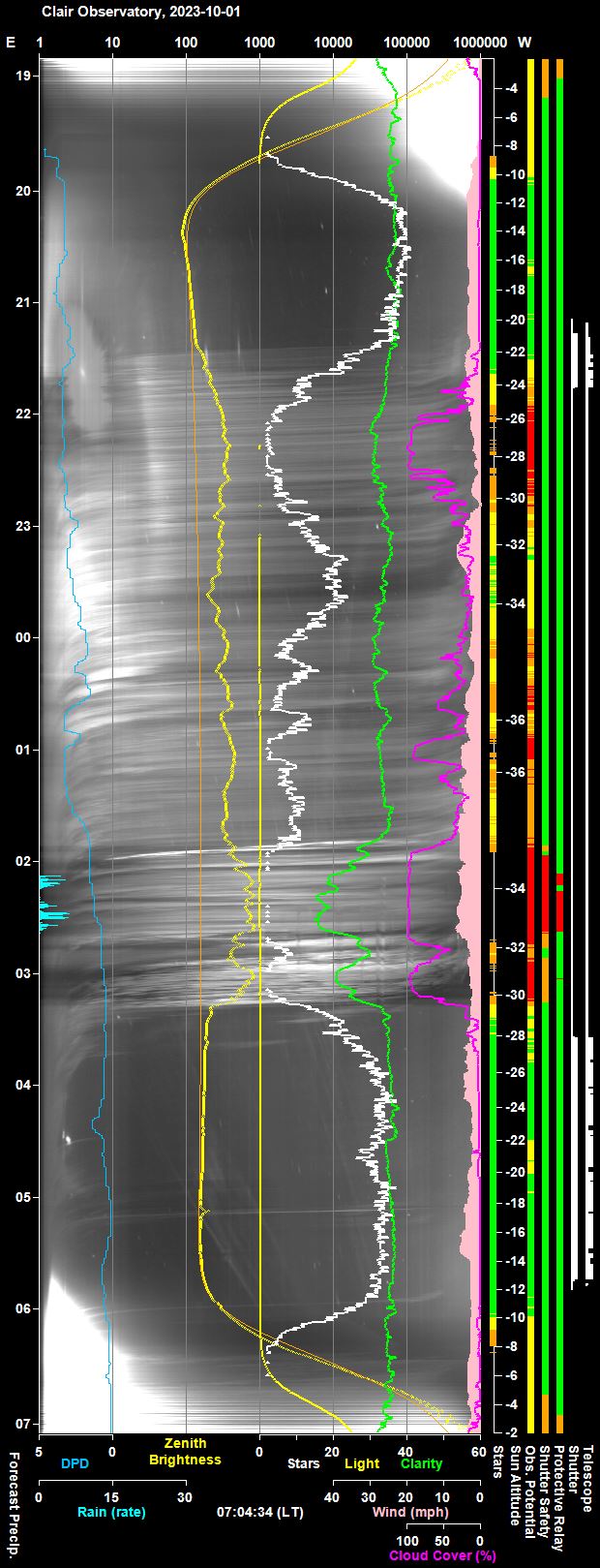

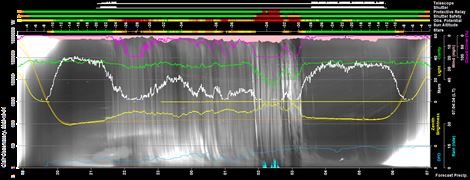

Night Sky Summary Plot Top axis: Sky Brightness at Zenith (in ADU/s) Lefthand axis: Local Time (hh LT). Righthand axis: Sun Altitude (degs)

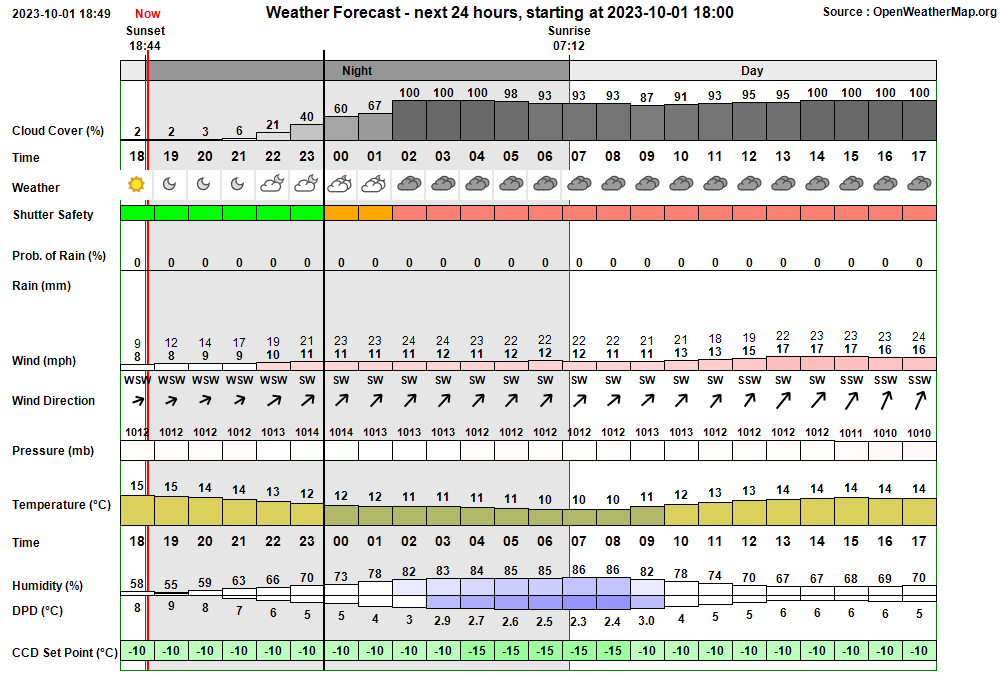

Actual Weather vs Pre-Session Weather Forecast

Session Event Log

Time     Event Detail 21:08:39 Session Monitoring AutoStart monitoring for Live Session opportunity between 21:08 & 05:09 21:08:40 Session AutoStarting Session autostarting (21:08) 21:09:00   CCDSoft Restarting CCDSoft being restarted (to set AutoSave No.) 21:09:14 Session Created Session Created (Live, 2023-10-01 S01152, ImageSaveNum: 1152001) 21:09:40   Scope Switched On Telescope Power has been switched on via UPB Powerbox. 21:11:26   Services Started Observatory Services started 21:11:33 Observatory (Auto) Observatory placed in Fully-Automated Mode 21:11:35 Session Pending Session pending (2023-10-01) 21:11:37 Session Initiating Session initiating (2023-10-01) 21:11:39   Plan Requested Observing Plan requested from AstroPlan (1.38.4) 21:12:35   Plan Loaded Observing Plan loaded to queue (Plan ID: 926) 21:12:55   Camera1 Connected SBIG Camera connected (set point -15°C) 21:13:32   Telescope Connected Telescope connected (TheSky6) 21:13:56 Session Equilibration Session ready to Open Dome 21:14:41   Dome Opened Dome opened (opening time 45s) 21:14:44 Session Running Session running 21:14:46   Queue Started Observing Queue started (27 targets selected) 21:14:47     Target Started (NrZen) Target started (Focus Field 21, HIP 103850) 21:15:01       Dome Unparked Dome unparked 21:19:36       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S) 21:22:08       Focusing Completed Foc1 AutoFocus Completed (Profile No 1, wide) 21:24:05       Focusing Completed Foc1 AutoFocus Completed (Profile No 1) 21:24:08       Focusing Started-Foc2 Foc2 Focusing Started (Secondary Scope, using ShCap) 21:26:02       Focusing Completed Foc2 AutoFocus Completed (Profile No 2, wide) 21:27:43       Focusing Completed Foc2 AutoFocus Completed (Profile No 2) 21:28:00     Target Completed (NrZen) Target completed (Focus Field 21, HIP 103850) 21:28:05     Target Started (1/27) Target started (1/27, HIP 87937) 21:31:00       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S) 21:32:43       Focusing Failed Foc1 focusing failed (failed QC check - Ambiguous) 21:35:20     Target Completed Target completed (1/27, HIP 87937) 21:36:30     Target Started (2/27) Target started (2/27, AT2023tki) 21:41:14       SoftSuspend Called Soft Suspend is called due to Deteriorating Conditions (too few stars) 21:41:44       Focusing Skipped Foc1 focusing skipped - unable to find a star (TCF-S) 21:45:51     Target Aborted (2/27) Target aborted (2/27, AT2023tki) due to User Intervention 21:45:54   Queue Paused Queue paused for Session Suspension 21:45:57 Session Suspending Session suspending 21:46:44   Dome Closed Dome closed (closing time 50s) 21:46:47 Session Suspended Session suspended 21:55:26     Target Cancelled Target cancelled (2/27, AT2023tki) due to cloud 22:17:46     Target Cancelled Target cancelled (3/27, CGCG 221-034 w/SN2023sza) due to cloud 22:39:46     Target Cancelled Target cancelled (4/27, AT2023tow) due to cloud 22:56:06     Target Cancelled Target cancelled (5/27, 80P/Peters-Hartley) due to cloud 23:04:50     Target Cancelled Target cancelled (6/27, 61 Cyg) due to cloud 23:23:43     Target Cancelled Target cancelled (7/27, C/2023 E1 (ATLAS)) due to too few stars 23:32:50     Target Cancelled Target cancelled (8/27, WDS GRB 34) due to too few stars 23:52:15     Target Cancelled Target cancelled (9/27, M31 w/Nova M31 AT2023ttu) due to cloud 00:14:35     Target Cancelled Target cancelled (10/27, UGC 11858 w/SN2023rjj) due to cloud 00:36:55     Target Cancelled Target cancelled (11/27, NGC 7385) due to cloud 00:59:16     Target Cancelled Target cancelled (12/27, M31 w/Nova M31 AT2023trk) due to cloud 01:11:33     Target Cancelled Target cancelled (13/27, GCVS BL Lac) due to cloud 01:23:53     Target Cancelled Target cancelled (14/27, C/2022 A2 (PANSTARRS)) due to cloud 01:43:53     Target Cancelled Target cancelled (15/27, AT2023pfd) due to cloud 02:06:13     Target Cancelled Target cancelled (16/27, M33 w/AT2023nou) due to cloud 02:28:13     Target Cancelled Target cancelled (17/27, UGC 4992 w/AT2023rpu) due to rain 02:50:13     Target Cancelled Target cancelled (18/27, NGC 2326 w/SN2023pgb) due to cloud 03:12:33     Target Cancelled Target cancelled (19/27, M101 w/SN2023ixf) due to cloud 03:31:17     Target Cancelled Target cancelled (20/27, 103P/Hartley) due to too few stars 03:34:11 Session Resuming Session resuming 03:34:56   Dome Opened Dome opened (opening time 45s) 03:34:59 Session Running Session running 03:35:01   Queue Resumed Observing Queue resumed 03:35:03     Target Started (21/27) Target started (21/27, GCVS DX Cnc) 03:39:13       Focusing Skipped Foc1 focusing skipped - star is too dim (TCF-S) 03:43:59     Target Completed Target completed (21/27, GCVS DX Cnc) 03:44:03     Target Started (22/27) Target started (22/27, 29P/Schwassmann-Wachmann) 03:46:56       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S) 03:48:46       Focusing Failed Foc1 focusing failed (failed QC check - Ambiguous) 03:49:30       Dome Unparked Dome unparked 04:01:29     Target Completed Target completed (22/27, 29P/Schwassmann-Wachmann) 04:02:29     Target Started (23/27) Target started (23/27, LEDA 4201363 w/SN2022vik) 04:05:37       Focusing Skipped Foc1 focusing skipped - star is too dim (TCF-S) 04:22:18     Target Completed Target completed (23/27, LEDA 4201363 w/SN2022vik) 04:24:49     Target Started (24/27) Target started (24/27, AT2023tdi) 04:27:48       Focusing Skipped Foc1 focusing skipped - star is lost (TCF-S) 04:44:33     Target Completed Target completed (24/27, AT2023tdi) 04:47:09     Target Started (25/27) Target started (25/27, NGC 1640 w/AT2023pow) 04:52:21       Focusing Skipped Foc1 focusing skipped - star is too dim (TCF-S) 05:08:17     Target Completed Target completed (25/27, NGC 1640 w/AT2023pow) 05:09:09     Target Started (26/27) Target started (26/27, AT2023ctk) 05:12:34       Focusing Skipped Foc1 focusing skipped - star is too dim (TCF-S) 05:28:35     Target Completed Target completed (26/27, AT2023ctk) 05:31:09     Target Started (27/27) Target started (27/27, C/2017 K2 (PANSTARRS)) 05:34:02       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S) 05:36:27       Focusing Completed Foc1 AutoFocus Completed (Profile No 5) 05:44:58     Target Completed Target completed (27/27, C/2017 K2 (PANSTARRS)) 05:45:01   Queue Completed Job Queue completed 05:45:03 Session Closing Session closing 05:45:58   Dome Closed Dome closed (closing time 50s) 05:46:55   Dome Parked Dome parked (parking time 49s), Az: 90.1 deg 05:48:07   Telescope Parked Telescope parked (parking time 67s) 05:48:22   Telescope State Handbox reads 'Scope parked Turn scope off.' 05:48:44   Telescope Switched Off Telescope Power has been switched off via UPB Switch. 05:50:11   Services Stopped Night Services stopped 05:50:14 Session Housekeeping Session Housekeeping started (Create Fits Summary, Transfer Files) 05:50:29 Session Finished Session Finished

Session Alerts & Alarms

Time     Type       Name Detail 21:11:35 Yellow Alert Disk Space Free Space on C:\ Drive (42.78 GB) is less than 50 GB 05:50:24 Yellow Alert Disk Space Free Space on C:\ Drive (40.41 GB) is less than 50 GB

Back to Top

Operational Issues (2023-10-01, S1152)

• Critical Issues (0)
• Major Issues (0)
• Minor Issues (0)
• Small Defects (2)
• Continuous Improvement (0)


[ Prev | Next ]

Critical Issues

• None

Major Issues

• None

Minor Issues

• None

Small Defects

• Session Files from AllSky/Weather Computer failed to download on first attempt (post-session). First attempt to download S1152 (2023-10-01) files from the AllSky/Weather Computer using AstroMove failed at 2023-10-03 08:51. Logs show that for each file there was a "Fail - Source File not found" message. Folders/files checked ok via Windows Explorer a few moments later and were accessible. Second attempt to copy files at 2023-10-03 09:06 was successful.  It is hypothesized that the AllSky/Weather Computer was simply unavailable / not accessible at the time of the first attempt. Issue closed after review 2023-10-04.
  Closed after review 2023-10-04 (AstroMove)

• AllSky Camera fisheye pictures are showing a dark piece of dirt or more likely a bird dropping) at c. Az 45°, Alt 60°.  Hemisphere to be cleared/cleaned of the offending objects. Rain during the next 2 days gradually cleared the dark mark. A small trace was still left when the AllSky Camera's Hemisphere was checked on 2023-10-06 which was cleaned.
  Resolved 2023-10-06 (AllSky Camera)

Continuous Improvement

• None
