Session Aims & Highlights (2023-10-11)

Main aims

1. Targets.  Acquire images of a selection of variable stars, nearby stars, comets & deep sky targets as allowed by sky conditions.
2. Comets. Acquire images of comet 12P/Pons-Brooks,  C/2023 H2 (Lemmon) and
3. AstroMain. Check new AstroMain version (3.62.17) for recent fixes and improvements.

 Equipment & Software

• 12" LX200 and ST-10XME
• 80mm APO and ZWO ASI 178MC
• CCDApp2, TheSky6, CCDSoft5, DeviceHub 6.6.1.1,  MeadeGeneric 1.3.5.414, UPB 1.5, ASCOM 6.6
• Pegasus UPB & Motor Focus, TCF-S
• SharpCap 3.2, PHD2  2.6.11dev4, Siril 1.0.6, deCONZ 1.18.2, ASCOM 6.6 SP1

• AstroMain 3.62.17, AstroPlan 1.38.6,   AstroShCap 1.3.15, AstroGuard 1.10.2
  AstroVOE 1.13  AstroSN 1.10,  AstroProtect 1.7,  AstroMove 1.12.6
  (AstroWeather 1.21.3, AstroAllSky 3.19.4,  AstroObsCam 1.11.4, AstroLaunch 1.11.1

Highlights

• Targets.22/33 planned targets were completed and an additional 3 targets were partially completely. In addition 1 ToO target ( 12P/Pons-Brooks, ) was completed. Other targets failed due to missed start (cloud) or cloud/session suspension.
• AstroMain. No issues with new AstroMain version (3.62.17)
  Comets. Images were successfully acquired from 2 of the 3 specified priority comet targets specified in the night's observing plan (12P/Pons-Brooks,  C/2023 H2 (Lemmon) .
•  Dome Slews. There were 9 significant issues with dome slewing during the session with individual delays up to 226s and causing a total delay of 19 minutes
   (Hold Up Stats: 9/31 slews affected, 30%, 19.3 minutes total hold-up time).  Dome parked ok.
•  AllSky Camera. AllSky Camera Images were clear of dew/condensation following recent reopening of Camera's hemisphere & wiping dry).

Notes:

Summary Plots & Logs

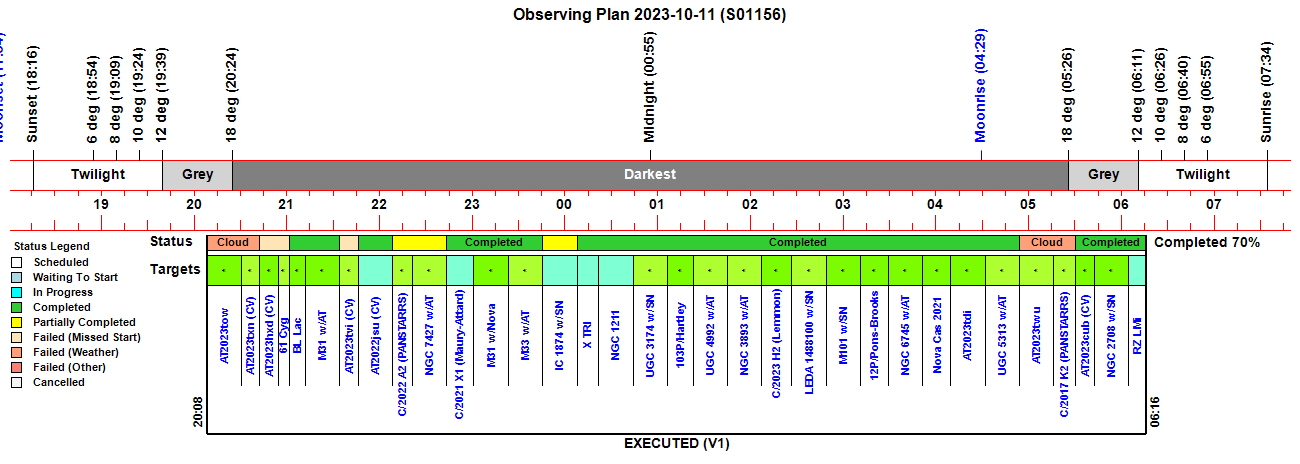

Observing Plan

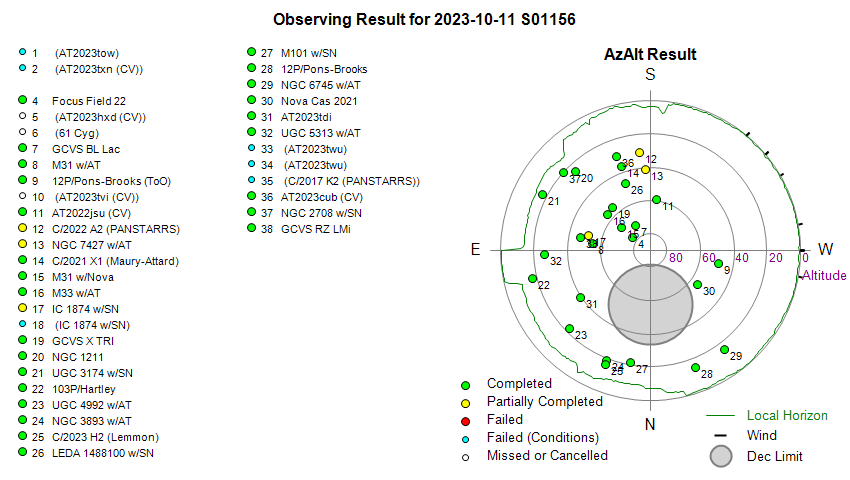

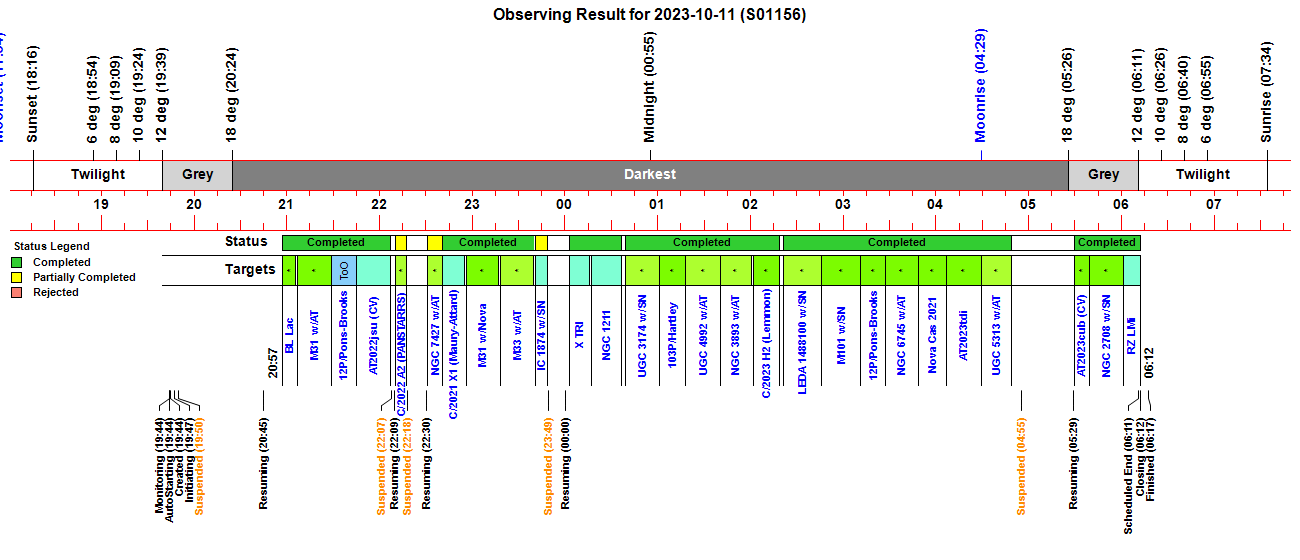

Observing Result

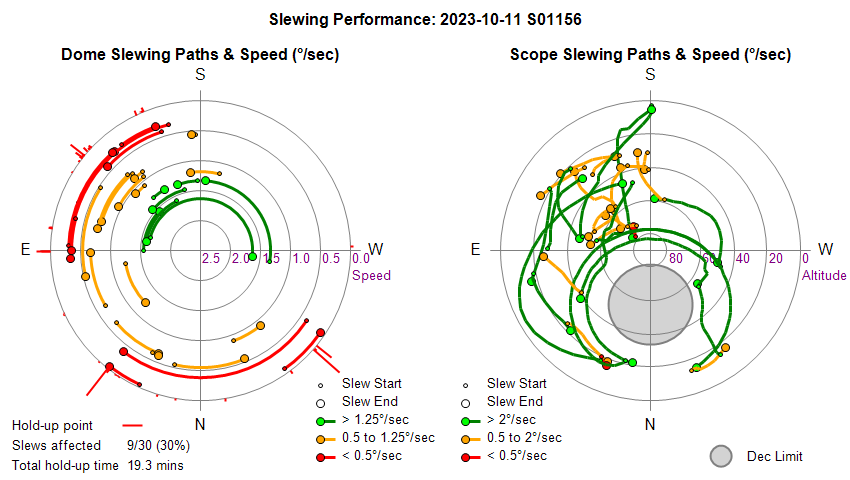

Dome & Scope Slewing Performance

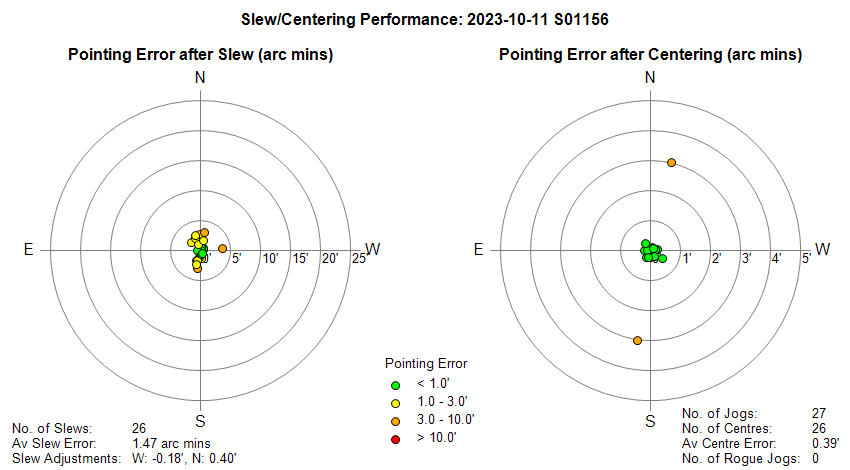

Slew/Centering Performance

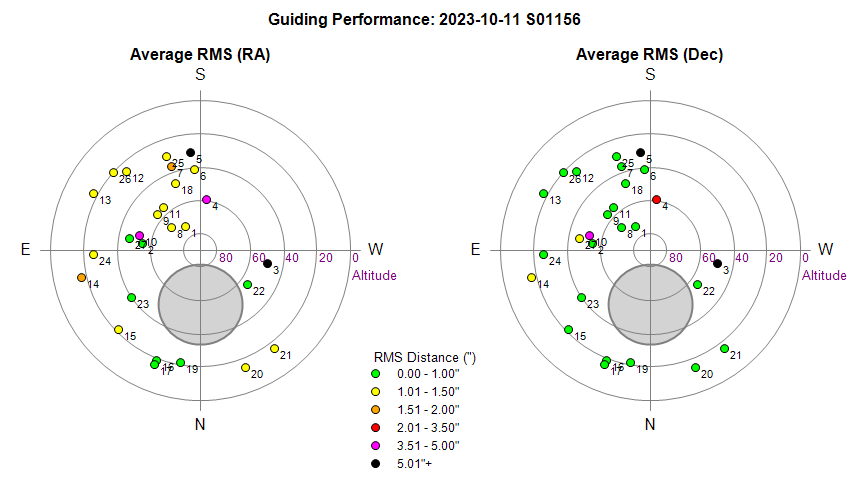

Guiding Performance

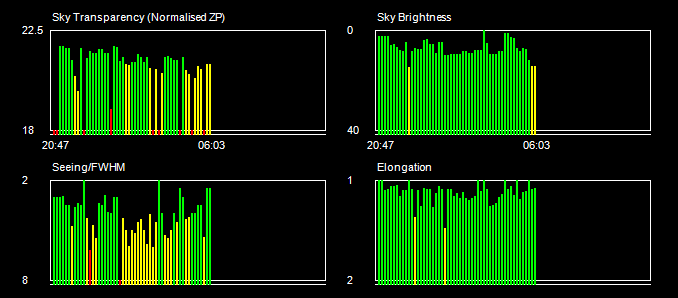

Sky Conditions (Locate Frames)

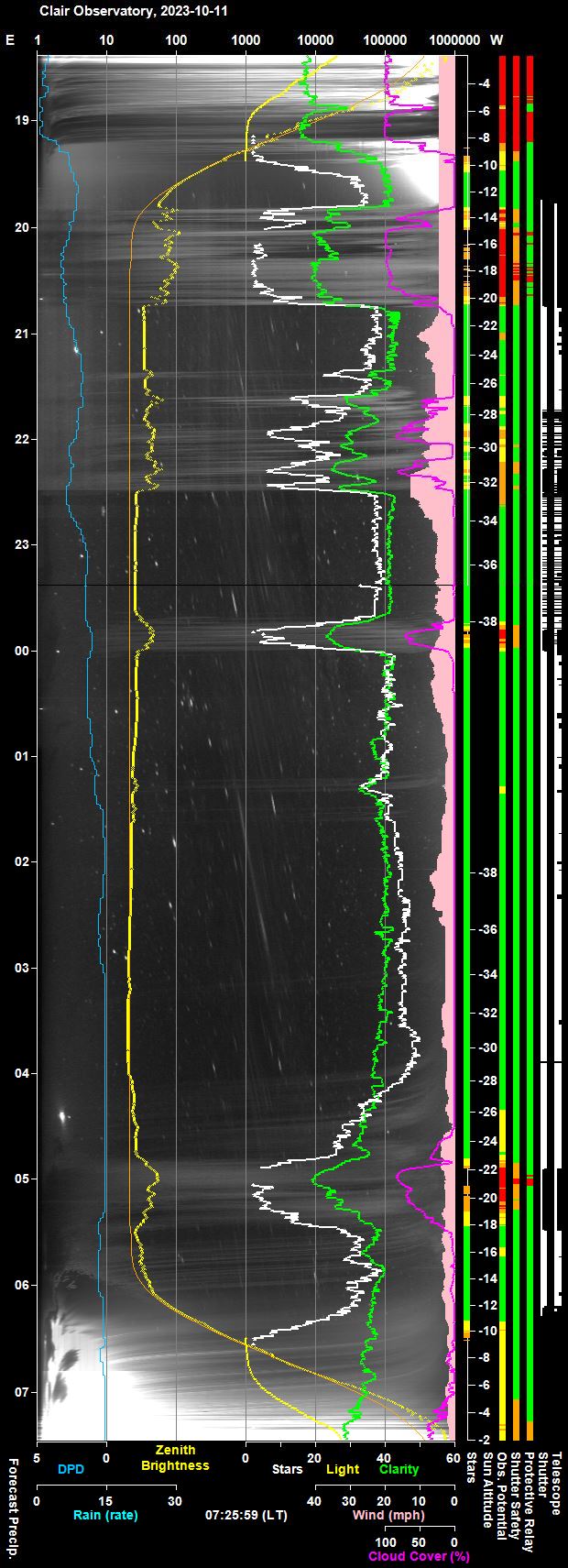

Night Sky Summary Plot Top axis: Sky Brightness at Zenith (in ADU/s) Lefthand axis: Local Time (hh LT). Righthand axis: Sun Altitude (degs)

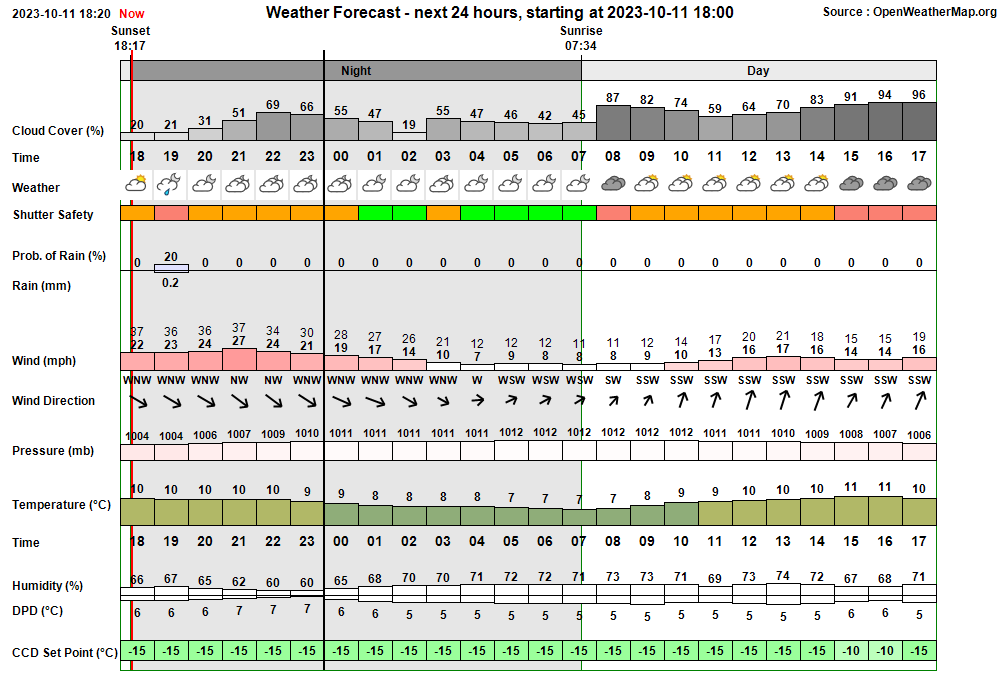

Actual Weather vs Pre-Session Weather Forecast

Session Event Log

Time     Event Detail 19:44:25 Session Monitoring AutoStart monitoring for Live Session opportunity between 19:44 & 05:31 19:44:26 Session AutoStarting Session autostarting (19:44) 19:44:44   CCDSoft Restarting CCDSoft being restarted (to set AutoSave No.) 19:44:57 Session Created Session Created (Live, 2023-10-11 S01156, ImageSaveNum: 1156001) 19:45:04   Scope Switched On Telescope Power has been switched on via UPB Powerbox. 19:46:51   Services Started Observatory Services started 19:46:57 Observatory (Auto) Observatory placed in Fully-Automated Mode 19:47:00 Session Pending Session pending (2023-10-11) 19:47:02 Session Initiating Session initiating (2023-10-11) 19:47:04   Plan Requested Observing Plan requested from AstroPlan (1.38.6) 19:48:16   Plan Loaded Observing Plan loaded to queue (Plan ID: 930) 19:48:40   Camera1 Connected SBIG Camera connected (set point -15°C) 19:49:17   Telescope Connected Telescope connected (TheSky6) 19:49:41 Session Equilibration Session ready to Open Dome 19:50:06   Wait On Weather Waiting for acceptable conditions 19:50:08 Session Suspending Session suspending 19:50:10   Dome Closed Dome already closed 19:50:12 Session Suspended Session suspended 19:50:38   Queue Started Observing Queue started (33 targets selected) 20:22:28     Target Cancelled Target cancelled (1/33, AT2023tow) due to cloud 20:36:28     Target Cancelled Target cancelled (2/33, AT2023txn (CV)) due to cloud 20:45:00 Session Resuming Session resuming 20:45:45   Dome Opened Dome opened (opening time 45s) 20:45:48 Session Running Session running 20:45:50   Queue Resumed Observing Queue resumed 20:45:52     Target Started (NrZen) Target started (Focus Field 22, HIP 108888) 20:46:03       Dome Unparked Dome unparked 20:48:19       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S) 20:50:52       Focusing Completed Foc1 AutoFocus Completed (Profile No 1, wide) 20:52:50       Focusing Completed Foc1 AutoFocus Completed (Profile No 1) 20:52:52       Focusing Started-Foc2 Foc2 Focusing Started (Secondary Scope, using ShCap) 20:54:59       Focusing Completed Foc2 AutoFocus Completed (Profile No 2, wide) 20:56:43       Focusing Completed Foc2 AutoFocus Completed (Profile No 2) 20:57:00     Target Completed (NrZen) Target completed (Focus Field 22, HIP 108888) 20:57:02     Target Missed (3/33) Target's time slot was missed (3/33, AT2023hxd (CV)) 20:57:04     Target Missed (4/33) Target's time slot was missed (4/33, 61 Cyg) 20:57:06     Target Started (5/33) Target started (5/33, GCVS BL Lac) 20:59:43       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S) 21:01:53       Focusing Completed Foc1 AutoFocus Completed (Profile No 3) 21:05:46     Target Completed Target completed (5/33, GCVS BL Lac) 21:07:07     Target Started (6/33) Target started (6/33, M31 w/Nova M31 2023-10a?) 21:10:09       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S) 21:12:34       Focusing Completed Foc1 AutoFocus Completed (Profile No 4) 21:12:53   UPB.Switch Restart UPB.Switch has been restarted. 21:28:45     Target Completed Target completed (6/33, M31 w/Nova M31 2023-10a?) 21:28:49     Target Started (7/34) Target started (7/34, 12P/Pons-Brooks, ToO) 21:33:04       Focusing Skipped Foc1 focusing skipped - star is too dim (TCF-S) 21:38:34       SoftSuspend Called Soft Suspend is called due to Deteriorating Conditions (too few stars) 21:42:54       SoftSuspend Cancelled Soft Suspend is cancelled due to improved conditions 21:44:52     Target Completed Target completed (7/34, 12P/Pons-Brooks, ToO) 21:44:54     Target Missed (8/34) Target's time slot was missed (8/34, AT2023tvi (CV)) 21:44:56     Target Started (9/34) Target started (9/34, AT2022jsu (CV)) 21:48:34       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S) 21:50:47       Focusing Completed Foc1 AutoFocus Completed (Profile No 5) 21:53:05       SoftSuspend Called Soft Suspend is called due to Deteriorating Conditions (too few stars) 22:02:35       SoftSuspend Cancelled Soft Suspend is cancelled due to improved conditions 22:05:05       SoftSuspend Called Soft Suspend is called due to Deteriorating Conditions (too few stars) 22:06:49     Target Completed Target completed (9/34, AT2022jsu (CV)) 22:06:52   Queue Paused Queue paused for Session Suspension 22:06:54 Session Suspending Session suspending 22:07:40   Dome Closed Dome closed (closing time 50s) 22:07:43 Session Suspended Session suspended 22:09:46 Session Resuming Session resuming 22:10:31   Dome Opened Dome opened (opening time 45s) 22:10:33 Session Running Session running 22:10:35   Queue Resumed Observing Queue resumed 22:10:38     Target Started (10/34) Target started (10/34, C/2022 A2 (PANSTARRS)) 22:14:56       SoftSuspend Called Soft Suspend is called due to Deteriorating Conditions (too few stars) 22:17:21   Critical Cloud Alert Critical Cloud Alert (Obs.Manager will close the Dome) 22:17:23   HardSuspend Called Hard Suspend is called due to Critical Conditions (cloud) 22:17:26     Target Aborted (10/34) Target aborted (10/34, C/2022 A2 (PANSTARRS)) due to cloud 22:17:28   Queue Paused Queue paused for Session Suspension 22:17:30 Session Suspending Session suspending 22:18:16   Dome Closed Dome closed (closing time 50s) 22:18:19 Session Suspended Session suspended 22:30:27 Session Resuming Session resuming 22:31:12   Dome Opened Dome opened (opening time 45s) 22:31:14 Session Running Session running 22:31:16   Queue Resumed Observing Queue resumed 22:31:19     Target Started (11/34) Target started (11/34, NGC 7427 w/AT2023uma) 22:40:27     Target Completed Target partially completed (11/34, NGC 7427 w/AT2023uma) 22:40:31     Target Started (12/34) Target started (12/34, C/2021 X1 (Maury-Attard)) 22:43:46       Focusing Skipped Foc1 focusing skipped - star is too dim (TCF-S) 22:55:43     Target Completed Target completed (12/34, C/2021 X1 (Maury-Attard)) 22:56:10     Target Started (13/34) Target started (13/34, M31 w/Nova M31 AT2023trk) 22:59:02       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S) 23:01:01       Focusing Completed Foc1 AutoFocus Completed (Profile No 6) 23:15:35   UPB.Switch Restart UPB.Switch has been restarted. 23:16:49     Target Completed Target completed (13/34, M31 w/Nova M31 AT2023trk) 23:18:29     Target Started (14/34) Target started (14/34, M33 w/AT2023nou) 23:21:22       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S) 23:23:49       Focusing Completed Foc1 AutoFocus Completed (Profile No 7) 23:40:00     Target Completed Target completed (14/34, M33 w/AT2023nou) 23:40:49     Target Started (15/34) Target started (15/34, IC 1874 w/SN2023fu) 23:43:51       Focusing Skipped Foc1 focusing skipped - star is lost (TCF-S) 23:48:31       SoftSuspend Called Soft Suspend is called due to Deteriorating Conditions (too few stars) 23:48:36   Critical Cloud Alert Critical Cloud Alert (Obs.Manager will close the Dome) 23:48:39   HardSuspend Called Hard Suspend is called due to Critical Conditions (cloud) 23:48:41     Target Aborted (15/34) Target aborted (15/34, IC 1874 w/SN2023fu) due to cloud 23:48:43   Queue Paused Queue paused for Session Suspension 23:48:45 Session Suspending Session suspending 23:49:32   Dome Closed Dome closed (closing time 50s) 23:49:34 Session Suspended Session suspended 00:00:05     Target Cancelled Target cancelled (15/34, IC 1874 w/SN2023fu) due to too few stars 00:00:37 Session Resuming Session resuming 00:01:22   Dome Opened Dome opened (opening time 45s) 00:01:25 Session Running Session running 00:01:27   Queue Resumed Observing Queue resumed 00:03:09     Target Started (16/34) Target started (16/34, GCVS X TRI) 00:04:41     Dome Slew Dome slew held up at Az. 127.9, 128.1° (Total delay 59s) 00:06:58       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S) 00:09:08       Focusing Completed Foc1 AutoFocus Completed (Profile No 8) 00:16:12     Target Completed Target completed (16/34, GCVS X TRI) 00:17:04     Target Started (17/34) Target started (17/34, NGC 1211) 00:20:19       Focusing Skipped Foc1 focusing skipped - star is too dim (TCF-S) 00:36:23     Target Completed Target completed (17/34, NGC 1211) 00:39:24     Target Started (18/34) Target started (18/34, UGC 3174 w/SN2023mut) 00:42:22       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S) 00:44:46       Focusing Completed Foc1 AutoFocus Completed (Profile No 9) 01:01:07     Target Completed Target completed (18/34, UGC 3174 w/SN2023mut) 01:01:24     Target Started (19/34) Target started (19/34, 103P/Hartley) 01:02:00       Dome Unparked Dome unparked 01:02:55     Dome Slew Dome slew held up at Az. 89.5° (Delay 46s) 01:05:30       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S) 01:07:31       Focusing Completed Foc1 AutoFocus Completed (Profile No 10) 01:18:06     Target Completed Target completed (19/34, 103P/Hartley) 01:18:10     Target Started (20/34) Target started (20/34, UGC 4992 w/AT2023rpu) 01:23:57       Focusing Skipped Foc1 focusing skipped - star is too dim (TCF-S) 01:40:27     Target Completed Target completed (20/34, UGC 4992 w/AT2023rpu) 01:40:31     Target Started (21/34) Target started (21/34, NGC 3893 w/AT2023uhx) 01:44:20       Focusing Skipped Foc1 focusing skipped - star is too dim (TCF-S) 02:00:25     Target Completed Target completed (21/34, NGC 3893 w/AT2023uhx) 02:02:08     Target Started (22/34) Target started (22/34, C/2023 H2 (Lemmon)) 02:05:36       Focusing Skipped Foc1 focusing skipped - star is too dim (TCF-S) 02:19:03     Target Completed Target completed (22/34, C/2023 H2 (Lemmon)) 02:21:43     Target Started (23/34) Target started (23/34, LEDA 1488100 w/SN2023olz) 02:25:49     Dome Slew Dome slew held up at Az. 32.8, 33.3, 38.2° (Total delay 224s) 02:28:48       Dome Unparked Dome unparked 02:45:45     Target Completed Target completed (23/34, LEDA 1488100 w/SN2023olz) 02:45:49     Target Started (24/34) Target started (24/34, M101 w/SN2023ixf) 02:49:55     Dome Slew Dome slew held up at Az. 157.5, 133.2, 132.5, 131.4, 126.3, 98.6, 89.7° (Total delay 165s) 03:11:19     Target Completed Target completed (24/34, M101 w/SN2023ixf) 03:11:23     Target Started (25/34) Target started (25/34, 12P/Pons-Brooks) 03:27:28     Target Completed Target completed (25/34, 12P/Pons-Brooks) 03:27:33     Target Started (26/34) Target started (26/34, NGC 6745 w/AT2023ucy) 03:30:41       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S) 03:32:50       Focusing Completed Foc1 AutoFocus Completed (Profile No 11) 03:48:39     Target Completed Target completed (26/34, NGC 6745 w/AT2023ucy) 03:48:43     Target Started (27/34) Target started (27/34, Nova Cas 2021) 03:52:50     Dome Slew Dome slew held up at Az. 323.3, 311.3, 310.6° (Total delay 214s) 04:06:51     Target Completed Target completed (27/34, Nova Cas 2021) 04:06:55     Target Started (28/34) Target started (28/34, AT2023tdi) 04:11:01     Dome Slew Dome slew held up at Az. 309.2, 16.8, 34.2, 37.6° (Total delay 141s) 04:29:24     Target Completed Target completed (28/34, AT2023tdi) 04:29:28     Target Started (29/34) Target started (29/34, UGC 5313 w/AT2023tmr) 04:33:01       Focusing Skipped Foc1 focusing skipped - unable to find a star (TCF-S) 04:39:26       Dome Unparked Dome unparked 04:49:06     Target Completed Target completed (29/34, UGC 5313 w/AT2023tmr) 04:49:11     Target Started (30/34) Target started (30/34, AT2023twu) 04:50:25       SoftSuspend Called Soft Suspend is called due to Deteriorating Conditions (too few stars) 04:51:54     Dome Slew Dome slew held up at Az. 121.4, 126.5, 128.4, 129.3° (Total delay 111s) 04:54:28     Target Failed (30/34) Target failed due to cloud (30/34, AT2023twu) 04:54:30   Queue Paused Queue paused for Session Suspension 04:54:32 Session Suspending Session suspending 04:55:20   Dome Closed Dome closed (closing time 50s) 04:55:22 Session Suspended Session suspended 05:08:08     Target Cancelled Target cancelled (30/34, AT2023twu) due to cloud 05:24:52     Target Cancelled Target cancelled (31/34, C/2017 K2 (PANSTARRS)) due to cloud 05:29:07 Session Resuming Session resuming 05:29:52   Dome Opened Dome opened (opening time 45s) 05:29:54 Session Running Session running 05:29:56   Queue Resumed Observing Queue resumed 05:29:59     Target Started (32/34) Target started (32/34, AT2023cub (CV)) 05:30:56     Dome Slew Dome slew held up at Az. 154.6, 156.5, 157.2° (Total delay 38s) 05:39:09     Target Completed Target completed (32/34, AT2023cub (CV)) 05:39:13     Target Started (33/34) Target started (33/34, NGC 2708 w/SN2023bee) 05:40:32     Dome Slew Dome slew held up at Az. 157.7, 133.2, 132.5° (Total delay 43s) 05:44:54       Focusing Skipped Foc1 focusing skipped - star is too dim (TCF-S) 06:01:18     Target Completed Target completed (33/34, NGC 2708 w/SN2023bee) 06:01:22     Target Started (34/34) Target started (34/34, GCVS RZ LMi) 06:04:41       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S) 06:06:37       Focusing Completed Foc1 AutoFocus Completed (Profile No 12) 06:12:11     Target Completed Target completed (34/34, GCVS RZ LMi) 06:12:14   Queue Completed Job Queue completed 06:12:17 Session Closing Session closing 06:13:10   Dome Closed Dome closed (closing time 50s) 06:14:00   Dome Parked Dome parked (parking time 43s), Az: 90.0 deg 06:15:21   Telescope Parked Telescope parked (parking time 74s) 06:15:36   Telescope State Handbox reads 'Scope parked Turn scope off.' 06:15:58   Telescope Switched Off Telescope Power has been switched off via UPB Switch. 06:17:22   Services Stopped Night Services stopped 06:17:25 Session Housekeeping Session Housekeeping started (Create Fits Summary, Transfer Files) 06:17:50 Session Finished Session Finished

Session Alerts & Alarms

Time     Type       Name Detail 19:47:00 Yellow Alert Disk Space Free Space on C:\ Drive (35.49 GB) is less than 50 GB 21:12:53 Yellow Alert UPB.Switch disconnected UPB.Switch has unexpectedly disconnected. Restart will be attempted 21:12:55 Green Clear UPB.Switch UPB.Switch has been successfully restarted. 23:15:35 Yellow Alert UPB.Switch disconnected UPB.Switch has unexpectedly disconnected. Restart will be attempted 23:15:37 Green Clear UPB.Switch UPB.Switch has been successfully restarted. 23:20:28 Yellow Alert UPB.Switch disconnected UPB.Switch has unexpectedly disconnected. Restart will be attempted 23:20:52 Yellow Alert UPB.Switch Restarting UPB Powerbox Software 23:20:59 Green Clear UPB.Switch UPB.Switch service has been restored 00:04:41 Yellow Alert Dome Slew Dome slew held up at Az. 127.9, 128.1° (Total delay 59s) 01:02:55 Yellow Alert Dome Slew Dome slew held up at Az. 89.5° (Delay 46s) 02:25:49 Red Alert Dome Slew Dome slew held up at Az. 32.8, 33.3, 38.2° (Total delay 224s) 02:25:58 Yellow Alert Dome Discrepency Difference between Dome Az and Telescope Az is > 8 deg (LEDA 1488100) 02:26:00 Yellow Alert Dome Discrepency Difference between Dome Az and Slave Az is > 1 deg (LEDA 1488100) 02:49:55 Red Alert Dome Slew Dome slew held up at Az. 157.5, 133.2, 132.5, 131.4, 126.3, 98.6, 89.7° (Total delay 165s) 02:50:03 Yellow Alert Dome Discrepency Difference between Dome Az and Telescope Az is > 8 deg (M101) 02:50:06 Yellow Alert Dome Discrepency Difference between Dome Az and Slave Az is > 1 deg (M101) 03:52:50 Red Alert Dome Slew Dome slew held up at Az. 323.3, 311.3, 310.6° (Total delay 214s) 04:11:01 Red Alert Dome Slew Dome slew held up at Az. 309.2, 16.8, 34.2, 37.6° (Total delay 141s) 04:11:10 Yellow Alert Dome Discrepency Difference between Dome Az and Telescope Az is > 8 deg (AT2023tdi) 04:11:12 Yellow Alert Dome Discrepency Difference between Dome Az and Slave Az is > 1 deg (AT2023tdi) 04:51:54 Yellow Alert Dome Slew Dome slew held up at Az. 121.4, 126.5, 128.4, 129.3° (Total delay 111s) 05:30:56 Yellow Alert Dome Slew Dome slew held up at Az. 154.6, 156.5, 157.2° (Total delay 38s) 05:40:32 Yellow Alert Dome Slew Dome slew held up at Az. 157.7, 133.2, 132.5° (Total delay 43s) 06:17:49 Yellow Alert Disk Space Free Space on C:\ Drive (36.10 GB) is less than 50 GB

Back to Top

Operational Issues (2023-10-11, S1156)

• Critical Issues (0)
• Major Issues (1)
• Minor Issues (1)
• Small Defects (1)
• Continuous Improvement (6)


[ Prev | Next ]

Critical Issues

• None

Major Issues

• Dome Slews were badly affected by hold-ups during the session. 9 dome slews (30%) were affected by significant hold-up,  with individual delays up of 224s (Hold Up Stats: 9/30 slews affected, 30%, 19.3 minutes total hold-up time).  This wasted around 19 minutes of time. Again fortunately it didn't lead to any lost targets (due to good slewing/centering performance and the absence of any camera issues etc).  Issue was previously improved by an adjustment to the Dome's Drive Wheel tension but still occurs occasionally (e.g. S1142, S1143, S1145, S1154, S1156) but are interpersed with other sessions (eg S1140, S1141, S1144) where there were no or very few hold-ups.   Heavy dew is thought to be the main factor on this causing this issue. Dome Wheels to be checked and dome flange cleaned / dried. As a way for reducing the problem is there a way of attaching a sponge or something to a one part of the observatory wall that would wipe the flange dry during dome rotation ?   As an experiement a piece of foam attached to one of the observatory's 4 dome 'clamps' today, 2023-10-16, in a way that it wipes the inner face of the roof flange as the dome rotates.  It is unclear if this will help or not (one risk is that if the foam doesn't dry between sessions the dew collected by foam in one dew affected session could spread unwanted moisture onto the flange at a following dew-free session, and introduce a dome slewing problem. This didn't produce any improvement and was dropped.   Anti-Slip Tape was later applied to the roof flange (see  Anti-Slip Tape for improving Observatory Dome Rotation (2023-10-27) ) which produced some improvement, but in the process of fitting the tape it was discovered that one of the drive wheels is loose due to wear/failure of the drive wheel connector (see Pulsar Dome - Loose Rotation Drive Wheel (2023-10-27) ). A replacement Drive Wheel & Connector eventually arrived on 2023-11-17 and was successfully installed in the Observatory (See Pulsar Dome - Replacement Rotation Drive Wheel, 2023-11-17 ).
  Fixed 2023-11-17 (Observatory, Pulsar Dome)

Minor Issues

• Shutter and Telescope Flag Bars on NightSummaryPlot6 showing unexpected breaks (21:45 to 23:55). For a 2 hour period the NightSummaryPlot6 showed anomalous Shutter and Telescope information bars,with both bars showed unexpected breaks (see Night Summary Plot above). The Shutter bar was expected to be a continuous thick bar (Shutter Open) whilst the Telescope flag bar was expected to be a semi-continuous thick bar.  It is hypothesed that AstroAllSky's NightSummaryPlot AddLine() routine was responding to chnaging ObsEnv messages which alternated between active Shutter and Telescope flags sent from the Observatory Computer and inactive Shutter & Telescope flags sent from the Development Computer which was undergoing testing at the same time.  An Observatory Test Session was known to be running around the same time which was testing ZigBee / Greenhouse Sensor testing. Checking log files shows that the ObsEnv service was running between 21:42  and 23:57 which confirms the above hypothesis. AstroMain to be modified so that it is running on the Development Computer it doesn't forward TCP messages / ObsEnv records to the AllSky/Weather Computer.  Examining the code in AstroMain's ObsEnv.MainServerLoop() routine shows that ObsEnv records can only be sent out when the AstroMain program is being run on the Observatory Computer (Environment.MachineName = "LAPTOP9"), and therefore they couldn't have been sent from the Development Computer to AstroAllSky running on the AllSky/Weather Computer.  Other possibilities is that the breaks in the information bars are associated with TCP/IP message records sent from AstroMain's TelePosition service on the Development Computer. Looking at Annotated AllSky Images between 21:42 and 23:57 shows images annotated with position of the Scope, the Active Target & Next 3 Targets, alternating with images without annotated scope/target positions. The later are believed to be associated with occasions when TelePosition message records were recieved from the Development Computer.  Fix in AstroMain 3.63 so that TelePositions records can only be sent when AstroMain program is running on the Observatory Computer (Laptop11). This will restrict ability to test certain operations from Development Computer e.g.  the actual sky conditions at a target location can only be determined / and sent back by AstroAllSky program on the AllSky/Weather Computer, if TelePosition records are sent (this capabilty may have to be retro-enabled as and when there is a need).
  Fixed 2023-10-14 (AstroMain 3.63)

Small Defects

• Using 'Move Label1 here' or 'Move Label2 here' in AstroMain's Image Builder should always make the relevant label checked and redraw the image (Post Session/Analysis).  Currently if the Label (Label 1 or Label 2) isn't checked the label position is modified when 'Move Label x here ' is used but the image isn't redrawn showing the label. Fixed in AstroMain 3.63.
  Fixed 2023-10-14 (AstroMain 3.63)

Continuous Improvement

• Add button to AstroMain's ImageSets tabs that will open FV program with the "FIT.fit" version of combined image. After making a FIT.fit version of an image using Nebulosity's 'synthetic flat fielder', the file has to be currently selected in object folder, and opened in CCDSoft and then use the 'Open FV' button facility (and then later close the image in CCDSoft). New Button '">> Open FV (.FIT.ft)" and button routine  'btnOpenFvWithFITfit()' and work routine 'OpenFvWithFITfit()' added in AstroMain 3.63.  At same time the button routine and work routine for ">> Open FV" renamed as btnOpenFvWithActiveImage() and OpenFvWithActiveImage()  respectively. Both workroutines access a new version of StartFvApplication()  passing a new 'FileName' variable.
  Done 2023-10-14 (AstroMain 3.63)

• Modify NightSummary6 annotation to show 'Dome Shutter' instead of 'Shutter'.  Changing the annotation to 'Dome Shutter' is a more precise description of the data column.
  Done 2023-10-14 (AstroAllSky 3.19.5)

• Check / empty the 'water collecting vessel' on the Observatory's Dehumidifier.   Dehumidifier checked 2023-10-16 and found to be 80-90% full.  'Water collecting vessel' emptied and replaced.'
  Done 2023-10-12+ (Observatory)

• Create a Camera Angle vs Hour Angle Plot.  Camera Angle plots for Cam1 (SBIG Camera attached to Main Scope) and Cam2 (ZWO 178MC Camera attached to piggy-backed Secondary Scope show i) in-session angle variations of +/- 0.25°  ii) an apparent close correlation between Cam1 and Cam2 camera's.  The data doesn't support a differential flexing of secondary scope/optical train relative to the main scope, and instead suggest that yhere might be either 1) a flexing that  effects both optical trains / both cameras, or the effects of polar misalignment.  A Camera Angle vs Hour Angle Plot would be useful information to move forward on understanding the variations in hour angle seen.  Plots could be produced for both real-time session and for post-session reduced FITS analysis.  Cam1AngleChart.AddData() is called from OB.CentreTarget() and btnMeasureCam1RotationAngle () / RunMeasureCam1CameraAngle().  New Charts objects (Cam1AngleVsHourAngleChart & Cam2AngleVsHourAngleChart) created in AstroMain 3.63 which use new class objects TCameraAngleVsHourAngleChart that are very loosely based on the existing TCameraAngleChart class.  Existing function globals. GetLHA_now(Ra) can be used to get hour angle from RA of linked image.
  Done  2023-10-15 (AstroMain 3.63)

• Upload and display Camera Angle vs Hour Angle Plot on website's Current/Last Session page and on Local Files (Pictures) page.  AstroMain 3.63 has just been modified to create Camera Angle vs Hour Angle plots (see ticket above) which are copied to the Live folder with the names 'Session.Cam1Angle_HourAngleChart.png' and 'Session.Cam2Angle_HourAngleChart.png' . To make them convenientally accessible AstroPlan's WebLoader needs to automatically upload newly saved updates these files to the website, the Current Session web page (session_current.htm) needs to be updated to display these new charts in the 'Camera 1' and 'Camera 2' sections,  and AstroMain's Build Local JPG page' routine ('BuildJpgPicturePageNew()')  needs to be updated to display these charts.
  Done  2023-10-16 (AstroPlan 1.38.7, Website, AstroMain 3.63)

• Extend AstroMain's 'Analyse Reduced Folder' routines to create a '_reduced' file version of the 'Camera Angle vs Hour Angle Plot' .
  Done  2023-10-16 (AstroMain 3.63)
