Session Aims & Highlights (2023-11-08)

Main aims

1. Targets.  Acquire images of a selection of variable stars, nearby stars, comets & deep sky targets as allowed by sky conditions.

 Equipment & Software

• 12" LX200 and ST-10XME
• 80mm APO and ZWO ASI 178MC
• CCDApp2, TheSky6, CCDSoft5, DeviceHub 6.6.1.1,  MeadeGeneric 1.3.5.414, UPB 1.5, ASCOM 6.6
• Pegasus UPB & Motor Focus, TCF-S
• SharpCap 3.2, PHD2  2.6.11dev4, Siril 1.0.6, deCONZ 1.18.2, ASCOM 6.6 SP1

• AstroMain 3.64.2, AstroPlan 1.38.9,  AstroShCap 1.3.15, AstroGuard 1.10.2
  AstroVOE 1.13  AstroSN 1.10.1,  AstroProtect 1.7,  AstroMove 1.12.7
  (AstroWeather 1.22.2, AstroAllSky 3.19.6,  AstroObsCam 1.11.4, AstroLaunch 1.11.1

Highlights

• Targets. 35/37 planned targets observations were completed with 3 further targets partially completed.  Other targets failed due cloud / session suspension
•  Dome Slews. Dome slews from first half of session all completed without any hold-ups or delays.  But suddenly dome performance suddenly degraded for slew to
   (Hold Up Stats:10/39 slews affected, 26%, 29.4 minutes total hold-up time).
•  Dome Parking.  Dome was unable to park at Az 90.0 and finished the night at Az 90.3 following slewing difficulties due to loose a drive wheel. Shutter battery was unable to automatically re-charge following the session, requiring that dome be moved to correct park position later on under manual control.

Notes:

Summary Plots & Logs

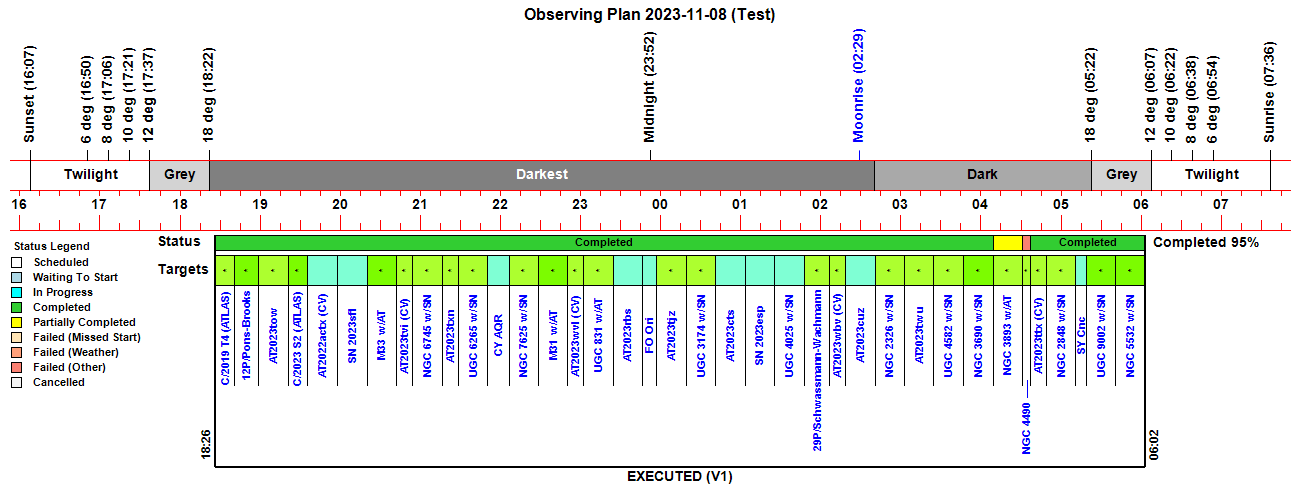

Observing Plan

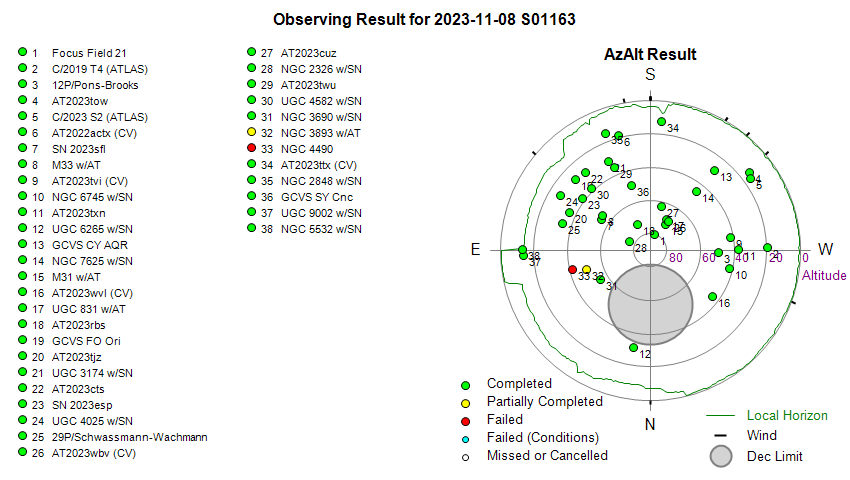

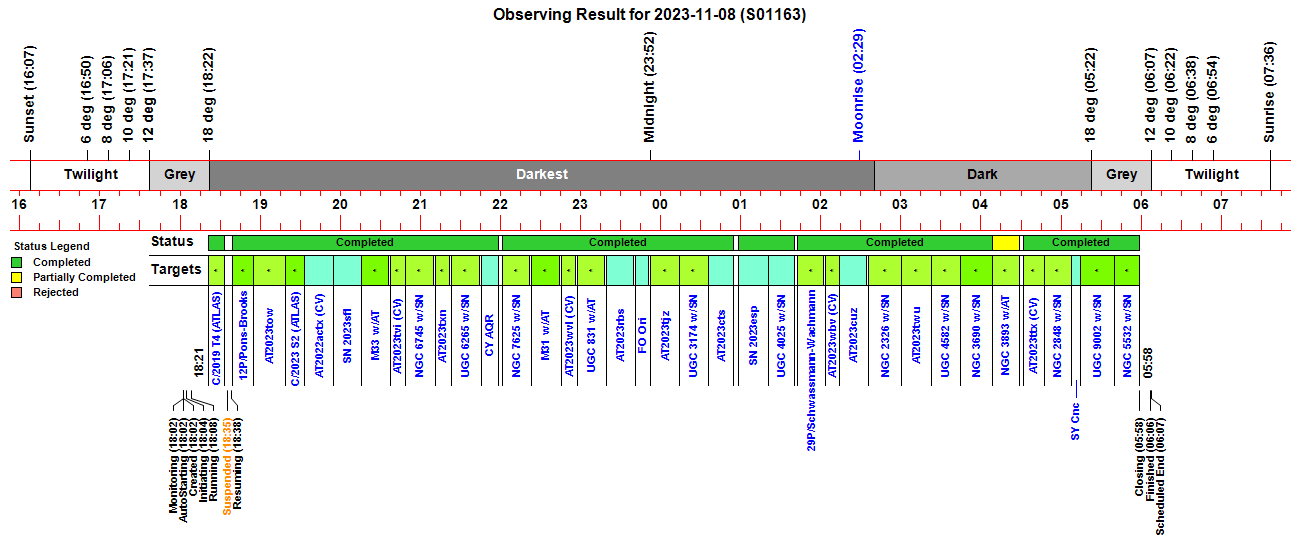

Observing Result

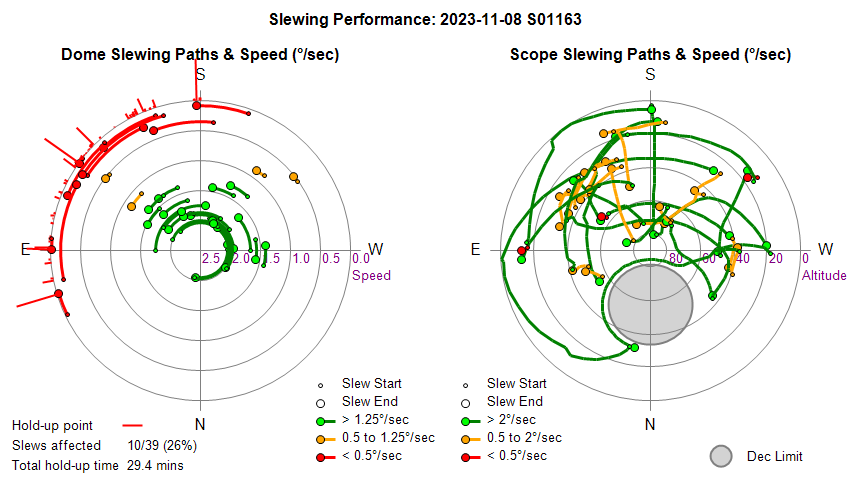

Dome & Scope Slewing Performance

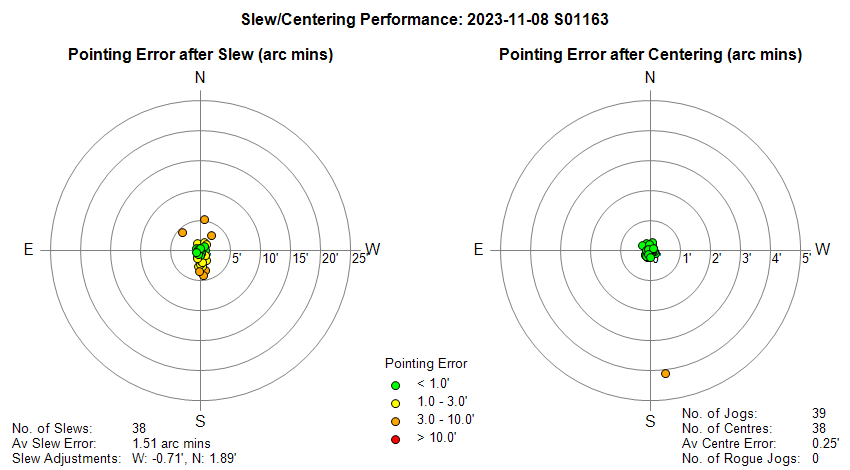

Slew/Centering Performance

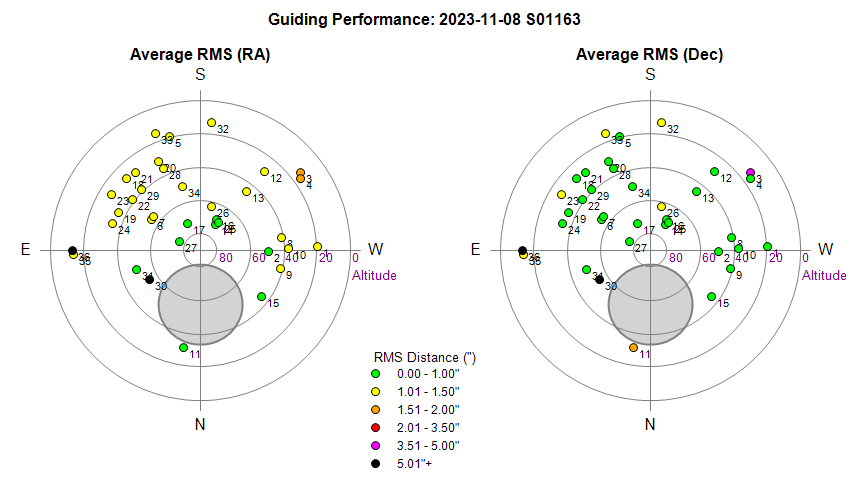

Guiding Performance

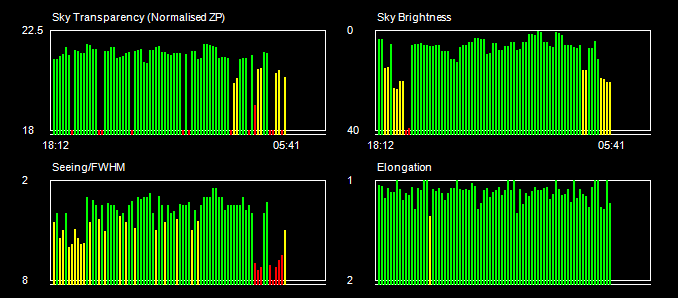

Sky Conditions (Locate Frames)

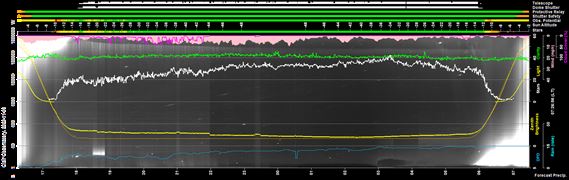

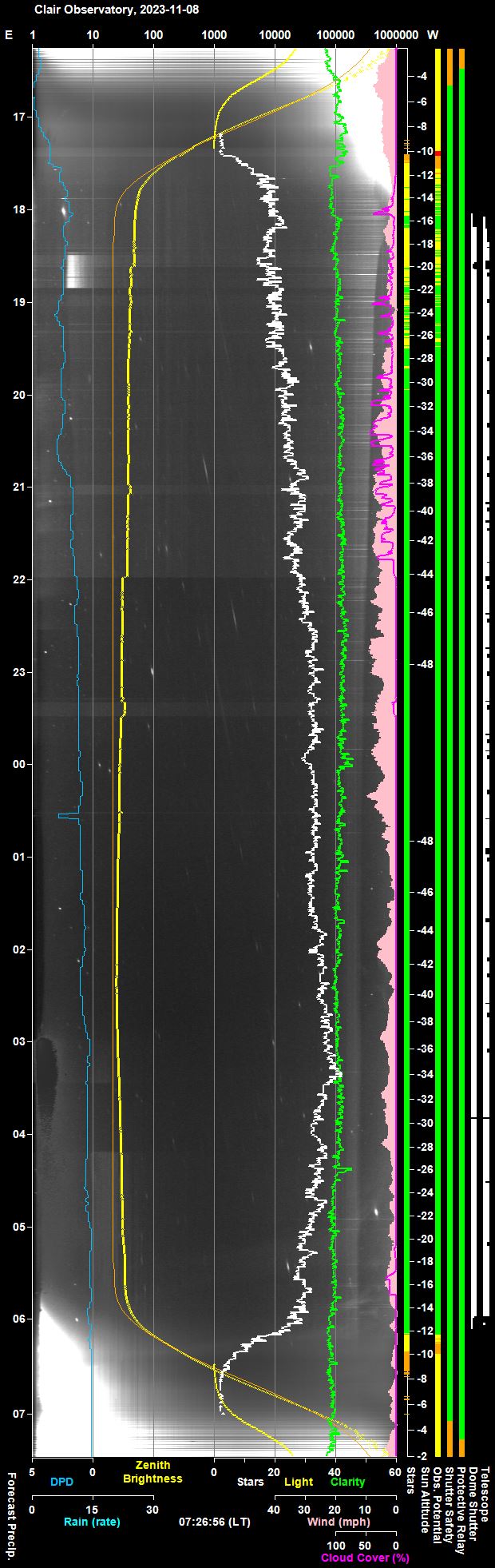

Night Sky Summary Plot Top axis: Sky Brightness at Zenith (in ADU/s) Lefthand axis: Local Time (hh LT). Righthand axis: Sun Altitude (degs)

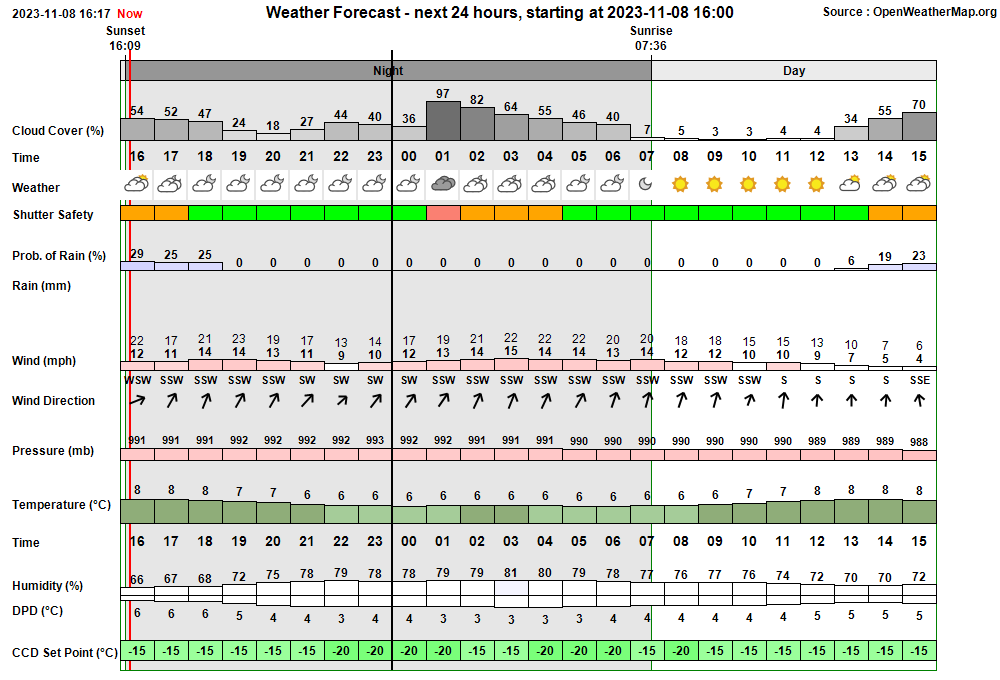

Actual Weather vs Pre-Session Weather Forecast

Session Event Log

Time     Event Detail 18:02:23 Session Monitoring AutoStart monitoring for Live Session opportunity between 18:02 & 05:27 18:02:25 Session AutoStarting Session autostarting (18:02) 18:02:44   CCDSoft Restarting CCDSoft being restarted (to set AutoSave No.) 18:02:57 Session Created Session Created (Live, 2023-11-08 S01163, ImageSaveNum: 1163001) 18:03:04   Scope Switched On Telescope Power has been switched on via UPB Powerbox. 18:04:46   Services Started Observatory Services started 18:04:53 Observatory (Auto) Observatory placed in Fully-Automated Mode 18:04:55 Session Pending Session pending (2023-11-08) 18:04:57 Session Initiating Session initiating (2023-11-08) 18:04:59   Plan Requested Observing Plan requested from AstroPlan (1.38.9) 18:06:20   Plan Loaded Observing Plan loaded to queue (Plan ID: 937) 18:06:40   Camera1 Connected SBIG Camera connected (set point -20°C) 18:07:17   Telescope Connected Telescope connected (TheSky6) 18:07:41 Session Equilibration Session ready to Open Dome 18:08:26   Dome Opened Dome opened (opening time 45s) 18:08:29 Session Running Session running 18:08:31   Queue Started Observing Queue started (37 targets selected) 18:08:34     Target Started (NrZen) Target started (Focus Field 21, HIP 103850) 18:08:46       Dome Unparked Dome unparked 18:13:04       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S) 18:15:30       Focusing Completed Foc1 AutoFocus Completed (Profile No 1, wide) 18:17:26       Focusing Completed Foc1 AutoFocus Completed (Profile No 1) 18:17:29       Focusing Started-Foc2 Foc2 Focusing Started (Secondary Scope, using ShCap) 18:19:28       Focusing Completed Foc2 AutoFocus Completed (Profile No 2, wide) 18:21:10       Focusing Completed Foc2 AutoFocus Completed (Profile No 2) 18:21:27     Target Completed (NrZen) Target completed (Focus Field 21, HIP 103850) 18:21:32     Target Started (1/37) Target started (1/37, C/2019 T4 (ATLAS)) 18:25:07       Focusing Skipped Foc1 focusing skipped - star is too dim (TCF-S) 18:33:34     Target Completed Target completed (1/37, C/2019 T4 (ATLAS)) 18:34:34       SoftSuspend Called Soft Suspend is called due to Deteriorating Conditions (too few stars) 18:34:37   Queue Paused Observing Queue pausing for Session Suspension 18:34:39 Session Suspending Session suspending 18:35:29   Dome Closed Dome closed (closing time 50s) 18:35:32 Session Suspended Session suspended 18:38:29 Session Resuming Session resuming 18:39:15   Dome Opened Dome opened (opening time 45s) 18:39:17 Session Running Session running 18:39:19   Queue Resumed Observing Queue resumed 18:39:22     Target Started (2/37) Target started (2/37, 12P/Pons-Brooks) 18:41:38       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S) 18:43:48       Focusing Completed Foc1 AutoFocus Completed (Profile No 3) 18:55:18     Target Completed Target completed (2/37, 12P/Pons-Brooks) 18:55:22     Target Started (3/37) Target started (3/37, AT2023tow) 18:58:41       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S) 19:00:53       Focusing Completed Foc1 AutoFocus Completed (Profile No 4) 19:18:43     Target Completed Target completed (3/37, AT2023tow) 19:18:47     Target Started (4/37) Target started (4/37, C/2023 S2 (ATLAS)) 19:22:31       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S) 19:24:43       Focusing Completed Foc1 AutoFocus Completed (Profile No 5) 19:33:02     Target Completed Target completed (4/37, C/2023 S2 (ATLAS)) 19:33:07     Target Started (5/37) Target started (5/37, AT2022actx (CV)) 19:36:36       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S) 19:38:55       Focusing Completed Foc1 AutoFocus Completed (Profile No 6) 19:54:45     Target Completed Target completed (5/37, AT2022actx (CV)) 19:54:49     Target Started (6/37) Target started (6/37, SN 2023sfl) 19:57:38       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S) 20:00:07       Focusing Completed Foc1 AutoFocus Completed (Profile No 7) 20:15:57     Target Completed Target completed (6/37, SN 2023sfl) 20:16:01     Target Started (7/37) Target started (7/37, M33 w/Nova M33 2023-11a?) 20:18:58       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S) 20:21:29       Focusing Completed Foc1 AutoFocus Completed (Profile No 8) 20:37:17     Target Completed Target completed (7/37, M33 w/Nova M33 2023-11a?) 20:37:21     Target Started (8/37) Target started (8/37, AT2023tvi (CV)) 20:40:36       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S) 20:42:47       Focusing Completed Foc1 AutoFocus Completed (Profile No 9) 20:48:47     Target Completed Target completed (8/37, AT2023tvi (CV)) 20:49:11     Target Started (9/37) Target started (9/37, NGC 6745 w/SN2023ucy) 20:52:02       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S) 20:54:07       Focusing Completed Foc1 AutoFocus Completed (Profile No 10) 21:10:00     Target Completed Target completed (9/37, NGC 6745 w/SN2023ucy) 21:11:31     Target Started (10/37) Target started (10/37, AT2023txn) 21:14:01       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S) 21:16:13       Focusing Completed Foc1 AutoFocus Completed (Profile No 11) 21:22:02     Target Completed Target completed (10/37, AT2023txn) 21:23:31     Target Started (11/37) Target started (11/37, UGC 6265 w/SN2023wcw) 21:27:47       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S) 21:28:38       Focusing Failed Foc1 focusing failed - star lost 21:45:20     Target Completed Target completed (11/37, UGC 6265 w/SN2023wcw) 21:45:31     Target Started (12/37) Target started (12/37, GCVS CY AQR) 21:49:21       Focusing Skipped Foc1 focusing skipped - star is too dim (TCF-S) 21:58:18     Target Completed Target completed (12/37, GCVS CY AQR) 22:01:32     Target Started (13/37) Target started (13/37, NGC 7625 w/SN2023vyl) 22:04:22       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S) 22:06:22       Focusing Completed Foc1 AutoFocus Completed (Profile No 13) 22:22:10     Target Completed Target completed (13/37, NGC 7625 w/SN2023vyl) 22:23:31     Target Started (14/37) Target started (14/37, M31 w/Nova M31 2023-05b?) 22:25:58       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S) 22:28:15       Focusing Completed Foc1 AutoFocus Completed (Profile No 14) 22:44:34     Target Completed Target completed (14/37, M31 w/Nova M31 2023-05b?) 22:45:31     Target Started (15/37) Target started (15/37, AT2023wvl (CV)) 22:49:06       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S) 22:51:17       Focusing Completed Foc1 AutoFocus Completed (Profile No 15) 22:57:22     Target Completed Target completed (15/37, AT2023wvl (CV)) 22:57:26     Target Started (16/37) Target started (16/37, UGC 831 w/AT2023wdd) 23:00:34       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S) 23:03:08       Focusing Completed Foc1 AutoFocus Completed (Profile No 16) 23:18:57     Target Completed Target completed (16/37, UGC 831 w/AT2023wdd) 23:19:31     Target Started (17/37) Target started (17/37, AT2023rbs) 23:22:09       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S) 23:24:35       Focusing Completed Foc1 AutoFocus Completed (Profile No 17) 23:40:23     Target Completed Target completed (17/37, AT2023rbs) 23:41:31     Target Started (18/37) Target started (18/37, GCVS FO Ori) 23:44:45       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S) 23:46:57       Focusing Completed Foc1 AutoFocus Completed (Profile No 18) 23:51:27     Target Completed Target completed (18/37, GCVS FO Ori) 23:52:09     Target Started (19/37) Target started (19/37, AT2023tjz) 23:54:59       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S) 23:57:25       Focusing Completed Foc1 AutoFocus Completed (Profile No 19) 00:14:01     Target Completed Target completed (19/37, AT2023tjz) 00:14:05     Target Started (20/37) Target started (20/37, UGC 3174 w/SN2023mut) 00:17:20       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S) 00:19:45       Focusing Completed Foc1 AutoFocus Completed (Profile No 20) 00:35:34     Target Completed Target completed (20/37, UGC 3174 w/SN2023mut) 00:36:11     Target Started (21/37) Target started (21/37, AT2023cts) 00:38:45       Focusing Skipped Foc1 focusing skipped - star is too dim (TCF-S) 00:54:43     Target Completed Target completed (21/37, AT2023cts) 00:58:31     Target Started (22/37) Target started (22/37, SN 2023esp) 01:01:10       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S) 01:03:37       Focusing Completed Foc1 AutoFocus Completed (Profile No 21) 01:20:36     Target Completed Target completed (22/37, SN 2023esp) 01:20:40     Target Started (23/37) Target started (23/37, UGC 4025 w/SN2023boc) 01:24:08       Focusing Skipped Foc1 focusing skipped - star is too dim (TCF-S) 01:40:39     Target Completed Target completed (23/37, UGC 4025 w/SN2023boc) 01:42:51     Target Started (24/37) Target started (24/37, 29P/Schwassmann-Wachmann) 01:46:57     Dome Slew Dome slew held up at Az. 125.7° (Delay 237s) 02:03:08     Target Completed Target completed (24/37, 29P/Schwassmann-Wachmann) 02:03:12     Target Started (25/37) Target started (25/37, AT2023wbv (CV)) 02:06:09       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S) 02:08:07       Focusing Completed Foc1 AutoFocus Completed (Profile No 22) 02:13:56     Target Completed Target completed (25/37, AT2023wbv (CV)) 02:14:00     Target Started (26/37) Target started (26/37, AT2023cuz) 02:16:06       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S) 02:18:27       Focusing Completed Foc1 AutoFocus Completed (Profile No 23) 02:35:05     Target Completed Target completed (26/37, AT2023cuz) 02:35:47     Target Started (27/37) Target started (27/37, NGC 2326 w/SN2023pgb) 02:39:53     Dome Slew Dome slew held up at Az. 178.5° (Delay 227s) 02:42:07       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S) 02:44:34       Focusing Completed Foc1 AutoFocus Completed (Profile No 24) 03:00:34     Target Completed Target completed (27/37, NGC 2326 w/SN2023pgb) 03:00:39     Target Started (28/37) Target started (28/37, AT2023twu) 03:03:04     Dome Slew Dome slew held up at Az. 123.7, 126.5, 127.6, 128.5, 129.5, 130.4° (Total delay 108s) 03:05:13       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S) 03:07:23       Focusing Completed Foc1 AutoFocus Completed (Profile No 25) 03:23:12     Target Completed Target completed (28/37, AT2023twu) 03:23:16     Target Started (29/37) Target started (29/37, UGC 4582 w/SN2023twg) 03:26:39     Dome Slew Dome slew held up at Az. 157.6, 155.1, 154.6, 153.4, 152.4, 151.5° (Total delay 170s) 03:44:29     Target Completed Target completed (29/37, UGC 4582 w/SN2023twg) 03:44:33     Target Started (30/37) Target started (30/37, NGC 3690 w/SN2023wrk) 03:48:42     Dome Slew Dome slew held up at Az. 138.2, 134.7, 133.7, 131.6, 127.3, 126.5, 125.4, 117.5, 116.6, 112.6° (Total delay 202s) 03:52:51       Dome Unparked Dome unparked 04:08:43     Target Completed Target completed (30/37, NGC 3690 w/SN2023wrk) 04:08:47     Target Started (31/37) Target started (31/37, NGC 3893 w/AT2023uhx) 04:12:53     Dome Slew Dome slew held up at Az. 73.1° (Delay 223s) 04:28:50     Target Completed Target partially completed (31/37, NGC 3893 w/AT2023uhx) 04:28:54     Target Started (32/37) Target started (32/37, NGC 4490) 04:30:43       Focusing Skipped Foc1 focusing skipped - star is too dim (TCF-S) 04:31:08     Target Failed (32/37) Target failed due to (32/37, NGC 4490) 04:32:07     Target Started (33/37) Target started (33/37, AT2023ttx (CV)) 04:36:13     Dome Slew Dome slew held up at Az. 78.5, 79.4, 85.2, 86.5, 93.5, 94.7, 95.4, 100.5, 102.3, 103.3, 104.4, 110.3, 112.3, 117.5° (Total delay 195s) 04:47:24     Target Completed Target completed (33/37, AT2023ttx (CV)) 04:47:29     Target Started (34/37) Target started (34/37, NGC 2848 w/SN2023usp) 04:48:50     Dome Slew Dome slew held up at Az. 180.1, 179.7, 178.2, 177.5, 162.1, 160.4° (Total delay 49s) 05:07:55     Target Completed Target completed (34/37, NGC 2848 w/SN2023usp) 05:07:59     Target Started (35/37) Target started (35/37, GCVS SY Cnc) 05:10:43       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S) 05:13:07       Focusing Completed Foc1 AutoFocus Completed (Profile No 26) 05:14:34     Target Completed Target completed (35/37, GCVS SY Cnc) 05:14:38     Target Started (36/37) Target started (36/37, UGC 9002 w/SN2023pls) 05:18:45     Dome Slew Dome slew held up at Az. 162.5, 160.4, 158.4, 154.1, 153.7, 151.5, 145.2, 134.2, 133.6, 132.3, 127.5, 125.3, 124.5, 123.6° (Total delay 186s) 05:22:32       Dome Unparked Dome unparked 05:39:45     Target Completed Target completed (36/37, UGC 9002 w/SN2023pls) 05:39:49     Target Started (37/37) Target started (37/37, NGC 5532 w/SN2023omo) 05:42:55       Focusing Skipped Foc1 focusing skipped - star is too dim (TCF-S) 05:58:47     Target Completed Target completed (37/37, NGC 5532 w/SN2023omo) 05:58:50   Queue Completed Job Queue completed 05:58:51 Session Closing Session closing 05:59:46   Dome Closed Dome closed (closing time 50s) 06:02:53     Dome Slew Dome slew held up at Az. 91.0, 90.5° (Total delay 169s) 06:02:55   Dome Parked Dome parked (parking time 182s), Az: 90.2 deg 06:04:13   Telescope Parked Telescope parked (parking time 75s) 06:04:27   Telescope State Handbox reads 'Scope parked Turn scope off.' 06:04:50   Telescope Switched Off Telescope Power has been switched off via UPB Switch. 06:06:14   Services Stopped Night Services stopped 06:06:17 Session Housekeeping Session Housekeeping started (Create Fits Summary, Transfer Files) 06:06:47 Session Finished Session Finished

Session Alerts & Alarms

Time     Type       Name Detail 01:46:57 Red Alert Dome Slew Dome slew held up at Az. 125.7° (Delay 237s) 01:47:06 Yellow Alert Dome Discrepency Difference between Dome Az and Telescope Az is > 8 deg (29P/Schwassmann-Wachmann) 01:47:08 Yellow Alert Dome Discrepency Difference between Dome Az and Slave Az is > 1 deg (29P/Schwassmann-Wachmann) 02:39:53 Red Alert Dome Slew Dome slew held up at Az. 178.5° (Delay 227s) 02:40:01 Yellow Alert Dome Discrepency Difference between Dome Az and Telescope Az is > 8 deg (NGC 2326) 02:40:03 Yellow Alert Dome Discrepency Difference between Dome Az and Slave Az is > 1 deg (NGC 2326) 03:01:45 Yellow Alert Anomalous Dome Slew Dome slew resumed at Az 123.7° (T+60.2s) 03:03:04 Yellow Alert Dome Slew Dome slew held up at Az. 123.7, 126.5, 127.6, 128.5, 129.5, 130.4° (Total delay 108s) 03:26:39 Red Alert Dome Slew Dome slew held up at Az. 157.6, 155.1, 154.6, 153.4, 152.4, 151.5° (Total delay 170s) 03:48:42 Red Alert Dome Slew Dome slew held up at Az. 138.2, 134.7, 133.7, 131.6, 127.3, 126.5, 125.4, 117.5, 116.6, 112.6° (Total delay 202s) 03:48:50 Yellow Alert Dome Discrepency Difference between Dome Az and Telescope Az is > 8 deg (NGC 3690) 03:48:52 Yellow Alert Dome Discrepency Difference between Dome Az and Slave Az is > 1 deg (NGC 3690) 04:12:53 Red Alert Dome Slew Dome slew held up at Az. 73.1° (Delay 223s) 04:13:02 Yellow Alert Dome Discrepency Difference between Dome Az and Slave Az is > 1 deg (NGC 3893) 04:36:13 Red Alert Dome Slew Dome slew held up at Az. 78.5, 79.4, 85.2, 86.5, 93.5, 94.7, 95.4, 100.5, 102.3, 103.3, 104.4, 110.3, 112.3, 117.5° (Total delay 195s) 04:36:21 Yellow Alert Dome Discrepency Difference between Dome Az and Telescope Az is > 8 deg (AT2023ttx) 04:36:23 Yellow Alert Dome Discrepency Difference between Dome Az and Slave Az is > 1 deg (AT2023ttx) 04:48:50 Yellow Alert Dome Slew Dome slew held up at Az. 180.1, 179.7, 178.2, 177.5, 162.1, 160.4° (Total delay 49s) 05:18:45 Red Alert Dome Slew Dome slew held up at Az. 162.5, 160.4, 158.4, 154.1, 153.7, 151.5, 145.2, 134.2, 133.6, 132.3, 127.5, 125.3, 124.5, 123.6° (Total delay 186s) 05:18:53 Yellow Alert Dome Discrepency Difference between Dome Az and Telescope Az is > 8 deg (UGC 9002) 05:18:55 Yellow Alert Dome Discrepency Difference between Dome Az and Slave Az is > 1 deg (UGC 9002) 05:40:20 Yellow Alert Dome Dome position has been static for more than 5 mins 06:02:53 Red Alert Dome Slew Dome slew held up at Az. 91.0, 90.5° (Total delay 169s) 06:02:56 Red Alert Dome Position Issue Reported park angle (90.2 degs) shows a discrepency of 0.2°

Back to Top

Operational Issues (2023-11-08, S1163)

• Critical Issues (0)
• Major Issues (0)
• Minor Issues (4)
• Small Defects (1)
• Continuous Improvement (1)


[ Prev | Next ]

Critical Issues

• None

Major Issues

• None

Minor Issues

• Dome Slewing Performance suddenly degraded part way through session. Slew performance which had been very good in first part of session with no hold-ups or delays, suddenly worsened with slew to Target (29/P S.. ) and following slews with several encountering delays of 180-230s  (See Fig 1). Dome was unable to park at Az 90 deg (the slew gave up at 90.s deg).  Daytime investigation the following morning showed that the bush-fix to the loose drive wheel had failed.  Bush-fix was re-done before the next session, whilst wait for a replacement drive wheel connector continues. Replacement drive wheel was eventually installed in the Observatory on 2023-11-17 (See Pulsar Dome - Replacement Rotation Drive Wheel, 2023-11-17).
  Fixed 2023-11-09 (Pulsar Dome)

• JPG Pictures of Focus Frames are all missing a box & label around the Focus Star. Example is Target 10/37 (AT2023txn). Need to check on which session/which AstroMain version this problem first started, as the Focus boxes were at one stage being drawn ok.   Boxes were being drawn ok in Session S1157 (2023-10-16, AstroMain 3.63) but weren't being drawn in S1158 (2023-10-22, AstroMain 3.63.2) and later. This was around the time that ConvertFitsToJPG() routine was being extended to create 'Detail'(125% sized & cropped) pictures. (AstroMain 3.63.1).   AT2023txn was replayed  post-session (excluding guiding) using AdHoc Observing  and again the Focus Box wasn't drawn confirming the issue that was seen in the live session.
  Fixed 2023-11-09 (AstroMain 3.64.3)

• ROI Guide region drawn on JPG Picture for of Cam2 Guide Reference for AT 2023tow is incorrect.  Height of ROI rectangle drawn on the Guide Reference JPG Picture for Target 3/37 (AT2023tow) is shortened and looks like the ROI region that would be calculated and used for a faster moving Comet. It is possibly relevant that the preceeding target (2/37, 12P/Pons-Brooks) was a comet though not particularly fast moving (Ra 48.34 arcsec/hr, Dec -18.41 arcsec/hr), and also followed by a comet (4/37, C/2023 S2 (ATLAS)) moving at Ra 192.95 arcsec/hr, Dec 15.83 arcsec/hr. ConvertFitsToJPG() routine simply draws the RoiBox that is it sent.  In the case of a Guide Reference Frame this RoiBox is sent from StartPHD2Guiding() routine (via a call to SaveGuideImageToJPG() routine). The RoiBox is formed from a ROI region. For gGuideScope = 2 (ie TS80/178MC) the border left, right, top, bottom are set to 0.11.  Top/Bottom borders are set to 0.4 (give a shortened height) if RateOfDecMotion < - 200 or RateOfDecMotion > 200. RateOfRaMotion is currently hard-coded to 0 and therefore the left/right borders are currently not overwritten, but RateOfDecMotion is supplied as a parameter to StartPHD2Guiding, which is itself a parameter in the calling routine (StartGuider() ). This is called by OB.StartTargetGuiding() routine which calls Guider.StartGuider() with the RateOfDecMotion value of T.DecRate.  T.Dec is set in LookupKeyTargetInfo () and LookupRaAndDecRates() routines, but T.DecRate is only set to a non-zero value if T.ObjectType is a "Comet", "Asteroid" or "Minor Planet", otherwise it is set to 0 (or 0 if there is an exception getting a rate from TheSky6). "AT2023tow's ObjectType is "Nova" and it it impossible to see how DecRate was set to a number greater than +/- 200 or otherwise how the Top Border could have been set to 0.4 for this target.  Issue is put down as unexplainable glitch, and propose to monitor for future.  Tracing added to AstroMain 3.64.3 directly ahead of call to Guider.StartGuider and upon entering the StartPHD2Guiding() routine. Closed for now.
  Closed 2023-11-09 (AstroMain 3.64.3) - Closed for now, but look at trace messages in event of a future occurance.

• JPG Pictures of Focus Frame and Main Frames for several targets are missing the expected Target Circle/Ellipses. Around 25-30% of targets are missing target circles and/or ellipses from Main Frames.  Where they are missing from the Main Frames they are always also missing from the preceeding Focus Frame pictures. Targets circles/ellipses are drawn ok on Locate and Cam2 Reference Frames for these same targets.  Example is Target 10/37 (AT2023txn). This was replayed post-session (excluding guiding) using AdHoc Observing and the target circle was drawn ok on Focus Frame & Main Frame JPG pictures (unlike the live session where the target circle wasn't drawn).  The issue didn't effect the following session (S1164, 2023-11-09) and it is possible that the fix for the missing Focus Star Boxes somehow also resolved the occasionally missing Target Circle/Ellipses problem. Even so it is still a mystery while the problem only affected the JPG images from certain targets.  Propose to monitor the next few sessions to see if the issue has gone or still occasionally occurs.   A similar case happened in session S1166 (2023-11-12, AT2023wvl) after which trace message added to AstroMain 3.64.6 in order to understands the circumstances when the issue next arises.  Ticket closed after review 2024-03-25 as issue hasn't occured in last 3 months and seems to have been resolved. Any new future issues with Target Circle drawing will be raised as new  tickets if/when they occur.
  Likely resolved, closed 2024-03-25 (AstroMain 3.64.6)

Small Defects

• Character space is missing in the description of 'Actual Start' on Target Info Chart. A character space is missing between the 'Date/Time' and the '(Local, BST)' parts of the description (e.g.  "Actual Start:   2023-10-17 04:31(Local, BST)" ).
  Fixed 2023-11-09 (AstroMain 3.64.3)

Continuous Improvement

• Add a 'JPGS' Folder Link to AstroMain's Observing/OnTheFly tab.  This is for convenience when replaying target imaging from an earlier live session.
  Done 2023-11-11 (AstroMain 3.64.6)
