David's Astronomy Pages Notes - Session 1170 (2023-12-01)

Notes (S1169)

Notes Main

Home Page

Notes (S1171)

	Session Aims & Highlights
	- Observing Result  - Night Summary Plot  - Session Event Log
	Operational Issues
	- Critical Issues (0),  Major Issues (0),  Minor Issues (1),  Small Defects (4),  Continuous Improvement (3)
	Images from 2023-12-01 >>

Session Aims & Highlights (2023-12-01)

Main aims

1. Targets.  Acquire images of a selection of variable stars, nearby stars, comets & deep sky targets as allowed by sky conditions.
2. Dome Slewing. Check Dome Slewing performance following issues in last session and after remedial fixes earlier in the day.
3. 12P/Pons-Brooks. Acquire images of Comet 12P/Pons-Brooks which has been undergoing an outburst.
4. UGCA and Herschel Objects. Acquire images of a number of UGCA and Herschel Targets in Cetus, Eridanus.

 Equipment & Software

• 12" LX200 and ST-10XME
• 80mm APO and ZWO ASI 178MC
• CCDApp2, TheSky6, CCDSoft5, DeviceHub 6.6.1.1,  MeadeGeneric 1.3.5.414, UPB 1.5, ASCOM 6.6,  Pulsar Dome Firmware 1.51 & Driver 6.3.10
• Pegasus UPB & Motor Focus, TCF-S
• SharpCap 3.2, PHD2  2.6.11dev4, Siril 1.0.6, deCONZ 1.18.2, ASCOM 6.6 SP1

• AstroMain 3.64.9, AstroPlan 1.39.1,  AstroShCap 1.3.15, AstroGuard 1.10.2
  AstroVOE 1.13  AstroSN 1.10.2,  AstroProtect 1.7,  AstroMove 1.12.7
  (AstroWeather 1.23, AstroAllSky 3.19.7,  AstroObsCam 1.11.4, AstroLaunch 1.11.1

Highlights

• Targets. 41/46 planned targets observations were completed, with 1 other target partially completed. One target failed due to a flaw in the target's specification /cancelled due to cloud (but was acquired later as a ToO target.) 3 other targets missed there planned time slots as 3 ToO Targets were inserted into the night's observing queue at around 23:00.
•  Dome Slews. Dome slews worked perfectly following earlier remedial fixes.
• 12P/Pons-Brooks. Images of Comet 12P/Pons-Brooks were successfully acquired.
• UGCA and Herschel Objects. Images were acquired for a number of UGCA & Herschel Targets but had to be inserted as ToO targets.
•  Dome Parking.  Dome wasn't parked at correct physical Az at the end of session, lying at a physical Az 80.4° instead of the required physical Az 90.0°. Because of this the Dome didn't automatically begin re-charging, and had to be rotated to correct position and resynced to Park Az 90.

Notes:

• .


Summary Plots & Logs

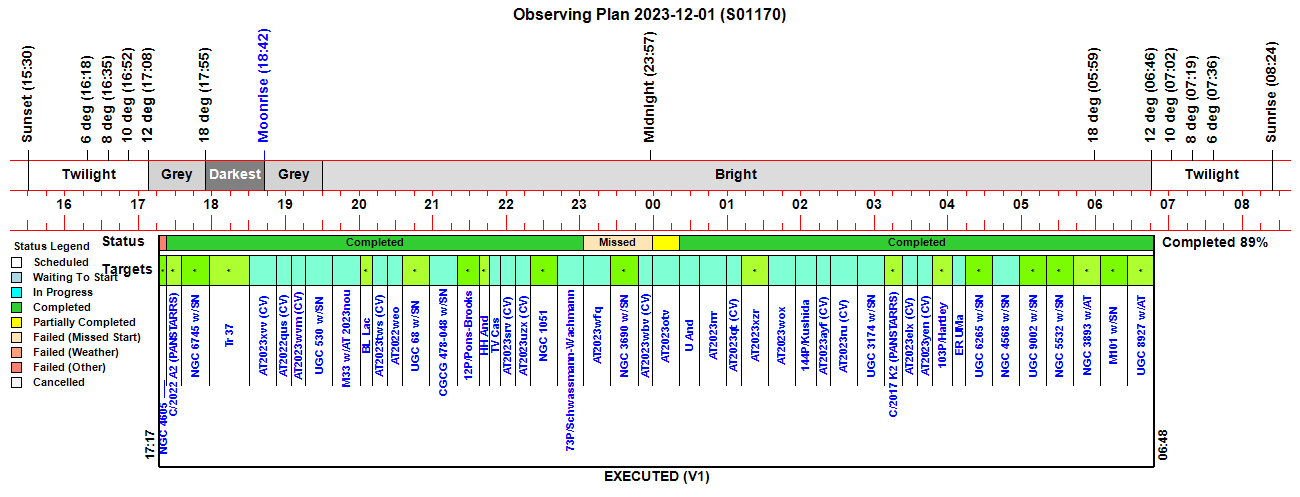

Observing Plan

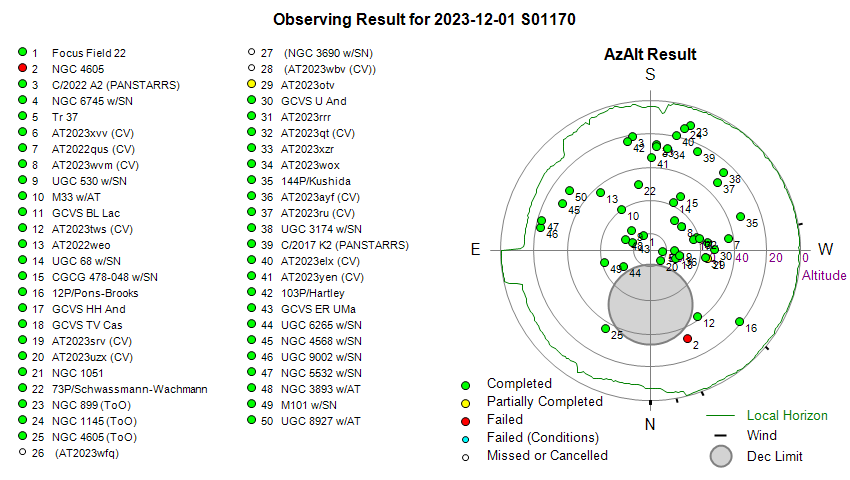

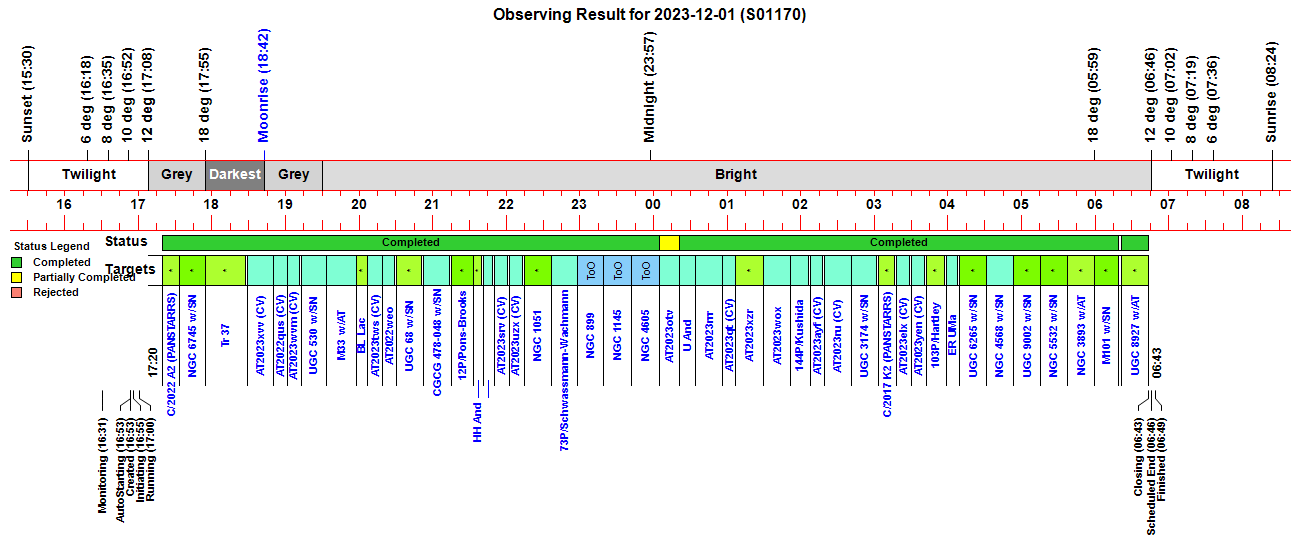

Observing Result

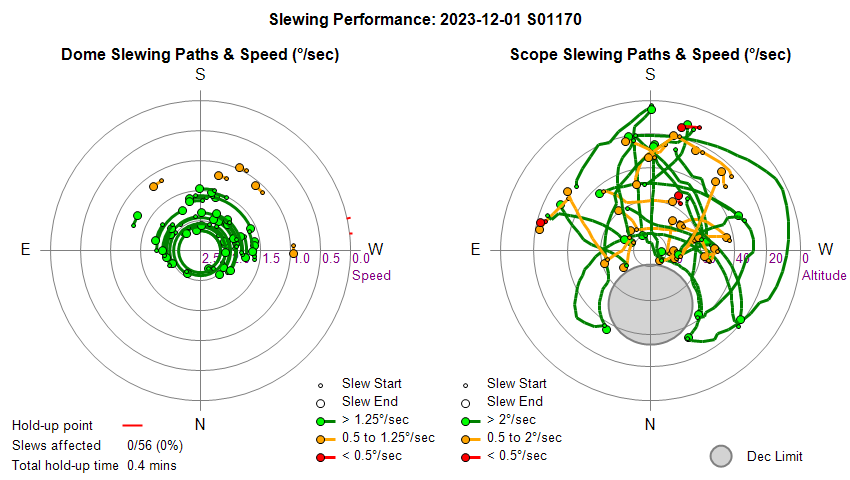

Dome & Scope Slewing Performance

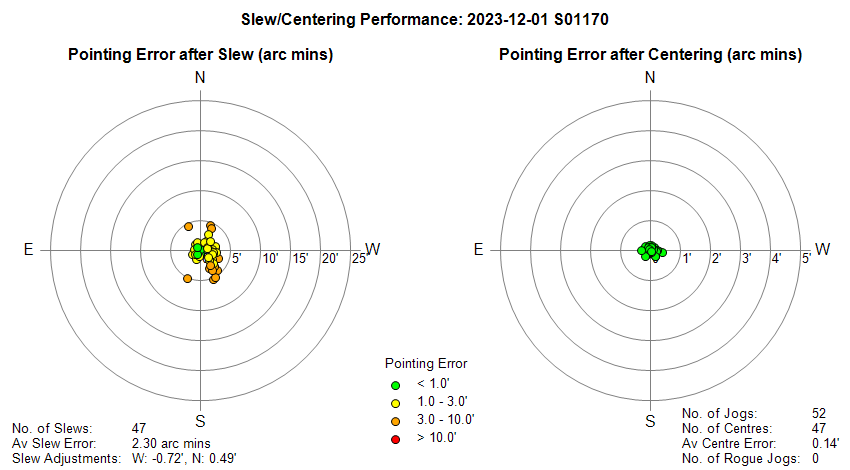

Slew/Centering Performance

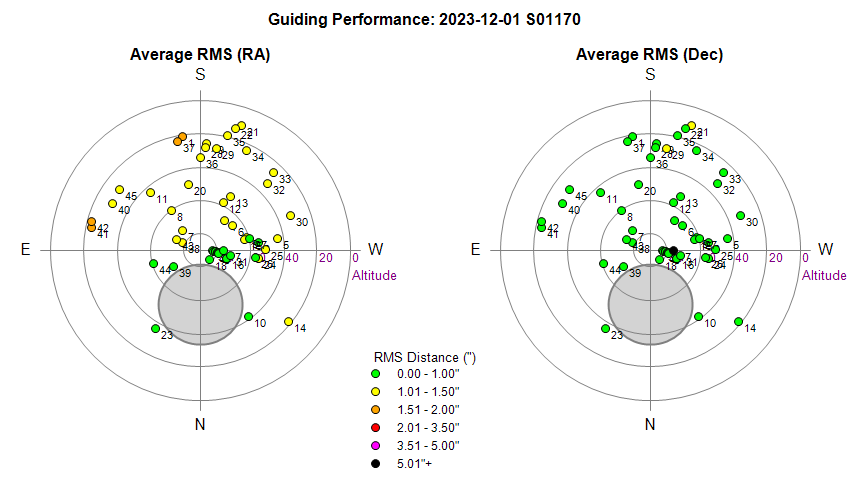

Guiding Performance

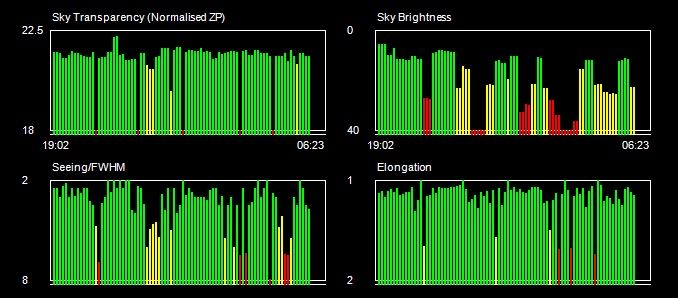

Sky Conditions (Locate Frames)

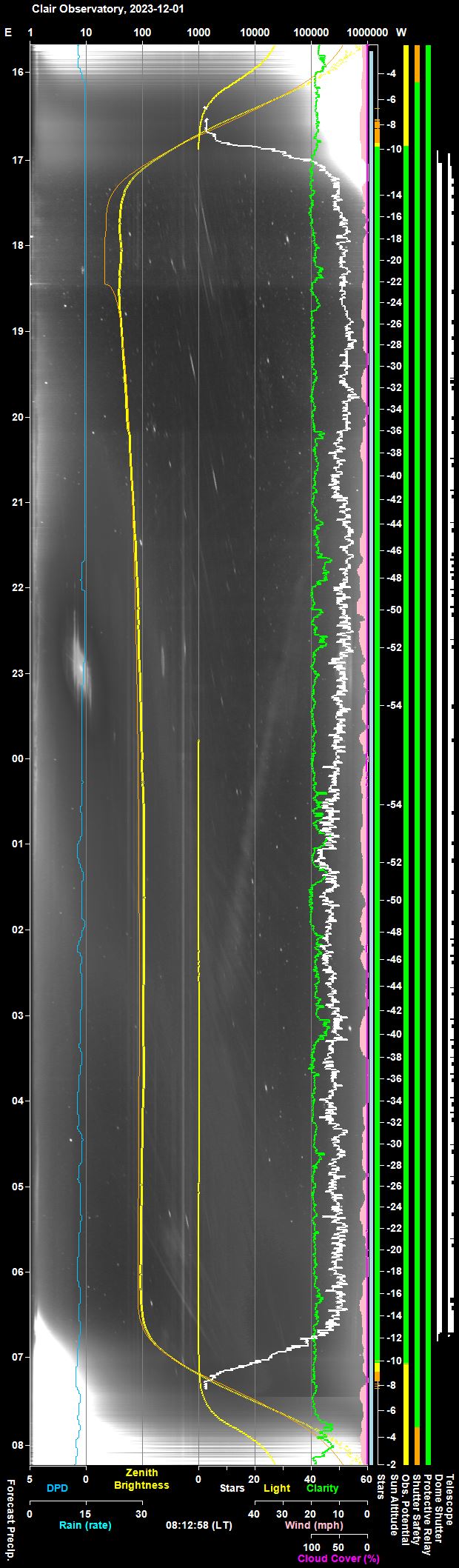

Night Sky Summary Plot Top axis: Sky Brightness at Zenith (in ADU/s) Lefthand axis: Local Time (hh LT). Righthand axis: Sun Altitude (degs)

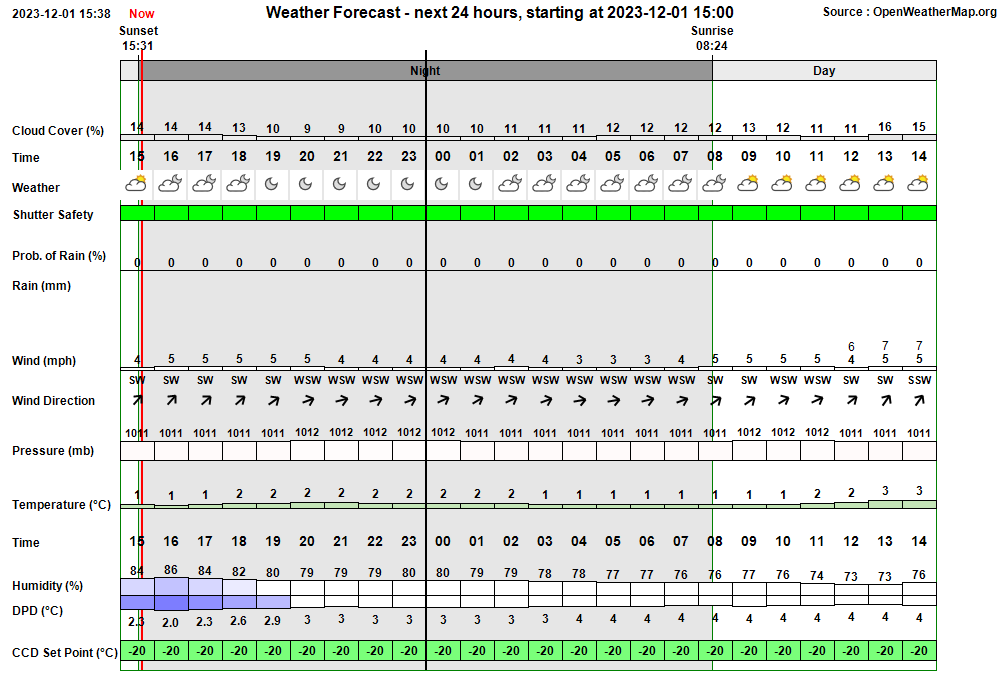

Actual Weather vs Pre-Session Weather Forecast

Session Event Log

Time     Event Detail 16:31:14 Session Monitoring AutoStart monitoring for Live Session opportunity between 16:38 & 06:06 16:31:17   AutoStart Waiting AutoStart waiting till earliest start time at 16:38 16:38:43   AutoStart Delayed Session delayed due to too few stars 16:53:20 Session AutoStarting Session autostarting (16:53) 16:53:30   CCDSoft Restarting CCDSoft being restarted (to set AutoSave No.) 16:53:44 Session Created Session Created (Live, 2023-12-01 S01170, ImageSaveNum: 1170001) 16:53:50   Scope Switched On Telescope Power has been switched on via UPB Powerbox. 16:55:35   Services Started Observatory Services started 16:55:43 Observatory (Auto) Observatory placed in Fully-Automated Mode 16:55:45 Session Pending Session pending (2023-12-01) 16:55:47 Session Initiating Session initiating (2023-12-01) 16:55:49   Plan Requested Observing Plan requested from AstroPlan (1.39) 16:58:09   Plan Loaded Observing Plan loaded to queue (Plan ID: 944) 16:58:30   Camera1 Connected SBIG Camera connected (Set point -25°C) 16:59:07   Telescope Connected Telescope connected (TheSky6) 16:59:31 Session Equilibration Session ready to Open Dome 17:00:37   Dome Opened Dome opened (opening time 65s) 17:00:39 Session Running Session running 17:00:41   Queue Started Observing Queue started (46 targets selected) 17:00:43     Target Started (NrZen) Target started (Focus Field 22, HIP 108888) 17:00:56       Dome Unparked Dome unparked 17:04:43       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S) 17:07:24       Focusing Completed Foc1 AutoFocus Completed (Profile No 1, wide) 17:09:19       Focusing Completed Foc1 AutoFocus Completed (Profile No 1) 17:09:21       Focusing Started-Foc2 Foc2 Focusing Started (Secondary Scope, using ShCap) 17:11:33       Focusing Completed Foc2 AutoFocus Completed (Profile No 2, wide) 17:13:17       Focusing Completed Foc2 AutoFocus Completed (Profile No 2) 17:13:35     Target Completed (NrZen) Target completed (Focus Field 22, HIP 108888) 17:13:39     Target Started (1/46) Target started (1/46, NGC 4605) 17:17:02       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S) 17:19:28       Focusing Completed Foc1 AutoFocus Completed (Profile No 3) 17:20:00     Target Failed (1/46) Target failed due to (1/46, NGC 4605) 17:20:04     Target Started (2/46) Target started (2/46, C/2022 A2 (PANSTARRS)) 17:25:10       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S) 17:27:38       Focusing Completed Foc1 AutoFocus Completed (Profile No 4) 17:33:38     Target Completed Target completed (2/46, C/2022 A2 (PANSTARRS)) 17:33:42     Target Started (3/46) Target started (3/46, NGC 6745 w/SN2023ucy) 17:36:50       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S) 17:38:58       Focusing Completed Foc1 AutoFocus Completed (Profile No 5) 17:55:09     Target Completed Target completed (3/46, NGC 6745 w/SN2023ucy) 17:55:14     Target Started (4/46) Target started (4/46, Tr 37) 17:58:14       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S) 18:00:17       Focusing Completed Foc1 AutoFocus Completed (Profile No 6) 18:28:39     Target Completed Target completed (4/46, Tr 37) 18:28:43     Target Started (5/46) Target started (5/46, AT2023xvv (CV)) 18:31:38       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S) 18:34:12       Focusing Completed Foc1 AutoFocus Completed (Profile No 7) 18:50:22     Target Completed Target completed (5/46, AT2023xvv (CV)) 18:50:26     Target Started (6/46) Target started (6/46, AT2022qus (CV)) 18:53:14       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S) 18:55:48       Focusing Completed Foc1 AutoFocus Completed (Profile No 8) 19:01:37     Target Completed Target completed (6/46, AT2022qus (CV)) 19:01:41     Target Started (7/46) Target started (7/46, AT2023wvm (CV)) 19:04:22       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S) 19:06:51       Focusing Completed Foc1 AutoFocus Completed (Profile No 9) 19:12:39     Target Completed Target completed (7/46, AT2023wvm (CV)) 19:12:43     Target Started (8/46) Target started (8/46, UGC 530 w/SN2023yma) 19:15:17       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S) 19:17:13       Focusing Completed Foc1 AutoFocus Completed (Profile No 10) 19:33:12     Target Completed Target completed (8/46, UGC 530 w/SN2023yma) 19:33:47     Target Started (9/46) Target started (9/46, M33 w/AT2023nou) 19:39:28       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S) 19:41:58       Focusing Completed Foc1 AutoFocus Completed (Profile No 11) 19:57:45     Target Completed Target completed (9/46, M33 w/AT2023nou) 19:57:49     Target Started (10/46) Target started (10/46, GCVS BL Lac) 20:00:35       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S) 20:02:44       Focusing Completed Foc1 AutoFocus Completed (Profile No 12) 20:06:38     Target Completed Target completed (10/46, GCVS BL Lac) 20:06:42     Target Started (11/46) Target started (11/46, AT2023tws (CV)) 20:10:58       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S) 20:13:04       Focusing Completed Foc1 AutoFocus Completed (Profile No 13) 20:19:18     Target Completed Target completed (11/46, AT2023tws (CV)) 20:19:22     Target Started (12/46) Target started (12/46, AT2022weo) 20:23:33       Focusing Skipped Foc1 focusing skipped - star is too dim (TCF-S) 20:29:27     Target Completed Target completed (12/46, AT2022weo) 20:30:44     Target Started (13/46) Target started (13/46, UGC 68 w/SN2023xqn) 20:33:36       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S) 20:36:01       Focusing Completed Foc1 AutoFocus Completed (Profile No 14) 20:51:49     Target Completed Target completed (13/46, UGC 68 w/SN2023xqn) 20:52:44     Target Started (14/46) Target started (14/46, CGCG 478-048 w/SN2022xzm) 20:55:47       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S) 20:57:57       Focusing Completed Foc1 AutoFocus Completed (Profile No 15) 21:14:35     Target Completed Target completed (14/46, CGCG 478-048 w/SN2022xzm) 21:15:04     Target Started (15/46) Target started (15/46, 12P/Pons-Brooks) 21:19:05       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S) 21:21:30       Focusing Completed Foc1 AutoFocus Completed (Profile No 16) 21:33:10     Target Completed Target completed (15/46, 12P/Pons-Brooks) 21:33:14     Target Started (16/46) Target started (16/46, GCVS HH And) 21:35:59       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S) 21:38:09       Focusing Completed Foc1 AutoFocus Completed (Profile No 17) 21:40:09     Target Completed Target completed (16/46, GCVS HH And) 21:41:34     Target Started (17/46) Target started (17/46, GCVS TV Cas) 21:44:29       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S) 21:46:25       Focusing Completed Foc1 AutoFocus Completed (Profile No 18) 21:48:51     Target Completed Target completed (17/46, GCVS TV Cas) 21:50:21     Target Started (18/46) Target started (18/46, AT2023srv (CV)) 21:53:08       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S) 21:55:03       Focusing Completed Foc1 AutoFocus Completed (Profile No 19) 22:01:31     Target Completed Target completed (18/46, AT2023srv (CV)) 22:02:21     Target Started (19/46) Target started (19/46, AT2023uzx (CV)) 22:05:25       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S) 22:07:21       Focusing Completed Foc1 AutoFocus Completed (Profile No 20) 22:13:09     Target Completed Target completed (19/46, AT2023uzx (CV)) 22:14:41     Target Started (20/46) Target started (20/46, NGC 1051) 22:18:31       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S) 22:20:55       Focusing Completed Foc1 AutoFocus Completed (Profile No 21) 22:36:46     Target Completed Target completed (20/46, NGC 1051) 22:37:01     Target Started (21/46) Target started (21/46, 73P/Schwassmann-Wachmann) 22:41:00       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S) 22:43:11       Focusing Completed Foc1 AutoFocus Completed (Profile No 22) 22:57:50     Target Completed Target completed (21/46, 73P/Schwassmann-Wachmann) 22:57:54     Target Started (22/47) Target started (22/47, NGC 899, ToO) 23:02:42       Focusing Skipped Foc1 focusing skipped - star is lost (TCF-S) 23:19:17     Target Completed Target completed (22/47, NGC 899, ToO) 23:19:21     Target Started (23/48) Target started (23/48, NGC 1145, ToO) 23:23:09       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S) 23:25:33       Focusing Completed Foc1 AutoFocus Completed (Profile No 23) 23:41:44     Target Completed Target completed (23/48, NGC 1145, ToO) 23:41:48     Target Started (24/49) Target started (24/49, NGC 4605, ToO) 23:46:35       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S) 23:49:05       Focusing Completed Foc1 AutoFocus Completed (Profile No 24) 00:04:55     Target Completed Target completed (24/49, NGC 4605, ToO) 00:04:57     Target Missed (25/49) Target's time slot was missed (25/49, AT2023wfq) 00:04:59     Target Missed (26/49) Target's time slot was missed (26/49, NGC 3690 w/SN2023wrk) 00:05:01     Target Missed (27/49) Target's time slot was missed (27/49, AT2023wbv (CV)) 00:05:03     Target Started (28/49) Target started (28/49, AT2023otv) 00:21:16     Target Completed Target partially completed (28/49, AT2023otv) 00:21:20     Target Started (29/49) Target started (29/49, GCVS U And) 00:34:26     Target Completed Target completed (29/49, GCVS U And) 00:34:31     Target Started (30/49) Target started (30/49, AT2023rrr) 00:37:26       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S) 00:40:01       Focusing Completed Foc1 AutoFocus Completed (Profile No 25) 00:55:59     Target Completed Target completed (30/49, AT2023rrr) 00:56:04     Target Started (31/49) Target started (31/49, AT2023qt (CV)) 00:58:54       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S) 01:01:04       Focusing Completed Foc1 AutoFocus Completed (Profile No 26) 01:07:15     Target Completed Target completed (31/49, AT2023qt (CV)) 01:07:19     Target Started (32/49) Target started (32/49, AT2023xzr) 01:11:12       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S) 01:13:39       Focusing Completed Foc1 AutoFocus Completed (Profile No 27) 01:29:38     Target Completed Target completed (32/49, AT2023xzr) 01:29:42     Target Started (33/49) Target started (33/49, AT2023wox) 01:33:12       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S) 01:35:20       Focusing Completed Foc1 AutoFocus Completed (Profile No 28) 01:51:25     Target Completed Target completed (33/49, AT2023wox) 01:51:29     Target Started (34/49) Target started (34/49, 144P/Kushida) 01:54:30       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S) 01:56:55       Focusing Completed Foc1 AutoFocus Completed (Profile No 29) 02:07:06     Target Completed Target completed (34/49, 144P/Kushida) 02:07:45     Target Started (35/49) Target started (35/49, AT2023ayf (CV)) 02:10:29       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S) 02:12:28       Focusing Completed Foc1 AutoFocus Completed (Profile No 30) 02:18:16     Target Completed Target completed (35/49, AT2023ayf (CV)) 02:19:45     Target Started (36/49) Target started (36/49, AT2023ru (CV)) 02:22:57       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S) 02:25:07       Focusing Completed Foc1 AutoFocus Completed (Profile No 31) 02:41:17     Target Completed Target completed (36/49, AT2023ru (CV)) 02:41:45     Target Started (37/49) Target started (37/49, UGC 3174 w/SN2023mut) 02:44:39       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S) 02:46:45       Focusing Completed Foc1 AutoFocus Completed (Profile No 32) 03:02:32     Target Completed Target completed (37/49, UGC 3174 w/SN2023mut) 03:03:45     Target Started (38/49) Target started (38/49, C/2017 K2 (PANSTARRS)) 03:07:29       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S) 03:09:23       Focusing Completed Foc1 AutoFocus Completed (Profile No 33) 03:17:29     Target Completed Target completed (38/49, C/2017 K2 (PANSTARRS)) 03:18:14     Target Started (39/49) Target started (39/49, AT2023elx (CV)) 03:21:38       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S) 03:23:47       Focusing Completed Foc1 AutoFocus Completed (Profile No 34) 03:29:34     Target Completed Target completed (39/49, AT2023elx (CV)) 03:30:14     Target Started (40/49) Target started (40/49, AT2023yen (CV)) 03:33:41       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S) 03:35:43       Focusing Completed Foc1 AutoFocus Completed (Profile No 35) 03:41:31     Target Completed Target completed (40/49, AT2023yen (CV)) 03:42:14     Target Started (41/49) Target started (41/49, 103P/Hartley) 03:45:14       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S) 03:47:33       Focusing Completed Foc1 AutoFocus Completed (Profile No 36) 03:58:07     Target Completed Target completed (41/49, 103P/Hartley) 03:58:59     Target Started (42/49) Target started (42/49, GCVS ER UMa) 04:02:05       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S) 04:04:29       Focusing Completed Foc1 AutoFocus Completed (Profile No 37) 04:08:35     Target Completed Target completed (42/49, GCVS ER UMa) 04:09:16     Target Started (43/49) Target started (43/49, UGC 6265 w/SN2023wcw) 04:13:03       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S) 04:15:18       Focusing Completed Foc1 AutoFocus Completed (Profile No 38) 04:31:08     Target Completed Target completed (43/49, UGC 6265 w/SN2023wcw) 04:31:36     Target Started (44/49) Target started (44/49, NGC 4568 w/SN2023ijd) 04:35:08       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S) 04:37:32       Focusing Completed Foc1 AutoFocus Completed (Profile No 39) 04:53:21     Target Completed Target completed (44/49, NGC 4568 w/SN2023ijd) 04:53:36     Target Started (45/49) Target started (45/49, UGC 9002 w/SN2023pls) 04:56:48       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S) 04:59:13       Focusing Completed Foc1 AutoFocus Completed (Profile No 40) 05:15:16     Target Completed Target completed (45/49, UGC 9002 w/SN2023pls) 05:15:36     Target Started (46/49) Target started (46/49, NGC 5532 w/SN2023omo) 05:19:13       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S) 05:21:23       Focusing Completed Foc1 AutoFocus Completed (Profile No 41) 05:37:10     Target Completed Target completed (46/49, NGC 5532 w/SN2023omo) 05:37:36     Target Started (47/49) Target started (47/49, NGC 3893 w/AT2023uhx) 05:41:04       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S) 05:43:15       Focusing Completed Foc1 AutoFocus Completed (Profile No 42) 05:59:29     Target Completed Target completed (47/49, NGC 3893 w/AT2023uhx) 05:59:34     Target Started (48/49) Target started (48/49, M101 w/SN2023ixf) 06:02:49       Focusing Skipped Foc1 focusing skipped - star is too dim (TCF-S) 06:18:52     Target Completed Target completed (48/49, M101 w/SN2023ixf) 06:21:56     Target Started (49/49) Target started (49/49, UGC 8927 w/AT2023qzg) 06:24:51       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S) 06:27:14       Focusing Completed Foc1 AutoFocus Completed (Profile No 43) 06:43:14     Target Completed Target completed (49/49, UGC 8927 w/AT2023qzg) 06:43:17   Queue Completed Job Queue completed 06:43:21 Session Closing Session closing 06:44:16   Dome Closed Dome closed (closing time 50s) 06:44:48   Dome Parked Dome parked (parking time 24s), Az: 90.0 deg 06:46:04   Telescope Parked Telescope parked (parking time 71s) 06:46:14   Telescope State Handbox reads 'Scope parked Turn scope off.' 06:46:36   Telescope Switched Off Telescope Power has been switched off via UPB Switch. 06:47:59   Services Stopped Night Services stopped 06:48:02 Session Finishing Session Finishing started (Create Fits Summary, Transfer Files) 06:49:27 Session Finished Session Finished

Session Alerts & Alarms

Time     Type       Name Detail 16:55:45 Yellow Alert Disk Space Free Space on C:\ Drive (49.76 GB) is less than 50 GB 17:55:25 Yellow Alert Anomalous Dome Slew Dome slew resumed at Az 255.0° (T+6.5s) 04:24:54 Yellow Alert Dome Dome has been stationary for more than 15 mins 04:31:45 Green Alarm Dome Dome Movements have begun again (outage 21.9 mins) 06:47:57 Yellow Alert Dome Charging Dome hasn't started re-charging after 3.1 min. Dome may not have parked correctly 06:49:21 Yellow Alert Disk Space Free Space on C:\ Drive (45.95 GB) is less than 50 GB 06:49:27 Red Alert Dome Charging Dome hasn't started re-charging after 4.7 min. Dome may not have parked correctly

Back to Top

Operational Issues (2023-12-01, S1170)

• Critical Issues (0)
• Major Issues (0)
• Minor Issues (1)
• Small Defects (4)
• Continuous Improvement (3)


[ Prev | Next ]

Critical Issues

• None

Major Issues

• None

Minor Issues

• Dome didn't park at correct phyiscal Az to allow shutter battery recharging to take place after the session. This is most likely due to the removal of anti-slip tape, drive wheel tension adjustment causing the previous Dome Calibration to no longer be valid.  Dome was recalibrated and repositioned at Az 90 whereupon battery would normally to commence. (due to other issues involving Dome Shutter its battery was recharged ahead of the S1172 session the following night (see Pulsar Dome - Shutter Software Reinstall (Shutter 1.25), 2023-12-02).
  Resolved  2023-12-02 (Pulsar Dome)

Small Defects

• Target 1 (NGC 4605) failed with no reason stated (17:19). Target was started 4 minutes ahead of plan and was successfully centered, and a focus profile taken. But after entering the job executor's imaging section it immediately finished and reported "Target Failed (Due to )" ie no reason was stated.   A clue in giving in the earlier Guiding Section which reported  "Guiding skipped   (Very short imaging (longest exposure 0s)) ". Checking the Target in AstroPlan, showed that the Target was missing a 'Use' tick against the intended and only frame set ('5 x 180s, 3x3, C ').  Resolved in-session by Ticking the FrameSet and submitting the target at a ToO target later in the session. A separate continuous ticket item is raised to review this case and decide what changes need to be made (e.g. warn user if saving or leaving a Target Form without an selected frame set, prevent such a target from being entered into the plan,  what reason should have been given, as Target was carried out as specified is 'Failed' correct,  probably)
  Fixed in-session  2023-12-01 (Session)

• Greenhouse Multi-Sensor has become unreachable and is no longer providing temperature, humidity and pressure data (Greenhouse).  The 'Greenhouse'  Mult-Sensor added in Oct 2023 (see Greenhouse Temperature/Humidity Sensor 2023-10-10 was became unreachable earlier today and the Greenhouse Graphs show flat-lined data values since then. It is suspected that this may have happened because the sensor's 'Reset' button was accidentally pressed .   Resolved 2023-12-02 by deleting the orignal Greenhouse Sensor in Phoscon and re-adding the sensor as a new 'Greenhouse' Sensor.  Rest API requess show that Humidity, Temperature & Pressure have taken on the sensor ids 17.18 & 19 (instead of original ids 9,10 & 11). AstroMain 3.64.10 updated to use the new Sensor ID numbers, and uploaded to Observatory Computer. In general if a Sensors' Last Reached date is older than a certain interval the Sensor's State value should really be set to vcNull.
  Fixed  2023-12-02 (Zigbee Network, AstroMain 3.64.19 )

• Target Circle for BL Lac is slightly mispositioned. Propose to replay target but probably after first making the fix for 12P/Pons-Brooks circle position seen in last session (S1169) (Target ID 17, Images 1170065-68).  New Star Matching algorithm `added to AstroMain 3.65.4 and successfully tested against BL Lac dataset from the session.
  Fixed 2023-12-10 (Session, AstroMain 3.65.4)

• Compile Mosaic operation isn't putting frames in expected positions (post-session). Compile Mosaic operation using AstroImageTool isn't placing Mosaic Frames in expected co-joined positions.  Frames show unexpected offsets with gaps between left, central and right hand sections (See Fig 1)). Frames seem to have been aquired correctly. Checking a couple of frames confirms this and shows that a frame appearing on the right-hand side should really be positioned on the left hand side.  Checking "Tr37_S1170.xls" spreadsheet shows that it is handling & passing on frame coordinates ok and therefore the issue is associated with the input work file "Tr 37 (mosaic).dat" file which is generated by AstroMain's 'Analyse Mosaic Set' utility  (located on the Analysis/ImageSets/Mosaic tab).  Hypothesis is that the image frames have the Object Name 'Tr 37' which doesn't directly match with an object in TheSky6, and this means that the utility doesn't have a fixed Ra/Dec reference location and this confuses the processing.  Changing Object Name in ImageSets tab from 'Tr 37' to 'SAC Tr 37' before using Analyse Mosaic Set fixes issue for the first frame.  Investigating code for AnalyseMosaicSet(), shows that szTargetName is reset to Tr 37 for subsequent frames. Fixed in AstroMain 3.65.14 by setting szTargetName = Trim(LAlign(ObjectForMosaicAnalysis, 18)) during analysis of each frame not just the first (See Fig 2).  Issue wouldn't have arisen if correct SKY6NAME had been written to each FITS frame.  It is unclear why this doesn't occur.
  Fixed 2024-02-16 (AstroMain 3.65.14)

Continuous Improvement

• Image from Point 6 of Mosaic Target TR37 looks particularly interesting on JPG Pictures. Look into this object and see if a dedicated longer exposure would be useful target. The feature is a nebula centered on GCVS V0390 Cep, and was imaged with 7 x 120s frames during the following S1171 Session (2023-12-02).
  Done  2023-12-02 (Target, Session)

• Review case from session where NGC 4605 'failed' to acquire images due to bad target specification (17:19). Target was started 4 minutes ahead of plan and was successfully centered, and a focus profile taken. But after entering the job executor's imaging section it immediately finished and reported "Target Failed (Due to )" ie no reason was stated.   A clue in giving in the earlier Guiding Section which reported  "Guiding skipped   (Very short imaging (longest exposure 0s)) ". Checking the Target in AstroPlan, showed that the Target was missing a 'Use' tick against the intended and only frame set ('5 x 180s, 3x3, C ').  Look into the changes that need to be made to AstroPlan (e.g. warn user if saving or leaving a Target Form without an selected frame set, override 'use' setting and include 1st frame set. prevent such a target from being entered into the plan,  what reason should have been given, as Target was carried out as specified is 'Failed' correct,  probably.
  To review  2023-12-02 (AstroPlan, AstroMain)

• Should the number of JPG Target Pictures available on Website for current session be increased from current 50 images. Session acquired images from 45 targets one of which was a 3x3 mosaic which generated 9 images for website. Thus a total of 54 images. AstroMain/AstroPlan and the 'images_current.htm' page handles this ok as it wraps around to show the latest 50 images with the first 4 images dropping of the list. Is there benefit at all from increasing the number of handled images. Initial review indicates this is low priority ticket and should be place on-hold for the time being.
  To review  2023-12-02 (AstroPlan, AstroMain)
