- Auroral activity on the night 2025-11-11 / 2025-11-12 associated with a period of geomagnetic activity up to Kp9 / G4 Skies in NE Scotland were affected by cloud, but there was a break in clouds that allowed view on the initial peak.. Activity was visible on camera images from around 20:50 to 03:15 UT (GMT) with peak around 23:35 to 00:00 UT (GMT).  Observed activity comprised a variety of green aurora and bright red aurora stretching to 40-50° altitude. Interesting green blobs at 01:12 - 01:13 UT (GMT). Images and video below compare colour images captured by the north facing Tapo C325WB Camera, with the black/white images captured using the existing AllSky Camera at approximately the same time.   -  Scandinavian magnetometers recorded activity from 00:00 to 05:30 UT with a peak that varied in latitude between 01:00 and 02:30 UT and lasting to 04:00 UT or so.   Lerwick Magnetometer shows activity up to K9.     - Telescope Images from 2025-11-11 >> - -

Night Summary (Keogram) Plot

Night Summary Plot - North Sky ( 2025-11-11 / 2025-11-12) Aurora Activity visible on colour keogram from 20:40 to 03:15 UT with peak around 23:15 to 23:35 UT (GMT) Note: Times on plot are local times (GMT)

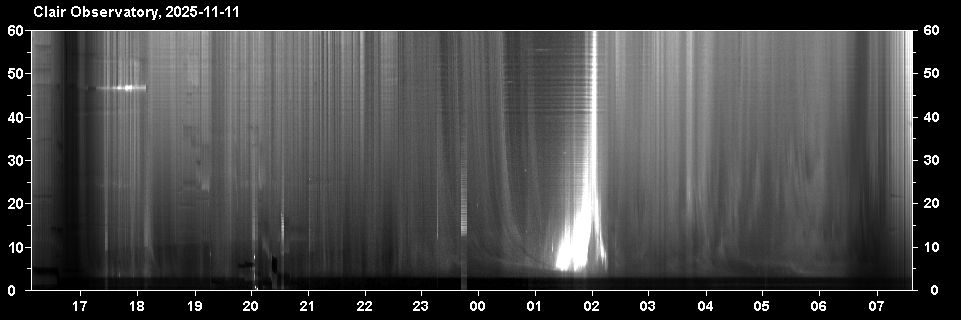

Night Summary Plot - North Sky  ( 2025-11-11 / 2025-11-12) Note: Times on plot are local times (GMT = UT) Aurora Activity faintly visible on b/w keogram from 23:00 to 00:45 UT (GMT)

Scandinavia Magnetometers vs NorthCam Keogram -  2025-11-11 / 2025-11-12

Back to Top

Pictures (AllSky Camera)

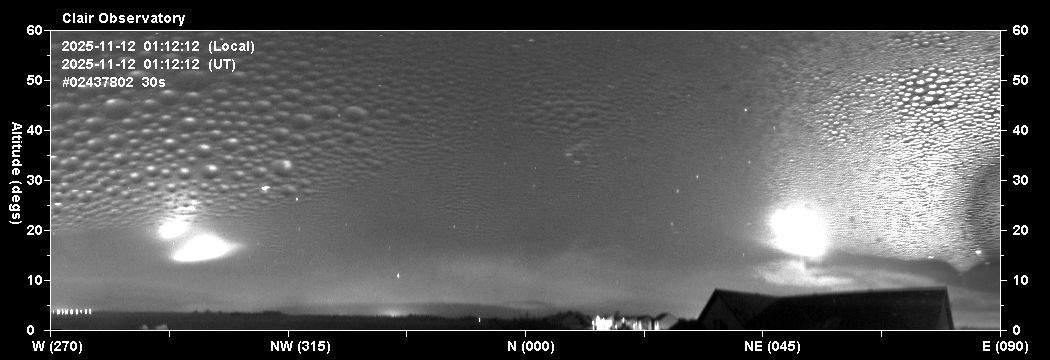

Panoramic View - Northern Sky

2025-11-12 00:28 UT (GMT) Aurora

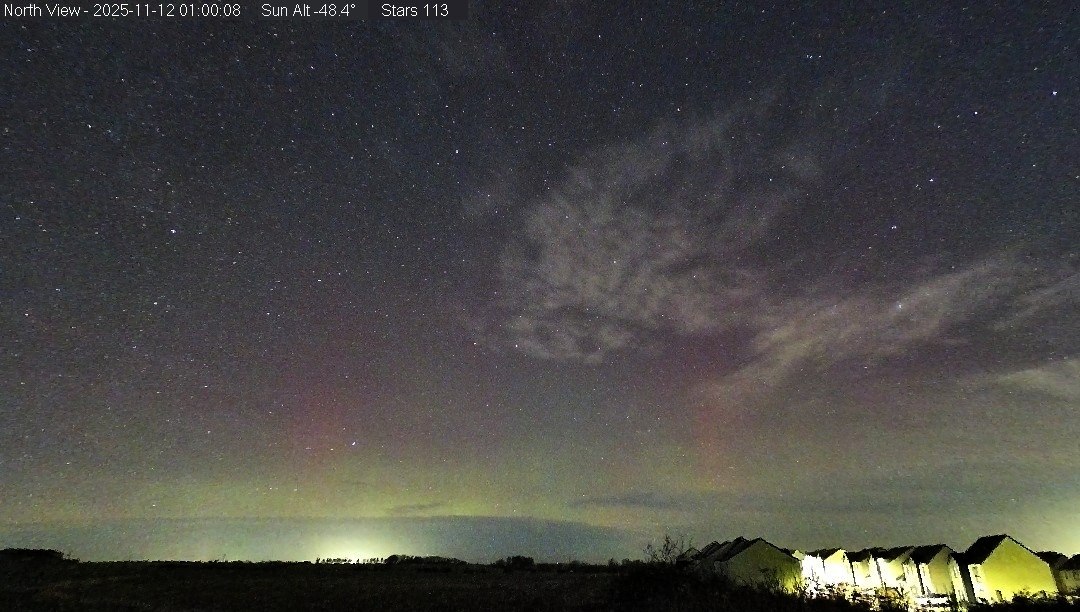

2025-11-12 01:00 UT (GMT) Aurora

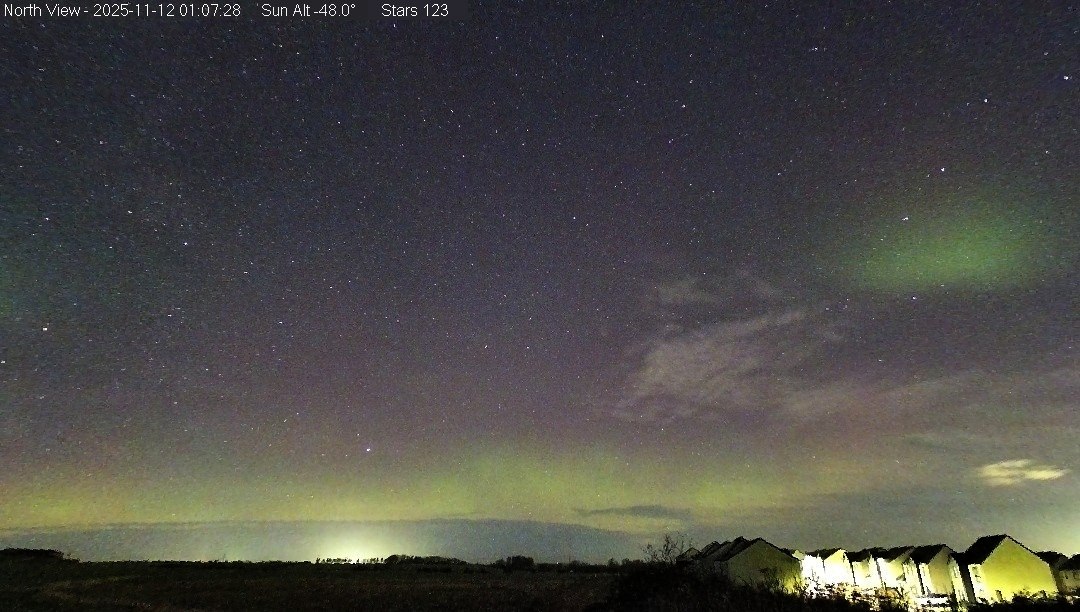

2025-11-12 01:07 UT (GMT) Aurora

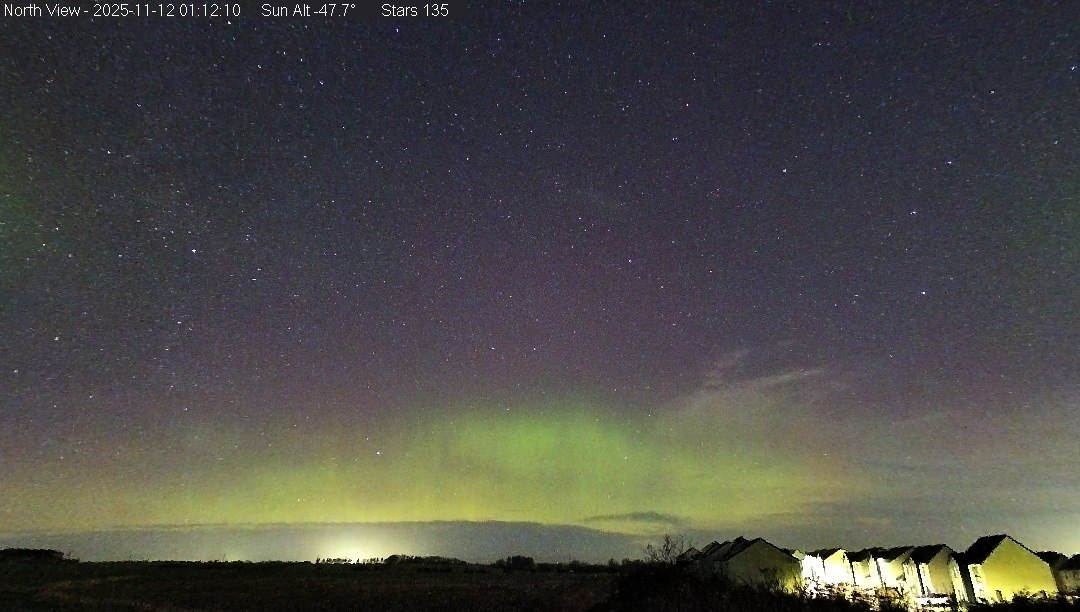

2025-11-12 01:12 UT (GMT) Aurora

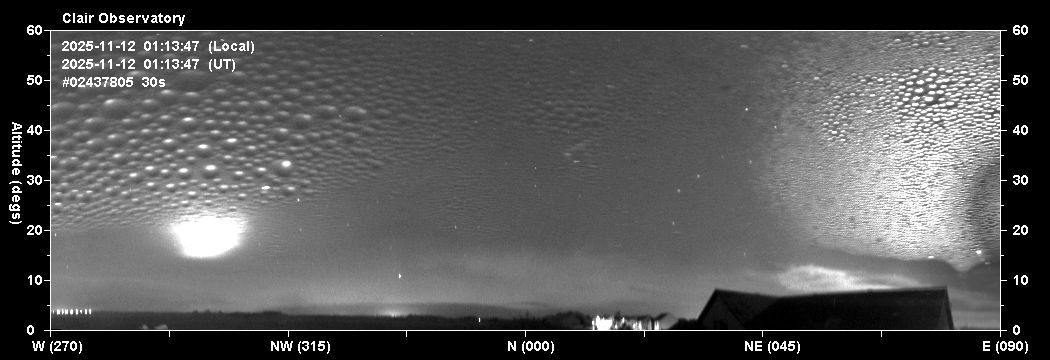

2025-11-12 01:13 UT (GMT) Aurora

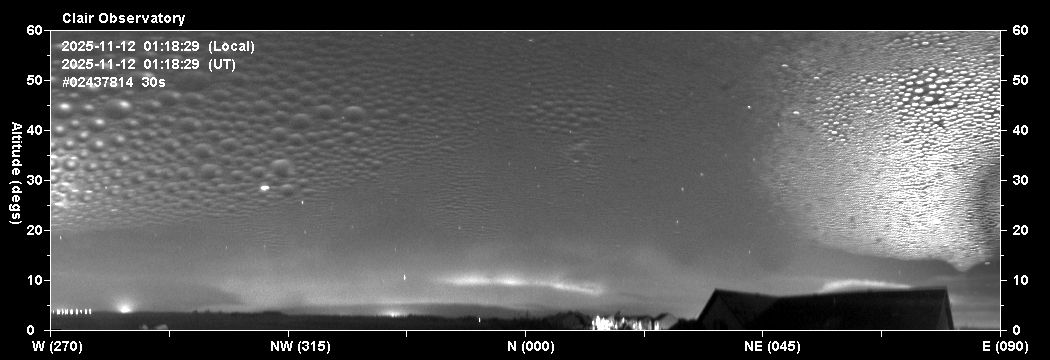

2025-11-12 01:18 UT (GMT) Aurora

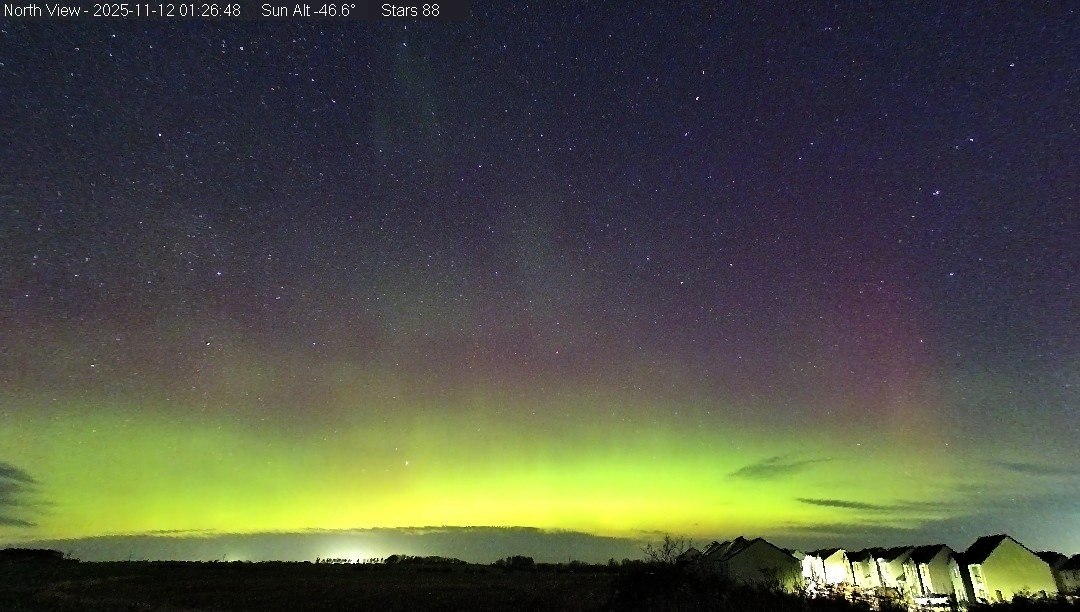

2025-11-12 01:26 UT (GMT) Aurora

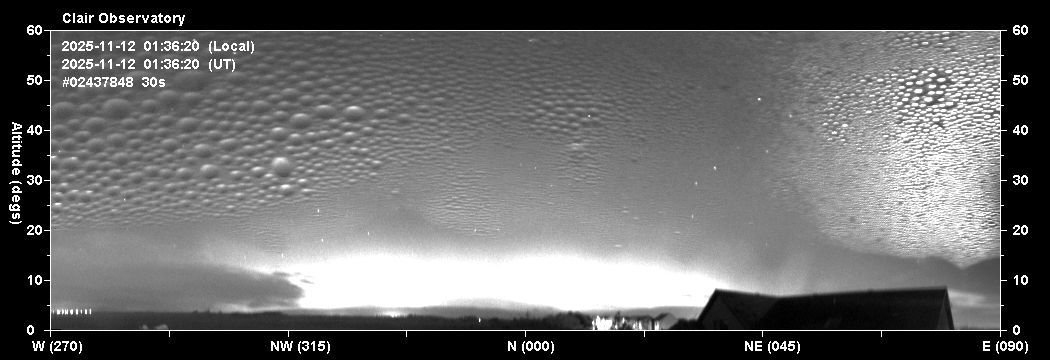

2025-11-12 01:36 UT (GMT) Auroral

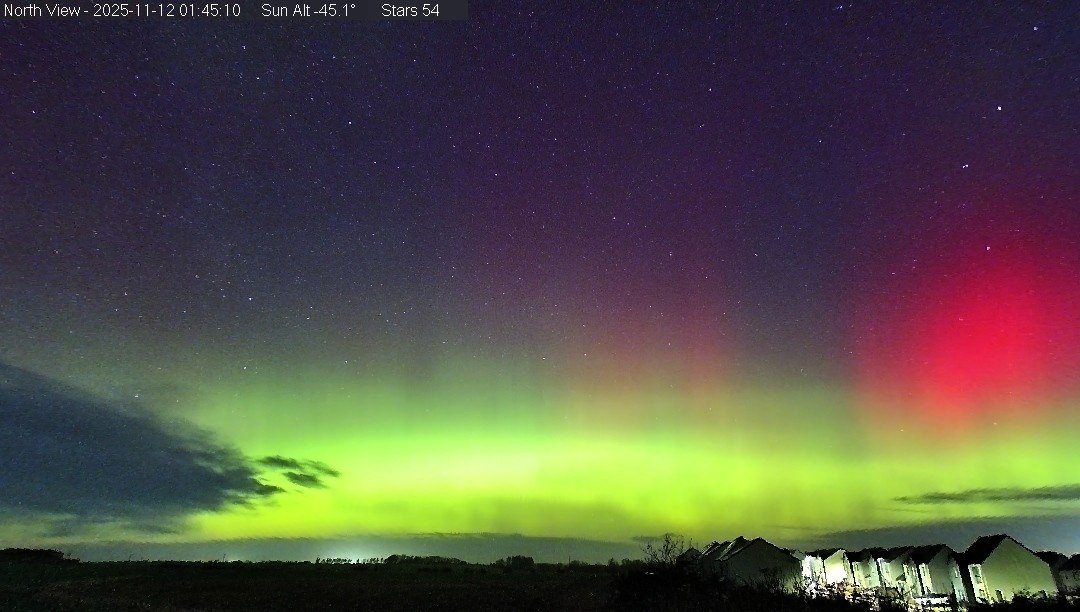

2025-11-12 01:45 UT (GMT) Auroral

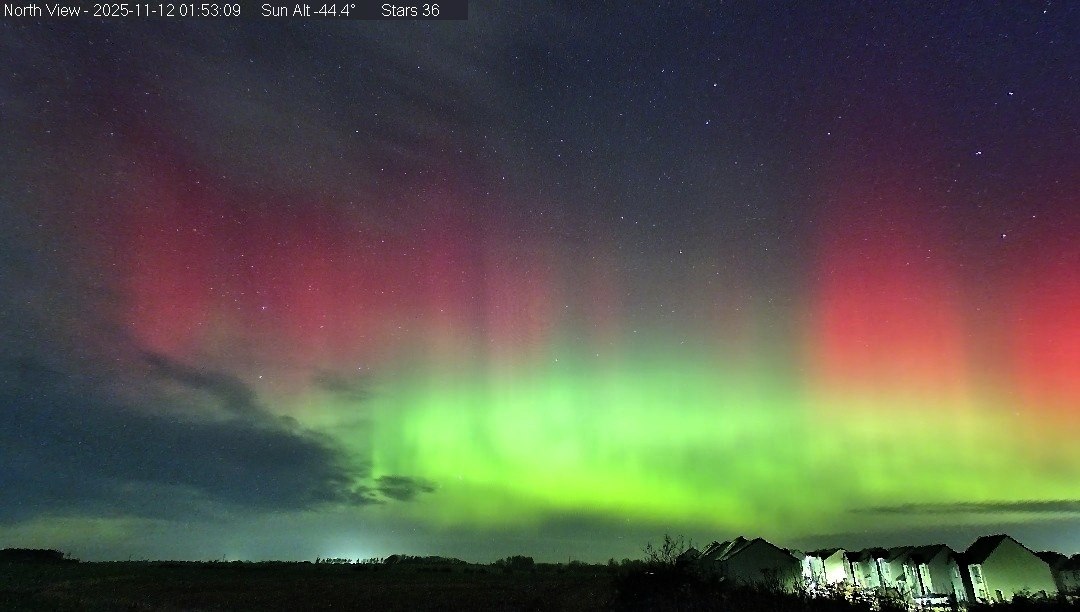

2025-11-12 01:53 UT (GMT) Auroral

2025-11-12 01:55 UT (GMT) Auroral

2025-11-12 01:59 UT (GMT) Auroral

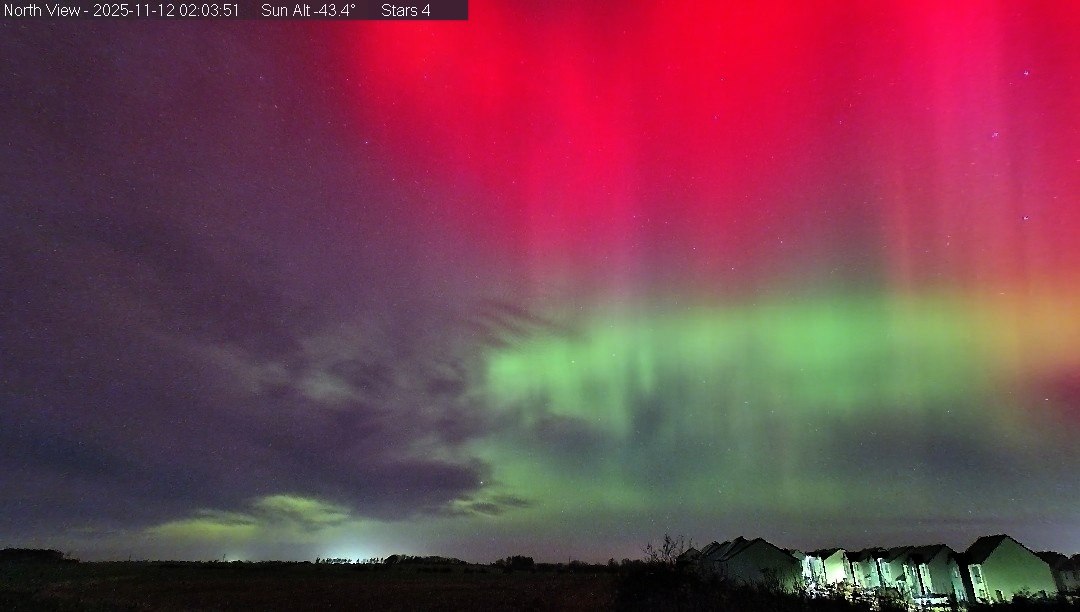

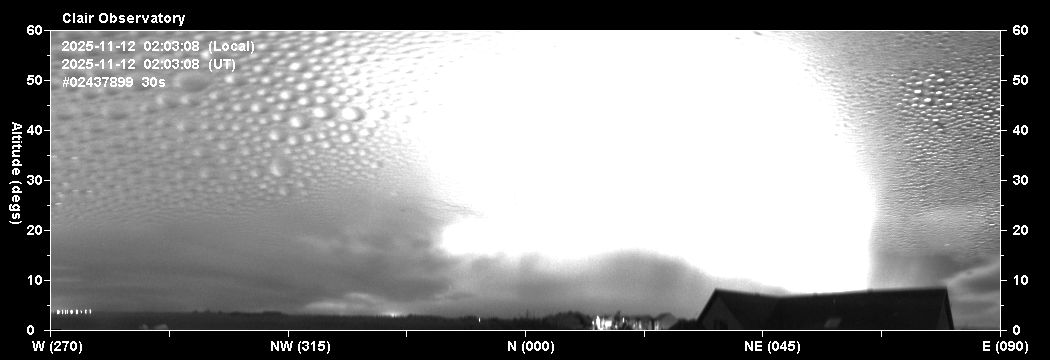

2025-11-12 02:03 UT (GMT) Auroral

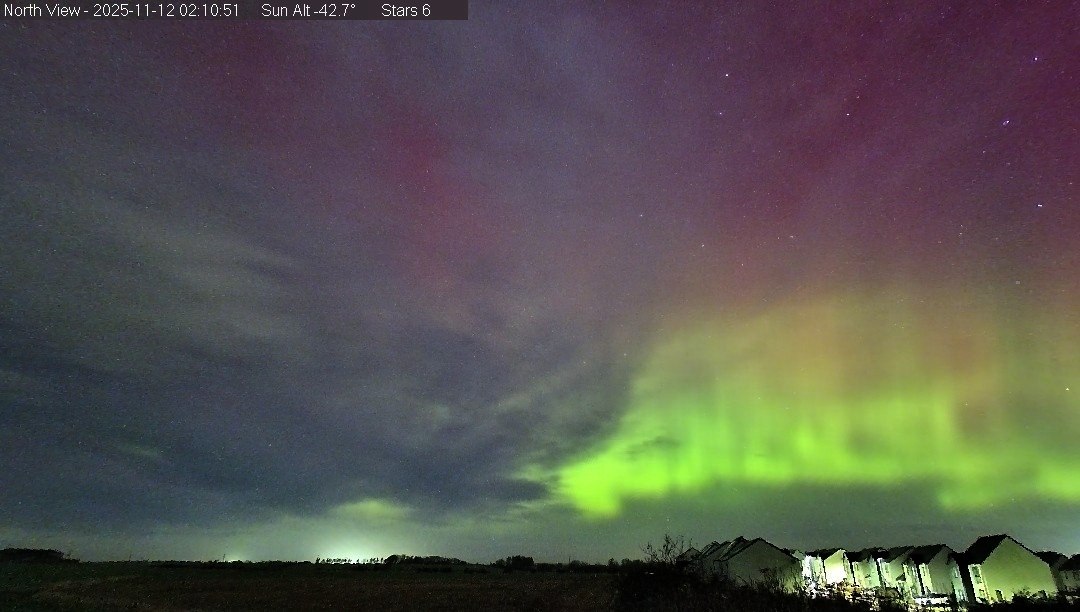

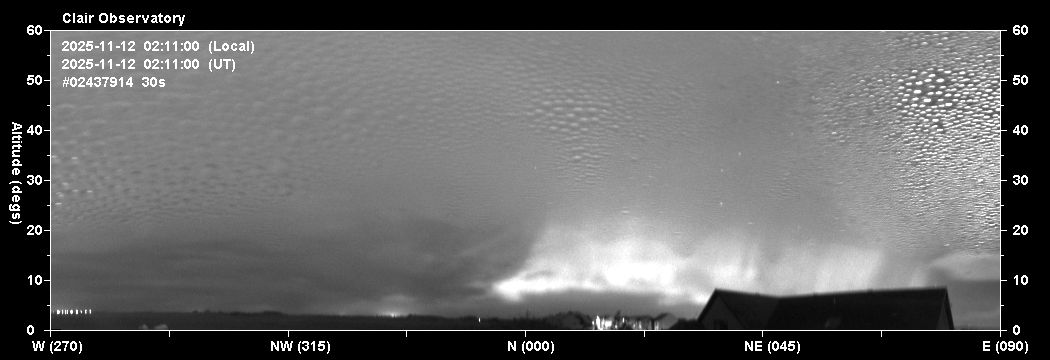

2025-11-12 02:11 UT (GMT) Auroral

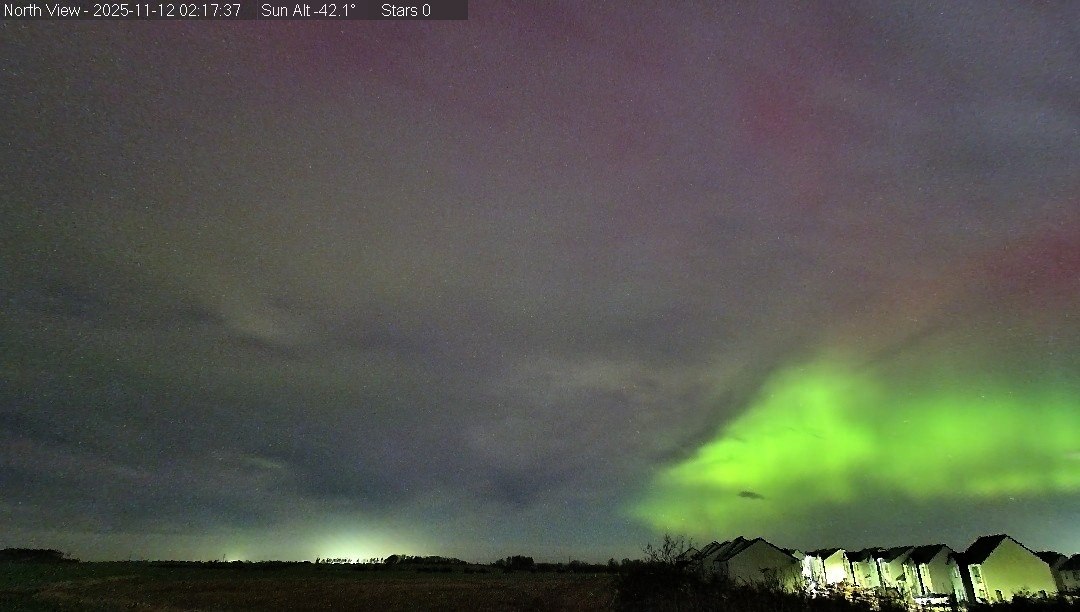

2025-11-12 02:17 UT (GMT)  Aurora

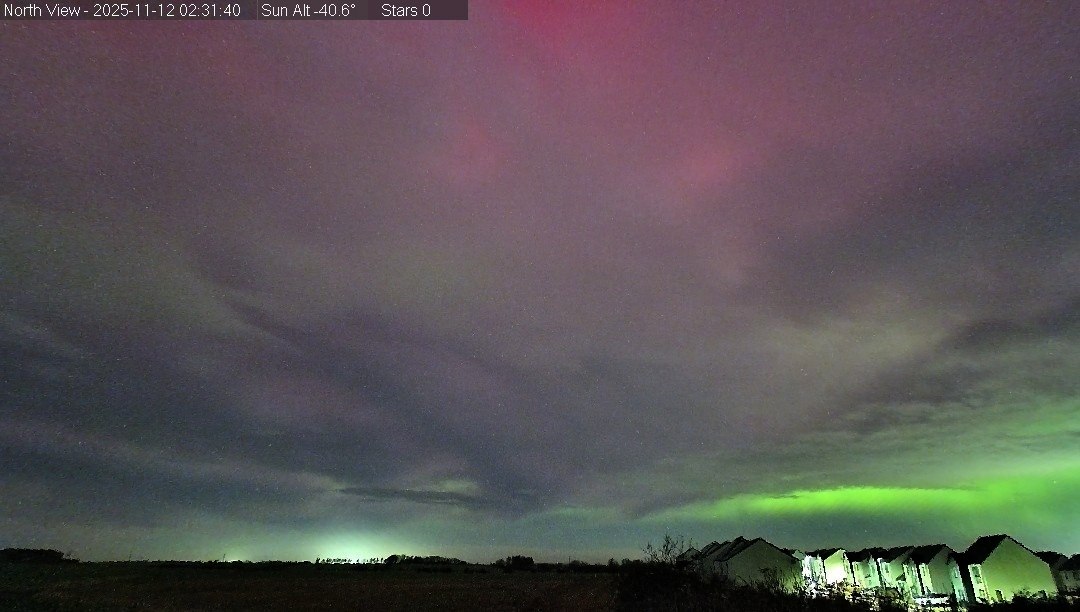

2025-11-12 02:31 UT (GMT)  Aurora

2025-11-12 03:04 UT (GMT)  Aurora

15s frames taken with Tapo C325WB Colour Camera vs 30s wider-field exposures taken with Oculus All Sky Camera

Back to Top

 Videos

Back to Top

Magnetometer Stack Plots (for reference)

Magnetometer Stack Plots from Scandinavia (ordered by latitude) H Component - 2025-11-11 / 2025-11-12 Activity from 17:00 to 04:00 UT with initial peak of activity at 18:00 UT, with main peak in activity at 23:30 to 00:00 UT Note: Geomagnetometer activity at rvk (Rorvik, 64.95N), dob (Dombas, 62.07N), sol (Solund, 61.08N) and kar (Karmoy, 59.21N) stations are used as indicators for potential auroral activity that may be visible from my Observatory situated at latitude 57.32N  (Map of Stations)

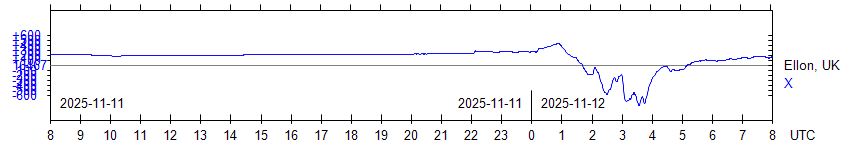

Graphed using 'make your own graph' facilities at  https://flux.phys.uit.no/compose/   (Tromsø Geophysical Observatory  ) Original data from Tromsø Geophysical Observatory (TGO), DTU Space (Technical University of Denmark) and Finnish Meteorological Institute (FMI) Data also displayed on SpaceWeatherLive's Europe Stackplot at  http://www.spaceweatherlive.com/en/auroral-activity/magnetometers).   Clair Observatory data below at same scale.

Back to Top

Planetary K-Index Plot (for reference)

Estimated 3 hour Planetary K-Index (NOAA)  (from http://services.swpc.noaa.gov) Planetary-k-index_ 2025-11-11 / 2025-11-12 Not captured

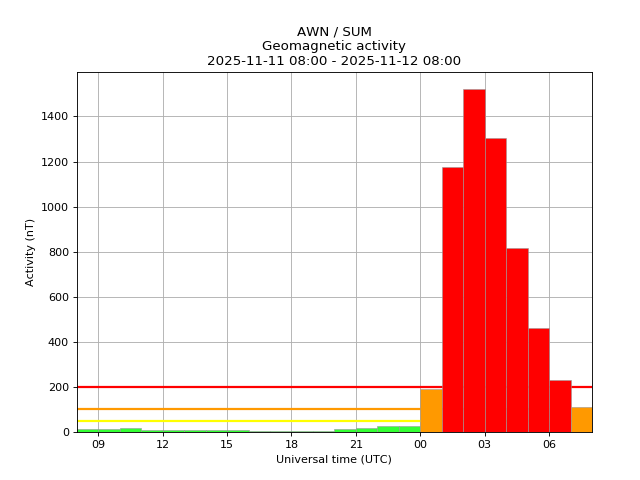

SAMNET's magnetometer at Sumburgh, Shetland  (Chart Explanation)  - Geomagnetic activity on the night  2025-11-11 / 2025-11-12 Plot shows elevated activity from 01:00 to 0700 UT with peak activity at around 02:00 UT

8-day Lerwick Observatory K Index Showing max K5 on the night  2025-11-11 / 2025-11-12

Planetary K-Index and other information (Space Weather Prediction Centre) shows maximum Kp4+ to Kp5- during the night  2025-11-11 / 2025-11-12

Back to Top

Aurora Forecast, NOAA/Ovation (for reference)

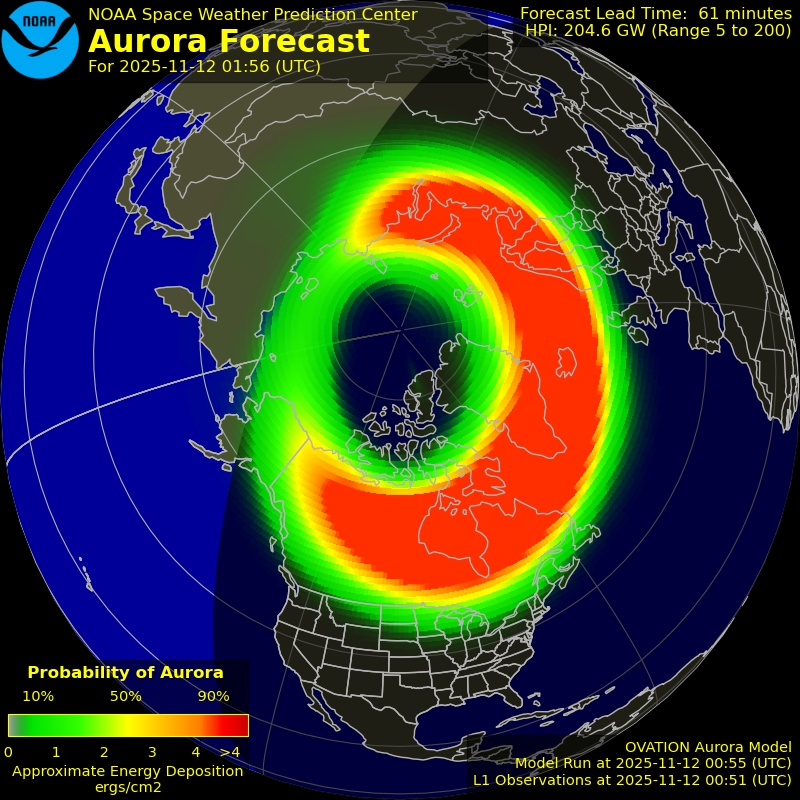

Aurora Forecast for 2025-11-12 01:56 UT (From Space Weather Prediction Centre,  http://www.swpc.noaa.gov )
