	Session Aims & Highlights
	- Observing Result  - Night Summary Plot  - Session Event Log
	Operational Issues
	- Critical Issues (0),  Major Issues (1),  Minor Issues (0),  Continuous Improvement (0)
	Images from 2019-03-18  >>

Session Aims & Highlights (2019-03-18)

Main aims

1. Mixed Targets - Image selection of targets including Variable Stars, Comets and Deep Sky Targets
2. GRB Optical Afterglow Project - Check automated reaction of the observatory to a test GRB Alert Notice from GCN Network
3. Software & Systems  - Check stability of software and presence of any side effects following ongoing enhancements to AstroMain and associated support programs.

Equipment & Software

• 12" LX200 and ST-10XME
•  80mm APO and ZWO ASI 178MC
•  CCDApp2, TheSky6, CCDSoft5, PHD2,  POTH Hub
•  Pegasus UPB & Motor Focus, TCF-S

•  AstroMain 3.9.7,  Astroguard 1.2.3,   AstroPlan 1.8.1

Highlights

• Observatory responded quickly to two GRB Test Alerts by immediately slewing to the GRB Test Location.

Lowlights

• Job queue froze whilst performing a telescope Jog.
• Somewhat windy conditons

Summary Plots & Logs

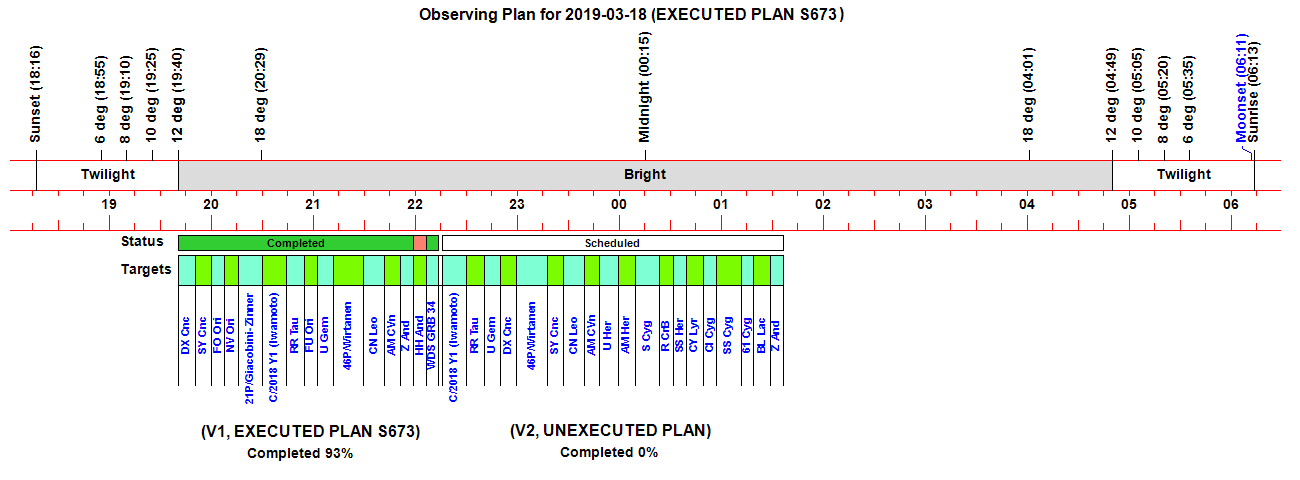

Observing Plan (2019-03-18, S673)

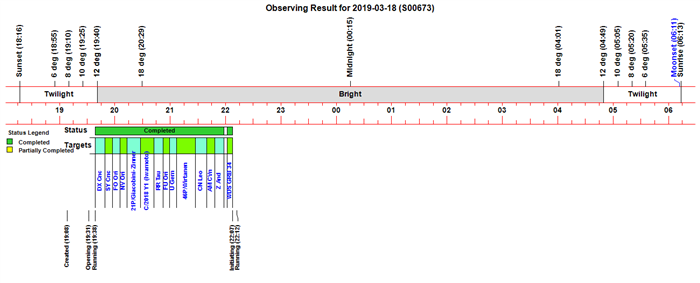

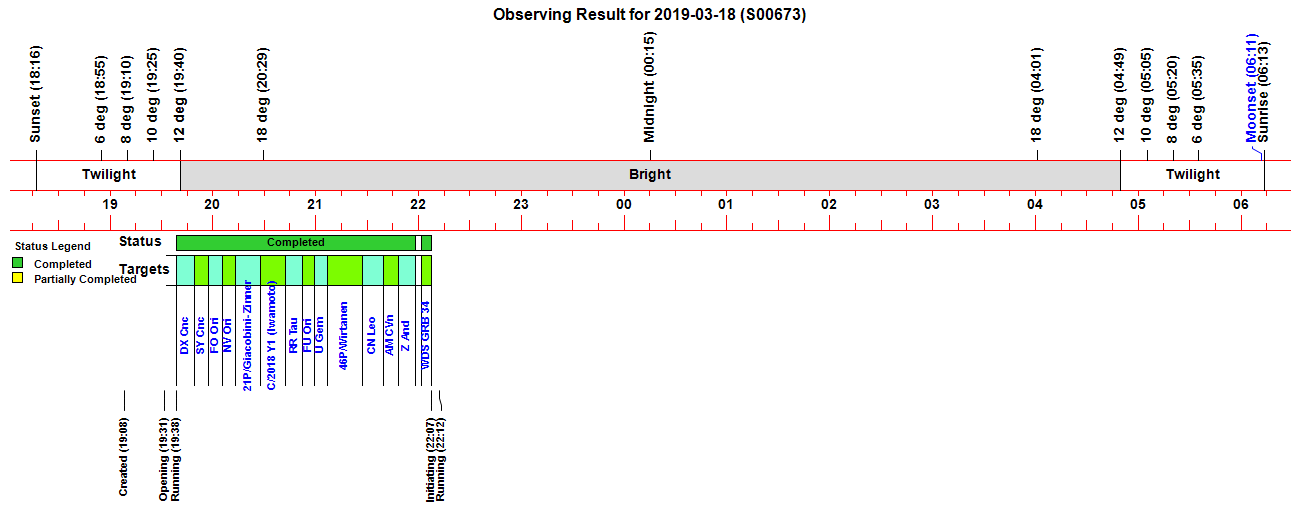

Observing Result (2019-03-18, S673)

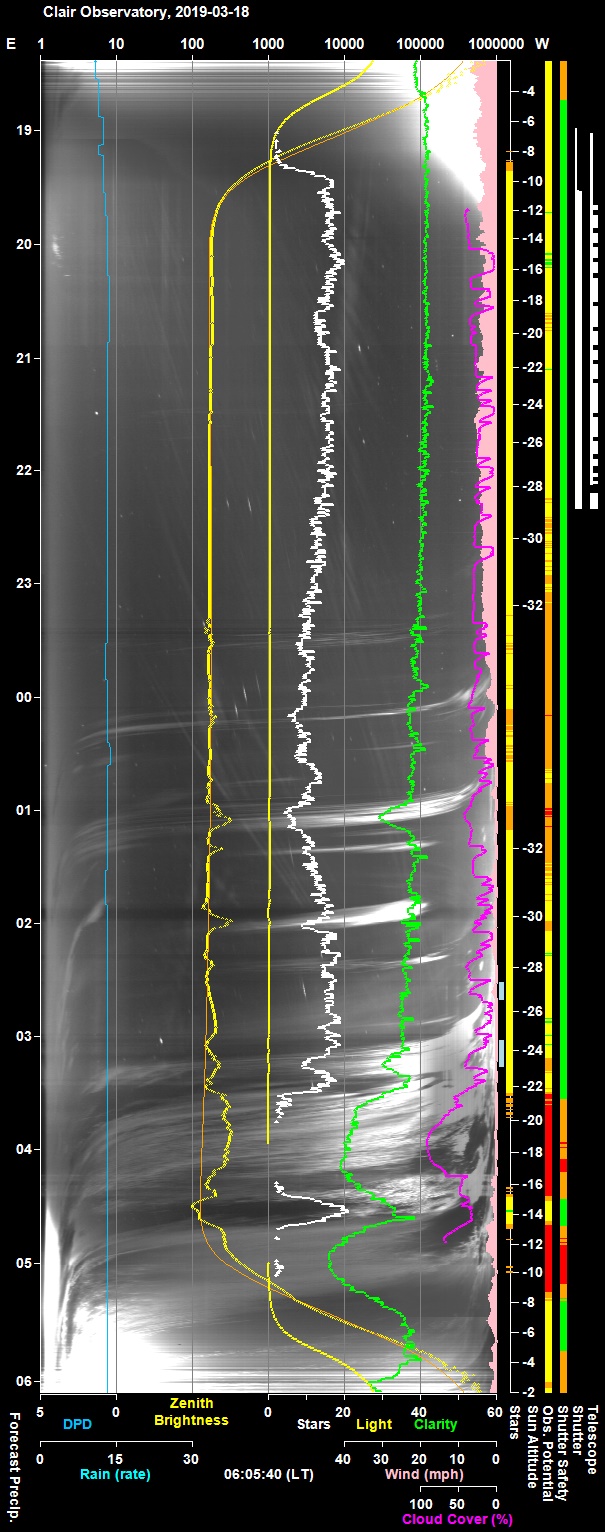

Night Sky Summary Plot - 2019-03-18, S673 Top axis: Sky Brightness at Zenith (in ADU/s) Lefthand axis: Local Time (hh LT). Righthand axis: Sun Altitude (degs)

Session Event Log (2019-03-18, S673)

Time   Event Detail 19:08   Camera1 Connected SBIG Camera Connected (set point -20°C) 19:08 Session Created Live Session Created (2019-03-18 S00673, ImageSaveNum: 673001) 19:31 Shutter Opened Shutter opened (opening time 50s) 19:31 Equilibration Started Dome Equilibration started 19:38 Equilibration Ended Dome Equilibration ended (7.2 mins total) 19:38 Session Running Session running 19:39   Queue Started Observing Queue started (15 targets selected) 19:39     Target Started (1/15) Target started (1/15, GCVS DX Cnc) 19:41   Focusing Started (Foc1) Foc1 Focusing Started (TCF-S) 19:44   Focusing Completed Foc1 AutoFocus Completed (Profile No 1) 19:49     Target Completed Target completed (1/15, GCVS DX Cnc) 19:49     Target Started (2/15) Target started (2/15, GCVS SY Cnc) 19:51   Focusing Started (Foc1) Foc1 Focusing Started (TCF-S) 19:53   Focusing Completed Foc1 AutoFocus Completed (Profile No 2) 19:57     Target Completed Target completed (2/15, GCVS SY Cnc) 19:57     Target Started (3/15) Target started (3/15, GCVS FO Ori) 19:59   Focusing Started (Foc1) Foc1 Focusing Started (TCF-S) 20:01   Focusing Completed Foc1 AutoFocus Completed (Profile No 3) 20:05     Target Completed Target completed (3/15, GCVS FO Ori) 20:05     Target Started (4/15) Target started (4/15, GCVS NV Ori) 20:07   Focusing Started (Foc1) Foc1 Focusing Started (TCF-S) 20:09   Focusing Completed Foc1 AutoFocus Completed (Profile No 4) 20:13     Target Completed Target completed (4/15, GCVS NV Ori) 20:13     Target Started (5/15) Target started (5/15, 21P/Giacobini-Zinner) 20:15   Focusing Started (Foc1) Foc1 Focusing Started (TCF-S) 20:18   Focusing Completed Foc1 AutoFocus Completed (Profile No 5) 20:27     Target Completed Target completed (5/15, 21P/Giacobini-Zinner) 20:27     Target Started (6/15) Target started (6/15, C/2018 Y1 (Iwamoto)) 20:31   Focusing Started (Foc1) Foc1 Focusing Started (TCF-S) 20:33   Focusing Completed Foc1 AutoFocus Completed (Profile No 6) 20:42     Target Completed Target completed (6/15, C/2018 Y1 (Iwamoto)) 20:42     Target Started (7/15) Target started (7/15, GCVS RR Tau) 20:44   Focusing Started (Foc1) Foc1 Focusing Started (TCF-S) 20:46   Focusing Completed Foc1 AutoFocus Completed (Profile No 7) 20:52     Target Completed Target completed (7/15, GCVS RR Tau) 20:52     Target Started (8/15) Target started (8/15, GCVS FU Ori) 20:53   Focusing Started (Foc1) Foc1 Focusing Started (TCF-S) 20:56   Focusing Completed Foc1 AutoFocus Completed (Profile No 8) 20:59     Target Completed Target completed (8/15, GCVS FU Ori) 20:59     Target Started (9/15) Target started (9/15, GCVS U Gem) 21:01   Focusing Started (Foc1) Foc1 Focusing Started (TCF-S) 21:03   Focusing Completed Foc1 AutoFocus Completed (Profile No 9) 21:06     Target Completed Target completed (9/15, GCVS U Gem) 21:06     Target Started (10/15) Target started (10/15, 46P/Wirtanen) 21:11   Focusing Started (Foc1) Foc1 Focusing Started (TCF-S) 21:13   Focusing Completed Foc1 AutoFocus Completed (Profile No 10) 21:27     Target Completed Target completed (10/15, 46P/Wirtanen) 21:27     Target Started (11/15) Target started (11/15, GCVS CN Leo) 21:30   Focusing Started (Foc1) Foc1 Focusing Started (TCF-S) 21:32   Focusing Completed Foc1 AutoFocus Completed (Profile No 11) 21:39     Target Completed Target completed (11/15, GCVS CN Leo) 21:39     Target Started (12/15) Target started (12/15, GCVS AM CVn) 21:42   Focusing Started (Foc1) Foc1 Focusing Started (TCF-S) 21:44   Focusing Completed Foc1 AutoFocus Completed (Profile No 12) 21:48     Target Completed Target completed (12/15, GCVS AM CVn) 21:48     Target Started (13/15) Target started (13/15, GCVS Z And) 21:51   Focusing Started (Foc1) Foc1 Focusing Started (TCF-S) 21:54   Focusing Completed Foc1 AutoFocus Completed (Profile No 13) 21:58     Target Completed Target completed (13/15, GCVS Z And) 21:58     Target Started (14/15) Target started (14/15, GCVS HH And) 22:01     Target Started (15/15) Target started (15/15, WDS GRB 34) 22:03   Focusing Started (Foc1) Foc1 Focusing Started (TCF-S) 22:06   Focusing Completed Foc1 AutoFocus Completed (Profile No 14) 22:07     Target Completed Target completed (15/15, WDS GRB 34) 22:07 Queue Completed Job Queue completed 22:07 Session Initiating Session initiating (2019-03-18) 22:07   Plan Requested Observing Plan requested from AstroPlan () 22:11   Plan Loaded Observing Plan loaded to queue (2019-03-18 V2 BEST PLAN, Plan ID: 306) 22:11   Camera1 Connected SBIG Camera Connected (set point -20°C) 22:12   Telescope Connected Telescope Connected (TheSky6) 22:12 Equilibration Started Dome Equilibration started 22:12 Equilibration Skipped Dome Equilibration skipped by user 22:12 Session Running Session running 22:12   Queue Started Observing Queue started (19 targets selected) 22:12     Target Started (1/19) Target started (1/19, C/2018 Y1 (Iwamoto)) 22:16 Session Resumed Live Session Resumed (2019-03-18 S00673, ImageSaveNum: 673195) 22:17 Obs.Manager Started Obs.Manager started 22:17 Services Started Observatory Services started 22:20 Shutter Closed Shutter closed (closing time 53s) 22:22 Dome Parked Dome parked (parking time 103s) 22:22   Dome Parked Dome parked 22:22 Telescope Parked Telescope parked (parking time 10s) 22:22   Camera1 Disconnected SBIG Camera closed down & disconnected

Back to Top

Operational Issues (2019-03-18, S673)

• Critical Issues (0)

• Major Issues (1)
• Minor issues (0)
• Continuous Improvement (0)

[ Prev | Next ]

Critical Issues

• None

Major Issues

• Dew / PowerBox Voltage Drop.  Resolved 2019-04-22 by the introduction of a new 16 AWG Extension Cable to reduce the voltage drop going to the UPB powerbox, allowing dew heaters to be run at full power whilst still providing 11.9V input voltage to the UPB (see Pegasus UPB - 16 AWG Extension Cable, 2019-04-22)
    Resolved 2019-04-22 (Observatory)

Minor issues

• None

Continuous Improvement

• None
