	Session Aims & Highlights
	- Observing Result  - Night Summary Plot  - Session Event Log
	Operational Issues
	- Critical Issues (0),  Major Issues (0),  Minor Issues (3),  Continuous Improvement (3)
	Images from 2019-09-15  >>

Session Aims & Highlights (2019-09-15)

Main aims

1. Software Testing: Test new fixes to AstroMain and AstroAllSky programs
2. C/2019 Q4 (Borisov) . Image the new comet C/2019 Q4 (Borisov)
3. Mixed Target - Image a selection of targets, but maintly 1Variable Stars and Nearby Star Targets due to nera full moon
4. Software & Systems  - Check stability of software and presence of any side effects following ongoing enhancements to AstroMain and associated support programs.


Equipment & Software

• 12" LX200 and ST-10XME
•  80mm APO and ZWO ASI 178MC
•  CCDApp2, TheSky6, CCDSoft5, PHD2,  POTH Hub
•  Pegasus UPB & Motor Focus, TCF-S

•  AstroMain 3.11.3,  Astroguard 1.2.4,   AstroPlan 1.10.1,  AstroVOE 1.3.1, UPB 1.4.17  (AstroWeather 1.7.8, AstroAllSky 3.4.8 )

Highlights

• Live Feed of session information to the Observatory's website worked well, including Annotated AllSky Images that were immediately updated on the web after each change in scope position/target
• Automatic Session Extension finally worked as design, after its failure in the last session.

Lowlights

• Primary target for the night, C/2019 Q4 (Borisov), wasn't imaged

Summary Plots & Logs

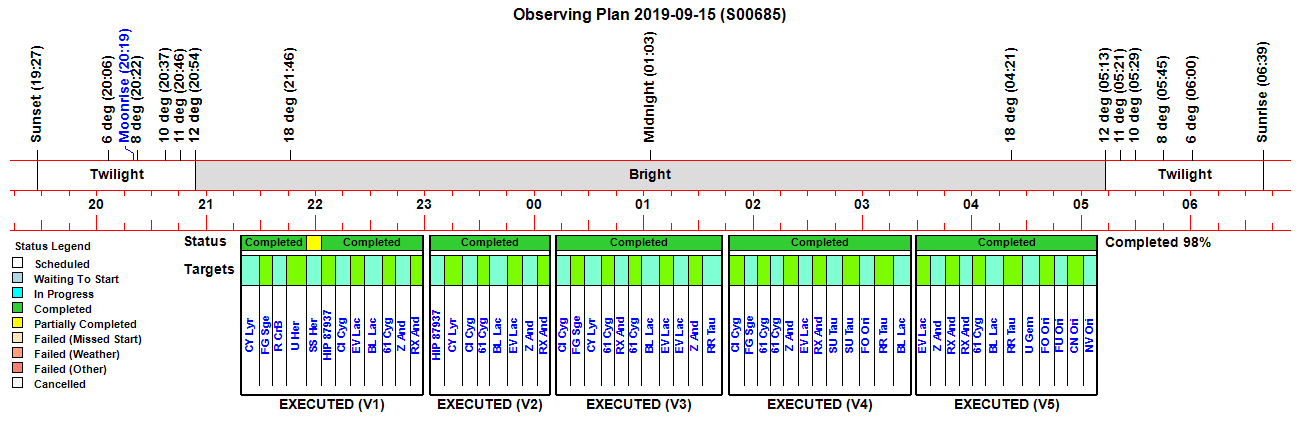

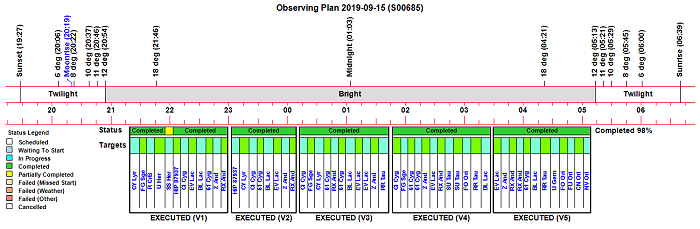

Observing Plan (2019-09-15, S694)

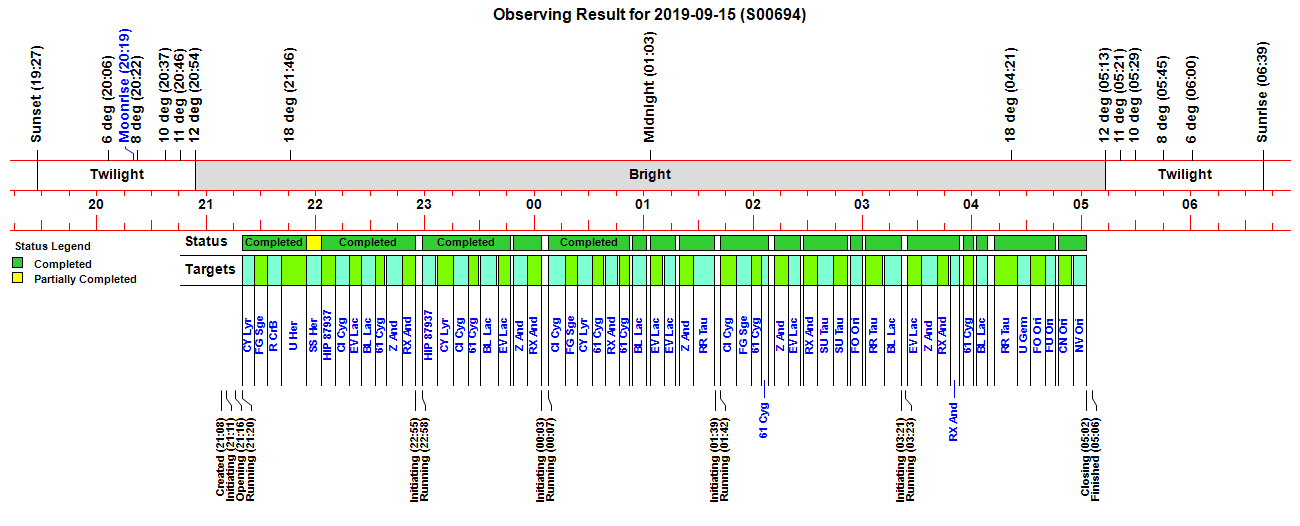

Observing Result (2019-09-14, S694)

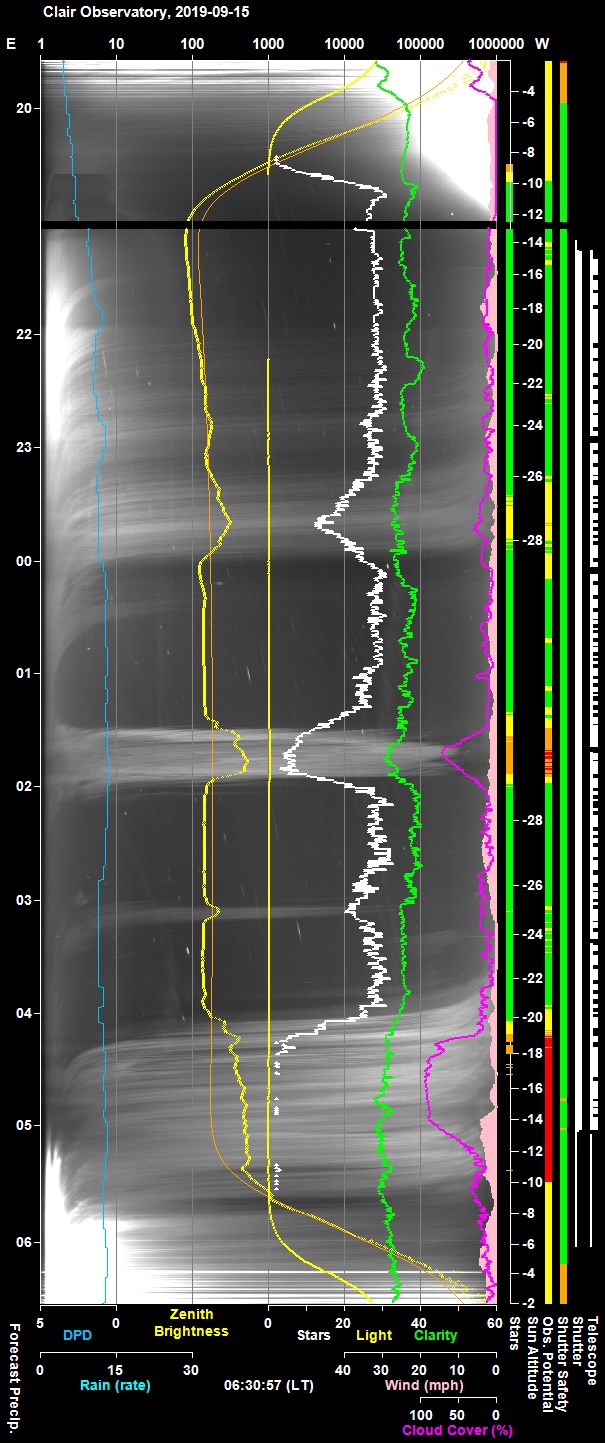

Night Sky Summary Plot (2019-09-15, S694) Top axis: Sky Brightness at Zenith (in ADU/s) Lefthand axis: Local Time (hh LT). Righthand axis: Sun Altitude (degs)

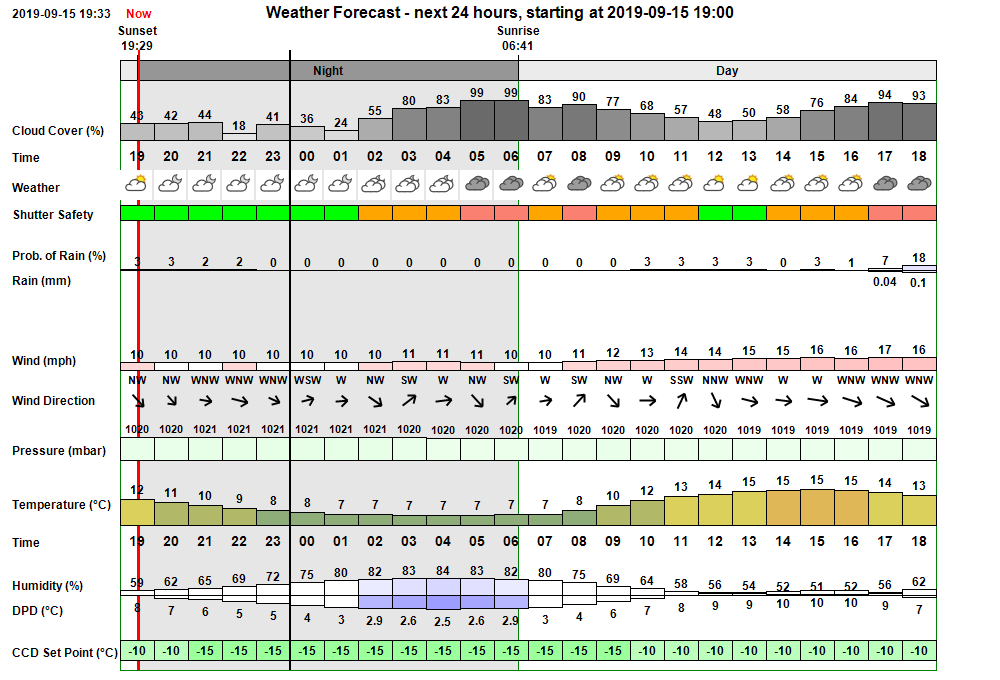

Pre-Session Weather Forecast (AstroWeather 1.7.8) Cloudy for most of night with skies potentially clearing at 03:00,  low probability of any significant rain (As it turned out the evolving forecast through the late evening extended the cloud further and further through the night, and indeed it was cloudy for the the whole night, only clearing at around 06:30 after the sun has risen. A few spots of rain occurred at around 00:45 and 02:40)

Session Event Log (2019-09-15, S694)

Time     Event Detail 21:08:13 Session Created Live Session Created (2019-09-15 S00694, ImageSaveNum: 694001) 21:09:03   Services Started Observatory Services started 21:11:18 Observatory (Auto) Observatory placed in Fully-Automated Mode 21:11:21 Session Pending Session pending (2019-09-15) 21:11:23 Session Initiating Session initiating (2019-09-15) 21:11:25   Plan Requested Observing Plan requested from AstroPlan () 21:14:48   Plan Loaded Observing Plan loaded to queue (2019-09-15 V1 BEST PLAN, Plan ID: 337) 21:15:06   Camera1 Connected SBIG Camera Connected (set point -15°C) 21:15:09   Telescope Connected Telescope Connected (TheSky6) 21:15:21 Session Equilibration Session ready for dome & camera equilibration 21:16:06   Shutter Opened Shutter opened (opening time 45s) 21:16:09   Equilibration Started Dome Equilibration started 21:20:07   Equilibration Ended Dome Equilibration ended (4.0 mins total) 21:20:09 Session Running Session running 21:20:11   Queue Started Observing Queue started (12 targets selected) 21:20:13     Target Started (1/12) Target started (1/12, GCVS CY Lyr) 21:26:38     Target Completed Target completed (1/12, GCVS CY Lyr) 21:26:40     Target Started (2/12) Target started (2/12, GCVS FG Sge) 21:28:59       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S) 21:31:13       Focusing Completed Foc1 AutoFocus Completed (Profile No 1) 21:33:40     Target Completed Target completed (2/12, GCVS FG Sge) 21:33:42     Target Started (3/12) Target started (3/12, GCVS R CrB) 21:36:33       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S) 21:38:33       Focusing Completed Foc1 AutoFocus Completed (Profile No 2) 21:41:35     Target Completed Target completed (3/12, GCVS R CrB) 21:41:37     Target Started (4/12) Target started (4/12, GCVS U Her) 21:44:50       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S) 21:46:45       Focusing Completed Foc1 AutoFocus Completed (Profile No 3) 21:55:05     Target Completed Target completed (4/12, GCVS U Her) 21:55:07     Target Started (5/12) Target started (5/12, GCVS SS Her) 22:03:06     Target Completed Target partially completed (5/12, GCVS SS Her) 22:03:09     Target Started (6/12) Target started (6/12, HIP 87937) 22:05:08       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S) 22:07:47       Focusing Completed Foc1 AutoFocus Completed (Profile No 4) 22:11:02     Target Completed Target completed (6/12, HIP 87937) 22:11:04     Target Started (7/12) Target started (7/12, GCVS CI Cyg) 22:12:39       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S) 22:14:45       Focusing Completed Foc1 AutoFocus Completed (Profile No 5) 22:18:28     Target Completed Target completed (7/12, GCVS CI Cyg) 22:18:30     Target Started (8/12) Target started (8/12, GCVS EV Lac) 22:20:41       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S) 22:23:03       Focusing Completed Foc1 AutoFocus Completed (Profile No 6) 22:25:13     Target Completed Target completed (8/12, GCVS EV Lac) 22:25:16     Target Started (9/12) Target started (9/12, GCVS BL Lac) 22:27:10       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S) 22:29:08       Focusing Completed Foc1 AutoFocus Completed (Profile No 7) 22:33:00     Target Completed Target completed (9/12, GCVS BL Lac) 22:33:02     Target Started (10/12) Target started (10/12, 61 Cyg) 22:35:04       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S) 22:37:16       Focusing Completed Foc1 AutoFocus Completed (Profile No 8) 22:38:39     Target Completed Target completed (10/12, 61 Cyg) 22:38:57     Target Started (11/12) Target started (11/12, GCVS Z And) 22:41:47       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S) 22:43:54       Focusing Completed Foc1 AutoFocus Completed (Profile No 9) 22:47:44     Target Completed Target completed (11/12, GCVS Z And) 22:47:46     Target Started (12/12) Target started (12/12, GCVS RX And) 22:50:06       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S) 22:52:18       Focusing Completed Foc1 AutoFocus Completed (Profile No 10) 22:54:55     Target Completed Target completed (12/12, GCVS RX And) 22:54:58   Queue Completed Job Queue completed 22:55:01 Session Initiating Session initiating (2019-09-15) 22:55:06   Plan Requested Observing Plan requested from AstroPlan () 22:58:11   Plan Loaded Observing Plan loaded to queue (2019-09-15 V2 BEST PLAN, Plan ID: 338) 22:58:19   Camera1 Connected SBIG Camera Connected (set point -15°C) 22:58:21   Telescope Connected Telescope Connected (TheSky6) 22:58:32 Session Equilibration Session ready for dome & camera equilibration 22:58:35   Equilibration Started Dome Equilibration started 22:58:37   Equilibration Skipped Dome Equilibration skipped by user 22:58:39 Session Running Session running 22:58:41   Queue Started Observing Queue started (8 targets selected) 22:58:43     Target Started (1/8) Target started (1/8, HIP 87937) 23:01:59       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S) 23:04:03       Focusing Completed Foc1 AutoFocus Completed (Profile No 11) 23:06:39     Target Completed Target completed (1/8, HIP 87937) 23:06:42     Target Started (2/8) Target started (2/8, GCVS CY Lyr) 23:09:17       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S) 23:11:25       Focusing Completed Foc1 AutoFocus Completed (Profile No 12) 23:15:29     Target Completed Target completed (2/8, GCVS CY Lyr) 23:15:46     Target Started (3/8) Target started (3/8, GCVS CI Cyg) 23:18:04       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S) 23:20:20       Focusing Completed Foc1 AutoFocus Completed (Profile No 13) 23:24:03     Target Completed Target completed (3/8, GCVS CI Cyg) 23:24:05     Target Started (4/8) Target started (4/8, 61 Cyg) 23:26:11       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S) 23:28:10       Focusing Completed Foc1 AutoFocus Completed (Profile No 14) 23:29:25     Target Completed Target completed (4/8, 61 Cyg) 23:30:43     Target Started (5/8) Target started (5/8, GCVS BL Lac) 23:32:56       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S) 23:35:13       Focusing Completed Foc1 AutoFocus Completed (Profile No 15) 23:39:13     Target Completed Target completed (5/8, GCVS BL Lac) 23:40:31     Target Started (6/8) Target started (6/8, GCVS EV Lac) 23:42:30       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S) 23:44:47       Focusing Completed Foc1 AutoFocus Completed (Profile No 16) 23:47:04     Target Completed Target completed (6/8, GCVS EV Lac) 23:48:31     Target Started (7/8) Target started (7/8, GCVS Z And) 23:50:14       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S) 23:52:26       Focusing Completed Foc1 AutoFocus Completed (Profile No 17) 23:56:16     Target Completed Target completed (7/8, GCVS Z And) 23:56:31     Target Started (8/8) Target started (8/8, GCVS RX And) 23:59:06       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S) 00:01:16       Focusing Completed Foc1 AutoFocus Completed (Profile No 18) 00:03:54     Target Completed Target completed (8/8, GCVS RX And) 00:03:57   Queue Completed Job Queue completed 00:03:59 Session Initiating Session initiating (2019-09-15) 00:04:04   Plan Requested Observing Plan requested from AstroPlan () 00:07:09   Plan Loaded Observing Plan loaded to queue (2019-09-15 V3 BEST PLAN, Plan ID: 339) 00:07:18   Camera1 Connected SBIG Camera Connected (set point -20°C) 00:07:20   Telescope Connected Telescope Connected (TheSky6) 00:07:29 Session Equilibration Session ready for dome & camera equilibration 00:07:32   Equilibration Started Dome Equilibration started 00:07:34   Equilibration Skipped Dome Equilibration skipped by user 00:07:36 Session Running Session running 00:07:38   Queue Started Observing Queue started (11 targets selected) 00:07:40     Target Started (1/11) Target started (1/11, GCVS CI Cyg) 00:11:16       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S) 00:13:20       Focusing Completed Foc1 AutoFocus Completed (Profile No 19) 00:17:03     Target Completed Target completed (1/11, GCVS CI Cyg) 00:17:05     Target Started (2/11) Target started (2/11, GCVS FG Sge) 00:19:06       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S) 00:21:06       Focusing Completed Foc1 AutoFocus Completed (Profile No 20) 00:23:36     Target Completed Target completed (2/11, GCVS FG Sge) 00:23:38     Target Started (3/11) Target started (3/11, GCVS CY Lyr) 00:25:52       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S) 00:27:54       Focusing Completed Foc1 AutoFocus Completed (Profile No 21) 00:31:54     Target Completed Target completed (3/11, GCVS CY Lyr) 00:32:06     Target Started (4/11) Target started (4/11, 61 Cyg) 00:34:27       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S) 00:36:27       Focusing Completed Foc1 AutoFocus Completed (Profile No 22) 00:37:51     Target Completed Target completed (4/11, 61 Cyg) 00:39:10     Target Started (5/11) Target started (5/11, GCVS RX And) 00:41:40       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S) 00:43:39       Focusing Completed Foc1 AutoFocus Completed (Profile No 23) 00:46:15     Target Completed Target completed (5/11, GCVS RX And) 00:46:40     Target Started (6/11) Target started (6/11, 61 Cyg) 00:49:05       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S) 00:51:07       Focusing Completed Foc1 AutoFocus Completed (Profile No 24) 00:52:30     Target Completed Target completed (6/11, 61 Cyg) 00:53:44     Target Started (7/11) Target started (7/11, GCVS BL Lac) 00:55:39       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S) 00:57:40       Focusing Completed Foc1 AutoFocus Completed (Profile No 25) 01:01:36     Target Completed Target completed (7/11, GCVS BL Lac) 01:03:32     Target Started (8/11) Target started (8/11, GCVS EV Lac) 01:05:30       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S) 01:07:46       Focusing Completed Foc1 AutoFocus Completed (Profile No 26) 01:10:04     Target Completed Target completed (8/11, GCVS EV Lac) 01:11:32     Target Started (9/11) Target started (9/11, GCVS EV Lac) 01:12:29       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S) 01:14:53       Focusing Completed Foc1 AutoFocus Completed (Profile No 27) 01:17:11     Target Completed Target completed (9/11, GCVS EV Lac) 01:19:32     Target Started (10/11) Target started (10/11, GCVS Z And) 01:21:26       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S) 01:23:34       Focusing Completed Foc1 AutoFocus Completed (Profile No 28) 01:27:23     Target Completed Target completed (10/11, GCVS Z And) 01:27:31     Target Started (11/11) Target started (11/11, GCVS RR Tau) 01:32:20       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S) 01:39:07     Target Completed Target completed (11/11, GCVS RR Tau) 01:39:10   Queue Completed Job Queue completed 01:39:14 Session Initiating Session initiating (2019-09-15) 01:39:19   Plan Requested Observing Plan requested from AstroPlan () 01:41:35   Plan Loaded Observing Plan loaded to queue (2019-09-15 V4 BEST PLAN, Plan ID: 340) 01:41:43   Camera1 Connected SBIG Camera Connected (set point -20°C) 01:41:45   Telescope Connected Telescope Connected (TheSky6) 01:41:55 Session Equilibration Session ready for dome & camera equilibration 01:41:58   Equilibration Started Dome Equilibration started 01:42:00   Equilibration Skipped Dome Equilibration skipped by user 01:42:02 Session Running Session running 01:42:04   Queue Started Observing Queue started (12 targets selected) 01:42:19     Target Started (1/12) Target started (1/12, GCVS CI Cyg) 01:46:48       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S) 01:50:42     Target Completed Target completed (1/12, GCVS CI Cyg) 01:50:45     Target Started (2/12) Target started (2/12, GCVS FG Sge) 01:54:08       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S) 01:56:26       Focusing Completed Foc1 AutoFocus Completed (Profile No 29) 01:58:55     Target Completed Target completed (2/12, GCVS FG Sge) 01:58:57     Target Started (3/12) Target started (3/12, 61 Cyg) 02:01:12       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S) 02:03:12       Focusing Completed Foc1 AutoFocus Completed (Profile No 30) 02:04:23     Target Completed Target completed (3/12, 61 Cyg) 02:04:37     Target Started (4/12) Target started (4/12, 61 Cyg) 02:05:05       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S) 02:07:03       Focusing Completed Foc1 AutoFocus Completed (Profile No 31) 02:08:23     Target Completed Target completed (4/12, 61 Cyg) 02:11:41     Target Started (5/12) Target started (5/12, GCVS Z And) 02:13:44       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S) 02:15:52       Focusing Completed Foc1 AutoFocus Completed (Profile No 32) 02:19:41     Target Completed Target completed (5/12, GCVS Z And) 02:19:43     Target Started (6/12) Target started (6/12, GCVS EV Lac) 02:21:50       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S) 02:23:57       Focusing Completed Foc1 AutoFocus Completed (Profile No 33) 02:26:06     Target Completed Target completed (6/12, GCVS EV Lac) 02:27:40     Target Started (7/12) Target started (7/12, GCVS RX And) 02:30:29       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S) 02:32:46       Focusing Completed Foc1 AutoFocus Completed (Profile No 34) 02:35:23     Target Completed Target completed (7/12, GCVS RX And) 02:35:25     Target Started (8/12) Target started (8/12, GCVS SU Tau) 02:37:34       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S) 02:39:35       Focusing Completed Foc1 AutoFocus Completed (Profile No 35) 02:44:10     Target Completed Target completed (8/12, GCVS SU Tau) 02:44:12     Target Started (9/12) Target started (9/12, GCVS SU Tau) 02:44:51       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S) 02:47:02       Focusing Completed Foc1 AutoFocus Completed (Profile No 36) 02:51:36     Target Completed Target completed (9/12, GCVS SU Tau) 02:53:22     Target Started (10/12) Target started (10/12, GCVS FO Ori) 02:55:57       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S) 03:00:06     Target Completed Target completed (10/12, GCVS FO Ori) 03:01:30     Target Started (11/12) Target started (11/12, GCVS RR Tau) 03:03:06       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S) 03:05:18       Focusing Completed Foc1 AutoFocus Completed (Profile No 37) 03:11:39     Target Completed Target completed (11/12, GCVS RR Tau) 03:12:04     Target Started (12/12) Target started (12/12, GCVS BL Lac) 03:15:21       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S) 03:17:33       Focusing Completed Foc1 AutoFocus Completed (Profile No 38) 03:21:22     Target Completed Target completed (12/12, GCVS BL Lac) 03:21:25   Queue Completed Job Queue completed 03:21:26 Session Initiating Session initiating (2019-09-15) 03:21:32   Plan Requested Observing Plan requested from AstroPlan () 03:23:21   Plan Loaded Observing Plan loaded to queue (2019-09-15 V5 BEST PLAN, Plan ID: 341) 03:23:29   Camera1 Connected SBIG Camera Connected (set point -20°C) 03:23:32   Telescope Connected Telescope Connected (TheSky6) 03:23:43 Session Equilibration Session ready for dome & camera equilibration 03:23:46   Equilibration Started Dome Equilibration started 03:23:48   Equilibration Skipped Dome Equilibration skipped by user 03:23:50 Session Running Session running 03:23:52   Queue Started Observing Queue started (12 targets selected) 03:24:32     Target Started (1/12) Target started (1/12, GCVS EV Lac) 03:28:03       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S) 03:30:13       Focusing Completed Foc1 AutoFocus Completed (Profile No 39) 03:32:32     Target Completed Target completed (1/12, GCVS EV Lac) 03:32:34     Target Started (2/12) Target started (2/12, GCVS Z And) 03:35:03       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S) 03:37:10       Focusing Completed Foc1 AutoFocus Completed (Profile No 40) 03:40:59     Target Completed Target completed (2/12, GCVS Z And) 03:41:01     Target Started (3/12) Target started (3/12, GCVS RX And) 03:43:08       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S) 03:45:08       Focusing Completed Foc1 AutoFocus Completed (Profile No 41) 03:47:45     Target Completed Target completed (3/12, GCVS RX And) 03:48:01     Target Started (4/12) Target started (4/12, GCVS RX And) 03:48:29       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S) 03:50:29       Focusing Completed Foc1 AutoFocus Completed (Profile No 42) 03:53:05     Target Completed Target completed (4/12, GCVS RX And) 03:55:31     Target Started (5/12) Target started (5/12, 61 Cyg) 03:57:47       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S) 03:59:49       Focusing Completed Foc1 AutoFocus Completed (Profile No 43) 04:00:55     Target Completed Target completed (5/12, 61 Cyg) 04:02:35     Target Started (6/12) Target started (6/12, GCVS BL Lac) 04:04:39       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S) 04:08:37     Target Completed Target completed (6/12, GCVS BL Lac) 04:12:23     Target Started (7/12) Target started (7/12, GCVS RR Tau) 04:15:55       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S) 04:18:22       Focusing Completed Foc1 AutoFocus Completed (Profile No 44) 04:25:02     Target Completed Target completed (7/12, GCVS RR Tau) 04:25:04     Target Started (8/12) Target started (8/12, GCVS U Gem) 04:28:50       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S) 04:32:14     Target Completed Target completed (8/12, GCVS U Gem) 04:32:16     Target Started (9/12) Target started (9/12, GCVS FO Ori) 04:34:03       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S) 04:36:14       Focusing Completed Foc1 AutoFocus Completed (Profile No 45) 04:40:12     Target Completed Target completed (9/12, GCVS FO Ori) 04:40:14     Target Started (10/12) Target started (10/12, GCVS FU Ori) 04:43:08       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S) 04:45:53     Target Completed Target completed (10/12, GCVS FU Ori) 04:47:38     Target Started (11/12) Target started (11/12, GCVS CN Ori) 04:50:55       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S) 04:54:31     Target Completed Target completed (11/12, GCVS CN Ori) 04:55:59     Target Started (12/12) Target started (12/12, GCVS NV Ori) 04:59:03       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S) 05:02:43     Target Completed Target completed (12/12, GCVS NV Ori) 05:02:46   Queue Completed Job Queue completed 05:02:48 Session Closing Session closing 05:03:36   Shutter Closed Shutter closed (closing time 45s) 05:04:03   Dome Parked Dome parked (parking time 27s) 05:04:41   Telescope Parked Telescope parked (parking time 32s) 05:05:31 Session Housekeeping Housekeeping Started (Cleanup FITS, Create Fits Summary, Transfer Files) 05:06:22 Session Finished Session Finished

Back to Top

Operational Issues (2019-09-15, S694)

• Critical Issues (0)
• Major Issues (0)

• Minor Issues (3)
• Continuous Improvement (3)

[ Prev | Next ]

Critical Issues

• None

Major Issues

• None

Minor Issues

• Obs. Manager failed to recognise that high cloud had developed and that conditions were unsuitable for continuing to acquire targets.
  This is a known issue that occasionally occurs when the sky clarity reading is moderate to marginal, but AllSky Stars count drops significantly and locate frames are failing to link. (cross ref with previous mention) .   Code modified : AllSky Stars Count used to soft suspend session when Stars Count drops below 20. and the option 'Suspend if stars<20' is checked.
  Fixed 2019-10-27 (AstroMain 3.16.2)

• Unable to initially find and then import into TheSky6 the orbital elements for new comet C/2019 Q4 (Borisov). The main issue seemed to be that the comets very high Eccentricity value of 2.89204 causes it to be rejected by TheSky6's import routine, as the comet is unlike all normal comets from our solar system which have e of between 0 and 1.5.  Eventually used the workaround of modifying the e value in the .cmt file from 2.89 to 0.89204 to allow the comet to be imported and then edit the e value in TheSky6 back to 2.89204.  As far as I could tell TheSky6 calculated the correct position for the comet based on ephermides for comet on the comets MPC page
  Elements eventually found and workaround found to import comet's orbital elements into TheSky6.

• Schedule Builder didn't include C/2019 Q4 (Borisov) into V5 Plan even though target was marked as a 'Must Include Target' .  Target was valid (type: Monitor, Status:To Be Observed, Sky Constraint: C3  (ie no critical limit)), marked as 'Must Include' and at the start time of the V5 plan the comet was at altitude 16.3 and climbing.  During earlier plan V2 -V4 the target wasn't risen and this can explain why these plans didn't comtain the target. Investigating Schedule Builder code shows that although the AstroPlan program allows a Target to marked as 'Must Include' and stored in the database, the flag is not currently used during Schedule Building.
    Fixed 2019-09-16 (AstroPlan 1.10.2). Builder modified to use Must-Include flag to prioritise targets during schedule building.

Continuous Improvement

• Move 'Targets Database' checkbox from bottom of 'Load from Observatory' tabs to the top. This is to allow any work in AstroPlan/Database to happen whilst the New/Analysis folders are slowly download. This is to allow a slight efficiency gain where a large number of FITs images have been acquired.
  Done 2019-09-16 (AstroMove 1.3.4)

• Check whether repositioned target names that show on Observing Results Chart are correctly displayed on the Observing Plan chart. . Two targets (RX And and 61 Cyg) are repositioned on Observing Session chart for S694 , but are not repositioned on Observing Plan Chart  Did the names faili to plot or did the names not need to be repositioned
  Done 2019-09-16.  The target names are repositioning on Observing Results chart as there was insufficient room to position them.

• Allow an option of building an Observing Plan at a specific start time.  For live observing building a plan a specific sun altitude or building a plan from Now provide the functionality required.  However for a testing and diagnosis of a particular issue I need to wanted to replicate the problem by building a plan based a specifiic start time and found that there is no way of doing this at present.
  Done 2019-09-16 (AstroPlan 1.10.2). Schedule Builder Form extended so that user can elect to use a specific time given by new fields 'txtUserStartTime' & 'checkboxStartTimeFromUser'
