	Session Aims & Highlights
	- Observing Result  - Night Summary Plot  - Session Event Log
	Operational Issues
	- Critical Issues (0),  Major Issues (1),  Minor Issues (3),  Continuous Improvement (1)
	Images from 2020-02-27 >>

Session Aims & Highlights (2020-02-27)

Main aims

1. Targets: Acquire images of a number of comets and deep sky objects


Equipment & Software

• 12" LX200 and ST-10XME
• 80mm APO and ZWO ASI 178MC
• CCDApp2, TheSky6, CCDSoft5, PHD2,  POTH Hub
• Pegasus UPB & Motor Focus, TCF-S
• SharpCap 3.2, PHD2  2.6.6dev3

• AstroMain 3.20.3 ,  Astroguard 1.2.11,   AstroPlan 1.14,  AstroShCap 1.2.15, AstroVOE 1.3.5, UPB 1.4.17  (AstroWeather 1.8.4, AstroAllSky 3.5.1)


Highlights

Lowlights

•   Wind.  Wind speeds of 10-15 mph affecting image quality

Summary Plots & Logs

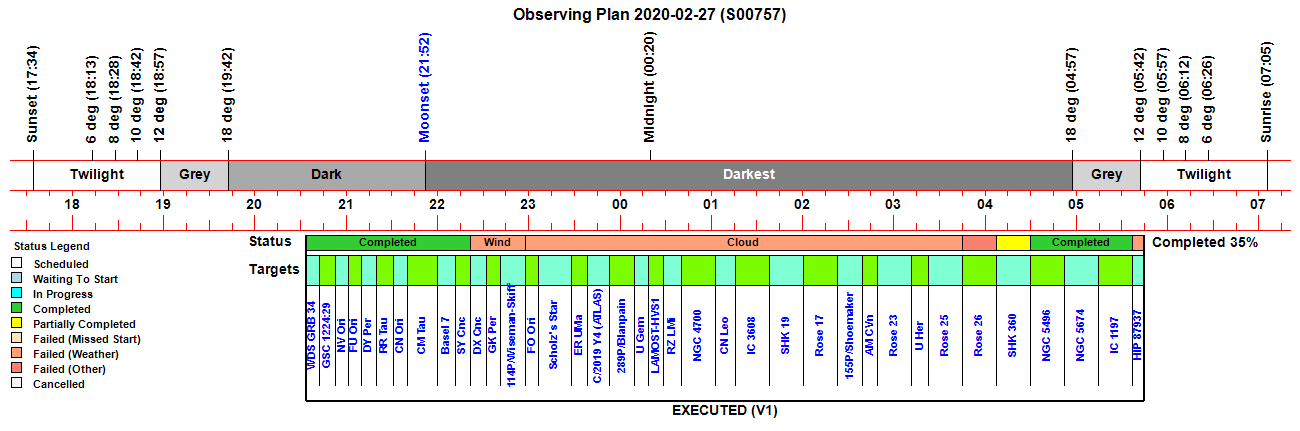

Observing Plan

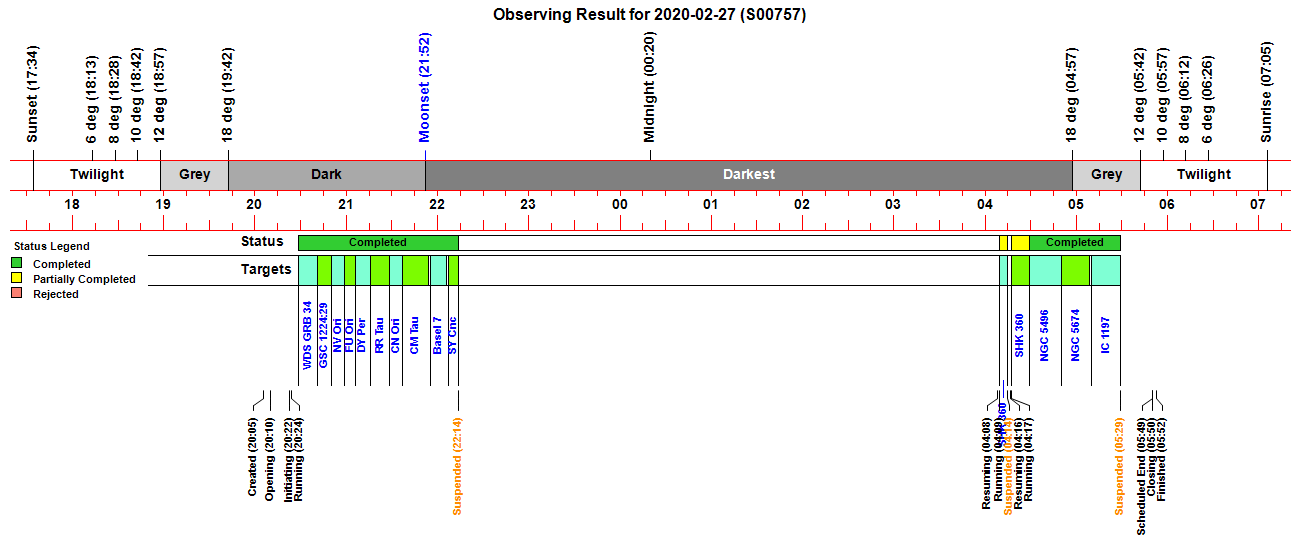

Observing Result

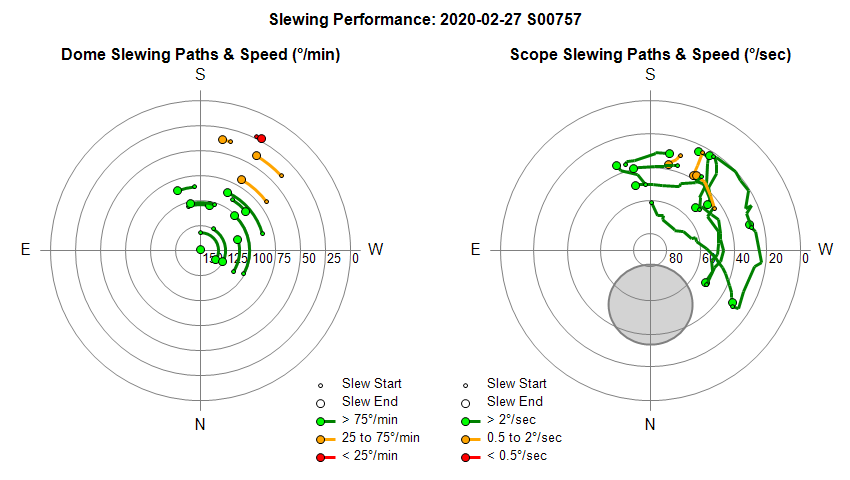

Dome & Scope Slewing Performance

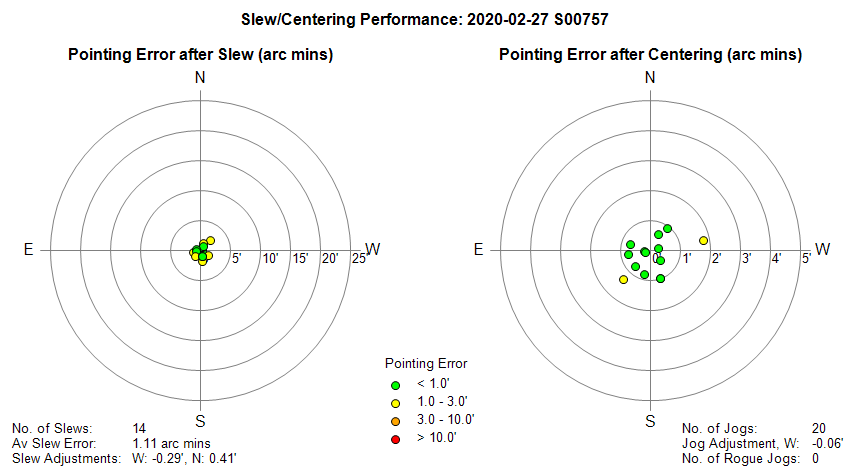

Slew/Centering Performance

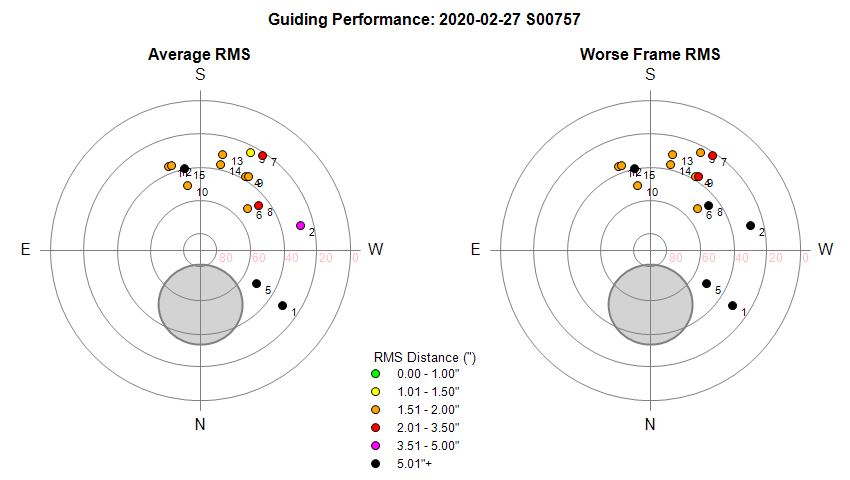

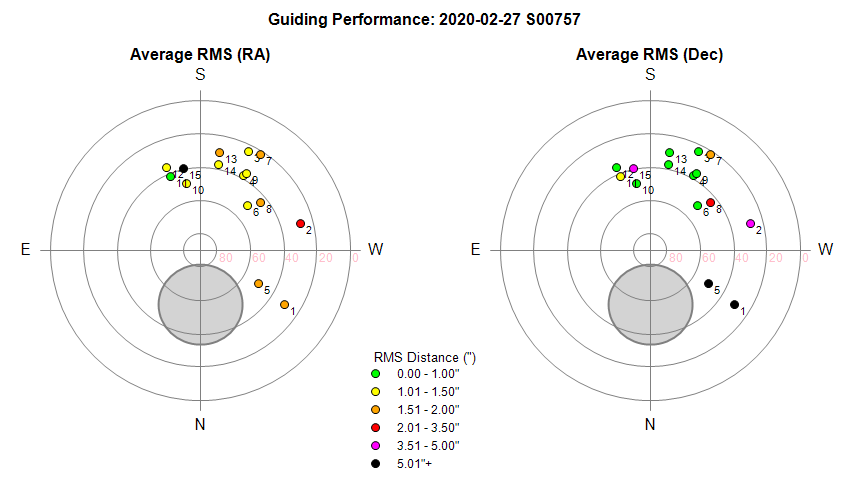

Guiding Performance

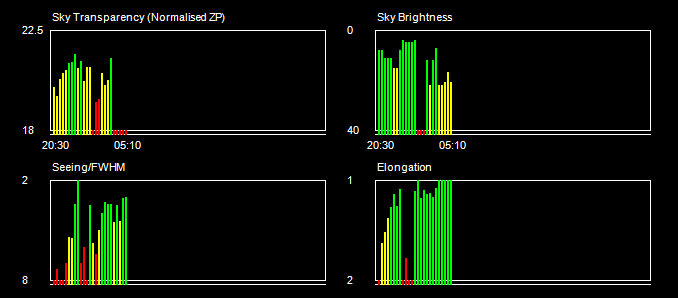

Sky Conditions (Locate Frames)

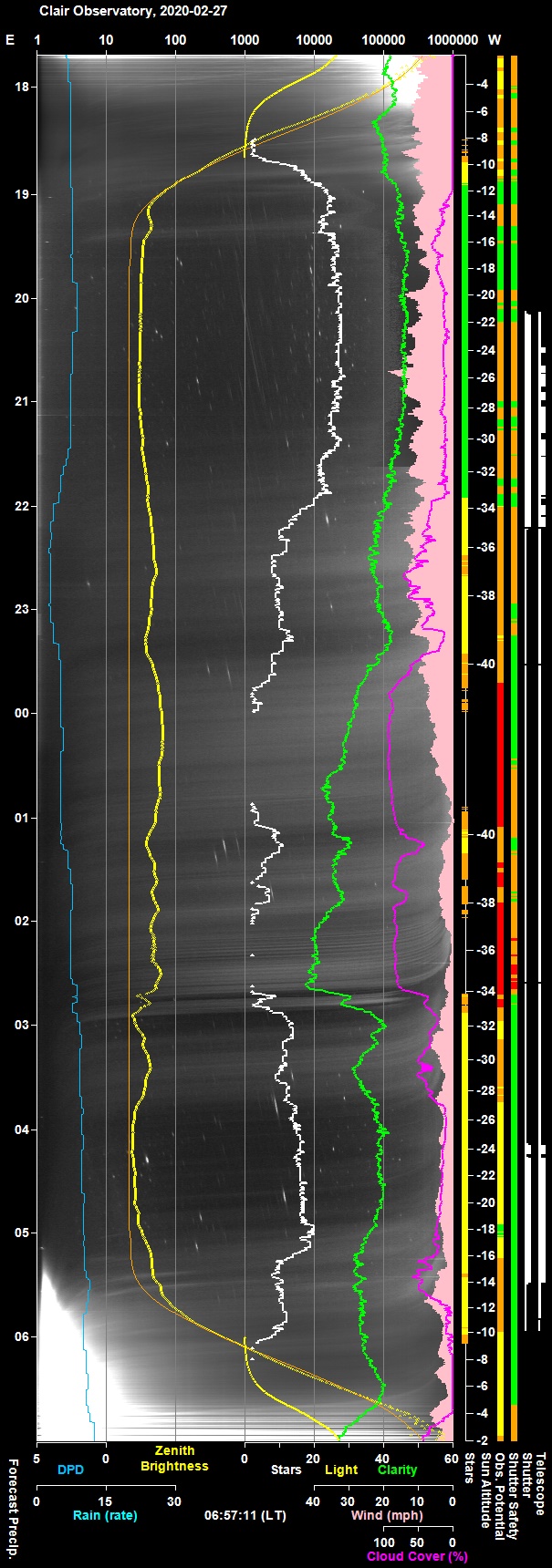

Night Sky Summary Plot Top axis: Sky Brightness at Zenith (in ADU/s) Lefthand axis: Local Time (hh LT). Righthand axis: Sun Altitude (degs)

Pre-Session Weather Forecast (API data from darksky.net) Forecast not saved/archived due to technical issue. In the event skies were ...

Session Event Log

Time     Event Detail 20:05:48 Session Created Live Session Created (2020-02-27 S00757, ImageSaveNum: 757001) 20:06:20   Scope Switched On Telescope power has been switched on via UPB Powerbox. 20:08:22   Services Started Observatory Services started 20:08:36   Telescope Connected Telescope Connected (TheSky6) 20:09:04   Camera1 Connected SBIG Camera Connected (set point -20°C) 20:10:10   Shutter Opened Shutter opened (opening time 47s) 20:12:48       Focusing Started Foc2 Focusing Started (Secondary Scope, using ShCap) 20:15:17       Focusing Aborted Foc2 Focusing Aborted 20:15:28       Focusing Started Foc2 Focusing Started (Secondary Scope, using ShCap) 20:17:30       Focusing Completed Foc2 AutoFocus Completed (Profile No 2) 20:18:38       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S) 20:22:28       Focusing Completed Foc1 AutoFocus Completed (Profile No 3) 20:22:46 Observatory (Auto) Observatory placed in Fully-Automated Mode 20:22:52 Session Pending Session pending (2020-02-27) 20:22:54 Session Initiating Session initiating (2020-02-27) 20:22:56   Plan Requested Observing Plan requested from AstroPlan (1.14) 20:23:32   Plan Loaded Observing Plan loaded to queue (2020-02-27 V1 BEST PLAN, Plan ID: 477) 20:23:35   Camera1 Connected SBIG Camera Connected (set point -20°C) 20:23:39   Telescope Connected Telescope Connected (TheSky6) 20:23:56 Session Equilibration Session ready for dome & camera equilibration 20:23:59   Equilibration Started Dome Equilibration started 20:24:01   Equilibration Skipped Dome Equilibration skipped by user 20:24:03 Session Running Session running 20:24:05   Queue Started Observing Queue started (37 targets selected) 20:28:52     Target Started (1/37) Target started (1/37, WDS GRB 34) 20:32:11       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S) 20:39:27       Focusing Failed Foc1 Focusing Failed - failed QC check (Quadratic) 20:41:07     Target Completed Target completed (1/37, WDS GRB 34) 20:41:09     Target Started (2/37) Target started (2/37, GSC 1224:29) 20:50:12     Target Completed Target completed (2/37, GSC 1224:29) 20:50:14     Target Started (3/37) Target started (3/37, GCVS NV Ori) 20:52:27       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S) 20:55:12       Focusing Completed Foc1 AutoFocus Completed (Profile No 5) 20:58:43     Target Completed Target completed (3/37, GCVS NV Ori) 20:58:45     Target Started (4/37) Target started (4/37, GCVS FU Ori) 21:00:19       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S) 21:03:19       Focusing Completed Foc1 AutoFocus Completed (Profile No 6) 21:05:59     Target Completed Target completed (4/37, GCVS FU Ori) 21:06:01     Target Started (5/37) Target started (5/37, GCVS DY Per) 21:16:13     Target Completed Target completed (5/37, GCVS DY Per) 21:16:15     Target Started (6/37) Target started (6/37, GCVS RR Tau) 21:18:49       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S) 21:22:11       Focusing Completed Foc1 AutoFocus Completed (Profile No 7) 21:28:20     Target Completed Target completed (6/37, GCVS RR Tau) 21:28:22     Target Started (7/37) Target started (7/37, GCVS CN Ori) 21:32:08       Focusing Failed Foc1 Focusing Failed - star is too dim (TCF-S) 21:37:12     Target Completed Target completed (7/37, GCVS CN Ori) 21:37:14     Target Started (8/37) Target started (8/37, GCVS CM Tau) 21:39:16       Focusing Failed Foc1 Focusing Failed - star is too dim (TCF-S) 21:54:00     Target Completed Target completed (8/37, GCVS CM Tau) 21:55:06     Target Started (9/37) Target started (9/37, Basel 7) 21:56:52       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S) 22:00:00       Focusing Completed Foc1 AutoFocus Completed (Profile No 8) 22:05:52     Target Completed Target completed (9/37, Basel 7) 22:07:06     Target Started (10/37) Target started (10/37, GCVS SY Cnc) 22:08:52   SoftSuspend Called Soft Suspend is called due to Deteriorating Conditions (too few stars) 22:09:11       Focusing Failed Foc1 Focusing Failed - unable to find a star (TCF-S) 22:13:59     Target Completed Target completed (10/37, GCVS SY Cnc) 22:14:01   Queue Paused Queue paused for SoftSuspend 22:14:03 Session Suspended Session suspended 22:14:52   Shutter Closed Shutter closed (closing time 49s) 22:27:17     Target Cancelled Target cancelled (11/37, GCVS DX Cnc) due to wind 22:35:53     Target Cancelled Target cancelled (12/37, GCVS GK Per) due to wind 22:51:38     Target Cancelled Target cancelled (13/37, 114P/Wiseman-Skiff) due to wind 23:01:21     Target Cancelled Target cancelled (14/37, GCVS FO Ori) due to cloud 23:21:02     Target Cancelled Target cancelled (15/37, Scholz's Star) due to cloud 23:32:20     Target Cancelled Target cancelled (16/37, GCVS ER UMa) due to cloud 23:46:46     Target Cancelled Target cancelled (17/37, C/2019 Y4 (ATLAS)) due to cloud 00:03:16     Target Cancelled Target cancelled (18/37, 289P/Blanpain) due to cloud 00:13:04     Target Cancelled Target cancelled (19/37, GCVS U Gem) due to cloud 00:23:15     Target Cancelled Target cancelled (20/37, LAMOST-HVS1) due to cloud 00:33:53     Target Cancelled Target cancelled (21/37, GCVS RZ LMi) due to cloud 00:54:45     Target Cancelled Target cancelled (22/37, NGC 4700) due to cloud 01:10:37     Target Cancelled Target cancelled (23/37, GCVS CN Leo) due to cloud 01:30:19     Target Cancelled Target cancelled (24/37, IC 3608) due to cloud 01:52:41     Target Cancelled Target cancelled (25/37, SHK 19) due to cloud 02:15:03     Target Cancelled Target cancelled (26/37, Rose 17) due to cloud 02:33:33     Target Cancelled Target cancelled (27/37, 155P/Shoemaker) due to cloud 02:43:21     Target Cancelled Target cancelled (28/37, GCVS AM CVn) due to cloud 03:03:28     Target Cancelled Target cancelled (29/37, Rose 23) due to cloud 03:17:08     Target Cancelled Target cancelled (30/37, GCVS U Her) due to cloud 03:37:15     Target Cancelled Target cancelled (31/37, Rose 25) due to cloud 03:59:37     Target Cancelled Target cancelled (32/37, Rose 26) due to other condition 04:08:29 Session Resuming Session resuming 04:09:14   Shutter Opened Shutter opened (opening time 45s) 04:09:18 Session Running Session running 04:09:20   Queue Resumed Observing Queue resumed 04:09:22     Target Started (33/37) Target started (33/37, SHK 360) 04:14:25 Critical Cloud Alert Critical Cloud Alert (Obs.Manager will close the Shutter) 04:14:27   HardSuspend Called Hard Suspend is called due to Critical Conditions (other condition) 04:14:29     Target Aborted (33/37) Target aborted (33/37, SHK 360) due to other condition 04:14:31   Queue Paused Queue pausing for HardSuspend 04:14:33 Session Suspended Session suspended 04:15:20   Shutter Closed Shutter closed (closing time 49s) 04:16:35 Session Resuming Session resuming 04:17:21   Shutter Opened Shutter opened (opening time 45s) 04:17:23 Session Running Session running 04:17:25   Queue Resumed Observing Queue resumed 04:17:27     Target Started (33/37) Target started (33/37, SHK 360) 04:29:14     Target Completed Target partially completed (33/37, SHK 360) 04:29:16     Target Started (34/37) Target started (34/37, NGC 5496) 04:32:33       Focusing Failed Foc1 Focusing Failed - unable to find a star (TCF-S) 04:50:10     Target Completed Target completed (34/37, NGC 5496) 04:50:13     Target Started (35/37) Target started (35/37, NGC 5674) 04:51:57       Focusing Failed Foc1 Focusing Failed - unable to find a star (TCF-S) 05:09:30     Target Completed Target completed (35/37, NGC 5674) 05:09:43     Target Started (36/37) Target started (36/37, IC 1197) 05:11:34       Focusing Failed Foc1 Focusing Failed - unable to find a star (TCF-S) 05:14:46   SoftSuspend Called Soft Suspend is called due to Deteriorating Conditions (too few stars) 05:29:03     Target Completed Target completed (36/37, IC 1197) 05:29:05   Queue Paused Queue paused for SoftSuspend 05:29:08 Session Suspended Session suspended 05:29:57   Shutter Closed Shutter closed (closing time 49s) 05:49:55     Target Cancelled Target cancelled (37/37, HIP 87937) due to cloud 05:50:00   Queue Completed Job Queue completed 05:50:04 Session Closing Session closing 05:50:09   Shutter Closed Shutter already closed (closed at 05:29, closing time 49s) 05:50:54   Dome Parked Dome parked (parking time 46s) 05:51:06   Telescope Parked Telescope parked (parking time 10s) 05:51:37   Scope Switched Off Telescope Power has been switched off via UPB Powerbox. 05:52:25   Services Stopped Night Services stopped 05:52:27 Session Housekeeping Housekeeping Started (Cleanup FITS, Create Fits Summary, Transfer Files) 05:52:36 Session Finished Session Finished

Back to Top

Operational Issues (2020-02-27, S757)

• Critical Issues (0)
• Major Issues (1)
• Minor Issues (3)
• Continuous Improvement (1)

[ Prev | Next ]

Critical Issues

• None

Major Issues

• WeatherForecast went offline at c.20:00 and unable to make complete Weather Forecast plots
    Fixed  (AstroWeather 1.8.4)

Minor Issues

• TargetInfo file not showing a centering information line when target unable to get acceptable criteria. DY Per target unable to get centering below acceptable criteria - the TargetInfo file should have reported this result but didn't. A Continuous Improvement ticket has been raised.
  Issue understood (AstroMain)

• Lock Shift / RA Rate written to Report file without leading zero.  Target 16/39 (155P/Shoemaker) report line written as
  "PHD2 Lock Shift Enabled (Ra -.77, Dec 14.25 arcsec/hr)"   -0.77 should be written instead of .77
  Problem also affects GuidingChart output. Fixed by setting IncludeLeadingZero parameter to 'True' in FormatNumber statement.
  Done 2020-02-04 (AstroMain 3.20.4)

• Network Issue.  After using Laptop7 over remote remote VNC connection, the newtork connection frooze. Data unable to be seen by Laptop9 for 7 minutes or so.  Lost connection recognised by AstroGuard (but didn't make any intervention).   Wonder if AntiVirus/Firewall program is causing this?
  Resolved itself (Observatory)

Continuous Improvement

• TargetInfo file to show centering information line when target unable to get acceptable criteria. DY Per target unable to get centering below acceptable criteria - the TargetInfo file should have reported this result but didn't
  To add (AstroMain)
