Session Aims & Highlights (2023-09-21)

Main aims

1. Targets.  Acquire images of a selection of variable stars, nearby stars, comets & deep sky targets as allowed by sky conditions (especially wind)

 Equipment & Software

• 12" LX200 and ST-10XME
• 80mm APO and ZWO ASI 178MC
• CCDApp2, TheSky6, CCDSoft5, DeviceHub 6.6.1.1,  MeadeGeneric 1.3.5.414, UPB 1.5, ASCOM 6.6
• Pegasus UPB & Motor Focus, TCF-S
• SharpCap 3.2, PHD2  2.6.11dev4, Siril 1.0.6, deCONZ 1.18.2, ASCOM 6.6 SP1

• AstroMain 3.62.12, AstroPlan 1.38.3,   AstroShCap 1.3.15, AstroGuard 1.10.2
  AstroVOE 1.13  AstroSN 1.10,  AstroProtect 1.7,  AstroMove 1.12.4
  (AstroWeather 1.21.2, AstroAllSky 3.19.2,  AstroObsCam 1.11.4, AstroLaunch 1.10.9 (1.11.1 on Dev Computer)

Highlights

• Targets. 15/23 planned target were completed, with 3 other targets partially completed.  In addition one ToO target  (P/2023 M4 (ATLAS) ) was also completed. Other planned targets failed due to cloud/session suspension.  Images from 1 target (DX Cnc) were later rejected due to cloud/poor sky transparency.
•  Dome Slews. Three dome slews were affected by significant hold-ups of up to 103s.
  (Hold Up Stats: 3/21 slews affected, 14%, 4.5 minutes total hold-up time).

Notes:

• Aurora recorded from the Observatory on previous night, 2023-09-20
   (see Aurora Images/Video from 2023-09-20)



Summary Plots & Logs

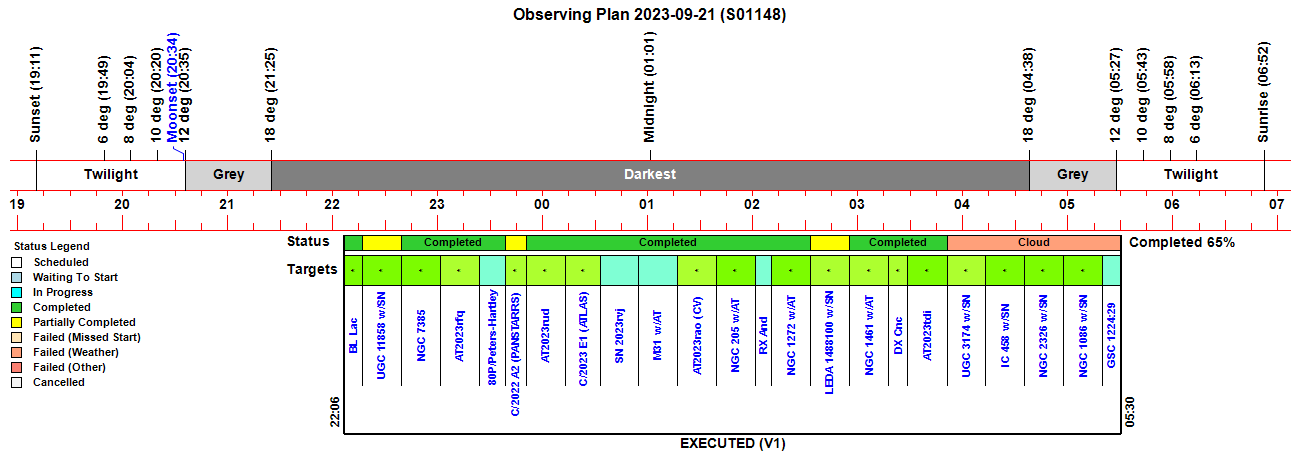

Observing Plan

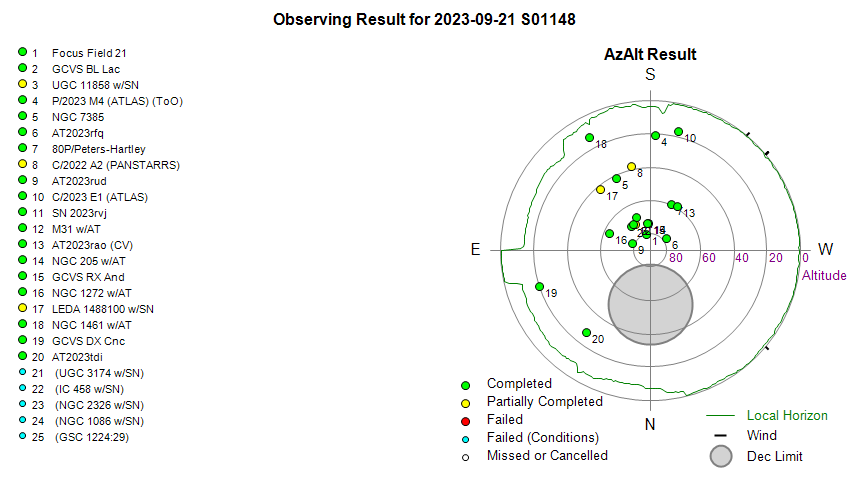

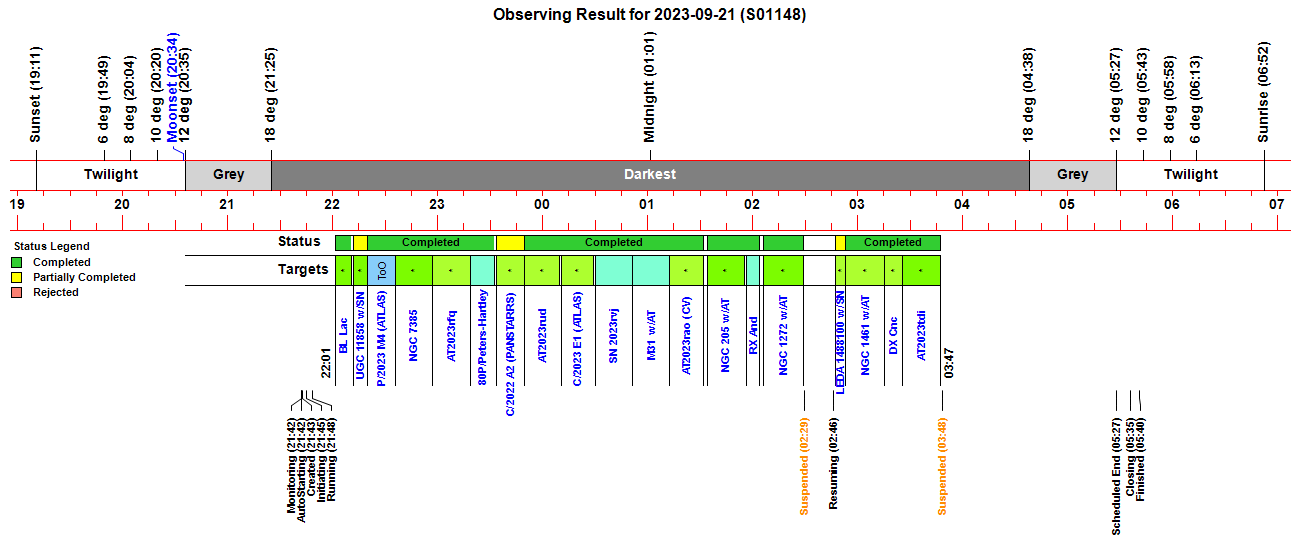

Observing Result

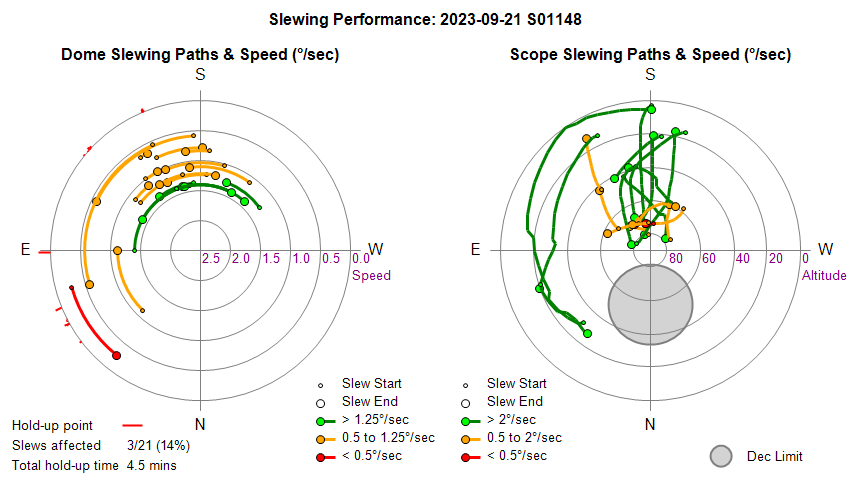

Dome & Scope Slewing Performance

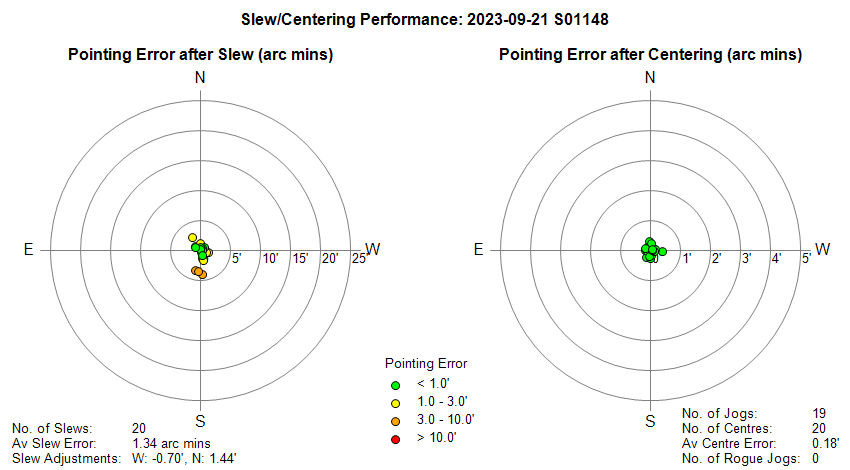

Slew/Centering Performance

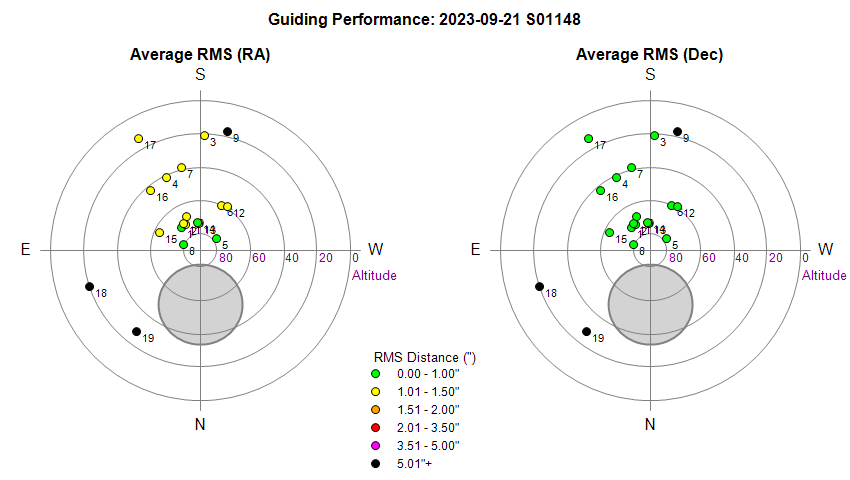

Guiding Performance

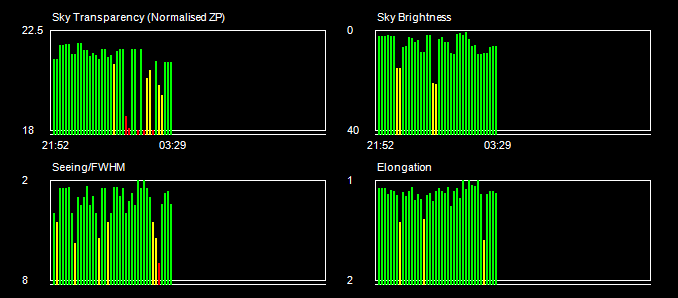

Sky Conditions (Locate Frames)

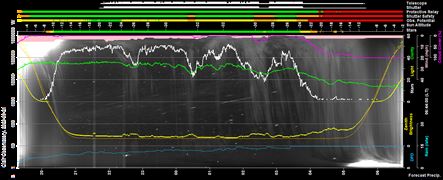

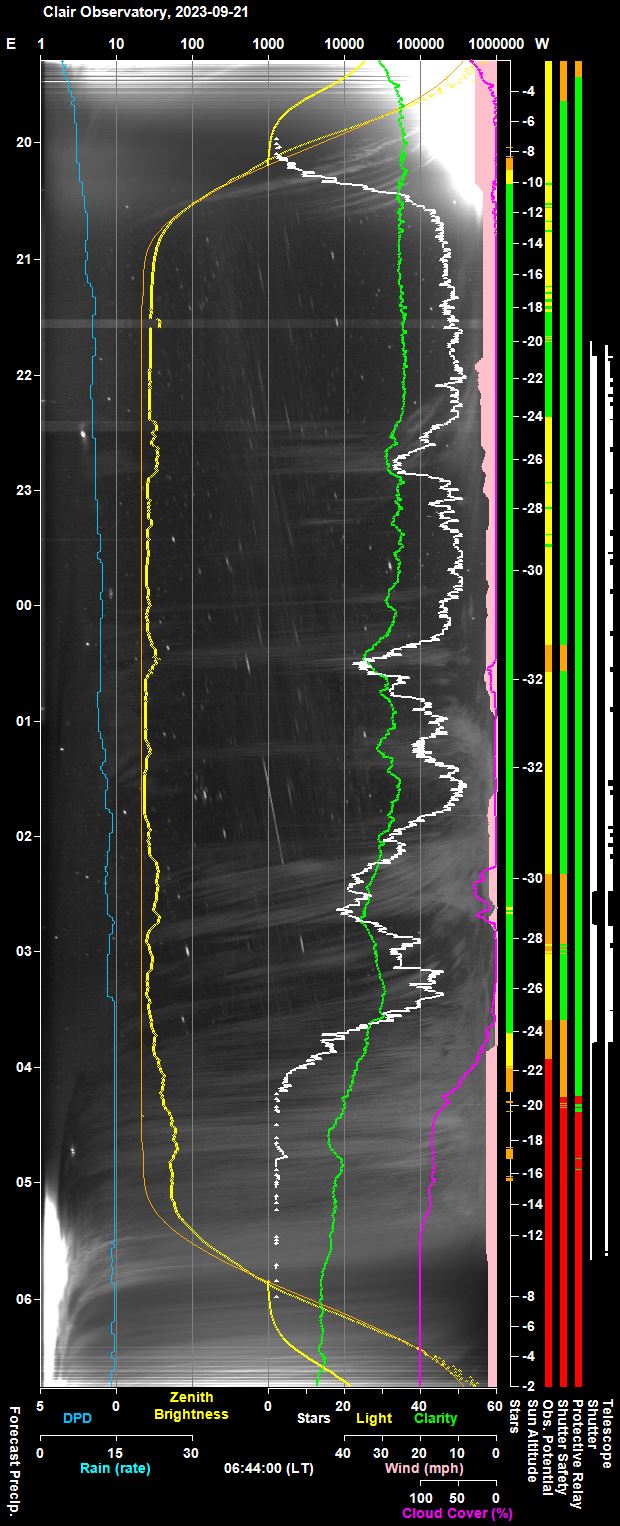

Night Sky Summary Plot Top axis: Sky Brightness at Zenith (in ADU/s) Lefthand axis: Local Time (hh LT). Righthand axis: Sun Altitude (degs)

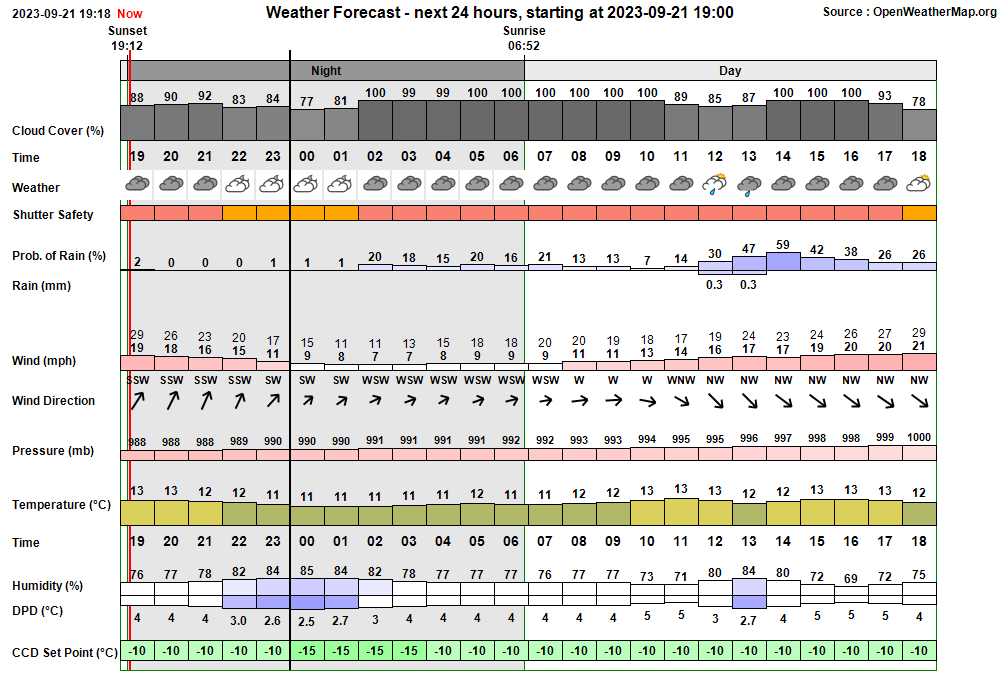

Actual Weather vs Pre-Session Weather Forecast

Session Event Log

Time     Event Detail 21:42:16 Session Monitoring AutoStart monitoring for Live Session opportunity between 21:42 & 04:47 21:42:20 Session AutoStarting Session autostarting (21:42) 21:42:49   CCDSoft Restarting CCDSoft being restarted (to set AutoSave No.) 21:43:03 Session Created Session Created (Live, 2023-09-21 S01148, ImageSaveNum: 1148001) 21:43:29   Scope Switched On Telescope Power has been switched on via UPB Powerbox. 21:45:12   Services Started Observatory Services started 21:45:19 Observatory (Auto) Observatory placed in Fully-Automated Mode 21:45:21 Session Pending Session pending (2023-09-21) 21:45:23 Session Initiating Session initiating (2023-09-21) 21:45:25   Plan Requested Observing Plan requested from AstroPlan (1.38.3) 21:46:26   Plan Loaded Observing Plan loaded to queue (Plan ID: 922) 21:46:51   Camera1 Connected SBIG Camera connected (set point -15°C) 21:47:28   Telescope Connected Telescope connected (TheSky6) 21:47:52 Session Equilibration Session ready to Open Dome 21:48:37   Dome Opened Dome opened (opening time 45s) 21:48:40 Session Running Session running 21:48:42   Queue Started Observing Queue started (23 targets selected) 21:48:43     Target Started (NrZen) Target started (Focus Field 21, HIP 103850) 21:48:57       Dome Unparked Dome unparked 21:53:39       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S) 21:55:55       Focusing Completed Foc1 AutoFocus Completed (Profile No 1, wide) 21:57:52       Focusing Completed Foc1 AutoFocus Completed (Profile No 1) 21:57:54       Focusing Started-Foc2 Foc2 Focusing Started (Secondary Scope, using ShCap) 21:59:52       Focusing Completed Foc2 AutoFocus Completed (Profile No 2, wide) 22:01:35       Focusing Completed Foc2 AutoFocus Completed (Profile No 2) 22:01:52     Target Completed (NrZen) Target completed (Focus Field 21, HIP 103850) 22:01:57     Target Started (1/23) Target started (1/23, GCVS BL Lac) 22:04:43       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S) 22:06:54       Focusing Completed Foc1 AutoFocus Completed (Profile No 3) 22:10:47     Target Completed Target completed (1/23, GCVS BL Lac) 22:12:11     Target Started (2/23) Target started (2/23, UGC 11858 w/SN2023rjj) 22:14:59       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S) 22:17:10       Focusing Completed Foc1 AutoFocus Completed (Profile No 4) 22:19:54     Target Aborted (2/23) Target aborted (2/23, UGC 11858 w/SN2023rjj) due to Priority 1 ToO Target 22:19:58     Target Started (3/24) Target started (3/24, P/2023 M4 (ATLAS), ToO) 22:24:08       Focusing Skipped Foc1 focusing skipped - star is too dim (TCF-S) 22:35:50     Target Completed Target completed (3/24, P/2023 M4 (ATLAS), ToO) 22:35:54     Target Started (4/24) Target started (4/24, NGC 7385) 22:38:47       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S) 22:41:02       Focusing Completed Foc1 AutoFocus Completed (Profile No 5) 22:57:03     Target Completed Target completed (4/24, NGC 7385) 22:57:07     Target Started (5/24) Target started (5/24, AT2023rfq) 23:00:10       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S) 23:02:26       Focusing Completed Foc1 AutoFocus Completed (Profile No 6) 23:18:31     Target Completed Target completed (5/24, AT2023rfq) 23:18:51     Target Started (6/24) Target started (6/24, 80P/Peters-Hartley) 23:21:36       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S) 23:24:09       Focusing Completed Foc1 AutoFocus Completed (Profile No 7) 23:32:37     Target Completed Target completed (6/24, 80P/Peters-Hartley) 23:33:41     Target Started (7/24) Target started (7/24, C/2022 A2 (PANSTARRS)) 23:36:46       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S) 23:39:14       Focusing Completed Foc1 AutoFocus Completed (Profile No 8) 23:49:29     Target Completed Target partially completed (7/24, C/2022 A2 (PANSTARRS)) 23:49:33     Target Started (8/24) Target started (8/24, AT2023rud) 23:52:32       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S) 23:54:41       Focusing Completed Foc1 AutoFocus Completed (Profile No 9) 00:10:29     Target Completed Target completed (8/24, AT2023rud) 00:10:33     Target Started (9/24) Target started (9/24, C/2023 E1 (ATLAS)) 00:14:10       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S) 00:16:37       Focusing Completed Foc1 AutoFocus Completed (Profile No 10) 00:29:54     Target Completed Target completed (9/24, C/2023 E1 (ATLAS)) 00:29:58     Target Started (10/24) Target started (10/24, SN 2023rvj) 00:32:40       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S) 00:35:21       Focusing Completed Foc1 AutoFocus Completed (Profile No 11) 00:51:10     Target Completed Target completed (10/24, SN 2023rvj) 00:51:14     Target Started (11/24) Target started (11/24, M31 w/Nova M31 2023-05b?) 00:53:44       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S) 00:55:47       Focusing Completed Foc1 AutoFocus Completed (Profile No 12) 01:12:19     Target Completed Target completed (11/24, M31 w/Nova M31 2023-05b?) 01:12:23     Target Started (12/24) Target started (12/24, AT2023rao (CV)) 01:15:48       Focusing Skipped Foc1 focusing skipped - star is too dim (TCF-S) 01:31:40     Target Completed Target completed (12/24, AT2023rao (CV)) 01:34:16     Target Started (13/24) Target started (13/24, NGC 205 w/AT2023sqw) 01:37:02       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S) 01:39:13       Focusing Completed Foc1 AutoFocus Completed (Profile No 13) 01:55:13     Target Completed Target completed (13/24, NGC 205 w/AT2023sqw) 01:56:37     Target Started (14/24) Target started (14/24, GCVS RX And) 01:58:59       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S) 02:00:57       Focusing Completed Foc1 AutoFocus Completed (Profile No 14) 02:03:58     Target Completed Target completed (14/24, GCVS RX And) 02:05:56     Target Started (15/24) Target started (15/24, NGC 1272 w/AT2023seo) 02:07:48     Dome Slew Dome slew held up at Az. 157.5, 133.1, 132.3, 129.5° (Total delay 49s) 02:09:40       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S) 02:12:18       Focusing Completed Foc1 AutoFocus Completed (Profile No 15) 02:27:18       SoftSuspend Called Soft Suspend is called due to Deteriorating Conditions (too few stars) 02:28:51     Target Completed Target completed (15/24, NGC 1272 w/AT2023seo) 02:28:53   Queue Paused Queue paused for Session Suspension 02:28:55 Session Suspending Session suspending 02:29:43   Dome Closed Dome closed (closing time 50s) 02:29:46 Session Suspended Session suspended 02:46:20 Session Resuming Session resuming 02:47:05   Dome Opened Dome opened (opening time 45s) 02:47:06 Session Running Session running 02:47:08   Queue Resumed Observing Queue resumed 02:47:10     Target Started (16/24) Target started (16/24, LEDA 1488100 w/SN2023olz) 02:53:06     Target Completed Target partially completed (16/24, LEDA 1488100 w/SN2023olz) 02:53:10     Target Started (17/24) Target started (17/24, NGC 1461 w/AT2023och) 02:56:19       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S) 02:58:45       Focusing Completed Foc1 AutoFocus Completed (Profile No 16) 03:15:11     Target Completed Target completed (17/24, NGC 1461 w/AT2023och) 03:15:15     Target Started (18/24) Target started (18/24, GCVS DX Cnc) 03:17:46     Dome Slew Dome slew held up at Az. 132.6, 131.5, 89.4° (Total delay 76s) 03:25:44     Target Completed Target completed (18/24, GCVS DX Cnc) 03:25:48     Target Started (19/24) Target started (19/24, AT2023tdi) 03:28:11     Dome Slew Dome slew held up at Az. 67.6, 62.2, 61.0, 60.8, 52.7° (Total delay 103s) 03:31:15       Focusing Skipped Foc1 focusing skipped - star is lost (TCF-S) 03:43:47       SoftSuspend Called Soft Suspend is called due to Deteriorating Conditions (too few stars) 03:47:25     Target Completed Target completed (19/24, AT2023tdi) 03:47:27   Queue Paused Queue paused for Session Suspension 03:47:30 Session Suspending Session suspending 03:48:17   Dome Closed Dome closed (closing time 50s) 03:48:20 Session Suspended Session suspended 04:05:04     Target Cancelled Target cancelled (20/24, UGC 3174 w/SN2023mut) due to cloud 04:27:25     Target Cancelled Target cancelled (21/24, IC 458 w/SN2023rgp) due to cloud 04:49:24     Target Cancelled Target cancelled (22/24, NGC 2326 w/SN2023pgb) due to cloud 05:11:44     Target Cancelled Target cancelled (23/24, NGC 1086 w/SN2023rix) due to cloud 05:35:47     Target Cancelled Target cancelled (24/24, GSC 1224:29) due to cloud 05:35:52   Queue Completed Job Queue completed 05:35:56 Session Closing Session closing 05:36:01   Dome Closed Dome already closed (closed at 03:48, closing time 50s) 05:36:53   Dome Parked Dome parked (parking time 43s), Az: 90.1 deg 05:38:21   Telescope Parked Telescope parked (parking time 83s) 05:38:36   Telescope State Handbox reads 'Scope parked Turn scope off.' 05:39:07   Telescope Switched Off Telescope Power has been switched off via UPB Switch. 05:40:34   Services Stopped Night Services stopped 05:40:36 Session Housekeeping Session Housekeeping started (Create Fits Summary, Transfer Files) 05:40:51 Session Finished Session Finished

Session Alerts & Alarms

Time     Type       Name Detail 21:45:21 Yellow Alert Disk Space Free Space on C:\ Drive (43.32 GB) is less than 50 GB 02:07:48 Yellow Alert Dome Slew Dome slew held up at Az. 157.5, 133.1, 132.3, 129.5° (Total delay 49s) 03:17:46 Yellow Alert Dome Slew Dome slew held up at Az. 132.6, 131.5, 89.4° (Total delay 76s) 03:28:11 Yellow Alert Dome Slew Dome slew held up at Az. 67.6, 62.2, 61.0, 60.8, 52.7° (Total delay 103s) 05:40:51 Yellow Alert Disk Space Free Space on C:\ Drive (42.33 GB) is less than 50 GB

Back to Top

Operational Issues (2023-09-21, S1148)

• Critical Issues (0)
• Major Issues (0)
• Minor Issues (0)
• Small Defects (2)
• Continuous Improvement (0)


[ Prev | Next ]

Critical Issues

• None

Major Issues

• None

Minor Issues

• None

Small Defects

• ToO List from the session included a ToO Target from the previous session. The Targets of Opportunity list from the S1148 session  (which is posted on the Current Session web page (using Session.TargetsOfOpportunity.dat) and is reported in theTargets of Opportunity section of the session's Report file) included a ToO Target (NGC 7385) that was successfully completed during the previous S1147 session.  The AstroMain program remained running between S1147 and S1148 session and the evidently ToO arrays from which the list is reported still included the prior ToO.  This is thought to have occurred before and had been fixed, but clearly the issue persists.  ToO arrays need to be cleared at the start of a new session.  Fixed in AstroMain 3.62.14, Session.nTargetsOfOpportunity set to 0 when creating New Live Session
  Fixed  2023-10-01 (AstroMain 3.62.14)

• ImageSet for Target P/2023 M4 (ATLAS) incorrectly named as 'Comet_P_2023_M4_ATLAS 3x3 90s C'.  Image Set should be named as "Comet_P2023_M4_ATLAS 3x3 90s C". Similarly FITS images from target are being incorrectly named like "Comet_P_2023_M4_ATLAS....FIT" instead of "Comet_P2023_M4_ATLAS....FIT" . This was due to a bug in "CCD_Session_Summary.xls!X2_Modify_Object_Names()" routine. Bug fixed 2023-12-31.  Names corrected in 01148_Fits Summary.xls and Image Set folder and Fits Files recreated.
  Fixed  2023-12-31 (Excel Fits Summary)

Continuous Improvement

• None
