David's Astronomy Pages Notes - Session 1207 (2024-04-12)

Notes (S1206)

Notes Main

Home Page

Notes (S1208)

	Session Aims & Highlights
	- Observing Result  - Night Summary Plot  - Session Event Log
	Operational Issues
	- Critical Issues (0),  Major Issues (0),  Minor Issues (0),  Small Defects (1),  Continuous Improvement (0)
	Images from 2024-04-12 >>

Session Aims & Highlights (2024-04-12)

Main aims

1. Targets.  Acquire images of a selection of variable stars, nearby stars, comets & deep sky targets as allowed by sky conditions.
    ( 12P/Pons-Brooks is now an early evening object only and its was not a feasible target for the session due to evening cloud)
2. CCDCamera. Continue to test recently re-factored & extended CCDCamera object.

 Equipment & Software

• 12" LX200 and ST-10XME
• 80mm APO and ZWO ASI 178MC
• TheSky6, CCDSoft5, DeviceHub 6.6.1.1,  MeadeGeneric 1.3.9, UPB 1.5, ASCOM 6.6,   Pulsar Dome Firmware 1.51 & Driver 6.3.10
• Pegasus UPB & Motor Focus, TCF-S
• SharpCap 3.2, PHD2  2.6.13, Siril 1.0.6, deCONZ 1.18.2, ASCOM 6.6 SP1
• [ DomeLink 1.0 / 1.1 - not used ]

• AstroMain 3.68.2,  AstroPlan 1.40.1,  AstroShCap 1.3.15, AstroGuard 1.10.4   (any new items or versions in bold)
  AstroVOE 1.13.2,  AstroSN 1.10.3,  AstroProtect 1.7,  AstroMove 1.12.12
  AstroWeather 1.24.1, AstroAllSky 3.20.4,  AstroObsCam 1.11.4 (not 1.11.5), AstroLaunch 1.11.3

Highlights

• Targets. 15/15 planned targets observations were completed. Images from the first target (29P/Schwassmann-Wachmann) were later rejected because of poor image quality due to wind.
• CCDCamera. There were no problems with the recently re-factored and extended CCDCamera object.  It particular there were no incidents in which CCDCamera, CCDSoft &  SBIG Camera froze and needed to be restarted.
•  Dome Parking.  Dome parked at correct position at the end of the session.

Notes:

Summary Plots & Logs

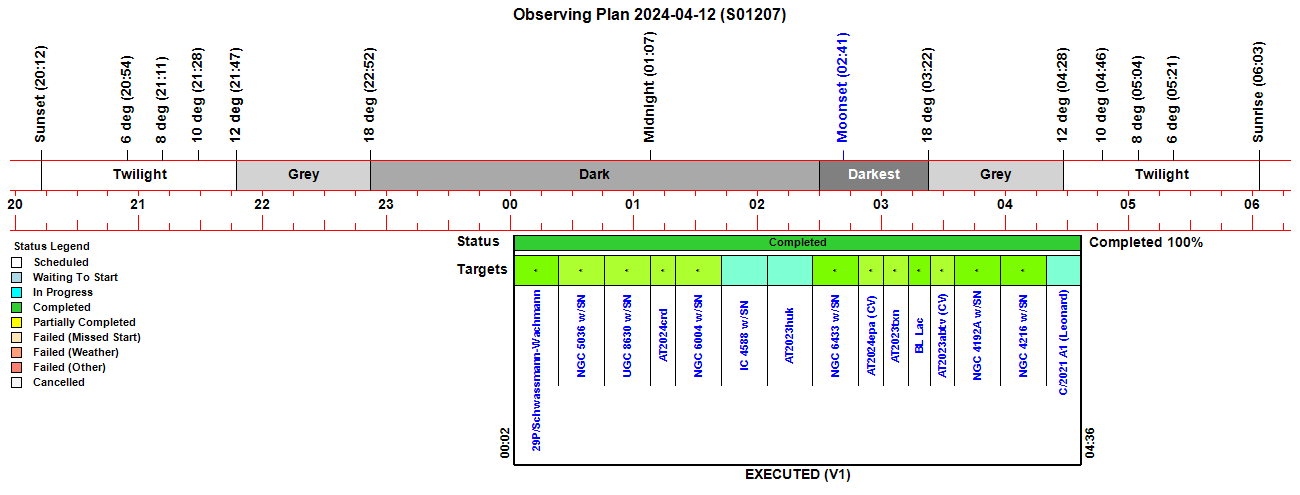

Observing Plan

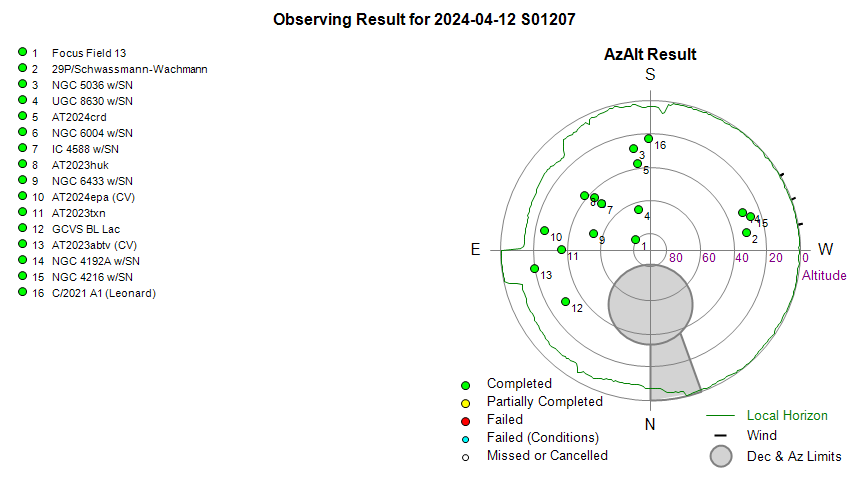

Observing Result

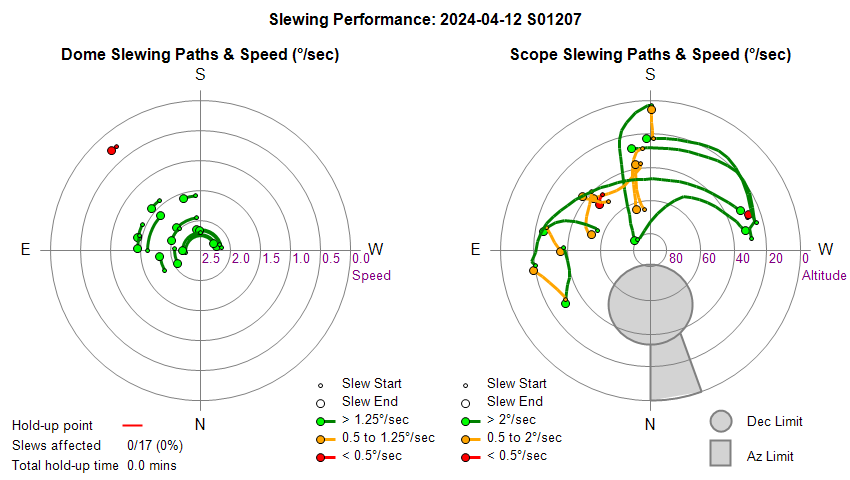

Dome & Scope Slewing Performance

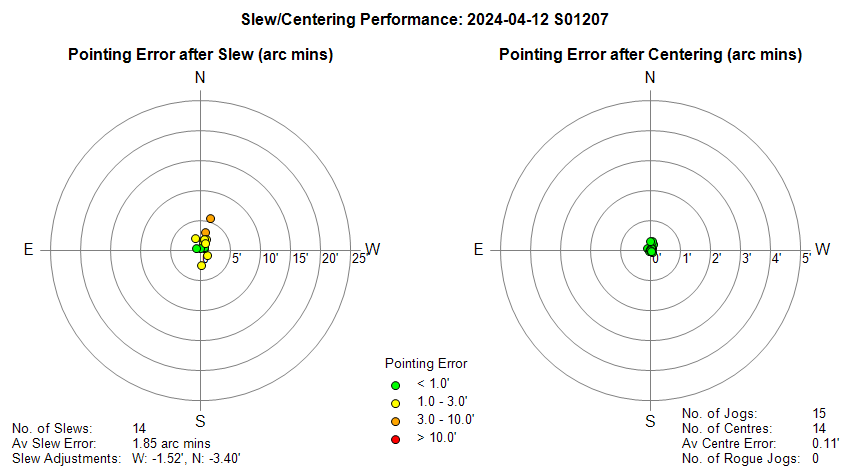

Slew/Centering Performance

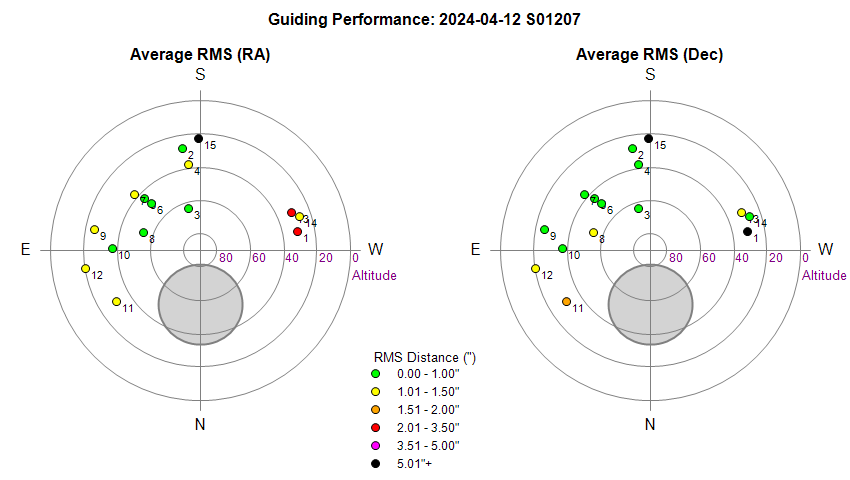

Guiding Performance

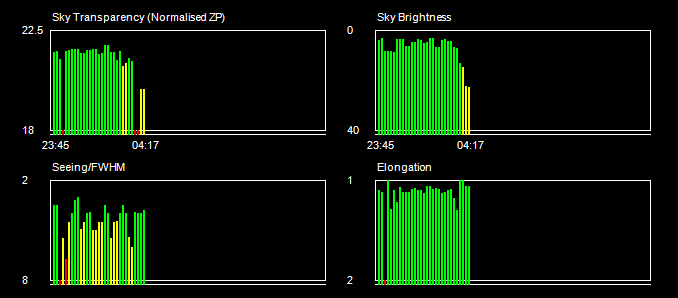

Sky Conditions (Locate Frames)

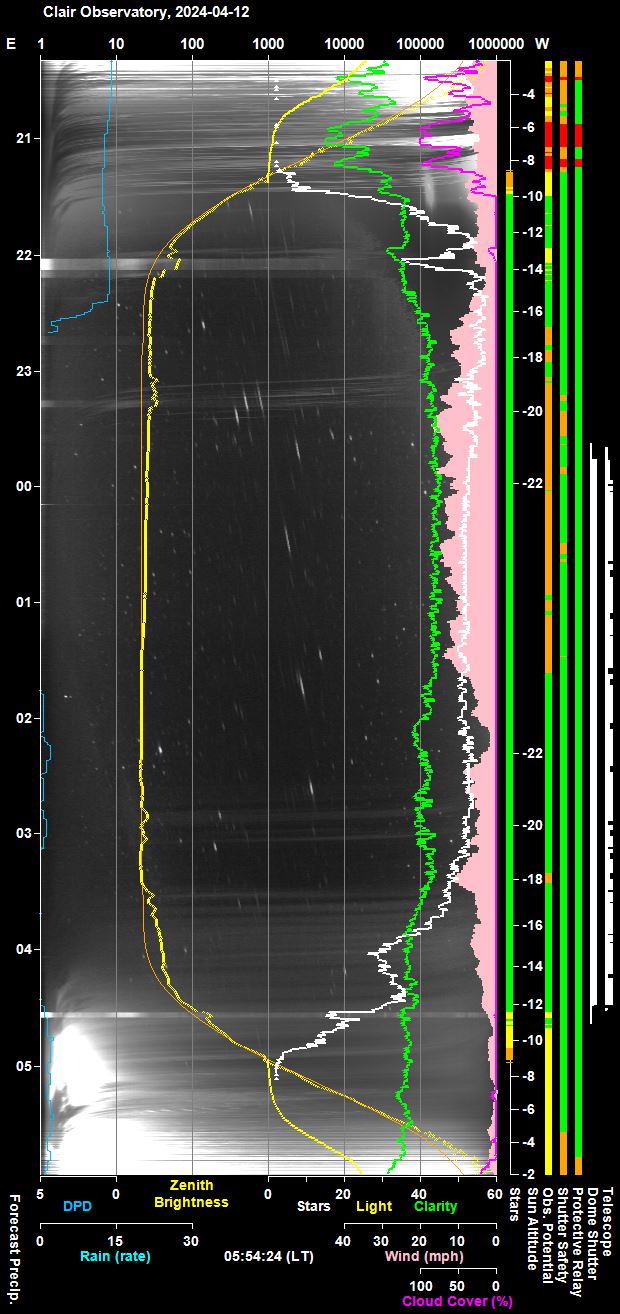

Night Sky Summary Plot Top axis: Sky Brightness at Zenith (in ADU/s) Lefthand axis: Local Time (hh LT). Righthand axis: Sun Altitude (degs)

Actual Weather vs Pre-Session Weather Forecast

Session Event Log

Time     Event Detail 23:36:38 Session Monitoring AutoStart monitoring for Live Session opportunity between 23:36 & 03:48 23:36:39   AutoStart Delayed Session delayed due to wind 23:37:30 Session AutoStarting Session autostarting (23:37) 23:37:51   CCDSoft Restarting CCDSoft being restarted (to set AutoSave No.) 23:38:18   Camera1 Connected SBIG Camera connected (Set point -15°C) 23:38:20 Session Created Session Created (Live, 2024-04-12 S01207, ImageSaveNum: 1207001) 23:38:25   Scope Switched On Telescope Power has been switched on via UPB Powerbox. 23:40:10   Services Started Observatory Services started 23:40:17 Observatory (Auto) Observatory placed in Fully-Automated Mode 23:40:19   AutoStart Delayed Session delayed due to wind 23:40:22 Session Pending Session pending (2024-04-12) 23:40:24 Session Initiating Session initiating (2024-04-12) 23:40:31   Camera1 Connected SBIG Camera connected (Set point -10°C) 23:40:38   Plan Requested Observing Plan requested from AstroPlan (1.40.1) 23:41:34   Plan Loaded Observing Plan loaded to queue (Plan ID: 982) 23:42:15   Telescope Connected Telescope connected (TheSky6) 23:42:39 Session Equilibration Session ready to Open Dome 23:43:24   Dome Opened Dome opened (Opening time 45s, Zigbee 40s) 23:43:39 Session Running Session running 23:43:42   Queue Started Observing Queue started (15 targets selected) 23:43:45     Target Started (NrZen) Target started (Focus Field 13, HIP 63666) 23:43:59       Dome Unparked Dome unparked 23:47:21       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S) 23:50:22       Focusing Completed Foc1 AutoFocus Completed (Profile No 1, wide) 23:52:50       Focusing Completed Foc1 AutoFocus Completed (Profile No 1) 23:52:52       Focusing Started-Foc2 Foc2 Focusing Started (Secondary Scope, using ShCap) 23:54:57       Focusing Completed Foc2 AutoFocus Completed (Profile No 2, wide) 23:56:39       Focusing Completed Foc2 AutoFocus Completed (Profile No 2) 23:56:56     Target Completed (NrZen) Target completed (Focus Field 13, HIP 63666) 23:57:01     Target Started (1/15) Target started (1/15, 29P/Schwassmann-Wachmann) 00:03:11       Focusing Skipped Foc1 focusing skipped - star is lost (TCF-S) 00:19:50     Target Completed Target completed (1/15, 29P/Schwassmann-Wachmann) 00:19:54     Target Started (2/15) Target started (2/15, NGC 5036 w/SN2024dop) 00:23:14       Focusing Skipped Foc1 focusing skipped - star is too dim (TCF-S) 00:39:09     Target Completed Target completed (2/15, NGC 5036 w/SN2024dop) 00:40:40     Target Started (3/15) Target started (3/15, UGC 8630 w/SN2024drv) 00:44:18       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S) 00:47:10       Focusing Completed Foc1 AutoFocus Completed (Profile No 3) 01:03:25     Target Completed Target completed (3/15, UGC 8630 w/SN2024drv) 01:03:29     Target Started (4/15) Target started (4/15, AT2024crd) 01:06:25       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S) 01:09:07       Focusing Completed Foc1 AutoFocus Completed (Profile No 4) 01:15:10     Target Completed Target completed (4/15, AT2024crd) 01:15:14     Target Started (5/15) Target started (5/15, NGC 6004 w/SN2024cld) 01:18:11       Focusing Skipped Foc1 focusing skipped - star is too dim (TCF-S) 01:34:32     Target Completed Target completed (5/15, NGC 6004 w/SN2024cld) 01:37:41     Target Started (6/15) Target started (6/15, IC 4588 w/SN2023ifv) 01:40:38       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S) 01:43:21       Focusing Completed Foc1 AutoFocus Completed (Profile No 5) 02:00:18     Target Completed Target completed (6/15, IC 4588 w/SN2023ifv) 02:00:22     Target Started (7/15) Target started (7/15, AT2023huk) 02:03:21       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S) 02:05:49       Focusing Completed Foc1 AutoFocus Completed (Profile No 6) 02:22:59     Target Completed Target completed (7/15, AT2023huk) 02:23:04     Target Started (8/15) Target started (8/15, NGC 6433 w/SN2024efn) 02:26:06       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S) 02:28:49       Focusing Completed Foc1 AutoFocus Completed (Profile No 7) 02:45:15     Target Completed Target completed (8/15, NGC 6433 w/SN2024efn) 02:45:19     Target Started (9/15) Target started (9/15, AT2024epa (CV)) 02:48:00       Focusing Skipped Foc1 focusing skipped - star is too dim (TCF-S) 02:54:03     Target Completed Target completed (9/15, AT2024epa (CV)) 02:56:00     Target Started (10/15) Target started (10/15, AT2023txn) 02:58:49       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S) 03:01:37       Focusing Completed Foc1 AutoFocus Completed (Profile No 8) 03:07:31     Target Completed Target completed (10/15, AT2023txn) 03:08:20     Target Started (11/15) Target started (11/15, GCVS BL Lac) 03:11:09       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S) 03:13:48       Focusing Completed Foc1 AutoFocus Completed (Profile No 9) 03:18:31     Target Completed Target completed (11/15, GCVS BL Lac) 03:18:35     Target Started (12/15) Target started (12/15, AT2023abtv (CV)) 03:21:25       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S) 03:23:58       Focusing Completed Foc1 AutoFocus Completed (Profile No 10) 03:29:53     Target Completed Target completed (12/15, AT2023abtv (CV)) 03:30:38     Target Started (13/15) Target started (13/15, NGC 4192A w/SN2024exw) 03:36:15       Focusing Skipped Foc1 focusing skipped - star is lost (TCF-S) 03:52:33     Target Completed Target completed (13/15, NGC 4192A w/SN2024exw) 03:52:58     Target Started (14/15) Target started (14/15, NGC 4216 w/SN2024gy) 03:57:14       Focusing Skipped Foc1 focusing skipped - unable to find a star (TCF-S) 04:13:28     Target Completed Target completed (14/15, NGC 4216 w/SN2024gy) 04:15:18     Target Started (15/15) Target started (15/15, C/2021 A1 (Leonard)) 04:18:50       Focusing Skipped Foc1 focusing skipped - star is too dim (TCF-S) 04:29:10     Target Completed Target completed (15/15, C/2021 A1 (Leonard)) 04:29:12   Queue Completed Job Queue completed 04:29:14 Session Closing Session closing 04:30:09   Dome Closed Dome closed (Closing time 50s, Zigbee 43s) 04:30:59   Dome Parked Dome parked (parking time 43s), Az: 90.0 deg 04:32:12   Telescope Parked Telescope parked (parking time 66s total) 04:32:27   Telescope State Handbox reads 'Scope parked Turn scope off.' 04:32:50   Telescope Switched Off Telescope Power has been switched off via UPB Switch. 04:34:14   Dome Charging Dome is parked and re-charging Ok (44mA) 04:35:34   Services Stopped Night Services stopped 04:35:37 Session Finishing Session Finishing started (Create Fits Summary, Transfer Files) 04:35:57     Dome (Find Park) Find Park started (Search Az 87.0 to 93.0°, Step 0.2°, Narrow) 04:37:27     Dome Find Park found (Best Park Az 90.2°) 04:37:34     Dome Dome has been synced at park position (Az 90.0°, Adjustment: -0.2°) 04:37:36   Dome Parked Dome parked 04:39:25   Dome Charging Dome is parked and re-charging Ok (41mA) 04:39:27 Session Finished Session Finished

Session Alerts & Alarms

Time     Type       Name Detail 04:39:25 Green Clear Dome Charging Dome is parked and re-charging Ok (41mA)

Back to Top

Operational Issues (2024-04-12 S1207)

• Critical Issues (0)
• Major Issues (0)
• Minor Issues (0)
• Small Defects (1)
• Continuous Improvement (0)


[ Prev | Next ]

Critical Issues

• None

Major Issues

• None

Minor Issues

• None

Small Defects

• AstroMain's Overseer recorded that ScopeMonitor was Pending/Frozen during Closing State 13.  After Telescope had been parked,  turned off & disconnected during Closing Stage 6,  ObsOverseer recorded that TheSkyScopeMonitor was Pending for around 90s during Closing Stage 13 ('Waiting for Night Services to close). Closing Stage 13 normally takes 5s, but on this occasion it took 100s, so the hold-up in ScopeMonitor was also delaying the 'Close Night Services' task. Logs indicate that holdup was in the 'Stop TheSky6Telescope' task.  The 87s/90s pending time until the Monitor resumed at 04:35:32 is a known occasional issue that is believed to be due to an unspecified task in TheSky6 (may be an update check or something ?, but it always takes the same time).  It is not normal to encounter this hold-up at this time and is therefore taken to be an example of a known occasional glitch.  The first message 'Scope Monitor is Pending (17s)' at 04:34:14 indicates that the hold-up in the ScopeMonitor began at around 04:33:57 which places it within Closing Stage 11 ('Wait for Closedown Camera'). This cursory association with the Camera closedown is considered to be just a conincidence. Issue is understood and is closed after review on 2024-04-15  as being as a known occasional glitch with no significant impact.
  Closed after review 2024-04-13 (AstroMain, TheSky6)

Continuous Improvement

• None

[ Prev | Next ]
