	Session Aims & Highlights
	- Observing Result  - Night Summary Plot  - Session Event Log
	Operational Issues
	- Critical Issues (0),  Major Issues (1),  Minor Issues (4),  Small Defects (4),  Continuous Improvement (2)
	Images from 2024-09-14 >>

Session Aims & Highlights (2024-09-14)

Main aims

1. Targets.  Acquire images of a selection of variable stars, nearby stars, comets & deep sky targets as allowed by sky conditions.

 Equipment & Software

• 12" LX200 and ST-10XME
• 80mm APO and ZWO ASI 178MC
• TheSky6, CCDSoft5, DeviceHub 6.6.1.1,  MeadeGeneric 1.3.9, UPB 1.5, ASCOM 6.6,   Pulsar Dome Firmware 1.51 & Driver 6.3.10
• Pegasus UPB & Motor Focus, TCF-S
• SharpCap 3.2, PHD2  2.6.13, Siril 1.0.6, deCONZ 1.18.2, ASCOM 6.6 SP1
• [ DomeLink 1.0 / 1.1 - not used ]

• AstroMain 3.69.6,  AstroPlan 1.40.8,  AstroShCap 1.3.15, AstroGuard 1.10.5   (any new items or versions in bold)
  AstroVOE 1.13.2,  AstroSN 1.12,  AstroProtect 1.7,  AstroMove 1.12.14    when did astroSN 1.10.4 go to 1.11 ?
  AstroWeather 1.25, AstroAllSky 3.20.4,  AstroObsCam 1.11.4 (not 1.11.5), AstroLaunch 1.11.3

Highlights-

• Targets. 15/25 planned targets observations were completed, with 5 other target partially completed (3/5 of these were due to JobQueue hanging whilst leading to a session suspension). The 3 others targets failed due to a cloud/session suspension.
• JobQueue.  There were 3 incidents of the issue where the ImageLink process freezes for 5 minutes, leading to Target Abort and Session Suspension. causing the loss of 24 minutes from the observing plan, affecting the amount and quality of images collected during the session.
• Dome. No issues opening/closing shutter during session.  Dome closed and parked ok at end of session.

Notes:

Summary Plots & Logs

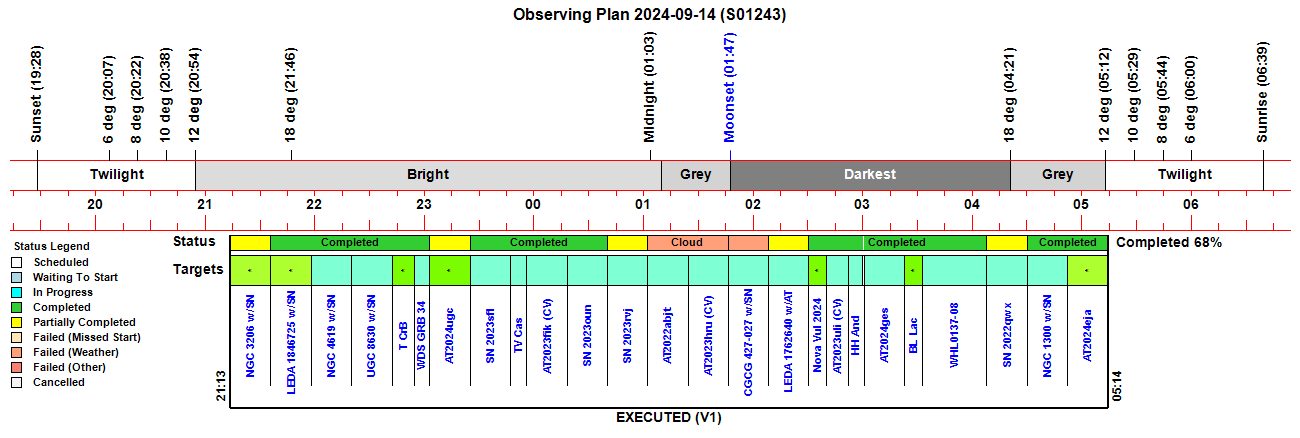

Observing Plan

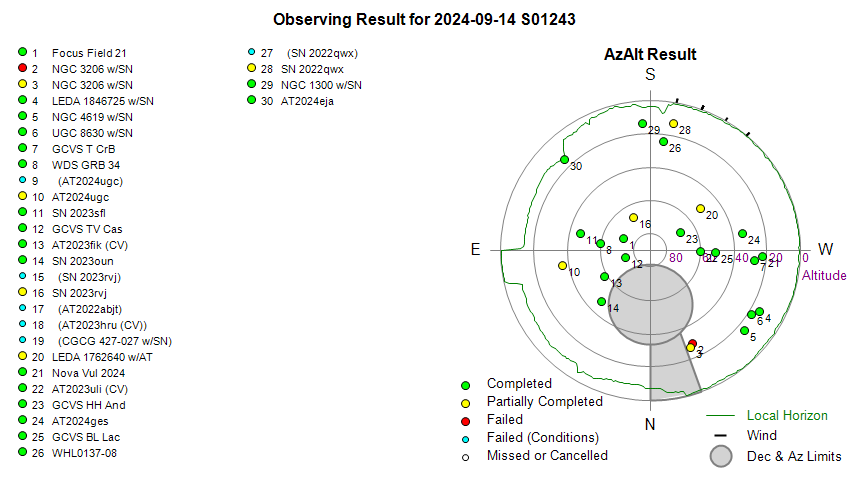

Observing Result

Dome & Scope Slewing Performance

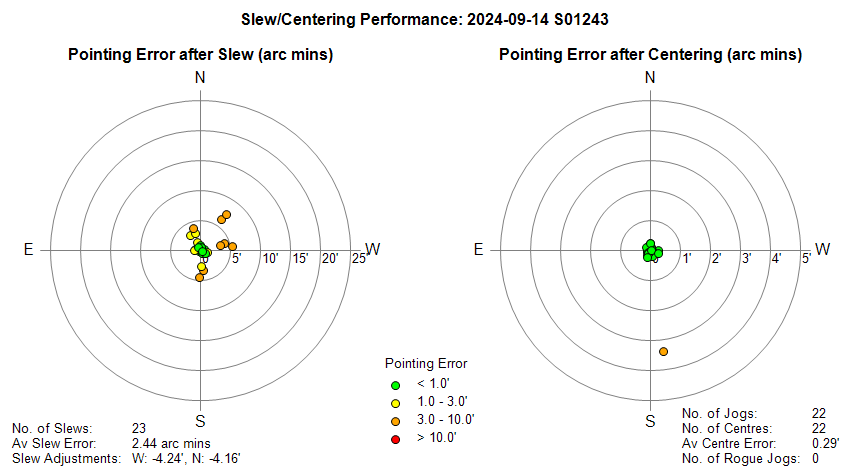

Slew/Centering Performance

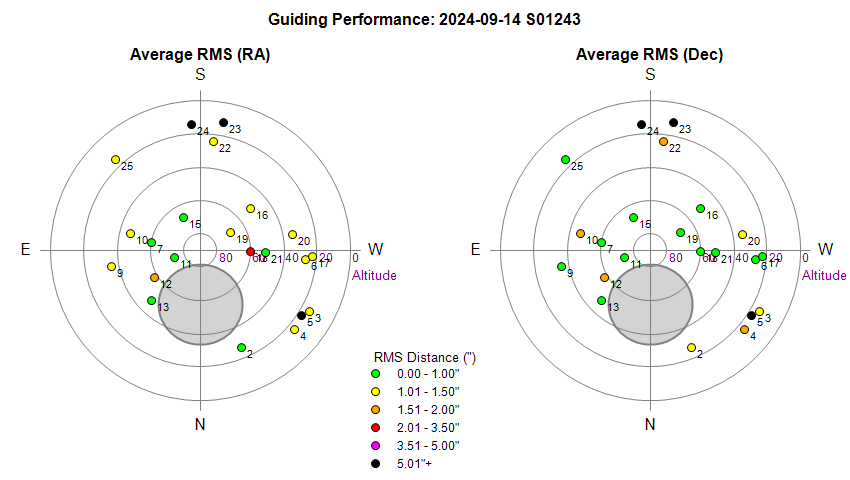

Guiding Performance

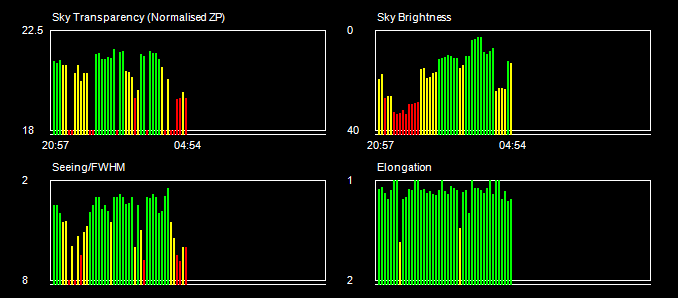

Sky Conditions (Locate Frames)

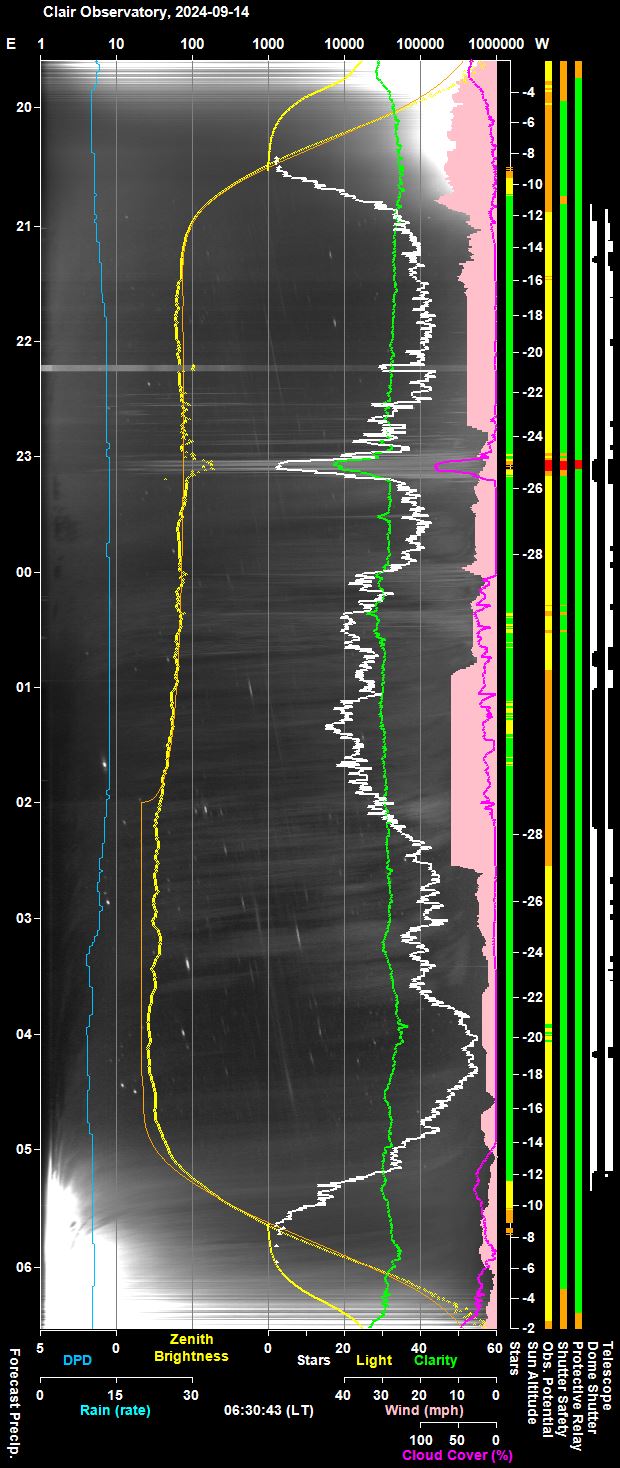

Night Sky Summary Plot Top axis: Sky Brightness at Zenith (in ADU/s) Lefthand axis: Local Time (hh LT). Righthand axis: Sun Altitude (degs)

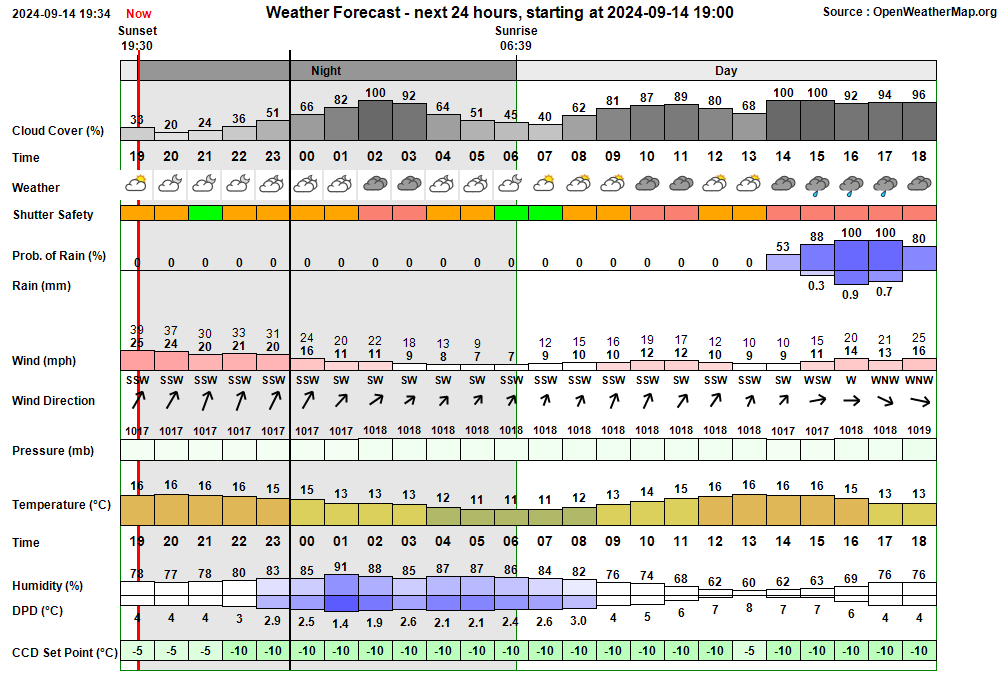

Actual Weather vs Pre-Session Weather Forecast

Session Event Log

Time     Event Detail 20:20:51 Session Monitoring AutoStart monitoring for Live Session opportunity between 20:20 & 04:45 20:20:51   AutoStart Delayed Session delayed due to too few stars 20:48:49 Session AutoStarting Session autostarting (20:48) 20:49:13   CCDSoft Restarting CCDSoft being restarted (to set AutoSave No.) 20:49:41   Camera1 Connected SBIG Camera connected (Set point -20°C) 20:49:43 Session Created Session Created (Live, 2024-09-14 S01243, ImageSaveNum: 1243001) 20:49:48   Scope Switched On Telescope Power has been switched on via UPB Powerbox. 20:51:43   Services Started Observatory Services started 20:51:50 Observatory (Auto) Observatory placed in Fully-Automated Mode 20:51:52   AutoStart Delayed Session delayed due to too few stars 20:51:54 Session Pending Session pending (2024-09-14) 20:51:56 Session Initiating Session initiating (2024-09-14) 20:52:06   Camera1 Connected SBIG Camera connected (Set point -10°C) 20:52:13   Plan Requested Observing Plan requested from AstroPlan (1.40.8) 20:53:04   Plan Loaded Observing Plan loaded to queue (Plan ID: 1018) 20:53:44   Telescope Connected Telescope connected (TheSky6) 20:54:08 Session Equilibration Session ready to Open Dome 20:54:53   Dome Opened Dome opened (Opening time 45s, Zigbee 40s) 20:55:13 Session Running Session running 20:55:16   Queue Started Observing Queue started (25 targets selected) 20:55:19     Target Started (NrZen) Target started (Focus Field 21, HIP 103850) 20:55:33       Dome Unparked Dome unparked 20:59:18       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S) 21:01:52       Focusing Completed Foc1 AutoFocus Completed (Profile No 1, wide) 21:04:08       Focusing Completed Foc1 AutoFocus Completed (Profile No 1) 21:04:32       Focusing Started-Foc2 Foc2 Focusing Started (Secondary Scope, using ShCap) 21:06:16       Focusing Completed Foc2 AutoFocus Completed (Profile No 2, wide) 21:07:58       Focusing Completed Foc2 AutoFocus Completed (Profile No 2) 21:08:15     Target Completed (NrZen) Target completed (Focus Field 21, HIP 103850) 21:08:41     Target Started (1/25) Target started (1/25, NGC 3206 w/SN2024bch) 21:09:05       Dome Unparked Dome unparked 21:12:49   ScopeMonitor Frozen ScopeMonitor appears to be frozen at around 21:12 21:14:35   HardSuspend Called Hard Suspend called due to TheSky6 failure 21:16:36 Session Suspending Session suspending 21:17:25   Dome Closed Dome closed (Closing time 50s, Zigbee 42s) 21:17:28 Session Suspended Session suspended 21:18:12     Target Aborted (1/25) Target aborted (1/25, NGC 3206 w/SN2024bch) due to Obs.Manager Request 21:18:14   Queue Paused Queue paused for Session Suspension 21:19:31 Session Resuming Session resuming 21:20:16   Dome Opened Dome opened (Opening time 45s, Zigbee 40s) 21:20:17 Session Running Session running 21:20:19   Queue Resumed Observing Queue resumed 21:20:21     Target Started (1/25) Target started (1/25, NGC 3206 w/SN2024bch) 21:21:51       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S) 21:24:02       Focusing Completed Foc1 AutoFocus Completed (Profile No 3) 21:33:41     Target Completed Target partially completed (1/25, NGC 3206 w/SN2024bch) 21:33:45     Target Started (2/25) Target started (2/25, LEDA 1846725 w/SN2024iss) 21:38:13       Focusing Skipped Foc1 focusing skipped - star is too dim (TCF-S) 21:54:50     Target Completed Target completed (2/25, LEDA 1846725 w/SN2024iss) 21:54:54     Target Started (3/25) Target started (3/25, NGC 4619 w/SN2024drt) 22:00:09       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S) 22:02:54       Focusing Completed Foc1 AutoFocus Completed (Profile No 4) 22:19:04     Target Completed Target completed (3/25, NGC 4619 w/SN2024drt) 22:19:08     Target Started (4/25) Target started (4/25, UGC 8630 w/SN2024drv) 22:22:32       Focusing Skipped Foc1 focusing skipped - star is lost (TCF-S) 22:39:39     Target Completed Target completed (4/25, UGC 8630 w/SN2024drv) 22:39:43     Target Started (5/25) Target started (5/25, GCVS T CrB) 22:42:34       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S) 22:45:16       Focusing Completed Foc1 AutoFocus Completed (Profile No 5) 22:51:06     Target Completed Target completed (5/25, GCVS T CrB) 22:51:11     Target Started (6/25) Target started (6/25, WDS GRB 34) 22:55:06       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S) 22:57:22       Focusing Completed Foc1 AutoFocus Completed (Profile No 6) 22:59:31     Target Completed Target completed (6/25, WDS GRB 34) 22:59:36     Target Started (7/25) Target started (7/25, AT2024ugc) 23:01:15       SoftSuspend Called Soft Suspend called due to Deteriorating Conditions (too few stars) 23:01:25       SoftSuspend Cancelled Soft Suspend is cancelled due to improved conditions 23:02:01   Critical Cloud Alert Critical Cloud Alert (Obs.Manager will close the Dome) 23:02:03   HardSuspend Called Hard Suspend called due to Critical Conditions (cloud) 23:02:05     Target Aborted (7/25) Target aborted (7/25, AT2024ugc) due to cloud 23:02:07   Queue Paused Queue paused for Session Suspension 23:02:09 Session Suspending Session suspending 23:02:56   Dome Closed Dome closed (Closing time 50s, Zigbee 42s) 23:02:57 Session Suspended Session suspended 23:13:02 Session Resuming Session resuming 23:13:47   Dome Opened Dome opened (Opening time 45s, Zigbee 40s) 23:13:48 Session Running Session running 23:13:50   Queue Resumed Observing Queue resumed 23:13:52     Target Started (7/25) Target started (7/25, AT2024ugc) 23:25:07     Target Completed Target partially completed (7/25, AT2024ugc) 23:25:11     Target Started (8/25) Target started (8/25, SN 2023sfl) 23:44:19     Target Completed Target completed (8/25, SN 2023sfl) 23:44:23     Target Started (9/25) Target started (9/25, GCVS TV Cas) 23:47:20       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S) 23:49:49       Focusing Completed Foc1 AutoFocus Completed (Profile No 7) 23:52:23     Target Completed Target completed (9/25, GCVS TV Cas) 23:52:27     Target Started (10/25) Target started (10/25, AT2023fik (CV)) 23:55:31       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S) 23:58:08       Focusing Completed Foc1 AutoFocus Completed (Profile No 8) 00:14:33     Target Completed Target completed (10/25, AT2023fik (CV)) 00:14:37     Target Started (11/25) Target started (11/25, SN 2023oun) 00:17:42       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S) 00:20:28       Focusing Completed Foc1 AutoFocus Completed (Profile No 9) 00:23:53       SoftSuspend Called Soft Suspend called due to Deteriorating Conditions (too few stars) 00:34:54       SoftSuspend Cancelled Soft Suspend is cancelled due to improved conditions 00:36:22     Target Completed Target completed (11/25, SN 2023oun) 00:36:26     Target Started (12/25) Target started (12/25, SN 2023rvj) 00:38:08   ScopeMonitor Frozen ScopeMonitor appears to be frozen at around 00:38 00:38:40       SoftSuspend Called Soft Suspend called due to Deteriorating Conditions (too few stars) 00:39:30       SoftSuspend Cancelled Soft Suspend is cancelled due to improved conditions 00:39:55   HardSuspend Called Hard Suspend called due to TheSky6 failure 00:41:55 Session Suspending Session suspending 00:42:45   Dome Closed Dome closed (Closing time 50s, Zigbee 42s) 00:42:47 Session Suspended Session suspended 00:43:27     Target Aborted (12/25) Target aborted (12/25, SN 2023rvj) due to Obs.Manager Request 00:43:29   Queue Paused Queue paused for Session Suspension 00:49:21 Session Resuming Session resuming 00:50:06   Dome Opened Dome opened (Opening time 45s, Zigbee 40s) 00:50:08 Session Running Session running 00:50:10   Queue Resumed Observing Queue resumed 00:50:13     Target Started (12/25) Target started (12/25, SN 2023rvj) 00:56:21       SoftSuspend Called Soft Suspend called due to Deteriorating Conditions (too few stars) 01:01:02     Target Completed Target partially completed (12/25, SN 2023rvj) 01:01:04   Queue Paused Queue paused for Session Suspension 01:01:06 Session Suspending Session suspending 01:01:52   Dome Closed Dome closed (Closing time 50s, Zigbee 42s) 01:01:54 Session Suspended Session suspended 01:16:27     Target Cancelled Target cancelled (13/25, AT2022abjt) due to cloud 01:38:27     Target Cancelled Target cancelled (14/25, AT2023hru (CV)) due to cloud 02:00:27     Target Cancelled Target cancelled (15/25, CGCG 427-027 w/SN2023pbe) due to too few stars 02:13:19 Session Resuming Session resuming 02:14:04   Dome Opened Dome opened (Opening time 45s, Zigbee 40s) 02:14:05 Session Running Session running 02:14:07   Queue Resumed Observing Queue resumed 02:14:10     Target Started (16/25) Target started (16/25, LEDA 1762640 w/AT2024ety) 02:30:21     Target Completed Target partially completed (16/25, LEDA 1762640 w/AT2024ety) 02:30:25     Target Started (17/25) Target started (17/25, Nova Vul 2024) 02:36:40     Target Completed Target completed (17/25, Nova Vul 2024) 02:36:44     Target Started (18/25) Target started (18/25, AT2023uli (CV)) 02:39:36       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S) 02:42:31       Focusing Completed Foc1 AutoFocus Completed (Profile No 10) 02:48:19     Target Completed Target completed (18/25, AT2023uli (CV)) 02:48:23     Target Started (19/25) Target started (19/25, GCVS HH And) 02:51:08       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S) 02:53:38       Focusing Completed Foc1 AutoFocus Completed (Profile No 11) 02:55:44     Target Completed Target completed (19/25, GCVS HH And) 02:55:48     Target Started (20/25) Target started (20/25, AT2024ges) 02:58:44       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S) 03:01:13       Focusing Completed Foc1 AutoFocus Completed (Profile No 12) 03:17:46     Target Completed Target completed (20/25, AT2024ges) 03:17:50     Target Started (21/25) Target started (21/25, GCVS BL Lac) 03:20:36       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S) 03:23:05       Focusing Completed Foc1 AutoFocus Completed (Profile No 13) 03:27:00     Target Completed Target completed (21/25, GCVS BL Lac) 03:28:07     Target Started (22/25) Target started (22/25, WHL0137-08) 03:33:16       Focusing Skipped Foc1 focusing skipped - star is lost (TCF-S) 04:03:31     Target Completed Target completed (22/25, WHL0137-08) 04:03:35     Target Started (23/25) Target started (23/25, SN 2022qwx) 04:05:35   ScopeMonitor Frozen ScopeMonitor appears to be frozen at around 04:05 04:07:19   HardSuspend Called Hard Suspend called due to TheSky6 failure 04:09:19 Session Suspending Session suspending 04:10:09   Dome Closed Dome closed (Closing time 50s, Zigbee 43s) 04:10:11 Session Suspended Session suspended 04:10:29     Target Aborted (23/25) Target aborted (23/25, SN 2022qwx) due to Obs.Manager Request 04:10:31   Queue Paused Queue paused for Session Suspension 04:12:15 Session Resuming Session resuming 04:13:00   Dome Opened Dome opened (Opening time 45s, Zigbee 40s) 04:13:01 Session Running Session running 04:13:03   Queue Resumed Observing Queue resumed 04:13:06     Target Started (23/25) Target started (23/25, SN 2022qwx) 04:29:50     Target Completed Target partially completed (23/25, SN 2022qwx) 04:29:54     Target Started (24/25) Target started (24/25, NGC 1300 w/SN2022acko) 04:52:41     Target Completed Target completed (24/25, NGC 1300 w/SN2022acko) 04:52:46     Target Started (25/25) Target started (25/25, AT2024eja) 05:11:51     Target Completed Target completed (25/25, AT2024eja) 05:11:53   Queue Completed Job Queue completed 05:11:55 Session Closing Session closing 05:12:50   Dome Closed Dome closed (Closing time 50s, Zigbee 43s) 05:13:25   Dome Parked Dome parked (parking time 26s), Az: 90.1 deg 05:14:43   Telescope Parked Telescope parked (parking time 71s total) 05:14:58   Telescope State Handbox reads 'Scope parked Turn scope off.' 05:15:20   Telescope Switched Off Telescope Power has been switched off via UPB Switch. 05:16:43   Services Stopped Night Services stopped 05:16:46 Session Finishing Session Finishing started (Create Fits Summary, Transfer Files) 05:17:13     Dome (Find Park) Find Park started (Search Az 80.0 to 100.0°, Step 1.0°, Wide) 05:18:18     Dome Find Park found (Best Park Az 91.0°) 05:18:25     Dome (Find Park) Find Park started (Search Az 89.0 to 93.0°, Step 0.2°, Narrow) 05:19:27     Dome Find Park found (Best Park Az 90.8°) 05:19:33     Dome Dome has been synced at park position (Az 90.0°, Adjustment: -0.9°) 05:19:35   Dome Parked Dome parked 05:21:51   Dome Charging Dome is parked and re-charging Ok (38mA) 05:21:53 Session Finished Session Finished

Session Alerts & Alarms

Time     Type       Name Detail 20:51:54 Yellow Alert Disk Space Free Space on C:\ Drive (45.37 GB) is less than 50 GB 21:09:57 Yellow Alert Dome Discrepency Difference between Dome Az and Slave Az is > 1 deg (NGC 3206) 21:14:32 Red Alert ScopeMonitor ScopeMonitor appears to be frozen (last cycle at 21:12:49) 21:14:35 Red Alert TheSky6 Alert TheSky6 isn't running or isn't working correctly 21:18:12 Green Clear ScopeMonitor ScopeMonitor has resumed again (21:18) after 0.0 mins 00:39:51 Red Alert ScopeMonitor ScopeMonitor appears to be frozen (last cycle at 00:38:08) 00:39:55 Red Alert TheSky6 Alert TheSky6 isn't running or isn't working correctly 00:43:26 Green Clear ScopeMonitor ScopeMonitor has resumed again (00:43) after 0.0 mins 04:07:15 Red Alert ScopeMonitor ScopeMonitor appears to be frozen (last cycle at 04:05:35) 04:07:19 Red Alert TheSky6 Alert TheSky6 isn't running or isn't working correctly 04:10:31 Green Clear ScopeMonitor ScopeMonitor has resumed again (04:10) after 0.0 mins 05:21:51 Green Clear Dome Charging Dome is parked and re-charging Ok (38mA)

Back to Top

Operational Issues (2024-09-14 S1243)

• Critical Issues (0)
• Major Issues (1)
• Minor Issues (4)
• Small Defects (4)
• Continuous Improvement (2)


[ Prev | Next ]

Critical Issues

• None

Major Issues

• Three incidents of ongoing issue in which Job Queue freezes whilst performing an Image Link, leading to session suspension (21:12, 00:38 & 04:05).  The description of each incident is described under separate Minor Issue tickets below.  Collectively the 3 incidents represent a Major Issue, due to the time impact (8 minutes lost on each incident), reduced image quality (targets may not be properly centered), and the cancellation of several main frames (due to the interrupted observation and time slot limitations). Whilst the issue normally occurs when Image Linking a Locate Frame, one of the incidents in this session involved ImageLinking of a Cam 2 Reference Frame. The issue was investigated (Investigation - Job Queue freezing whilst performing a Locate Frame Image Link, leading to Session Suspension, 2024-09-12)  and tracing identfied that the freeze isn't triggered directly by the 'InsertWCS' call (Image Linking) but is triggered instead by following GetObjectRaDec() , .dObjectRa, .dObjectDec calls which access the result of the Image Linking.  The insertion of short (500ms) delays between calls to TheSky6 from AstroMain's ImageLinking routines, added to AstroMain 3.69.8 (2024-09-16) was eventually deemed to have fixed the issue, after seeing no further incidents of the problem during the following 4 sessions S1245-S1248A  (2024-09-16 to 2024-09-28).

Minor Issues

• ObsCam Starting and Suspended Images weren't created and uploaded to website. AstroObsCam's TCP/IP connection to AstroMain had been reestablished after issues with Observatory Connection to Router/Internet on 2024-09-06 to 2024-09-08.  Issue probably also affected session S1240 (2024-09-10) to S1242 (2024-09-12) but went unnoticed at the time. Problem resolved in session by restarting AstroObsCam.  A 'Session Finished' picture was successfully taken and uploaded to website.
  Resolved in-session 2024-09-14 (AstroObsCam, User Awareness)

• Job Queue froze whilst performing an Image Link on Locate Frame (21:14) . Whilst performing a plate solution on Guider Reference Frame for Target 1/25 (NGC 3206 w/SN2024bch ) the Obs.Overseer gave a warning "ScopeMonitor appears to be frozen (last cycle at 21:12:49)", a TheSky6 Alert with message "TheSky6 isn't running or isn't working correctly" and a warning "Task in StartTargetGuiding/StartGuider is taking a long time?  (21:15)" . The ObsManager aborted the Target and the session was suspended..  Issue resolved itself after a few minutes, with results of Image Link (solved in 319.3s) being posted whilst ObsCam was taking a 'Supended Session' image. Image took only 0xx s to image link during Analyse ReducedFolder (post-session).  Problem has occurred before in several recent sessions (S1242, S1240 & S1235). The issue was investigated (Investigation - Job Queue freezing whilst performing a Locate Frame Image Link, leading to Session Suspension, 2024-09-12) and tracing identfied that the freeze isn't triggered directly by the 'InsertWCS' call (Image Linking) but is triggered instead by following GetObjectRaDec() , .dObjectRa, .dObjectDec calls which access the result of the Image Linking.  The insertion of short (500ms) delays between calls to TheSky6 from AstroMain's ImageLinking routines, added to AstroMain 3.69.8 (2024-09-16) was eventually deemed to have fixed the issue after seeing no further incidents of the problem during the following 4 sessions S1245-S1248A  (2024-09-16 to 2024-09-28).
  Fixed 2024-09-16 (AstroMain 3.69.8, TheSky6)

• Job Queue froze whilst performing an Image Link on Locate Frame (00:38) . Whilst performing a plate solution on Guider Reference Frame for Target 12/25 (SN 2023rvj ) the Obs.Overseer gave a warning "ScopeMonitor appears to be frozen (last cycle at 00:38:08)", a TheSky6 Alert with message "TheSky6 isn't running or isn't working correctly" and a warning "Task in StartTargetGuiding/StartGuider is taking a long time?  (00:40)" . The ObsManager aborted the Target and the session was suspended..  Issue resolved itself after a few minutes, with results of Image Link (solved in 314.5s ) being posted whilst ObsCam was taking a 'Supended Session' image.The issue was investigated (Investigation - Job Queue freezing whilst performing a Locate Frame Image Link, leading to Session Suspension, 2024-09-12)  and tracing identfied that the freeze isn't triggered directly by the 'InsertWCS' call (Image Linking) but is triggered instead by following GetObjectRaDec() , .dObjectRa, .dObjectDec calls which access the result of the Image Linking.  The insertion of short (500ms) delays between calls to TheSky6 from AstroMain's ImageLinking routines, added to AstroMain 3.69.8 (2024-09-16) was eventually deemed to have fixed the issue, after seeing no further incidents of the problem during the following 4 sessions S1245-S1248A  (2024-09-16 to 2024-09-28).
  Fixed 2024-09-16 (AstroMain 3.69.8, TheSky6)

• Job Queue froze whilst performing an Image Link on Locate Frame (04:05) . Whilst performing a plate solution on Locate 2 Frame for Target 23/25 (SN 2022qwx ) the Obs.Overseer gave a warning "ScopeMonitor appears to be frozen (last cycle at 04:05:35) ", a TheSky6 Alert with message "TheSky6 isn't running or isn't working correctly" and a warning "Task in StartTargetGuiding/StartGuider is taking a long time?  (04:08)" . The ObsManager aborted the Target and the session was suspended..  Issue resolved itself after a few minutes whilst ObsCam was taking a 'Supended Session' image, but the results of the Image Link weren't reported (unlike other cases). Log file indicates that ImageLink hadn't succeeded during initial attempt and was proceeding to Search Distance #1, when it encountered the bAbortTarget flag.  ScopeMonitor resumed after 296, which is likely consistent with other cases.  Locate 2 Image (01243148)  took only 2.7s to image link during Analyse ReducedFolder (post-session). The issue was investigated (Investigation - Job Queue freezing whilst performing a Locate Frame Image Link, leading to Session Suspension, 2024-09-12)  and tracing identfied that the freeze isn't triggered directly by the 'InsertWCS' call (Image Linking) but is triggered instead by following GetObjectRaDec() , .dObjectRa, .dObjectDec calls which access the result of the Image Linking.  The insertion of short (500ms) delays between calls to TheSky6 from AstroMain's ImageLinking routines, added to AstroMain 3.69.8 (2024-09-16) was eventually deemed to have fixed the issue, after seeing no further incidents of the problem during the following 4 sessions S1245-S1248A  (2024-09-16 to 2024-09-28).
  Fixed 2024-09-16 (AstroMain 3.69.8, TheSky6)

Small Defects

• The ObsOverseer report messages that warn that a task is taking long time is poorly formatted (21:15).  When ObsOverseer detects that a taking is taking a long time it produces a report message like
    Obs.Overseer                Warning    task in StartTargetGuiding/StartGuider is taking a long time? (21:15)
  it should be written as follows (one space removed and a capitalised Task)
      Obs.Overseer                Warning   Task in StartTargetGuiding/StartGuider is taking a long time? (21:15)
  ' task ..'  should be written as 'Task ..'. Fixed in AstroMain 3.69.7.
  Fixed 2024-09-15 (AstroMain 3.69.7)

• PowerOutage is not listed as a Failure Reason in AstroPlan's Plan table. PowerOutage (31) was added to AstroMain's FailureState enum list on 2024-03-08 (CI S1196), but doesn't seem to have been added to the equivalent enum list in AstroPlan.  Fixed in AstroPlan 1.40.9.
  Fixed 2024-09-15 (AstroPlan 1.40.9)

• The log message "Sky conditions have improved, the session can be resumed" is inappriopriate if Session Suspension was due to a frozen Job queue (04:12).   In the cases that Job Queue freezes whilst performing an Image Link and the ObsManager intervenes to suspend the session, the log messages like the following are produced after the queue has resumed and the conditions are checked "Sky conditions have improved (Clarity 33.1, Stars 54)" and "Sky conditions have improved, the session can be resumed".  The messages imply that conditions were previously poorer (and caused the session suspension) and are now improved.  This is not necessarily the case.  Whilst Conditions should obviously be checked and confirmed as ok before resuming a session the text in the messages is not appropriate and should say  "Sky conditions are ok (Clarity 33.1, Stars 54)".   Job Queue is running normally, the session can be resumed"
  Fixed 2024-09-15 (AstroMain 3.69.7)

• The report message "Session Suspended (Due to wait on timer)" is unclear and is inappriopriate if Session Suspension was due to a frozen Job queue. In cases where ObsManager aborts the current Target due to a frozen Job Queue and suspends the session, the message  "Session Status.. Session Suspended (Due to wait on timer)" doesn't seem related to the reason that the session was suspended and should be improved. 'wait on timer' is written when the fail reason has the value 30 ( FailureState.WaitOnTimer).  'Reason' is set to FailureState.WaitOnTimer in CanResume() routine when MinutesSince(TimeSessionSuspended) < 2.   This is purely that a session can't be resumed until at least 2 minutes have elapsed since session was last suspended. Fix attempted in AstroMain 3.69.7, CanResume() now returns False & FailureState.FrozenTheSky6 if VM.TheSkyScopeConnection = ScopeState.ErrorX instead of defaulting to FailureState.WaitOnTimer.
  Fix attempted 2024-09-15 (AstroMain 3.69.7)

Continuous Improvement

• Add trace statements to AstroMain's ImageLinking routines. Following the Major Issue in S1243 "Job Queue freezes whilst performing an Image Link, leading to session suspension" it is proposed to add tracing message statements to ImageLinking routines to try to identify the code line(s) where the freeze point is occuring.
  Done 2024-09-15 (AstroMain 3.69.7)

• Consider whether a 'Failure Mode' should be added to Target Observation in AstroPlan's Plan to indicate why a Target was only partially completed.  At the moment the Failure Mode is blank, and therefore offers no information on why a Target wasn't completed. There could be more than one factor that leads to a Target not being fully completed, so the 'Failure Mode would need to reflect the principal or most significant reason. This might be somewhat difficult to track, so may be there should be a process that ranks the various factors.  New 'FailureState' items such as 'LateStart',  'FrozenTheSky6' added to AstroMain 3.69.7 & AstroPlan to support future implementation.   New global parameter, ReasonForDelay (integer), added to AstroMain 3.69.7 to record the most recent reason causing a delay to a target observation.
  To consider/do 2024-09-15 (AstroMain AstroPlan)
