Session Aims & Highlights (2025-07-07)

Main aims

1. CCD Camera. Test if major CCD Camera issues during Last Session have been resolved or not
2. Targets.  Acquire images of a selection of variable stars, nearby stars, comets & deep sky targets as allowed by sky conditions and the short summer night.

 Equipment & Software

• 12" LX200 and ST-10XME
• 80mm APO and ZWO ASI 178MC
• TheSky6, CCDSoft5, DeviceHub 7.0.3 RC3.4694, MeadeGeneric 1.3.12.522 , UPB 1.5,  Pulsar Dome Firmware 1.51 & Driver 6.3.10
• Pegasus UPB & Motor Focus, TCF-S 6.0.6
• SharpCap 3.2, PHD2  2.6.13, Siril 1.0.6, deCONZ 1.18.2, ASCOM 7.0.3 RC3
• [ DomeLink 1.0 / 1.1 - not used ]

• AstroMain 3.75.11,  AstroPlan 1.43.14, AstroShCap 1.3.15, AstroGuard 1.11  (any new items or versions in bold)
  AstroMag 1.5.6, AstroVOE 1.15.1,  AstroSN 1.14,  AstroProtect 1.10.6,  AstroMove 1.16.1
  AstroWeather 1.27.9, AstroAllSky 3.24.4,  AstroObsCam 1.11.4 (not 1.11.5), AstroNorthCam 1.5.3, AstroLaunch 1.13.1

Highlights

• Targets.  Only 1/8 planned target was completed with 2 targets partially completed.  Other targets failed due to camera delays / end of time slot, cloud or wind. One submitted ToO target also failed due to Cloud / Session Suspension.  Images couldn't be collected for two key targets (T CrB & NGC 5957 w/SN2025fvw )
• CCD Camera. Dispite attempted fixes in AstroMain 3.75.11 there were again multiple issues with the CCDSoft / CCDCamera during the session, and due to the delays from RestartCCDSoft operations a number of targets couldn't be completed. 3 user interventions were made to try to resolve problems during the session. Some extra information about the issues was collected and might helped to provide a subsequent mitigations / fixes to AstroMain
•  Dome. There was no issues opening/closing the shutter during the session. Dome closed and parked at end of session ok.

Notes

Summary Plots & Logs

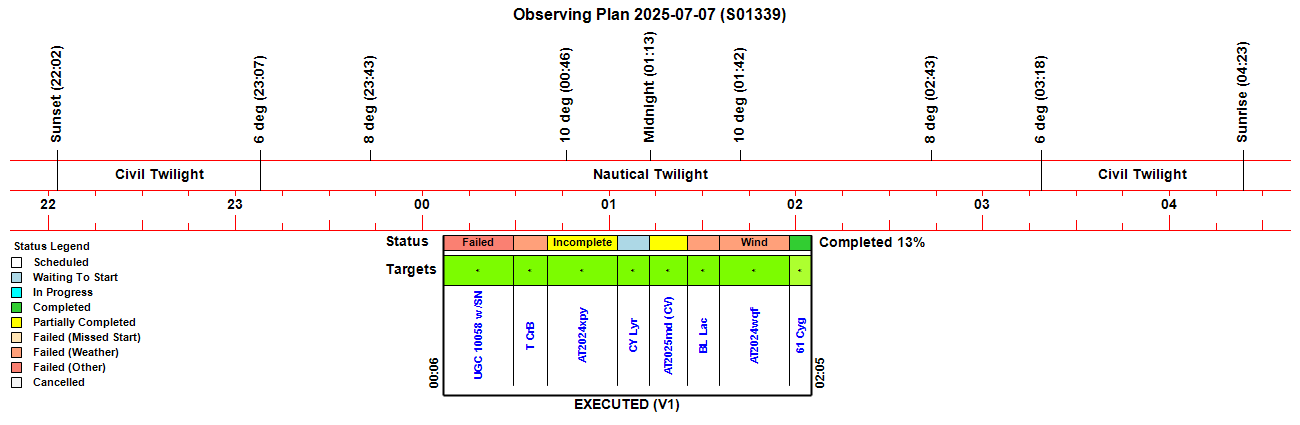

Observing Plan

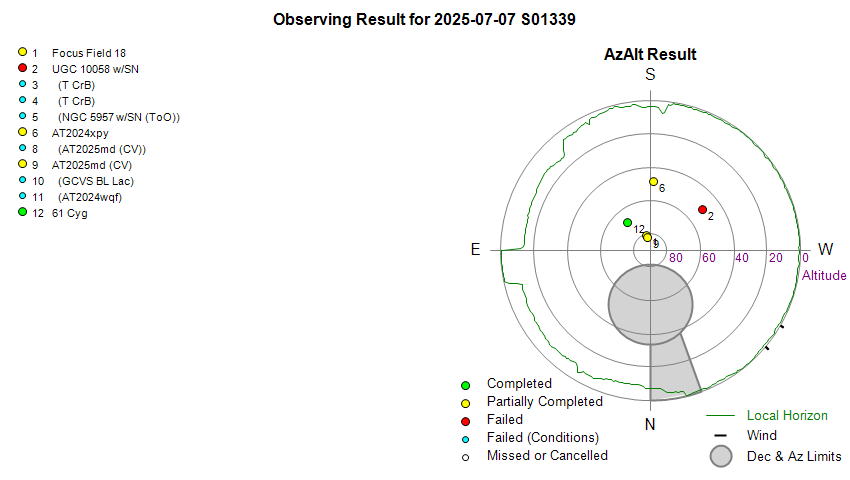

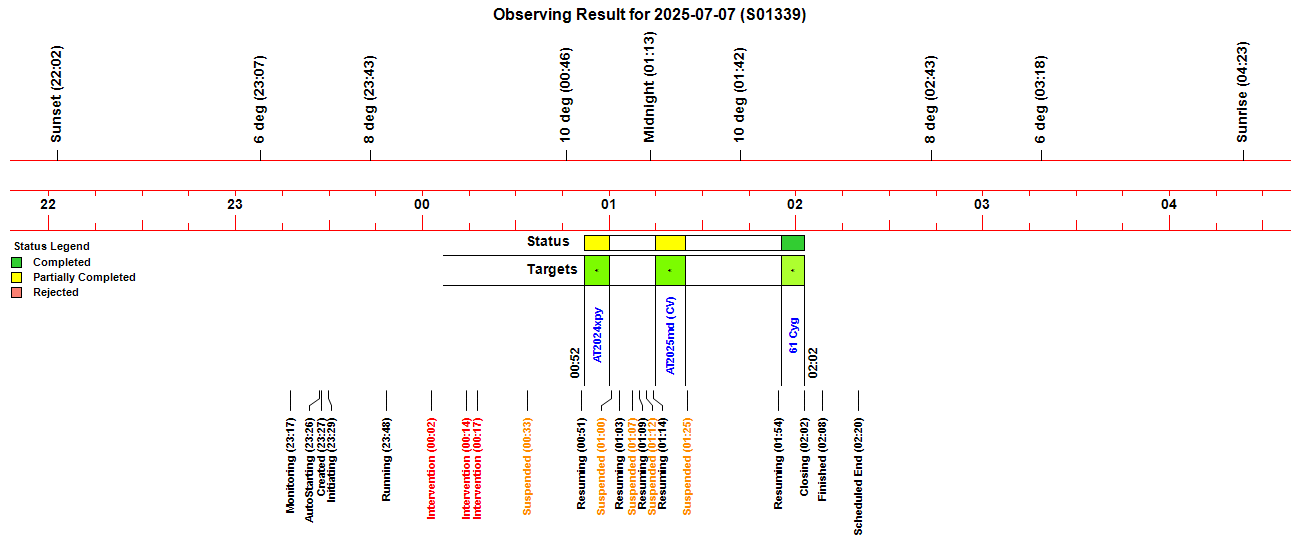

Observing Result

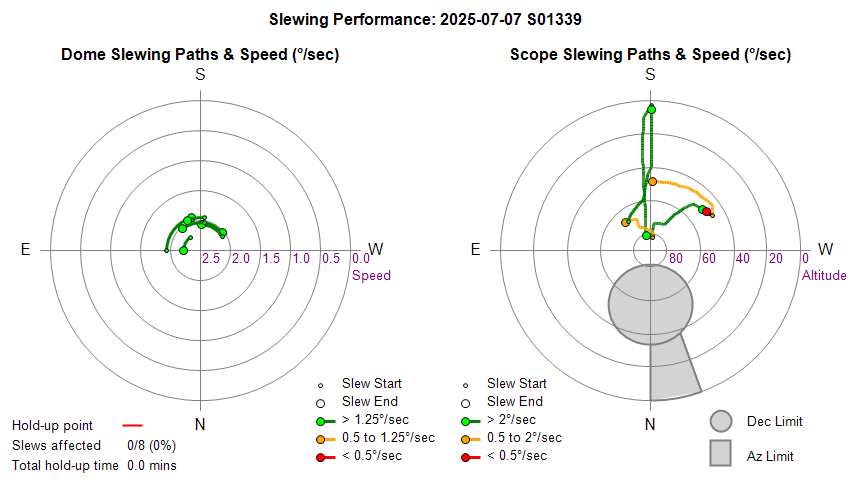

Dome & Scope Slewing Performance

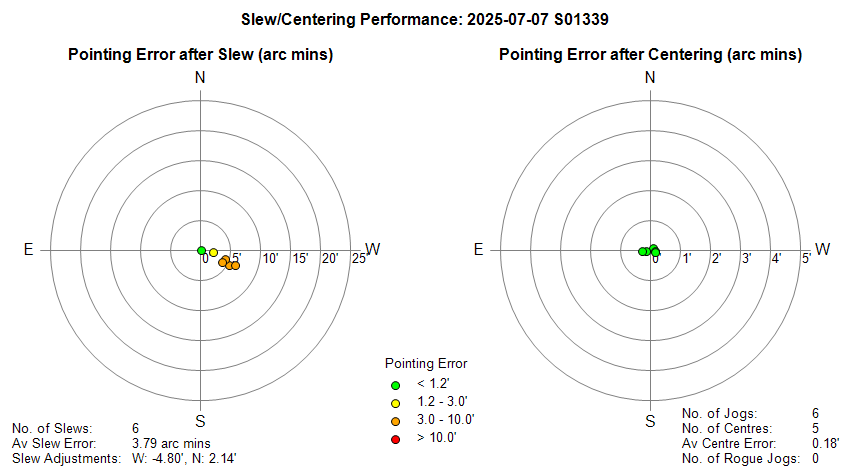

Slew/Centering Performance

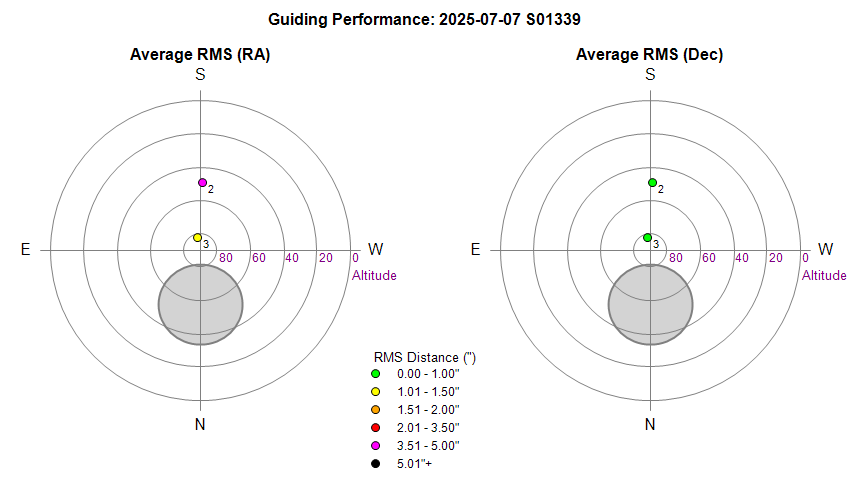

Guiding Performance

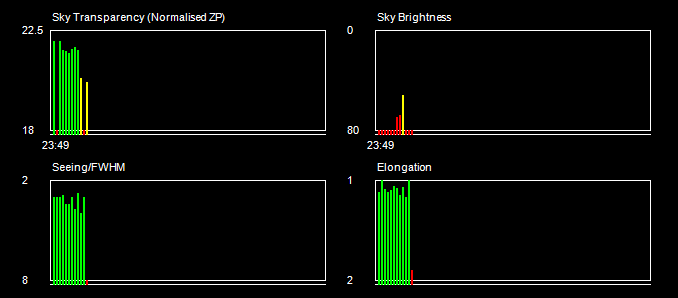

Sky Conditions (Locate Frames)

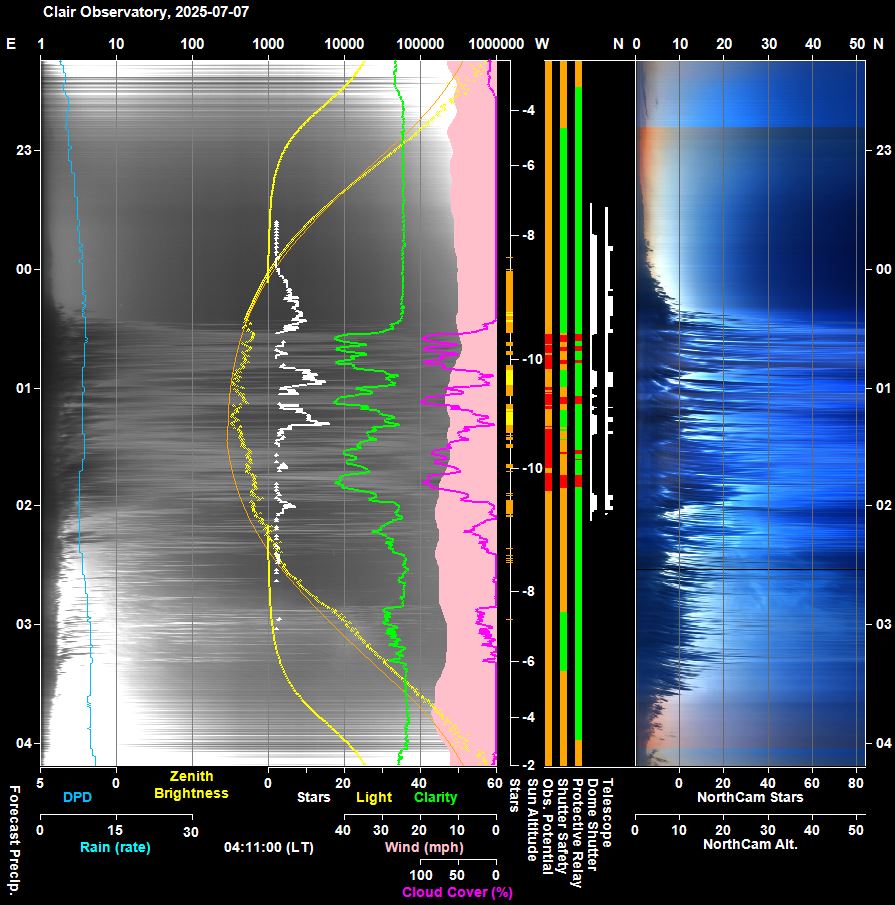

Night Sky Summary Plot Top axis: Sky Brightness at Zenith (in ADU/s) Lefthand axis: Local Time (hh LT). Righthand axis: Sun Altitude (degs) Note:  The NorthCam Star Count line is unreliable and should be ignored (The AstroNorthCam 'Find' Star method is producing many false positives from clouds)

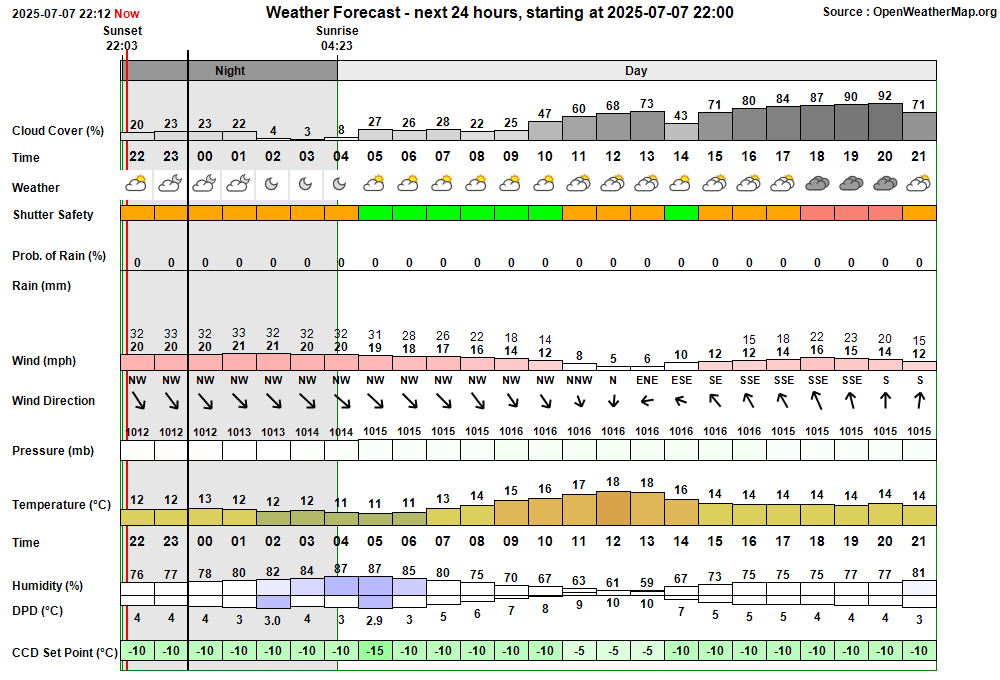

Actual Weather vs Pre-Session Weather Forecast

Session Event Log

Time     Event Detail 23:17:29 Session Monitoring AutoStart monitoring for Live Session opportunity between 23:26 & 01:50 23:17:29   AutoStart Waiting AutoStart waiting till earliest start time at 23:26 23:26:55 Session AutoStarting Session autostarting (23:26) 23:27:08   CCDSoft Restarting CCDSoft being restarted (to set AutoSave No.) 23:27:34   Camera1 Connected SBIG Camera connected (Set point -10°C) 23:27:37 Session Created Session Created (Live, 2025-07-07 S01339, ImageSaveNum: 1339001) 23:27:42   Scope Switched On Telescope Power has been switched on via UPB Switch 23:29:28   Services Started Observatory Services started 23:29:37 Observatory (Auto) Observatory placed in Fully-Automated Mode 23:29:41 Session Pending Session pending (2025-07-07) 23:29:43 Session Initiating Session initiating (2025-07-07) 23:29:52   Camera1 Connected SBIG Camera connected (Set point -10°C) 23:29:59   Plan Requested Observing Plan requested from AstroPlan (1.43.14) 23:31:38   Plan Loaded Observing Plan loaded to queue (Plan ID: 1124) 23:32:21   Telescope Connected Telescope connected (TheSky6) 23:32:45 Session Equilibration Session ready to Open Dome 23:43:17   Dome Opened Dome opened (Opening time 45s, Zigbee 40s) 23:43:33   Equilibration Started Dome Equilibration started 23:48:33   Equilibration Ended Dome Equilibration ended (5.0 mins total) 23:48:35 Session Running Session running 23:48:37   Queue Started Observing Queue started (8 targets selected) 23:48:40     Target Started (NrZen) Target started (Focus Field 18, HIP 88232) 23:48:52       Dome Unparked Dome unparked 23:52:06       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S) 23:54:19         SBIG Camera Take Image failed (Command timed-out) 23:54:21         CCDSoft Restarting CCDSoft being restarted (attempt to fix frozen CcdCamera) 23:54:28         SBIG Camera Reset SBIG Camera being power-cycled 23:55:19         Camera1 Connected SBIG Camera connected (Set point -10°C) 23:55:25         SBIG Camera Take Image successfully completed (earlier flags are reset) 23:56:18         SBIG Camera Take Image failed (Command timed-out) 23:56:20         CCDSoft Restarting CCDSoft being restarted (attempt to fix frozen CcdCamera) 23:56:27         SBIG Camera Reset SBIG Camera being power-cycled 23:57:19         Camera1 Connected SBIG Camera connected (Set point -10°C) 23:57:24         SBIG Camera Take Image successfully completed (earlier flags are reset) 23:57:28         CcdCamera Frozen CcdCamera appears to be frozen at around 23:57 in section 'SetCameraProperties / Subframe' 23:58:01         CCDSoft Restarting CCDSoft being restarted (attempt to fix frozen CcdCamera) 23:58:08         SBIG Camera Reset SBIG Camera being power-cycled 00:02:51       User Intervention User intervention to RestartCCDSoft() 00:02:52         CCDSoft Restarting CCDSoft being restarted (user action) 00:02:58         SBIG Camera Reset SBIG Camera being power-cycled 00:03:50         Camera1 Connected SBIG Camera connected (Set point -10°C) 00:04:02       Focusing Failed Foc1 focusing failed - star lost 00:04:06       Focusing Started-Foc2 Foc2 Focusing Started (Secondary Scope, using ShCap) 00:08:27       Focusing Completed Foc2 AutoFocus Completed (Profile No 1, wide) 00:10:19       Focusing Completed Foc2 AutoFocus Completed (Profile No 1) 00:10:38     Target Completed (NrZen) Target completed (Focus Field 18, HIP 88232) 00:10:43     Target Started (1/8) Target started (1/8, UGC 10058 w/SN2025gvs) 00:14:01     User Intervention User Intervention to RestartCCDSoft() 00:14:02       CCDSoft Restarting CCDSoft being restarted (user action) 00:14:09       SBIG Camera Reset SBIG Camera being power-cycled 00:15:01       Camera1 Connected SBIG Camera connected (Set point -10°C) 00:15:20       CcdCamera Frozen CcdCamera appears to be frozen at around 00:15 in section 'SetCameraProperties / Asynchronous' 00:15:52       CCDSoft Restarting CCDSoft being restarted (attempt to fix frozen CcdCamera) 00:15:54       CCDSoft Issue CCDSoft has encountered an image save issue [0000] 00:15:59       SBIG Camera Reset SBIG Camera being power-cycled 00:17:38     User Intervention User Intervention to RestartCCDSoft() 00:17:39       CCDSoft Restarting CCDSoft being restarted (user action) 00:17:49       SBIG Camera Reset SBIG Camera being power-cycled 00:18:40       Camera1 Connected SBIG Camera connected (Set point -10°C) 00:18:43       CCDSoft Issue CCDSoft has encountered an image save issue [0000] 00:18:45       CCDSoft Restarting CCDSoft being restarted (attempt to fix unsaved file issue) 00:18:50       SBIG Camera Reset SBIG Camera being power-cycled 00:19:41       Camera1 Connected SBIG Camera connected (Set point -10°C) 00:20:14       SBIG Camera Take Image failed (Command timed-out) 00:20:16       CCDSoft Restarting CCDSoft being restarted (attempt to fix frozen CcdCamera) 00:20:23       SBIG Camera Reset SBIG Camera being power-cycled 00:21:15       Camera1 Connected SBIG Camera connected (Set point -10°C) 00:21:34       SBIG Camera Take Image successfully completed (earlier flags are reset) 00:24:25       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S) 00:28:06       Focusing Completed Foc1 AutoFocus Completed (Profile No 2, wide) 00:30:39       Focusing Completed Foc1 AutoFocus Completed (Profile No 2) 00:30:44     Target Failed (1/8) Target failed due to other condition - ExceededTimeSlot (1/8, UGC 10058 w/SN2025gvs) 00:30:48     Target Started (2/8) Target started (2/8, T CrB) 00:32:28       SoftSuspend Called Soft Suspend called due to Deteriorating Conditions (reducing clarity) 00:32:53   Critical Cloud Alert Critical Cloud Alert (Obs.Manager will close the Dome) 00:32:55   HardSuspend Called Hard Suspend called due to Critical Conditions (cloud) 00:32:57     Target Aborted (2/8) Target aborted (2/8, T CrB) due to cloud 00:32:59   Queue Paused Queue paused for Session Suspension 00:33:01 Session Suspending Session suspending 00:33:48   Dome Closed Dome closed (Closing time 50s, Zigbee 43s) 00:33:51 Session Suspended Session suspended 00:34:40     Target Cancelled Target cancelled (2/9, T CrB) due to cloud 00:42:45     Target Cancelled Target cancelled (3/9, NGC 5957 w/SN2025fvw, ToO) due to cloud 00:51:15 Session Resuming Session resuming 00:52:00   Dome Opened Dome opened (Opening time 45s, Zigbee 41s) 00:52:03 Session Running Session running 00:52:05   Queue Resumed Observing Queue resumed 00:52:07     Target Started (4/9) Target started (4/9, AT2024xpy) 00:59:56       SoftSuspend Called Soft Suspend called due to Deteriorating Conditions (reducing clarity) 00:59:58   Critical Cloud Alert Critical Cloud Alert (Obs.Manager will close the Dome) 01:00:00   HardSuspend Called Hard Suspend called due to Critical Conditions (cloud) 01:00:02     Target Aborted (4/9) Target aborted (4/9, AT2024xpy) due to cloud 01:00:04   Queue Paused Queue paused for Session Suspension 01:00:06 Session Suspending Session suspending 01:00:51   Dome Closed Dome closed (Closing time 50s, Zigbee 43s) 01:00:52 Session Suspended Session suspended 01:03:16 Session Resuming Session resuming 01:03:36   Critical Cloud Alert Critical Cloud Alert (Obs.Manager will close the Dome) 01:03:38   HardSuspend Called Hard Suspend called due to Critical Conditions (cloud) 01:03:40     Target Aborted (5/9) Target aborted (5/9, GCVS CY Lyr) due to cloud 01:03:42   Queue Paused Queue paused for Session Suspension 01:04:01   Dome Opened Dome opened (Opening time 45s, Zigbee 40s) 01:04:04 Session Running Session running 01:04:06   Queue Resumed Observing Queue resumed 01:04:08   Critical Cloud Alert Critical Cloud Alert (Obs.Manager will close the Dome) 01:04:10   HardSuspend Called Hard Suspend called due to Critical Conditions (cloud) 01:04:12       SoftSuspend Called Soft Suspend called due to Deteriorating Conditions (reducing clarity) 01:05:31   Dome Closed Dome closed (Closing time 45s, Zigbee 43s) 01:07:32 Session Suspending Session suspending 01:07:34   Dome Closed Dome already closed (closed at 01:05, Closing time 45s, Zigbee 43s 01:07:36 Session Suspended Session suspended 01:09:37 Session Resuming Session resuming 01:10:22   Dome Opened Dome opened (Opening time 45s, Zigbee 40s) 01:10:25 Session Running Session running 01:10:27   Queue Resumed Observing Queue resumed 01:10:29       SoftSuspend Called Soft Suspend called due to Deteriorating Conditions (reducing clarity) 01:10:31     Target Started (6/9) Target started (6/9, AT2025md (CV)) 01:10:58   Critical Cloud Alert Critical Cloud Alert (Obs.Manager will close the Dome) 01:11:00   HardSuspend Called Hard Suspend called due to Critical Conditions (cloud) 01:11:08     Target Aborted (6/9) Target aborted (6/9, AT2025md (CV)) due to cloud 01:11:11   Queue Paused Queue paused for Session Suspension 01:11:13 Session Suspending Session suspending 01:12:03   Dome Closed Dome closed (Closing time 50s, Zigbee 43s) 01:12:06 Session Suspended Session suspended 01:14:08 Session Resuming Session resuming 01:14:54   Dome Opened Dome opened (Opening time 45s, Zigbee 40s) 01:14:56 Session Running Session running 01:14:58   Queue Resumed Observing Queue resumed 01:15:01     Target Started (6/9) Target started (6/9, AT2025md (CV)) 01:15:30       CcdCamera Frozen CcdCamera appears to be frozen at around 01:15 in section 'GetCameraProperties / TemperatureSetPoint' 01:16:04       CCDSoft Restarting CCDSoft being restarted (attempt to fix frozen CcdCamera) 01:16:11       SBIG Camera Reset SBIG Camera being power-cycled 01:17:03       Camera1 Connected SBIG Camera connected (Set point -10°C) 01:20:59       SoftSuspend Called Soft Suspend called due to Deteriorating Conditions (reducing clarity) 01:21:24       SoftSuspend Cancelled Soft Suspend is cancelled due to improved conditions 01:22:25       SoftSuspend Called Soft Suspend called due to Deteriorating Conditions (reducing clarity) 01:24:23     Target Completed Target partially completed (6/9, AT2025md (CV)) 01:24:25   Queue Paused Queue paused for Session Suspension 01:24:27 Session Suspending Session suspending 01:25:10   Dome Closed Dome closed (Closing time 45s, Zigbee 43s) 01:25:13 Session Suspended Session suspended 01:29:27     Target Cancelled Target cancelled (7/9, GCVS BL Lac) due to cloud 01:49:46     Target Cancelled Target cancelled (8/9, AT2024wqf) due to wind 01:54:28 Session Resuming Session resuming 01:55:13   Dome Opened Dome opened (Opening time 45s, Zigbee 40s) 01:55:16 Session Running Session running 01:55:18   Queue Resumed Observing Queue resumed 01:55:21     Target Started (9/9) Target started (9/9, 61 Cyg) 01:58:11       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S) 02:00:40       Focusing Completed Foc1 AutoFocus Completed (Profile No 3) 02:02:43     Target Completed Target completed (9/9, 61 Cyg) 02:02:45   Queue Completed Job Queue completed 02:02:49 Session Closing Session closing 02:03:44   Dome Closed Dome closed (Closing time 50s, Zigbee 43s) 02:04:18   Dome Parked Dome parked (parking time 26s), Az: 90.0 deg 02:05:01   Telescope Parked Telescope parked (parking time 41s total) 02:05:25   Telescope State Handbox reads 'Scope parked Turn scope off.' 02:05:47   Telescope Switched Off Telescope Power has been switched off via UPB Switch. 02:07:11   Services Stopped Night Services stopped 02:07:14 Session Finishing Session Finishing started (Create Fits Summary, Transfer Files) 02:07:21     Dome (Find Park) Find Park started (Search Az 88.0 to 92.0°, Step 0.2°, Narrow) 02:08:05     Dome Find Park found (Best Park Az 90.2°) 02:08:11     Dome Dome has been synced at park position (Az 90.0°, Adjustment: -0.2°) 02:08:13   Dome Parked Dome parked 02:08:24   Dome Charging Dome is parked and re-charging Ok (63mA) 02:08:26 Session Finished Session Finished

Session Alerts & Alarms

Time     Type       Name Detail 23:54:19 Red Alert SBIG Camera Alert Take Image failed (Command timed-out) 23:55:25 Green Clear SBIG Camera Take Image successfully completed (earlier flags are reset) 23:56:18 Red Alert SBIG Camera Alert Take Image failed (Command timed-out) 23:57:24 Green Clear SBIG Camera Take Image successfully completed (earlier flags are reset) 23:57:59 Red Alert CcdCamera CcdCamera appears to be frozen (last cycle at 23:57:28) in section 'SetCameraProperties / Subframe' 00:03:50 Green Clear CcdCamera SBIG Camera has been successfully restarted 00:15:50 Red Alert CcdCamera CcdCamera appears to be frozen (last cycle at 00:15:20) in section 'SetCameraProperties / Asynchronous' 00:15:54 Red Alert CCDSoft Image file [0000] hasn't been saved to disk, possible CCDSoft issue 00:18:40 Green Clear CcdCamera SBIG Camera has been successfully restarted 00:18:43 Red Alert CCDSoft Image file [0000] hasn't been saved to disk, possible CCDSoft issue 00:20:14 Red Alert SBIG Camera Alert Take Image failed (Command timed-out) 00:21:34 Green Clear SBIG Camera Take Image successfully completed (earlier flags are reset) 00:21:37 Green Clear CCDSoft Image file has been saved to disk following CCDSoft Restart 01:04:46 Red Alert Unexpected Dome Closure Dome is unexpectedly closing (Poor Conditions) 01:16:02 Red Alert CcdCamera CcdCamera appears to be frozen (last cycle at 01:15:30) in section 'GetCameraProperties / TemperatureSetPoint' 01:17:03 Green Clear CcdCamera SBIG Camera has been successfully restarted 02:08:24 Green Clear Dome Charging Dome is parked and re-charging Ok (63mA)

Back to Top

Operational Issues (2025-07-07, S1339)

• Critical Issues (0)
• Major Issues (1)
• Minor Issues (1)
• Small Defects (2)
• Continuous Improvement (6)
• Figures (0)


[ Prev | Next ]

Critical Issues

• None

Major Issues

• Several failures preparing for or taking CCD Images using SBIG Camera/CcdCamera. Desite attempted fixes in AstroMain 3.75.11 there were several CcdCamera related issues during S1339 session. 1). CcdCamera froze at 23:57:28 whilst setting Camera properties prior to taking Focus Frame 18/23. 2). Camera connection during  RestartCCDSoft failed at 23:58:46 with "SBIG driver: Device not found".  3) Camera connection failure wasn't followed up, causing further image failures at 00:17:14+  . Time after SBIG Camera restarted increased to 30s again (it had been dropped to 20s on 2025-05-21 for MI S1328).    Issues with CCDCamera / CCDSoft.Camera fixed on or just before 2025-07-27. No camera related issues from during sessions S1343 to S1349A).  Issues with CCDCamera / CCDSoft.Camera fixed on or just before 2025-07-27. As a result there were no camera related issues occurred during sessions S1343 to S1349A).
   Resolved 2025-07-27 (AstroMain 3.77.2 / 3.77.3 )

Minor Issues

• Camera connection issues during by a RestartCCDSoft operation are not being followed up & resolved ().  Whilst measuring a Foc1 Focus Profile for a NearZenith Focus Field, the CcdCamera froze at 23:57:28 whilst setting Camera properties prior to taking Focus Frame 18/23.  The Obs.Overseer intervened after 30s to call RestartCCDSoft() due to 'Frozen CcdCamera' . The ConnectCamera call in RestartCCDSoft() failed on both connect attempts with the exception "SBIG driver: Device not found", and the RestartCCDSoft() finished with gCameraConnected=False. The following focus frame attempts (19/23 to 21/23) all failed as the Camera is not started. Fixed attempted in AstroMain 3.75.12.  RestartCCDSoft() routine reworked such that in event of that a Camera reconnection attempt is required, but it fails, a second attempt to RestartCCDSoft() is made
   Fix attempted 2025-07-08 (AstroMain 3.75.12)

• A CCDSoft warning dialog was unexpectedly shown on two ocaassions with the message "You are about to start another instance of CCDSoft (time ?).  During operations a CCDSoft warning dialog was unexpectedly shown with the message "You are about to start another instance of CCDSoft. Are you sure you want to continue?"  Same/similar issue occurred in .Session S1336 and S1337. Attempted fix made to AstroMain 3.75.9 on 2025-07-01 evidentally hasn't worked (or at least still doesn't work in certain cases).  Hypothesis is that issue might occur when a Camera Connection during Restart Fails, and after setting bRestartCCDSoft back to False, a code line refers to CCDSoft Camera object and leads to a second instance attempt  Issues with CCDCamera / CCDSoft.Camera fixed on or just before 2025-07-27. As a result there were no camera related issues occurred during sessions S1343 to S1349A).
   Resolved 2025-07-27 (AstroMain 3.77.2 / 3.77.3 )

• CCDCamera Freezing during Daytime Camera Tests  (2025-07-08).  Daytime testing following S1339 session showed that the CCDCamera would occasionally frreze, replicating the issue that happens during live sessions such as S1339.  During three tests (TestCCDCameraWithFocusFrames, each involving 90 focus frames) the number of CCDCamera freezes (requiring calls to RestartCCDSoft() were 3, 2, 1.  The freezes happened in
    GetCamera.State,
  GetCamera.TimeExposureTime
  SetCameraProperties / Subframe /
  GetCamera.IsExposureComplete /  SetCamera.ExposureTime
  GetCamera.IsExposureComplete /  GetCamera.Status
  GetCamera.IsExposureComplete /  SetCamera.ExposureTime /   SetCamera.ImageReduction
   The first case happened immediately after finishing CameraConnection.
  The last 3 cases are associated with TakeImageAsync's 'wait for exposure to complete' code.
  Issue :  'Set AutoSaveOn(0)' (and Set ExposureTime(0) whilst bRestartingCCDSoft and timed-out after 2s
  Query :  Set AutoSavePath(-5).   Issues with CCDCamera / CCDSoft.Camera were fixed on or just before 2025-07-27. As a result no camera related issues occurred during sessions S1343 to S1349A.
   Resolved 2025-07-27 (AstroMain 3.77.2 / 3.77.3 )

Small Defects

• Log messages using the '(alert)' tag aren't being colour coded in finalised log (21:57, 00:15, 01:16). Colour coding of tagged log records was added to AstroMain 3.75.11.  Log messages using the '(alert)' tag should be colour coded with red text but weren't during 3 relevant cases in S1339. Fixed in AstroMain 3.75.12.
   Fixed 2025-07-08 (AstroMain 3.75.12)

• Several small anomalous shifts in Z axis magnetometer reading over a 3 hour period (22:40, 23:35). Just prior to session start and during ongoing monitoring of magnetometer readings after Remedial Fix2b there were several small anomalous shifts in Z Axis readings (between 21:15 and 23:55) with the most noticable shifts occuring at 22:40 & 23:35 with shifts of -28 nT & +56 nT respectively (see Remedial Fix 2 / 2b Update 2025-07-07 ).
   To Monitor 2025-07-08 (SAM III)

• 'Test CCDCamera/Focus Frames' routine was allowed to start with CcdCamera in a Pending State (2025-07-08).  Daytime testing following S1339 session showed that the 'TestCCDCameraFocusFrames' routine was allowed to start at 2025-07-08 16:05:51 with CcdCamera in a Pending State (around 6-7s pending). Fixed in AstroMain 3.75.12.  Routine now checks the state of CCDCamera when starting and aborts if CcdCamera is pending.  The routine also checks that Camera is connected.
   Fixed 2025-07-08 (AstroMain 3.75.12)

Continuous Improvement

• CCDCamera Get Property and Set Property Failures should be tagged as (warn) log messages when CCDSoft is intentionally killed (23:54: 00:20, 01:16). RestartCCDSoft() is often used in an attempt to fix a Frozen CcdCamera and as part of this operation CCDSoft is killed which releases the frozen GetProperty or SetProperty routine where execution is frozen, which the resulting exception is logged as an error.  The exception is expected and shouldn't be shown as a message with red text in the finalised log file, instead messages at this time whilst CCDSoft isn't running should be tagged with '(warn)' instead of '(error)'. Implemented in AstroMain 3.75.12. New flag bKillingCCDSoft added to indicate period of time that CCDSoft is being closed.  Several new routines (WriteGetPropertyException(), WriteSetPropertyException(), WriteGetPropertyTimeOut(), WriteSetPropertyTimeOut(), WriteSetPropertyResult(), WriteSetPropertyResult() )  added to rationalise the logging of CcdCamera message, and use a '(warn)' tag instead of '(error)' tag when bKillingCCDSoft=True.   Similar tag condition is added for logging of exceptions from  Image.AttachToActiveImager() in TakeFocusImage()
   Done 2025-07-08 (AstroMain 3.75.12)

• Disable setting of szTargetName to "Queue" in Execute. A change was made in 2022-11-28 (CI S1063 to set szTargetName = "Queue" in ExecuteQueue before messaging the state of the queue. This is considered inappropriate now and as a trial the code-lines will be commented out.   Implemented in AstroMain 3.75.12.
   Done 2025-07-08 (AstroMain 3.75.12)

• Consider removing the repeat connection attempt in ConnectCamera().   In AstroMain 3.75.11 and earlier versions ConnectCamera() will make a second attempt to connect the camera in the event of a failure on the first attempt. This sounds good, but in practice in the event of a failure on first attempt, the second attempt always fails with same error message. Typically it is a failure that can only be resolved by a call to RestartCCDSoft(), and it would be better to disable the second attempt, and save the time.   Implemented in AstroMain 3.75.12.
   Done 2025-07-08 (AstroMain 3.75.12)

• Consider adjusting the return time for Get CcdCamera GetProperty/SetProperty calls when the CcdCamera is frozen. Each call to get or set a CcdCamera property takes 2s when the CcdCamera is Pending or Frozen.  Things could be speeded up by an early return in this situation.  ssues with CCDCamera / CCDSoft.Camera fixed on or just before 2025-07-27. As a result no camera related issues occurred during sessions S1343 to S1349A. Ticket closed 2025-08-16.
   Closed 2025-08-16 (AstroMain 3.77.2 / 3.77.3)

• Add colour coding to finalised session report file . Colour Coding has been added to finalised log files in AstroMain 3.75.11 which is a useful aid whilst reviewing log files and searching for actual or potential issues.  It would be handy if finalised report files could also have colour coding added. Tags would need to be generated either in the originally generated report.htm or when generating the finalised report file.  This would involve prefixing & suffixing 'Warning' lines with <span style="color: DarkOrange"> & </span> or <span style="color: Red"> & </span> for 'Alert' and 'Fail' lines  Proof of concept established (2025-08-16).
   To review and consider  2025-07-08+ (AstroMain 3.75.12+)

• Add cropped X, Y, Z magnetograms from Sumburgh Head station. Consider downloading and auto-cropping X. Y, Z magnetograms for Sumbugh Head station (sum)  ( https://aurorawatch.lancs.ac.uk/summary/awn/sum/2025/07/sum_20250709.png ) in similar fashion to those for Crooktree Station (crk2) station. This has been triggered by Crooktree Station going offline on 2025-07-09 18:30 UT.
   To do  2025-07-08+ (AstroMag,  AstroPlan, Website)
