Bullet Session Aims & Highlights
 - Observing Result
 - Night Summary Plot
 - Session Event Log

Bullet Operational Issues
  - Critical Issues (0),  Major Issues (1),  Minor Issues (5),  Continuous Improvement (5)

Bullet Investigation - Slew Issues and Program Freeze at 04:34

Bullet Images from 2019-09-20  >>



Session Aims & Highlights (2019-09-20)

Main aims

  1. Centering Chart: Test out fixes to 'Centering Charts' (AstroMain 3.11.6)
  2. Mixed Target - Image a selection of targets, but mainly Open Clusters, Variable Stars and Nearby Star Targets due to bright moonlit sky conditions
  3. Software & Systems  - Check stability of software and presence of any side effects following ongoing enhancements to AstroMain and associated support programs.


Equipment & Software

Highlights

Lowlights

Summary Plots & Logs

Observing Plan

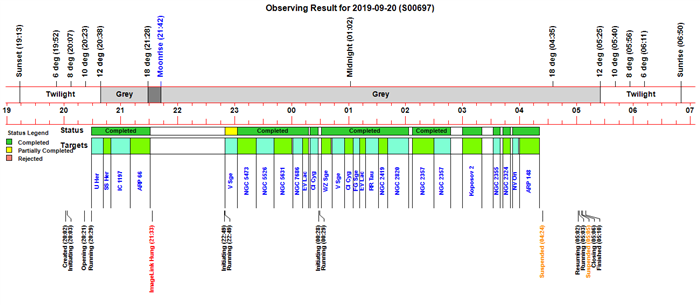

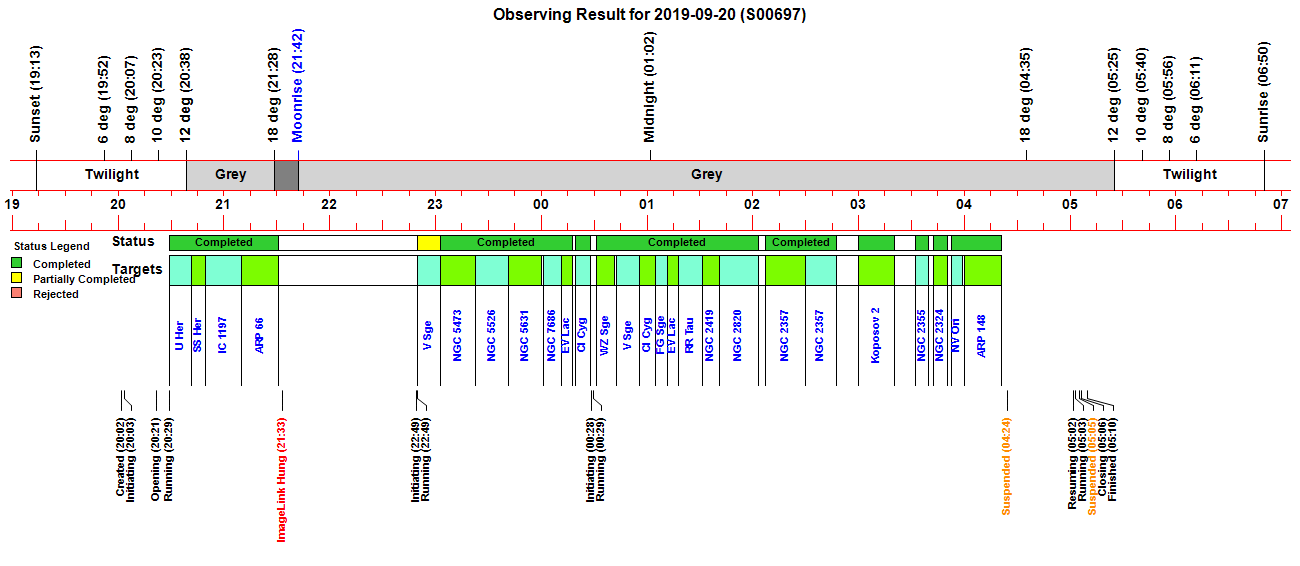

Observing Result

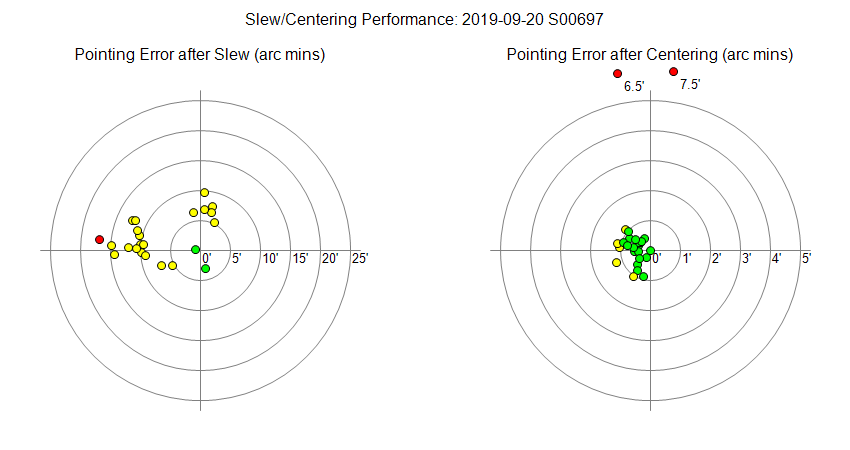

Slew/Centering Performance (2019-09-20, S697)

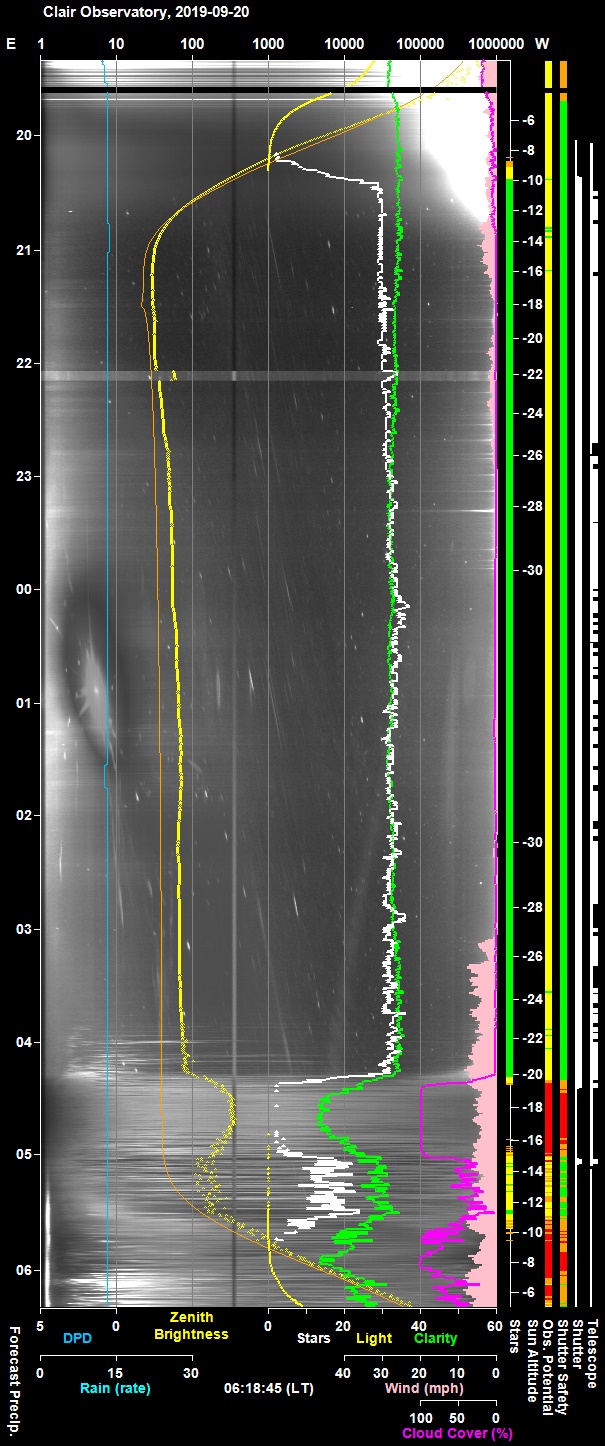

Night Sky Summary Plot (2019-09-20, S697)
Top axis: Sky Brightness at Zenith (in ADU/s)
Lefthand axis: Local Time (hh LT). Righthand axis: Sun Altitude (degs)

Pre-Session Weather Forecast (AstroWeather 1.7.8)
Cloudy for most of night with skies potentially clearing at 03:00,  low probability of any significant rain
(As it turned out the evolving forecast through the late evening extended the cloud further and further through the night,
and indeed it was cloudy for the the whole night, only clearing at around 06:30 after the sun has risen.
A few spots of rain occurred at around 00:45 and 02:40)

Session Event Log
Time     Event Detail
20:02:03 Session Created Live Session Created (2019-09-20 S00697, ImageSaveNum: 697001)
20:03:10   Obs.Manager Started Obs.Manager started
20:03:17   Services Started Observatory Services started
20:03:34 Observatory (Auto) Observatory placed in Fully-Automated Mode
20:03:37 Session Pending Session pending (2019-09-20)
20:03:39 Session Initiating Session initiating (2019-09-20)
20:03:41   Plan Requested Observing Plan requested from AstroPlan (1.10.4)
20:04:22   Plan Loaded Observing Plan loaded to queue (2019-09-20 V1 BEST PLAN, Plan ID: 355)
20:04:39   Camera1 Connected SBIG Camera Connected (set point -10°C)
20:04:42   Telescope Connected Telescope Connected (TheSky6)
20:04:53 Session Equilibration Session ready for dome & camera equilibration
20:21:45   Shutter Opened Shutter opened (opening time 45s)
20:21:48   Equilibration Started Dome Equilibration started
20:29:00   Equilibration Ended Dome Equilibration ended (7.3 mins total)
20:29:02 Session Running Session running
20:29:04   Queue Started Observing Queue started (17 targets selected)
20:29:06     Target Started (1/17) Target started (1/17, GCVS U Her)
20:31:22       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S)
20:33:24       Focusing Completed Foc1 AutoFocus Completed (Profile No 1)
20:41:43     Target Completed Target completed (1/17, GCVS U Her)
20:41:45     Target Started (2/17) Target started (2/17, GCVS SS Her)
20:44:03       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S)
20:46:09       Focusing Completed Foc1 AutoFocus Completed (Profile No 2)
20:49:22     Target Completed Target completed (2/17, GCVS SS Her)
20:49:25     Target Started (3/17) Target started (3/17, IC 1197)
21:09:56     Target Completed Target completed (3/17, IC 1197)
21:09:58     Target Started (4/17) Target started (4/17, ARP 66)
21:11:59       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S)
21:14:19       Focusing Completed Foc1 AutoFocus Completed (Profile No 3)
21:30:44     Target Completed Target completed (4/17, ARP 66)
21:30:46     Target Started (5/17) Target started (5/17, NGC 5278)
21:33:00   ImageLink Hung Image Liinking Hung (TheSky6 stopped responding & Job Queue locked up)
22:44:41 Program Closed Program closed by User
22:47:54 Session Resumed Live Session Resumed (2019-09-20 S00697, ImageSaveNum: 697040)
22:48:31   Obs.Manager Started Obs.Manager started
22:48:39   Services Started Observatory Services started
22:49:09 Observatory (Auto) Observatory placed in Fully-Automated Mode
22:49:14 Session Pending Session pending (2019-09-20)
22:49:16 Session Initiating Session initiating (2019-09-20)
22:49:18   Plan Loaded Observing Plan loaded to queue (2019-09-20 V1 ACTIVE PLAN S697, Plan ID: 355)
22:49:27   Camera1 Connected SBIG Camera Connected (set point -10°C)
22:49:30   Telescope Connected Telescope Connected (TheSky6)
22:49:42 Session Equilibration Session ready for dome & camera equilibration
22:49:45   Equilibration Started Dome Equilibration started
22:49:47   Equilibration Skipped Dome Equilibration skipped by user
22:49:49 Session Running Session running
22:49:51   Queue Started Observing Queue started (12 targets selected)
22:49:53     Target Missed (6/17) Target's time slot was missed (6/17, NGC 5693)
22:49:55     Target Missed (7/17) Target's time slot was missed (7/17, GCVS R CrB)
22:49:57     Target Missed (8/17) Target's time slot was missed (8/17, HIP 87937)
22:49:59     Target Missed (9/17) Target's time slot was missed (9/17, GCVS WZ Sge)
22:50:01     Target Missed (10/17) Target's time slot was missed (10/17, GCVS FG Sge)
22:50:03     Target Started (11/17) Target started (11/17, GCVS V Sge)
22:54:14       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S)
22:56:28       Focusing Completed Foc1 AutoFocus Completed (Profile No 4)
23:02:39     Target Completed Target partially completed (11/17, GCVS V Sge)
23:02:41     Target Started (12/17) Target started (12/17, NGC 5473)
23:22:40     Target Completed Target completed (12/17, NGC 5473)
23:22:42     Target Started (13/17) Target started (13/17, NGC 5526)
23:24:46       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S)
23:41:11     Target Completed Target completed (13/17, NGC 5526)
23:41:13     Target Started (14/17) Target started (14/17, NGC 5631)
23:44:56       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S)
00:00:45     Target Completed Target completed (14/17, NGC 5631)
00:01:25     Target Started (15/17) Target started (15/17, NGC 7686)
00:04:32       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S)
00:06:41       Focusing Completed Foc1 AutoFocus Completed (Profile No 5)
00:11:24     Target Completed Target completed (15/17, NGC 7686)
00:11:31     Target Started (16/17) Target started (16/17, GCVS EV Lac)
00:13:17       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S)
00:15:29       Focusing Completed Foc1 AutoFocus Completed (Profile No 6)
00:17:40     Target Completed Target completed (16/17, GCVS EV Lac)
00:19:31     Target Started (17/17) Target started (17/17, GCVS CI Cyg)
00:22:19       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S)
00:24:25       Focusing Completed Foc1 AutoFocus Completed (Profile No 7)
00:28:10     Target Completed Target completed (17/17, GCVS CI Cyg)
00:28:13   Queue Completed Job Queue completed
00:28:17 Session Initiating Session initiating (2019-09-20)
00:28:22   Plan Requested Observing Plan requested from AstroPlan (1.10.4)
00:28:52   Plan Loaded Observing Plan loaded to queue (2019-09-20 V2 BEST PLAN, Plan ID: 356)
00:29:01   Camera1 Connected SBIG Camera Connected (set point -10°C)
00:29:03   Telescope Connected Telescope Connected (TheSky6)
00:29:15 Session Equilibration Session ready for dome & camera equilibration
00:29:18   Equilibration Started Dome Equilibration started
00:29:20   Equilibration Skipped Dome Equilibration skipped by user
00:29:22 Session Running Session running
00:29:24   Queue Started Observing Queue started (20 targets selected)
00:31:22     Target Started (1/20) Target started (1/20, GCVS WZ Sge)
00:33:43       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S)
00:35:55       Focusing Completed Foc1 AutoFocus Completed (Profile No 8)
00:41:30     Target Completed Target completed (1/20, GCVS WZ Sge)
00:42:40     Target Started (2/20) Target started (2/20, GCVS V Sge)
00:45:39       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S)
00:47:52       Focusing Completed Foc1 AutoFocus Completed (Profile No 9)
00:55:51     Target Completed Target completed (2/20, GCVS V Sge)
00:55:54     Target Started (3/20) Target started (3/20, GCVS CI Cyg)
00:58:47       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S)
01:00:52       Focusing Completed Foc1 AutoFocus Completed (Profile No 10)
01:04:36     Target Completed Target completed (3/20, GCVS CI Cyg)
01:04:38     Target Started (4/20) Target started (4/20, GCVS FG Sge)
01:06:56       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S)
01:08:57       Focusing Completed Foc1 AutoFocus Completed (Profile No 11)
01:11:25     Target Completed Target completed (4/20, GCVS FG Sge)
01:11:28     Target Started (5/20) Target started (5/20, GCVS EV Lac)
01:13:24       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S)
01:15:34       Focusing Completed Foc1 AutoFocus Completed (Profile No 12)
01:17:45     Target Completed Target completed (5/20, GCVS EV Lac)
01:17:47     Target Started (6/20) Target started (6/20, GCVS RR Tau)
01:22:03       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S)
01:24:22       Focusing Completed Foc1 AutoFocus Completed (Profile No 13)
01:31:17     Target Completed Target completed (6/20, GCVS RR Tau)
01:31:19     Target Started (7/20) Target started (7/20, NGC 2419)
01:34:28       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S)
01:36:30       Focusing Completed Foc1 AutoFocus Completed (Profile No 14)
01:41:09     Target Completed Target completed (7/20, NGC 2419)
01:41:11     Target Started (8/20) Target started (8/20, NGC 2820)
01:44:41       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S)
01:47:23       Focusing Completed Foc1 AutoFocus Completed (Profile No 15)
02:03:21     Target Completed Target completed (8/20, NGC 2820)
02:03:23     Target Started (9/20) Target started (9/20, GCVS FO Ori)
02:03:25     Target Failed Target failed due to airmass limit (9/20, GCVS FO Ori)
02:07:27     Target Started (10/20) Target started (10/20, NGC 2357)
02:11:24       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S)
02:13:50       Focusing Completed Foc1 AutoFocus Completed (Profile No 16)
02:30:02     Target Completed Target completed (10/20, NGC 2357)
02:30:05     Target Started (11/20) Target started (11/20, NGC 2357)
02:31:00       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S)
02:47:18     Target Completed Target completed (11/20, NGC 2357)
02:51:11     Target Started (12/20) Target started (12/20, GCVS U Gem)
02:51:13     Target Failed Target failed due to airmass limit (12/20, GCVS U Gem)
03:00:14     Target Started (13/20) Target started (13/20, Koposov 2)
03:02:29       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S)
03:04:55       Focusing Completed Foc1 AutoFocus Completed (Profile No 17)
03:20:23     Target Completed Target completed (13/20, Koposov 2)
03:21:10     Target Started (14/20) Target started (14/20, GCVS RZ LMi)
03:21:13     Target Failed Target failed due to airmass limit (14/20, GCVS RZ LMi)
03:32:28     Target Started (15/20) Target started (15/20, NGC 2355)
03:34:53       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S)
03:39:51     Target Completed Target completed (15/20, NGC 2355)
03:42:35     Target Started (16/20) Target started (16/20, NGC 2324)
03:45:40       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S)
03:50:40     Target Completed Target completed (16/20, NGC 2324)
03:52:40     Target Started (17/20) Target started (17/20, GCVS NV Ori)
03:55:38       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S)
03:59:16     Target Completed Target completed (17/20, GCVS NV Ori)
04:00:24     Target Started (18/20) Target started (18/20, ARP 148)
04:04:40       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S)
04:20:58     Target Completed Target completed (18/20, ARP 148)
04:22:16     Target Started (19/20) Target started (19/20, NGC 4157)
04:22:43 Critical Cloud Alert Critical Cloud Alert (Obs.Manager will close the Shutter)
04:22:45   HardSuspend Called Hard Suspend is called due to Critical Conditions (cloud)
04:22:47     Target Aborted (19/20) Target aborted (19/20, NGC 4157) due to cloud
04:22:49   Queue Paused Queue pausing for HardSuspend
04:24:48 Session Suspended Session suspended
04:25:36   Shutter Closed Shutter closed (closing time 47s)
04:25:37     Queue Resumed Queue resumed after HardSuspend (172s)
05:02:15 Session Resuming Session resuming
05:03:00   Shutter Opened Shutter opened (opening time 45s)
05:03:03 Session Running Session running
05:03:05   Queue Resumed Observing Queue resumed
05:03:07     Target Started (20/20) Target started (20/20, NGC 4183)
05:03:31 Critical Cloud Alert Critical Cloud Alert (Obs.Manager will close the Shutter)
05:03:33   HardSuspend Called Hard Suspend is called due to Critical Conditions (cloud)
05:03:35     Target Aborted (20/20) Target aborted (20/20, NGC 4183) due to cloud
05:03:37   Queue Paused Queue pausing for HardSuspend
05:05:37 Session Suspended Session suspended
05:06:26   Shutter Closed Shutter closed (closing time 49s)
05:06:28     Queue Resumed Queue resumed after HardSuspend (174s)
05:06:30   Queue Completed Job Queue completed
05:06:31 Session Closing Session closing
05:06:36   Shutter Closed Shutter already closed (closed at 05:06, closing time 49s)
05:07:05   Dome Parked Dome parked (parking time 24s)
05:08:16   Telescope Parked Telescope parked (parking time 67s)
05:09:06 Session Housekeeping Housekeeping Started (Cleanup FITS, Create Fits Summary, Transfer Files)
05:10:03 Session Finished Session Finished


Back to Top

Operational Issues (2019-09-20, S697)

[ Prev | Next ]

Critical Issues

Major Issues

Minor Issues

2019-09-20T20:25:52 GCN/INTEGRAL NOTICE 51 Utility INTEGRAL_POINTDIR 0
  Altitude=-7.45 degs
2019-09-20T20:45:12 GCN/SWIFT NOTICE 103 Utility SWIFT_ACTUAL_POINTDIR 45788
  Exception in Test Altitude Calcs: Object reference not set to an instance of an object.
  Setting Azimuth to Null
  Unable to calculate Altitude

Continuous Improvement

[ Prev | Next ]

Back to Top

Investigation - Slew Issues and Program Freeze at 04:34

 Immediate Response at 06:05 to 06:37
- Problem noticed at 06:05 with status of AdvMain at end of session - last response at ~ 04:34
- Screen Captures taken before doing anything showing the status of all the different programs 06:07 to 06:15

- Disconnected Scope & ASI ZWO from PHD2. Then closed PHD2
- Disconnected Scope and Dome from POTH. Hub at  06:19
(this produced immediate responses from TheSKy6 :  "POTH. The scope is not connected' at 06:19
and AstroGuard : "Exception in Main Loop. The dome is not connected" at 06:19 / 06:20
- Killed Stranded Process from AstroLaunch  at 06:37
- AstroMain then crashed 'The RPC server is unavailable'  but this is not likely to be related to earlier incident

Data Review

Post Incident Screen Captures

Post session Analyses
Coordinates of GCVS RZ LMi at 04:12 would have been

Interpretation & Preliminary Actions

a) Glitch at 04:12
  After commanding the scope to slew to GCVS RZ LMi , execution returned after 50s, but the TheSky6 telescope produced post-slew

Report File (extracts)

GCVS U Gem  (5/8)                       2019-09-20 04:03  (Local)

  Linking image (UCA/USNO)...



Log File (extracts)

04:12:31.28 | GCVS RZ LMi Ok SlewToRaDecQSO | IamAlive: Slewing, Telescope.SlewToRaDec

06:21:30.94 | NGC 5473 Ok AbortTarget | IamAlive: Start

Back to Top

This Web Page: Notes - Session 697 (2019-09-20)
Last Updated : 2023-11-26
Site Owner : David Richards
Home Page : David's Astronomy Web Site
