	Session Aims & Highlights
	- Observing Result  - Night Summary Plot  - Session Event Log
	Operational Issues
	- Critical Issues (0),  Major Issues (0),  Minor Issues (3),  Continuous Improvement (1)
	Images from 2020-02-12 >>

Session Aims & Highlights (2020-02-12)

Main aims

1. Targets: Acquire images of a number of comets and deep sky objects


Equipment & Software

• 12" LX200 and ST-10XME
• 80mm APO and ZWO ASI 178MC
• CCDApp2, TheSky6, CCDSoft5, PHD2,  POTH Hub
• Pegasus UPB & Motor Focus, TCF-S
• SharpCap 3.2, PHD2  2.6.6dev3

• AstroMain 3.20.3 ,  Astroguard 1.2.11,   AstroPlan 1.14,  AstroShCap 1.2.15, AstroVOE 1.3.5, UPB 1.4.17  (AstroWeather 1.8.4, AstroAllSky 3.5.1)


Highlights

• Good Conditions.  Good seeing / good condition enabled productive session with good guiding
• Targets.  x targets successfully imaged

Lowlights

•   T.d

Summary Plots & Logs

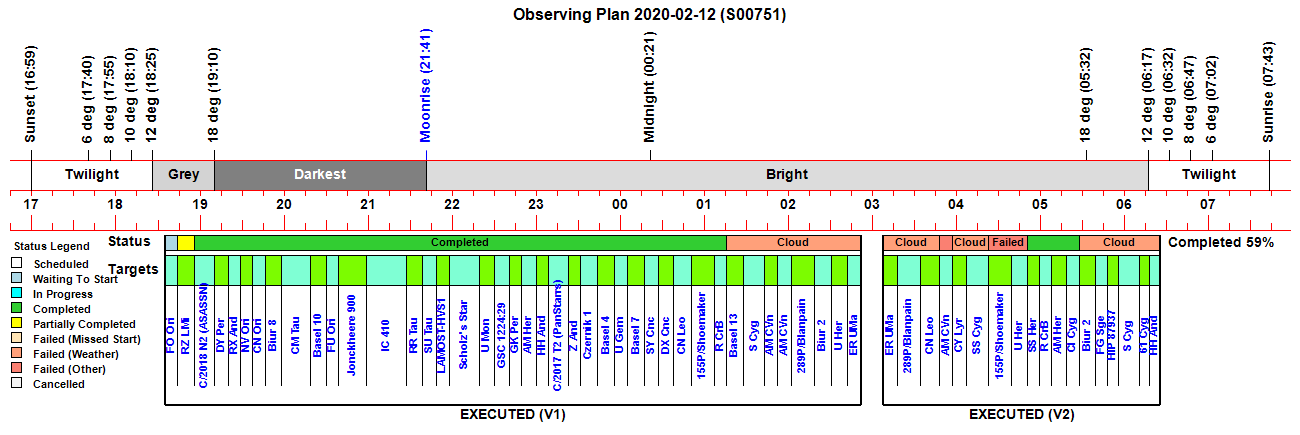

Observing Plan

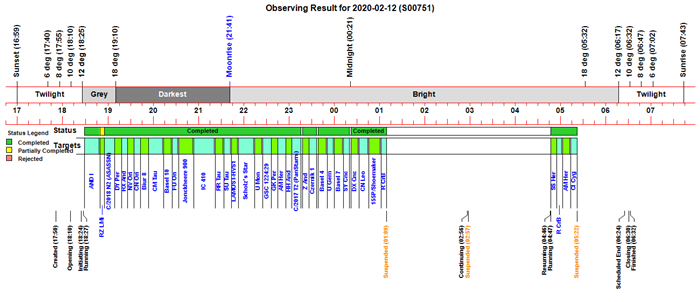

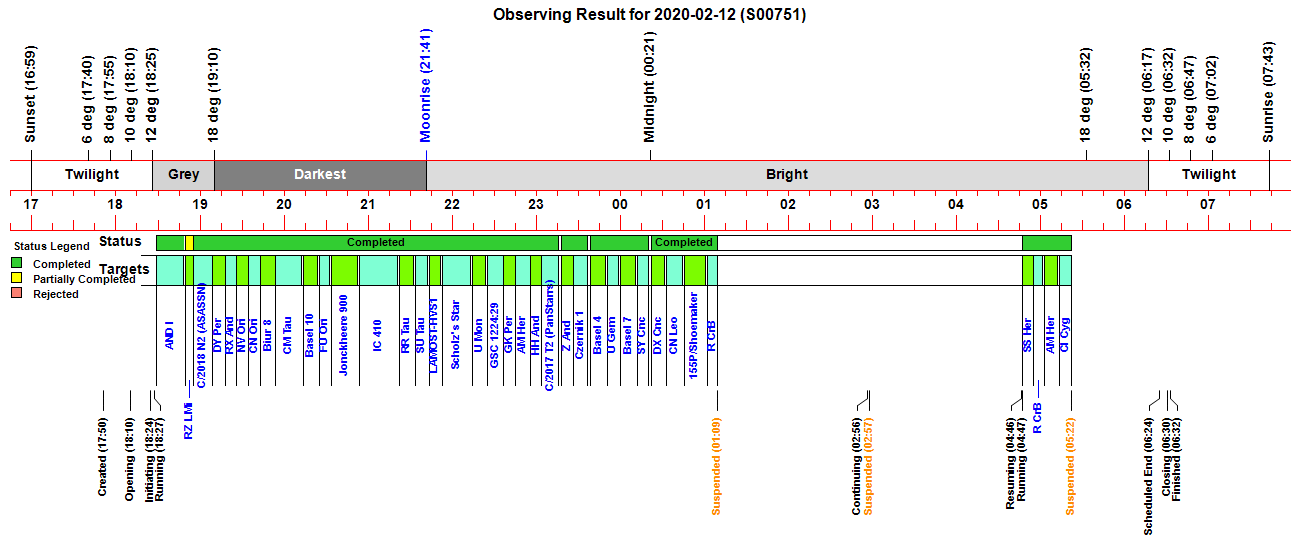

Observing Result

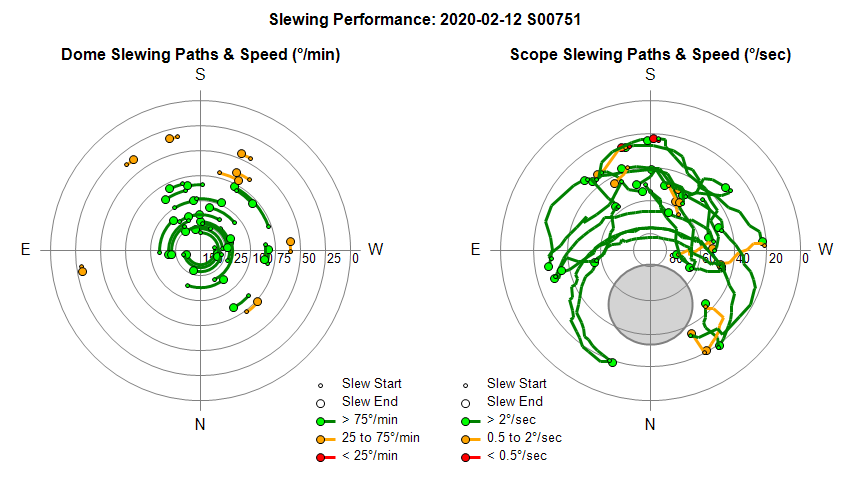

Dome & Scope Slewing Performance

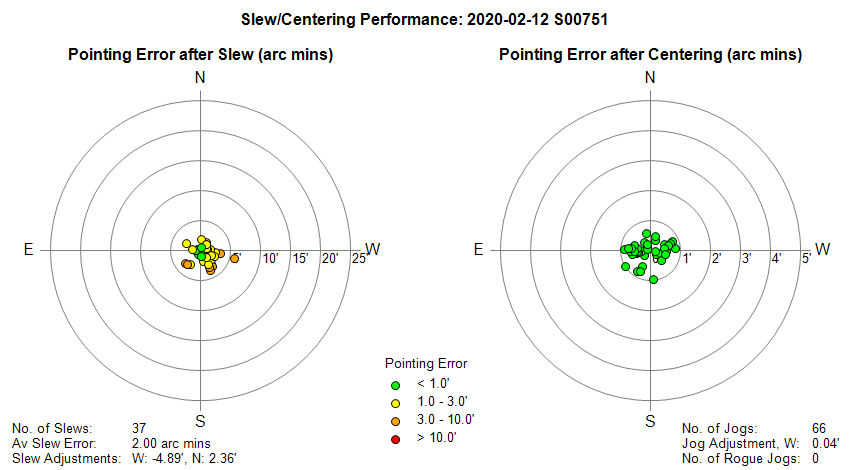

Slew/Centering Performance

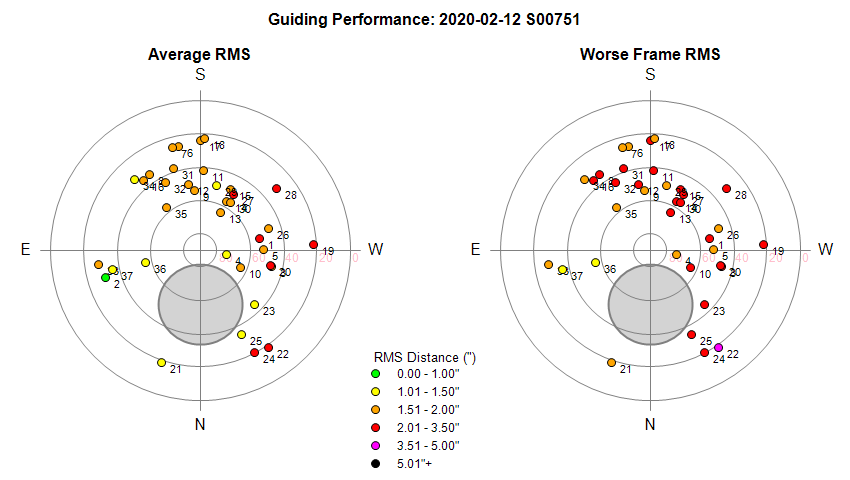

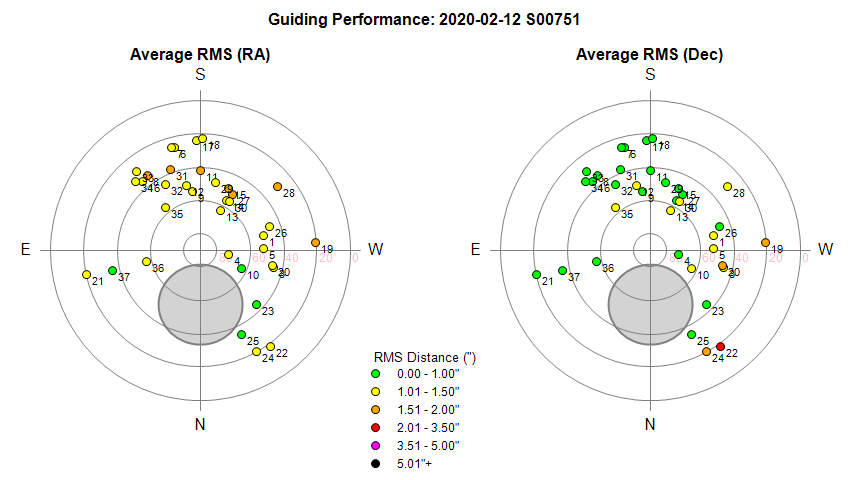

Guiding Performance

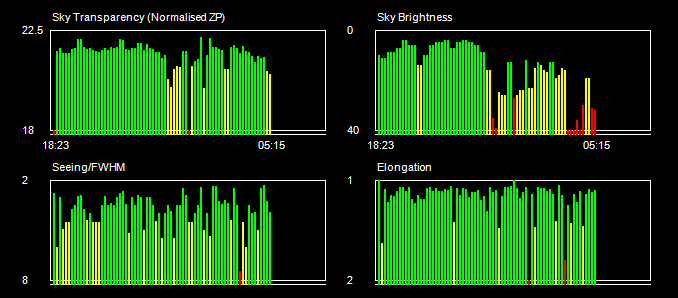

Sky Conditions (Locate Frames)

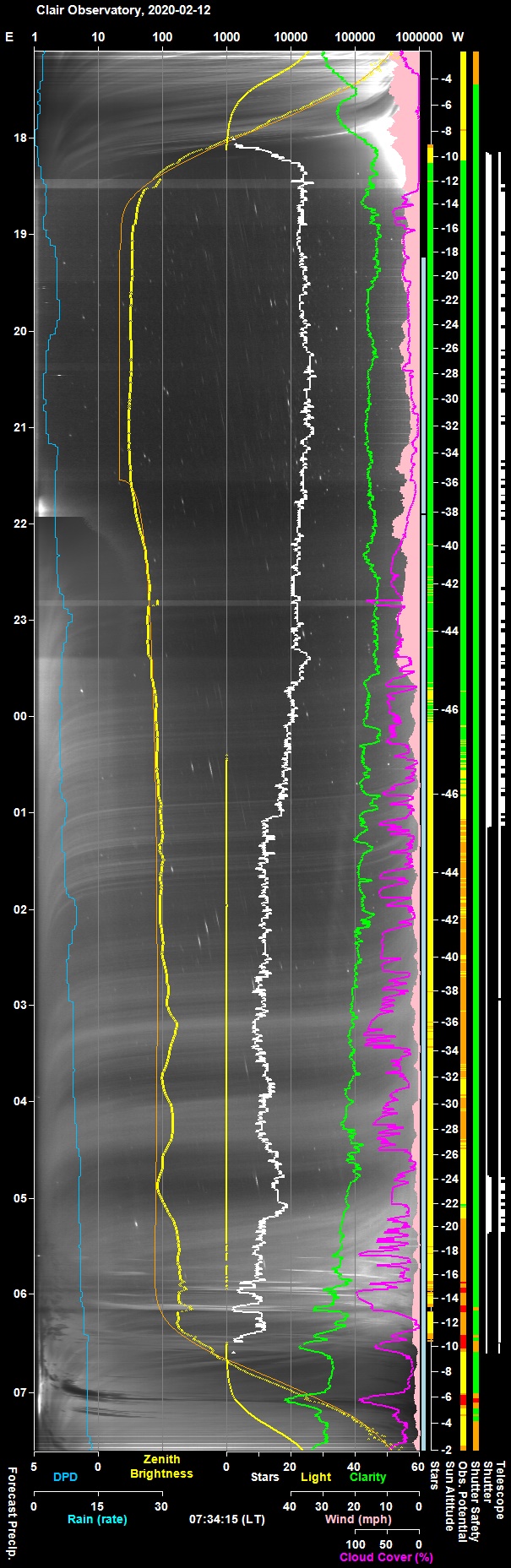

Night Sky Summary Plot Top axis: Sky Brightness at Zenith (in ADU/s) Lefthand axis: Local Time (hh LT). Righthand axis: Sun Altitude (degs)

Pre-Session Weather Forecast (API data from darksky.net) Forecast not saved/archived due to technical issue. In the event skies were ...

Session Event Log

Time     Event Detail 17:50:47 Session Created Live Session Created (2020-02-12 S00751, ImageSaveNum: 751001) 17:51:22   Obs.Manager Started Obs.Manager started 17:51:24   Obs.Overseer Started Obs.Overseer started 17:51:28   Services Started Observatory Services started 18:01:02   Camera1 Connected SBIG Camera Connected (set point -20°C) 18:06:38   Scope Switched On Telescope power has been switched on via UPB Powerbox. 18:09:17   Services Started Observatory Services started 18:09:34   Telescope Connected Telescope Connected (TheSky6) 18:10:35   Shutter Opened Shutter opened (opening time 45s) 18:13:55       Focusing Started Foc2 Focusing Started (Secondary Scope, using ShCap) 18:14:08       Focusing Started Foc2 Focusing Started (Secondary Scope, using ShCap) 18:16:21       Focusing Completed Foc2 AutoFocus Completed (Profile No 1) 18:16:26       Focusing Started Foc2 Focusing Started (Secondary Scope, using ShCap) 18:18:33       Focusing Completed Foc2 AutoFocus Completed (Profile No 2) 18:20:18       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S) 18:23:05       Focusing Completed Foc1 AutoFocus Completed (Profile No 3) 18:24:12 Observatory (Auto) Observatory placed in Fully-Automated Mode 18:24:16 Session Pending Session pending (2020-02-12) 18:24:18 Session Initiating Session initiating (2020-02-12) 18:24:20   Plan Requested Observing Plan requested from AstroPlan (1.14) 18:26:52   Plan Loaded Observing Plan loaded to queue (2020-02-12 V1 BEST PLAN, Plan ID: 469) 18:26:56   Camera1 Connected SBIG Camera Connected (set point -25°C) 18:26:59   Telescope Connected Telescope Connected (TheSky6) 18:27:11 Session Equilibration Session ready for dome & camera equilibration 18:27:14   Equilibration Started Dome Equilibration started 18:27:16   Equilibration Skipped Dome Equilibration skipped by user 18:27:18 Session Running Session running 18:27:20   Queue Started Observing Queue started (41 targets selected) 18:28:38     Target Aborted (1/41) Target aborted (1/41, GCVS FO Ori) due to Priority 1 ToO Target 18:28:40     Target Started (2/42) Target started (2/42, AND I) 18:31:23       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S) 18:33:23       Focusing Completed Foc1 AutoFocus Completed (Profile No 4) 18:49:16     Target Completed Target completed (2/42, AND I) 18:49:18     Target Started (3/42) Target started (3/42, GCVS RZ LMi) 18:55:17     Target Completed Target partially completed (3/42, GCVS RZ LMi) 18:55:19     Target Started (4/42) Target started (4/42, C/2018 N2 (ASASSN)) 18:59:11       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S) 19:01:08       Focusing Completed Foc1 AutoFocus Completed (Profile No 5) 19:09:06     Target Completed Target completed (4/42, C/2018 N2 (ASASSN)) 19:09:08     Target Started (5/42) Target started (5/42, GCVS DY Per) 19:11:39       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S) 19:13:29       Focusing Completed Foc1 AutoFocus Completed (Profile No 6) 19:18:00     Target Completed Target completed (5/42, GCVS DY Per) 19:18:02     Target Started (6/42) Target started (6/42, GCVS RX And) 19:21:34       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S) 19:23:23       Focusing Completed Foc1 AutoFocus Completed (Profile No 7) 19:26:03     Target Completed Target completed (6/42, GCVS RX And) 19:26:06     Target Started (7/42) Target started (7/42, GCVS NV Ori) 19:29:30       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S) 19:31:07       Focusing Completed Foc1 AutoFocus Completed (Profile No 8) 19:34:46     Target Completed Target completed (7/42, GCVS NV Ori) 19:34:48     Target Started (8/42) Target started (8/42, GCVS CN Ori) 19:37:37       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S) 19:39:33       Focusing Completed Foc1 AutoFocus Completed (Profile No 9) 19:43:05     Target Completed Target completed (8/42, GCVS CN Ori) 19:43:07     Target Started (9/42) Target started (9/42, Biur 8) 19:46:06       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S) 19:48:14       Focusing Completed Foc1 AutoFocus Completed (Profile No 10) 19:54:02     Target Completed Target completed (9/42, Biur 8) 19:54:04     Target Started (10/42) Target started (10/42, GCVS CM Tau) 19:56:47       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S) 19:58:43       Focusing Completed Foc1 AutoFocus Completed (Profile No 11) 20:12:10     Target Completed Target completed (10/42, GCVS CM Tau) 20:13:30     Target Started (11/42) Target started (11/42, Basel 10) 20:16:02       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S) 20:18:04       Focusing Completed Foc1 AutoFocus Completed (Profile No 12) 20:23:35     Target Completed Target completed (11/42, Basel 10) 20:25:30     Target Started (12/42) Target started (12/42, GCVS FU Ori) 20:28:39       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S) 20:30:40       Focusing Completed Foc1 AutoFocus Completed (Profile No 13) 20:33:24     Target Completed Target completed (12/42, GCVS FU Ori) 20:33:50     Target Started (13/42) Target started (13/42, Jonckheere 900) 20:36:39       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S) 20:38:51       Focusing Completed Foc1 AutoFocus Completed (Profile No 14) 20:53:15     Target Completed Target completed (13/42, Jonckheere 900) 20:54:04     Target Started (14/42) Target started (14/42, IC 410) 20:56:59       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S) 20:58:57       Focusing Completed Foc1 AutoFocus Completed (Profile No 15) 21:21:03     Target Completed Target completed (14/42, IC 410) 21:22:30     Target Started (15/42) Target started (15/42, GCVS RR Tau) 21:24:34       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S) 21:26:23       Focusing Completed Foc1 AutoFocus Completed (Profile No 16) 21:32:27     Target Completed Target completed (15/42, GCVS RR Tau) 21:33:34     Target Started (16/42) Target started (16/42, GCVS SU Tau) 21:36:21       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S) 21:38:20       Focusing Completed Foc1 AutoFocus Completed (Profile No 17) 21:42:35     Target Completed Target completed (16/42, GCVS SU Tau) 21:43:30     Target Started (17/42) Target started (17/42, LAMOST-HVS1) 21:46:29       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S) 21:48:29       Focusing Completed Foc1 AutoFocus Completed (Profile No 18) 21:51:59     Target Completed Target completed (17/42, LAMOST-HVS1) 21:53:16     Target Started (18/42) Target started (18/42, Scholz's Star) 21:56:28       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S) 21:58:42       Focusing Completed Foc1 AutoFocus Completed (Profile No 19) 22:13:35     Target Completed Target completed (18/42, Scholz's Star) 22:14:42     Target Started (19/42) Target started (19/42, GCVS U Mon) 22:17:14       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S) 22:18:57       Focusing Completed Foc1 AutoFocus Completed (Profile No 20) 22:24:46     Target Completed Target completed (19/42, GCVS U Mon) 22:25:25     Target Started (20/42) Target started (20/42, GSC 1224:29) 22:30:30       Focusing Failed Foc1 Focusing Failed - star is too dim (TCF-S) 22:36:51     Target Completed Target completed (20/42, GSC 1224:29) 22:36:53     Target Started (21/42) Target started (21/42, GCVS GK Per) 22:39:48       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S) 22:41:49       Focusing Completed Foc1 AutoFocus Completed (Profile No 21) 22:44:56     Target Completed Target completed (21/42, GCVS GK Per) 22:44:58     Target Started (22/42) Target started (22/42, GCVS AM Her) 22:49:09       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S) 22:51:11       Focusing Completed Foc1 AutoFocus Completed (Profile No 22) 22:56:11     Target Completed Target completed (22/42, GCVS AM Her) 22:56:13     Target Started (23/42) Target started (23/42, GCVS HH And) 23:00:14       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S) 23:02:18       Focusing Completed Foc1 AutoFocus Completed (Profile No 23) 23:04:03     Target Completed Target completed (23/42, GCVS HH And) 23:04:05     Target Started (24/42) Target started (24/42, C/2017 T2 (PanStarrs)) 23:05:57       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S) 23:08:13       Focusing Completed Foc1 AutoFocus Completed (Profile No 24) 23:15:59     Target Completed Target completed (24/42, C/2017 T2 (PanStarrs)) 23:17:59     Target Started (25/42) Target started (25/42, GCVS Z And) 23:20:41       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S) 23:22:35       Focusing Completed Foc1 AutoFocus Completed (Profile No 25) 23:26:24     Target Completed Target completed (25/42, GCVS Z And) 23:26:49     Target Started (26/42) Target started (26/42, Czernik 1) 23:28:56       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S) 23:30:54       Focusing Completed Foc1 AutoFocus Completed (Profile No 26) 23:36:49     Target Completed Target completed (26/42, Czernik 1) 23:38:48     Target Started (27/42) Target started (27/42, Basel 4) 23:41:51       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S) 23:44:15       Focusing Completed Foc1 AutoFocus Completed (Profile No 27) 23:49:55     Target Completed Target completed (27/42, Basel 4) 23:50:48     Target Started (28/42) Target started (28/42, GCVS U Gem) 23:53:42       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S) 23:55:58       Focusing Completed Foc1 AutoFocus Completed (Profile No 28) 23:58:45     Target Completed Target completed (28/42, GCVS U Gem) 00:00:21     Target Started (29/42) Target started (29/42, Basel 7) 00:03:17       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S) 00:05:58       Focusing Completed Foc1 AutoFocus Completed (Profile No 29) 00:11:41     Target Completed Target completed (29/42, Basel 7) 00:12:21     Target Started (30/42) Target started (30/42, GCVS SY Cnc) 00:15:02       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S) 00:17:13       Focusing Completed Foc1 AutoFocus Completed (Profile No 30) 00:20:04     Target Completed Target completed (30/42, GCVS SY Cnc) 00:22:00     Target Started (31/42) Target started (31/42, GCVS DX Cnc) 00:24:48       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S) 00:26:51       Focusing Completed Foc1 AutoFocus Completed (Profile No 31) 00:31:24     Target Completed Target completed (31/42, GCVS DX Cnc) 00:32:42     Target Started (32/42) Target started (32/42, GCVS CN Leo) 00:36:00       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S) 00:38:31       Focusing Completed Foc1 AutoFocus Completed (Profile No 32) 00:45:25     Target Completed Target completed (32/42, GCVS CN Leo) 00:45:54     Target Started (33/42) Target started (33/42, 155P/Shoemaker) 00:48:22       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S) 00:50:32       Focusing Completed Foc1 AutoFocus Completed (Profile No 33) 01:00:48     Target Completed Target completed (33/42, 155P/Shoemaker) 01:02:24     Target Started (34/42) Target started (34/42, GCVS R CrB) 01:04:29       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S) 01:05:35   SoftSuspend Called Soft Suspend is called due to Deteriorating Conditions (too few stars) 01:06:14       Focusing Completed Foc1 AutoFocus Completed (Profile No 34) 01:09:05     Target Completed Target completed (34/42, GCVS R CrB) 01:09:07   Queue Paused Queue paused for SoftSuspend 01:09:09 Session Suspended Session suspended 01:09:55   Shutter Closed Shutter closed (closing time 49s) 01:22:35     Target Cancelled Target cancelled (35/42, Basel 13) due to cloud 01:35:54     Target Cancelled Target cancelled (36/42, GCVS S Cyg) due to cloud 01:46:42     Target Cancelled Target cancelled (37/42, GCVS AM CVn) due to cloud 01:56:15     Target Cancelled Target cancelled (38/42, GCVS AM CVn) due to cloud 02:12:30     Target Cancelled Target cancelled (39/42, 289P/Blanpain) due to cloud 02:25:00     Target Cancelled Target cancelled (40/42, Biur 2) due to cloud 02:36:10     Target Cancelled Target cancelled (41/42, GCVS U Her) due to cloud 02:56:13     Target Cancelled Target cancelled (42/42, GCVS ER UMa) due to cloud 02:56:18   Queue Completed Job Queue completed 02:56:20 Session Continuing Session continuing 02:56:31   Plan Requested Observing Plan requested from AstroPlan (1.14) 02:56:46   Plan Loaded Observing Plan loaded to queue (2020-02-12 V2 BEST PLAN, Plan ID: 470) 02:57:31 Wait on Weather Waiting for acceptable weather conditions 02:57:34 Session Suspended Session suspended 02:57:36   Shutter Closed Shutter already closed (closed at 01:09, closing time 49s) 02:57:38   Queue Started Observing Queue started (18 targets selected) 03:11:49     Target Cancelled Target cancelled (1/18, GCVS ER UMa) due to cloud 03:28:19     Target Cancelled Target cancelled (2/18, 289P/Blanpain) due to cloud 03:42:11     Target Cancelled Target cancelled (3/18, GCVS CN Leo) due to cloud 03:51:19     Target Cancelled Target cancelled (4/18, GCVS AM CVn) due to other condition 03:57:37   Camera1 SetPoint SBIG Camera Set Point Temperature Updated (new set point -30°C) 04:01:22     Target Cancelled Target cancelled (5/18, GCVS CY Lyr) due to cloud 04:17:20     Target Cancelled Target cancelled (6/18, GCVS SS Cyg) due to cloud 04:33:04     Target Cancelled Target cancelled (7/18, 155P/Shoemaker) due to other condition 04:44:44     Target Cancelled Target cancelled (8/18, GCVS U Her) due to other condition 04:46:36 Session Resuming Session resuming 04:47:21   Shutter Opened Shutter opened (opening time 45s) 04:47:24 Session Running Session running 04:47:26   Queue Resumed Observing Queue resumed 04:47:28     Target Started (9/18) Target started (9/18, GCVS SS Her) 04:49:30       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S) 04:51:22       Focusing Completed Foc1 AutoFocus Completed (Profile No 35) 04:54:37     Target Completed Target completed (9/18, GCVS SS Her) 04:54:39     Target Started (10/18) Target started (10/18, GCVS R CrB) 04:56:25       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S) 04:58:08       Focusing Completed Foc1 AutoFocus Completed (Profile No 36) 05:01:07     Target Completed Target completed (10/18, GCVS R CrB) 05:03:06     Target Started (11/18) Target started (11/18, GCVS AM Her) 05:05:41       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S) 05:07:35       Focusing Completed Foc1 AutoFocus Completed (Profile No 37) 05:12:34     Target Completed Target completed (11/18, GCVS AM Her) 05:13:47     Target Started (12/18) Target started (12/18, GCVS CI Cyg) 05:15:06   SoftSuspend Called Soft Suspend is called due to Deteriorating Conditions (too few stars) 05:16:27       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S) 05:18:28       Focusing Completed Foc1 AutoFocus Completed (Profile No 38) 05:22:06     Target Completed Target completed (12/18, GCVS CI Cyg) 05:22:08   Queue Paused Queue paused for SoftSuspend 05:22:09 Session Suspended Session suspended 05:22:59   Shutter Closed Shutter closed (closing time 50s) 05:34:00     Target Cancelled Target cancelled (13/18, Biur 2) due to cloud 05:42:31     Target Cancelled Target cancelled (14/18, GCVS FG Sge) due to cloud 05:50:31     Target Cancelled Target cancelled (15/18, HIP 87937) due to cloud 06:03:22     Target Cancelled Target cancelled (16/18, GCVS S Cyg) due to cloud 06:12:24     Target Cancelled Target cancelled (17/18, 61 Cyg) due to cloud 06:22:15   Camera1 SetPoint SBIG Camera Set Point Temperature Updated (new set point -25°C) 06:30:36     Target Cancelled Target cancelled (18/18, GCVS HH And) due to cloud 06:30:41   Queue Completed Job Queue completed 06:30:45 Session Closing Session closing 06:30:50   Shutter Closed Shutter already closed (closed at 05:22, closing time 50s) 06:30:56   Dome Parked Dome parked (parking time 6s) 06:31:09   Telescope Parked Telescope parked (parking time 10s) 06:31:39   Scope Switched Off Telescope Power has been switched off via UPB Powerbox. 06:32:26   Services Stopped Night Services stopped 06:32:28 Session Housekeeping Housekeeping Started (Cleanup FITS, Create Fits Summary, Transfer Files) 06:32:54 Session Finished Session Finished

Back to Top

Operational Issues (2020-02-12, S751)

• Critical Issues (0)
• Major Issues (0)
• Minor Issues (3)
• Continuous Improvement (1)

[ Prev | Next ]

Critical Issues

• None

Major Issues

• None

Minor Issues

• Session.ObservingPlan.png and Session.ObservingResult.png pictures stopping updating during session after restarting AstroPlan.
  User Awareness - Need to set NightDate & GetMoonTimes after restarting AstroPlan (Session)
  User Awareness (Session)

• Zero line is still drawn on 8 hour Temp Plot when zero position is outside of Y Axis Limits.
  A zero Line was drawn on chart with Y Axis range of 1 to 9 degC. Graphs that had the problem bug (GraphID, 11, 23 & 30) have now been fixed.
  Fixed 2020-06-07 (AstroWeather 1.10.4)

• Dew Heaters shouldn't jump up to 60-66%when closing if dew heaters are only on 25-30% level. When entering closing state dew heater level shouldn't be increased.
  Fixed 2020-04-21 (AstroMain 3.20.4)

Continuous Improvement

• Modify AstroPlan to check for valid NightDate if 'update .png file flag is used. This is to ensure that Session.ObservingPlan.png and Session.ObservingResult.png pictures don't stop updating during session when restarting AstroPlan.
  Make Modification/Enhancement to code (AstroPlan)
