	Session Aims & Highlights
	- Observing Result  - Night Summary Plot  - Session Event Log
	Operational Issues
	- Critical Issues (0),  Major Issues (1),  Minor Issues (1),  Continuous Improvement (1)
	Images from 2020-02-13 >>

Session Aims & Highlights (2020-02-13)

Main aims

1. Targets: Acquire images of a number of comets and deep sky objects


Equipment & Software

• 12" LX200 and ST-10XME
• 80mm APO and ZWO ASI 178MC
• CCDApp2, TheSky6, CCDSoft5, PHD2,  POTH Hub
• Pegasus UPB & Motor Focus, TCF-S
• SharpCap 3.2, PHD2  2.6.6dev3

• AstroMain 3.20.3 ,  Astroguard 1.2.11,   AstroPlan 1.14,  AstroShCap 1.2.15, AstroVOE 1.3.5, UPB 1.4.17  (AstroWeather 1.8.4, AstroAllSky 3.5.1)


Highlights

• Good Conditions.  Good seeing / good condition enabled productive session with good guiding
• Targets.  x targets successfully imaged

Lowlights

•   T.d

Summary Plots & Logs

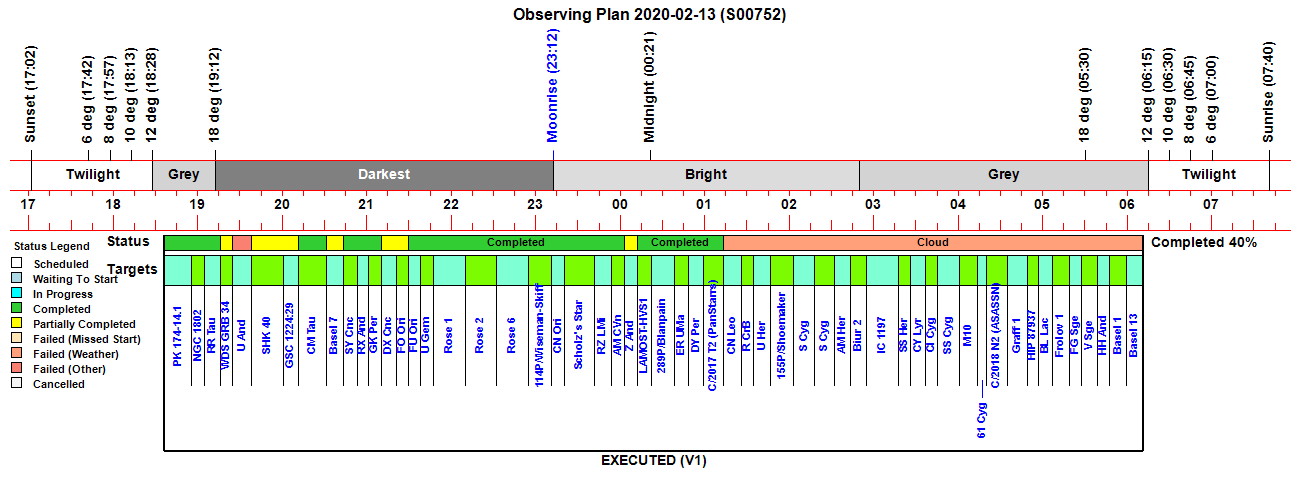

Observing Plan

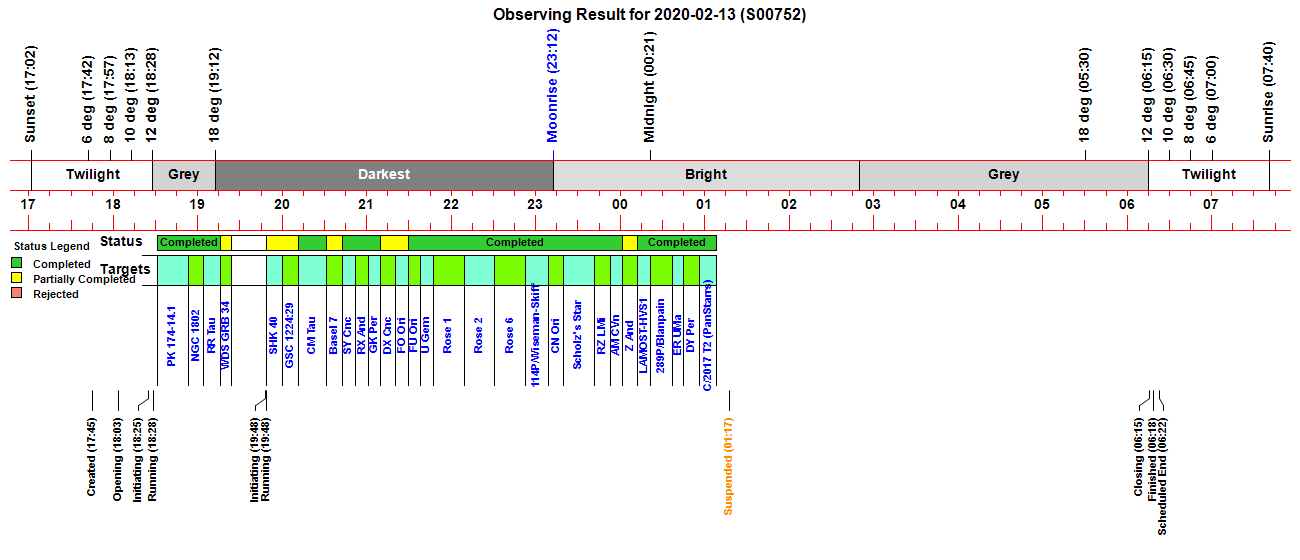

Observing Result

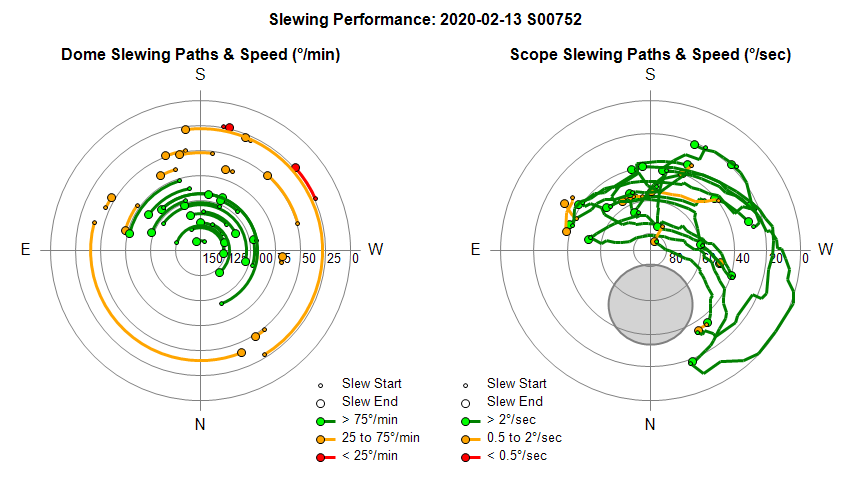

Dome & Scope Slewing Performance

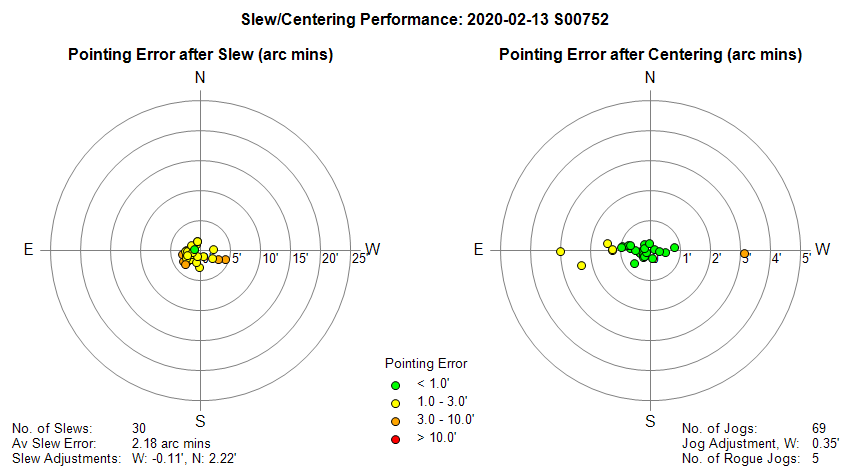

Slew/Centering Performance

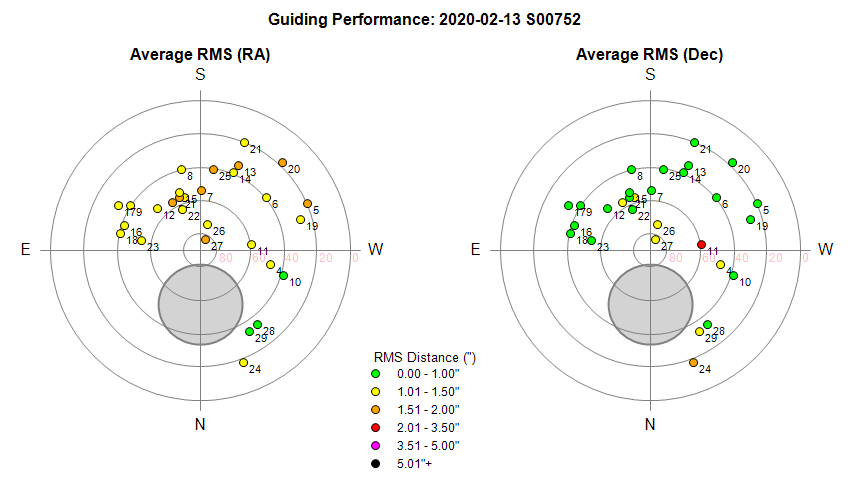

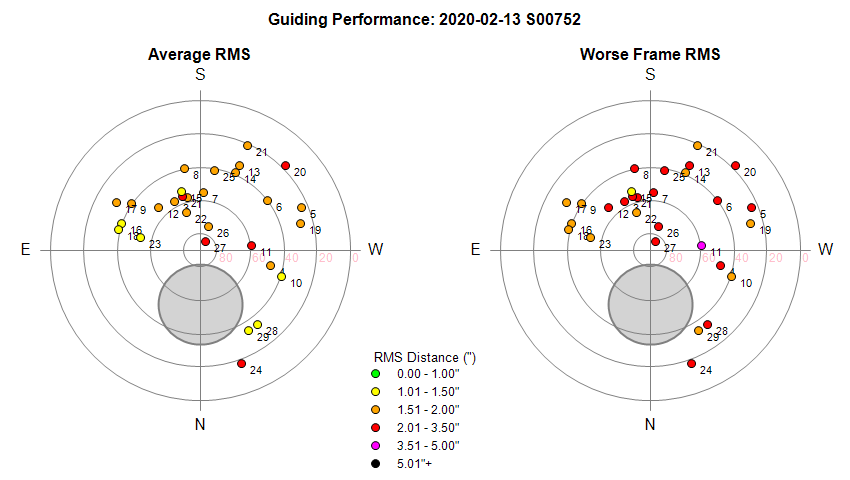

Guiding Performance

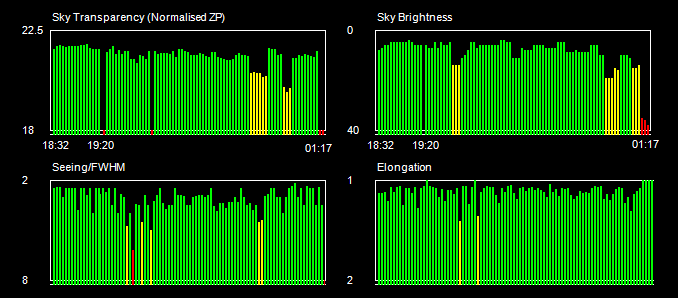

Sky Conditions (Locate Frames)

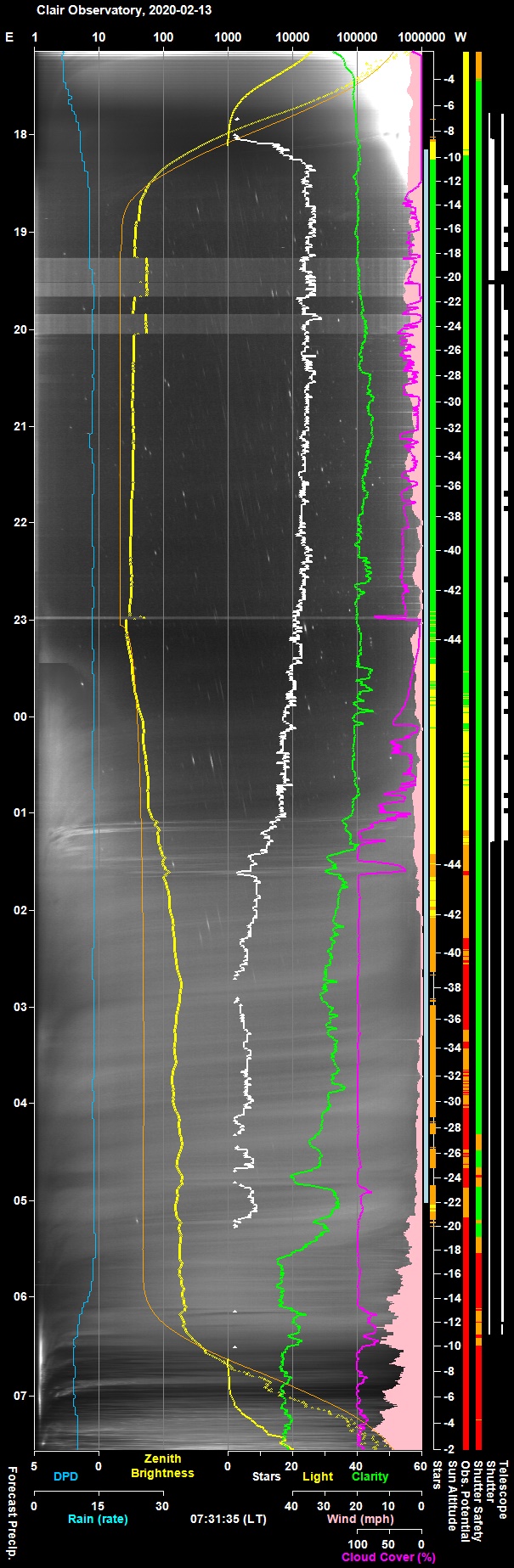

Night Sky Summary Plot Top axis: Sky Brightness at Zenith (in ADU/s) Lefthand axis: Local Time (hh LT). Righthand axis: Sun Altitude (degs)

Pre-Session Weather Forecast (API data from darksky.net) Forecast not saved/archived due to technical issue. In the event skies were ...

Session Event Log

Time     Event Detail 17:45:03 Session Created Live Session Created (2020-02-13 S00752, ImageSaveNum: 752001) 17:45:29   Scope Switched On Telescope power has been switched on via UPB Powerbox. 17:48:05   Services Started Observatory Services started 18:01:53   Camera1 Connected SBIG Camera Connected (set point -25°C) 18:02:05   Telescope Connected Telescope Connected (TheSky6) 18:03:30   Shutter Opened Shutter opened (opening time 46s) 18:04:16       Focusing Started Foc2 Focusing Started (Secondary Scope, using ShCap) 18:10:25       Focusing Completed Foc2 AutoFocus Completed (Profile No 1) 18:12:02       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S) 18:20:07       Focusing Completed Foc1 AutoFocus Completed (Profile No 2) 18:20:29       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S) 18:25:06       Focusing Completed Foc1 AutoFocus Completed (Profile No 3) 18:25:14 Observatory (Auto) Observatory placed in Fully-Automated Mode 18:25:17 Session Pending Session pending (2020-02-13) 18:25:19 Session Initiating Session initiating (2020-02-13) 18:25:21   Plan Requested Observing Plan requested from AstroPlan (1.14) 18:27:48   Plan Loaded Observing Plan loaded to queue (2020-02-13 V1 BEST PLAN, Plan ID: 471) 18:27:51   Camera1 Connected SBIG Camera Connected (set point -25°C) 18:27:55   Telescope Connected Telescope Connected (TheSky6) 18:28:10 Session Equilibration Session ready for dome & camera equilibration 18:28:13   Equilibration Started Dome Equilibration started 18:28:15   Equilibration Skipped Dome Equilibration skipped by user 18:28:17 Session Running Session running 18:28:19   Queue Started Observing Queue started (55 targets selected) 18:31:17     Target Started (1/55) Target started (1/55, PK 174-14.1) 18:35:57       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S) 18:39:50       Focusing Completed Foc1 AutoFocus Completed (Profile No 4) 18:53:05     Target Completed Target completed (1/55, PK 174-14.1) 18:53:07     Target Started (2/55) Target started (2/55, NGC 1802) 18:57:32       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S) 19:00:46       Focusing Completed Foc1 AutoFocus Completed (Profile No 5) 19:03:54     Target Completed Target completed (2/55, NGC 1802) 19:03:56     Target Started (3/55) Target started (3/55, GCVS RR Tau) 19:06:58       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S) 19:09:46       Focusing Completed Foc1 AutoFocus Completed (Profile No 6) 19:15:52     Target Completed Target completed (3/55, GCVS RR Tau) 19:15:55     Target Started (4/55) Target started (4/55, WDS GRB 34) 19:24:16     Target Completed Target partially completed (4/55, WDS GRB 34) 19:24:18     Target Started (5/55) Target started (5/55, GCVS U And) 19:24:26     Target Failed Target failed due to slew error (5/55, GCVS U And) 19:24:28   Queue Aborted Job Queue aborted 19:25:03   Services Stopped Observatory Services stopped 19:26:09 Program Closed Program closed by User 19:29:42 Session Resumed Live Session Resumed (2020-02-13 S00752, ImageSaveNum: 752048) 19:30:09   Scope Switched Off Telescope Power has been switched off via UPB Powerbox. 19:30:45   Scope Switched On Telescope power has been switched on via UPB Powerbox. 19:32:53   Obs.Manager Started Obs.Manager started 19:32:55   Obs.Overseer Started Obs.Overseer started 19:32:59   Services Started Observatory Services started 19:33:39   Telescope Connected Telescope Connected (TheSky6) 19:34:06   Camera1 Connected SBIG Camera Connected (set point -25°C) 19:43:11       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S) 19:47:29       Focusing Completed Foc1 AutoFocus Completed (Profile No 7) 19:47:56 Observatory (Auto) Observatory placed in Fully-Automated Mode 19:48:00 Session Pending Session pending (2020-02-13) 19:48:02 Session Initiating Session initiating (2020-02-13) 19:48:04   Plan Loaded Observing Plan loaded to queue (2020-02-13 V1 ACTIVE PLAN S752, Plan ID: 471) 19:48:06   Camera1 Connected SBIG Camera Connected (set point -25°C) 19:48:08   Telescope Connected Telescope Connected (TheSky6) 19:48:26 Session Equilibration Session ready for dome & camera equilibration 19:48:29   Equilibration Started Dome Equilibration started 19:48:31   Equilibration Skipped Dome Equilibration skipped by user 19:48:33 Session Running Session running 19:48:35   Queue Started Observing Queue started (50 targets selected) 19:48:37     Target Started (6/55) Target started (6/55, SHK 40) 20:00:25     Target Completed Target partially completed (6/55, SHK 40) 20:00:27     Target Started (7/55) Target started (7/55, GSC 1224:29) 20:04:07       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S) 20:07:28       Focusing Completed Foc1 AutoFocus Completed (Profile No 8) 20:11:25     Target Completed Target partially completed (7/55, GSC 1224:29) 20:11:27     Target Started (8/55) Target started (8/55, GCVS CM Tau) 20:14:57       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S) 20:17:46       Focusing Completed Foc1 AutoFocus Completed (Profile No 9) 20:31:25     Target Completed Target completed (8/55, GCVS CM Tau) 20:31:27     Target Started (9/55) Target started (9/55, Basel 7) 20:35:10       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S) 20:38:03       Focusing Completed Foc1 AutoFocus Completed (Profile No 10) 20:42:55     Target Completed Target partially completed (9/55, Basel 7) 20:42:57     Target Started (10/55) Target started (10/55, GCVS SY Cnc) 20:46:14       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S) 20:49:18       Focusing Completed Foc1 AutoFocus Completed (Profile No 11) 20:52:10     Target Completed Target completed (10/55, GCVS SY Cnc) 20:52:12     Target Started (11/55) Target started (11/55, GCVS RX And) 20:55:40       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S) 20:58:28       Focusing Completed Foc1 AutoFocus Completed (Profile No 12) 21:01:10     Target Completed Target completed (11/55, GCVS RX And) 21:01:12     Target Started (12/55) Target started (12/55, GCVS GK Per) 21:04:01       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S) 21:06:54       Focusing Completed Foc1 AutoFocus Completed (Profile No 13) 21:09:57     Target Completed Target completed (12/55, GCVS GK Per) 21:09:59     Target Started (13/55) Target started (13/55, GCVS DX Cnc) 21:13:26       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S) 21:16:25       Focusing Completed Foc1 AutoFocus Completed (Profile No 14) 21:20:45     Target Completed Target partially completed (13/55, GCVS DX Cnc) 21:20:47     Target Started (14/55) Target started (14/55, GCVS FO Ori) 21:30:00     Target Completed Target partially completed (14/55, GCVS FO Ori) 21:30:02     Target Started (15/55) Target started (15/55, GCVS FU Ori) 21:38:16     Target Completed Target completed (15/55, GCVS FU Ori) 21:38:18     Target Started (16/55) Target started (16/55, GCVS U Gem) 21:40:53       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S) 21:44:26       Focusing Completed Foc1 AutoFocus Completed (Profile No 15) 21:47:19     Target Completed Target completed (16/55, GCVS U Gem) 21:47:21     Target Started (17/55) Target started (17/55, Rose 1) 21:50:18       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S) 21:53:24       Focusing Completed Foc1 AutoFocus Completed (Profile No 16) 22:09:07     Target Completed Target completed (17/55, Rose 1) 22:09:09     Target Started (18/55) Target started (18/55, Rose 2) 22:30:57     Target Completed Target completed (18/55, Rose 2) 22:30:59     Target Started (19/55) Target started (19/55, Rose 6) 22:34:07       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S) 22:37:09       Focusing Completed Foc1 AutoFocus Completed (Profile No 17) 22:52:56     Target Completed Target completed (19/55, Rose 6) 22:52:58     Target Started (20/55) Target started (20/55, 114P/Wiseman-Skiff) 22:56:09       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S) 22:58:53       Focusing Completed Foc1 AutoFocus Completed (Profile No 18) 23:09:09     Target Completed Target completed (20/55, 114P/Wiseman-Skiff) 23:09:11     Target Started (21/55) Target started (21/55, GCVS CN Ori) 23:11:48       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S) 23:15:57       Focusing Completed Foc1 AutoFocus Completed (Profile No 19) 23:19:28     Target Completed Target completed (21/55, GCVS CN Ori) 23:19:30     Target Started (22/55) Target started (22/55, Scholz's Star) 23:23:05       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S) 23:26:55       Focusing Completed Foc1 AutoFocus Completed (Profile No 20) 23:42:00     Target Completed Target completed (22/55, Scholz's Star) 23:42:02     Target Started (23/55) Target started (23/55, GCVS RZ LMi) 23:45:13       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S) 23:48:13       Focusing Completed Foc1 AutoFocus Completed (Profile No 21) 23:53:07     Target Completed Target completed (23/55, GCVS RZ LMi) 23:53:09     Target Started (24/55) Target started (24/55, GCVS AM CVn) 23:55:59       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S) 23:58:44       Focusing Completed Foc1 AutoFocus Completed (Profile No 22) 00:01:28     Target Completed Target completed (24/55, GCVS AM CVn) 00:01:30     Target Started (25/55) Target started (25/55, GCVS Z And) 00:12:12     Target Completed Target partially completed (25/55, GCVS Z And) 00:12:14     Target Started (26/55) Target started (26/55, LAMOST-HVS1) 00:21:13     Target Completed Target completed (26/55, LAMOST-HVS1) 00:21:15     Target Started (27/55) Target started (27/55, 289P/Blanpain) 00:24:21       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S) 00:27:12       Focusing Completed Foc1 AutoFocus Completed (Profile No 23) 00:37:22     Target Completed Target completed (27/55, 289P/Blanpain) 00:37:24     Target Started (28/55) Target started (28/55, GCVS ER UMa) 00:45:12     Target Completed Target completed (28/55, GCVS ER UMa) 00:45:15     Target Started (29/55) Target started (29/55, GCVS DY Per) 00:48:43       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S) 00:51:32       Focusing Completed Foc1 AutoFocus Completed (Profile No 24) 00:55:58     Target Completed Target completed (29/55, GCVS DY Per) 00:56:00     Target Started (30/55) Target started (30/55, C/2017 T2 (PanStarrs)) 00:57:44       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S) 01:00:44       Focusing Completed Foc1 AutoFocus Completed (Profile No 25) 01:08:25     Target Completed Target completed (30/55, C/2017 T2 (PanStarrs)) 01:08:27     Target Started (31/55) Target started (31/55, GCVS CN Leo) 01:08:37   SoftSuspend Called Soft Suspend is called due to Deteriorating Conditions (too few stars) 01:09:03   SoftSuspend Cancelled Soft Suspend is cancelled due to Improved Conditions 01:11:37   SoftSuspend Called Soft Suspend is called due to Deteriorating Conditions (too few stars) 01:17:38     Target Failed Target failed due to cloud (31/55, GCVS CN Leo) 01:17:40   Queue Paused Queue paused for SoftSuspend 01:17:44 Session Suspended Session suspended 01:18:33   Shutter Closed Shutter closed (closing time 50s) 01:29:42     Target Cancelled Target cancelled (32/55, GCVS R CrB) due to cloud 01:40:38     Target Cancelled Target cancelled (33/55, GCVS U Her) due to cloud 01:56:53     Target Cancelled Target cancelled (34/55, 155P/Shoemaker) due to cloud 02:10:42     Target Cancelled Target cancelled (35/55, GCVS S Cyg) due to cloud 02:25:31     Target Cancelled Target cancelled (36/55, GCVS S Cyg) due to cloud 02:37:27     Target Cancelled Target cancelled (37/55, GCVS AM Her) due to cloud 02:49:42     Target Cancelled Target cancelled (38/55, Biur 2) due to cloud 03:09:34     Target Cancelled Target cancelled (39/55, IC 1197) due to cloud 03:21:10     Target Cancelled Target cancelled (40/55, GCVS SS Her) due to cloud 03:30:48     Target Cancelled Target cancelled (41/55, GCVS CY Lyr) due to cloud 03:40:16     Target Cancelled Target cancelled (42/55, GCVS CI Cyg) due to cloud 03:55:27     Target Cancelled Target cancelled (43/55, GCVS SS Cyg) due to cloud 04:08:04     Target Cancelled Target cancelled (44/55, M10) due to cloud 04:15:26     Target Cancelled Target cancelled (45/55, 61 Cyg) due to cloud 04:28:58     Target Cancelled Target cancelled (46/55, C/2018 N2 (ASASSN)) due to cloud 04:43:13     Target Cancelled Target cancelled (47/55, Graff 1) due to cloud 04:51:48     Target Cancelled Target cancelled (48/55, HIP 87937) due to cloud 05:01:08     Target Cancelled Target cancelled (49/55, GCVS BL Lac) due to cloud 05:13:38     Target Cancelled Target cancelled (50/55, Frolov 1) due to cloud 05:22:09     Target Cancelled Target cancelled (51/55, GCVS FG Sge) due to cloud 05:33:47     Target Cancelled Target cancelled (52/55, GCVS V Sge) due to cloud 05:42:12     Target Cancelled Target cancelled (53/55, GCVS HH And) due to cloud 05:48:08   Camera1 SetPoint SBIG Camera Set Point Temperature Updated (new set point -20°C) 05:53:47     Target Cancelled Target cancelled (54/55, Basel 1) due to cloud 06:15:47     Target Cancelled Target cancelled (55/55, Basel 13) due to cloud 06:15:52   Queue Completed Job Queue completed 06:15:56 Session Closing Session closing 06:16:00   Shutter Closed Shutter already closed (closed at 01:18, closing time 50s) 06:17:06   Dome Parked Dome parked (parking time 66s) 06:17:19   Telescope Parked Telescope parked (parking time 10s) 06:17:49   Scope Switched Off Telescope Power has been switched off via UPB Powerbox. 06:18:36   Services Stopped Night Services stopped 06:18:38 Session Housekeeping Housekeeping Started (Cleanup FITS, Create Fits Summary, Transfer Files) 06:18:57 Session Finished Session Finished

Back to Top

Operational Issues (2020-02-13, S752)

• Critical Issues (0)
• Major Issues (1)
• Minor Issues (1)
• Continuous Improvement (1)

[ Prev | Next ]

Critical Issues

• None

Major Issues

• Centering Failures on first 4 targets. Jogs not delivering required movement in scope. Action taken to park scope and restart observatory software (incl POTH and TheSky6) and telescope, then resynced scope and carried out short mapping job ( 8 points). Centering improved but still some issues with certains targets / sky positions
  Resolved 2020-02-13 (Observatory)

Minor Issues

• Target failed due to slew error entering Failures on first 4 targets. Target 5/55 (GCVS U And) failed due to slew error at  "Scope isn't pointing to the target (Ang Sep. = 9.6 arc degs)"   (Possible 'Timed out waiting for received data' problem).   Resolved at time by manually aborting the job and restarting everything.    Error might have been caused in response to a Abort Job command given by user due to the earlier centering failures on first 4 targets.
  Resolved 2020-02-13 (Observatory)

Continuous Improvement

• Add new chart type that shows whereabout jog failures / poor centering is occuring.  This proporal is no longer considered important as the number of jog failures / poor centering cases has dropped off to such low numbers.   Decision to put item on-hold (2021-02-14)
  Add new chart type (AstroMain)
