	Session Aims & Highlights
	- Observing Result  - Night Summary Plot  - Session Event Log
	Operational Issues
	- Critical Issues (0),  Major Issues (0),  Minor Issues (7),  Continuous Improvement (12)
	Images from 2021-01-23 >>

Session Aims & Highlights (2021-01-23)

Main aims

1. Software. Test fixes added in AstroMain 3.35.1
2. Targets. Acquire images of a selection of variable stars, nearby stars, comets and deep sky targets as allowed by conditions.

Equipment & Software

• 12" LX200 and ST-10XME
• 80mm APO and ZWO ASI 178MC
• CCDApp2, TheSky6, CCDSoft5, PHD2,  DeviceHub 6.5.1.0,  UPB 1.5, ASCOM 6.5 SP1
• Pegasus UPB & Motor Focus, TCF-S
• SharpCap 3.2, PHD2  2.6.9Dev3

• AstroMain 3.35.1  AstroGuard 1.4.6,   AstroPlan 1.20.1, AstroShCap 1.3.8, AstroVOE 1.5.2, AstroSN 1.4,  AstroProtect 1.4.1
  (AstroWeather 1.10.14, AstroAllSky 3.6.4)

Highlights

• Autostart.  Autostart worked perfectly , automated opening of the observatory and start of session at 01:06 when skies were detected to have cleared.  Apart from initiating AutoStart at 23:56 the whole session ran in an entirely automated unattended mode.
• Targets.  x Targets successfully acquired
• Centering.  Targets centering was very good
• Autoguiding.  Autoguiding performance was good

Lowlights

•   None.

Summary Plots & Logs

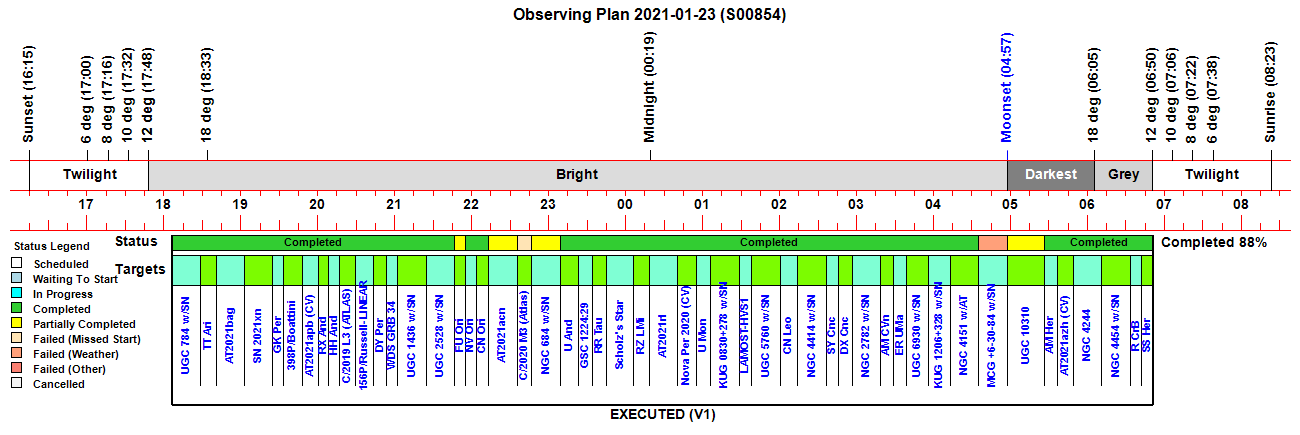

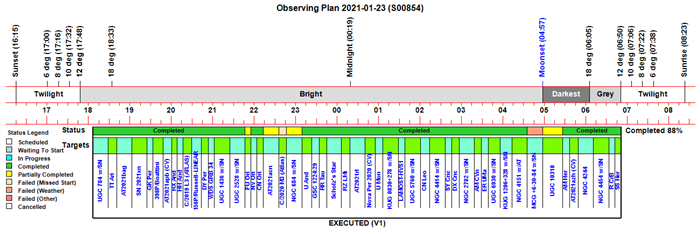

Observing Plan

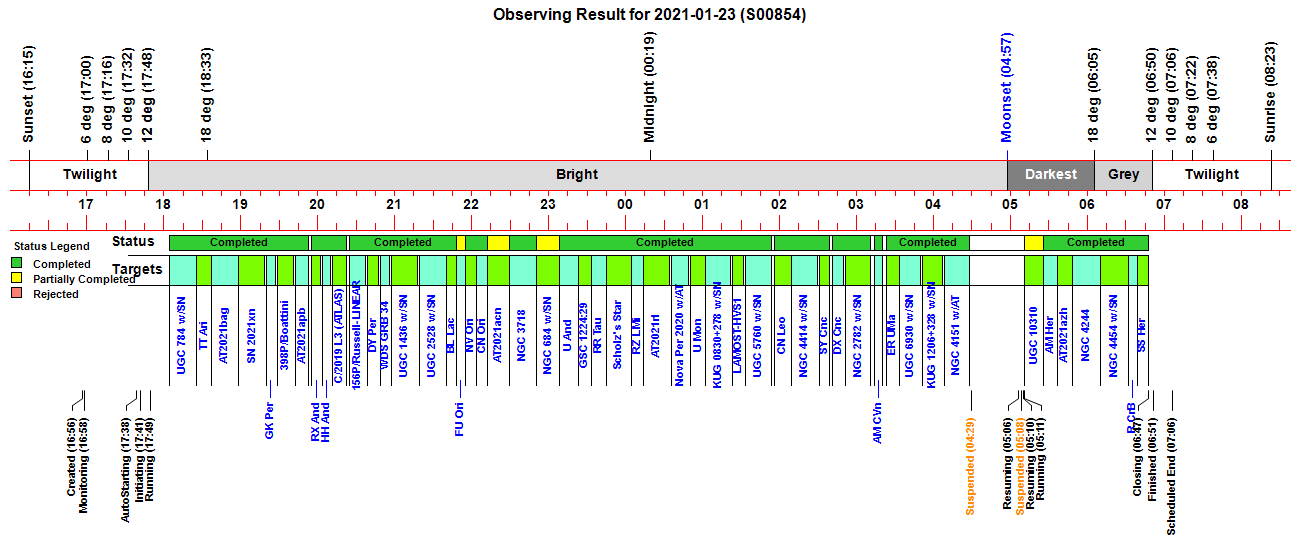

Observing Result

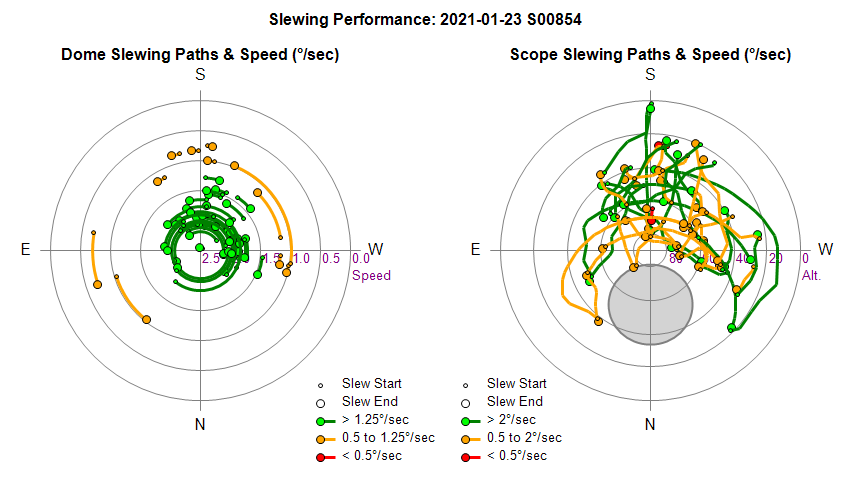

Dome & Scope Slewing Performance

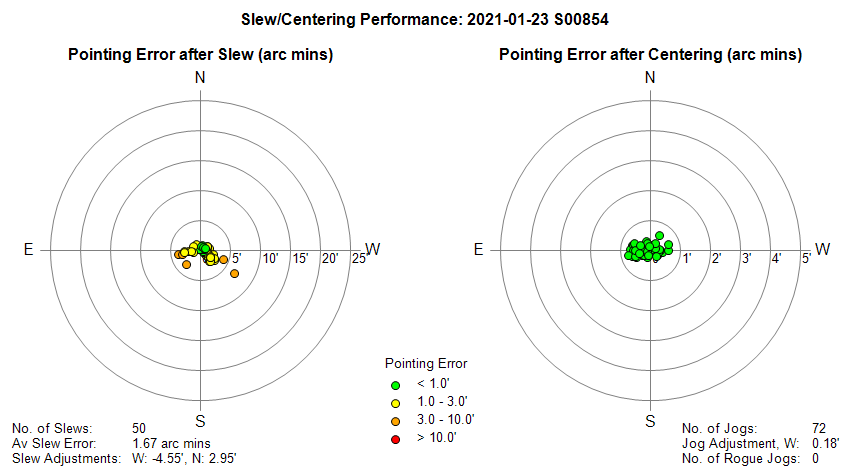

Slew/Centering Performance

Guiding Performance

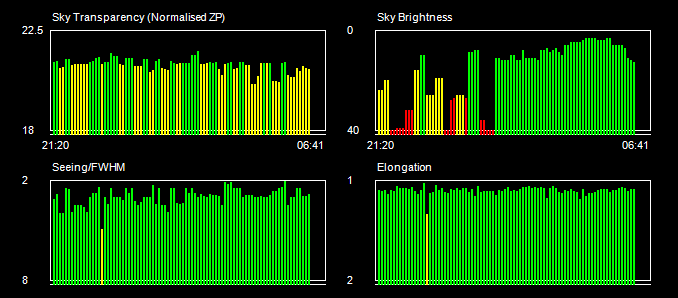

Sky Conditions (Locate Frames) Data for second part of night is erronous as Observatory shutter was unknowingly closed

Chart unavailable for this session

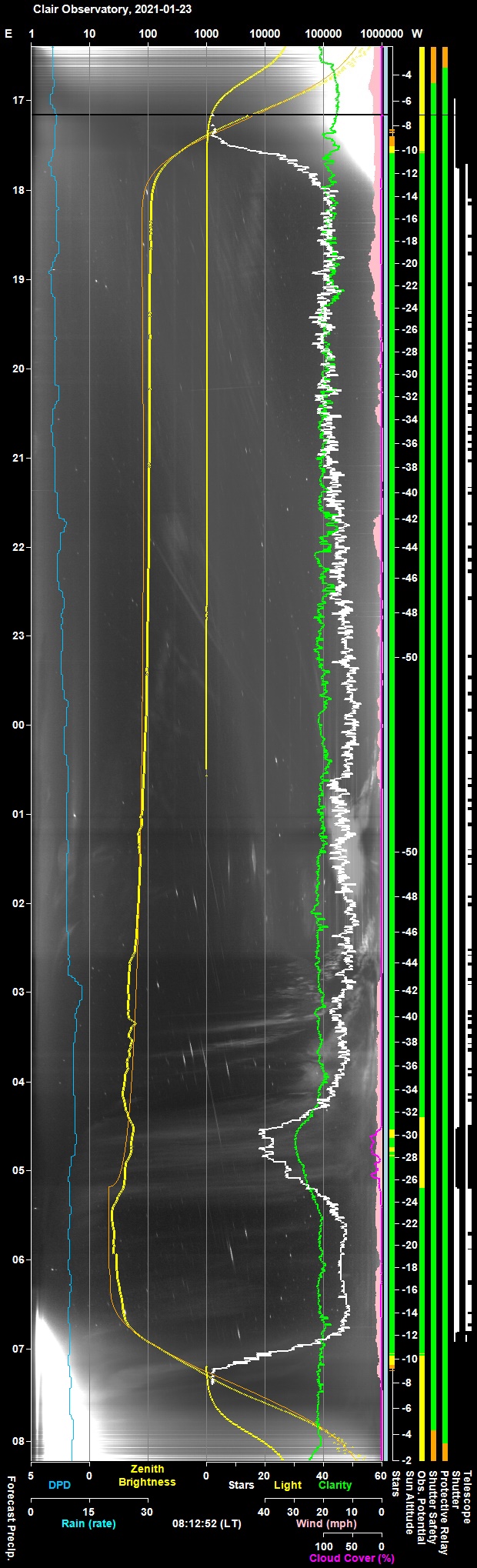

Night Sky Summary Plot Top axis: Sky Brightness at Zenith (in ADU/s) Lefthand axis: Local Time (hh LT). Righthand axis: Sun Altitude (degs)

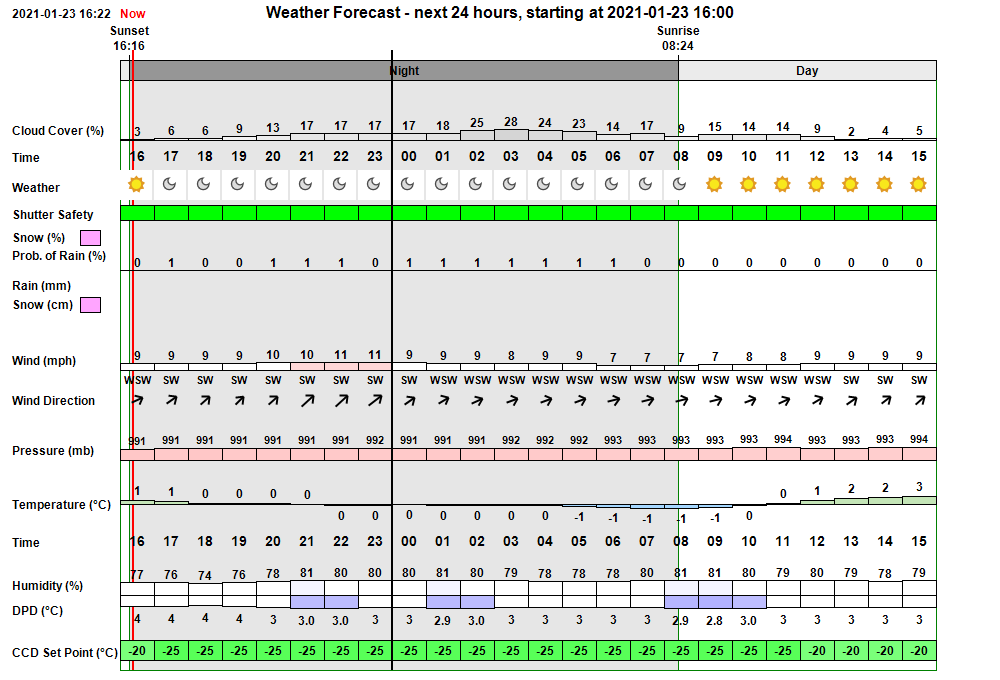

Pre-Session Weather Forecast (API data from darksky.net) Pre-Session Weather forecast showed overcast conditions (cloud cover 100%) with possibility of light rain showers in first part of night, giving way to clear stars from 02:00 onwards (cloud cover 25-39%) with very low probability of light showers. Temperatures 5°C falling to 3°C by dawn.. Moderate Wind (13-16 mph) Observatory was set in AutoStart mode, so that session would begin would automatically commence when sky conditions became suitable for observing.   In the event skies were overcast until 01:00 (with rain at 00:45) and then remained clear until dawn except for a passing cloud with spots of rain at 02:55 Temperature of 4°C at 01:00 fell to 1°C by dawn. Winds light to moderate.

Session Event Log

Time     Event Detail 16:56:36 Session Created Live Session Created (2021-01-23 S00854, ImageSaveNum: 854001) 16:56:58   Obs.Manager Started Obs.Manager started 16:57:00   Obs.Overseer Started Obs.Overseer started 16:57:04   Services Started Observatory Services started 16:58:24 Session Monitoring AutoStart monitoring for Live Session opportunity starting between 17:18 & 06:20 16:58:26 Observatory (AutoStart) Observatory placed in Auto-Start Mode 16:58:28   AutoStart Waiting AutoStart waiting till earliest start time at 17:18 17:18:25   AutoStart Delayed Session delayed due to cloud 17:18:26   AutoStart Waiting AutoStart waiting till earliest start time at 17:18 17:38:58 Session AutoStarting Session autostarting (17:38) 17:39:17   Scope Switched On Telescope Power has been switched on via UPB Powerbox. 17:41:18   Services Started Observatory Services started 17:41:26 Observatory (Auto) Observatory placed in Fully-Automated Mode 17:41:27 Session Pending Session pending (2021-01-23) 17:41:29 Session Initiating Session initiating (2021-01-23) 17:41:31   Plan Requested Observing Plan requested from AstroPlan (1.20.1) 17:41:58   Plan Loaded Observing Plan loaded to queue (2021-01-23 V1 BEST PLAN, Plan ID: 589) 17:42:01   Camera1 Connected SBIG Camera Connected (set point -25°C) 17:42:06   Telescope Connected Telescope Connected (TheSky6) 17:42:16 Session Equilibration Session ready for dome & camera equilibration 17:44:13   Dome Opened Dome opened (opening time 45s) 17:44:29   Equilibration Started Dome Equilibration started 17:49:28   Equilibration Ended Dome Equilibration ended (5.0 mins total) 17:49:30 Session Running Session running 17:49:32   Queue Started Observing Queue started (50 targets selected) 17:50:37       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S) 17:53:23       Focusing Completed Foc1 AutoFocus Completed (Profile No 1) 17:55:12       Focusing Completed Foc1 AutoFocus Completed (Profile No 1) 17:55:14       Focusing Started-Foc2 Foc2 Focusing Started (Secondary Scope, using ShCap) 17:57:24       Focusing Completed Foc2 AutoFocus Completed (Profile No 2, wide) 17:59:10       Focusing Completed Foc2 AutoFocus Completed (Profile No 2) 17:59:24       Focusing Checked Foc2 Focusing Check Succeeded 18:04:30     Target Started (1/50) Target started (1/50, UGC 784 w/SN2021pc) 18:07:13       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S) 18:09:24       Focusing Completed Foc1 AutoFocus Completed (Profile No 3) 18:25:22     Target Completed Target completed (1/50, UGC 784 w/SN2021pc) 18:25:24     Target Started (2/50) Target started (2/50, GCVS TT Ari) 18:28:50       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S) 18:31:09       Focusing Completed Foc1 AutoFocus Completed (Profile No 4) 18:37:23     Target Completed Target completed (2/50, GCVS TT Ari) 18:37:25     Target Started (3/50) Target started (3/50, AT2021bag) 18:40:42       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S) 18:42:43       Focusing Completed Foc1 AutoFocus Completed (Profile No 5) 18:58:15     Target Completed Target completed (3/50, AT2021bag) 18:58:18     Target Started (4/50) Target started (4/50, SN 2021xn) 19:01:13       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S) 19:03:27       Focusing Completed Foc1 AutoFocus Completed (Profile No 6) 19:19:22     Target Completed Target completed (4/50, SN 2021xn) 19:19:59     Target Started (5/50) Target started (5/50, GCVS GK Per) 19:22:40       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S) 19:24:31       Focusing Completed Foc1 AutoFocus Completed (Profile No 7) 19:27:26     Target Completed Target completed (5/50, GCVS GK Per) 19:28:40     Target Started (6/50) Target started (6/50, 398P/Boattini) 19:31:50       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S) 19:33:38       Focusing Completed Foc1 AutoFocus Completed (Profile No 8) 19:41:26     Target Completed Target completed (6/50, 398P/Boattini) 19:42:56     Target Started (7/50) Target started (7/50, AT2021apb) 19:45:42       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S) 19:47:32       Focusing Completed Foc1 AutoFocus Completed (Profile No 9) 19:53:09     Target Completed Target completed (7/50, AT2021apb) 19:55:17     Target Started (8/50) Target started (8/50, GCVS RX And) 19:57:58       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S) 19:59:47       Focusing Completed Foc1 AutoFocus Completed (Profile No 10) 20:02:21     Target Completed Target completed (8/50, GCVS RX And) 20:03:37     Target Started (9/50) Target started (9/50, GCVS HH And) 20:06:25       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S) 20:08:26       Focusing Completed Foc1 AutoFocus Completed (Profile No 11) 20:10:19     Target Completed Target completed (9/50, GCVS HH And) 20:11:52     Target Started (10/50) Target started (10/50, C/2019 L3 (ATLAS)) 20:14:10       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S) 20:16:22       Focusing Completed Foc1 AutoFocus Completed (Profile No 12) 20:22:24     Target Completed Target completed (10/50, C/2019 L3 (ATLAS)) 20:24:33     Target Started (11/50) Target started (11/50, 156P/Russell-LINEAR) 20:27:02       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S) 20:29:18       Focusing Completed Foc1 AutoFocus Completed (Profile No 13) 20:37:29     Target Completed Target completed (11/50, 156P/Russell-LINEAR) 20:38:48     Target Started (12/50) Target started (12/50, GCVS DY Per) 20:41:24       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S) 20:43:23       Focusing Completed Foc1 AutoFocus Completed (Profile No 14) 20:47:49     Target Completed Target completed (12/50, GCVS DY Per) 20:48:56     Target Started (13/50) Target started (13/50, WDS GRB 34) 20:53:02       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S) 20:54:49       Focusing Completed Foc1 AutoFocus Completed (Profile No 15) 20:57:02     Target Completed Target completed (13/50, WDS GRB 34) 20:57:11     Target Started (14/50) Target started (14/50, UGC 1436 w/SN2021nv) 21:00:30       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S) 21:02:29       Focusing Completed Foc1 AutoFocus Completed (Profile No 16) 21:18:33     Target Completed Target completed (14/50, UGC 1436 w/SN2021nv) 21:19:34     Target Started (15/50) Target started (15/50, UGC 2528 w/SN2020adnx) 21:22:13       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S) 21:24:15       Focusing Completed Foc1 AutoFocus Completed (Profile No 17) 21:40:04     Target Completed Target completed (15/50, UGC 2528 w/SN2020adnx) 21:40:06     Target Started (16/51) Target started (16/51, GCVS BL Lac, ToO) 21:42:52       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S) 21:44:41       Focusing Completed Foc1 AutoFocus Completed (Profile No 18) 21:48:12     Target Completed Target completed (16/51, GCVS BL Lac, ToO) 21:48:14     Target Started (17/51) Target started (17/51, GCVS FU Ori) 21:55:18     Target Completed Target partially completed (17/51, GCVS FU Ori) 21:55:20     Target Started (18/51) Target started (18/51, GCVS NV Ori) 21:58:33       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S) 22:00:15       Focusing Completed Foc1 AutoFocus Completed (Profile No 19) 22:03:44     Target Completed Target completed (18/51, GCVS NV Ori) 22:03:46     Target Started (19/51) Target started (19/51, GCVS CN Ori) 22:06:59       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S) 22:08:51       Focusing Completed Foc1 AutoFocus Completed (Profile No 20) 22:12:14     Target Completed Target completed (19/51, GCVS CN Ori) 22:12:16     Target Started (20/51) Target started (20/51, AT2021acn) 22:14:46       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S) 22:16:46       Focusing Completed Foc1 AutoFocus Completed (Profile No 21) 22:29:15     Target Aborted (20/51) Target aborted (20/51, AT2021acn) due to Priority 1 ToO Target 22:29:18     Target Started (21/52) Target started (21/52, NGC 3718, ToO) 22:32:36       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S) 22:34:47       Focusing Completed Foc1 AutoFocus Completed (Profile No 22) 22:50:25     Target Completed Target completed (21/52, NGC 3718, ToO) 22:50:27     Target Missed (22/52) Target's time slot was missed (22/52, C/2020 M3 (Atlas)) 22:50:29     Target Started (23/52) Target started (23/52, NGC 684 w/SN2021ass) 23:08:48     Target Completed Target partially completed (23/52, NGC 684 w/SN2021ass) 23:08:50     Target Started (24/52) Target started (24/52, GCVS U And) 23:11:43       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S) 23:13:32       Focusing Completed Foc1 AutoFocus Completed (Profile No 23) 23:23:09     Target Completed Target completed (24/52, GCVS U And) 23:23:11     Target Started (25/52) Target started (25/52, GSC 1224:29) 23:25:56       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S) 23:28:22       Focusing Completed Foc1 AutoFocus Completed (Profile No 24) 23:33:40     Target Completed Target completed (25/52, GSC 1224:29) 23:33:42     Target Started (26/52) Target started (26/52, GCVS RR Tau) 23:36:55       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S) 23:38:50       Focusing Completed Foc1 AutoFocus Completed (Profile No 25) 23:44:48     Target Completed Target completed (26/52, GCVS RR Tau) 23:44:50     Target Started (27/52) Target started (27/52, Scholz's Star) 23:47:59       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S) 23:50:12       Focusing Completed Foc1 AutoFocus Completed (Profile No 26) 00:04:56     Target Completed Target completed (27/52, Scholz's Star) 00:04:58     Target Started (28/52) Target started (28/52, GCVS RZ LMi) 00:07:13       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S) 00:09:03       Focusing Completed Foc1 AutoFocus Completed (Profile No 27) 00:13:52     Target Completed Target completed (28/52, GCVS RZ LMi) 00:13:54     Target Started (29/52) Target started (29/52, AT2021rl) 00:16:55       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S) 00:18:43       Focusing Completed Foc1 AutoFocus Completed (Profile No 28) 00:34:31     Target Completed Target completed (29/52, AT2021rl) 00:35:39     Target Started (30/52) Target started (30/52, Nova Per 2020 w/AT2020abap) 00:38:45       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S) 00:40:41       Focusing Completed Foc1 AutoFocus Completed (Profile No 29) 00:48:50     Target Completed Target completed (30/52, Nova Per 2020 w/AT2020abap) 00:50:31     Target Started (31/52) Target started (31/52, GCVS U Mon) 00:54:51       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S) 00:56:28       Focusing Completed Foc1 AutoFocus Completed (Profile No 30) 01:02:01     Target Completed Target completed (31/52, GCVS U Mon) 01:02:03     Target Started (32/52) Target started (32/52, KUG 0830+278 w/SN2020adow) 01:04:59       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S) 01:07:06       Focusing Completed Foc1 AutoFocus Completed (Profile No 31) 01:22:47     Target Completed Target completed (32/52, KUG 0830+278 w/SN2020adow) 01:23:36     Target Started (33/52) Target started (33/52, LAMOST-HVS1) 01:26:50       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S) 01:28:56       Focusing Completed Foc1 AutoFocus Completed (Profile No 32) 01:32:03     Target Completed Target completed (33/52, LAMOST-HVS1) 01:33:22     Target Started (34/52) Target started (34/52, UGC 5760 w/SN2020zoq) 01:36:06       Focusing Skipped Foc1 focusing skipped - star is too dim (TCF-S) 01:53:51     Target Completed Target completed (34/52, UGC 5760 w/SN2020zoq) 01:55:44     Target Started (35/52) Target started (35/52, GCVS CN Leo) 01:58:39       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S) 02:01:05       Focusing Completed Foc1 AutoFocus Completed (Profile No 33) 02:09:30     Target Completed Target completed (35/52, GCVS CN Leo) 02:09:32     Target Started (36/52) Target started (36/52, NGC 4414 w/SN2021J) 02:11:40       Focusing Skipped Foc1 focusing skipped - star is too dim (TCF-S) 02:29:19     Target Completed Target completed (36/52, NGC 4414 w/SN2021J) 02:31:18     Target Started (37/52) Target started (37/52, GCVS SY Cnc) 02:33:59       Focusing Skipped Foc1 focusing skipped - star is too dim (TCF-S) 02:38:38     Target Completed Target completed (37/52, GCVS SY Cnc) 02:40:57     Target Started (38/52) Target started (38/52, GCVS DX Cnc) 02:44:04       Focusing Skipped Foc1 focusing skipped - star is too dim (TCF-S) 02:49:37     Target Completed Target completed (38/52, GCVS DX Cnc) 02:51:40     Target Started (39/52) Target started (39/52, NGC 2782 w/SN2020scc) 02:53:58       Focusing Skipped Foc1 focusing skipped - star is too dim (TCF-S) 03:11:08     Target Completed Target completed (39/52, NGC 2782 w/SN2020scc) 03:14:01     Target Started (40/52) Target started (40/52, GCVS AM CVn) 03:16:03       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S) 03:17:50       Focusing Completed Foc1 AutoFocus Completed (Profile No 34) 03:20:37     Target Completed Target completed (40/52, GCVS AM CVn) 03:23:34     Target Started (41/52) Target started (41/52, GCVS ER UMa) 03:27:23       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S) 03:29:47       Focusing Completed Foc1 AutoFocus Completed (Profile No 35) 03:33:18     Target Completed Target completed (41/52, GCVS ER UMa) 03:33:52     Target Started (42/52) Target started (42/52, UGC 6930 w/SN2020rcq) 03:36:51       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S) 03:39:06       Focusing Completed Foc1 AutoFocus Completed (Profile No 36) 03:50:02     Target Completed Target completed (42/52, UGC 6930 w/SN2020rcq) 03:51:14     Target Started (43/52) Target started (43/52, KUG 1206+328 w/SN2020aeps) 03:53:58       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S) 03:55:48       Focusing Completed Foc1 AutoFocus Completed (Profile No 37) 04:06:50     Target Completed Target completed (43/52, KUG 1206+328 w/SN2020aeps) 04:08:36     Target Started (44/52) Target started (44/52, NGC 4151 w/AT2021baf) 04:10:50       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S) 04:12:39       Focusing Completed Foc1 AutoFocus Completed (Profile No 38) 04:28:14     Target Completed Target completed (44/52, NGC 4151 w/AT2021baf) 04:29:54   SoftSuspend Called Soft Suspend is called due to Deteriorating Conditions (too few stars) 04:29:57   Queue Paused Queue pausing for Session Suspension 04:29:59 Session Suspended Session suspended 04:30:49   Dome Closed Dome closed (closing time 50s) 04:49:50     Target Cancelled Target cancelled (45/52, MCG +6-30-84 w/SN2021K) due to cloud 05:06:32 Session Resuming Session resuming 05:08:13 Session Suspended Session suspended 05:08:15   Dome Closed Dome already closed (closed at 04:30, closing time 50s) 05:10:18 Session Resuming Session resuming 05:11:03   Dome Opened Dome opened (opening time 45s) 05:11:05 Session Running Session running 05:11:07     Target Started (46/52) Target started (46/52, UGC 10310) 05:11:09   Queue Resumed Observing Queue resumed 05:25:46     Target Completed Target partially completed (46/52, UGC 10310) 05:25:48     Target Started (47/52) Target started (47/52, GCVS AM Her) 05:36:51     Target Completed Target completed (47/52, GCVS AM Her) 05:36:53     Target Started (48/52) Target started (48/52, AT2021azh) 05:40:15       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S) 05:42:26       Focusing Completed Foc1 AutoFocus Completed (Profile No 39) 05:48:29     Target Completed Target completed (48/52, AT2021azh) 05:48:31     Target Started (49/52) Target started (49/52, NGC 4244) 05:52:18       Focusing Skipped Foc1 focusing skipped - star is too dim (TCF-S) 06:09:49     Target Completed Target completed (49/52, NGC 4244) 06:09:52     Target Started (50/52) Target started (50/52, NGC 4454 w/SN2020abgq) 06:13:17       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S) 06:16:04       Focusing Completed Foc1 AutoFocus Completed (Profile No 40) 06:31:42     Target Completed Target completed (50/52, NGC 4454 w/SN2020abgq) 06:31:44     Target Started (51/52) Target started (51/52, GCVS R CrB) 06:34:13       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S) 06:35:54       Focusing Completed Foc1 AutoFocus Completed (Profile No 41) 06:38:48     Target Completed Target completed (51/52, GCVS R CrB) 06:38:50     Target Started (52/52) Target started (52/52, GCVS SS Her) 06:42:00       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S) 06:44:02       Focusing Completed Foc1 AutoFocus Completed (Profile No 42) 06:47:12     Target Completed Target completed (52/52, GCVS SS Her) 06:47:16   Queue Completed Job Queue completed 06:47:17 Session Closing Session closing 06:48:12   Dome Closed Dome closed (closing time 50s) 06:48:51   Dome Parked Dome parked (parking time 31s), Az: 90.0 deg 06:49:25   Telescope Parked Telescope parked (parking time 30s) 06:49:55   Telescope Switched Off Telescope Power has been switched off via UPB Switch. 06:50:44   Services Stopped Night Services stopped 06:50:46 Session Housekeeping Housekeeping Started (Cleanup FITS, Create Fits Summary, Transfer Files) 06:51:17 Session Finished Session Finished

Session Alerts

Time     Alert Detail 18:59:38 Dome Discrepency Difference between Telescope Az and Dome Az is > 8 deg (SN 2021xn) 03:25:20 Dome Discrepency Difference between Telescope Az and Dome Az is > 8 deg (GCVS ER UMa)

Back to Top

Operational Issues (2021-01-23 S854)

• Critical Issues (0)
• Major Issues (0)
• Minor Issues (7)
• Continuous Improvement (14)

[ Prev | Next ]

Critical Issues

• None

Major Issues

• None

Minor Issues

• JPG Images not produced for C/2020 M3 (Atlas) , 156P/Russell-LINEAR targets. Problem is that "/" is used in filename which prevents file operations to fail as "/" is interpretated as a folder.  Can be fixed by replacing "/" in filename with a space or underscore.
  Fixed 2021-01-24 (AstroMain 3.35.2)

• AstroGuard's Next Rain field background colour doesn't match that in AstroMain. Field needs to be updated to match recent changes in AstroMain so that background is Orange if probability of rain/snow is only 1-3%
  Fixed 2021-01-24 (AstroGuard 1.4.8)

• 'focus star' label overlapping right edge of JPG picture in at least one case. Position offset to be adjusted. Also Guide star label is too low and should be raised.
  Fixed 2021-01-24 (AstroMain 3.35.2)

• Focus JPG pictures are not being created for Near Zenith Focus Field. Unclear why they aren't generated..  Jpg Pictures are created when 'Focus Near Zenith' is run on development computer.
  Resolved S855 (AstroMain 3.35.2)

• When running with AstroPlan in Debugging Mode, using Take Obj (Single Target) in AstroMain, causes exception in AstroPlan's Plan .DrawChart  routine.   Night.Sunset has Date value 0  and subtracting 15 gives impossible date. Workaround implemented which exits the routine if Night.NightDate is Nothing
  Fixed (AstroPlan 1.20.2)

• Duplicate rows sent to database when adding retrospective events for start of Autostart Monitoring (16:58) and start of Autostart (17:38). Log show exception errors (UNIQUE constraint failed) complaining that rows must be unique.  Problem seems to be resticted to just this session, it isn't a problem that's been seen before. Code was reviewed. Whilst the exception message can be explained if a second row tries to be inserted with the same Level/Time, the duplicated events can't be so easily explained.  Considered  to be fixed (review made at 2021-05-25)
  Fixed 2021-05-25 (AstroMain)

• Focus Temp Chart started at different time to other charts. Focus Temp chart started at 16:30 with data starting at ~ 16:56/17:00, whilst other charts started at 17:30.  Autostart commenced at 16:56. Best Focus Chart started at 17:30 but data retrospectively plotted back to 17:00.  Considered  to be fixed (review made at 2021-05-25)
  Fixed 2021-05-25 (AstroMain)

Continuous Improvement

• Need to use TheSky6 object for GCVS HH And, WDS GRB 34 in order to get target circle centered on star.  GCVS HH And set to use Explicit Coords based on star's measured coords at 2021-01-23.   WDS GRB 34 set to use TheSky6 Name  HIP 1475 which has proper motion data.
  Done 2021-01-24  (Targets Database/AstroPlan)

• Remove brackets from the report file line  "Analysing Stars ...   (Stars 12/12) "
  Done 2021-01-24 (AstroMain 3.35.2)

• Query: How to draw a rotated ellipse in ImageMagicK (to illustrate a flat galaxy on JPG pictures
   -draw "translate 50,30 rotate -30 fill white stroke black ellipse 0,0 30,15 0,360"  . Prototype code tested in ConvertFitsToJpg and proven to work.
  Answered 2021-01-24 (ImageMagicK/ AstroMain)

• Automate the acquisition of Major Axis Size and use 1/2 of this value for PositionalErrorRadius where radius hasn't been previously set.  Implemented by in way superseeded by manual method in AstroPlan and automated method which uses both major and minor axies to draw an ellipse on JPG pictures
  Done 2021-01-24 (AstroMain 3.35.2)

• Draw Circle/Ellipse around larger objects (Galaxies, Cluster etc) on JPG Pictures, where Positional Radius is not already set. Utilising new routine
  Done 2021-01-24 (AstroMain 3.35.2)

• GCVS CN Ori needs to use longer exposure times. 15s R and 20s V seem to short.  (Unless CN Ori is at an extreme (atypical) low point)
  Exposure times increased to 45s R and 60s V.
  Done 2021-01-24 (Targets Database)

• Query: what happens to images <5s (at what point are ConvertFitsToJpg exection stopped.  Is process efficient ?
  JPG Pictures will be created for each SaveType = 2 image  but only updated to website if IV.Exp >= 10. Since there is a throttling to ensure that there is at least 5s between succesive calls to ImageMagicK batch job, the job queue is held back when executing images with <5s exposure.   To prevent unnecessary delay the SaveMainImageToJpg() and SaveMosaicImageToJpg() routines only make calls to ConvertFitsToJpg when IV.Exp >= 5
  Done 2021-01-24 (AstroMain 3.35.2)

• Query: Dome didn't move for Target UGC 2528.  Investigating shows that a dome slew was most-likely unnecessary for the the amount of telescope required.  Scope slewed from Az 182.7 / Alt 64.9  to  Az 182.5 / Alt  71.8
  Done 2021-01-24 (Session)

• Create Web Note with weather data associated with Storm Christoph and other storms. Storm Christoph (2021-01-21) documented here
  Done 2021-01-24  (Website)

• Consider taking longer Guide Reference image. Say 10s instead of 5s in order to get a better picture. Could be a session setting. or related to Smart Locate Times.   Data entry field txtGuideRefExpTime field added to the  More/Cam2 tab (with default value of 5s), but can be set to 10s or other value by the user.  StartPHD2Guiding() routine modified to access and use the value from this data field for the Guide Reference exposure time.
  Done 2021-01-24 (AstroMain 3.35.2)

• Center Session Events table and Session Alerts table on the Notes Web Page. Table is currently positioned on extreme left side of web page. Consideration given to using <Center> & </Center> tags before & after  the <Table> </Table>tags  but can be better achieved by adding
  style="  margin-left: auto; margin-right: auto;"> to <Table> tag. Change made in AstroPlan SessionEvents.SaveHtmReport routine to effect this change from this point onwards. Special handling required to ensure that the style is only used for user-initiated tables (Auto generated tables for Live Session don't require this centering as they an acceptable  left margin is applied by the parent div). Retrospective changes will need to be made by editing WebPage html.
  Done 2021-01-25 (AstroPlan 1.20.2)

• Send TargetDisplayNameLite to Scope Name/Next Targets (TelePosition) so that w/SN, w/AT etc can be seen on annotated AllSky images.   Code modified in AstroMain 3.35.2 in an attempt to effect this change. Should work ok when running Job Queue. Manual operation (that depend on szTargetName, will show standard name (without the /SN, w/AT extension) .  Change should carry through to name displayed in ObsViewer. There may be some unwanted sideeffects or occasions where standard names is used in unexpected places.
  Done 2021-01-24 (AstroMain 3.35.2)

• Use Guide ROI to avoid selecting star need edges of image. Stop guide box appear in Title and Description areas at top/base of image.
  Done 2021-02-04 (AstroMain 3.36)

• Add button/routine facility to open up chosen target in Aladin.   Button added to Analysis/ImageSets/Reduced that copies current Object Name to clipboard and opens the Aladin Application (user is required to to paste object name into Aladin from clipboard once application is open)
  Done 2021-02-04 (AstroMain 3.36)

• Count stars in Guide Reference image to indicate any issue (cloud/occluded view).  Aim is to prevent guiding issue where view of DY Per through guidescope was occluded by roof in last session (S853).   Underlying issue that was driving this ticket item was resolved in AstroPlan 1.29.15 (2022-04-24) by not allowing targets to be entered into the observing plan at times were the target altitude is > 84°.
  Closed 2022-04-24 (AstroPlan 1.29.15)
