David's Astronomy Pages Notes - Session 994 (2022-03-24)

Notes (S993)

Notes Main

Home Page

Notes (S995)

	Session Aims & Highlights
	- Observing Result  - Night Summary Plot  - Session Event Log
	Operational Issues
	- Critical Issues (0),  Major Issues (0),  Minor Issues (1),  Small Defects (0),  Continuous Improvement (1)
	Images from 2022-03-24 >>         [ Local Files >> ]

Session Aims & Highlights (2022-03-24)

Main aims

1. Targets.  Acquire images of a selection of variable stars, nearby stars, comets & deep sky targets as allowed by time & conditions.
2. ARP Objects.  Acquire a number of ARP objects in Leo

Equipment & Software

• 12" LX200 and ST-10XME
• 80mm APO and ZWO ASI 178MC
• CCDApp2, TheSky6, CCDSoft5, DeviceHub 6.5.1.9,  MeadeGeneric 1.3.3.373, UPB 1.5, ASCOM 6.5 SP1
• Pegasus UPB & Motor Focus, TCF-S
• SharpCap 3.2, PHD2  2.6.10

• AstroMain 3.50.8,  AstroPlan 1.29.12,   AstroShCap 1.3.12, AstroGuard 1.7
  AstroVOE 1.9.2  AstroSN 1.7.3,  AstroProtect 1.6,  AstroMove 1.8.6
  (AstroWeather 1.16.5, AstroAllSky 3.15.3,  AstroObsCam 1.8, AstroLaunch 1.8.3)

Highlights

•  Targets.  22 targets succcessfully acquired during session
•  ARP Objects.  Images successfully acquired from 4 ARP Objects :
    ARP 191 (UGC 6175), ARP 197 (IC 701),
    ARP 198 (UGC 6073), ARP 255 (UGC 5304)

Notes:

Summary Plots & Logs

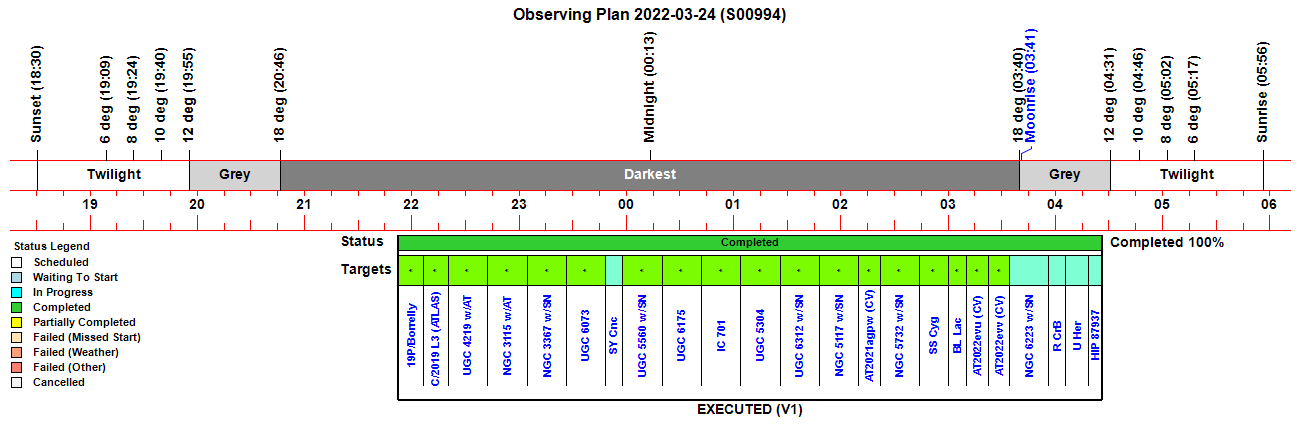

Observing Plan

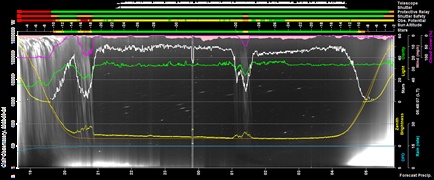

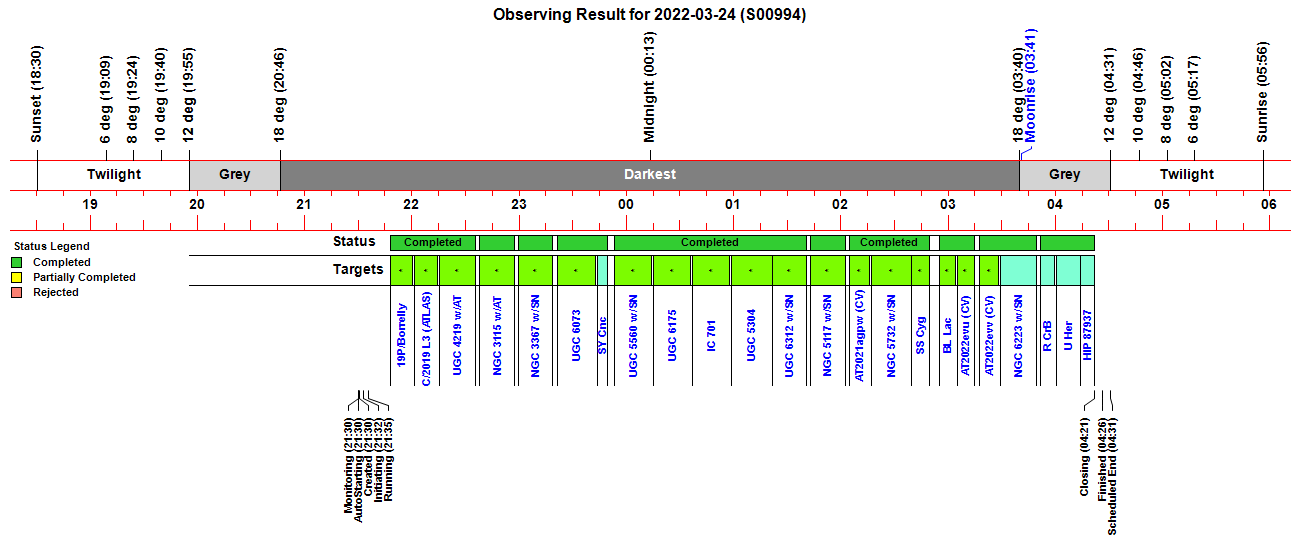

Observing Result

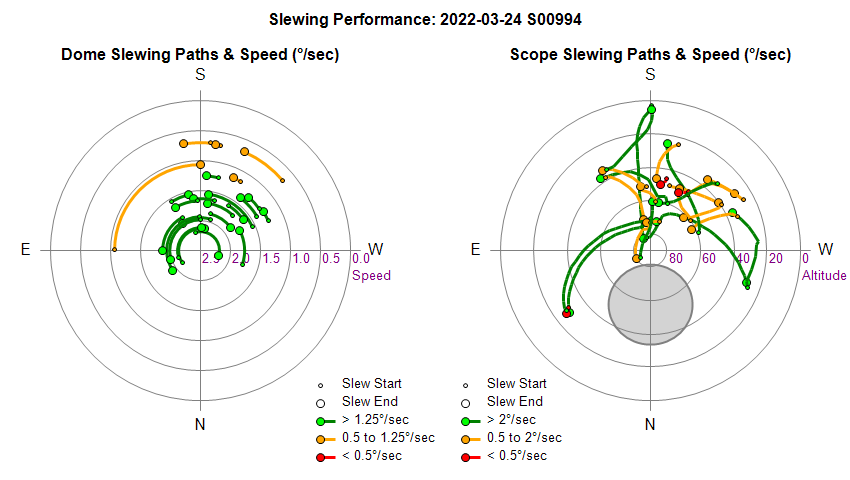

Dome & Scope Slewing Performance

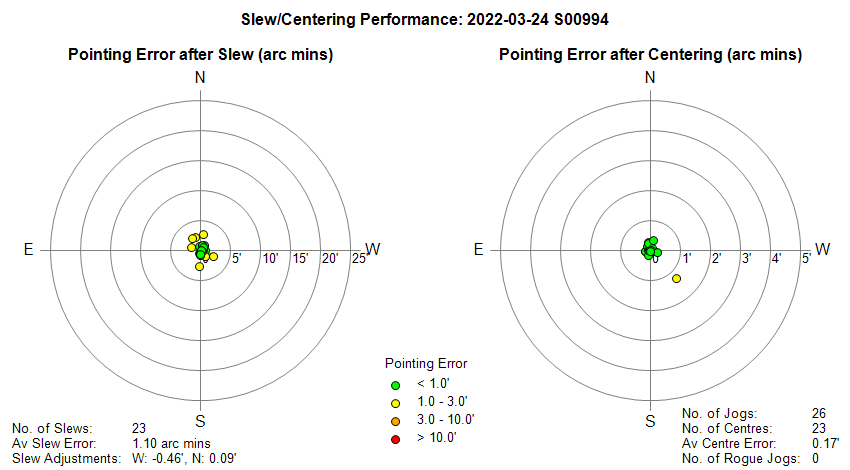

Slew/Centering Performance

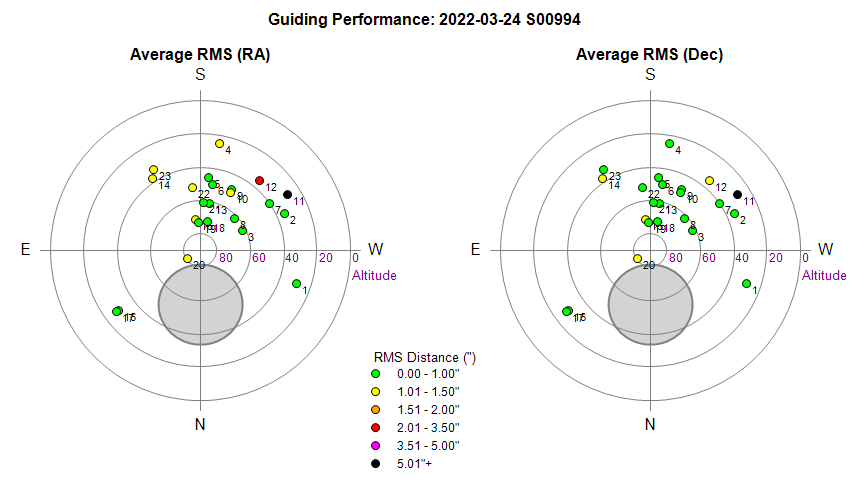

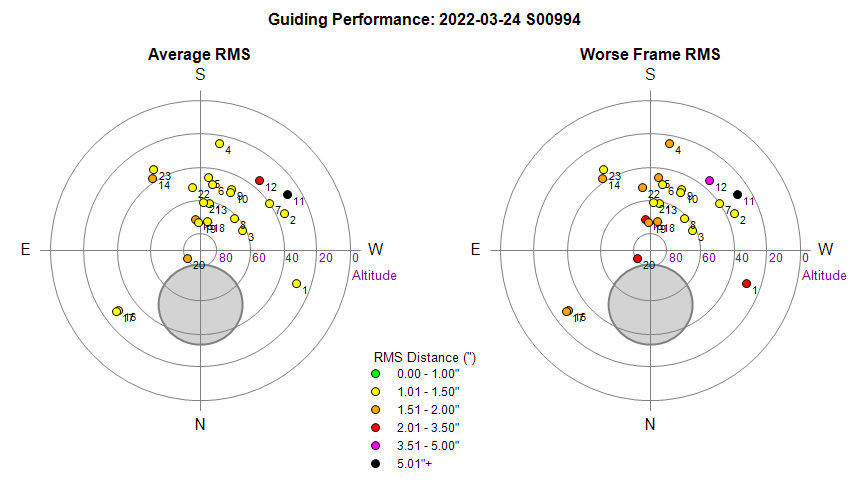

Guiding Performance Note:

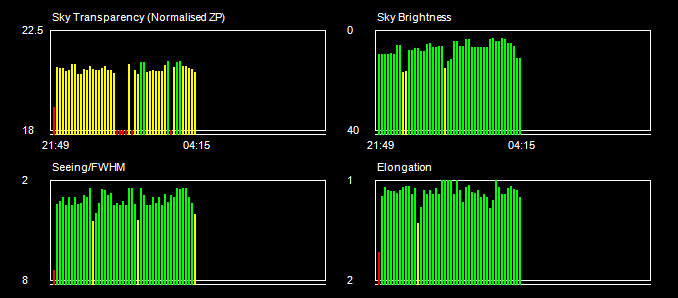

Sky Conditions (Locate Frames)

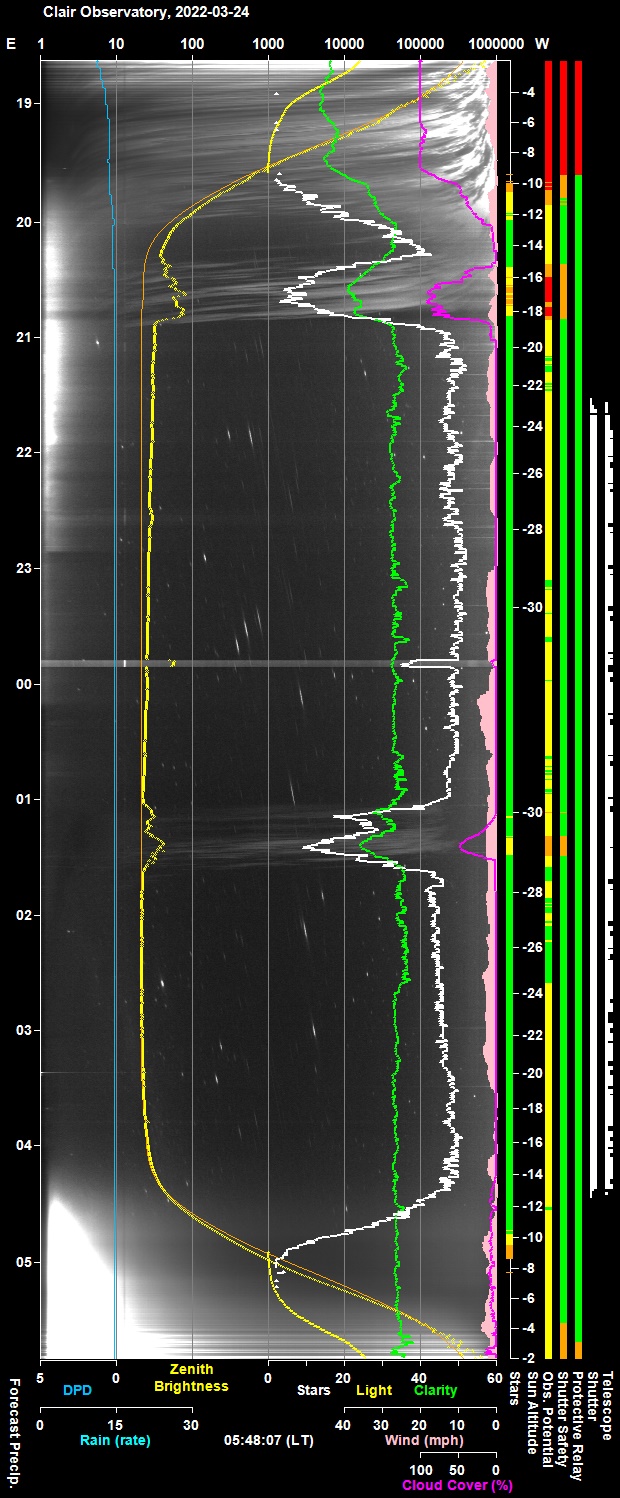

Night Sky Summary Plot Top axis: Sky Brightness at Zenith (in ADU/s) Lefthand axis: Local Time (hh LT). Righthand axis: Sun Altitude (degs)

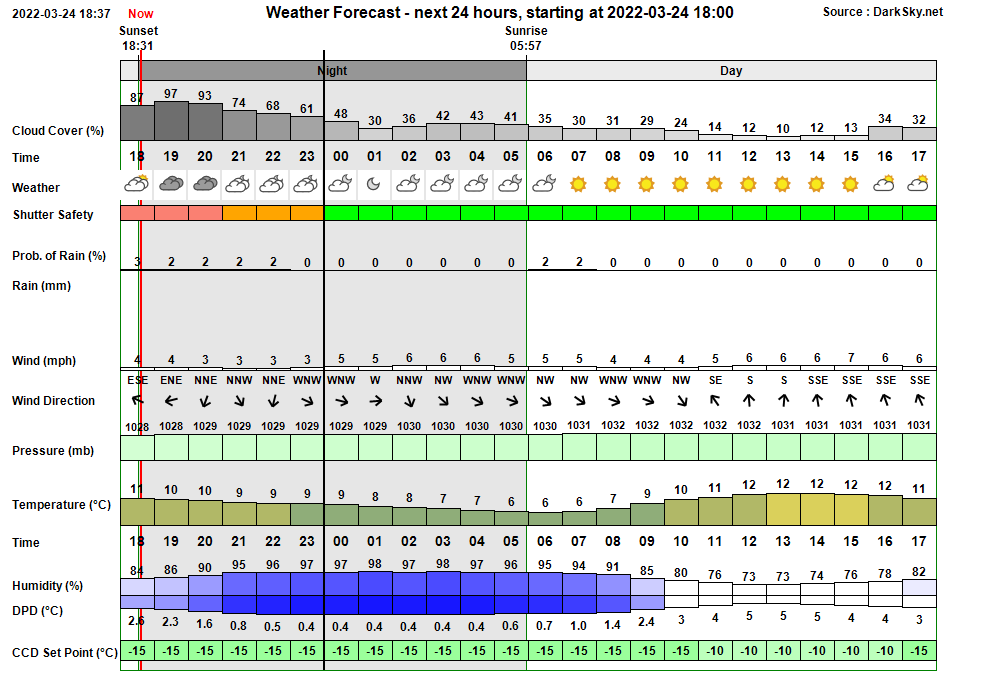

Actual Weather vs Pre-Session Weather Forecast

Session Event Log

Time     Event Detail 21:30:22 Session Monitoring AutoStart monitoring for Live Session opportunity between 21:30 & 03:51 21:30:26 Session AutoStarting Session autostarting (21:30) 21:30:54 Session Created Live Session Created (2022-03-24 S00994, ImageSaveNum: 994001) 21:30:56   Scope Switched On Telescope Power has been switched on via UPB Powerbox. 21:32:37   Services Started Observatory Services started 21:32:44 Observatory (Auto) Observatory placed in Fully-Automated Mode 21:32:46 Session Pending Session pending (2022-03-24) 21:32:48 Session Initiating Session initiating (2022-03-24) 21:32:50   Plan Requested Observing Plan requested from AstroPlan (1.29.13) 21:33:21   Plan Loaded Observing Plan loaded to queue (Plan ID: 752) 21:33:41   Camera1 Connected SBIG Camera Connected (set point -20°C) 21:33:48   Telescope Connected Telescope Connected (TheSky6) 21:34:12 Session Equilibration Session ready for dome & camera equilibration 21:34:57   Dome Opened Dome opened (opening time 45s) 21:35:52 Session Running Session running 21:35:54   Queue Started Observing Queue started (23 targets selected) 21:35:57     Target Started (NrZen) Target started (Focus Field 10, HIP 49253) 21:38:23       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S) 21:41:35       Focusing Completed Foc1 AutoFocus Completed (Profile No 1, wide) 21:43:31       Focusing Completed Foc1 AutoFocus Completed (Profile No 1) 21:43:33       Focusing Started-Foc2 Foc2 Focusing Started (Secondary Scope, using ShCap) 21:45:43       Focusing Completed Foc2 AutoFocus Completed (Profile No 2, wide) 21:47:29       Focusing Completed Foc2 AutoFocus Completed (Profile No 2) 21:47:47     Target Completed Target completed (Focus Field 10, HIP 49253) 21:47:51     Target Started (1/23) Target started (1/23, 19P/Borrelly) 21:52:12       Focusing Skipped Foc1 focusing skipped - star is too dim (TCF-S) 22:01:05     Target Completed Target completed (1/23, 19P/Borrelly) 22:01:47     Target Started (2/23) Target started (2/23, C/2019 L3 (ATLAS)) 22:04:45       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S) 22:07:07       Focusing Completed Foc1 AutoFocus Completed (Profile No 3) 22:15:00     Target Completed Target completed (2/23, C/2019 L3 (ATLAS)) 22:15:40     Target Started (3/23) Target started (3/23, UGC 4219 w/AT2022eya) 22:18:24       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S) 22:19:55       Focusing Failed Foc1 focusing failed (failed QC check - Ambiguous) 22:35:53     Target Completed Target completed (3/23, UGC 4219 w/AT2022eya) 22:37:40     Target Started (4/23) Target started (4/23, NGC 3115 w/AT2022eyx) 22:41:01       Focusing Skipped Foc1 focusing skipped - star is too dim (TCF-S) 22:57:41     Target Completed Target completed (4/23, NGC 3115 w/AT2022eyx) 22:59:40     Target Started (5/23) Target started (5/23, NGC 3367 w/SN2022ewj) 23:02:36       Focusing Skipped Foc1 focusing skipped - star is too dim (TCF-S) 23:18:57     Target Completed Target completed (5/23, NGC 3367 w/SN2022ewj) 23:21:40     Target Started (6/23) Target started (6/23, UGC 6073) 23:24:17       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S) 23:26:46       Focusing Completed Foc1 AutoFocus Completed (Profile No 5) 23:42:49     Target Completed Target completed (6/23, UGC 6073) 23:43:40     Target Started (7/23) Target started (7/23, GCVS SY Cnc) 23:46:31       Focusing Skipped Foc1 focusing skipped - star is too dim (TCF-S) 23:49:43     Target Completed Target completed (7/23, GCVS SY Cnc) 23:53:07     Target Started (8/23) Target started (8/23, UGC 5560 w/SN2022ewv) 23:56:02       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S) 23:58:15       Focusing Completed Foc1 AutoFocus Completed (Profile No 6) 00:14:16     Target Completed Target completed (8/23, UGC 5560 w/SN2022ewv) 00:15:07     Target Started (9/23) Target started (9/23, UGC 6175) 00:17:56       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S) 00:20:36       Focusing Completed Foc1 AutoFocus Completed (Profile No 7) 00:36:23     Target Completed Target completed (9/23, UGC 6175) 00:37:07     Target Started (10/23) Target started (10/23, IC 701) 00:39:42       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S) 00:41:54       Focusing Completed Foc1 AutoFocus Completed (Profile No 8) 00:58:03     Target Completed Target completed (10/23, IC 701) 00:59:07     Target Started (11/23) Target started (11/23, UGC 5304) 01:03:09       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S) 01:05:38       Focusing Completed Foc1 AutoFocus Completed (Profile No 9) 01:21:44     Target Completed Target completed (11/23, UGC 5304) 01:21:48     Target Started (12/23) Target started (12/23, UGC 6312 w/SN2022eyj) 01:21:50   SoftSuspend Called Soft Suspend is called due to Deteriorating Conditions (too few stars) 01:24:29       Focusing Skipped Foc1 focusing skipped - star is too dim (TCF-S) 01:28:41   SoftSuspend Cancelled Soft Suspend is cancelled due to improved conditions 01:40:33     Target Completed Target completed (12/23, UGC 6312 w/SN2022eyj) 01:43:07     Target Started (13/23) Target started (13/23, NGC 5117 w/SN2022abq) 01:46:13       Focusing Skipped Foc1 focusing skipped - star is too dim (TCF-S) 02:02:26     Target Completed Target completed (13/23, NGC 5117 w/SN2022abq) 02:05:07     Target Started (14/23) Target started (14/23, AT2021agpw (CV)) 02:08:02       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S) 02:10:28       Focusing Completed Foc1 AutoFocus Completed (Profile No 10) 02:16:46     Target Completed Target completed (14/23, AT2021agpw (CV)) 02:17:07     Target Started (15/23) Target started (15/23, NGC 5732 w/SN2021agpf) 02:19:54       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S) 02:22:06       Focusing Completed Foc1 AutoFocus Completed (Profile No 11) 02:39:19     Target Completed Target completed (15/23, NGC 5732 w/SN2021agpf) 02:39:23     Target Started (16/23) Target started (16/23, GCVS SS Cyg) 02:43:05       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S) 02:45:17       Focusing Completed Foc1 AutoFocus Completed (Profile No 12) 02:49:43     Target Completed Target completed (16/23, GCVS SS Cyg) 02:55:22     Target Started (17/23) Target started (17/23, GCVS BL Lac) 02:58:32       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S) 03:00:43       Focusing Completed Foc1 AutoFocus Completed (Profile No 13) 03:04:33     Target Completed Target completed (17/23, GCVS BL Lac) 03:05:28     Target Started (18/23) Target started (18/23, AT2022evu (CV)) 03:09:06       Focusing Skipped Foc1 focusing skipped - star is too dim (TCF-S) 03:14:57     Target Completed Target completed (18/23, AT2022evu (CV)) 03:17:28     Target Started (19/23) Target started (19/23, AT2022evv (CV)) 03:20:20       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S) 03:22:23       Focusing Completed Foc1 AutoFocus Completed (Profile No 14) 03:28:10     Target Completed Target completed (19/23, AT2022evv (CV)) 03:29:28     Target Started (20/23) Target started (20/23, NGC 6223 w/SN2021bls) 03:33:04       Focusing Skipped Foc1 focusing skipped - star is too dim (TCF-S) 03:49:17     Target Completed Target completed (20/23, NGC 6223 w/SN2021bls) 03:51:28     Target Started (21/23) Target started (21/23, GCVS R CrB) 03:54:53       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S) 03:56:50       Focusing Completed Foc1 AutoFocus Completed (Profile No 15) 04:00:10     Target Completed Target completed (21/23, GCVS R CrB) 04:00:45     Target Started (22/23) Target started (22/23, GCVS U Her) 04:03:19       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S) 04:05:15       Focusing Completed Foc1 AutoFocus Completed (Profile No 16) 04:14:06     Target Completed Target completed (22/23, GCVS U Her) 04:14:10     Target Started (23/23) Target started (23/23, HIP 87937) 04:16:55       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S) 04:19:10       Focusing Completed Foc1 AutoFocus Completed (Profile No 17) 04:21:38     Target Completed Target completed (23/23, HIP 87937) 04:21:41   Queue Completed Job Queue completed 04:21:43 Session Closing Session closing 04:22:38   Dome Closed Dome closed (closing time 50s) 04:23:18   Dome Parked Dome parked (parking time 33s), Az: 90.0 deg 04:24:28   Telescope Parked Telescope parked (parking time 64s) 04:24:43   Telescope State Scope parked Turn scope off. (Handbox) 04:25:05   Telescope Switched Off Telescope Power has been switched off via UPB Switch. 04:26:00   Services Stopped Night Services stopped 04:26:02 Session Housekeeping Housekeeping Started (Cleanup FITS, Create Fits Summary, Transfer Files) 04:26:23 Session Finished Session Finished

Session Alerts

Time     Alert Detail 03:45:28 Dome Dome has been stationary for more than 15 mins 03:50:29 Dome Dome Movements have begun again (outage 20.0 mins)

Back to Top

Operational Issues (2022-03-24, S994)

• Critical Issues (0)
• Major Issues (0)
• Minor Issues (1)
• Small Defects (0)
• Continuous Improvement (1)

[ Prev | Next ]

Critical Issues

• None

Major Issues

• None

Minor Issues

• Several targets weren't centered as expected (revealed during post-session analysis). Several targets (all new ARP objects recently added to database, including UGC 6175 (ARP 191), IC 701 (ARP 197) & UGC 5304 (ARP 255) ) weren't positioned in the centre of images but lay some 1.5' off centre, even though centering errors were recorded as being only 0.03' to 0.08'.   Investigating showed that targets were stored on database with Jog N centering offsets of 1.5', when they should have had values of 0'. This occurred as targets were added to database based on copying a previous ARP target which had a Jog N value of 1.5' and this wasn't noticed and manually reset to 0' as part of editing the target record for the new ARP target.  This has now been fixed. Separately the issue was picked up in following S995 session and a Continuous Improvement ticket raised to give a warning/request of confirmation when copying a Target in AstroPlan, in siutuations where Jog Offsets or Proper Motion rates have non-zero values.
  Done 2022-03-30 (AstroPlan 1.29.14)

Small Defects

• None

• Add a 'Title2' button to Image Sets/Images form. This saves a button click in some situations. Calls same code as 'Title2' button on ImagesSets/Reduced Tab.
  Done 2022-03-29 (AstroMain 3.50.9)

[ Prev | Next ]
