Session Aims & Highlights (2022-03-23)

Main aims

1. Targets.  Acquire images of a selection of variable stars, nearby stars, comets & deep sky targets as allowed by time & conditions.

Equipment & Software

• 12" LX200 and ST-10XME
• 80mm APO and ZWO ASI 178MC
• CCDApp2, TheSky6, CCDSoft5, DeviceHub 6.5.1.9,  MeadeGeneric 1.3.3.373, UPB 1.5, ASCOM 6.5 SP1
• Pegasus UPB & Motor Focus, TCF-S
• SharpCap 3.2, PHD2  2.6.10

• AstroMain 3.50.8,  AstroPlan 1.29.12,   AstroShCap 1.3.12, AstroGuard 1.7
  AstroVOE 1.9.2  AstroSN 1.7.3,  AstroProtect 1.6,  AstroMove 1.8.6
  (AstroWeather 1.16.5, AstroAllSky 3.15.3,  AstroObsCam 1.8, AstroLaunch 1.8.3)

Highlights

•  Targets.  Targets succcessfully acquired but several spoilt due to low sky transparency
•  Poor sky.  Very poor sky transparency due to fog/haze, which affected all im

Notes:

  Summary Plots & Logs

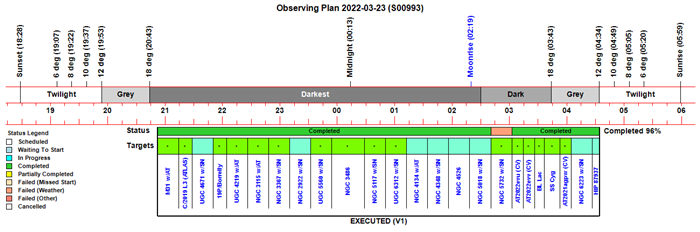

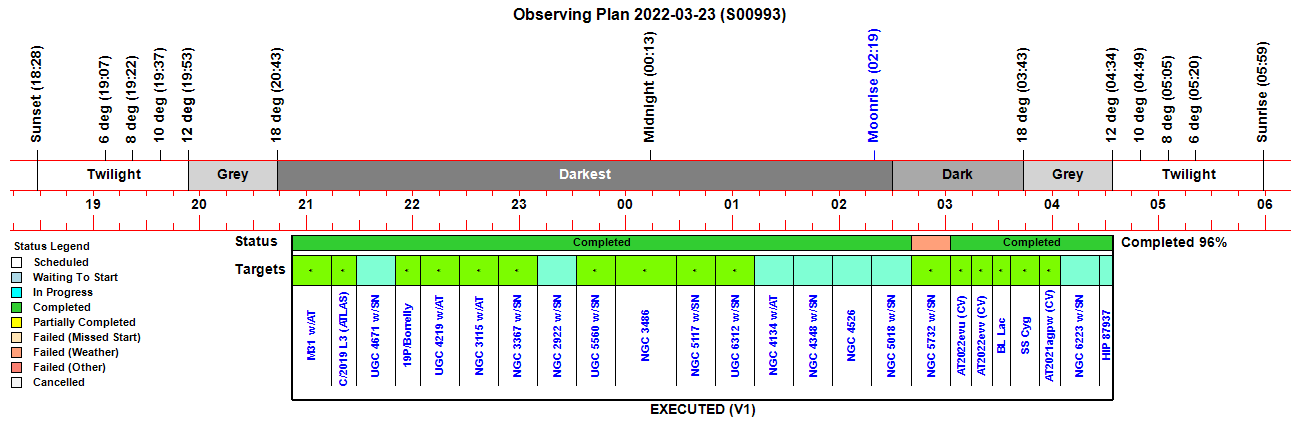

Observing Plan

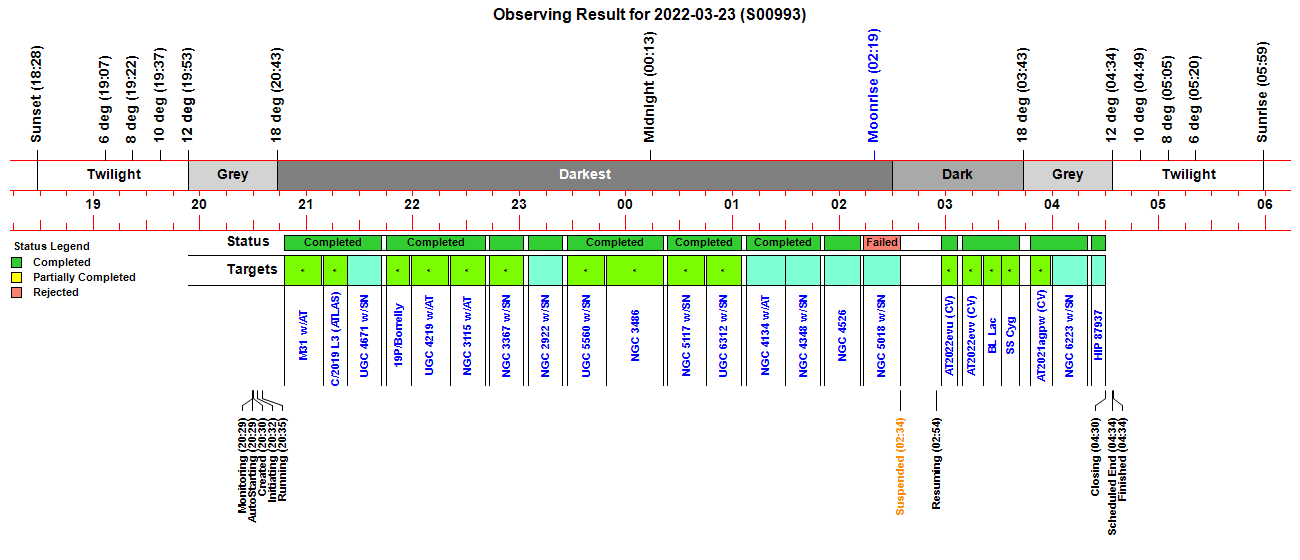

Observing Result

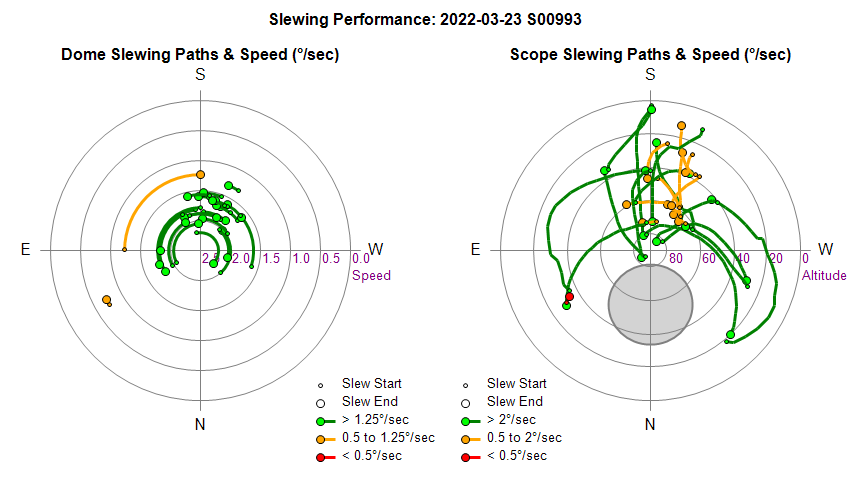

Dome & Scope Slewing Performance

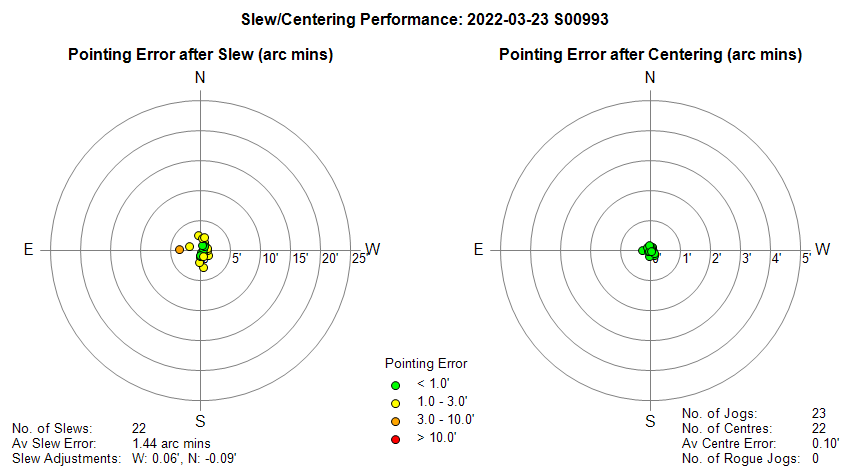

Slew/Centering Performance

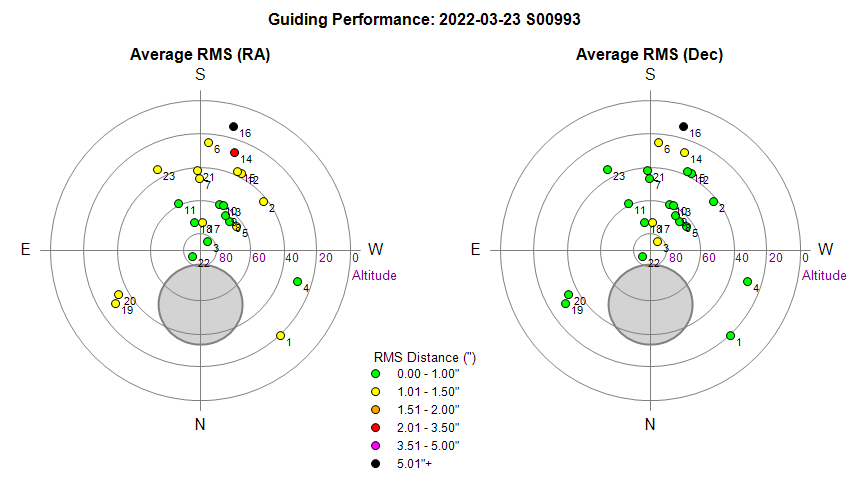

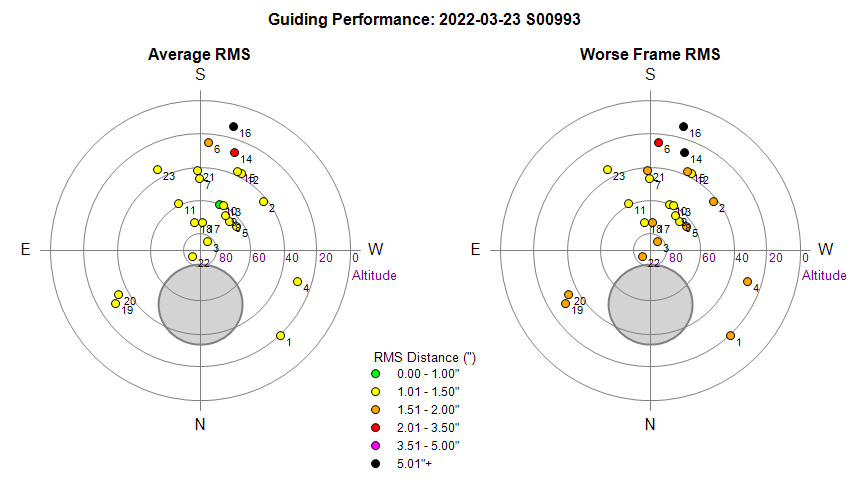

Guiding Performance Note:  Black Point (16) - Guiding failed due to cloud

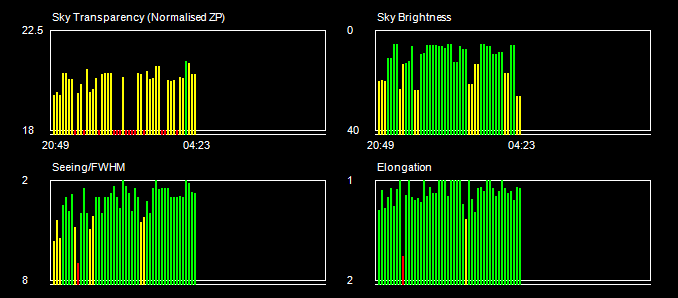

Sky Conditions (Locate Frames)

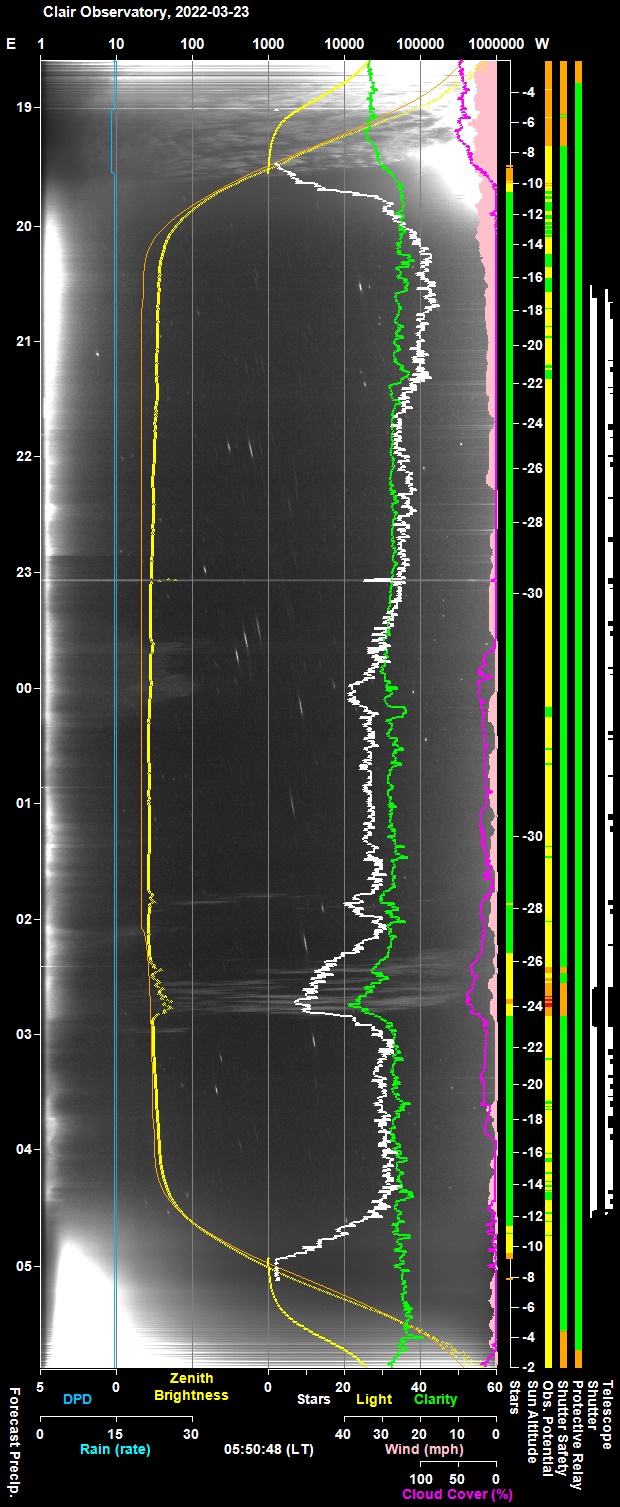

Night Sky Summary Plot Top axis: Sky Brightness at Zenith (in ADU/s) Lefthand axis: Local Time (hh LT). Righthand axis: Sun Altitude (degs)

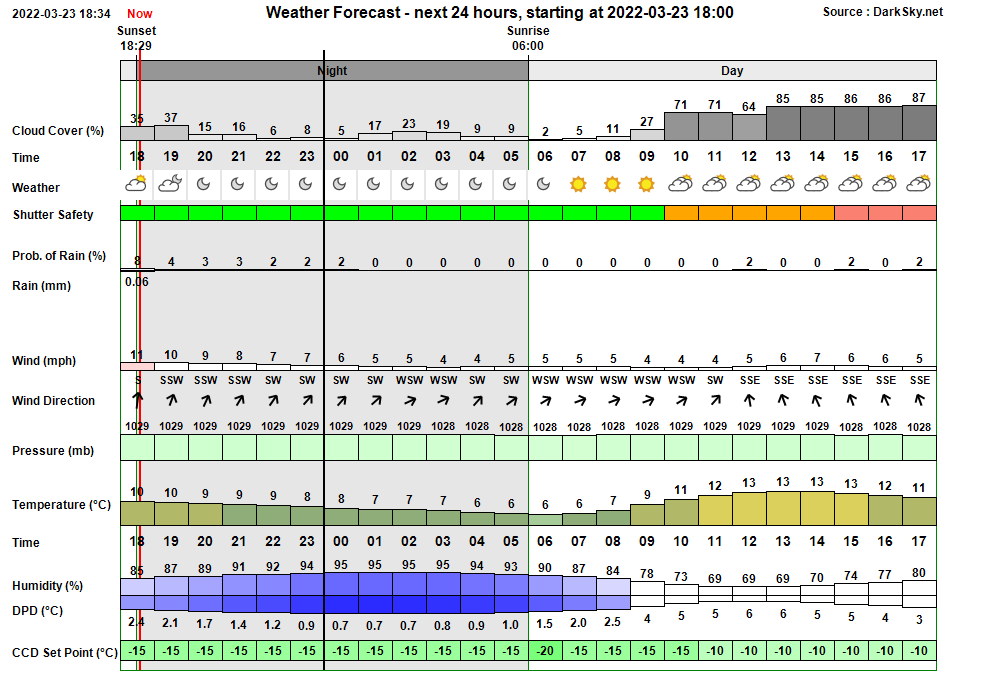

Actual Weather vs Pre-Session Weather Forecast

Session Event Log

Time     Event Detail 20:29:54 Session Monitoring AutoStart monitoring for Live Session opportunity between 20:29 & 03:54 20:29:55 Session AutoStarting Session autostarting (20:29) 20:30:22 Session Created Live Session Created (2022-03-23 S00993, ImageSaveNum: 993001) 20:30:24   Scope Switched On Telescope Power has been switched on via UPB Powerbox. 20:32:08   Services Started Observatory Services started 20:32:14 Observatory (Auto) Observatory placed in Fully-Automated Mode 20:32:19 Session Pending Session pending (2022-03-23) 20:32:21 Session Initiating Session initiating (2022-03-23) 20:32:23   Plan Requested Observing Plan requested from AstroPlan (1.29.13) 20:32:49   Plan Loaded Observing Plan loaded to queue (Plan ID: 751) 20:33:14   Camera1 Connected SBIG Camera Connected (set point -15°C) 20:33:21   Telescope Connected Telescope Connected (TheSky6) 20:33:45 Session Equilibration Session ready for dome & camera equilibration 20:34:30   Dome Opened Dome opened (opening time 45s) 20:35:25 Session Running Session running 20:35:27   Queue Started Observing Queue started (24 targets selected) 20:35:30     Target Started (NrZen) Target started (Focus Field 9, HIP 44139) 20:37:44       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S) 20:41:11       Focusing Completed Foc1 AutoFocus Completed (Profile No 1, wide) 20:43:22       Focusing Completed Foc1 AutoFocus Completed (Profile No 1) 20:43:24       Focusing Started-Foc2 Foc2 Focusing Started (Secondary Scope, using ShCap) 20:45:35       Focusing Completed Foc2 AutoFocus Completed (Profile No 2, wide) 20:47:21       Focusing Completed Foc2 AutoFocus Completed (Profile No 2) 20:47:39     Target Completed Target completed (Focus Field 9, HIP 44139) 20:47:43     Target Started (1/24) Target started (1/24, M31 w/ATNova M31 2022-03c?) 20:52:02       Focusing Skipped Foc1 focusing skipped - star is too dim (TCF-S) 21:09:09     Target Completed Target completed (1/24, M31 w/ATNova M31 2022-03c?) 21:09:28     Target Started (2/24) Target started (2/24, C/2019 L3 (ATLAS)) 21:12:37       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S) 21:14:48       Focusing Completed Foc1 AutoFocus Completed (Profile No 3) 21:22:53     Target Completed Target completed (2/24, C/2019 L3 (ATLAS)) 21:23:20     Target Started (3/24) Target started (3/24, UGC 4671 w/SN2021afsj) 21:26:19       Focusing Skipped Foc1 focusing skipped - star is lost (TCF-S) 21:42:27     Target Completed Target completed (3/24, UGC 4671 w/SN2021afsj) 21:45:20     Target Started (4/24) Target started (4/24, 19P/Borrelly) 21:49:39       Focusing Skipped Foc1 focusing skipped - star is lost (TCF-S) 21:58:38     Target Completed Target completed (4/24, 19P/Borrelly) 21:59:14     Target Started (5/24) Target started (5/24, UGC 4219 w/AT2022eya) 22:02:22       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S) 22:04:20       Focusing Completed Foc1 AutoFocus Completed (Profile No 4) 22:20:18     Target Completed Target completed (5/24, UGC 4219 w/AT2022eya) 22:21:13     Target Started (6/24) Target started (6/24, NGC 3115 w/AT2022eyx) 22:24:31       Focusing Skipped Foc1 focusing skipped - star is lost (TCF-S) 22:40:45     Target Completed Target completed (6/24, NGC 3115 w/AT2022eyx) 22:43:13     Target Started (7/24) Target started (7/24, NGC 3367 w/SN2022ewj) 22:46:16       Focusing Skipped Foc1 focusing skipped - star is too dim (TCF-S) 23:02:20     Target Completed Target completed (7/24, NGC 3367 w/SN2022ewj) 23:05:13     Target Started (8/24) Target started (8/24, NGC 2922 w/SN2022bdu) 23:07:59       Focusing Skipped Foc1 focusing skipped - star is too dim (TCF-S) 23:24:32     Target Completed Target completed (8/24, NGC 2922 w/SN2022bdu) 23:27:13     Target Started (9/24) Target started (9/24, UGC 5560 w/SN2022ewv) 23:29:57       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S) 23:32:22       Focusing Completed Foc1 AutoFocus Completed (Profile No 5) 23:48:20     Target Completed Target completed (9/24, UGC 5560 w/SN2022ewv) 23:49:13     Target Started (10/24) Target started (10/24, NGC 3486) 23:52:25       Focusing Skipped Foc1 focusing skipped - unable to find a star (TCF-S) 00:21:20     Target Completed Target completed (10/24, NGC 3486) 00:23:39     Target Started (11/24) Target started (11/24, NGC 5117 w/SN2022abq) 00:28:26       Focusing Skipped Foc1 focusing skipped - star is lost (TCF-S) 00:44:57     Target Completed Target completed (11/24, NGC 5117 w/SN2022abq) 00:45:39     Target Started (12/24) Target started (12/24, UGC 6312 w/SN2022eyj) 00:48:33       Focusing Skipped Foc1 focusing skipped - star is too dim (TCF-S) 01:04:57     Target Completed Target completed (12/24, UGC 6312 w/SN2022eyj) 01:07:40     Target Started (13/24) Target started (13/24, NGC 4134 w/AT2021adlx) 01:11:16       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S) 01:13:51       Focusing Completed Foc1 AutoFocus Completed (Profile No 6) 01:29:38     Target Completed Target completed (13/24, NGC 4134 w/AT2021adlx) 01:29:42     Target Started (14/24) Target started (14/24, NGC 4348 w/SN2022fw) 01:32:51       Focusing Skipped Foc1 focusing skipped - star is too dim (TCF-S) 01:49:32     Target Completed Target completed (14/24, NGC 4348 w/SN2022fw) 01:51:39     Target Started (15/24) Target started (15/24, NGC 4526) 01:54:33       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S) 01:56:36       Focusing Completed Foc1 AutoFocus Completed (Profile No 7) 02:12:22     Target Completed Target completed (15/24, NGC 4526) 02:13:39     Target Started (16/24) Target started (16/24, NGC 5018 w/SN2021fxy) 02:18:55       Focusing Skipped Foc1 focusing skipped - unable to find a star (TCF-S) 02:19:38   SoftSuspend Called Soft Suspend is called due to Deteriorating Conditions (too few stars) 02:34:51     Target Completed Target completed (16/24, NGC 5018 w/SN2021fxy) 02:34:53   Queue Paused Queue paused for Session Suspension 02:34:55 Session Suspended Session suspended 02:35:45   Dome Closed Dome closed (closing time 50s) 02:54:35     Target Cancelled Target cancelled (17/24, NGC 5732 w/SN2021agpf) due to too few stars 02:54:47 Session Resuming Session resuming 02:55:32   Dome Opened Dome opened (opening time 45s) 02:55:35 Session Running Session running 02:55:37   Queue Resumed Observing Queue resumed 02:57:40     Target Started (18/24) Target started (18/24, AT2022evu (CV)) 03:00:43       Focusing Skipped Foc1 focusing skipped - star is too dim (TCF-S) 03:06:50     Target Completed Target completed (18/24, AT2022evu (CV)) 03:09:39     Target Started (19/24) Target started (19/24, AT2022evv (CV)) 03:12:25       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S) 03:14:29       Focusing Completed Foc1 AutoFocus Completed (Profile No 8) 03:20:16     Target Completed Target completed (19/24, AT2022evv (CV)) 03:21:39     Target Started (20/24) Target started (20/24, GCVS BL Lac) 03:25:11       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S) 03:27:33       Focusing Completed Foc1 AutoFocus Completed (Profile No 9) 03:31:24     Target Completed Target completed (20/24, GCVS BL Lac) 03:31:45     Target Started (21/24) Target started (21/24, GCVS SS Cyg) 03:34:33       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S) 03:36:53       Focusing Completed Foc1 AutoFocus Completed (Profile No 10) 03:41:37     Target Completed Target completed (21/24, GCVS SS Cyg) 03:48:01     Target Started (22/24) Target started (22/24, AT2021agpw (CV)) 03:51:27       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S) 03:53:54       Focusing Completed Foc1 AutoFocus Completed (Profile No 11) 03:59:43     Target Completed Target completed (22/24, AT2021agpw (CV)) 04:00:01     Target Started (23/24) Target started (23/24, NGC 6223 w/SN2021bls) 04:03:38       Focusing Skipped Foc1 focusing skipped - star is too dim (TCF-S) 04:19:51     Target Completed Target completed (23/24, NGC 6223 w/SN2021bls) 04:22:02     Target Started (24/24) Target started (24/24, HIP 87937) 04:25:07       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S) 04:27:29       Focusing Completed Foc1 AutoFocus Completed (Profile No 12) 04:30:01     Target Completed Target completed (24/24, HIP 87937) 04:30:04   Queue Completed Job Queue completed 04:30:06 Session Closing Session closing 04:30:54   Dome Closed Dome closed (closing time 45s) 04:31:36   Dome Parked Dome parked (parking time 35s), Az: 90.0 deg 04:32:41   Telescope Parked Telescope parked (parking time 61s) 04:32:56   Telescope State Scope parked Turn scope off. (Handbox) 04:33:19   Telescope Switched Off Telescope Power has been switched off via UPB Switch. 04:34:11   Services Stopped Night Services stopped 04:34:13 Session Housekeeping Housekeeping Started (Cleanup FITS, Create Fits Summary, Transfer Files) 04:34:29 Session Finished Session Finished

Session Alerts

Time     Alert Detail -- No Alerts                --

Back to Top

Operational Issues (2022-03-23, S993)

• Critical Issues (0)
• Major Issues (0)
• Minor Issues (1)
• Small Defects (0)
• Continuous Improvement (0)

[ Prev | Next ]

Critical Issues

• None

Major Issues

• None

Minor Issues

• None

Small Defects

• Image Scale Bar for 32pc scaled 2x2 image looks incorrect (Post Session Analysis).  Whilst building Image pictures for NGC 3486 (2x2 binning) it was noticed that scale bar on 32pc scaled (382 px wide) pictures looks incorrect.  It was noticed that scale bar on 100pc/cropped and Full Size pictures also seemed to be incorrect. Examining code for ImageBuilder.DrawImage it is seen that PlateScale is hard-coded in as 1.405, which is ok for 3x3 binned images but not 2x2 binned images.   Strictly the plate scale should be taken from the Image Link information with a back up based on Image Size and Image Binning.
  Fixed 2022-04-05 (AstroMain 3.50.10)

• None
