Session Aims & Highlights (2022-05-02)

Main aims

1. Targets.  Acquire images of a selection of variable stars, nearby stars, comets & deep sky targets as allowed by time & conditions.
2. DeviceHub. Check DeviceHub 6.6.0.6 for issues following recent upgrade
      (see Upgrade to DeviceHub 6.6.0.6, 2022-04-28  )

Equipment & Software

• 12" LX200 and ST-10XME
• 80mm APO and ZWO ASI 178MC
• CCDApp2, TheSky6, CCDSoft5, DeviceHub 6.6.0.6,  MeadeGeneric 1.3.3.373, UPB 1.5, ASCOM 6.6
• Pegasus UPB & Motor Focus, TCF-S
• SharpCap 3.2, PHD2  2.6.10

• AstroMain 3.51.2,  AstroPlan 1.30.2,   AstroShCap 1.3.12, AstroGuard 1.8
  AstroVOE 1.10  AstroSN 1.8.1,  AstroProtect 1.7,  AstroMove 1.9
  (AstroWeather 1.17, AstroAllSky 3.16,  AstroObsCam 1.9, AstroLaunch 1.9)

Highlights

•  Targets.  5  targets were successfully acquired, 4 failed due to cloud
•  DeviceHub.  No issues using DeviceHub 6.6.0.6

Notes:

  Summary Plots & Logs

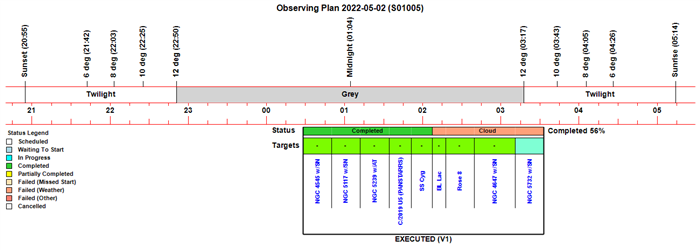

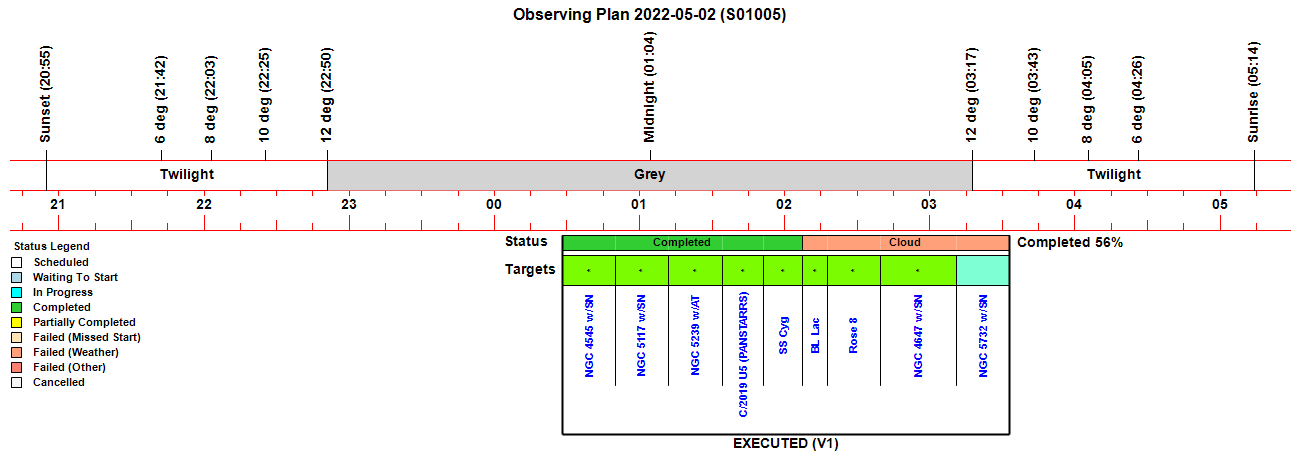

Observing Plan

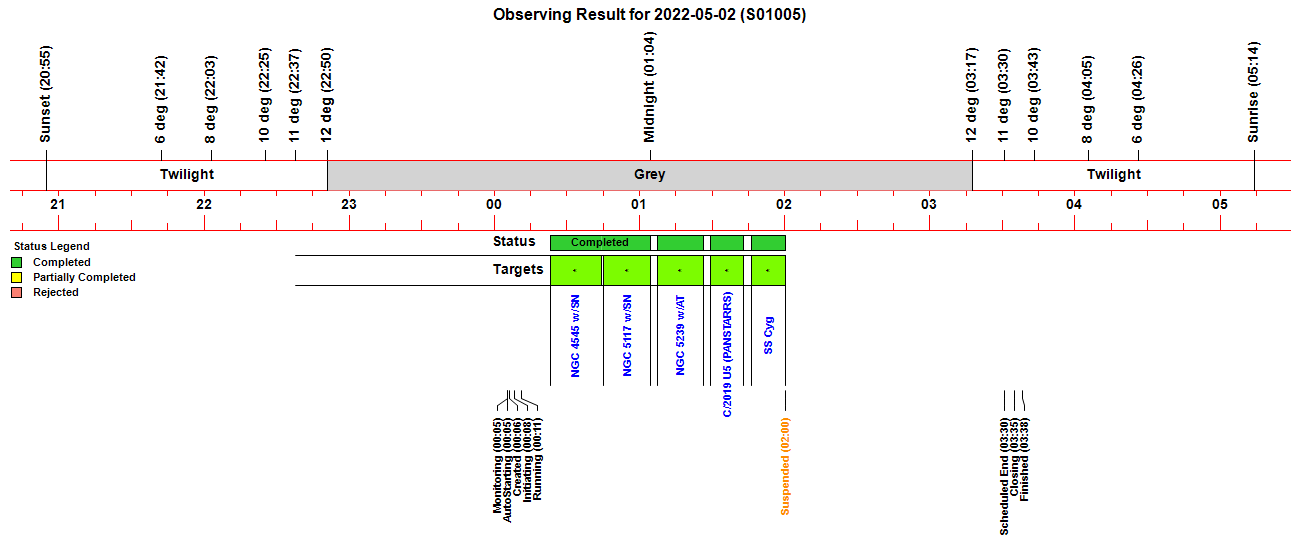

Observing Result

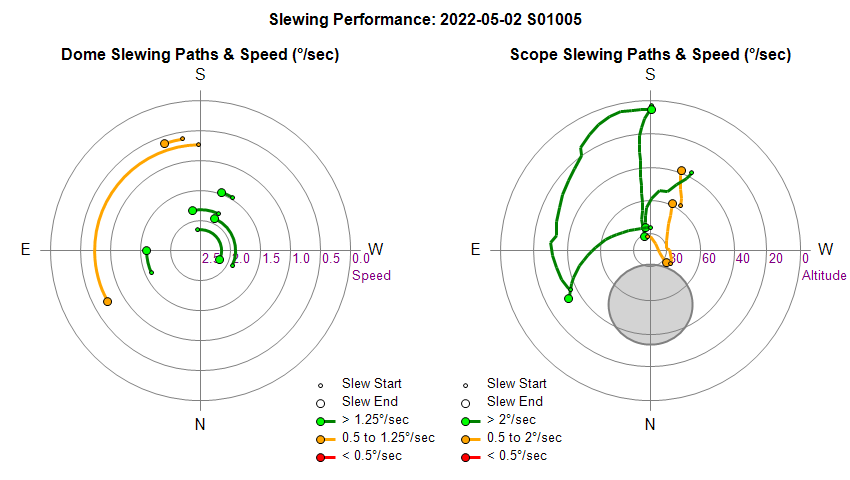

Dome & Scope Slewing Performance

Slew/Centering Performance

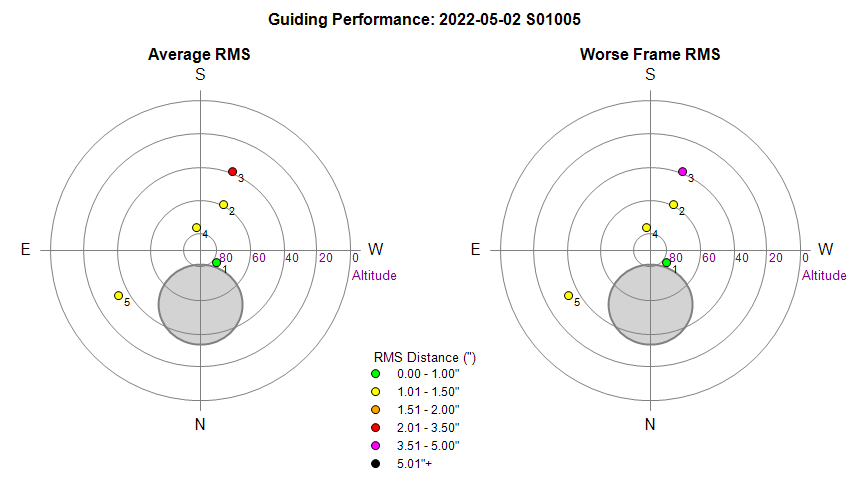

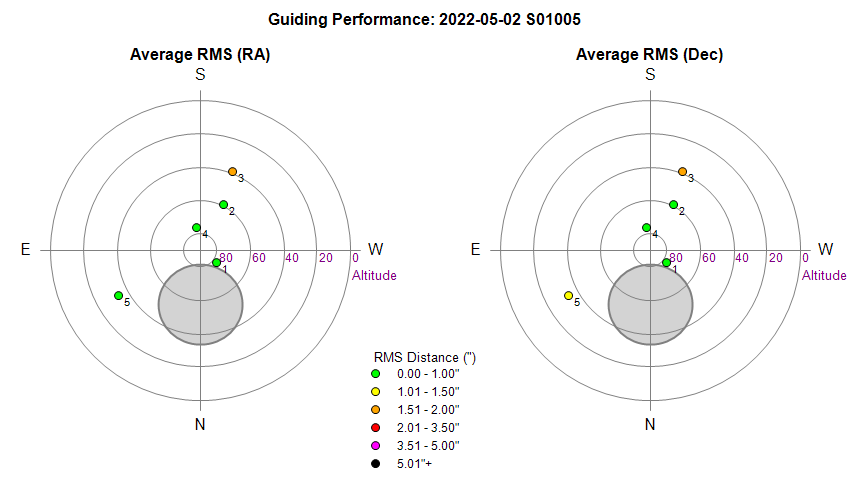

Guiding Performance

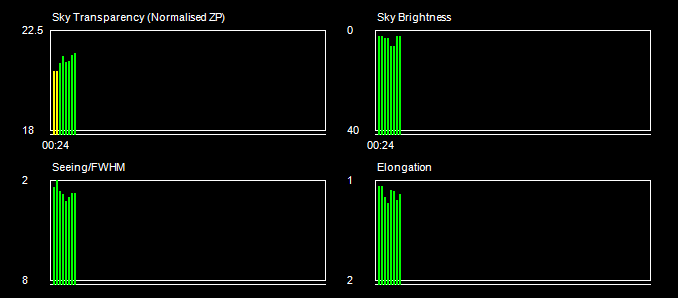

Sky Conditions (Locate Frames)

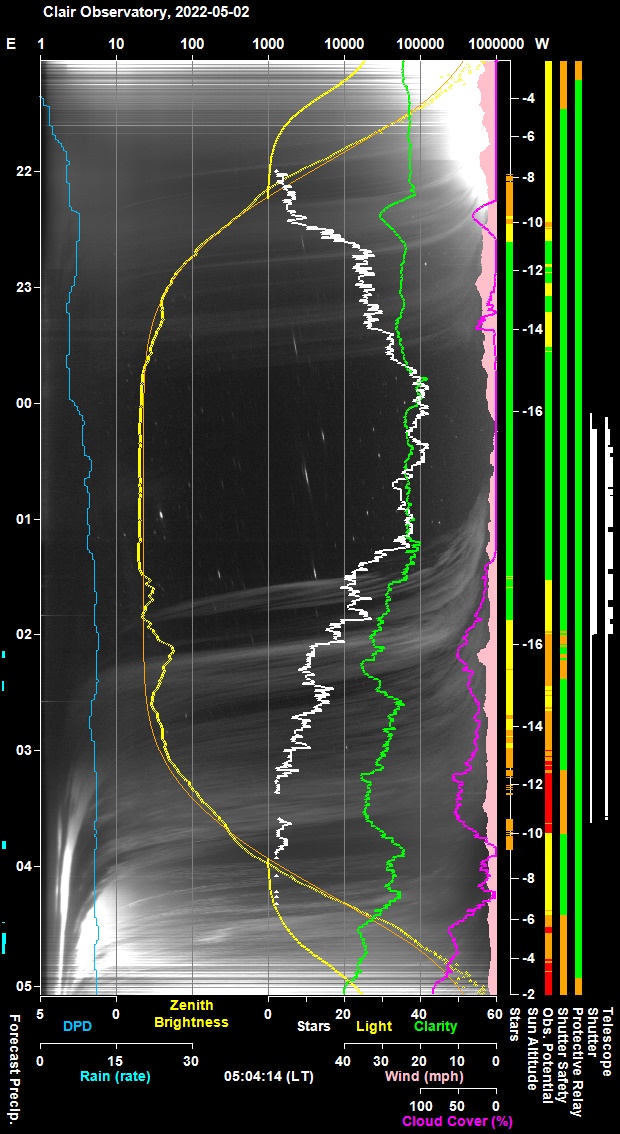

Night Sky Summary Plot Top axis: Sky Brightness at Zenith (in ADU/s) Lefthand axis: Local Time (hh LT). Righthand axis: Sun Altitude (degs)

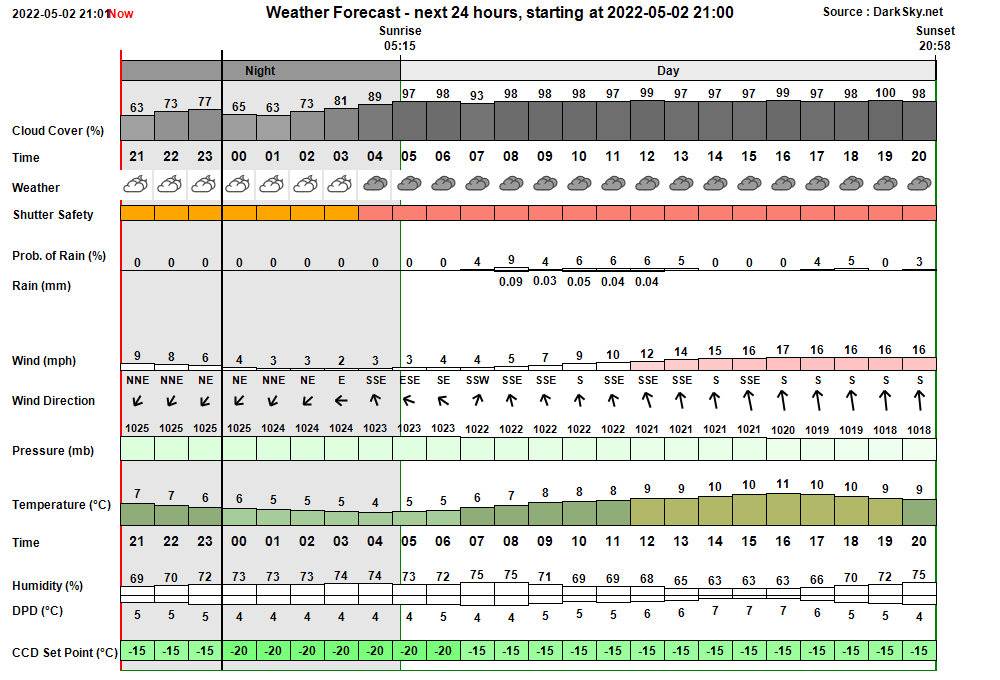

Actual Weather vs Pre-Session Weather Forecast

Session Event Log

Time     Event Detail 00:05:29 Session Monitoring AutoStart monitoring for Live Session opportunity between 00:05 & 02:37 00:05:32 Session AutoStarting Session autostarting (00:05) 00:06:13   Camera1 Connected SBIG Camera Connected (set point -20°C) 00:06:15 Session Created Live Session Created (2022-05-02 S01005, ImageSaveNum: 1005001) 00:06:17   Scope Switched On Telescope Power has been switched on via UPB Powerbox. 00:07:59   Services Started Observatory Services started 00:08:05 Observatory (Auto) Observatory placed in Fully-Automated Mode 00:08:08 Session Pending Session pending (2022-05-02) 00:08:10 Session Initiating Session initiating (2022-05-02) 00:08:12   Plan Requested Observing Plan requested from AstroPlan (1.30.2) 00:09:00   Plan Loaded Observing Plan loaded to queue (Plan ID: 764) 00:09:14   Camera1 Connected SBIG Camera Connected (set point -25°C) 00:09:20   Telescope Connected Telescope Connected (TheSky6) 00:09:44 Session Equilibration Session ready for dome & camera equilibration 00:10:29   Dome Opened Dome opened (opening time 45s) 00:11:14 Session Running Session running 00:11:16   Queue Started Observing Queue started (9 targets selected) 00:11:19     Target Started (NrZen) Target started (Focus Field 14, HIP 69068) 00:12:59       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S) 00:15:58       Focusing Completed Foc1 AutoFocus Completed (Profile No 1, wide) 00:17:50       Focusing Failed Foc2 focusing check failed 00:17:52       Focusing Completed Foc1 AutoFocus Completed (Profile No 1) 00:17:55       Focusing Started-Foc2 Foc2 Focusing Started (Secondary Scope, using ShCap) 00:20:03       Focusing Completed Foc2 AutoFocus Completed (Profile No 2, wide) 00:21:50       Focusing Completed Foc2 AutoFocus Completed (Profile No 2) 00:22:08     Target Completed Target completed (Focus Field 14, HIP 69068) 00:23:16     Target Started (1/9) Target started (1/9, NGC 4545 w/SN2022fuc) 00:26:39       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S) 00:28:35       Focusing Completed Foc1 AutoFocus Completed (Profile No 3) 00:44:22     Target Completed Target completed (1/9, NGC 4545 w/SN2022fuc) 00:45:16     Target Started (2/9) Target started (2/9, NGC 5117 w/SN2022abq) 00:48:42       Focusing Skipped Foc1 focusing skipped - star is too dim (TCF-S) 01:04:42     Target Completed Target completed (2/9, NGC 5117 w/SN2022abq) 01:07:16     Target Started (3/9) Target started (3/9, NGC 5239 w/AT2022ivt) 01:10:09       Focusing Skipped Foc1 focusing skipped - star is too dim (TCF-S) 01:26:35     Target Completed Target completed (3/9, NGC 5239 w/AT2022ivt) 01:29:17     Target Started (4/9) Target started (4/9, C/2019 U5 (PANSTARRS)) 01:32:10       Focusing Skipped Foc1 focusing skipped - star is lost (TCF-S) 01:43:08     Target Completed Target completed (4/9, C/2019 U5 (PANSTARRS)) 01:46:16     Target Started (5/9) Target started (5/9, GCVS SS Cyg) 01:52:51       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S) 01:55:02       Focusing Completed Foc1 AutoFocus Completed (Profile No 4) 01:57:27   SoftSuspend Called Soft Suspend is called due to Deteriorating Conditions (too few stars) 02:00:18     Target Completed Target completed (5/9, GCVS SS Cyg) 02:00:20   Queue Paused Queue paused for Session Suspension 02:00:22 Session Suspended Session suspended 02:01:12   Dome Closed Dome closed (closing time 50s) 02:11:33     Target Cancelled Target cancelled (6/9, GCVS BL Lac) due to cloud 02:31:33     Target Cancelled Target cancelled (7/9, Rose 8) due to cloud 03:02:55     Target Cancelled Target cancelled (8/9, NGC 4647 w/SN2022hrs) due to cloud 03:34:55     Target Cancelled Target cancelled (9/9, NGC 5732 w/SN2021agpf) due to cloud 03:35:00   Queue Completed Job Queue completed 03:35:03 Session Closing Session closing 03:35:08   Dome Closed Dome already closed (closed at 02:01, closing time 50s) 03:35:32   Dome Parked Dome parked (parking time 16s), Az: 90.0 deg 03:36:49   Telescope Parked Telescope parked (parking time 75s) 03:36:59   Telescope State Scope parked Turn scope off. (Handbox) 03:37:22   Telescope Switched Off Telescope Power has been switched off via UPB Switch. 03:38:15   Services Stopped Night Services stopped 03:38:17 Session Housekeeping Housekeeping Started (Cleanup FITS, Create Fits Summary, Transfer Files) 03:38:24 Session Finished Session Finished

Session Alerts

Time     Alert Detail -- No Alerts                --

Back to Top

Operational Issues (2022-05-02, S1005)

• Critical Issues (0)
• Major Issues (0)
• Minor Issues (1)
• Small Defects (4)
• Continuous Improvement (1)

[ Prev | Next ]

Critical Issues

• None

Major Issues

• None

Minor Issues

• AstroMain crashing between Saving Combined FITS image and requesting confirmation to Open Store Folder (post-session analysis).  Issue happend twice whilst performing backlog analysis of imagesets from session S950 using an preliminary AstroMain 3.51.3 build.  Debugging the program showed that crash was due to an InvalidOperationException ("Cross-thread operation on form control 'flagStoreFolder' accessed from a thread other than the thread it was created on") .   This came about from code lines added whilst changing behaviour of Store Folder Flag for a Small Defect ticket item (see below).  Problem fixed and version 3.51.3 rebuilt.
  Fixed  2022-05-03 (AstroMain 3.51.3)

Small Defects

• When changing Store Folder Flag colour on AstroMain's Analysis/ImageSets Tab a red flag is momentarily shown before the flag changes to green.  Fixed in AstroMain 3.51.3 by making the flag initially to be hidden when chnaging Imagset and then only changing the flag setting when txtObjStoreFolder.Text is changed to a non blank string.
  Fixed 2022-05-03 (AstroMain 3.51.3)

• AstroMain's Build Heading' button function outputs 'NGC 2371 - Pl. Neb' instead of NGC 2371 - Planetary Nebula' (Post Session Analysis).  Backlog analysis of NGC 2371 from session S950 isn't outputing the correct heading.  Routine fixed in AstroMain 3.51.3 to interpret 'Pl. Neb' in target's object type as meaning 'Planetary Nebula'.
  Fixed 2022-05-03 (AstroMain 3.51.3)

• Scalebar Shift X/Y not resetting when changing to a new imageset.  Testing showed that it is Scalebar Shift Y which is not being reset (Shift X was being reset ok).  Fixed in AstroMain 3.51.4.
  Fixed 2022-05-04 (AstroMain 3.51.4)

• Target Circle for SS Cyg isn't correctly centered on the actual SS Cy star in JPG pictures.  Closed after review on 2022-05-05.  Issue was prelimarily caused by the failure to locate / centre target in initial 4 locate frames due to cloud.   LocateInfo was consequently compromised.  First Main Frame (B filter) was successfully linked (1.40 arc mins error) but this does't seem to have led to correct information being sent to the 'Create Jpg Picture' tool.
  Closed 2022-05-05 (Session)

• After closing AstroMain's Observatory Form, focus should move back to the Main Form (Development Computer). At present AstroMain program can lose focus when the Observatory Form is closed (using the 'Main Form' button).  This improvement is only applicable for the Development Computer, since the same button is used instead on Observatory Computer for closing the program.
  Done  2022-05-03 (AstroMain 3.51.3, Development Computer)
