David's Astronomy Pages Notes - Session 1006 (2022-05-04)

Notes (S1005)

Notes Main

Home Page

Notes (S1007)

	Session Aims & Highlights
	- Observing Result  - Night Summary Plot  - Session Event Log
	Operational Issues
	- Critical Issues (0),  Major Issues (0),  Minor Issues (0),  Small Defects (0),  Continuous Improvement (2)
	Images from 2022-05-04 >>         [ Local Files >> ]

Session Aims & Highlights (2022-05-04)

Main aims

1. Targets.  Acquire images of a selection of variable stars, nearby stars, comets & deep sky targets as allowed by time & conditions.

Equipment & Software

• 12" LX200 and ST-10XME
• 80mm APO and ZWO ASI 178MC
• CCDApp2, TheSky6, CCDSoft5, DeviceHub 6.6.0.6,  MeadeGeneric 1.3.3.373, UPB 1.5, ASCOM 6.6
• Pegasus UPB & Motor Focus, TCF-S
• SharpCap 3.2, PHD2  2.6.10

• AstroMain 3.51.3,  AstroPlan 1.30.2,   AstroShCap 1.3.12, AstroGuard 1.8
  AstroVOE 1.10  AstroSN 1.8.1,  AstroProtect 1.7,  AstroMove 1.9
  (AstroWeather 1.17, AstroAllSky 3.16,  AstroObsCam 1.9, AstroLaunch 1.9)

Highlights

•  Targets.  3 targets were successfully acquired, 10 failed due to cloud

Notes:

  Summary Plots & Logs

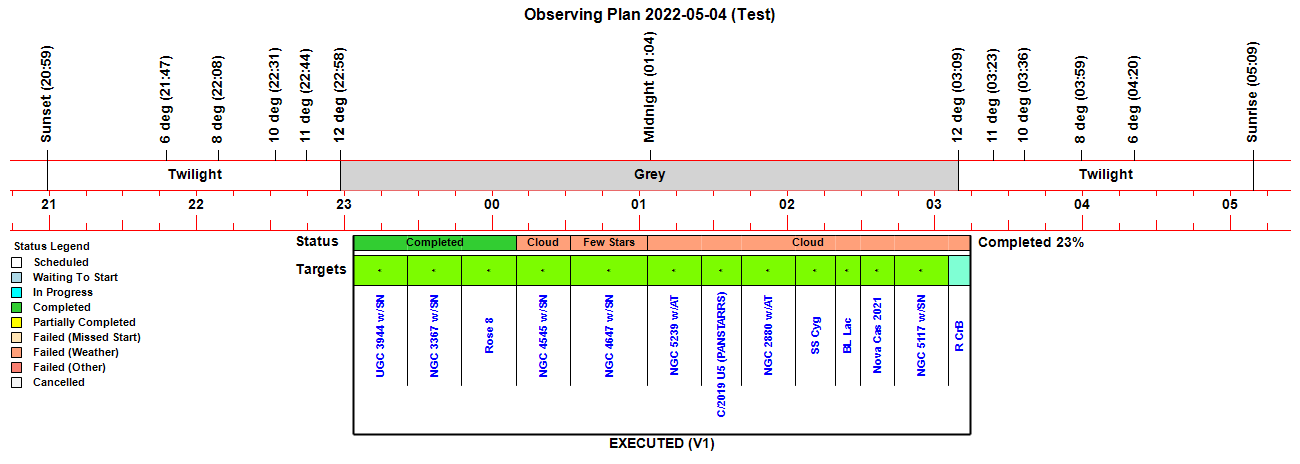

Observing Plan

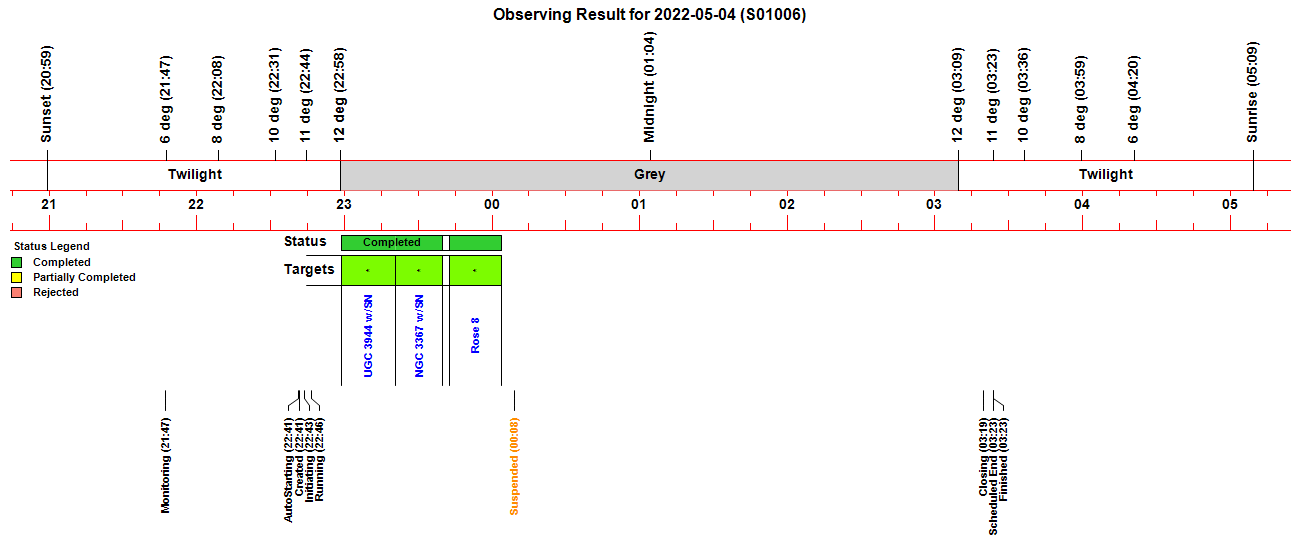

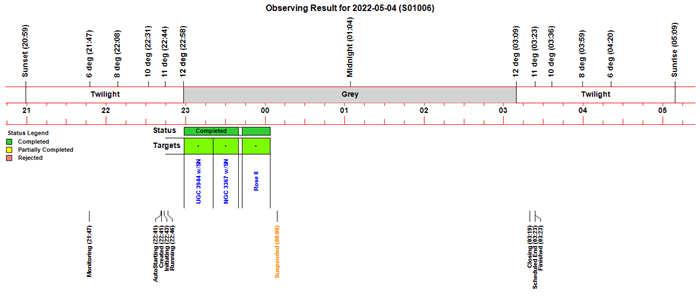

Observing Result

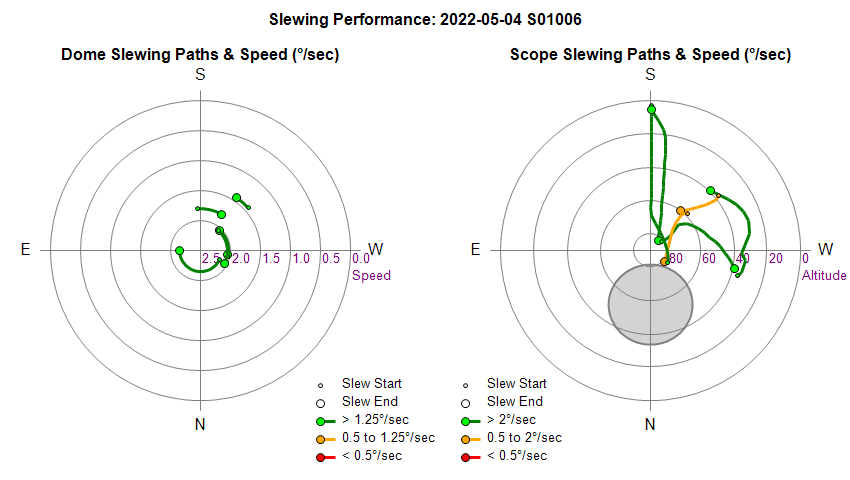

Dome & Scope Slewing Performance

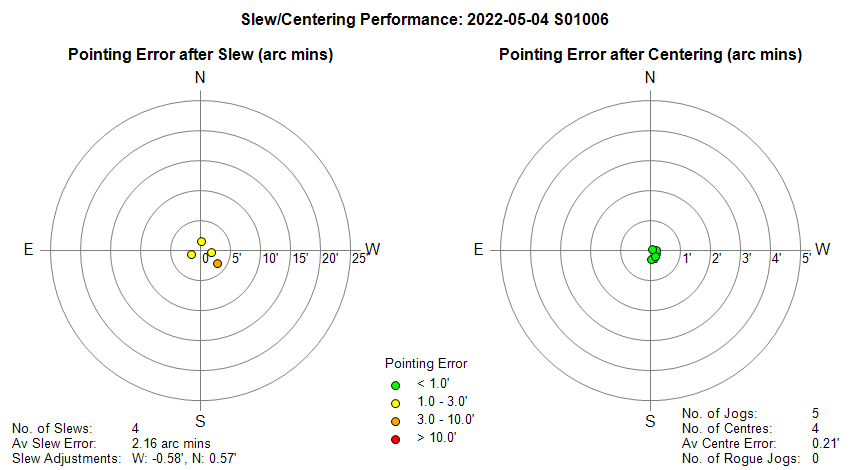

Slew/Centering Performance

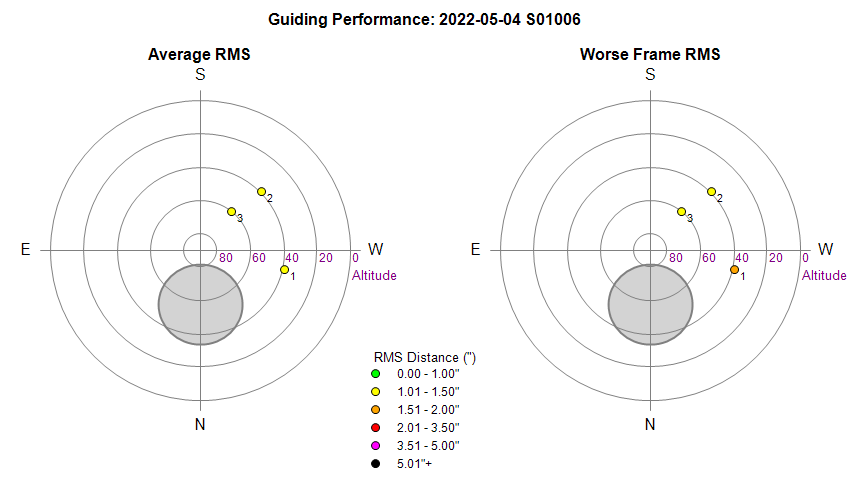

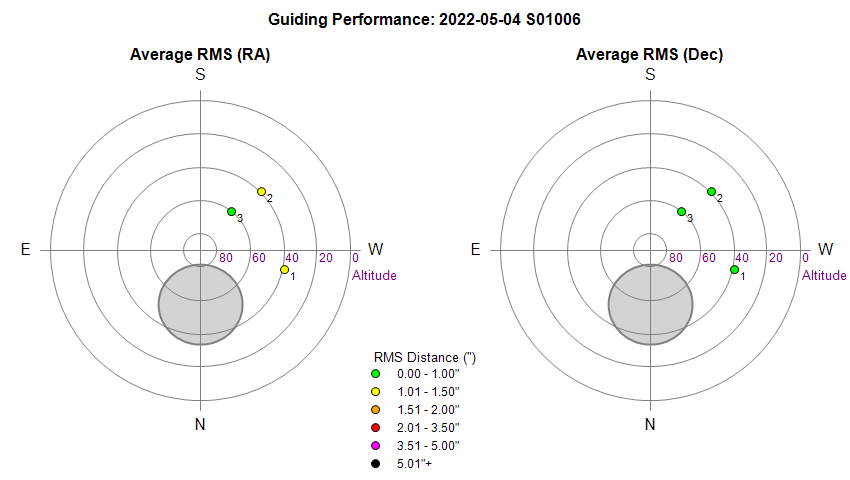

Guiding Performance

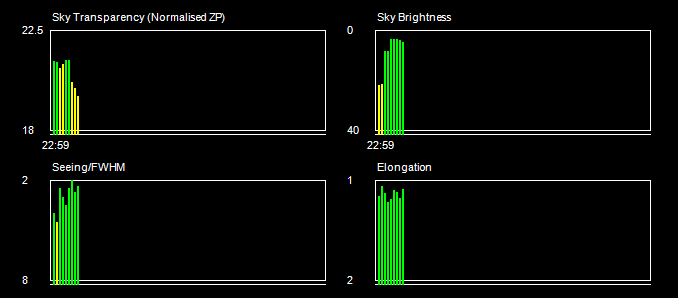

Sky Conditions (Locate Frames)

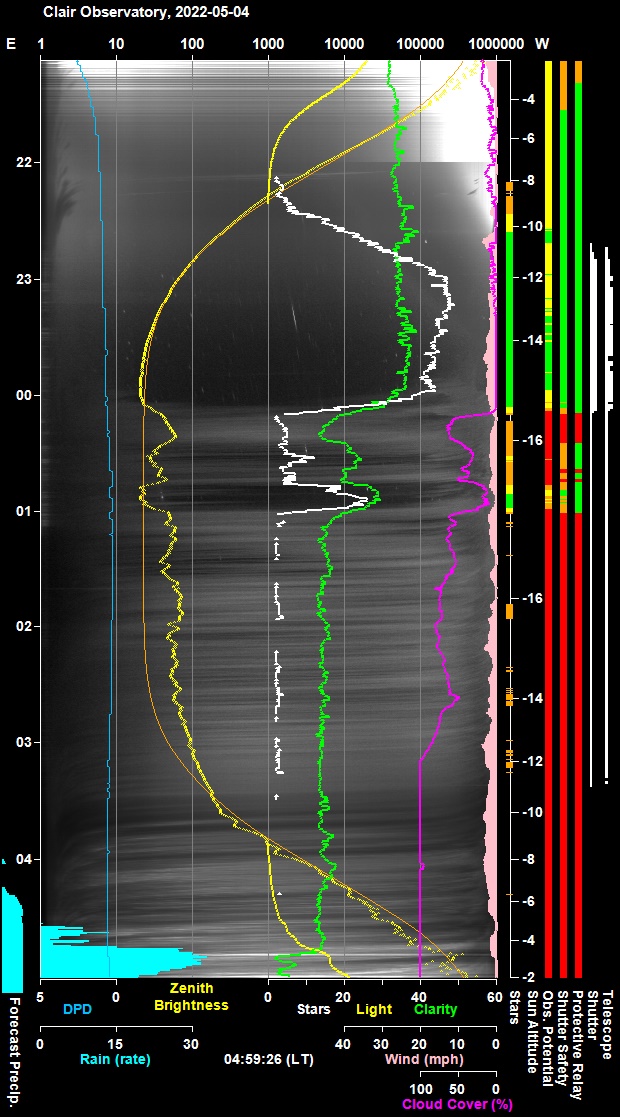

Night Sky Summary Plot Top axis: Sky Brightness at Zenith (in ADU/s) Lefthand axis: Local Time (hh LT). Righthand axis: Sun Altitude (degs)

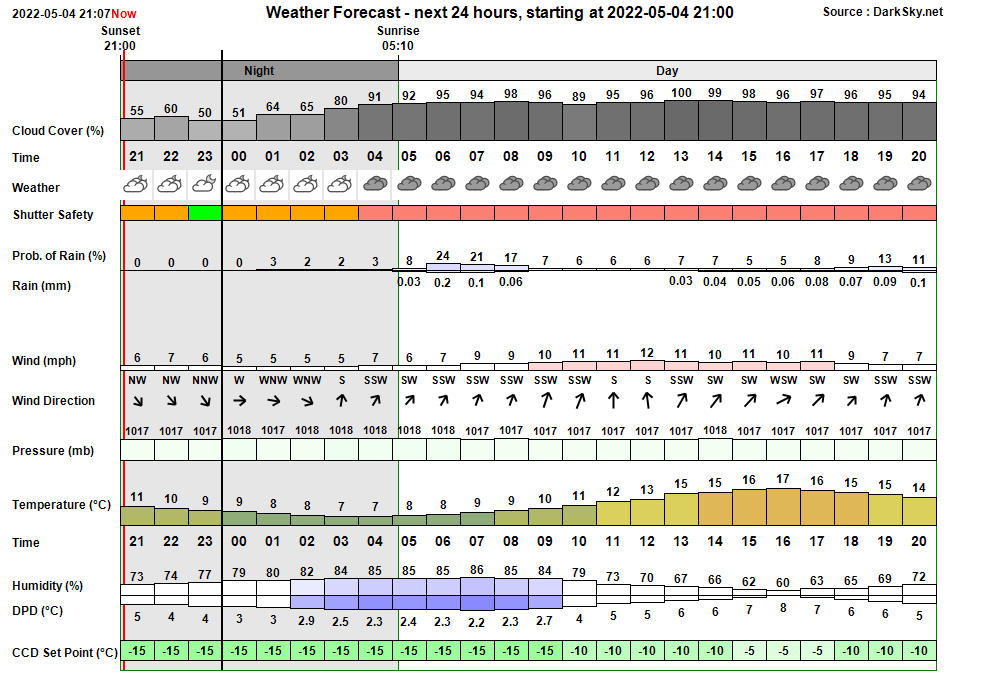

Actual Weather vs Pre-Session Weather Forecast

Session Event Log

Time     Event Detail 21:47:14 Session Monitoring AutoStart monitoring for Live Session opportunity between 22:28 & 02:29 21:47:14   AutoStart Waiting AutoStart waiting till earliest start time at 22:28 22:28:29   AutoStart Delayed Session delayed due to too few stars 22:41:21 Session AutoStarting Session autostarting (22:41) 22:41:49 Session Created Live Session Created (2022-05-04 S01006, ImageSaveNum: 1006001) 22:41:51   Scope Switched On Telescope Power has been switched on via UPB Powerbox. 22:43:32   Services Started Observatory Services started 22:43:38 Observatory (Auto) Observatory placed in Fully-Automated Mode 22:43:41 Session Pending Session pending (2022-05-04) 22:43:43 Session Initiating Session initiating (2022-05-04) 22:43:45   Plan Requested Observing Plan requested from AstroPlan (1.30.2) 22:44:29   Plan Loaded Observing Plan loaded to queue (Plan ID: 765) 22:44:51   Camera1 Connected SBIG Camera Connected (set point -15°C) 22:44:58   Telescope Connected Telescope Connected (TheSky6) 22:45:22 Session Equilibration Session ready for dome & camera equilibration 22:46:07   Dome Opened Dome opened (opening time 45s) 22:46:47 Session Running Session running 22:46:50   Queue Started Observing Queue started (13 targets selected) 22:46:52     Target Started (NrZen) Target started (Focus Field 12, HIP 58514) 22:48:37       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S) 22:51:48       Focusing Completed Foc1 AutoFocus Completed (Profile No 1, wide) 22:53:59       Focusing Completed Foc1 AutoFocus Completed (Profile No 1) 22:54:24       Focusing Started-Foc2 Foc2 Focusing Started (Secondary Scope, using ShCap) 22:56:35       Focusing Completed Foc2 AutoFocus Completed (Profile No 2, wide) 22:58:21       Focusing Completed Foc2 AutoFocus Completed (Profile No 2) 22:58:39     Target Completed Target completed (Focus Field 12, HIP 58514) 22:58:43     Target Started (1/13) Target started (1/13, UGC 3944 w/SN2022hkc) 23:01:51       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S) 23:04:18       Focusing Completed Foc1 AutoFocus Completed (Profile No 3) 23:20:39     Target Completed Target completed (1/13, UGC 3944 w/SN2022hkc) 23:20:43     Target Started (2/13) Target started (2/13, NGC 3367 w/SN2022ewj) 23:23:56       Focusing Skipped Foc1 focusing skipped - star is too dim (TCF-S) 23:39:59     Target Completed Target completed (2/13, NGC 3367 w/SN2022ewj) 23:42:49     Target Started (3/13) Target started (3/13, Rose 8) 23:45:43       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S) 23:47:55       Focusing Completed Foc1 AutoFocus Completed (Profile No 4) 00:03:42     Target Completed Target completed (3/13, Rose 8) 00:04:49     Target Started (4/13) Target started (4/13, NGC 4545 w/SN2022fuc) 00:08:14       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S) 00:08:47   SoftSuspend Called Soft Suspend is called due to Deteriorating Conditions (too few stars) 00:08:49 Critical Cloud Alert Critical Cloud Alert (Obs.Manager will close the Dome) 00:08:51   HardSuspend Called Hard Suspend is called due to Critical Conditions (cloud) 00:08:53       Focusing Aborted Foc1 Focusing Aborted 00:08:55     Target Aborted (4/13) Target aborted (4/13, NGC 4545 w/SN2022fuc) due to cloud 00:08:57   Queue Paused Queue paused for Session Suspension 00:08:58 Session Suspended Session suspended 00:09:47   Dome Closed Dome closed (closing time 49s) 00:23:45     Target Cancelled Target cancelled (4/13, NGC 4545 w/SN2022fuc) due to cloud 00:55:07     Target Cancelled Target cancelled (5/13, NGC 4647 w/SN2022hrs) due to too few stars 01:17:07     Target Cancelled Target cancelled (6/13, NGC 5239 w/AT2022ivt) due to cloud 01:35:15     Target Cancelled Target cancelled (7/13, C/2019 U5 (PANSTARRS)) due to cloud 01:55:15     Target Cancelled Target cancelled (8/13, NGC 2880 w/AT2022jjm) due to cloud 02:14:16     Target Cancelled Target cancelled (9/13, GCVS SS Cyg) due to cloud 02:23:37     Target Cancelled Target cancelled (10/13, GCVS BL Lac) due to cloud 02:37:37     Target Cancelled Target cancelled (11/13, Nova Cas 2021) due to cloud 02:57:22     Target Cancelled Target cancelled (12/13, NGC 5117 w/SN2022abq) due to cloud 03:19:24     Target Cancelled Target cancelled (13/13, GCVS R CrB) due to cloud 03:19:29   Queue Completed Job Queue completed 03:19:35 Session Closing Session closing 03:19:40   Dome Closed Dome already closed (closed at 00:09, closing time 49s) 03:21:01   Dome Parked Dome parked (parking time 72s), Az: 90.0 deg 03:22:22   Telescope Parked Telescope parked (parking time 74s) 03:22:32   Telescope State Scope parked Turn scope off. (Handbox) 03:22:54   Telescope Switched Off Telescope Power has been switched off via UPB Switch. 03:23:47   Services Stopped Night Services stopped 03:23:49 Session Housekeeping Housekeeping Started (Cleanup FITS, Create Fits Summary, Transfer Files) 03:23:51 Session Finished Session Finished

Session Alerts

Time     Alert Detail -- No Alerts                --

Back to Top

Operational Issues (2022-05-04, S1006)

• Critical Issues (0)
• Major Issues (0)
• Minor Issues (0)
• Small Defects (0)
• Continuous Improvement (2)

[ Prev | Next ]

Critical Issues

• None

Major Issues

• None

Minor Issues

• None

Small Defects

• None

• AstroPlan's main form should have a button link to the 'Live' folder. A link to 'Live' folder would be useful for quickly accessing the / checking on images/files that AstroPlan and AstroMain programs has most recently created and are available for automated upload to website.  Implemented in 1.30.3.   A link to 'Live' folder also added to Rollback tab on Settings Form.
  Done  2022-05-05 (AstroPlan 1.30.3)

• Add Wind Direction/Speed Indicator to new AzAlt Chart on AstroPlan's 'SubmitToO' form.  Wind Direction & Wind Strength indicator added to new AzAlt Chart.  The Wind Direction/Speed data that was used when Observing Plan was created is used, meaning that indicator won't be shown if AstroPlan happens to have been restarted since an Observing Plan was last created.
  Done  2022-05-07 (AstroPlan 1.30.4)
