David's Astronomy Pages (All Sky Camera) Aurora on night 2025-10-18 / 2025-10-19

Aurora 2025-09-01

Aurora Page

Home Page

Aurora 2025-10-29

Aurora

Notes

Night Summary (Keogram) Plot AllSky Pictures Videos Magnetometer Plots Magnetometer Stack Plots (for reference) Planetary K-Index Plot (for reference) Aurora Forecast, NOAA/Ovation (for reference)

- Auroral activity on the night 2025-10-18  associated with a period of geomagnetic activity up to Kp6. Skies in NE Scotland were fairly clear due the main peak of geomagnetic activity but became partly cloudy after than and the secondary peak was not visible. Activity was visible on camera images from around 18:10 to 21:15 UT (19:10 to 22:15 LT) with peak around 19:10 to 19:45 UT (20:10 to 20:45 LT).  (Sky was covered by cloud during time of the secondary peak ) Observed activity comprised a variety of features, ..... Images and video below compare colour images captured by the north facing Tapo C325WB Camera, with the black/white images captured using the existing AllSky Camera at approximately the same time.   -  Scandinavian magnetometers recorded activity from  18:00 to 04:00 UT with major peak in activity at 19:30 to 20:30 UT and secondary peak at 00:00 to 01:00 UT.   Lerwick Magnetometer shows activity up to K7     - -

Night Summary (Keogram) Plot

Night Summary Plot - North Sky (2025-10-18 / 2025-10-19) Aurora Activity visible on colour keogram from 18:10 to 21:15 UT (19:10 to 22:15 LT). with peak around 19:10 to 19:45 UT (20:10 to 20:45 LT) Note: Times on plot are local times (BST  = UTC +01h )

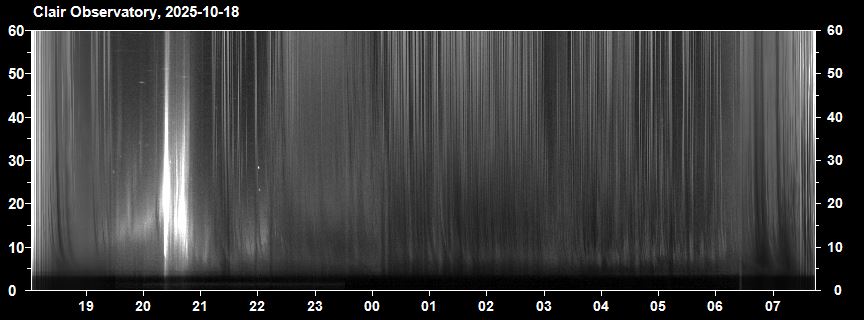

Night Summary Plot - North Sky  (2025-10-18 / 2025-10-19) Times on plot are local times (GMT  = UTC +01h ) Aurora Activity faintly visible on b/wr keogram from 02:00 to 03:30 LT (03:00 to 04:30 UT)

Scandinavia Magnetometers vs NorthCam Keogram - 2025-10-18 / 2025-10-19

Back to Top

Pictures (AllSky Camera) - Under Construction

Panoramic View - Northern Sky

2025-10-18 18:13 UT (19:13 LT) First signs of aurora activity 18:10 - 18:13 UT (19:10 - 19:13 UT)

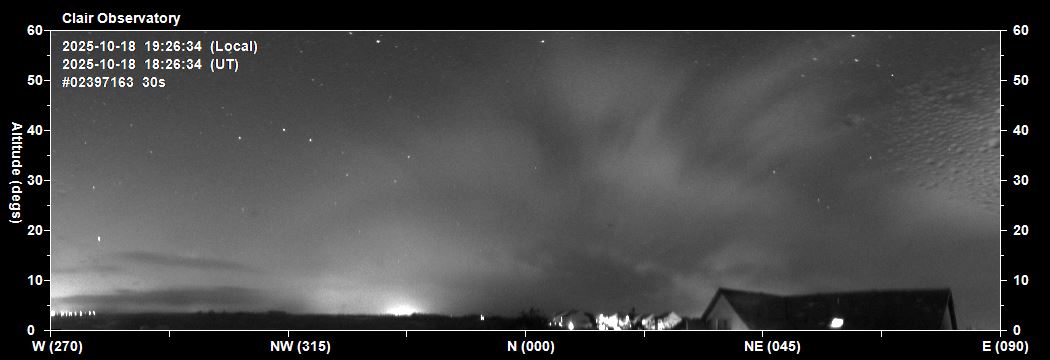

2025-10-18 18:26 UT (19:26 LT) Auroral

2025-10-18 18:35 UT (19:35 LT) Auroral

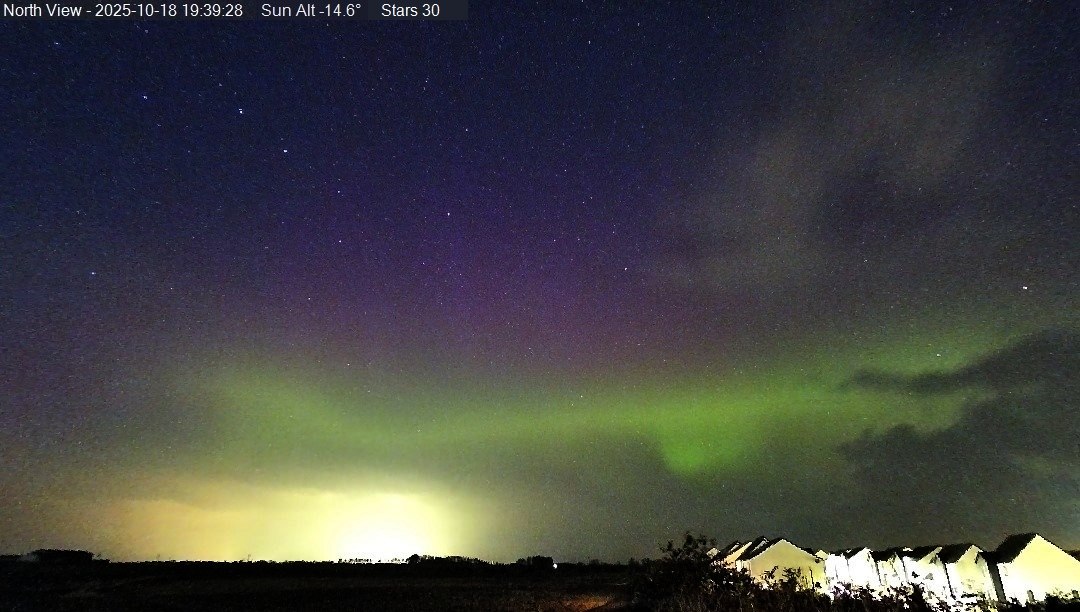

2025-10-18 18:39 UT (19:39 LT) Auroral

2025-10-18 19:03 UT (20:03 LT) Auroral

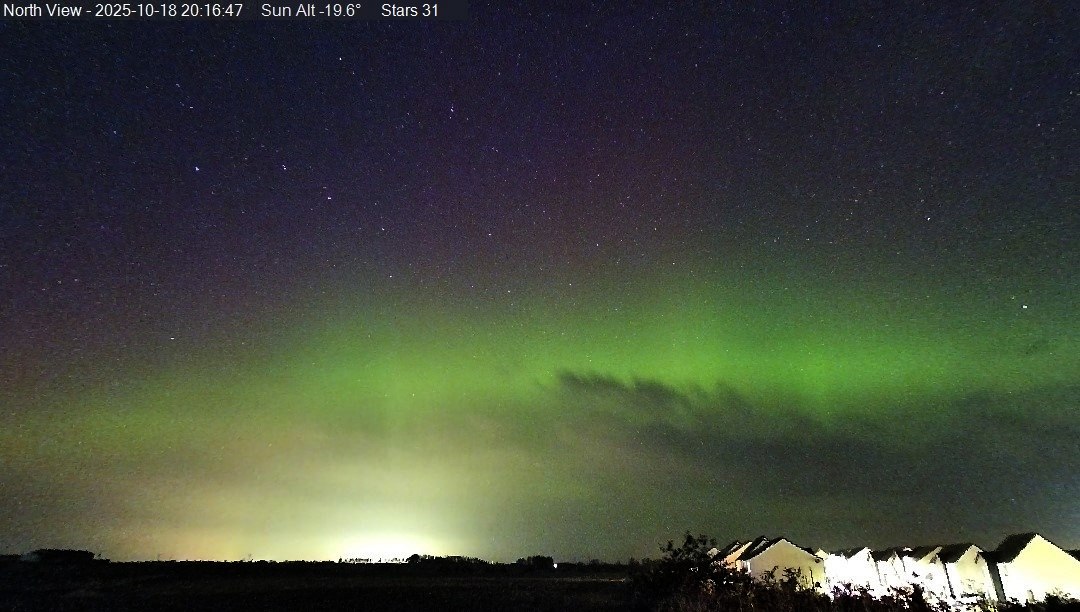

2025-10-18 19:16 UT (20:16 LT)  Aurora

2025-10-18 19:20 UT (20:20 LT) Aurora

2025-10-18 19:22 UT (20:22 LT) Aurora .

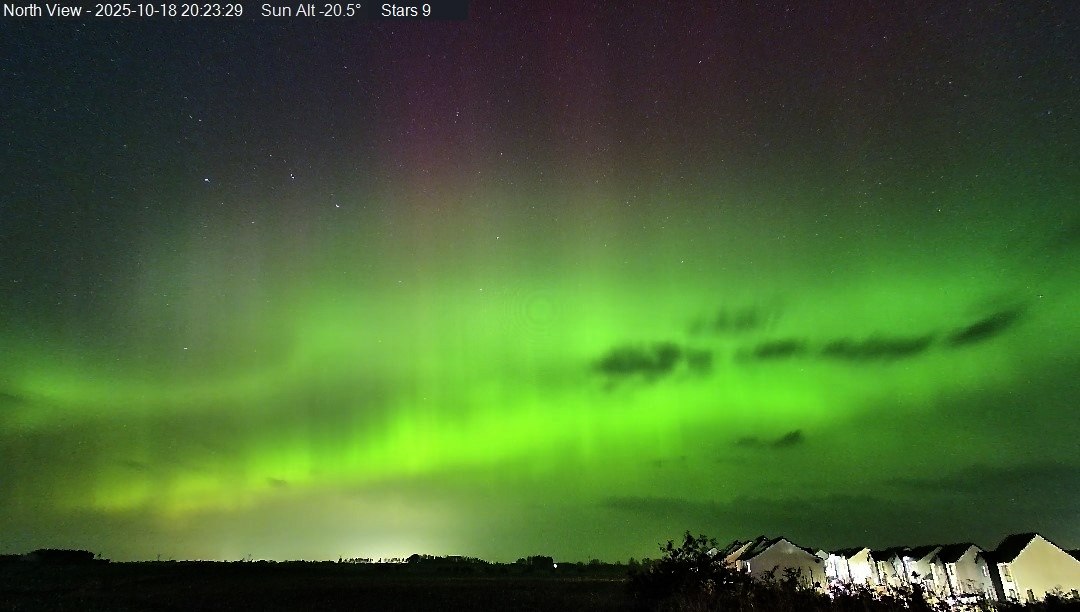

2025-10-18 19:23 UT (20:23 LT) Bright green aurora with faint red rays stretching to 50-60 deg altitude. Bright aurora has saturated the range of the AllSky Camera Picture (bottom)

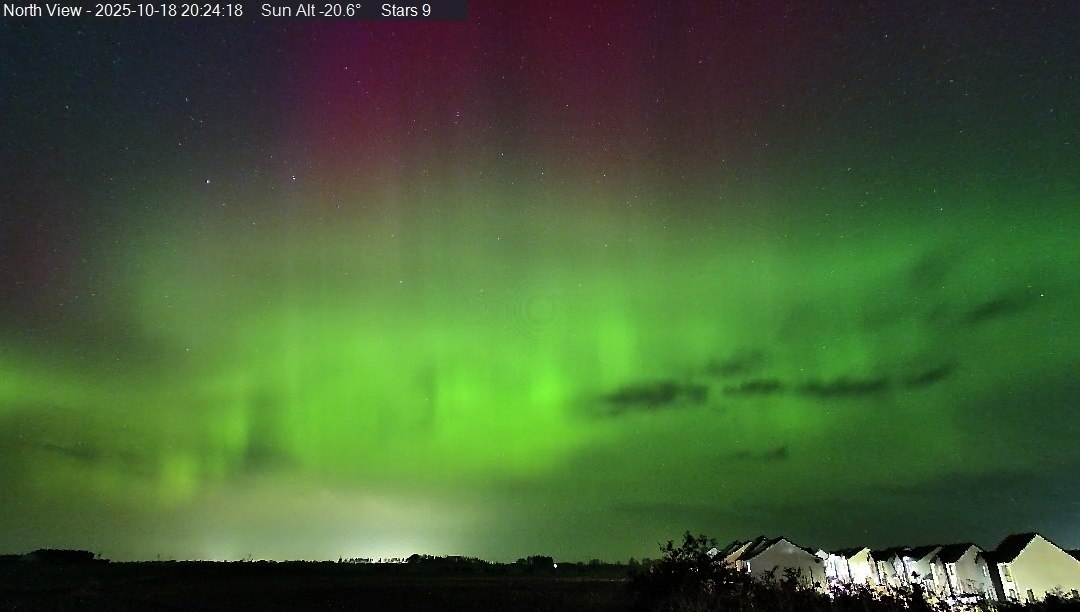

2025-10-18 19:24 UT (20:24 LT) Aurora

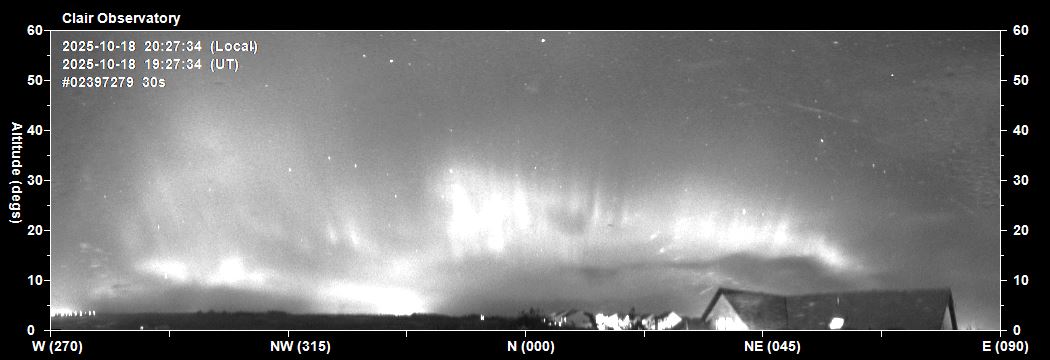

2025-10-18 19:27 UT (20:27 LT) Aurora

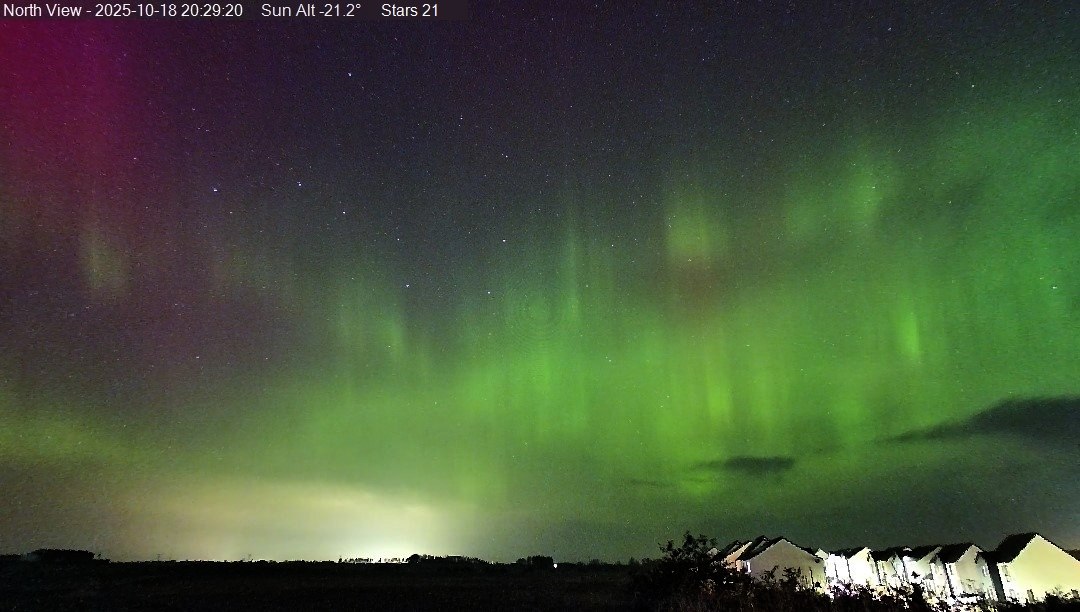

2025-10-18 19:29 UT (20:29 LT) Aurora

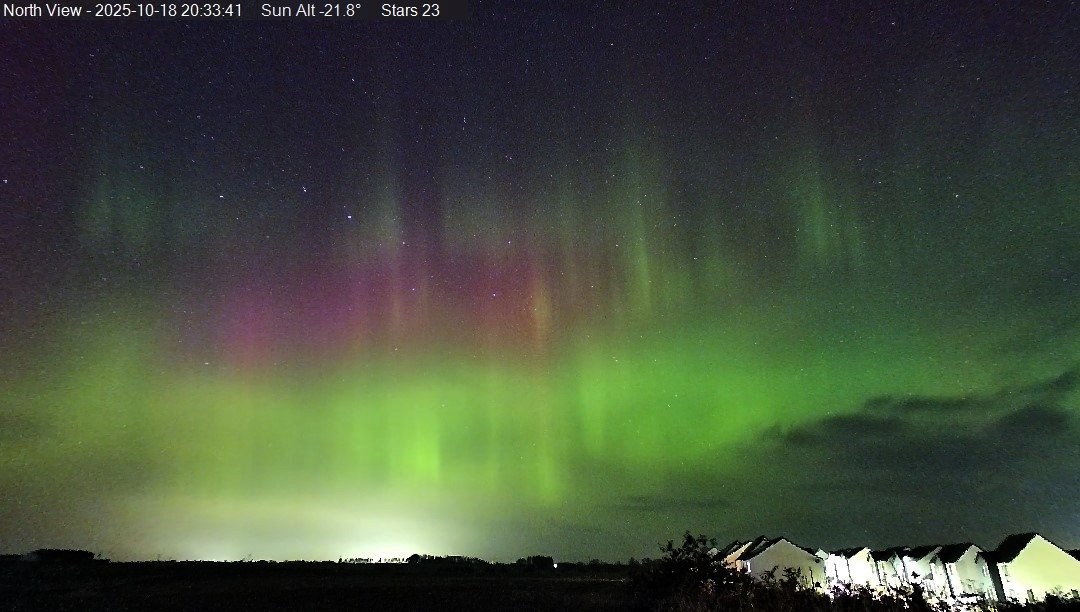

2025-10-18 19:33 UT (20:33 LT) Aurora

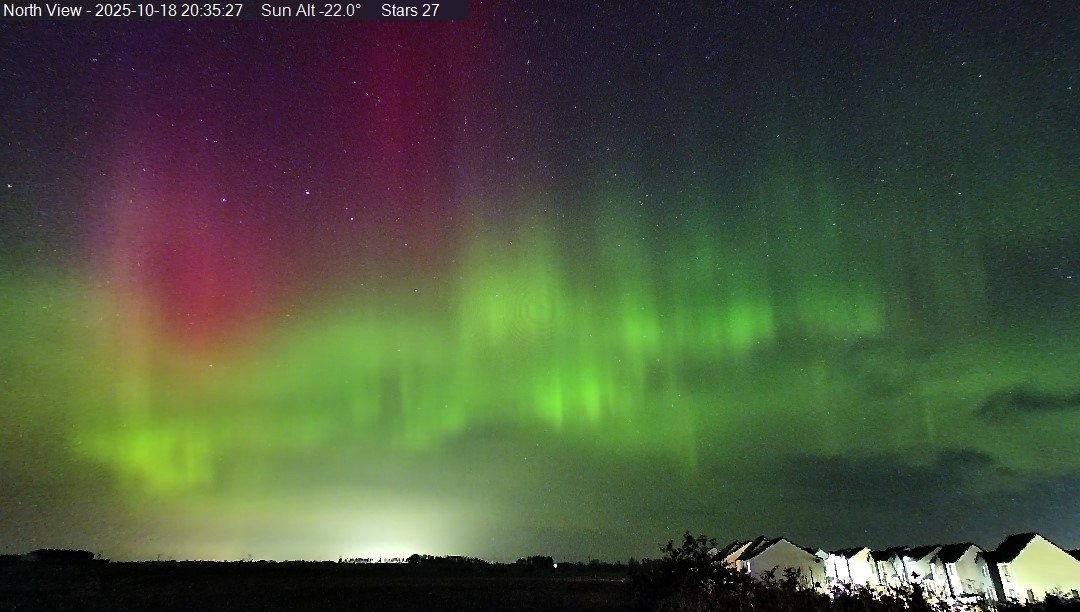

2025-10-18 19:35 UT (20:35 LT) Aurora

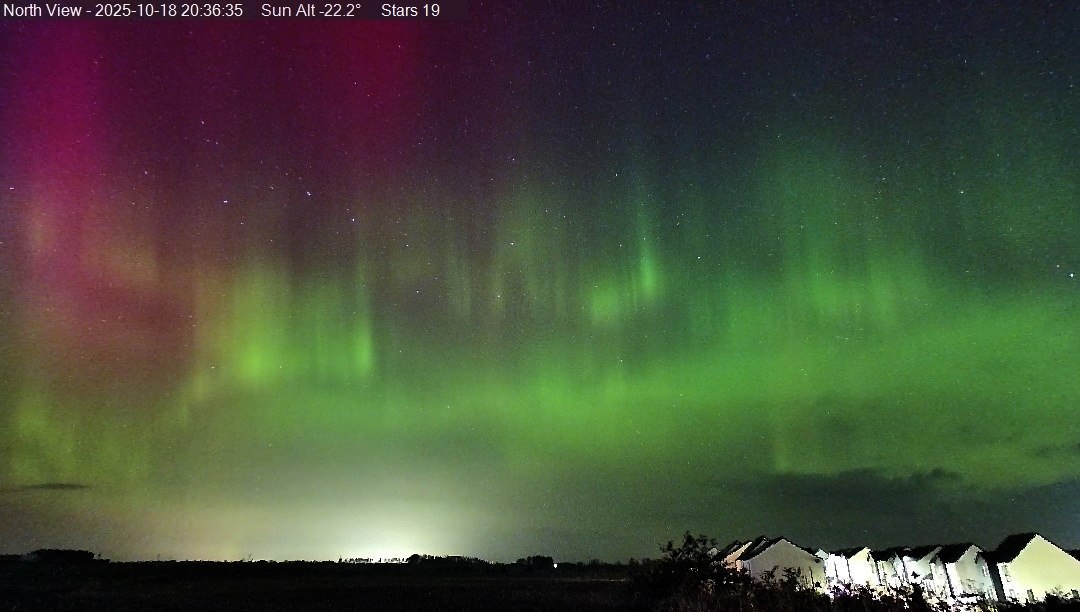

2025-10-18 19:36 UT (20:36 LT) Aurora

2025-10-18 19:43 UT (20:43 LT) Aurora

2025-10-18 19:48 UT (20:48 LT) Aurora

2025-10-18 19:52 UT (20:52 LT) Aurora

2025-10-18 20:01 UT (21:01 LT) Aurora

2025-10-18 20:41 UT (21:41 LT) Aurora

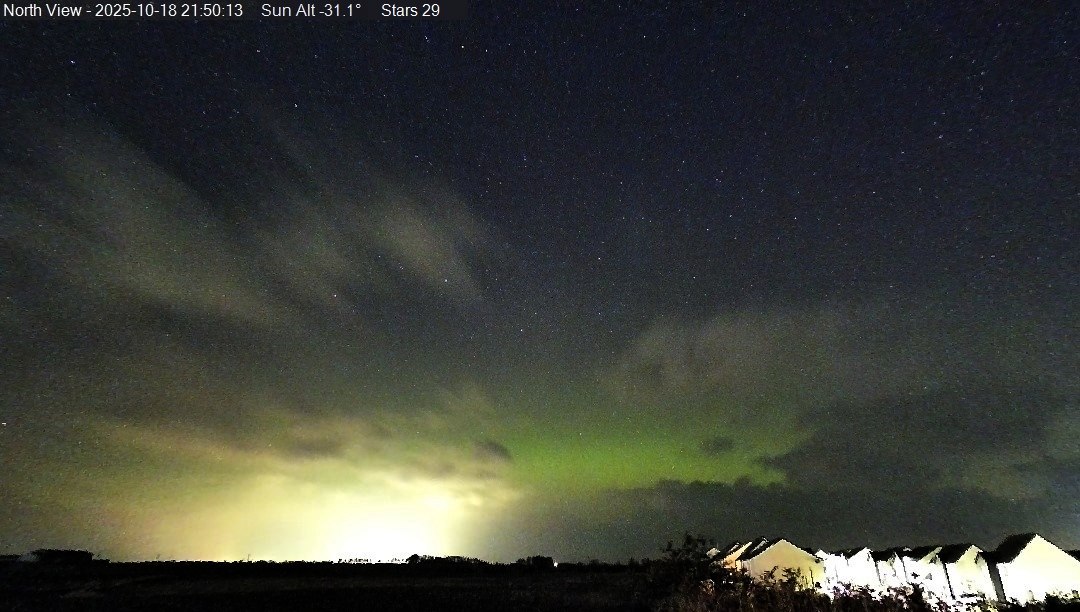

2025-10-18 20:50 UT (21:50 LT) Aurora

2025-10-18 21:07 UT (22:07 LT) Aurora

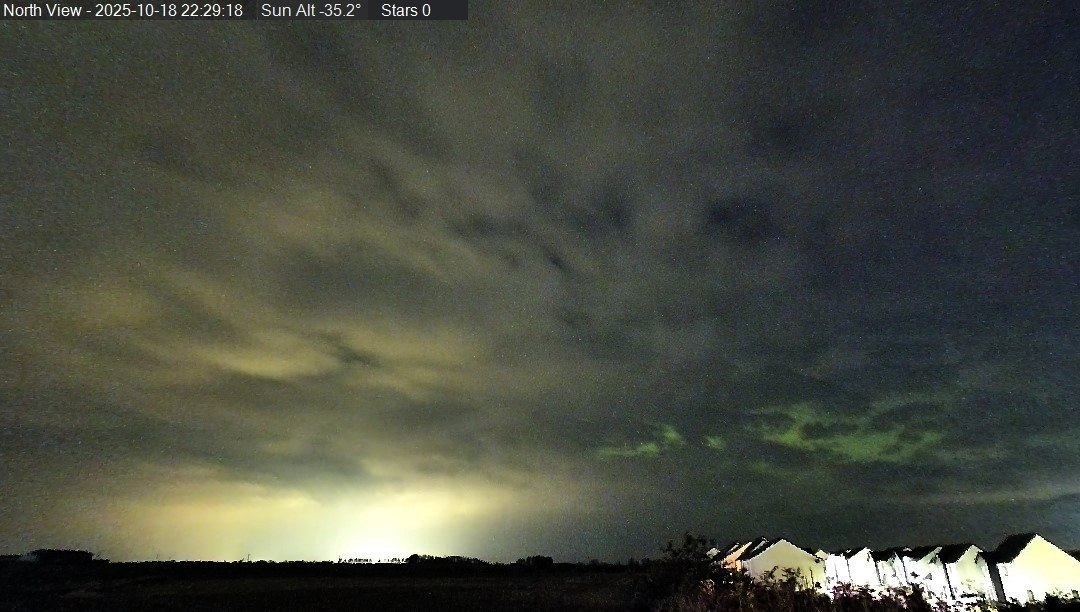

2025-10-18 21:29 UT (22:29 LT) Aurora

2025-10-19 00:25 UT (01:25 LT) Cloud Cover prevents seeing probable aurora associated with secondary geomagnetic peak seen on Scandinavian Magnetometers

15s frames taken with Tapo C325WB Colour Camera vs 30s wider-field exposures taken with Oculus All Sky Camera

Back to Top

 Videos

Back to Top

Magnetometer Plots

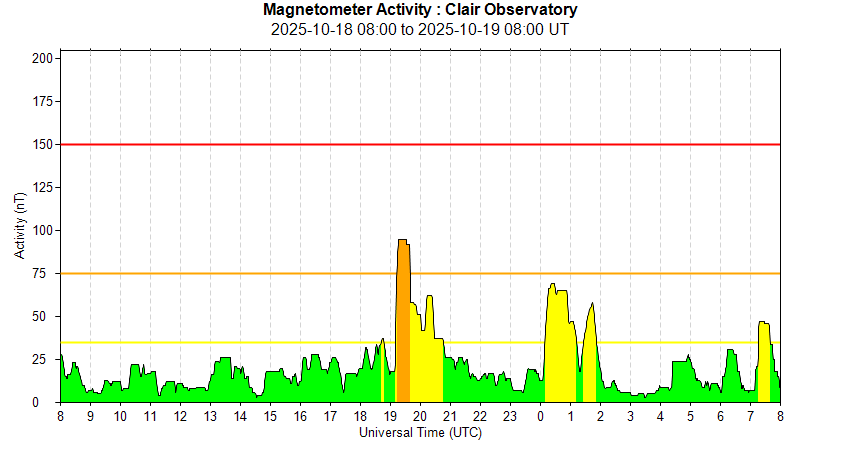

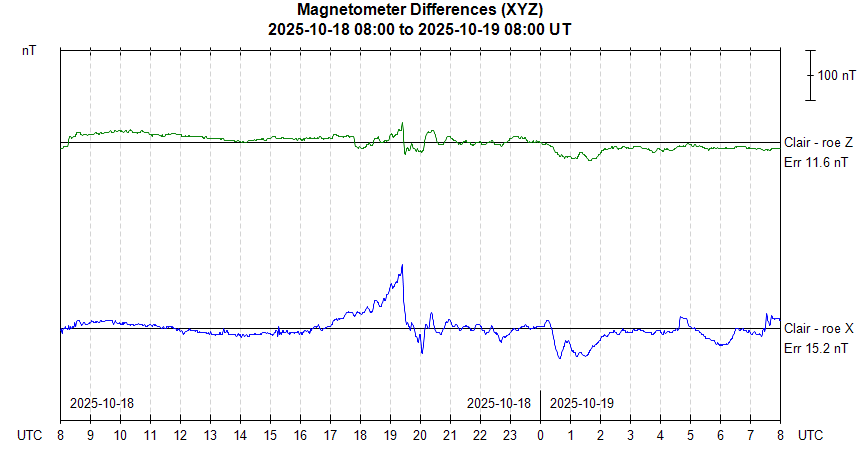

Magnetometer Plots from Observatory's Geomagnetic Station

Sumburgh data (sum) from SAMNet UK/AuroraWatch UK Solund (sol) & Karmoy (kar) data from TGO (Tromsø Geophysical Observatory) Brorfelde (bfe) data from DTU Space (Technical University of Denmark)

Back to Top

Magnetometer Stack Plots (for reference)

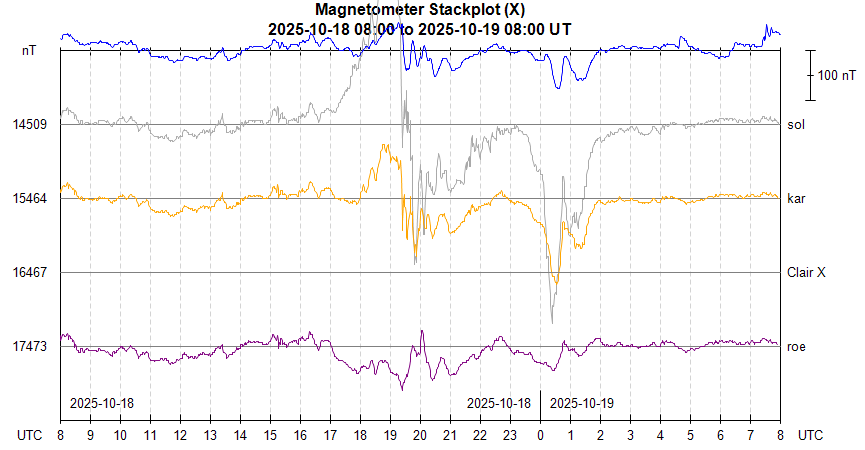

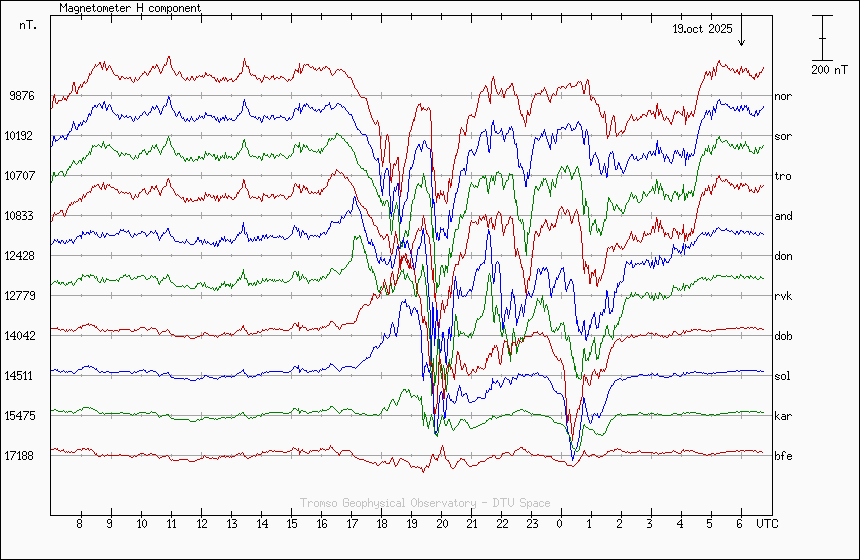

Magnetometer Stack Plots from Scandinavia (ordered by latitude) H Component - 2025-10-18 / 2025-10-19 Activity from 18:00 to 04:00 UT with major peak in activity at 19:30 to 20:30 UT and secondary peak at 00:00 to 01:00 Note: Geomagnetometer activity at rvk (Rorvik, 64.95N), dob (Dombas, 62.07N), sol (Solund, 61.08N) and kar (Karmoy, 59.21N) stations are used as indicators for potential auroral activity that may be visible from my Observatory situated at latitude 57.32N  (Map of Stations)

Graphed using 'make your own graph' facilities at  https://flux.phys.uit.no/compose/   (Tromsø Geophysical Observatory  ) Original data from Tromsø Geophysical Observatory (TGO), DTU Space (Technical University of Denmark) and Finnish Meteorological Institute (FMI) Data also displayed on SpaceWeatherLive's Europe Stackplot at  http://www.spaceweatherlive.com/en/auroral-activity/magnetometers).

Back to Top

Planetary K-Index Plot (for reference)

Estimated 3 hour Planetary K-Index (NOAA)  (from http://services.swpc.noaa.gov) Planetary-k-index_2025-10-18 / 2025-10-19 Not captured

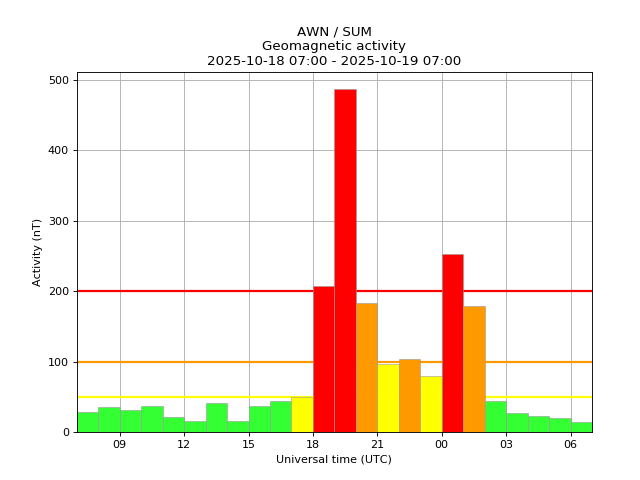

SAMNET's magnetometer at Sumburgh, Shetland  (Chart Explanation)  - Geomagnetic activity on the night 2025-10-18 / 2025-10-19 Plot shows elevated activity from 18:00 to 02:00 UT with peak at 19:00 to 20:00 UT and a secondary peak at 00:00 to 01:00.

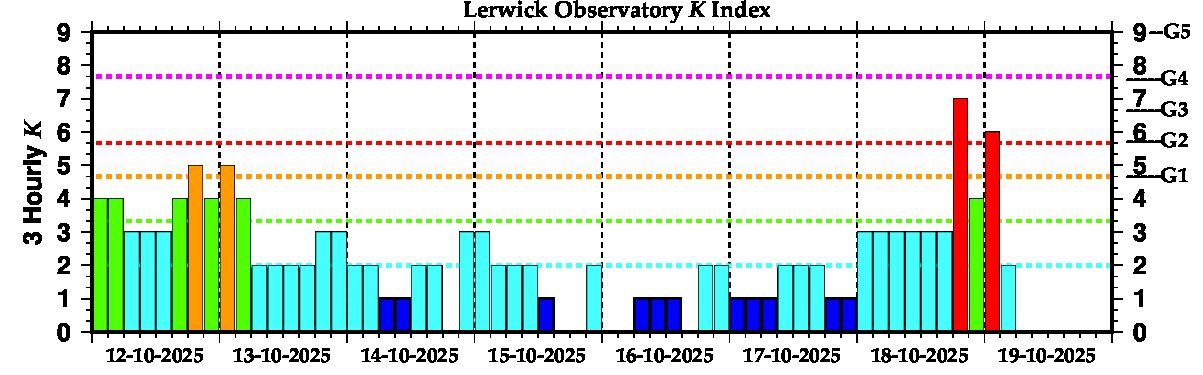

8-day Lerwick Observatory K Index Showing max K7 on the night 2025-10-18 / 2025-10-19

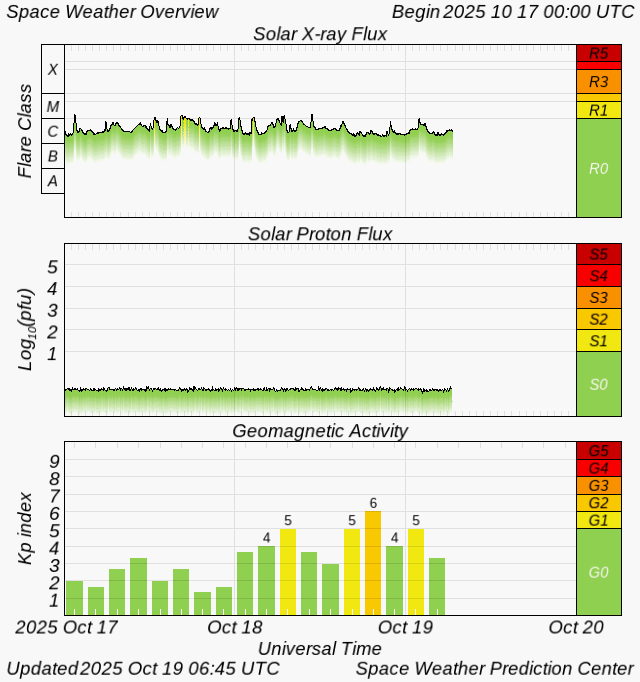

Planetary K-Index and other information (Space Weather Prediction Centre) shows maximum Kp4+ during the night 2025-10-18 / 2025-10-19

Back to Top

Aurora Forecast, NOAA/Ovation (for reference)

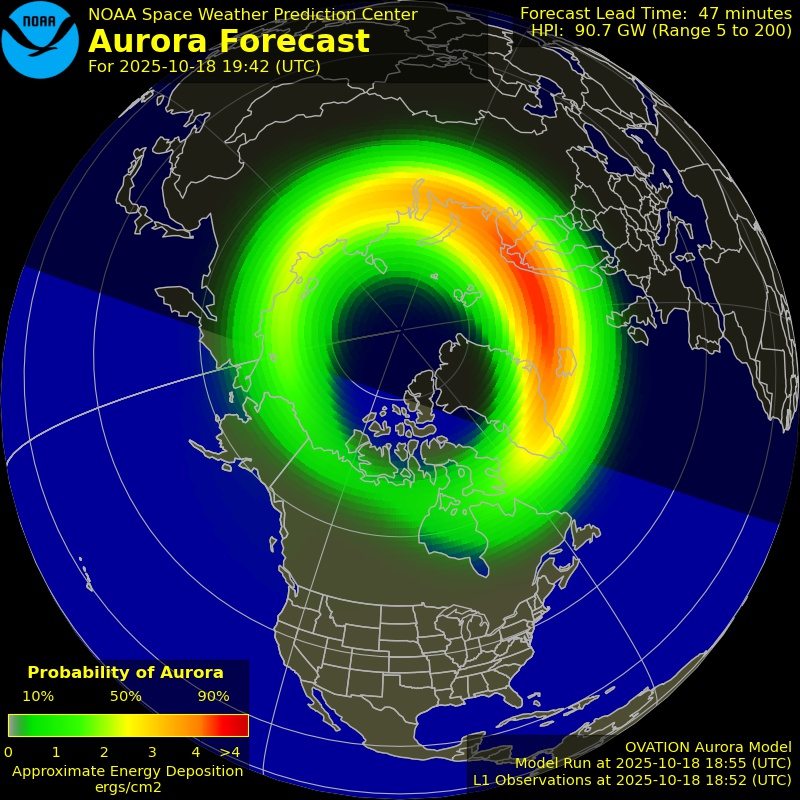

Aurora Forecast for 2025-10-18 19:42 UT (20:42 LT) (From Space Weather Prediction Centre,  http://www.swpc.noaa.gov )
