Session Aims & Highlights (2025-11-25)

Main aims

1. Targets.  Acquire images of a selection of variable stars, nearby stars, comets & deep sky targets as allowed by sky conditions.
2. C/2025 K1 (ATLAS) - Acquire images of comet C/2025 K1 (ATLAS), attempt to image the recently annouched split in comet, and new objects C/2025 K1-B & C/2025 K1-C
3. 3I/ATLAS - Acquire images of the interstellar comet 3I/ATLAS (alias C/2025 N1 (ATLAS)
4. AstroMain - Check fixes added to AstroMain 3.78.9 for fixing issue with failed telescope slews and Dome Reconnection after a Dome Restart.

 Equipment & Software

• 12" LX200 and ST-10XME
• 80mm APO and ZWO ASI 178MC
• TheSky6 6.0.0.65, CCDSoft 5.00.201, DeviceHub 7.1.0.4707, MeadeGeneric 1.3.12.522, UPB 3,  Pulsar Dome Firmware 1.51 & Driver 6.3.10
• Pegasus-UI 2.10, Peg-Focuser 2.10, Peg-Switch 2.10, TCF-LSI 3.3.5
• SharpCap 3.2, PHD2  2.6.13, Siril 1.0.6, deCONZ 1.18.2, ASCOM 7.1.0.4707
• [ DomeLink 1.0 / 1.1 - not used ]

• AstroMain 3.78.9,  AstroPlan 1.44, AstroShCap 1.3.16, AstroGuard 1.12 (1.12.1 ?)  (any new items or versions in bold)
  AstroMag 1.5.12, AstroVOE 1.15.1,  AstroSN 1.14,  AstroProtect 1.10.6,  AstroMove 1.16.3
  AstroWeather 1.29.1, AstroAllSky 3.26.1,  AstroObsCam 1.12.2, AstroNorthCam 1.7, AstroLaunch 1.14.3

Highlights

• Targets. 29/43 planned targets were completed, with a further 3 targets partially completed.  Other plans targets failed due cloud, session suspension or were displaced due to the acquistion ToO (3I/ATLAS).
• C/2025 K1 (ATLAS). Unable to acquire images of C/2025 K1 (ATLAS), as target has moved northwards beyond the Telescope's Declination Hard Limit.
• 3I/ATLAS. Images of 3I/ATLAS were successfully acquired in the pre-dawn hours as a manually supervised ToO target.
• CCD Camera.   There were no isues with the CCD Camera
•  Dome. No issues open/closing shutter. Dome was successfully parked at the end of the session

NotesNotes

Summary Plots & Logs

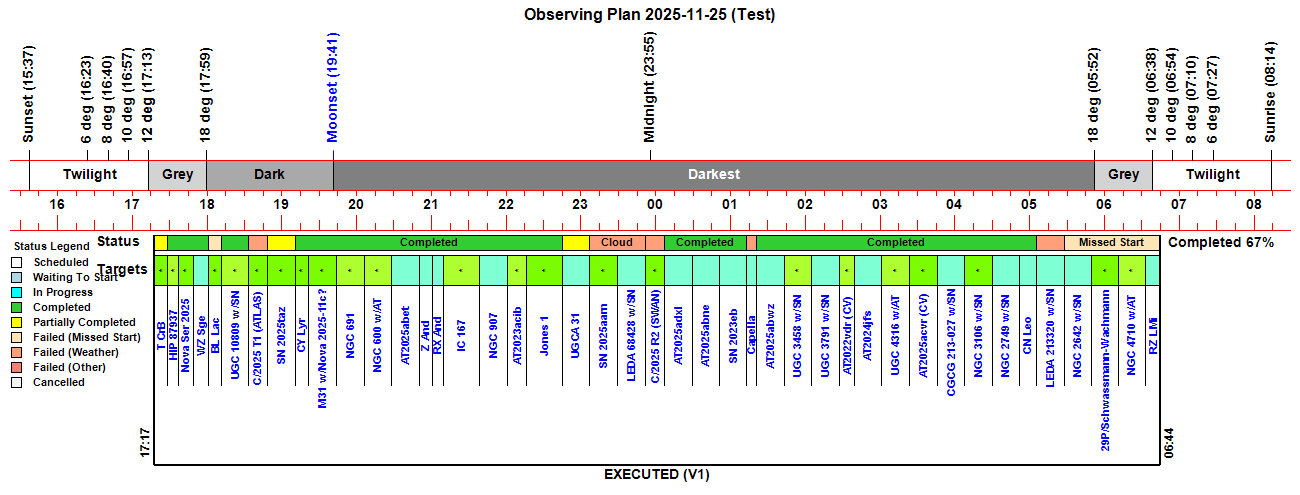

Observing Plan

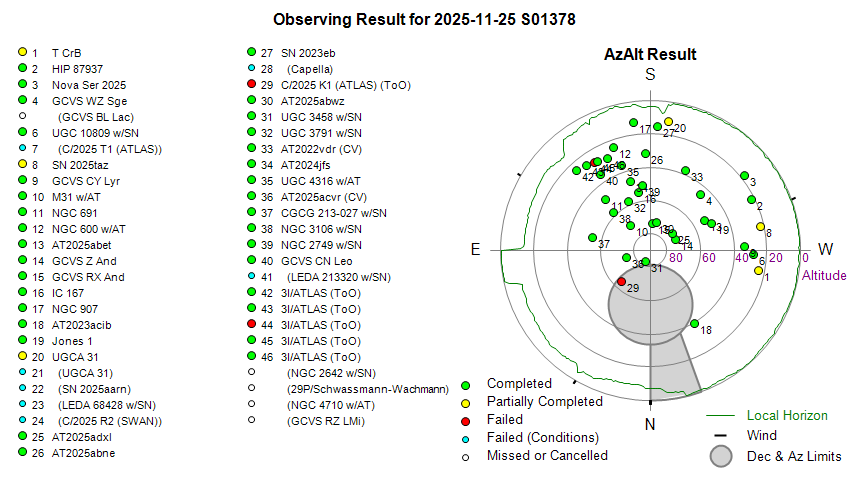

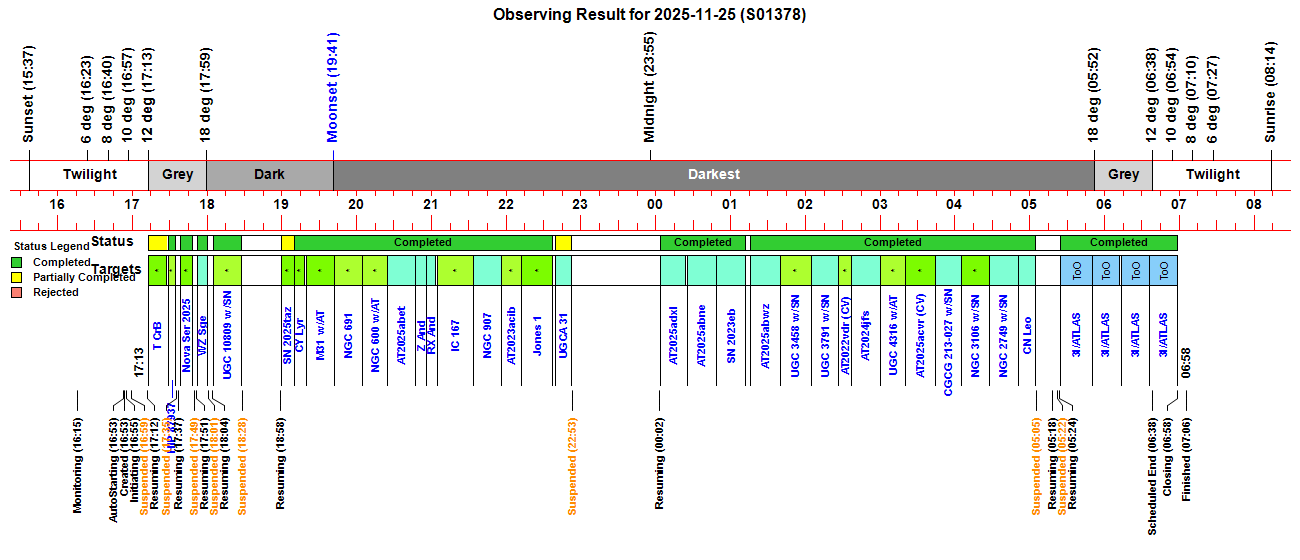

Observing Result

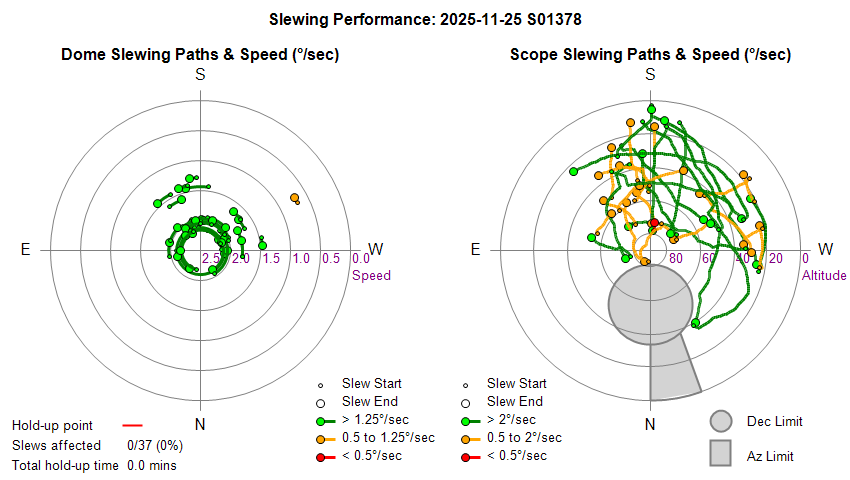

Dome & Scope Slewing Performance

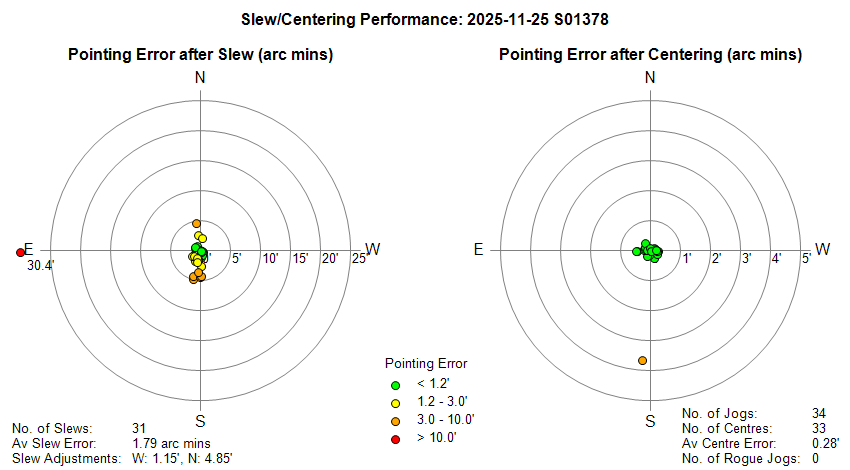

Slew/Centering Performance

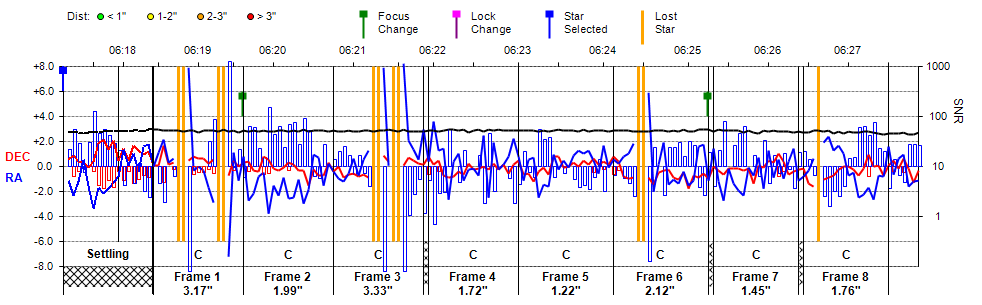

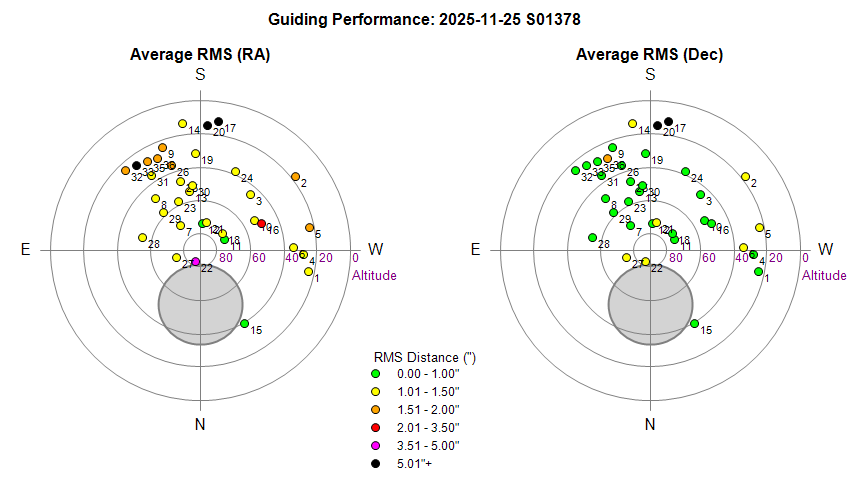

Guiding Performance

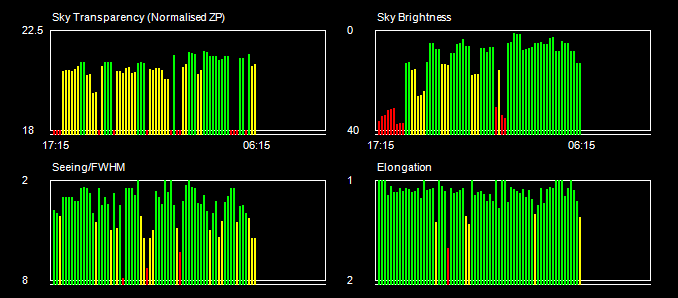

Sky Conditions (Locate Frames)

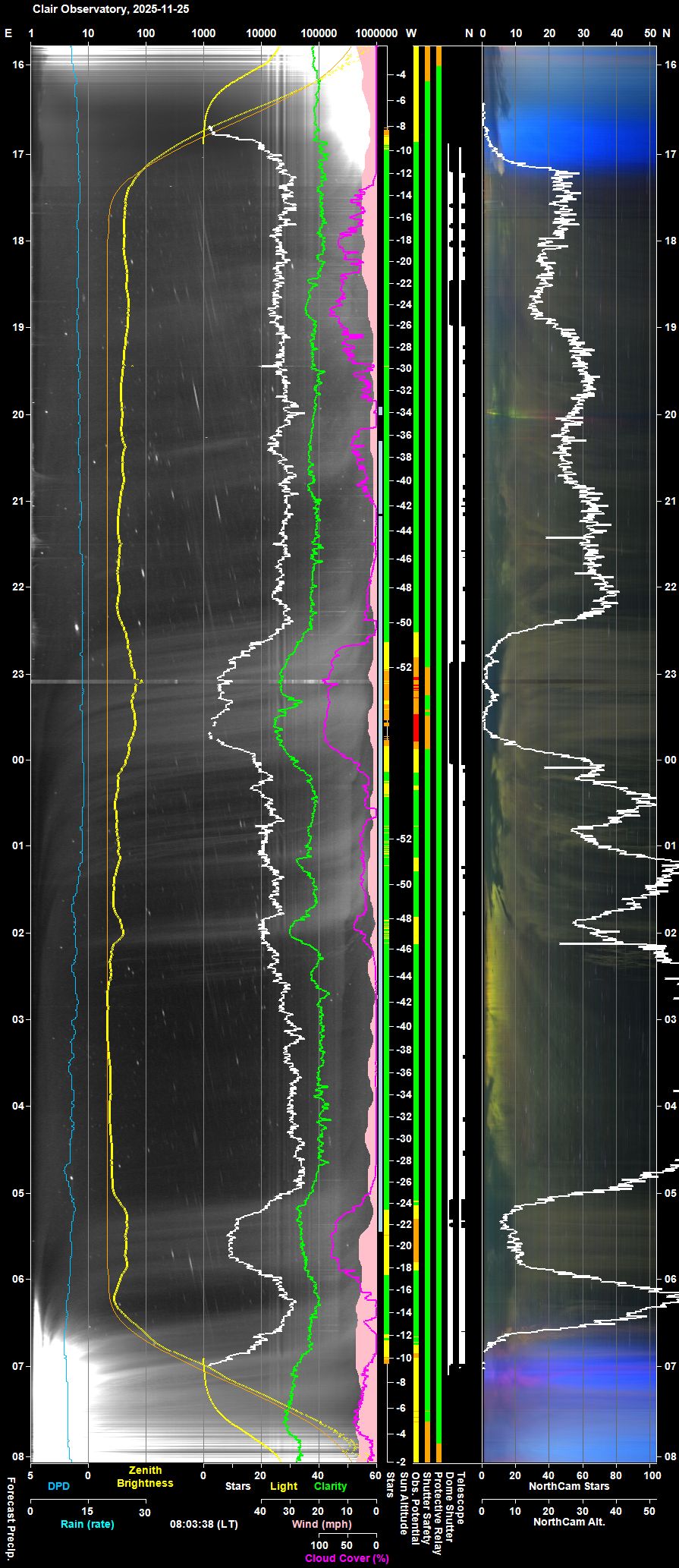

Night Sky Summary Plot Top axis: Sky Brightness at Zenith (in ADU/s) Lefthand axis: Local Time (hh LT). Righthand axis: Sun Altitude (degs) Note:  The NorthCam Star Count line is unreliable and should be ignored (The AstroNorthCam 'Find' Star method is producing many false positives from clouds)

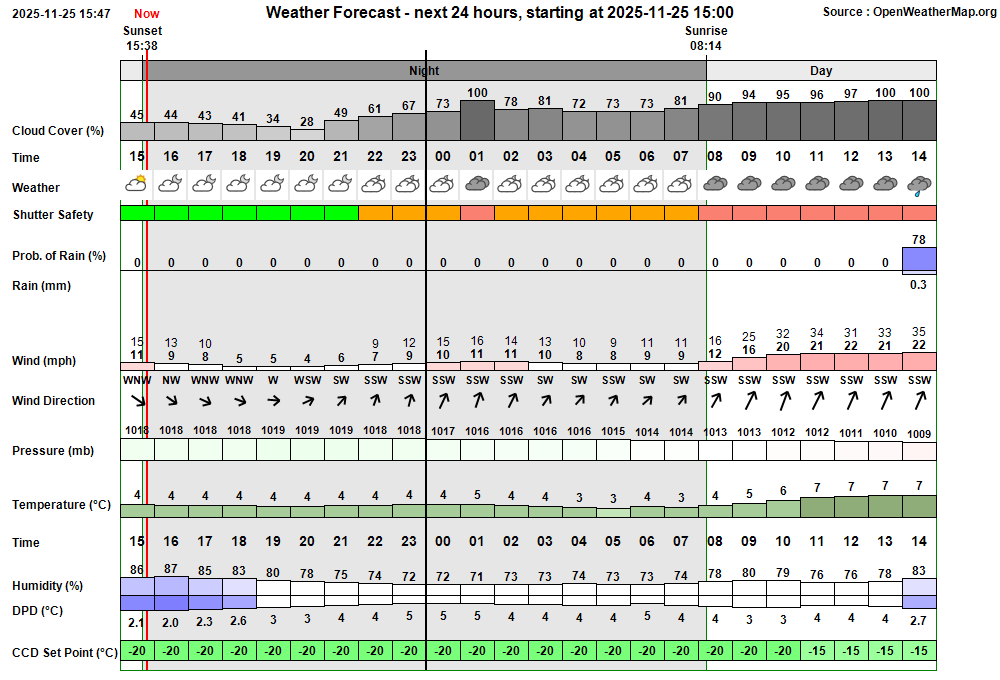

Actual Weather vs Pre-Session Weather Forecast

Session Event Log

Time     Event Detail 16:15:58 Session Monitoring AutoStart monitoring for Live Session opportunity between 16:25 & 06:16 16:16:02   AutoStart Waiting AutoStart waiting till earliest start time at 16:25 16:25:13   AutoStart Delayed Session delayed due to too few stars 16:53:05 Session AutoStarting Session autostarting (16:53) 16:53:18   CCDSoft Restarting CCDSoft being restarted (to set AutoSave No.) 16:53:33 Session Created Session Created (Live, 2025-11-25 S01378, ImageSaveNum: 1378001) 16:53:40   Scope Switched On Telescope Power has been switched on via UPB Switch 16:55:26   Services Started Observatory Services started 16:55:37 Observatory (Auto) Observatory placed in Fully-Automated Mode 16:55:39   AutoStart Delayed Session delayed due to too few stars 16:55:41 Session Pending Session pending (2025-11-25) 16:55:43 Session Initiating Session initiating (2025-11-25) 16:56:01   Camera1 Connected SBIG Camera connected (Set point -25°C) 16:56:04   Plan Requested Observing Plan requested from AstroPlan (1.44) 16:56:40   Plan Loaded Observing Plan loaded to queue (Plan ID: 1165) 16:57:21   Telescope Connected Telescope connected (TheSky6) 16:57:45 Session Equilibration Session ready to Open Dome 16:59:05   Wait On Weather Waiting for acceptable conditions 16:59:07 Session Suspending Session suspending 16:59:09   Dome Closed Dome already closed 16:59:11 Session Suspended Session suspended 16:59:38   Queue Started Observing Queue started (43 targets selected) 17:12:12 Session Resuming Session resuming 17:12:57   Dome Opened Dome opened (Opening time 45s, Zigbee 41s) 17:12:59 Session Running Session running 17:13:01   Queue Resumed Observing Queue resumed 17:13:03     Target Started (1/43) Target started (1/43, T CrB) 17:13:17       Dome Unparked Dome unparked 17:13:28       SoftSuspend Called Soft Suspend called due to Deteriorating Conditions (too few stars) 17:13:43       SoftSuspend Cancelled Soft Suspend is cancelled due to improved conditions 17:14:52       SoftSuspend Called Soft Suspend called due to Deteriorating Conditions (too few stars) 17:15:22       SoftSuspend Cancelled Soft Suspend is cancelled due to improved conditions 17:16:56       Focusing Started-Foc2 Foc2 Focusing Started (Secondary Scope, using ShCap) 17:17:32       SoftSuspend Called Soft Suspend called due to Deteriorating Conditions (too few stars) 17:18:33       SoftSuspend Cancelled Soft Suspend is cancelled due to improved conditions 17:19:00       Focusing Completed Foc2 AutoFocus Completed (Profile No 1, wide) 17:20:02       SoftSuspend Called Soft Suspend called due to Deteriorating Conditions (too few stars) 17:20:41       Focusing Completed Foc2 AutoFocus Completed (Profile No 1) 17:20:43       SoftSuspend Cancelled Soft Suspend is cancelled due to improved conditions 17:22:13       SoftSuspend Called Soft Suspend called due to Deteriorating Conditions (too few stars) 17:22:36       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S) 17:23:12       SoftSuspend Cancelled Soft Suspend is cancelled due to improved conditions 17:24:53       SoftSuspend Called Soft Suspend called due to Deteriorating Conditions (too few stars) 17:25:32       Focusing Completed Foc1 AutoFocus Completed (Profile No 2, wide) 17:25:53       SoftSuspend Cancelled Soft Suspend is cancelled due to improved conditions 17:27:34       Focusing Completed Foc1 AutoFocus Completed (Profile No 2) 17:28:37     Target Completed Target partially completed (1/43, T CrB) 17:28:41     Target Started (2/43) Target started (2/43, HIP 87937) 17:30:03       SoftSuspend Called Soft Suspend called due to Deteriorating Conditions (too few stars) 17:30:34       SoftSuspend Cancelled Soft Suspend is cancelled due to improved conditions 17:34:09       SoftSuspend Called Soft Suspend called due to Deteriorating Conditions (too few stars) 17:34:37     Target Completed Target completed (2/43, HIP 87937) 17:34:39   Queue Paused Queue paused for Session Suspension 17:34:41 Session Suspending Session suspending 17:35:29   Dome Closed Dome closed (Closing time 49s, Zigbee 43s) 17:35:31 Session Suspended Session suspended 17:37:29 Session Resuming Session resuming 17:38:14   Dome Opened Dome opened (Opening time 45s, Zigbee 41s) 17:38:17 Session Running Session running 17:38:19   Queue Resumed Observing Queue resumed 17:38:22     Target Started (3/43) Target started (3/43, Nova Ser 2025) 17:41:00       SoftSuspend Called Soft Suspend called due to Deteriorating Conditions (too few stars) 17:42:00       SoftSuspend Cancelled Soft Suspend is cancelled due to improved conditions 17:45:40       SoftSuspend Called Soft Suspend called due to Deteriorating Conditions (too few stars) 17:46:10       SoftSuspend Cancelled Soft Suspend is cancelled due to improved conditions 17:47:50       SoftSuspend Called Soft Suspend called due to Deteriorating Conditions (too few stars) 17:48:38     Target Completed Target completed (3/43, Nova Ser 2025) 17:48:40   Queue Paused Queue paused for Session Suspension 17:48:43 Session Suspending Session suspending 17:49:31   Dome Closed Dome closed (Closing time 50s, Zigbee 43s) 17:49:33 Session Suspended Session suspended 17:51:36 Session Resuming Session resuming 17:52:21   Dome Opened Dome opened (Opening time 45s, Zigbee 41s) 17:52:23 Session Running Session running 17:52:25   Queue Resumed Observing Queue resumed 17:52:27     Target Started (4/43) Target started (4/43, GCVS WZ Sge) 17:54:01       SoftSuspend Called Soft Suspend called due to Deteriorating Conditions (too few stars) 17:54:31       SoftSuspend Cancelled Soft Suspend is cancelled due to improved conditions 17:55:41       SoftSuspend Called Soft Suspend called due to Deteriorating Conditions (too few stars) 17:56:11       SoftSuspend Cancelled Soft Suspend is cancelled due to improved conditions 17:56:41       SoftSuspend Called Soft Suspend called due to Deteriorating Conditions (too few stars) 17:57:11       SoftSuspend Cancelled Soft Suspend is cancelled due to improved conditions 17:59:21       SoftSuspend Called Soft Suspend called due to Deteriorating Conditions (too few stars) 18:00:40     Target Completed Target completed (4/43, GCVS WZ Sge) 18:00:42   Queue Paused Queue paused for Session Suspension 18:00:44 Session Suspending Session suspending 18:01:32   Dome Closed Dome closed (Closing time 50s, Zigbee 43s) 18:01:34 Session Suspended Session suspended 18:04:32 Session Resuming Session resuming 18:05:13     Target Missed (5/43) Target's time slot was missed (5/43, GCVS BL Lac) 18:05:17   Dome Opened Dome opened (Opening time 45s, Zigbee 41s) 18:05:19 Session Running Session running 18:05:21   Queue Resumed Observing Queue resumed 18:05:24     Target Started (6/43) Target started (6/43, UGC 10809 w/SN2025vaw) 18:06:02       SoftSuspend Called Soft Suspend called due to Deteriorating Conditions (too few stars) 18:08:52       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S) 18:11:17       Focusing Completed Foc1 AutoFocus Completed (Profile No 3) 18:27:33     Target Completed Target completed (6/43, UGC 10809 w/SN2025vaw) 18:27:35   Queue Paused Queue paused for Session Suspension 18:27:37 Session Suspending Session suspending 18:28:24   Dome Closed Dome closed (Closing time 50s, Zigbee 44s) 18:28:27 Session Suspended Session suspended 18:43:08     Target Cancelled Target cancelled (7/43, C/2025 T1 (ATLAS)) due to cloud 18:58:58 Session Resuming Session resuming 18:59:43   Dome Opened Dome opened (Opening time 45s, Zigbee 41s) 18:59:46 Session Running Session running 18:59:48   Queue Resumed Observing Queue resumed 18:59:50     Target Started (8/43) Target started (8/43, SN 2025taz) 18:59:52       SoftSuspend Called Soft Suspend called due to Deteriorating Conditions (too few stars) 19:02:04       SoftSuspend Cancelled Soft Suspend is cancelled due to improved conditions 19:09:57     Target Completed Target partially completed (8/43, SN 2025taz) 19:10:01     Target Started (9/43) Target started (9/43, GCVS CY Lyr) 19:13:12       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S) 19:15:32       Focusing Completed Foc1 AutoFocus Completed (Profile No 4) 19:19:21     Target Completed Target completed (9/43, GCVS CY Lyr) 19:19:25     Target Started (10/43) Target started (10/43, M31 w/Nova M31 2025-11c?) 19:23:24       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S) 19:26:17       Focusing Completed Foc1 AutoFocus Completed (Profile No 5) 19:42:34     Target Completed Target completed (10/43, M31 w/Nova M31 2025-11c?) 19:42:38     Target Started (11/43) Target started (11/43, NGC 691) 19:46:12       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S) 19:48:37       Focusing Failed Foc1 focusing failed (failed QC check - RmsE) 20:03:40       SoftSuspend Called Soft Suspend called due to Deteriorating Conditions (too few stars) 20:04:09       SoftSuspend Cancelled Soft Suspend is cancelled due to improved conditions 20:04:41     Target Completed Target completed (11/43, NGC 691) 20:04:45     Target Started (12/43) Target started (12/43, NGC 600 w/AT2025abzu) 20:15:10       SoftSuspend Called Soft Suspend called due to Deteriorating Conditions (too few stars) 20:16:10       SoftSuspend Cancelled Soft Suspend is cancelled due to improved conditions 20:25:04     Target Completed Target completed (12/43, NGC 600 w/AT2025abzu) 20:25:08     Target Started (13/43) Target started (13/43, AT2025abet) 20:27:42       SoftSuspend Called Soft Suspend called due to Deteriorating Conditions (too few stars) 20:28:12       SoftSuspend Cancelled Soft Suspend is cancelled due to improved conditions 20:28:37       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S) 20:30:54       Focusing Completed Foc1 AutoFocus Completed (Profile No 7) 20:46:55     Target Completed Target completed (13/43, AT2025abet) 20:47:00     Target Started (14/43) Target started (14/43, GCVS Z And) 20:50:12       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S) 20:52:32       Focusing Completed Foc1 AutoFocus Completed (Profile No 8) 20:55:54     Target Completed Target completed (14/43, GCVS Z And) 20:55:58     Target Started (15/43) Target started (15/43, GCVS RX And) 20:58:54       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S) 21:01:10       Focusing Completed Foc1 AutoFocus Completed (Profile No 9) 21:03:43     Target Completed Target completed (15/43, GCVS RX And) 21:05:05     Target Started (16/43) Target started (16/43, IC 167) 21:08:39       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S) 21:11:18       Focusing Completed Foc1 AutoFocus Completed (Profile No 10) 21:26:13       SoftSuspend Called Soft Suspend called due to Deteriorating Conditions (too few stars) 21:26:42       SoftSuspend Cancelled Soft Suspend is cancelled due to improved conditions 21:33:54     Target Completed Target completed (16/43, IC 167) 21:33:58     Target Started (17/43) Target started (17/43, NGC 907) 21:39:45       Focusing Skipped Foc1 focusing skipped - star is lost (TCF-LSI) 21:56:09     Target Completed Target completed (17/43, NGC 907) 21:56:13     Target Started (18/43) Target started (18/43, AT2023acib) 22:00:43       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S) 22:03:14       Focusing Completed Foc1 AutoFocus Completed (Profile No 11) 22:12:06     Target Completed Target completed (18/43, AT2023acib) 22:12:10     Target Started (19/43) Target started (19/43, Jones 1) 22:15:11       Focusing Skipped Foc1 focusing skipped - star is lost (TCF-LSI) 22:24:14       SoftSuspend Called Soft Suspend called due to Deteriorating Conditions (too few stars) 22:25:14       SoftSuspend Cancelled Soft Suspend is cancelled due to improved conditions 22:25:49       SoftSuspend Called Soft Suspend called due to Deteriorating Conditions (too few stars) 22:27:59       SoftSuspend Cancelled Soft Suspend is cancelled due to improved conditions 22:29:39       SoftSuspend Called Soft Suspend called due to Deteriorating Conditions (too few stars) 22:29:54       SoftSuspend Cancelled Soft Suspend is cancelled due to improved conditions 22:37:33     Target Completed Target completed (19/43, Jones 1) 22:39:52     Target Started (20/43) Target started (20/43, UGCA 31) 22:46:44       Focusing Skipped Foc1 focusing skipped - unable to find a star (TCF-LSI) 22:52:06       SoftSuspend Called Soft Suspend called due to Deteriorating Conditions (too few stars) 22:52:08   Critical Cloud Alert Critical Cloud Alert (Obs.Manager will close the Dome) 22:52:10   HardSuspend Called Hard Suspend called due to Critical Conditions (cloud) 22:52:12     Target Aborted (20/43) Target aborted (20/43, UGCA 31) due to cloud 22:52:14   Queue Paused Queue paused for Session Suspension 22:52:16 Session Suspending Session suspending 22:53:01   Dome Closed Dome closed (Closing time 50s, Zigbee 44s) 22:53:03 Session Suspended Session suspended 22:59:08     Target Cancelled Target cancelled (20/43, UGCA 31) due to cloud 23:21:28     Target Cancelled Target cancelled (21/43, SN 2025aarn) due to cloud 23:43:28     Target Cancelled Target cancelled (22/43, LEDA 68428 w/SN2025acqv) due to cloud 00:01:06     Target Cancelled Target cancelled (23/43, C/2025 R2 (SWAN)) due to too few stars 00:02:48 Session Resuming Session resuming 00:03:33   Dome Opened Dome opened (Opening time 45s, Zigbee 42s) 00:03:35 Session Running Session running 00:03:37   Queue Resumed Observing Queue resumed 00:03:40     Target Started (24/43) Target started (24/43, AT2025adxl) 00:05:53       SoftSuspend Called Soft Suspend called due to Deteriorating Conditions (too few stars) 00:06:33       SoftSuspend Cancelled Soft Suspend is cancelled due to improved conditions 00:06:56       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S) 00:09:00       Focusing Completed Foc1 AutoFocus Completed (Profile No 12) 00:25:01     Target Completed Target completed (24/43, AT2025adxl) 00:25:06     Target Started (25/43) Target started (25/43, AT2025abne) 00:29:03       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S) 00:31:55       Focusing Completed Foc1 AutoFocus Completed (Profile No 13) 00:48:33     Target Completed Target completed (25/43, AT2025abne) 00:48:38     Target Started (26/43) Target started (26/43, SN 2023eb) 01:12:00     Target Completed Target completed (26/43, SN 2023eb) 01:12:04     Target Started (27/43) Target started (27/43, Capella) 01:14:09     Target Aborted (27/43) Target aborted (27/43, Capella) due to Priority 1 ToO Target 01:14:13     Target Started (28/44) Target started (28/44, C/2025 K1 (ATLAS), ToO) 01:14:18     Target Failed (28/44) Target failed due to dec limit (28/44, C/2025 K1 (ATLAS), ToO) 01:16:14     Target Started (29/44) Target started (29/44, AT2025abwz) 01:20:33       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S) 01:23:05       Focusing Completed Foc1 AutoFocus Completed (Profile No 14) 01:40:17     Target Completed Target completed (29/44, AT2025abwz) 01:40:21     Target Started (30/44) Target started (30/44, UGC 3458 w/SN2025yao) 01:45:36       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S) 01:47:52       Focusing Completed Foc1 AutoFocus Completed (Profile No 15) 02:05:16     Target Completed Target completed (30/44, UGC 3458 w/SN2025yao) 02:05:20     Target Started (31/44) Target started (31/44, UGC 3791 w/SN2025tsy) 02:26:24     Target Completed Target completed (31/44, UGC 3791 w/SN2025tsy) 02:26:29     Target Started (32/44) Target started (32/44, AT2022vdr (CV)) 02:36:49     Target Completed Target completed (32/44, AT2022vdr (CV)) 02:36:53     Target Started (33/44) Target started (33/44, AT2024jfs) 02:39:34   Telescope Slew Telescope slew has timed out after 2.5 minutes 03:00:24     Target Completed Target completed (33/44, AT2024jfs) 03:00:28     Target Started (34/44) Target started (34/44, UGC 4316 w/AT2025advo) 03:20:38     Target Completed Target completed (34/44, UGC 4316 w/AT2025advo) 03:20:42     Target Started (35/44) Target started (35/44, AT2025acvr (CV)) 03:24:58       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S) 03:27:24       Focusing Completed Foc1 AutoFocus Completed (Profile No 16) 03:44:32     Target Completed Target completed (35/44, AT2025acvr (CV)) 03:44:37     Target Started (36/44) Target started (36/44, CGCG 213-027 w/SN2025rdu) 04:05:08     Target Completed Target completed (36/44, CGCG 213-027 w/SN2025rdu) 04:05:12     Target Started (37/44) Target started (37/44, NGC 3106 w/SN2025aauj) 04:08:27       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S) 04:11:09       Focusing Completed Foc1 AutoFocus Completed (Profile No 17) 04:27:48     Target Completed Target completed (37/44, NGC 3106 w/SN2025aauj) 04:27:52     Target Started (38/44) Target started (38/44, NGC 2749 w/SN2025mve) 04:31:51       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S) 04:34:33       Focusing Completed Foc1 AutoFocus Completed (Profile No 18) 04:51:12     Target Completed Target completed (38/44, NGC 2749 w/SN2025mve) 04:51:16     Target Started (39/44) Target started (39/44, GCVS CN Leo) 05:03:37       SoftSuspend Called Soft Suspend called due to Deteriorating Conditions (too few stars) 05:04:17     Target Completed Target completed (39/44, GCVS CN Leo) 05:04:20   Queue Paused Queue paused for Session Suspension 05:04:22 Session Suspending Session suspending 05:05:12   Dome Closed Dome closed (Closing time 50s, Zigbee 44s) 05:05:15 Session Suspended Session suspended 05:18:28 Session Resuming Session resuming 05:19:14   Dome Opened Dome opened (Opening time 45s, Zigbee 42s) 05:19:16 Session Running Session running 05:19:18   Queue Resumed Observing Queue resumed 05:19:20       SoftSuspend Called Soft Suspend called due to Deteriorating Conditions (too few stars) 05:19:22     Target Started (40/44) Target started (40/44, LEDA 213320 w/SN2025tji) 05:21:07     Target Aborted (40/44) Target aborted (40/44, LEDA 213320 w/SN2025tji) due to Priority 1 ToO Target 05:21:09   Queue Paused Queue paused for Session Suspension 05:21:11 Session Suspending Session suspending 05:21:59   Dome Closed Dome closed (Closing time 50s, Zigbee 44s) 05:22:01 Session Suspended Session suspended 05:24:04 Session Resuming Session resuming 05:24:49   Dome Opened Dome opened (Opening time 45s, Zigbee 42s) 05:24:51 Session Running Session running 05:24:53   Queue Resumed Observing Queue resumed 05:24:56     Target Started (41/45) Target started (41/45, 3I/ATLAS, ToO) 05:50:21     Target Completed Target completed (41/45, 3I/ATLAS, ToO) 05:50:26     Target Started (42/46) Target started (42/46, 3I/ATLAS, ToO) 05:53:14       Focusing Skipped Foc1 focusing skipped - unable to find a star (TCF-LSI) 06:12:18     Target Completed Target completed (42/46, 3I/ATLAS, ToO) 06:12:22     Target Started (43/47) Target started (43/47, 3I/ATLAS, ToO) 06:13:45     Target Aborted (43/47) Target aborted (43/47, 3I/ATLAS, ToO) due to User Intervention 06:13:49     Target Started (44/48) Target started (44/48, 3I/ATLAS, ToO) 06:36:14     Target Completed Target completed (44/48, 3I/ATLAS, ToO) 06:36:18     Target Started (45/49) Target started (45/49, 3I/ATLAS, ToO) 06:38:40       Focusing Skipped Foc1 focusing skipped - unable to find a star (TCF-LSI) 06:58:40     Target Completed Target completed (45/49, 3I/ATLAS, ToO) 06:58:42     Target Missed (46/49) Target's time slot was missed (46/49, NGC 2642 w/SN2023aaby) 06:58:44     Target Missed (47/49) Target's time slot was missed (47/49, 29P/Schwassmann-Wachmann) 06:58:46     Target Missed (48/49) Target's time slot was missed (48/49, NGC 4710 w/AT2025acfi) 06:58:48     Target Missed (49/49) Target's time slot was missed (49/49, GCVS RZ LMi) 06:58:50   Queue Completed Job Queue completed 06:58:52 Session Closing Session closing 06:59:39   Dome Closed Dome closed (Closing time 50s, Zigbee 44s) 07:00:22   Dome Parked Dome parked (parking time 36s), Az: 90.1 deg 07:00:59   Telescope Parked Telescope parked (parking time 32s total) 07:01:28   Telescope State Handbox reads 'Scope parked Turn scope off.' 07:01:51   Telescope Switched Off Telescope Power has been switched off via UPB Switch. 07:03:36   Services Stopped Night Services stopped 07:03:39 Session Finishing Session Finishing started (Create Fits Summary, Transfer Files) 07:04:56     Dome (Find Park) Find Park started (Search Az 88.0 to 92.0°, Step 0.2°, Narrow) 07:05:41     Dome Find Park found (Best Park Az 90.6°) 07:05:46     Dome Dome has been synced at park position (Az 90.0°, Adjustment: -0.7°) 07:05:48   Dome Parked Dome parked 07:06:04   Dome Charging Dome is parked and re-charging Ok (14mA) 07:06:06 Session Finished Session Finished

Session Alerts & Alarms

Time     Type       Name Detail 02:39:34 Green Clear Telescope Slew Telescope slew has been successfully aborted following timeout 02:39:36 Yellow Alert Telescope Slew Telescope slew has timed out after 2.5 minutes 07:06:04 Green Clear Dome Charging Dome is parked and re-charging Ok (14mA)

Back to Top

Operational Issues (2025-11-25 S1378)

• Critical Issues (0)
• Major Issues (0)
• Minor Issues (1)
• Small Defects (2)
• Continuous Improvement (5)
• Figures (2)


Critical Issues

• None

Major Issues

• None

Minor Issues

• Telescope Slew to Target 33/44 timed out after 2.5 minutes and was aborted (02:39). A yellow 'Telescope Alert' alert was raised at 02:39:36 during slew to Target 33/44 AT2024jfs) with the message Telescope Slew Timed out after 2.5 minutes". The slew as automatically and successfully aborted. Although the slew left the telescope at around 30' away from the target, centering operations were successful and images were acquired as plan. Examining the Slew Path recorded by AstroMain's Slew Monitor showed that the telescope essenitally arrived at the target after just 13-15s, allowing for a typical settle time of 5s, the slew should have been completed by around 20s, but for some reason the Telescope continued to report Slewing= 1 (True). Examining the MeadeGeneric logs showed that the Telescope was indeed returning Slewing=True right up to the moment that telescope was aborted. It would seem the issue was caused by some glitch in the Telescope driver or more likely in the LX200 Telescope Firmware. Issue closed after review 2025-11-26. A number of potential improvements are suggested, such as being able to ascertain that the slew had basically reached the target and had exceeded a typical settle time, allowing the slew process to be aborted at an earlier point (say at  around 60s) rather than wait for a full 2.5 minutes before timing out. These have been put into a separate Continuous Improvement ticker.
  Fixed 2025-11-26 (Session, LX200 Telescope)

Small Defects

• The table showing 3 focus measurements after Foc2 AutoFocusing has incorrect field width for Max Pixel value. When performing AutoFocus for Foc2, and after reporting the Focus Profile, 3 further measurements are made at best focus position. The width of the Max pixel value is narrower than used for the Column Header ('Max).  Investigation show the issue was actually due to an extra 'Max' column header and the data columns widths were perfectly fine. Fixed in AstroMain 3.78.12.
  Fixed 2025-11-28 (AstroMain 3.78.12)

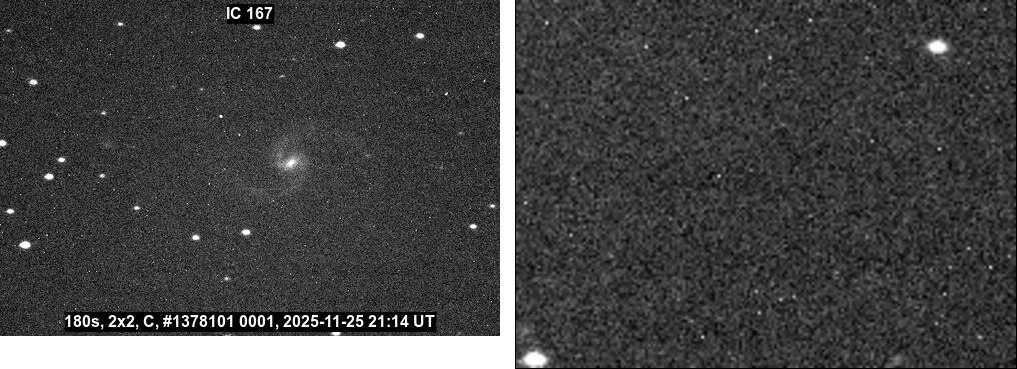

• The detailed JPG picture for Target IC167 is abnomally sized, lacks top/bottom annotation and isn't correctly zoomed in (21:11).  Realtime JPG picture shown for Target 16/43 (IC 167) are shown in Fig 2. Whilst the left hand image is the standard full frame view and is normal, the 'Detail' image on the right is anomalous. It is meant to show an annotated view that is zoomed in on the target (IC 167) and cropped to the same picture size (as left hand picture) or if IC 167's picture coordinates are unknown it should be zoomed in on the centre of the frame.  In this case the picture is zoomed into the bottom right hand part of the full frame, is unlabelled and is taller than expected. Both of the two locate frames were imag linked ok. Issue probably related to the fact that main frames were acquired as half frame / 2x2 images.   Realtime JPG pictures are produced from FITS images taken during live operations, and is developed/tested principally with 3x3 binned images, and whilst it has likely been tested on 2x2 binned frames, it has had little testing on images that are half frame or quarter frame. FITS images should be replayed in AstroMain AdHoc Imaging using TargetID 3698 and substituted Frames #1378099 to 1378107, and debugging used to identify and fix the bug.
  To investigate & fix 2025-11-27+ (AstroMain 3.78.10+)
