Session Aims & Highlights (2025-11-27)

Main aims

1. Targets.  Acquire images of a selection of variable stars, nearby stars, comets & deep sky targets as allowed by sky conditions.
2. 3I/ATLAS - Acquire images of the interstellar comet 3I/ATLAS (alias C/2025 N1 (ATLAS)
3. AstroMain - Check fixes added to AstroMain 3.78.9 for fixing issue with failed telescope slews and Dome Reconnection after a Dome Restart.

 Equipment & Software

• 12" LX200 and ST-10XME
• 80mm APO and ZWO ASI 178MC
• TheSky6 6.0.0.65, CCDSoft 5.00.201, DeviceHub 7.1.0.4707, MeadeGeneric 1.3.12.522, UPB 3,  Pulsar Dome Firmware 1.51 & Driver 6.3.10
• Pegasus-UI 2.10, Peg-Focuser 2.10, Peg-Switch 2.10, TCF-LSI 3.3.5
• SharpCap 3.2, PHD2  2.6.13, Siril 1.0.6, deCONZ 1.18.2, ASCOM 7.1.0.4707
• [ DomeLink 1.0 / 1.1 - not used ]

• AstroMain 3.78.10,  AstroPlan 1.44, AstroShCap 1.3.16, AstroGuard 1.12 (1.12.1 ?)  (any new items or versions in bold)
  AstroMag 1.5.12, AstroVOE 1.15.1,  AstroSN 1.14,  AstroProtect 1.10.6,  AstroMove 1.16.3
  AstroWeather 1.29.2, AstroAllSky 3.26.1,  AstroObsCam 1.12.2, AstroNorthCam 1.7.1, AstroLaunch 1.14.3

Highlights

• Targets. 22/43 planned targets were completed, with a further 8 targets partially completed.  In addition 3 ToO targets were completed.  Some planned targets failed due to high wind/session suspension and some targets were displaced / cancelled by ToO Targets. Some targets were affected by telescope wind shake and might even be rejected later.
• 3I/ATLAS. Images of 3I/ATALS were acquired in the pre-dawn hours as a manually entered ToO target. They unfortunately rather wind-effected
• Wind Storm.   The Observatory system coped well with the strong winds. Targets were automatically selected in directions that were out of the wind direction. The observatory  operated for much of the night, though wind threshold was overriden and elevated by user
• Power Cut.   There were a series of powercuts during the session (likely storm related), but the Observatory / UPS System / procedures coped with the power outages pretty well. There were a number of reporting defects or anomalies that need to investigated and fixed where necessary.
• CCD Camera.   There were no isues with the CCD Camera
•  Dome. No issues open/closing shutter. Dome was successfully parked at the end of the session

NotesNotes

• There were a series of power cuts during the session
    23:34:23 to 23:34:47
    23:34:52 to 23:39:51
    23:39:56 to 23:41:30
  Outage management was completed at


Summary Plots & Logs

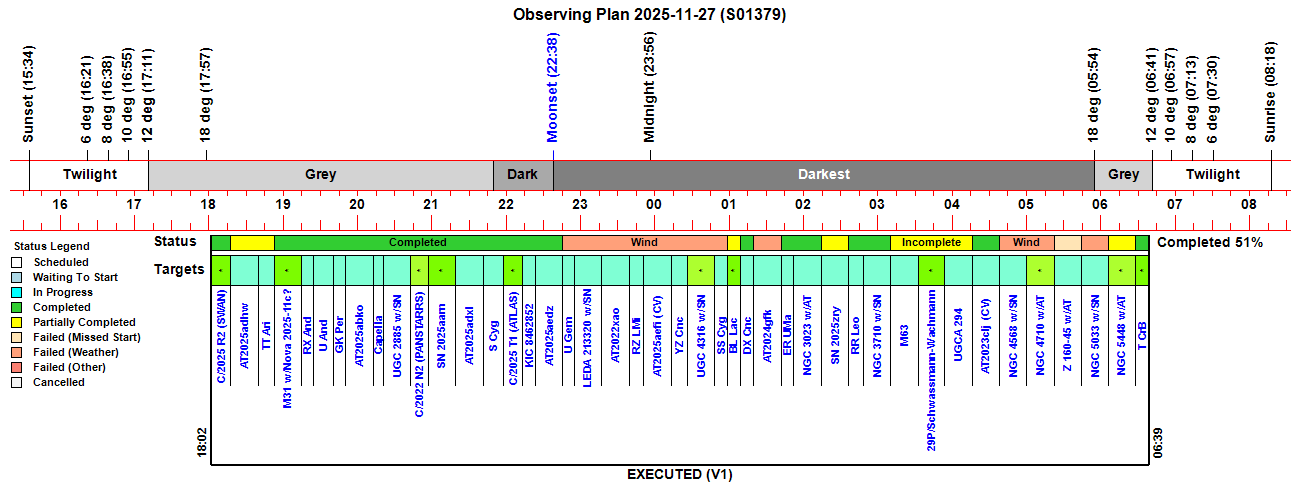

Observing Plan

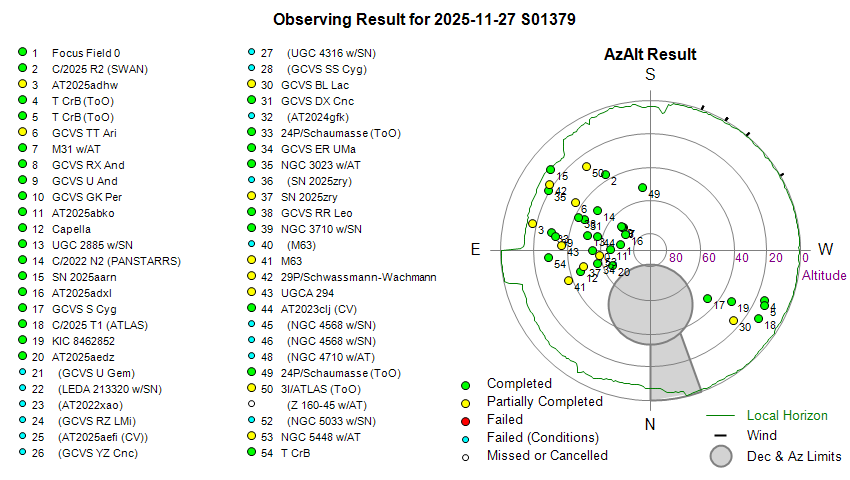

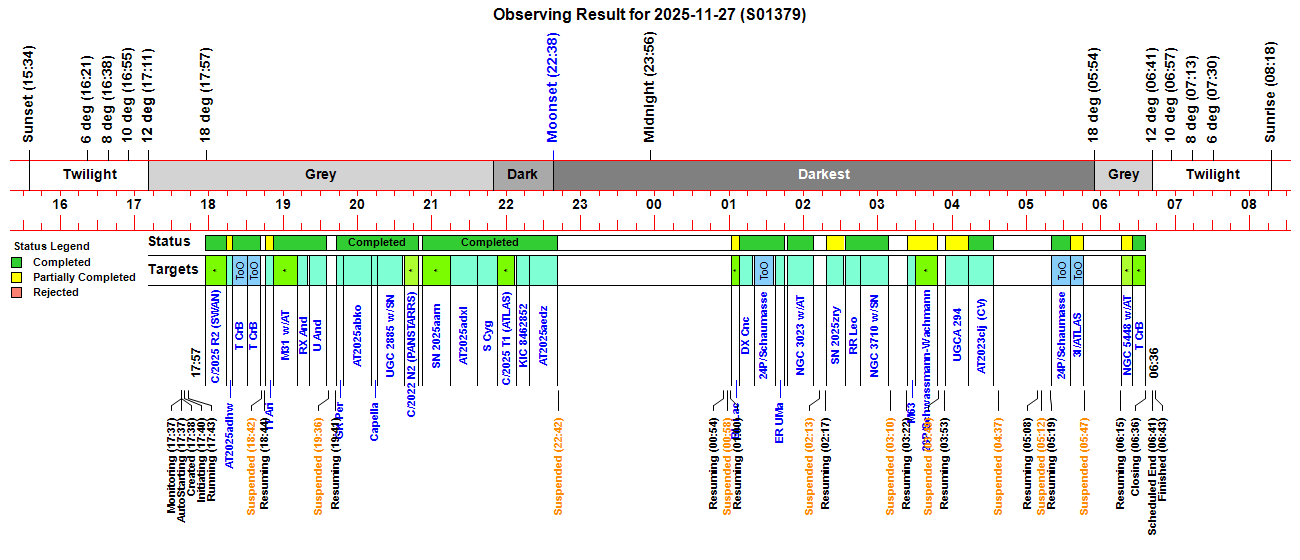

Observing Result

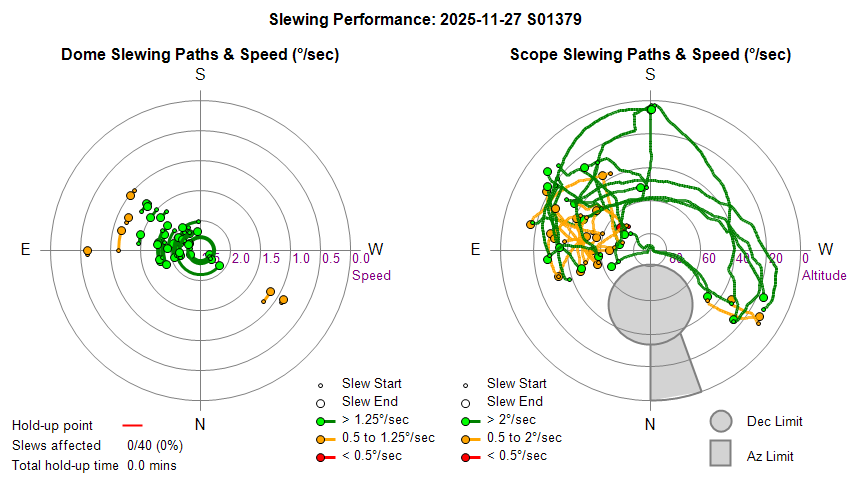

Dome & Scope Slewing Performance

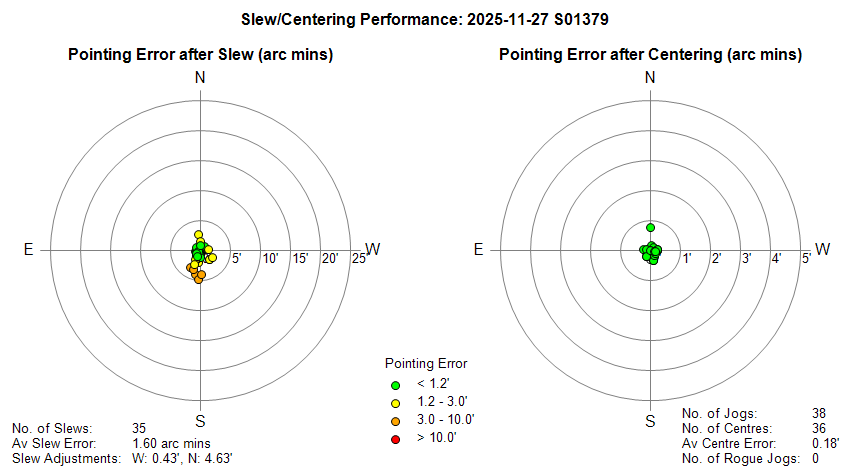

Slew/Centering Performance

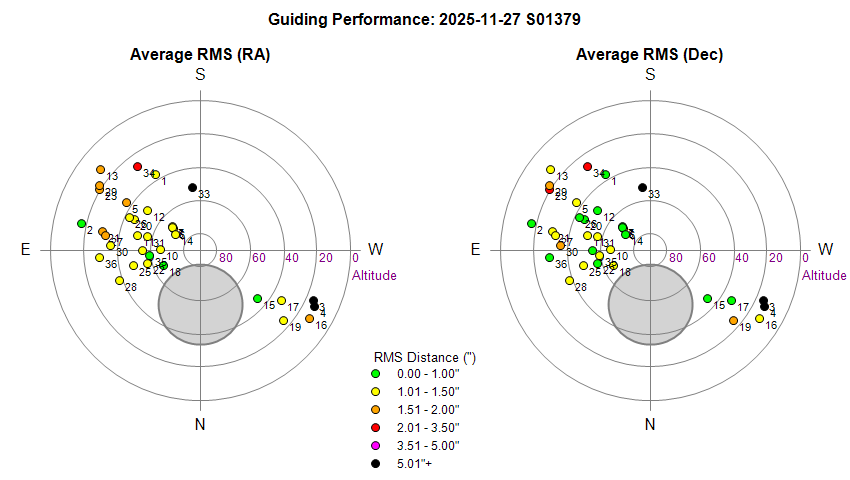

Guiding Performance

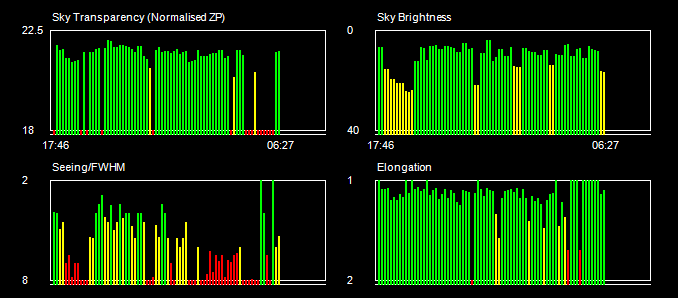

Sky Conditions (Locate Frames)

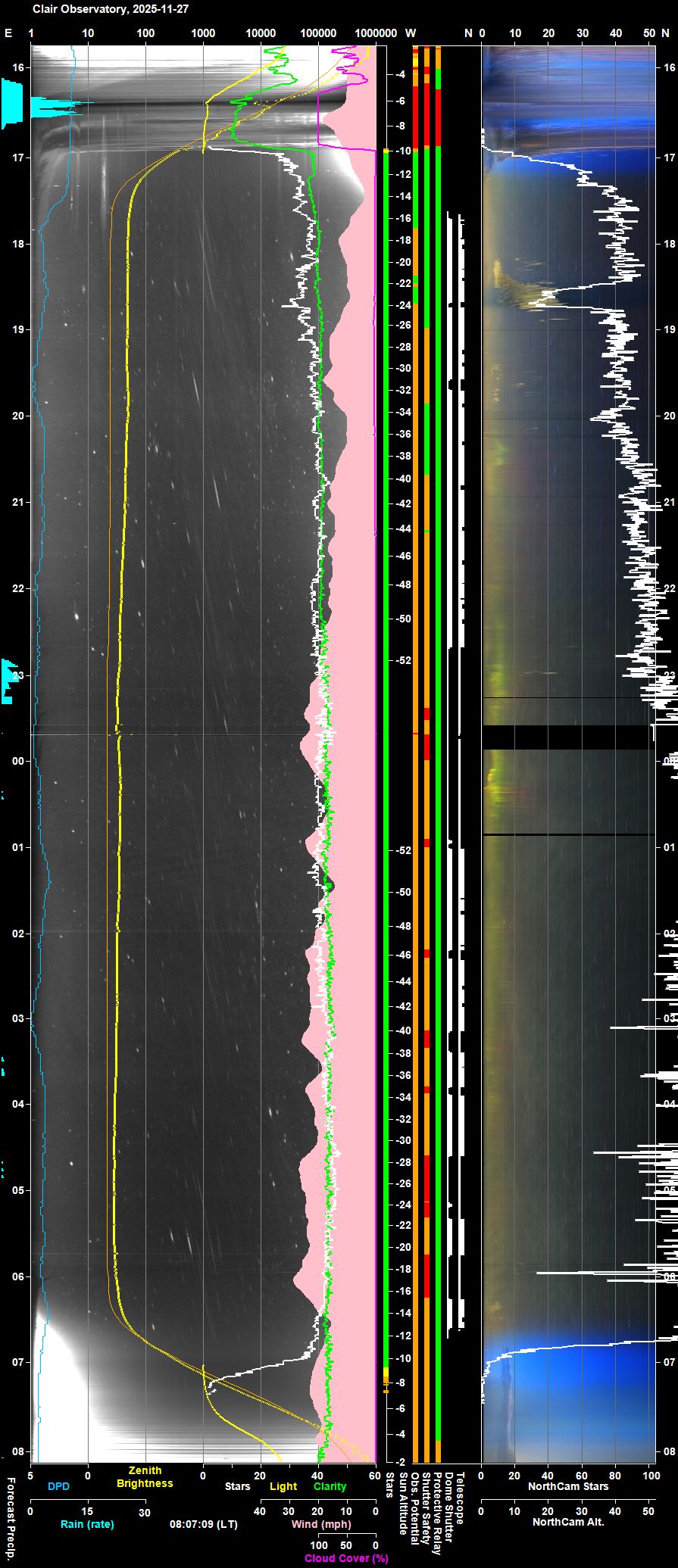

Night Sky Summary Plot Top axis: Sky Brightness at Zenith (in ADU/s) Lefthand axis: Local Time (hh LT). Righthand axis: Sun Altitude (degs) Note:  The NorthCam Star Count line is unreliable and should be ignored (The AstroNorthCam 'Find' Star method is producing many false positives from clouds)

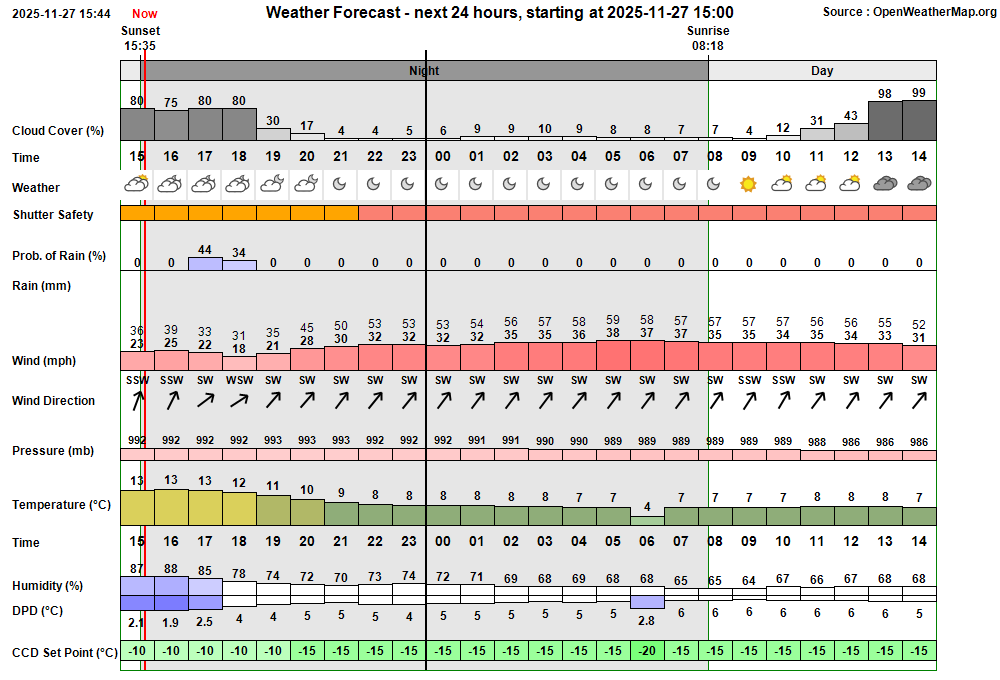

Actual Weather vs Pre-Session Weather Forecast

Session Event Log

Time     Event Detail 17:37:42 Session Monitoring AutoStart monitoring for Live Session opportunity between 17:37 & 06:19 17:37:43 Session AutoStarting Session autostarting (17:37) 17:37:55   CCDSoft Restarting CCDSoft being restarted (to set AutoSave No.) 17:38:10 Session Created Session Created (Live, 2025-11-27 S01379, ImageSaveNum: 1379001) 17:38:17   Scope Switched On Telescope Power has been switched on via UPB Switch 17:40:04   Services Started Observatory Services started 17:40:14 Observatory (Auto) Observatory placed in Fully-Automated Mode 17:40:18 Session Pending Session pending (2025-11-27) 17:40:20 Session Initiating Session initiating (2025-11-27) 17:40:39   Camera1 Connected SBIG Camera connected (Set point -15°C) 17:40:42   Plan Requested Observing Plan requested from AstroPlan (1.44) 17:41:22   Plan Loaded Observing Plan loaded to queue (Plan ID: 1166) 17:42:03   Telescope Connected Telescope connected (TheSky6) 17:42:28 Session Equilibration Session ready to Open Dome 17:43:14   Dome Opened Dome opened (Opening time 45s, Zigbee 40s) 17:43:44 Session Running Session running 17:43:47   Queue Started Observing Queue started (43 targets selected) 17:43:51     Target Started (NrZen) Target started (Focus Field 0, HIP 106) 17:44:05       Dome Unparked Dome unparked 17:47:30       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S) 17:49:57       Focusing Completed Foc1 AutoFocus Completed (Profile No 1, wide) 17:52:06       Focusing Completed Foc1 AutoFocus Completed (Profile No 1) 17:52:09       Focusing Started-Foc2 Foc2 Focusing Started (Secondary Scope, using ShCap) 17:54:11       Focusing Completed Foc2 AutoFocus Completed (Profile No 2, wide) 17:56:01       Focusing Completed Foc2 AutoFocus Completed (Profile No 2) 17:56:22     Target Completed (NrZen) Target completed (Focus Field 0, HIP 106) 17:57:11     Target Started (1/43) Target started (1/43, C/2025 R2 (SWAN)) 18:01:35       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S) 18:04:14       Focusing Completed Foc1 AutoFocus Completed (Profile No 3) 18:14:01     Target Completed Target completed (1/43, C/2025 R2 (SWAN)) 18:14:05     Target Started (2/43) Target started (2/43, AT2025adhw) 18:18:22       Focusing Skipped Foc1 focusing skipped - unable to find a star (TCF-LSI) 18:19:07     Target Aborted (2/43) Target aborted (2/43, AT2025adhw) due to Priority 1 ToO Target 18:19:11     Target Started (3/45) Target started (3/45, T CrB, ToO) 18:24:25       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S) 18:26:36       Focusing Completed Foc1 AutoFocus Completed (Profile No 4) 18:31:04     Target Completed Target completed (3/45, T CrB, ToO) 18:31:08     Target Started (4/45) Target started (4/45, T CrB, ToO) 18:33:09       SoftSuspend Called Soft Suspend called due to Deteriorating Conditions (too few stars) 18:33:34       SoftSuspend Cancelled Soft Suspend is cancelled due to improved conditions 18:34:14       SoftSuspend Called Soft Suspend called due to Deteriorating Conditions (too few stars) 18:41:13     Target Completed Target completed (4/45, T CrB, ToO) 18:41:15   Queue Paused Queue paused for Session Suspension 18:41:17 Session Suspending Session suspending 18:42:00   Dome Closed Dome closed (Closing time 45s, Zigbee 42s) 18:42:03 Session Suspended Session suspended 18:44:25 Session Resuming Session resuming 18:45:10   Dome Opened Dome opened (Opening time 45s, Zigbee 40s) 18:45:13 Session Running Session running 18:45:15   Queue Resumed Observing Queue resumed 18:45:16     Target Started (5/45) Target started (5/45, GCVS TT Ari) 18:52:19     Target Completed Target partially completed (5/45, GCVS TT Ari) 18:52:23     Target Started (6/45) Target started (6/45, M31 w/Nova M31 2025-11c?) 19:11:47     Target Completed Target completed (6/45, M31 w/Nova M31 2025-11c?) 19:11:51     Target Started (7/45) Target started (7/45, GCVS RX And) 19:14:57       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S) 19:17:39       Focusing Completed Foc1 AutoFocus Completed (Profile No 5) 19:20:41     Target Completed Target completed (7/45, GCVS RX And) 19:20:45     Target Started (8/45) Target started (8/45, GCVS U And) 19:23:50       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S) 19:26:07       Focusing Failed Foc1 focusing failed (failed QC check - RmsE) 19:32:50       SoftSuspend Called Soft Suspend called due to Deteriorating Conditions (wind) 19:35:12     Target Completed Target completed (8/45, GCVS U And) 19:35:14   Queue Paused Queue paused for Session Suspension 19:35:16 Session Suspending Session suspending 19:36:06   Dome Closed Dome closed (Closing time 50s, Zigbee 42s) 19:36:08 Session Suspended Session suspended 19:41:51 Session Resuming Session resuming 19:42:36   Dome Opened Dome opened (Opening time 45s, Zigbee 40s) 19:42:38 Session Running Session running 19:42:40   Queue Resumed Observing Queue resumed 19:42:42     Target Started (9/45) Target started (9/45, GCVS GK Per) 19:43:22       SoftSuspend Called Soft Suspend called due to Deteriorating Conditions (too few stars) 19:44:01       SoftSuspend Cancelled Soft Suspend is cancelled due to improved conditions 19:48:48     Target Completed Target completed (9/45, GCVS GK Per) 19:48:53     Target Started (10/45) Target started (10/45, AT2025abko) 19:50:42       SoftSuspend Called Soft Suspend called due to Deteriorating Conditions (too few stars) 19:51:27       SoftSuspend Cancelled Soft Suspend is cancelled due to improved conditions 19:52:08       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S) 19:54:36       Focusing Completed Foc1 AutoFocus Completed (Profile No 7) 20:11:10     Target Completed Target completed (10/45, AT2025abko) 20:11:14     Target Started (11/45) Target started (11/45, Capella) 20:15:44     Target Completed Target completed (11/45, Capella) 20:15:48     Target Started (12/45) Target started (12/45, UGC 2885 w/SN2025aant) 20:16:04       Dome Unparked Dome unparked 20:19:02       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S) 20:21:25       Focusing Completed Foc1 AutoFocus Completed (Profile No 8) 20:37:26     Target Completed Target completed (12/45, UGC 2885 w/SN2025aant) 20:37:30     Target Started (13/45) Target started (13/45, C/2022 N2 (PANSTARRS)) 20:40:49       Focusing Skipped Foc1 focusing skipped - star is lost (TCF-LSI) 20:49:10     Target Completed Target completed (13/45, C/2022 N2 (PANSTARRS)) 20:52:07     Target Started (14/45) Target started (14/45, SN 2025aarn) 20:58:16       Focusing Skipped Foc1 focusing skipped - unable to find a star (TCF-LSI) 21:14:42     Target Completed Target completed (14/45, SN 2025aarn) 21:14:47     Target Started (15/45) Target started (15/45, AT2025adxl) 21:18:09       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S) 21:20:28       Focusing Completed Foc1 AutoFocus Completed (Profile No 9) 21:36:44     Target Completed Target completed (15/45, AT2025adxl) 21:36:48     Target Started (16/45) Target started (16/45, GCVS S Cyg) 21:41:06       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S) 21:43:43       Focusing Completed Foc1 AutoFocus Completed (Profile No 10) 21:53:08     Target Completed Target completed (16/45, GCVS S Cyg) 21:53:13     Target Started (17/45) Target started (17/45, C/2025 T1 (ATLAS)) 21:57:27       Focusing Skipped Foc1 focusing skipped - star is too dim (TCF-LSI) 22:07:14     Target Completed Target completed (17/45, C/2025 T1 (ATLAS)) 22:08:16     Target Started (18/45) Target started (18/45, KIC 8462852) 22:11:50       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S) 22:14:33       Focusing Completed Foc1 AutoFocus Completed (Profile No 11) 22:18:37     Target Completed Target completed (18/45, KIC 8462852) 22:18:41     Target Started (19/45) Target started (19/45, AT2025aedz) 22:22:27       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S) 22:25:03       Focusing Completed Foc1 AutoFocus Completed (Profile No 12) 22:29:48       SoftSuspend Called Soft Suspend called due to Deteriorating Conditions (wind) 22:41:17     Target Completed Target completed (19/45, AT2025aedz) 22:41:19   Queue Paused Queue paused for Session Suspension 22:41:22 Session Suspending Session suspending 22:42:25   Dome Closed Dome closed (Closing time 65s, Zigbee 43s) 22:42:27 Session Suspended Session suspended 22:49:18     Target Cancelled Target cancelled (20/45, GCVS U Gem) due to wind 23:09:03     Target Cancelled Target cancelled (21/45, LEDA 213320 w/SN2025tji) due to wind 23:31:23     Target Cancelled Target cancelled (22/45, AT2022xao) due to wind 23:34:23   Power Supply Mains Power Outage at 23:34:23 23:34:24   Power Supply Beginning Mains Power Outage Management 23:34:26   LAN LAN/Router Connection has stopped (last successful ping at 2025-11-27 23:34:21) 23:34:46   Power Supply Mains Power restored at 23:34:46 (outage time 23s) 23:34:47   UPS System UPS running on Mains Power at 23:34:47 (outage time Unknown) 23:34:52   Power Supply Mains Power Outage at 23:34:52 23:39:50   UPS System UPS running on Mains Power at 23:39:49 (outage time 5.0 min) 23:39:53   Power Supply Mains Power restored at 23:39:51 (outage time 5.0 mins) 23:39:56   Power Supply Mains Power Outage at 23:39:56 23:41:18   Telescope Parked Telescope parked (parking time 45s total) 23:41:30   Power Supply Mains Power restored at 23:41:30 (outage time 1.6 mins) 23:41:32   UPS System UPS running on Mains Power at 23:41:32 (outage time 1.5 min) 23:41:48   Telescope State Handbox reads 'Scope parked Turn scope off.' 23:42:24   LAN LAN/Router Connection is active again (outage 8.1 mins) 23:43:15   Telescope Switched Off Telescope Power has been switched off via UPB Switch. 23:43:17   TCF Switched Off TCF-LSI Power has been switched off via UPB Powerbox. 23:43:27   Scope Switched On Telescope Power has been switched on via UPB Switch 23:44:31     Target Cancelled Target cancelled (23/45, GCVS RZ LMi) due to wind 23:45:03   Telescope Connected Telescope connected (TheSky6) 23:46:07     Camera1 Connected SBIG Camera connected (Set point -15°C) 23:46:09   TCF Switched On TCF-LSI Power has been switched On via UPB Powerbox. 23:46:11   Focuser1 Focuser1 (TCF-LSI) not accessible (Last valid data at 23:43:14) 00:05:01     Target Cancelled Target cancelled (24/45, AT2025aefi (CV)) due to wind 00:20:31     Target Cancelled Target cancelled (25/45, GCVS YZ Cnc) due to wind 00:40:01     Target Cancelled Target cancelled (26/45, UGC 4316 w/SN2025advo) due to wind 00:53:09     Target Cancelled Target cancelled (27/45, GCVS SS Cyg) due to wind 00:54:58 Session Resuming Session resuming 00:55:13   Critical Wind Alert Critical Wind Alert (Obs.Manager will close the Dome) 00:55:15   HardSuspend Called Hard Suspend called due to Critical Conditions (wind) 00:55:17     Target Aborted (28/45) Target aborted (28/45, GCVS BL Lac) due to wind 00:55:19   Queue Paused Queue paused for Session Suspension 00:55:43   Dome Opened Dome opened (Opening time 45s, Zigbee 40s) 00:55:45 Session Running Session running 00:55:47   Queue Resumed Observing Queue resumed 00:55:49   Critical Wind Alert Critical Wind Alert (Obs.Manager will close the Dome) 00:55:51   HardSuspend Called Hard Suspend called due to Critical Conditions (wind) 00:57:49 Session Suspending Session suspending 00:58:38   Dome Closed Dome closed (Closing time 49s, Zigbee 43s) 00:58:41 Session Suspended Session suspended 01:00:49 Session Resuming Session resuming 01:01:34   Dome Opened Dome opened (Opening time 45s, Zigbee 40s) 01:01:36 Session Running Session running 01:01:38   Queue Resumed Observing Queue resumed 01:01:41     Target Started (28/45) Target started (28/45, GCVS BL Lac) 01:08:32     Target Completed Target partially completed (28/45, GCVS BL Lac) 01:08:36     Target Started (29/45) Target started (29/45, GCVS DX Cnc) 01:18:22     Target Completed Target completed (29/45, GCVS DX Cnc) 01:18:27     Target Started (30/45) Target started (30/45, AT2024gfk) 01:20:02     Target Aborted (30/45) Target aborted (30/45, AT2024gfk) due to Priority 1 ToO Target 01:20:06     Target Started (31/46) Target started (31/46, 24P/Schaumasse, ToO) 01:24:49       Focusing Skipped Foc1 focusing skipped - star is too dim (TCF-LSI) 01:35:38     Target Completed Target completed (31/46, 24P/Schaumasse, ToO) 01:36:59     Target Started (32/46) Target started (32/46, GCVS ER UMa) 01:40:58       Focusing Skipped Foc1 focusing skipped - star is too dim (TCF-LSI) 01:44:53     Target Completed Target completed (32/46, GCVS ER UMa) 01:47:16     Target Started (33/46) Target started (33/46, NGC 3023 w/AT2025addb) 01:51:51       Focusing Skipped Foc1 focusing skipped - star is lost (TCF-LSI) 02:08:14     Target Completed Target completed (33/46, NGC 3023 w/AT2025addb) 02:09:16     Target Started (34/46) Target started (34/46, SN 2025zry) 02:12:06   Critical Wind Alert Critical Wind Alert (Obs.Manager will close the Dome) 02:12:08   HardSuspend Called Hard Suspend called due to Critical Conditions (wind) 02:12:10     Target Aborted (34/46) Target aborted (34/46, SN 2025zry) due to wind 02:12:12   Queue Paused Queue paused for Session Suspension 02:12:14 Session Suspending Session suspending 02:13:01   Dome Closed Dome closed (Closing time 50s, Zigbee 43s) 02:13:03 Session Suspended Session suspended 02:17:47 Session Resuming Session resuming 02:18:32   Dome Opened Dome opened (Opening time 45s, Zigbee 41s) 02:18:34 Session Running Session running 02:18:36   Queue Resumed Observing Queue resumed 02:18:39     Target Started (34/46) Target started (34/46, SN 2025zry) 02:33:26     Target Completed Target partially completed (34/46, SN 2025zry) 02:33:30     Target Started (35/46) Target started (35/46, GCVS RR Leo) 02:37:35       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S) 02:40:22       Focusing Failed Foc1 focusing failed (failed QC check - RmsE) 02:46:11     Target Completed Target completed (35/46, GCVS RR Leo) 02:46:16     Target Started (36/46) Target started (36/46, NGC 3710 w/SN2023bbp) 02:49:48       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S) 02:52:24       Focusing Completed Foc1 AutoFocus Completed (Profile No 14) 03:08:41     Target Completed Target completed (36/46, NGC 3710 w/SN2023bbp) 03:08:45     Target Started (37/46) Target started (37/46, M63) 03:09:12   Critical Wind Alert Critical Wind Alert (Obs.Manager will close the Dome) 03:09:14   HardSuspend Called Hard Suspend called due to Critical Conditions (wind) 03:09:22     Target Aborted (37/46) Target aborted (37/46, M63) due to wind 03:09:24   Queue Paused Queue paused for Session Suspension 03:09:26 Session Suspending Session suspending 03:10:07   Dome Closed Dome closed (Closing time 45s, Zigbee 43s) 03:10:10 Session Suspended Session suspended 03:22:53 Session Resuming Session resuming 03:23:49   Dome Opened Dome opened (Opening time 55s, Zigbee 41s) 03:23:51 Session Running Session running 03:23:53   Queue Resumed Observing Queue resumed 03:23:56     Target Started (37/46) Target started (37/46, M63) 03:30:06     Target Completed Target partially completed (37/46, M63) 03:30:11     Target Started (38/46) Target started (38/46, 29P/Schwassmann-Wachmann) 03:34:38       Focusing Skipped Foc1 focusing skipped - star is too dim (TCF-LSI) 03:48:21   Critical Wind Alert Critical Wind Alert (Obs.Manager will close the Dome) 03:48:23   HardSuspend Called Hard Suspend called due to Critical Conditions (wind) 03:48:25     Target Aborted (38/46) Target aborted (38/46, 29P/Schwassmann-Wachmann) due to wind 03:48:27   Queue Paused Queue paused for Session Suspension 03:48:29 Session Suspending Session suspending 03:49:11   Dome Closed Dome closed (Closing time 45s, Zigbee 43s) 03:49:14 Session Suspended Session suspended 03:53:32 Session Resuming Session resuming 03:54:17   Dome Opened Dome opened (Opening time 45s, Zigbee 41s) 03:54:19 Session Running Session running 03:54:21   Queue Resumed Observing Queue resumed 03:54:22     Target Started (39/46) Target started (39/46, UGCA 294) 04:13:26     Target Completed Target partially completed (39/46, UGCA 294) 04:13:30     Target Started (40/46) Target started (40/46, AT2023clj (CV)) 04:16:49       Focusing Skipped Foc1 focusing skipped - star is too dim (TCF-LSI) 04:33:15     Target Completed Target completed (40/46, AT2023clj (CV)) 04:33:19     Target Started (41/46) Target started (41/46, NGC 4568 w/SN2023ijd) 04:36:26   Critical Wind Alert Critical Wind Alert (Obs.Manager will close the Dome) 04:36:28   HardSuspend Called Hard Suspend called due to Critical Conditions (wind) 04:36:30     Target Aborted (41/46) Target aborted (41/46, NGC 4568 w/SN2023ijd) due to wind 04:36:32   Queue Paused Queue paused for Session Suspension 04:36:34 Session Suspending Session suspending 04:37:21   Dome Closed Dome closed (Closing time 50s, Zigbee 43s) 04:37:23 Session Suspended Session suspended 04:52:17     Target Cancelled Target cancelled (41/46, NGC 4568 w/SN2023ijd) due to wind 05:08:48 Session Resuming Session resuming 05:09:08   Critical Wind Alert Critical Wind Alert (Obs.Manager will close the Dome) 05:09:10   HardSuspend Called Hard Suspend called due to Critical Conditions (wind) 05:09:12     Target Aborted (42/46) Target aborted (42/46, NGC 4710 w/AT2025acfi) due to wind 05:09:14   Queue Paused Queue paused for Session Suspension 05:09:33   Dome Opened Dome opened (Opening time 45s, Zigbee 41s) 05:09:36 Session Running Session running 05:09:38   Queue Resumed Observing Queue resumed 05:09:40   Critical Wind Alert Critical Wind Alert (Obs.Manager will close the Dome) 05:09:42   HardSuspend Called Hard Suspend called due to Critical Conditions (wind) 05:11:39 Session Suspending Session suspending 05:12:24   Dome Closed Dome closed (Closing time 45s, Zigbee 43s) 05:12:27 Session Suspended Session suspended 05:14:17     Target Cancelled Target cancelled (42/47, NGC 4710 w/AT2025acfi) due to wind 05:19:40 Session Resuming Session resuming 05:20:25   Dome Opened Dome opened (Opening time 45s, Zigbee 41s) 05:20:27 Session Running Session running 05:20:29   Queue Resumed Observing Queue resumed 05:20:32     Target Started (43/47) Target started (43/47, 24P/Schaumasse, ToO) 05:35:21     Target Completed Target completed (43/47, 24P/Schaumasse, ToO) 05:35:25     Target Started (44/48) Target started (44/48, 3I/ATLAS, ToO) 05:45:52   Critical Wind Alert Critical Wind Alert (Obs.Manager will close the Dome) 05:45:54   HardSuspend Called Hard Suspend called due to Critical Conditions (wind) 05:46:02     Target Aborted (44/48) Target aborted (44/48, 3I/ATLAS, ToO) due to wind 05:46:04   Queue Paused Queue paused for Session Suspension 05:46:07 Session Suspending Session suspending 05:46:57   Dome Closed Dome closed (Closing time 50s, Zigbee 43s) 05:47:00 Session Suspended Session suspended 05:47:28     Target Missed (45/48) Target's time slot was missed (45/48, Z 160-45 w/AT2025abwt) 05:58:17     Target Cancelled Target cancelled (46/48, NGC 5033 w/SN2025mvn) due to wind 06:15:30 Session Resuming Session resuming 06:16:15   Dome Opened Dome opened (Opening time 45s, Zigbee 41s) 06:16:17 Session Running Session running 06:16:19   Queue Resumed Observing Queue resumed 06:16:22     Target Started (47/48) Target started (47/48, NGC 5448 w/AT2025aesq) 06:25:38     Target Completed Target partially completed (47/48, NGC 5448 w/AT2025aesq) 06:25:42     Target Started (48/48) Target started (48/48, T CrB) 06:29:23       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S) 06:32:04       Focusing Completed Foc1 AutoFocus Completed (Profile No 15) 06:36:14     Target Completed Target completed (48/48, T CrB) 06:36:16   Queue Completed Job Queue completed 06:36:19 Session Closing Session closing 06:37:12   Dome Closed Dome closed (Closing time 50s, Zigbee 43s) 06:37:29   Dome Parked Dome parked (parking time 10s), Az: 90.0 deg 06:38:14   Telescope Parked Telescope parked (parking time 39s total) 06:38:38   Telescope State Handbox reads 'Scope parked Turn scope off.' 06:39:01   Telescope Switched Off Telescope Power has been switched off via UPB Switch. 06:40:24   Services Stopped Night Services stopped 06:40:27 Session Finishing Session Finishing started (Create Fits Summary, Transfer Files) 06:41:44     Dome (Find Park) Find Park started (Search Az 80.0 to 100.0°, Step 1.0°, Wide) 06:42:40     Dome Find Park found (Best Park Az 91.0°) 06:42:46     Dome (Find Park) Find Park started (Search Az 89.0 to 93.0°, Step 0.2°, Narrow) 06:43:31     Dome Find Park found (Best Park Az 90.8°) 06:43:37     Dome Dome has been synced at park position (Az 90.0°, Adjustment: -0.8°) 06:43:39   Dome Parked Dome parked 06:43:52   Dome Charging Dome is parked and re-charging Ok (39mA) 06:43:54 Session Finished Session Finished

Session Alerts & Alarms

Time     Type       Name Detail 23:34:23 Red Alert Power Supply Mains Power Outage at 23:34:23 23:34:46 Green Clear Power Supply Mains Power restored at 23:34:46 (outage time 23s) 23:34:47 Green Clear UPS System UPS running on Mains Power at 23:34:47 (outage time Unknown) 23:34:52 Red Alert Power Supply Mains Power Outage at 23:34:52 23:34:55 Yellow Alert UPS System UPS running on Battery backup 23:34:52 23:35:24 Yellow Alert Power Alert A/C Power has been off for 30 seconds 23:36:24 Yellow Alert LAN LAN/Router Connection has stopped for more than 2 mins 23:39:50 Green Clear UPS System UPS running on Mains Power at 23:39:49 (outage time 5.0 min) 23:39:53 Green Clear Power Supply Mains Power restored at 23:39:51 (outage time 5.0 mins) 23:39:56 Red Alert Power Supply Mains Power Outage at 23:39:56 23:40:00 Yellow Alert UPS System UPS running on Battery backup 23:40:00 23:40:30 Yellow Alert Power Alert A/C Power has been off for 30 seconds 23:41:30 Green Clear Power Supply Mains Power restored at 23:41:30 (outage time 1.6 mins) 23:41:32 Green Clear UPS System UPS running on Mains Power at 23:41:32 (outage time 1.5 min) 23:42:24 Green Clear LAN LAN/Router Connection is active again (outage 8.1 mins) 23:46:11 Red Alert Focuser1 Focuser1 (TCF-LSI) not accessible (Last valid data at 23:43:14) 23:47:06 Green Clear Focuser1 Focuser1 (TCF-LSI) is accessible again. Outage was 232s 06:43:52 Green Clear Dome Charging Dome is parked and re-charging Ok (39mA)

Back to Top

Operational Issues (2025-11-27 S1379)

• Critical Issues (0)
• Major Issues (0)
• Minor Issues (4)
• Small Defects (9)
• Continuous Improvement (5)
• Figures (1)


Critical Issues

• None

Major Issues

• None

Minor Issues

• iSpy grab folder contained 21000 files, and is being probably cleared. NorthCam Imaging seemed to have slower down, one reason could be the excessive number of files in the grab folder these  target the 'messages' field still show ToO submission details from a different target.  Files were manually deleted as a workaround. When beginning a new imaging run the grab folder should be purged. Implemented in AstroNorthCam 1.7.3.
  Fixed 2025-11-27 (AstroNorthCam 1.7.3)

• AstroObsCam is crashing within 10 minutes of starting.  This seems to be a new issue.  Issue seemed to resolved itself, It may have something to do with starting AstroObsCam during live session when the ObsCam is turned-off via Switch and is then turned on my the user to access 'HD USB Camera' and Connect the Camera, with program crash happening when ObsCam is next toggled by the service that listens to AstroMain flags/requests.
  Resolved itself 2025-11-28 (AstroObsCam 1.12.2 or 3, User Awareness)

• The iSpy64 program might have crashed when Power Cut occured (23:40).  iSpy64 might have crashed during power cut, however it it not certain if this was the case -  ISpy64 application might alternative been closed by the user, it hard to tell because VNC connection went down at the time of the power cut. Ig application had crashed was it because power had been cut off to the Tapo North View Camera  ?  Propose to check whether the Tapo Camera's AC/Adapter is power directly from Mains Supply or is powered via the AllSky Computing Bay's UPS System.  The proposed Configuration for the AllSky/Weather Computing Bay (2024-12-05) indicates that the the Tapo Camera's AC/ Adapter should be plugged into the Small Power Strip which is itsel plugged into one of power sockets on the UPS Box which is support by Battery Backup. See notes/diagram. A trip to Observatory is needed in order to verfiy that this is actually the case. If so, it can be ruled out that the Tapo Camera switched off during the power cut.  Closed after review 2025-12-04, on basis that there isn't enough data to understand precisely what happened during the powercut (during S1379 session).  Observatory was finally checked on 2025-12-09 and it was found the Tapo Camera's AC Adaptive was plugged into a socket that isn't backed up UPS Battery, which why iSpy64 program had issue when power cut occurred.  The AC/Adapter was plugged into the Small Power Strip that is supported by battery backup to prevent a similar issue in future.
  Resolved 2025-12-09 (Observatory, AllSky/Weather Computing Bay, UPS System, iSpy64, Tapo Camera)

• AstroNorthCam is producing ' Could not find file' exceptions .  Code was added to AstroNorthCam 1.7.3, to call ClearGrabFolder() at the start of each image cycle., but this lead to exception messages appearing like
  "Exception Moving : NorthCam.20251128.085913.00869153.jpg" &
"- Could not find file 'C:\Data\AllSky Imaging\TapoCam\Work\video\FABFG\grabs\NorthCam.20251128.085913.00869153.jpg'.
This is due to the GrabFileWatcher flagging up the presence of a new picture frame in the grab folder, but the file then being deleted before the Imaging Loop in MainRun() can use the file and move it into a work folder.   Fixed in AstroNorthCam 1.7.4, the ClearGrabFolder() routine now only deletes jpg frames that are older than 10s, and there stops the exception messages and ensures that all available frames from our image interval (typically 15s) are utilised, and thus maximising final image S/N during night time imaging.
  Fixed 2025-11-28 (AstroNorthCam 1.7.4)

Small Defects

• AstroObsCam isn't using the 'HD USB Camera' by default (it uses 'USB Camera'). After starting the AstroObsCam program and staring Services, it is natural to then click the 'Connect Camera' button, but this fails as the program tries to use the computer's web cam (USB Camera) rather than the Observatory Web Cam (HD USB Camera). The issue is worked around by changing the camera to 'HD USB Camera' in the 'Capture Devices' combobox and try Connect Camera again, but ideally the program always uses HD USB Camera by default.  This occured during a Live Observatory Session and is was eventually realised that this was occuring during period when the ObsCam  had been switched off during target image (to avoid IR lights from the web cam from affecting the CCD Images) and meant that "HD USB Camera" was temporarily removed from the Capture Devices List. . Issue is understood and explained. Issue closed after review 2025-11-28
  Closed after review 2025-11-28 (AstroObsCam,  User Awareness)

• After running 'Copy Files from Observatory' AstroMove removed the green progress flags and file counts (post-session). After initialting 'Copy Files from Observatory' process to copy session files across to the Development Computer, user focus turned to another application. When user went back to AstroMove, the files had successfully as indicated by report lines in the messsage field area, but there was immediate indication of completed job that would have come from having green progress flags and file counts, instead of greyed-out progress boxes and 0/0" file counts.  The issu e is caused by a call to ResetFromObservatoryTab() from the AutoRefresh() loop. Fixed in AstroMove 1.17.1.
  Fixed 2025-11-28 (AstroMove 1.17.1)

• NorthCam Star Count exceeded the 0-100 range on NightSummary Plot for much of the night. Due to particularly clear skies , NorthCam Star count was frequently higher than 120 and sometimes reaching values of 140+ The range needs to be modified from 0-100 to 0-150, this is achieved by changing NorthCamStarsInterval from 20 to 30 and change the equation using to calculate 'NorthCamStarsScale'. Fixed/implemented in AstroAllSky 3.26.2.
  Fixed 2025-11-28 (AstroAllSky 3.26.2)

• CloudSensor Offtime was incorrectly reported (23:34). Following directly after the night's 1st power cut (from 23:34:23 to 23:34:47), the CloudSensor was reported by AstroMain to have switched-on at 23:34:48  with "offtime > 17,749,968 h". This is likely the hours since vcNullDate , and should not have been reported with this number. Fixed in AstroMain 3.78.11 through modification in Zigbee.HandleLightChange() routine.
  Fixed 2025-11-28 (Session, AstroMain 3.78.11)

• Target 24/45 was allowed to 'start' whilst Outage Management was active. Following a power cut from 23:34 to 23:43, and the ObsManager entered Outage Management stage 6 (Recovery), and proceeded to bring on line Telescope and SBIG camera etc.  During the recovery period Target 23/45 was closed out and associately report lines were given, this was followed by starting lines for Target 24/25 (AT2025aefi) until it reached a hold point  "Waiting on outage recovery".  The Job Queue should have been held back the commencement of the Target until Outage Management stage 6 had completed.  Fixed in AstroMain 3.78.11
  Fixed 2025-11-28 (Session, AstroMain 3.78.11)

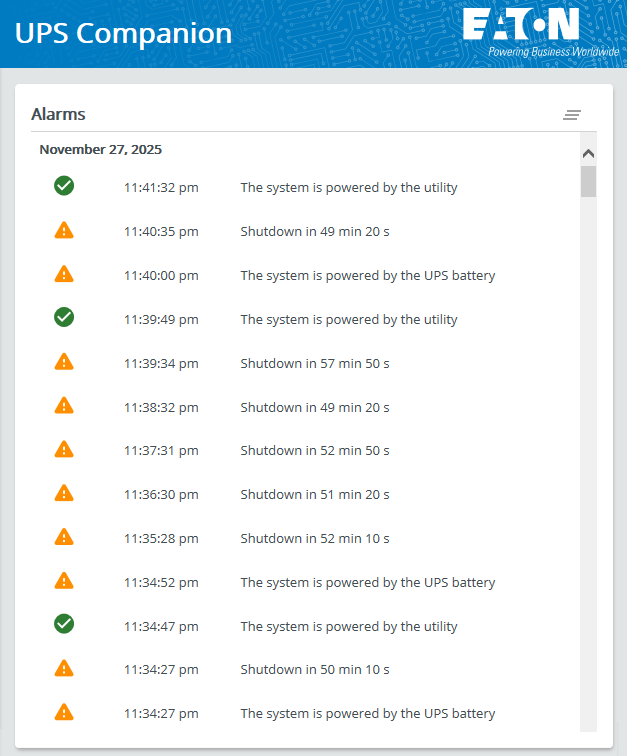

• UPS Power Offtime was reported as Unknown when it should have been known. (23:34)  Associated with the night's 1st power cut (from 23:34:23 to 23:34:47), the UPS System wasn't reported to have gone over to Battery.  And when the power was restored, the Outage time was reported as "Unknown". Eaton UPS Alarms List (see Fig 1) clearly shows a message "The system is powered by the UPS Battery" at 23:34:27, with the return to power at 11:34:47.  Hence there was data for AstroMain to report that the start of Mains Power outage and to report the Outage as being of 20s when the power returned. The alarm message "Shutdown in 50 min 10s" also at 23:34:27 may may interferred with AstroMain's abilty to see immediately prior alarm "The system is powered by the UPS Battery" at 23:34:27.  This is explained by examinaton of the code.  A loop in the UPS.RunUpsMonitor(), which operates on a  every 0.5s cycle, fetches the Latest UPS alarm record using a call to GetLatestUpsRecord() function to get the latest record in Eaton Companion's  'euc.log'  file, and then handles the record ('UpsMessage') if it is different from the previous record ('LastUpsMessage'). Issue is that since the last record was handled, it is possible that 2 (or more) alarms could be added to the euc.log file and and if so the only the first one of these would be seen by the GetLatestUpsRecord() function which the most recent added one (ie the first of the two records added since last record was handled won't be raised up).  The UPS.RunUpsMonitor() needs to be modified to find the the next record since that last one was handled. GetLatestUpsRecord() function needs to be told to either fetch the very latest record, or the fetch the next record after the nth record, with the RunUpsMonitor() routine keeping note of which record it has handled.  Because records are written with the most recent first, we need to count all the records in the file first before we can extract the specific record needed.  New GetLatestUpsRecord(UpsRecordNo) function created with help of CoPilot.  The new routine utilitises Import Newtonsoft.Json.Linq (added to project from NuGet Manager Package /Package Manager Import) and the Newtonsoft.Json.dll needs to be copied from the project's bin folder into each program folders where AstroMain is run from.
  Fixed  2025-11-28 (Session, AstroMain 3.78.11)

• Report line "Waiting on outage recovery..." wasn't indented (23:44). The following report line
  Waiting on outage recovery...Hold Wait for recovery following power outage (23:44)
  wasn't indented correctly and was not correctly formatted in the excepted 'report' columns . Fixed in AstroMain 3.78.11.
  Fixed 2025-11-28 (Session, AstroMain 3.78.11)

• Somewhat contradictory 'Aux Light' messages (23:43).  Just after power was restored at 23:43 and after Telescope Power was restarted., there was an Aux Light Check that reported "Aux Light has been on for 10 mins and will be switched off"., and there was message that confirmed that the Aux Light would be turned off, which was followed by a message from Zigbee Monitor reporting "Aux Light has switched off (23:43:29, on time > 4 sec)".  The message "on for 10 mins" and "on time >4s" are somewhat contradictory.
  Log files shows the following sequence of device switch-on's around the time the Aux Light was switched on
    23:34:45  AllSky Heater was logged to have switched  on
  23:34:46  Aux Light has switched on
  23:34:48  Cloud Sensor has switched on
  Investigation still ongoing.
  To investigate 2025-11-28 (Session, AstroMain 3.78.11, Zigbee)

• Report line not correctly ordered during TheSky6 Telescope Connection (23:44). "Waiting on scope" and "TurnOff Tracking" reporting were interlaced.
   Connect TheSky6 Telescope 2025-11-27 23:44 (Local, GMT)
 Check TheSky6 Date/Time     Ok Using Computer Clock
 Connect Telescope (TheSky6) Ok Connecting Scope (Connecting telescope to TheSky6)
 Waiting for Scope
 Turn Off Tracking           Ok Tracking is OFF (23:45)
Ok Waited 5s (Waited for correct coordinates from scope)
  To be fixed
  To investigate & fix 2025-11-28 (Session, AstroMain 3.78.11)
