Session Aims & Highlights (2022-03-21)

Main aims

1. Targets.  Acquire images of a selection of variable stars, nearby stars, comets & deep sky targets as allowed by time & conditions.

Equipment & Software

• 12" LX200 and ST-10XME
• 80mm APO and ZWO ASI 178MC
• CCDApp2, TheSky6, CCDSoft5, DeviceHub 6.5.1.9,  MeadeGeneric 1.3.3.373, UPB 1.5, ASCOM 6.5 SP1
• Pegasus UPB & Motor Focus, TCF-S
• SharpCap 3.2, PHD2  2.6.10

• AstroMain 3.50.7,  AstroPlan 1.29.12,   AstroShCap 1.3.12, AstroGuard 1.7
  AstroVOE 1.9.2  AstroSN 1.7.3,  AstroProtect 1.6,  AstroMove 1.8.6
  (AstroWeather 1.16.5, AstroAllSky 3.15.3,  AstroObsCam 1.8, AstroLaunch 1.8.3)

Highlights

•  Targets.  Very few target acquired due to poor sky conditions
•  Cloud/Poor Transparency.  Although sky wasn't completely overcast, haze and thin cloud combined to produce poor sky conditions, which was made worse by bright moonlit sky. Session suspended after less than one hour due to insufficient AllSky Stars Count.

Notes:

  Summary Plots & Logs

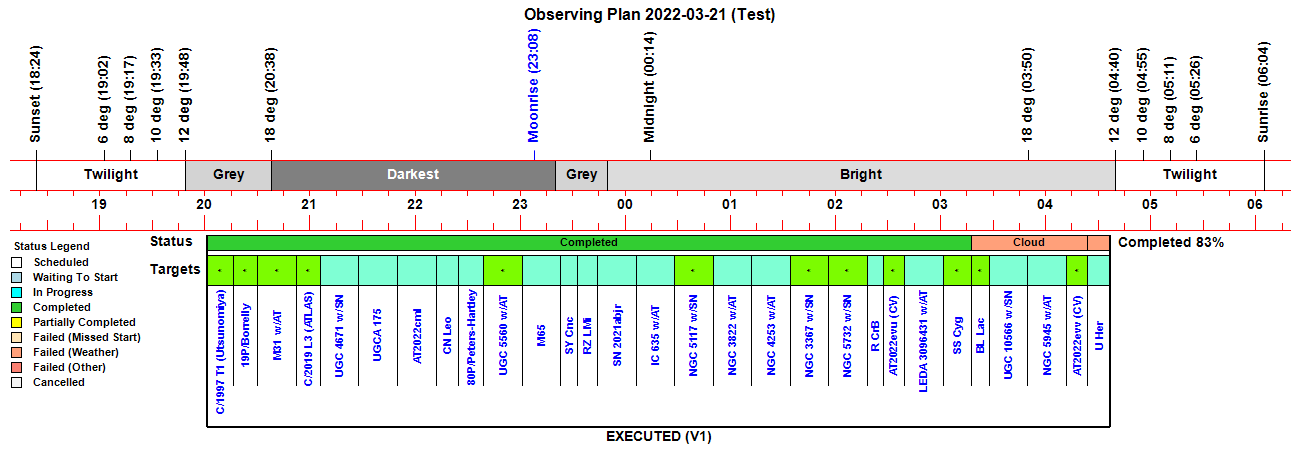

Observing Plan

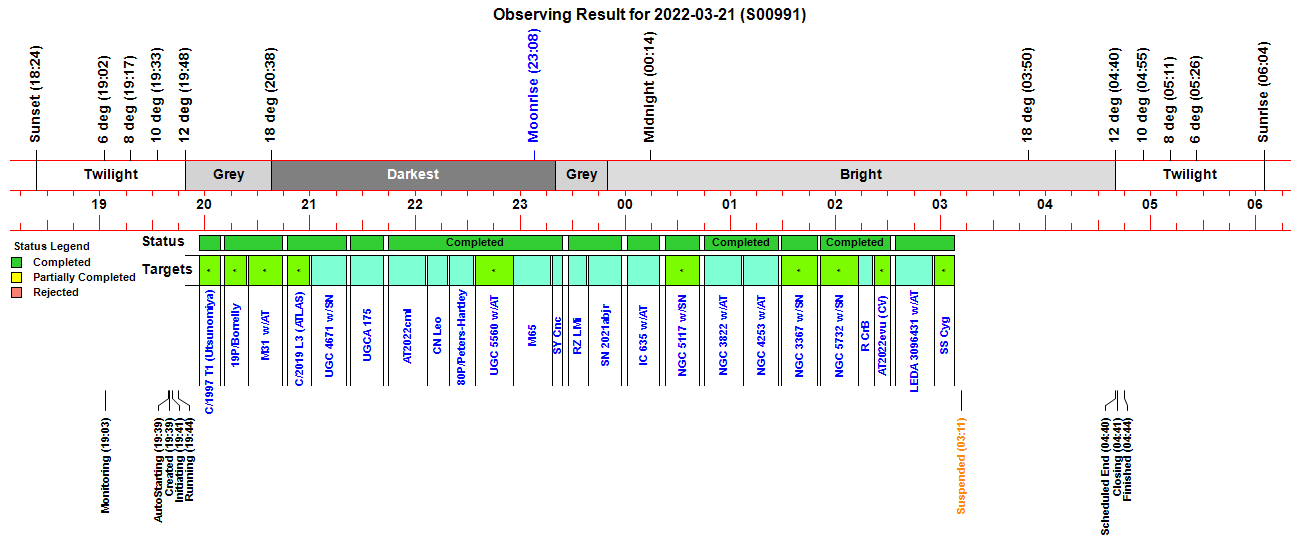

Observing Result

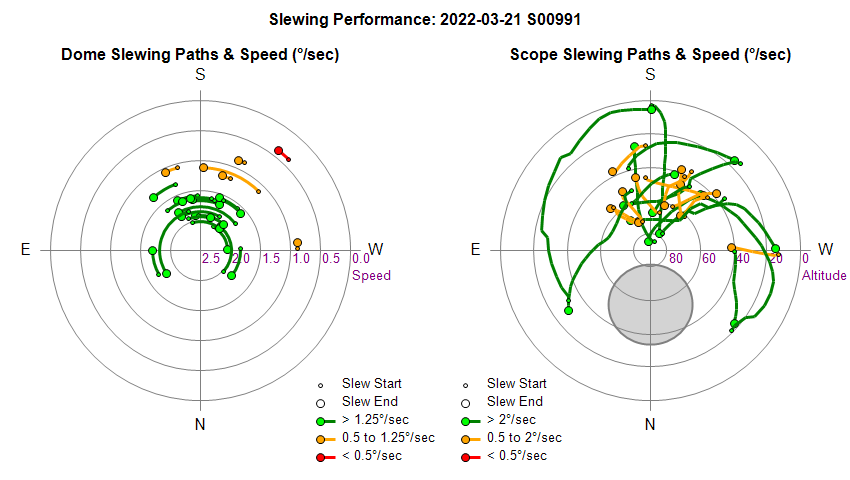

Dome & Scope Slewing Performance

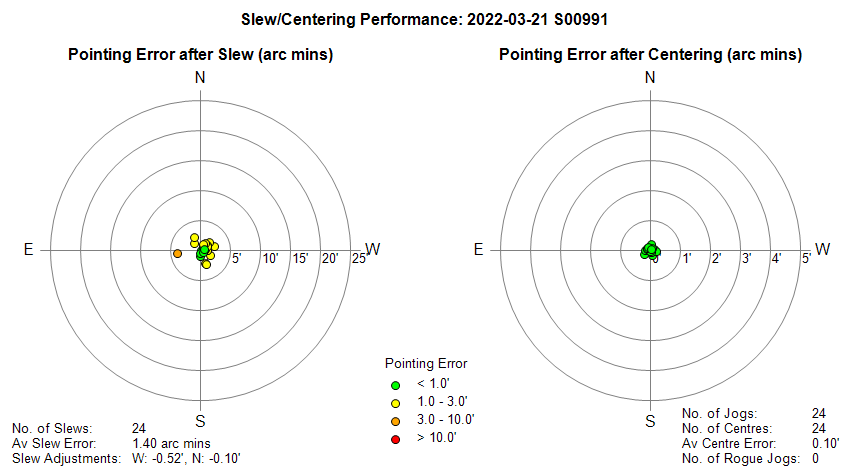

Slew/Centering Performance

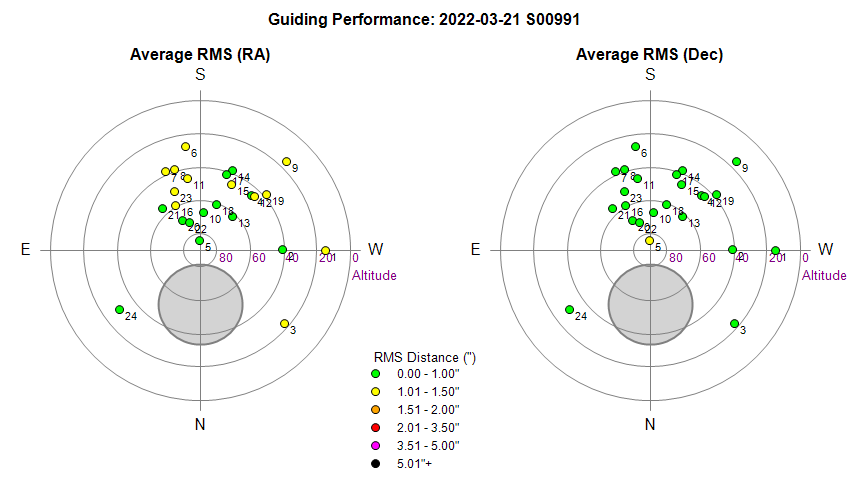

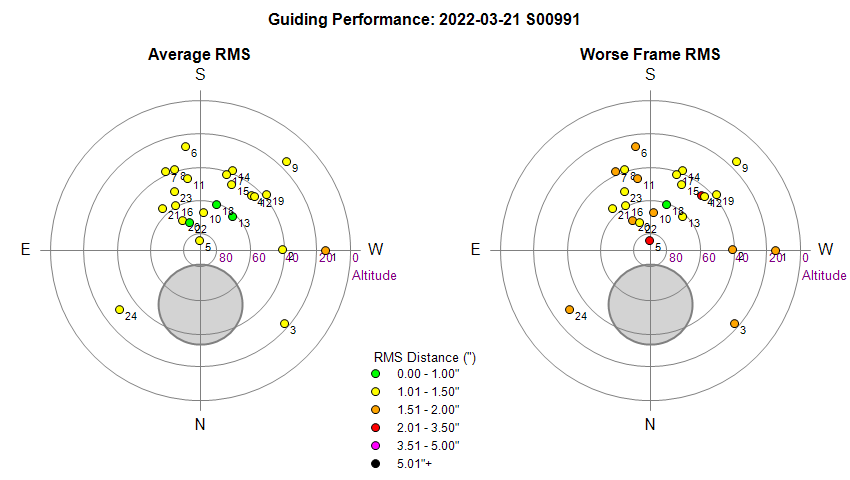

Guiding Performance

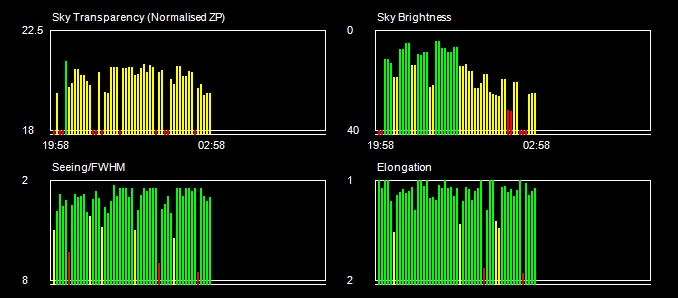

Sky Conditions (Locate Frames)

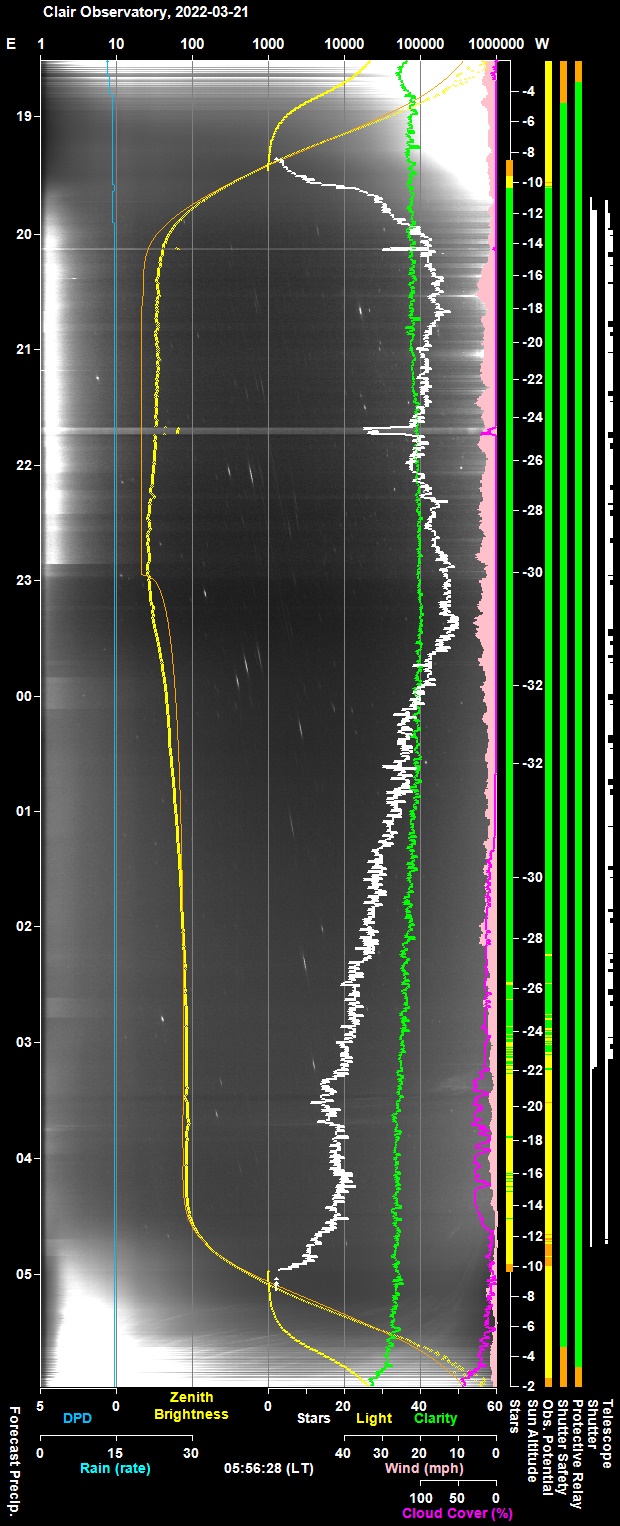

Night Sky Summary Plot Top axis: Sky Brightness at Zenith (in ADU/s) Lefthand axis: Local Time (hh LT). Righthand axis: Sun Altitude (degs)

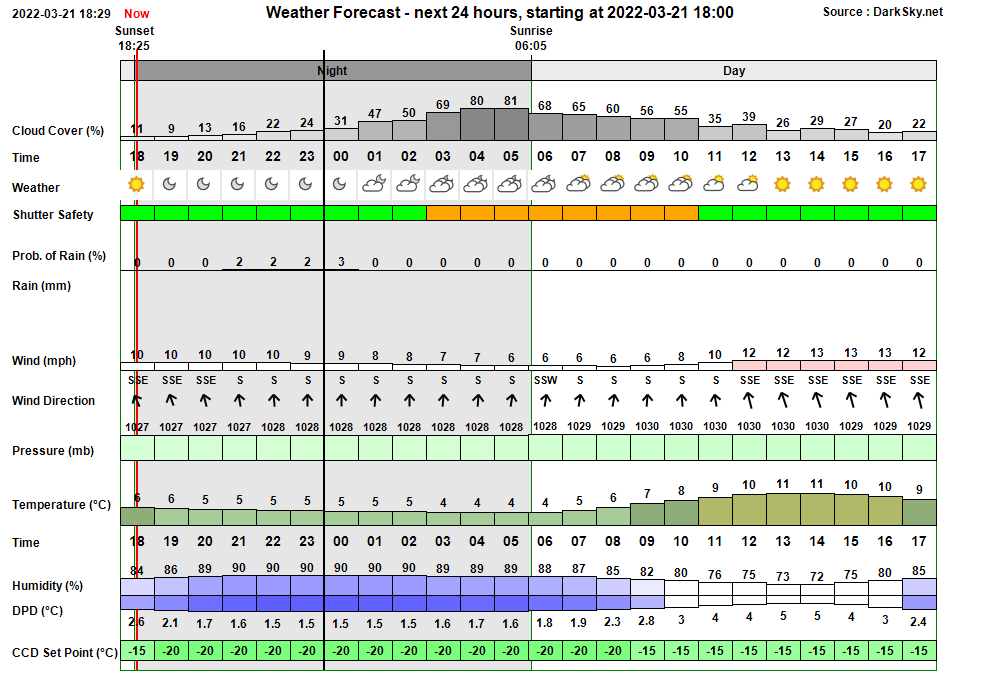

Actual Weather vs Pre-Session Weather Forecast

Session Event Log

Time     Event Detail 19:03:25 Session Monitoring AutoStart monitoring for Live Session opportunity between 19:18 & 04:00 19:03:29   AutoStart Waiting AutoStart waiting till earliest start time at 19:18 19:18:41   AutoStart Delayed Session delayed due to too few stars 19:39:18 Session AutoStarting Session autostarting (19:39) 19:39:46 Session Created Live Session Created (2022-03-21 S00991, ImageSaveNum: 991001) 19:39:48   Scope Switched On Telescope Power has been switched on via UPB Powerbox. 19:41:29   Services Started Observatory Services started 19:41:36 Observatory (Auto) Observatory placed in Fully-Automated Mode 19:41:38 Session Pending Session pending (2022-03-21) 19:41:40 Session Initiating Session initiating (2022-03-21) 19:41:42   Plan Requested Observing Plan requested from AstroPlan (1.29.13) 19:42:09   Plan Loaded Observing Plan loaded to queue (Plan ID: 749) 19:42:33   Camera1 Connected SBIG Camera Connected (set point -20°C) 19:42:40   Telescope Connected Telescope Connected (TheSky6) 19:43:04 Session Equilibration Session ready for dome & camera equilibration 19:43:49   Dome Opened Dome opened (opening time 45s) 19:44:44 Session Running Session running 19:44:47   Queue Started Observing Queue started (29 targets selected) 19:44:49     Target Started (NrZen) Target started (Focus Field 7, HIP 34070) 19:46:25       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S) 19:49:26       Focusing Completed Foc1 AutoFocus Completed (Profile No 1, wide) 19:51:22       Focusing Completed Foc1 AutoFocus Completed (Profile No 1) 19:51:24       Focusing Started-Foc2 Foc2 Focusing Started (Secondary Scope, using ShCap) 19:53:34       Focusing Completed Foc2 AutoFocus Completed (Profile No 2, wide) 19:55:20       Focusing Completed Foc2 AutoFocus Completed (Profile No 2) 19:55:37     Target Completed Target completed (Focus Field 7, HIP 34070) 19:56:46     Target Started (1/29) Target started (1/29, C/1997 T1 (Utsunomiya)) 20:00:12       Focusing Skipped Foc1 focusing skipped - star is too dim (TCF-S) 20:08:52     Target Completed Target completed (1/29, C/1997 T1 (Utsunomiya)) 20:11:17     Target Started (2/29) Target started (2/29, 19P/Borrelly) 20:15:43       Focusing Skipped Foc1 focusing skipped - star is too dim (TCF-S) 20:24:05     Target Completed Target completed (2/29, 19P/Borrelly) 20:25:10     Target Started (3/29) Target started (3/29, M31 w/AT2022eqj) 20:28:01       Focusing Skipped Foc1 focusing skipped - star is too dim (TCF-S) 20:44:14     Target Completed Target completed (3/29, M31 w/AT2022eqj) 20:47:09     Target Started (4/29) Target started (4/29, C/2019 L3 (ATLAS)) 20:50:16       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S) 20:52:09       Focusing Failed Foc1 focusing failed (failed QC check - Ambiguous) 21:00:28     Target Completed Target completed (4/29, C/2019 L3 (ATLAS)) 21:01:02     Target Started (5/29) Target started (5/29, UGC 4671 w/SN2021afsj) 21:04:08       Focusing Skipped Foc1 focusing skipped - star is lost (TCF-S) 21:20:45     Target Completed Target completed (5/29, UGC 4671 w/SN2021afsj) 21:23:02     Target Started (6/29) Target started (6/29, UGCA 175) 21:26:03       Focusing Skipped Foc1 focusing skipped - star is lost (TCF-S) 21:42:12     Target Completed Target completed (6/29, UGCA 175) 21:45:02     Target Started (7/29) Target started (7/29, AT2022cml) 21:47:58       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S) 21:50:44       Focusing Completed Foc1 AutoFocus Completed (Profile No 4) 22:06:45     Target Completed Target completed (7/29, AT2022cml) 22:07:03     Target Started (8/29) Target started (8/29, GCVS CN Leo) 22:09:43       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S) 22:11:57       Focusing Completed Foc1 AutoFocus Completed (Profile No 5) 22:19:01     Target Completed Target completed (8/29, GCVS CN Leo) 22:19:52     Target Started (9/29) Target started (9/29, 80P/Peters-Hartley) 22:23:04       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S) 22:25:33       Focusing Completed Foc1 AutoFocus Completed (Profile No 6) 22:34:13     Target Completed Target completed (9/29, 80P/Peters-Hartley) 22:34:17     Target Started (10/29) Target started (10/29, UGC 5560 w/AT2022ewv) 22:37:27       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S) 22:39:40       Focusing Completed Foc1 AutoFocus Completed (Profile No 7) 22:55:59     Target Completed Target completed (10/29, UGC 5560 w/AT2022ewv) 22:56:22     Target Started (11/29) Target started (11/29, M65) 22:59:10       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S) 23:01:37       Focusing Completed Foc1 AutoFocus Completed (Profile No 8) 23:18:00     Target Completed Target completed (11/29, M65) 23:18:22     Target Started (12/29) Target started (12/29, GCVS SY Cnc) 23:21:05       Focusing Skipped Foc1 focusing skipped - star is too dim (TCF-S) 23:24:17     Target Completed Target completed (12/29, GCVS SY Cnc) 23:27:49     Target Started (13/29) Target started (13/29, GCVS RZ LMi) 23:30:42       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S) 23:32:41       Focusing Completed Foc1 AutoFocus Completed (Profile No 9) 23:37:45     Target Completed Target completed (13/29, GCVS RZ LMi) 23:39:15     Target Started (14/29) Target started (14/29, SN 2021abjr) 23:41:52       Focusing Skipped Foc1 focusing skipped - star is too dim (TCF-S) 23:58:00     Target Completed Target completed (14/29, SN 2021abjr) 00:01:15     Target Started (15/29) Target started (15/29, IC 635 w/AT2022bqu) 00:03:34       Focusing Skipped Foc1 focusing skipped - star is lost (TCF-S) 00:19:24     Target Completed Target completed (15/29, IC 635 w/AT2022bqu) 00:23:15     Target Started (16/29) Target started (16/29, NGC 5117 w/SN2022abq) 00:26:23       Focusing Skipped Foc1 focusing skipped - star is too dim (TCF-S) 00:42:25     Target Completed Target completed (16/29, NGC 5117 w/SN2022abq) 00:45:15     Target Started (17/29) Target started (17/29, NGC 3822 w/AT2022eiu) 00:48:00       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S) 00:50:27       Focusing Completed Foc1 AutoFocus Completed (Profile No 10) 01:06:36     Target Completed Target completed (17/29, NGC 3822 w/AT2022eiu) 01:07:15     Target Started (18/29) Target started (18/29, NGC 4253 w/AT2022cqd) 01:11:29       Focusing Skipped Foc1 focusing skipped - unable to find a star (TCF-S) 01:27:31     Target Completed Target completed (18/29, NGC 4253 w/AT2022cqd) 01:29:15     Target Started (19/29) Target started (19/29, NGC 3367 w/SN2022ewj) 01:33:32       Focusing Skipped Foc1 focusing skipped - star is lost (TCF-S) 01:49:29     Target Completed Target completed (19/29, NGC 3367 w/SN2022ewj) 01:51:15     Target Started (20/29) Target started (20/29, NGC 5732 w/SN2021agpf) 01:54:26       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S) 01:56:37       Focusing Completed Foc1 AutoFocus Completed (Profile No 11) 02:12:55     Target Completed Target completed (20/29, NGC 5732 w/SN2021agpf) 02:13:15     Target Started (21/29) Target started (21/29, GCVS R CrB) 02:15:55       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S) 02:17:43       Focusing Completed Foc1 AutoFocus Completed (Profile No 12) 02:21:00     Target Completed Target completed (21/29, GCVS R CrB) 02:22:32     Target Started (22/29) Target started (22/29, AT2022evu (CV)) 02:25:25       Focusing Skipped Foc1 focusing skipped - star is lost (TCF-S) 02:31:24     Target Completed Target completed (22/29, AT2022evu (CV)) 02:34:32     Target Started (23/29) Target started (23/29, LEDA 3096431 w/AT2021agma) 02:37:53       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S) 02:40:04       Focusing Completed Foc1 AutoFocus Completed (Profile No 13) 02:56:14     Target Completed Target completed (23/29, LEDA 3096431 w/AT2021agma) 02:56:32     Target Started (24/29) Target started (24/29, GCVS SS Cyg) 03:00:06       Focusing Started-Foc1 Foc1 Focusing Started (TCF-S) 03:01:19   SoftSuspend Called Soft Suspend is called due to Deteriorating Conditions (too few stars) 03:02:17       Focusing Completed Foc1 AutoFocus Completed (Profile No 14) 03:07:00   SoftSuspend Cancelled Soft Suspend is cancelled due to improved conditions 03:07:52     Target Completed Target completed (24/29, GCVS SS Cyg) 03:11:41   SoftSuspend Called Soft Suspend is called due to Deteriorating Conditions (too few stars) 03:11:43   Queue Paused Queue pausing for Session Suspension 03:11:46 Session Suspended Session suspended 03:12:36   Dome Closed Dome closed (closing time 50s) 03:21:50     Target Cancelled Target cancelled (25/29, GCVS BL Lac) due to cloud 03:41:50     Target Cancelled Target cancelled (26/29, UGC 10566 w/SN2022aab) due to cloud 04:03:50     Target Cancelled Target cancelled (27/29, NGC 5945 w/AT2021abqm) due to cloud 04:17:50     Target Cancelled Target cancelled (28/29, AT2022evv (CV)) due to cloud 04:41:02     Target Cancelled Target cancelled (29/29, GCVS U Her) due to too few stars 04:41:07   Queue Completed Job Queue completed 04:41:11 Session Closing Session closing 04:41:16   Dome Closed Dome already closed (closed at 03:12, closing time 50s) 04:41:43   Dome Parked Dome parked (parking time 18s), Az: 90.0 deg 04:43:03   Telescope Parked Telescope parked (parking time 75s) 04:43:18   Telescope State Scope parked Turn scope off. (Handbox) 04:43:40   Telescope Switched Off Telescope Power has been switched off via UPB Switch. 04:44:33   Services Stopped Night Services stopped 04:44:35 Session Housekeeping Housekeeping Started (Cleanup FITS, Create Fits Summary, Transfer Files) 04:44:57 Session Finished Session Finished

Session Alerts

Time     Alert Detail -- No Alerts                --

Back to Top

Operational Issues (2022-03-21, S991)

• Critical Issues (0)
• Major Issues (0)
• Minor Issues (1)
• Small Defects (0)
• Continuous Improvement (1)

[ Prev | Next ]

Critical Issues

• None

Major Issues

• None

Minor Issues

• Cropped Image Picture of AT2022eqj  in M31 not centered on transient but is centered on M31 (post session analysis). Behaviour is as per design where it is normal to centre image un the host galaxy and show the cross-hairs at the offset position of the transient. However this isn't the behaviour required in case of M31 where the transient typically has a fairly large offset from M31 centre. Resolved by manually copying the Cross-Hairs X/Y to CropCentre X/Y.   Separate continuous improvement ticket raised to add a button routine to copy Cross-Hairs X/Y coordinates to CropCentre X/Y.
  Resolved manually 2022-03-22 (AstroMain)

Small Defects

• None

• Add button routine to copy Cross-Hairs X/Y to CropCentre X/Y (Analysis/CreateImages Tab).  During image preparation for AT2022eqj in M31 it was found that the default cropped picture is not centered on the transient but is centered on M31's bright nucleus. Behaviour is as per design where it is normal to centre the image on the host galaxy and show the cross-hairs at the offset position of the transient. However this isn't the behaviour required in the case of M31 where the transient typically has a fairly large offset from M31centre. Added button + routine to transfer cross-hairs x/y to CropCentre X/Y, including a check on crop centre to ensure that the cropped area lies within the main image FOV.
  Done 2022-03-22 (AstroMain 3.50.8)
