- Auroral activity on the night 2025-09-05 / 2025-09-06 associated with a period of geomagnetic activity up to Kp4. Skies in NE Scotland were clear. Activity was visible on camera images from around 22:15 to 01:40 UT (23:15 to 02:40 LT),  with peak activity at around 23:20 UT (00:23 LT), followed by a second peak at around 01:00-01:15 UT (02:00 - 02:15 LT). Observed activity comprised a variety of features, starting with faint green aurora emerging from cloud sky, then brightening and rising to 10° altitude with faint rays, followed by intense development of violet, pink and crimson rays at  the subsequent development of curtains and violet rays up to 40° altitude. After weakening the aurora activity strengthened again with intense green aurora during secondary peak. Images and video below compare colour images captured by the north facing Tapo C325WB Camera, with the black/white images captured using the existing AllSky Camera at approximately the same time.   -  Scandinavian magnetometers recorded activity from 20:30 to 05:00 UT with peak in activity at 02:30 to 03:30 UT.    Lerwick Magnetometer shows activity up to K4     - Telescope Images from 2025-09-01 >> -

Night Summary (Keogram) Plot

Night Summary Plot - North Sky (2025-09-05 / 2025-09-06) Aurora Activity visible on colour keogram from 00 to 03:40 UT (01:00 to 04:40 LT). with peak around 02:30 to 02:50 UT (03:30 to 03:50  LT) Note; Times on plot are local times (BST  = UTC +01h )

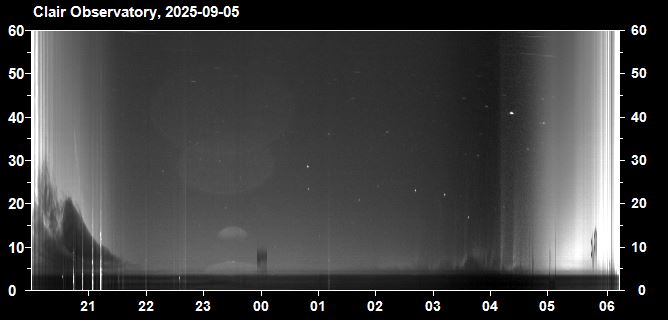

Night Summary Plot - North Sky  (2025-09-05 / 2025-09-06) Times on plot are local times (GMT  = UTC +01h ) Aurora Activity faintly visible on b/wr keogram from 02:00 to 03:30 LT (03:00 to 04:30 UT)

Scandinavia Magnetometers vs NorthCam Keogram - 2025-09-05 / 2025-09-06

Back to Top

Pictures (AllSky Camera) - Under Construction

Panoramic View - Northern Sky

2025-09-01 22:23 UT (23:23 LT) Earlier cloud clearly, first sign of aurora arc developing

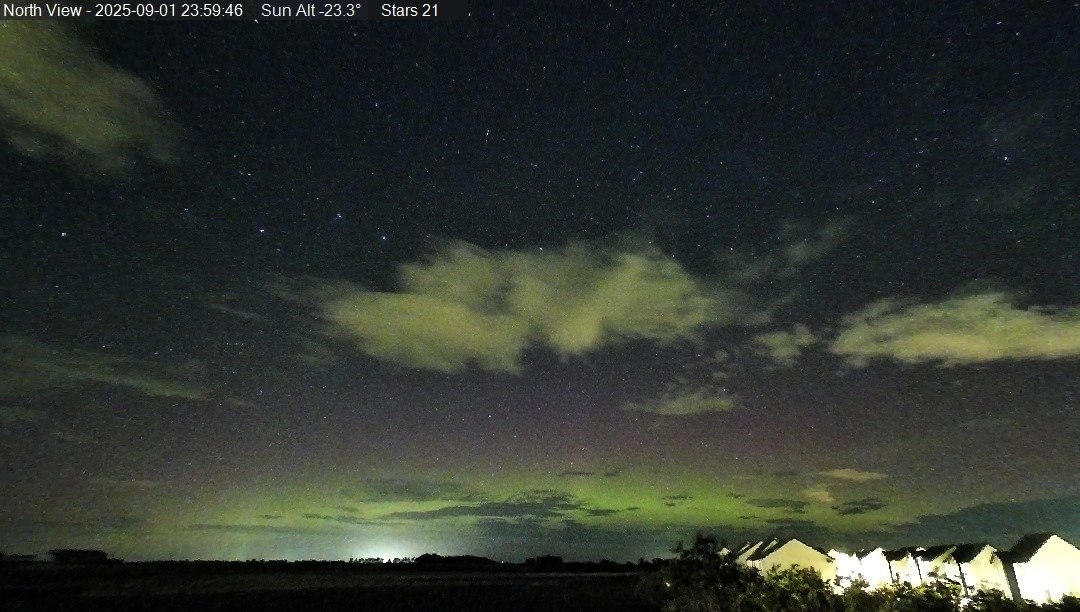

2025-09-01 22:59 UT (23:59 LT) Auroral arc to 6-7°

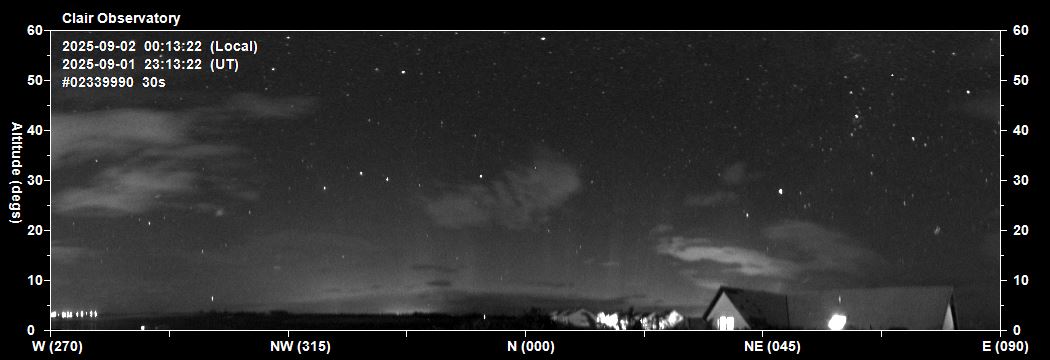

2025-09-01 23:13 UT (2025-09-02 00:13 LT) Aurora arc climbing to Alt 8-9°  with faint rays

2025-09-01 23:17 UT (2025-09-02 00:17 LT) Rays developing , some curtain development

2025-09-01 23:20 UT (2025-09-02 00:20 LT) Aurora arc brightening

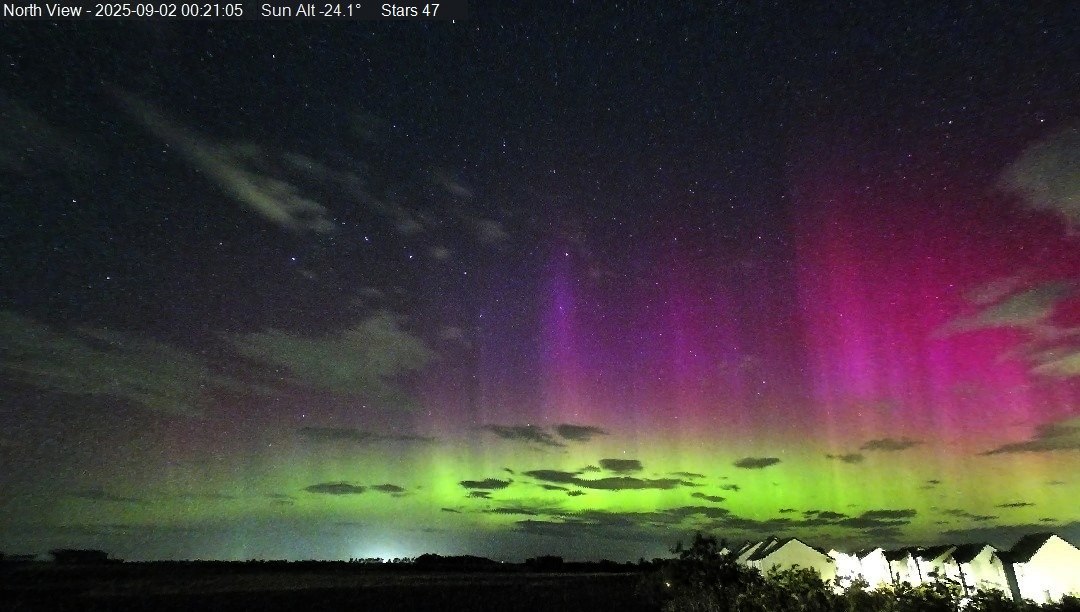

2025-09-01 23:21 UT (2025-09-02 00:21 LT) Pink, Crimson amd Violet rays intensifying in N to NE sky

2025-09-01 23:23 UT (2025-09-02 00:23 LT) Bright green aurora arc, rays also developing/brightening in N-NW sky

2025-09-01 23:25 UT (2025-09-02 00:25 LT)  High level of activity contiuning. Rays moving to west.. Ray to 45° altitude.

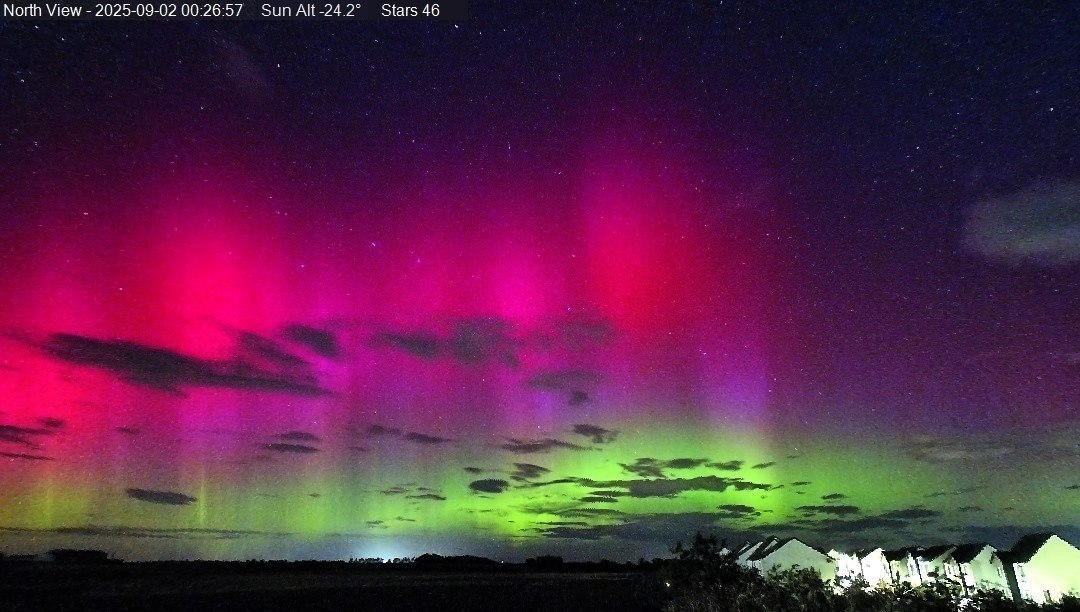

2025-09-01 23:26 UT (2025-09-02 00:26 LT) Bright rays in NW to NNE direction. Green progressing upwards to violet and then pink/crimson.

2025-09-01 23:31 UT (2025-09-02 00:31 LT) Rays starting to weaken

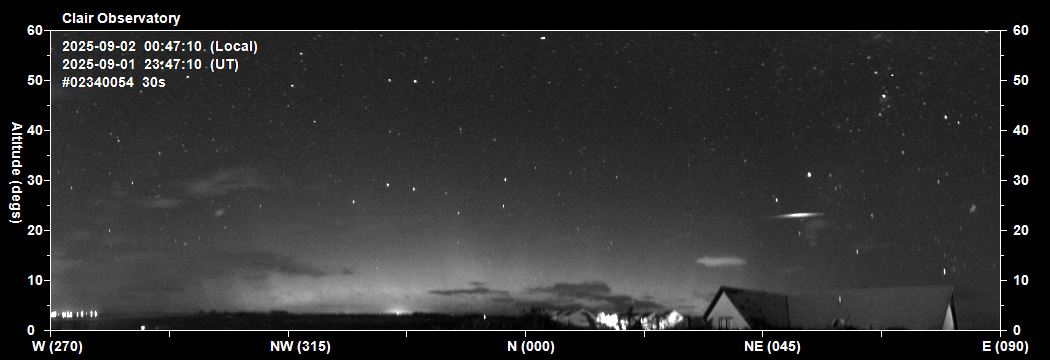

2025-09-01 23:47 UT (2025-09-02 00:47 LT) Meteor or satellite flash in NE Sky at around 23° altitude

2025-09-01 23:50 UT (2025-09-02 00:50 LT) Rays and aurora arc continuing to weaken

2025-09-02 00:14 UT (01:14 LT) Broad aurora arc, whith a few violet rays

2025-09-02 00:33 UT (01:33 LT) Continuing auroral activity with weak rays. Cloud beginning to encroach from west

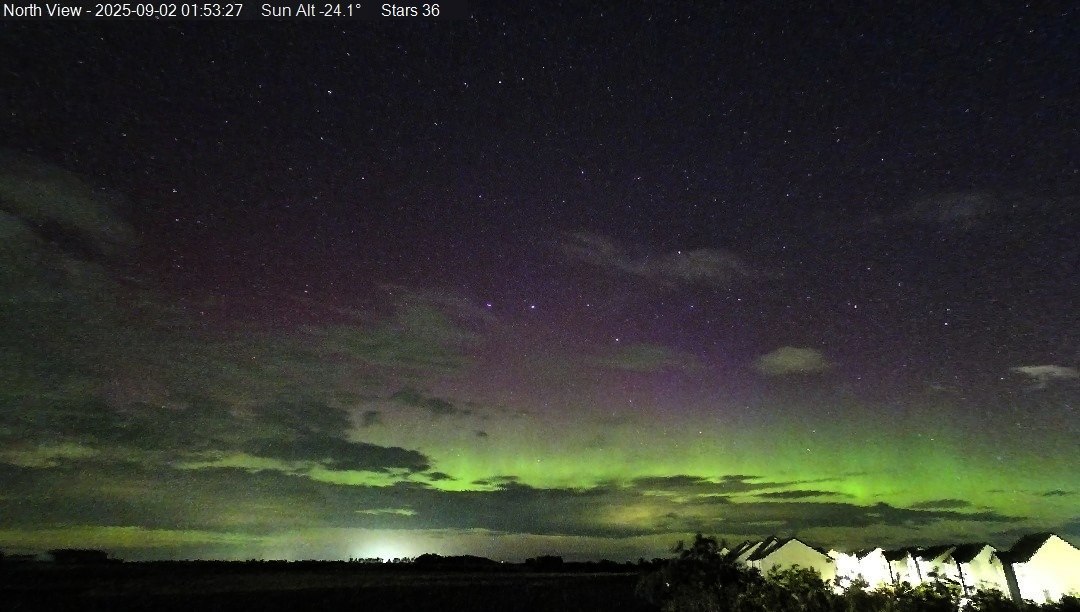

2025-09-02 00:53 UT (01:53 LT) Aurora arc brightening again, but partly hidden by cloud

2025-09-02 01:06 UT (02:06 LT) Secondary peak in activity with intense green aurora

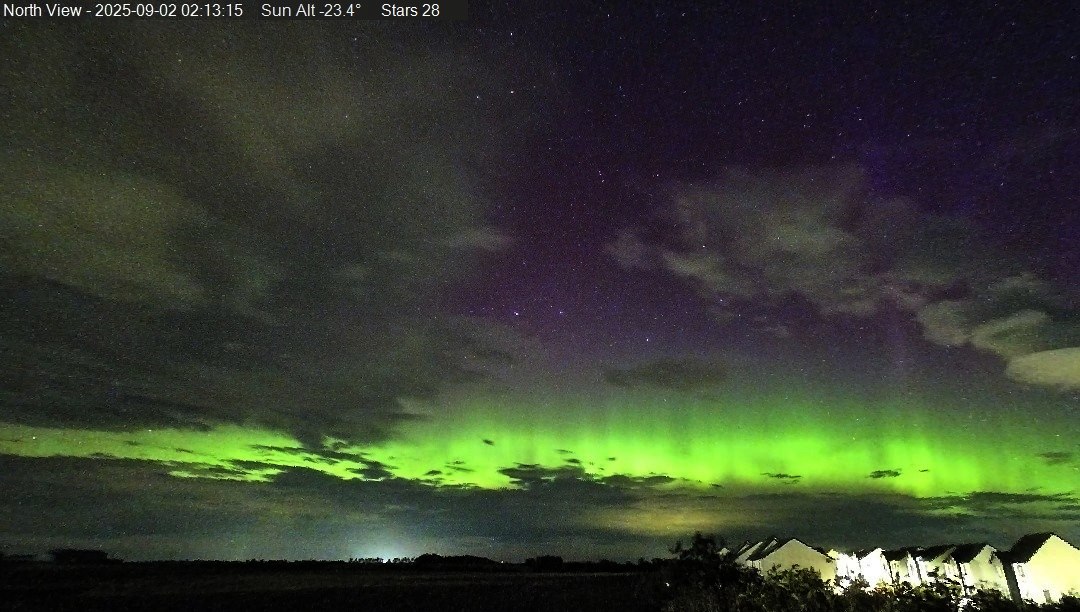

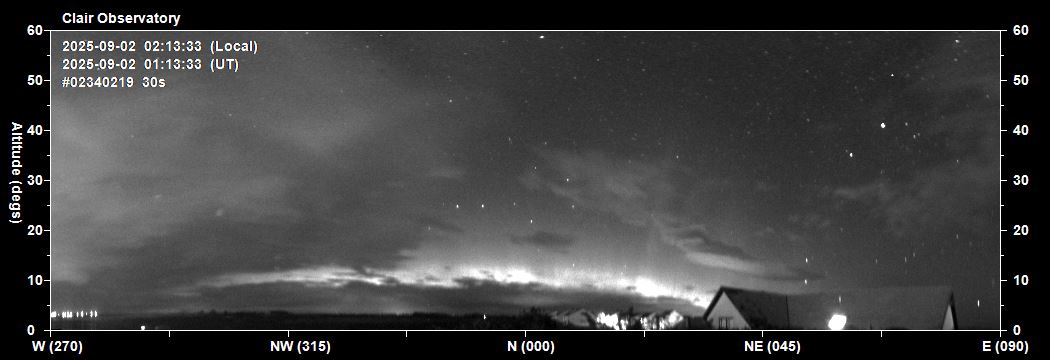

2025-09-02 01:13 UT (02:13 LT) Secondary peak in activity with intense green aurora

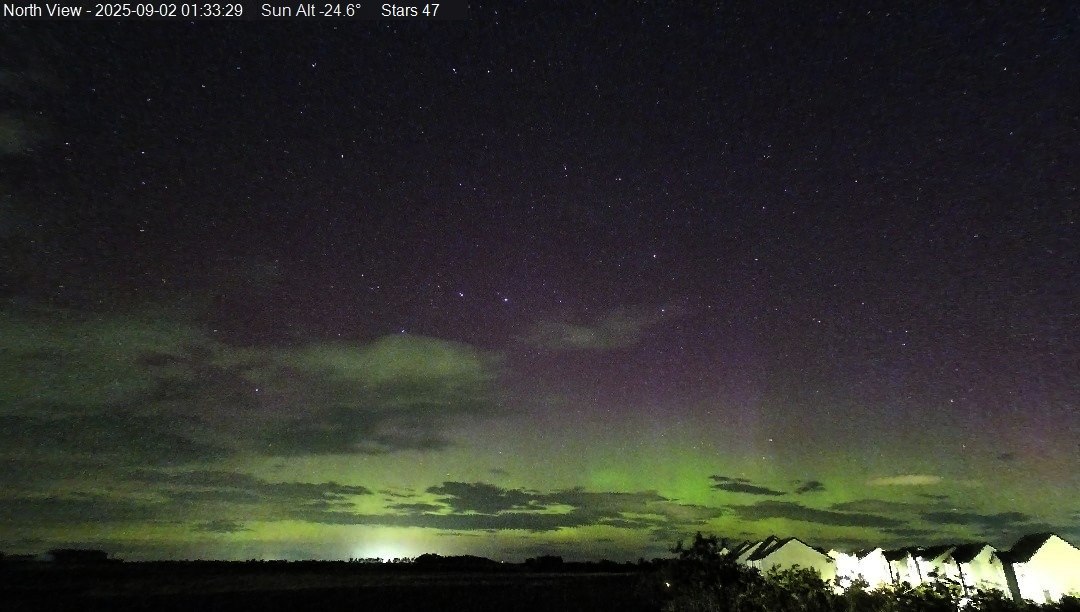

2025-09-02 01:29 UT (02:29 LT) Intense green aurora gradually being hidden by cloud

15s frames taken with Tapo C325WB Colour Camera vs 30s wider-field exposures taken with Oculus All Sky Camera

Back to Top

 Videos

Back to Top

Magnetometer Plots

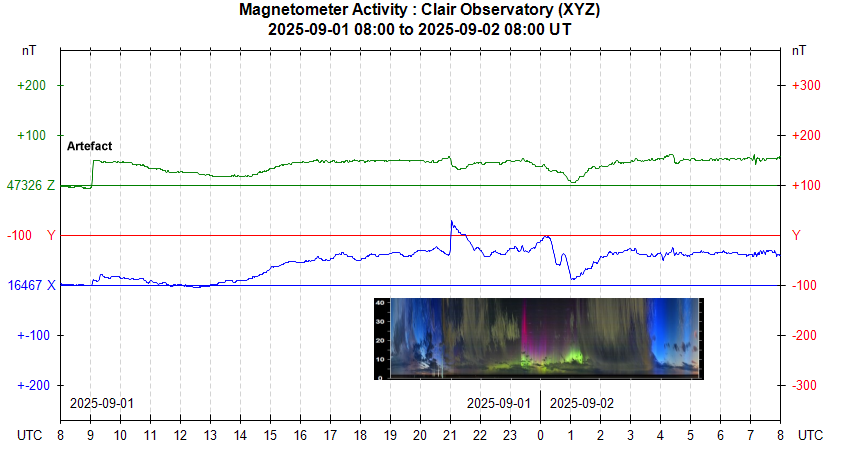

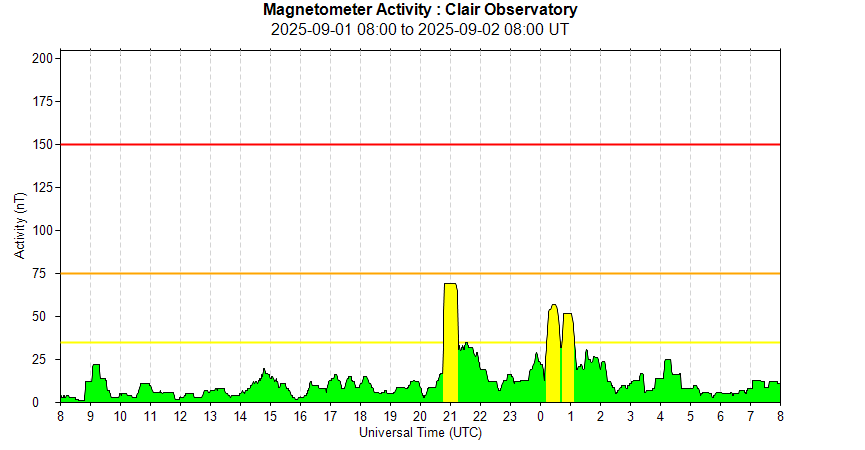

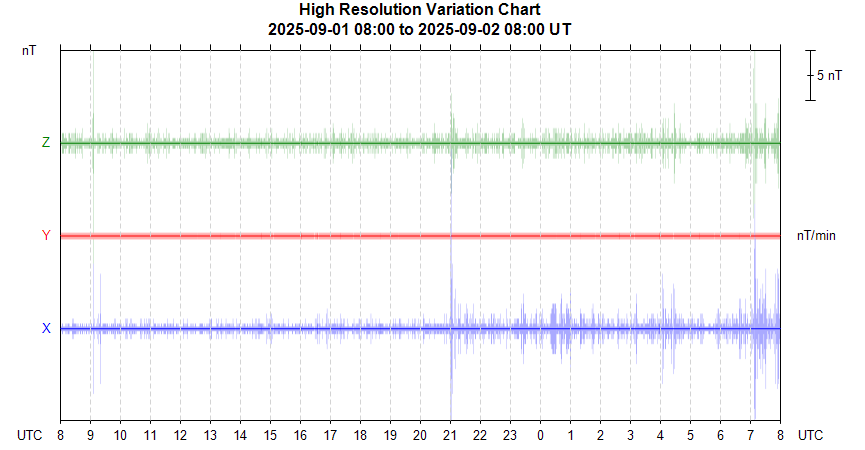

Magnetometer Plots from Observatory's Geomagnetic Station

Sumburgh data (sum) from SAMNet UK/AuroraWatch UK Solund (sol) & Karmoy (kar) data from TGO (Tromsø Geophysical Observatory) Brorfelde (bfe) data from DTU Space (Technical University of Denmark)

Back to Top

Magnetometer Stack Plots (for reference)

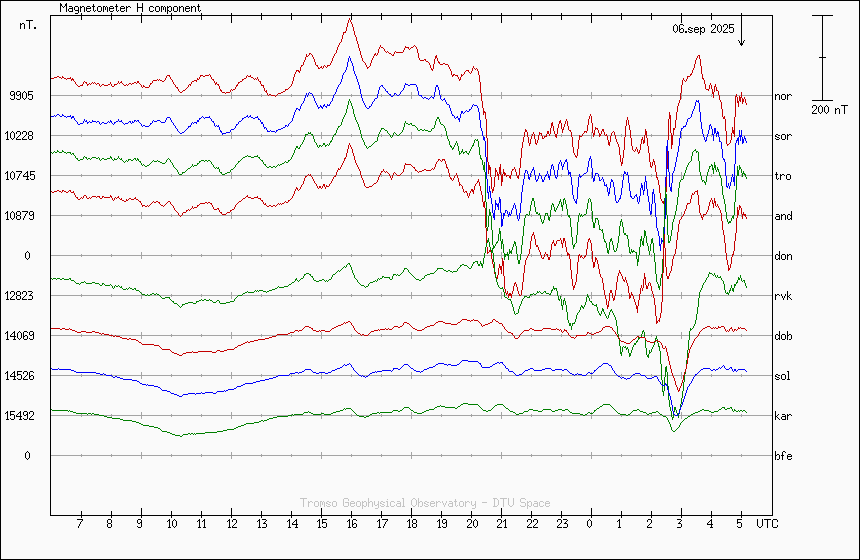

Magnetometer Stack Plots from Scandinavia (ordered by latitude) H Component - 2025-09-05 / 2025-09-06 Activity from 20:30 to 05:00 UT with major peak in activity at 02:30 to 03:30 UT Note: Geomagnetometer activity at rvk (Rorvik, 64.95N), dob (Dombas, 62.07N), sol (Solund, 61.08N) and kar (Karmoy, 59.21N) stations are used as indicators for potential auroral activity that may be visible from my Observatory situated at latitude 57.32N  (Map of Stations)

Graphed using 'make your own graph' facilities at  https://flux.phys.uit.no/compose/   (Tromsø Geophysical Observatory  ) Original data from Tromsø Geophysical Observatory (TGO), DTU Space (Technical University of Denmark) and Finnish Meteorological Institute (FMI) Data also displayed on SpaceWeatherLive's Europe Stackplot at  http://www.spaceweatherlive.com/en/auroral-activity/magnetometers).

Back to Top

Planetary K-Index Plot (for reference)

Estimated 3 hour Planetary K-Index (NOAA)  (from http://services.swpc.noaa.gov) Planetary-k-index_2025-09-01/ 2025-09-02 Not captured

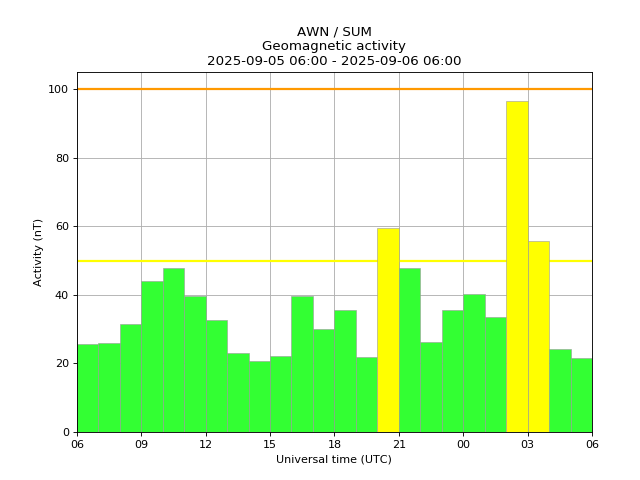

SAMNET's magnetometer at Sumburgh, Shetland  (Chart Explanation)  - Geomagnetic activity on the night 2025-09-05 / 2025-09-06 Plot shows elevated activity from 20:00 to 04:00 UT with peak at 02:00 to 03:00 UT.

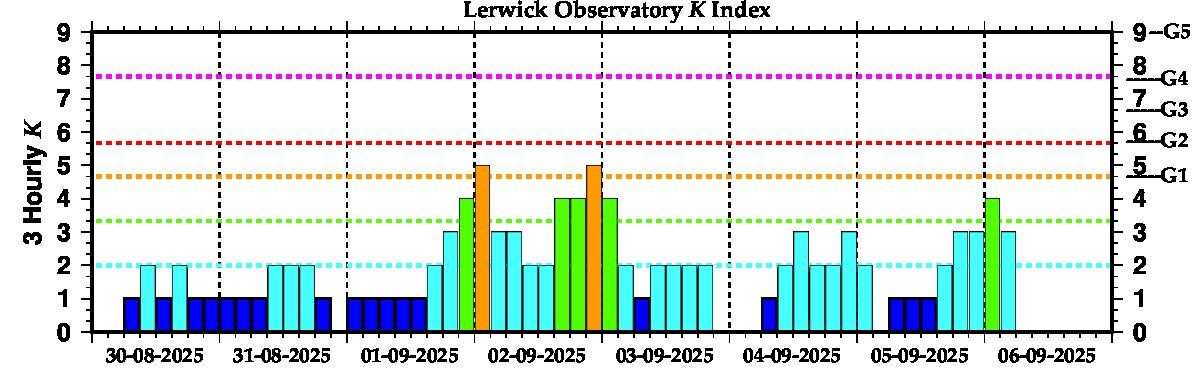

8-day Lerwick Observatory K Index Showing max K4 on the night 2025-09-05 / 2025-09-06

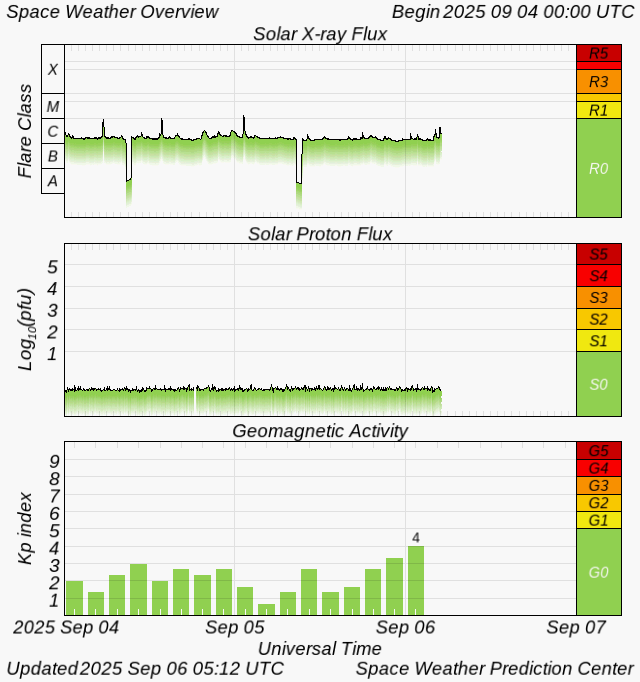

Planetary K-Index and other information (Space Weather Prediction Centre) shows maximum Kp4+ during the night 2025-09-05 / 2025-09-06

Back to Top

Aurora Forecast, NOAA/Ovation (for reference)

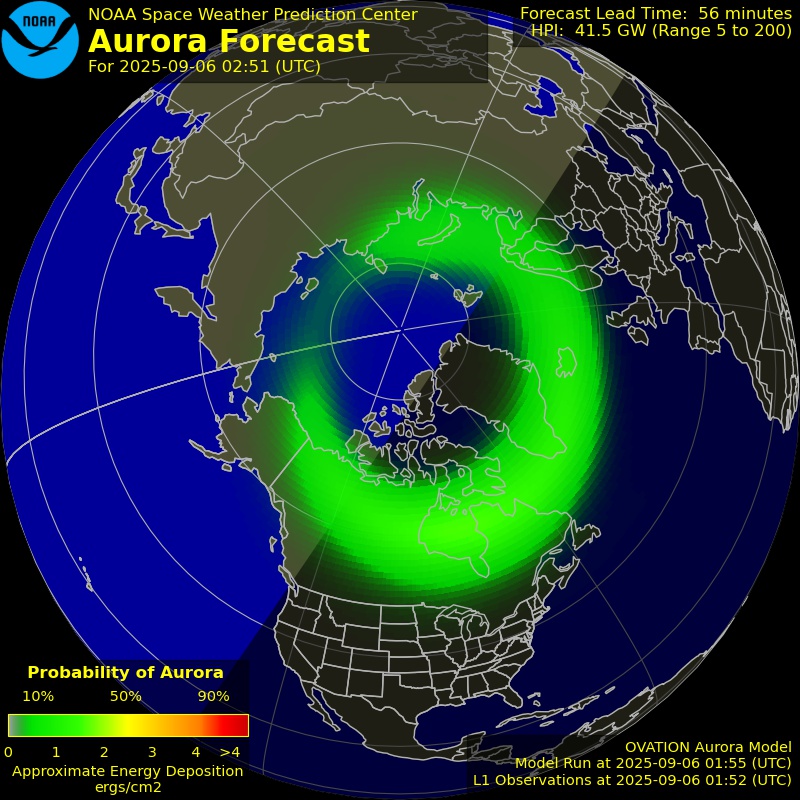

Aurora Forecast for 2025-09-06 02:51 UT (03:51 LT) (From Space Weather Prediction Centre,  http://www.swpc.noaa.gov )
